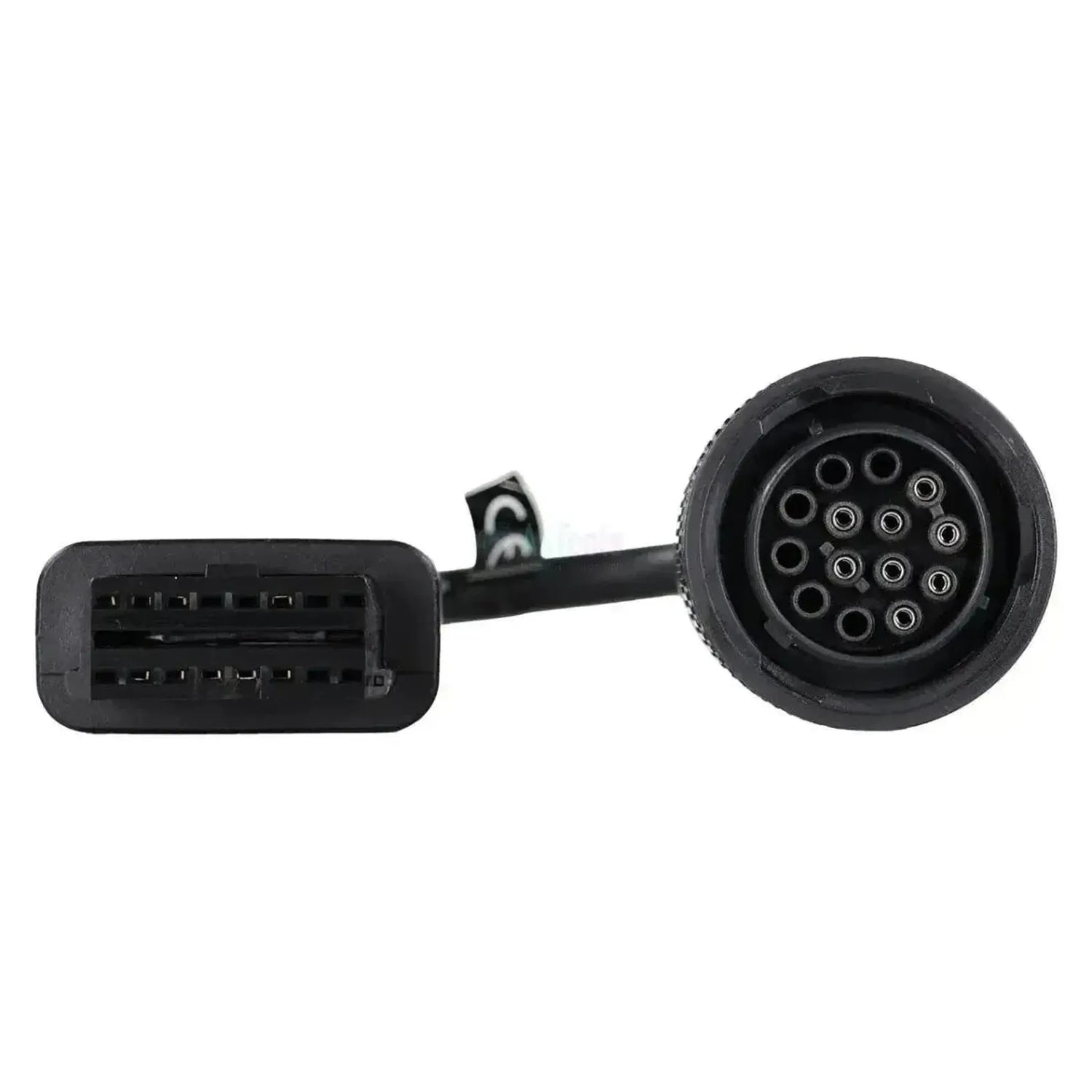

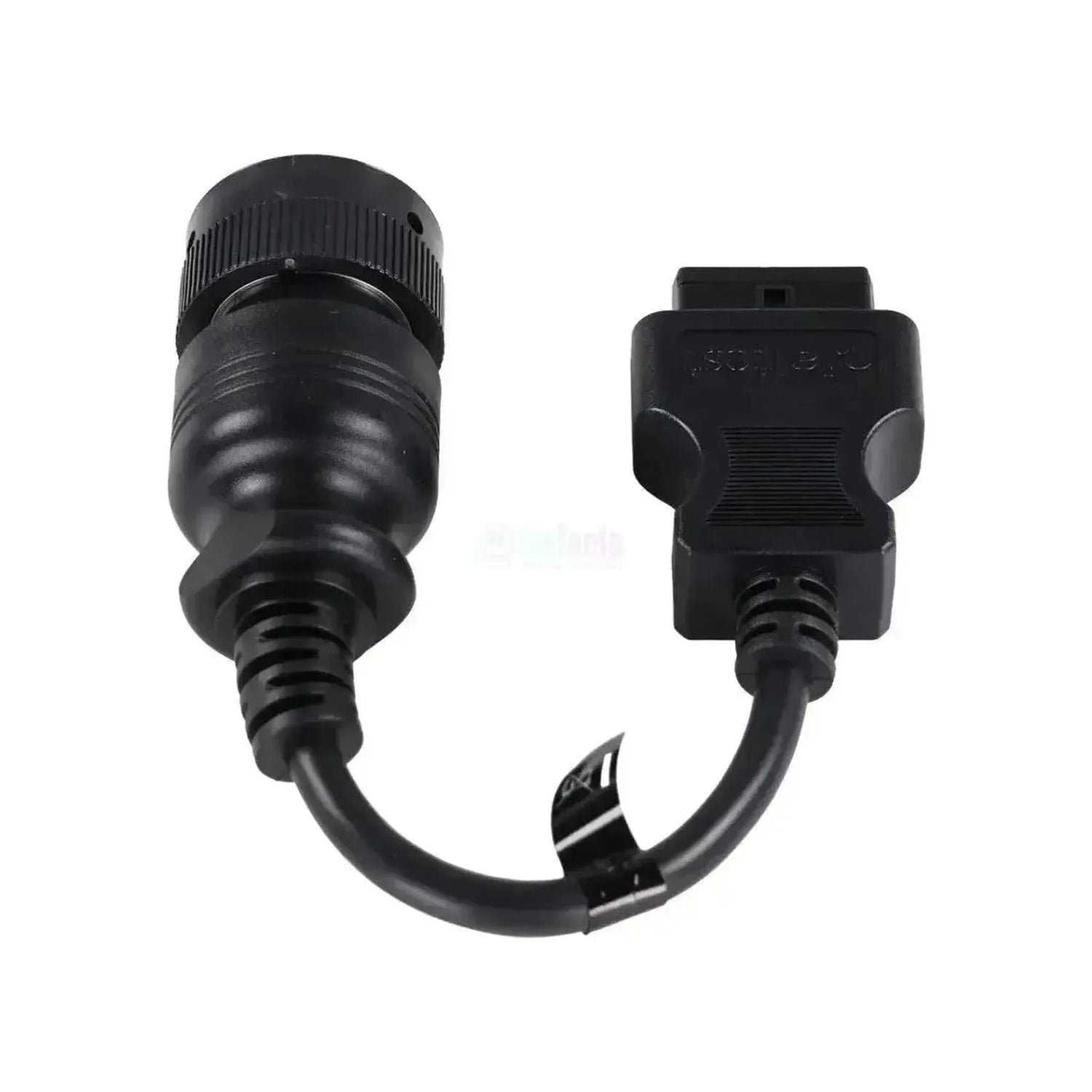

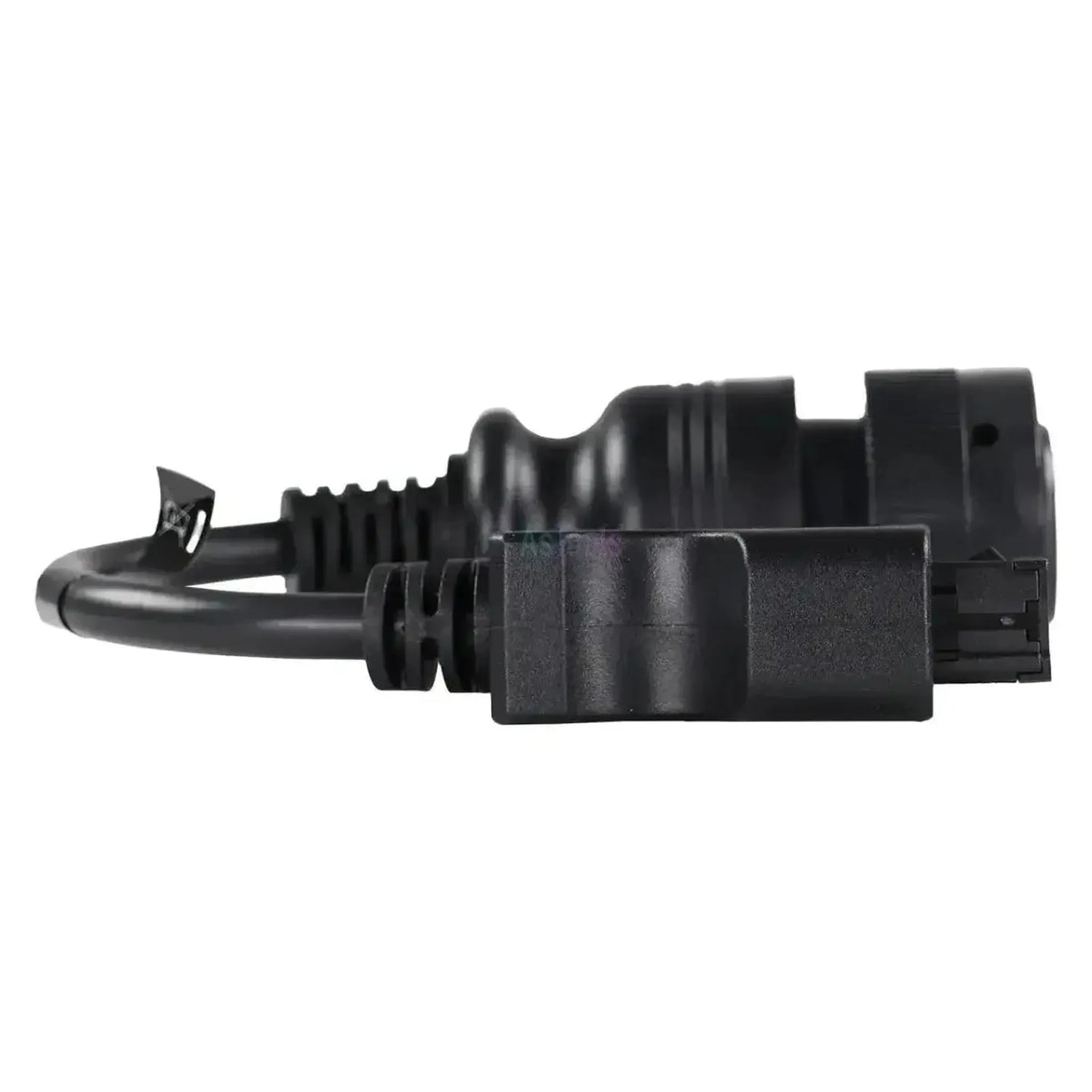

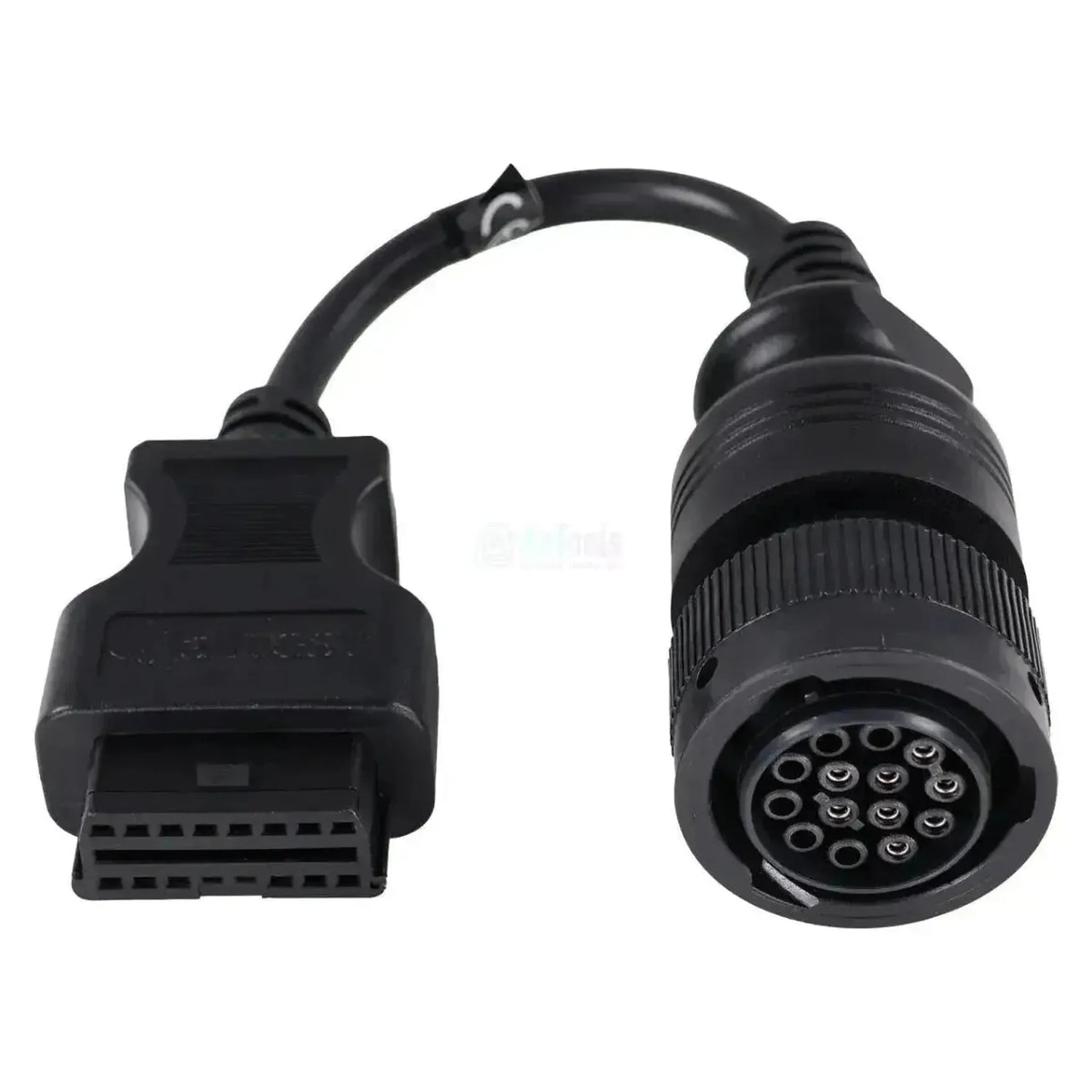

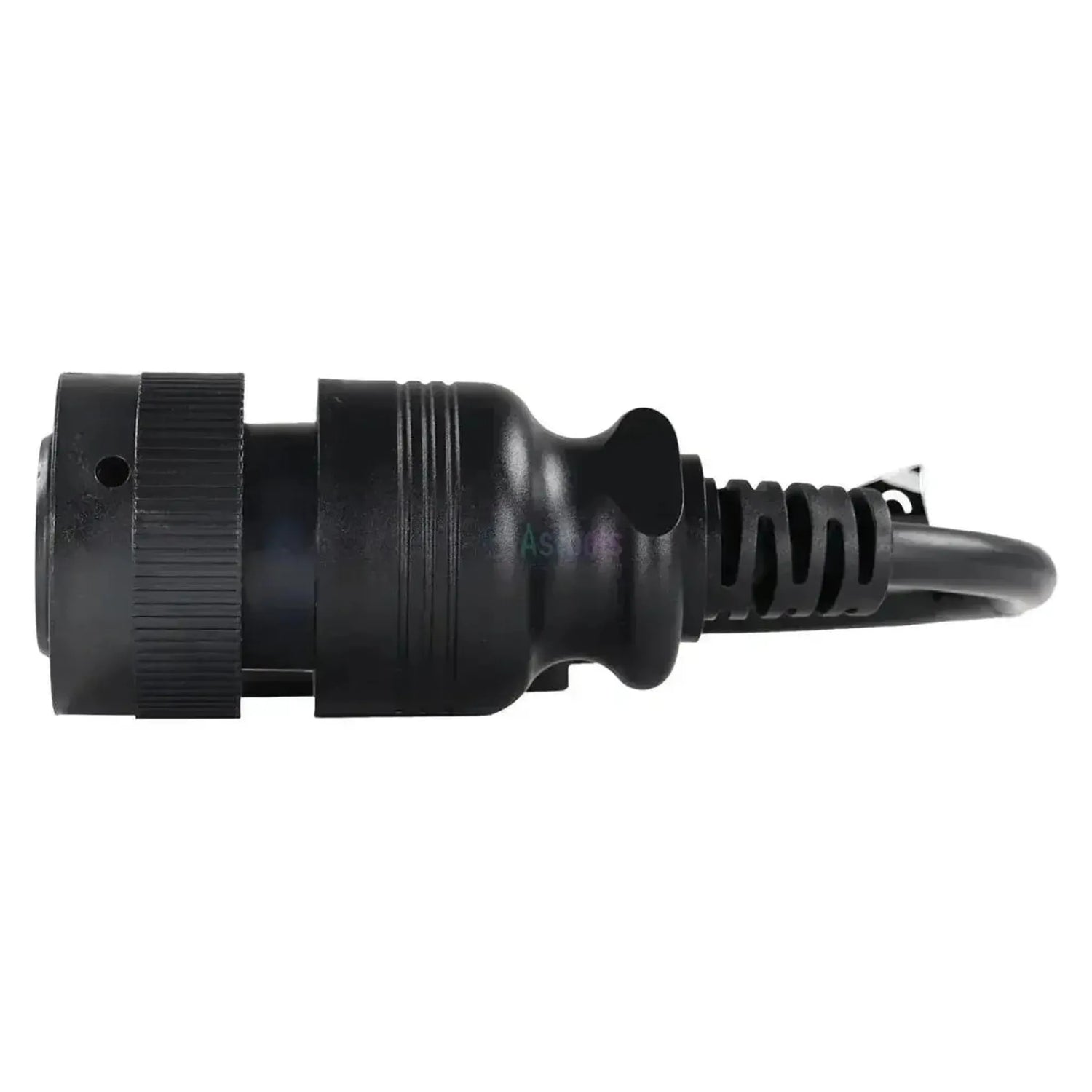

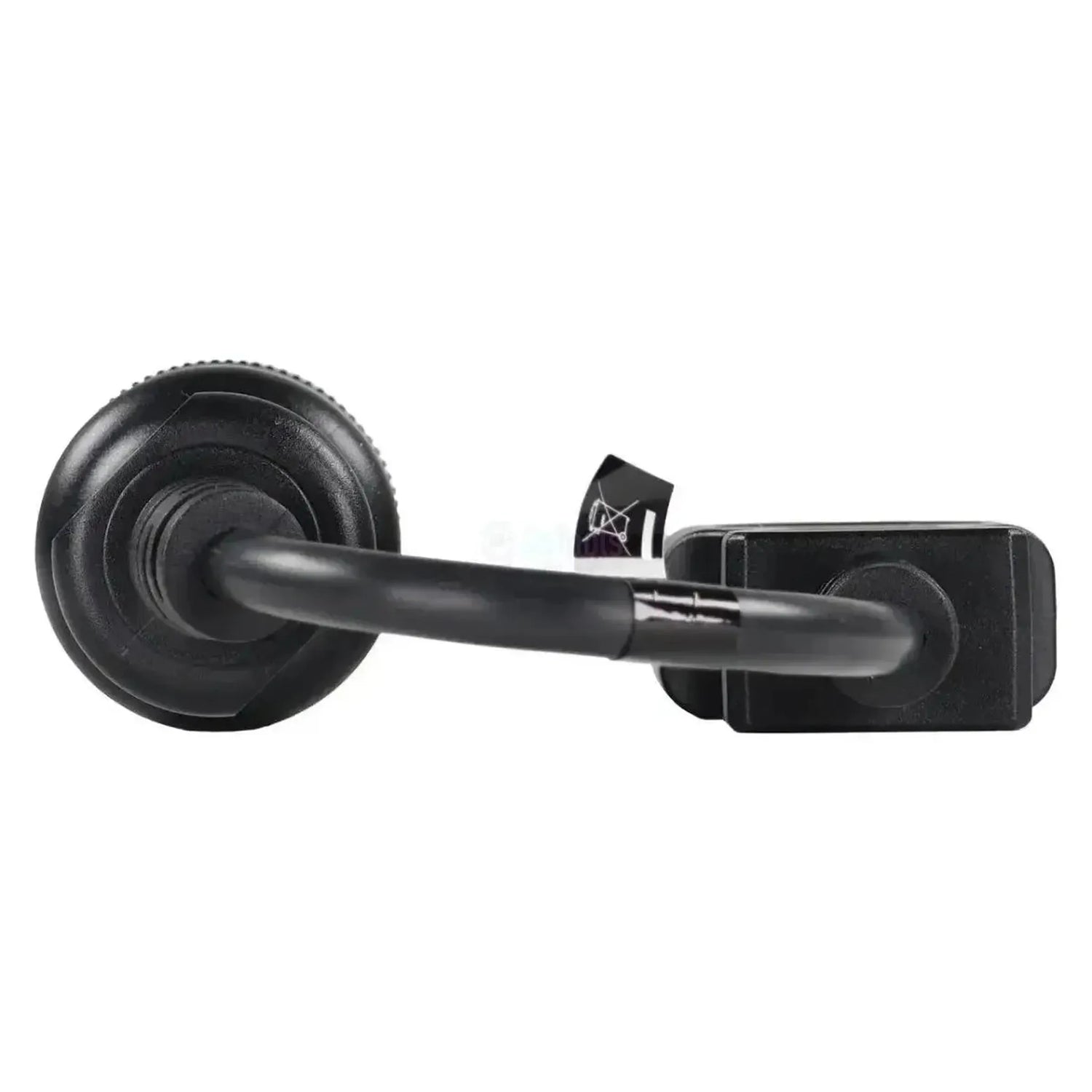

The Jaltest JDC533A is the adapter cable for Caterpillar featuring the manufacturer's proprietary 14-pin diagnostic connector: on the engine side you'll find this connector, while the interface side connects to the 16-pin OBD2 of your Jaltest diagnostic cable. The 14-pin plug is Caterpillar's own standard, located in the cab or at the engine, making the same cable compatible with equipment from various manufacturers that use a CAT engine.
Through this connection, your diagnostic equipment accesses the Caterpillar Data Link (CDL), the manufacturer's proprietary data bus where all diagnostic functions operate: fault codes, live data, and ECU information. The cable also covers the legacy SAE J1708 protocol found on models like the 3406, plus the EMCP controller for power generation in stationary applications. The open J1939 protocol provides no functionality on these engines, so all diagnostic capability runs through CDL. This cable falls under the Jaltest OHW (Off-Highway machines) category.
KEY BENEFITS
IMPORTANT NOTES
Applications and Functions
Using this connection, you access the Caterpillar engine control units with Jaltest software. Jaltest identifies them by data line.
Control Units You Can Access
- CDL, Engine Control Module: The Caterpillar Data Link. Read fault codes, live data, and ECU information here.
- J1939, Engine Control Module: The open bus protocol. With Caterpillar engines, no functions are covered in the coverage table.
- SAE J1708, Engine Management System, Unit Injector System: The legacy serial line, found on the 3406 among others.
- EMCP, Electric power generation: The control unit for power generation in stationary installations.
What You Can Do
- Read and clear fault codes: Access the control unit's fault memory with fault descriptions, and clear it after repair.
- View live data: Monitor current sensor values on the control unit, with the ability to set alarm thresholds for out-of-range values.
- The EMCP control unit of a generator set also provides fault codes, live data, and ECU information.
- Not covered with Caterpillar engines: Maintenance intervals, component control, and parameters.
Compatible Vehicles and Applications
The connector type determines compatibility, not the machine. Caterpillar engines are installed by many equipment manufacturers; the engine series determines compatibility, not the machine brand.
Caterpillar:
- 3000 series: 3054, 3054B, 3056, 3126, 3126B, 3176, 3176C, 3196, 3406, 3406E, 3408, 3408E, 3412, 3412E, and 3456
- 3500 series: 3508, 3508B, 3512, 3512B, 3512C, 3512E, 3516 and 3516B
- 3600 series: 3606, 3608, 3612 and 3616
- C series: C-series engines from C1.1 through C9.3B
- G series gas engines: From G3304 through G3616, plus CG137 and CG170-06
- Built into construction equipment, agricultural machinery, material handling equipment and generator sets
Package contents
- 1x Jaltest (JDC533A) | Caterpillar 14-pin OBD - 16-pin OBD2 Adapter Cable | Internal Combustion Engine
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC533A |
| Type | Adapter cable |
| Application | Caterpillar engines and machines with 14-pin diagnostic connector |
| Engine-side connector | 14-pin OBD |
| Interface-side connector | 16-pin OBD2 |
| Control units | CDL, J1939 and SAE J1708 (engine), EMCP (power generation) |
| Segment | Internal combustion engine |
| Jaltest module | Jaltest OHW (Off-Highway machines) |
| Part of cable set | OHW basic cable set (70002030) |
| Required to use | Jaltest Link with valid software license |
