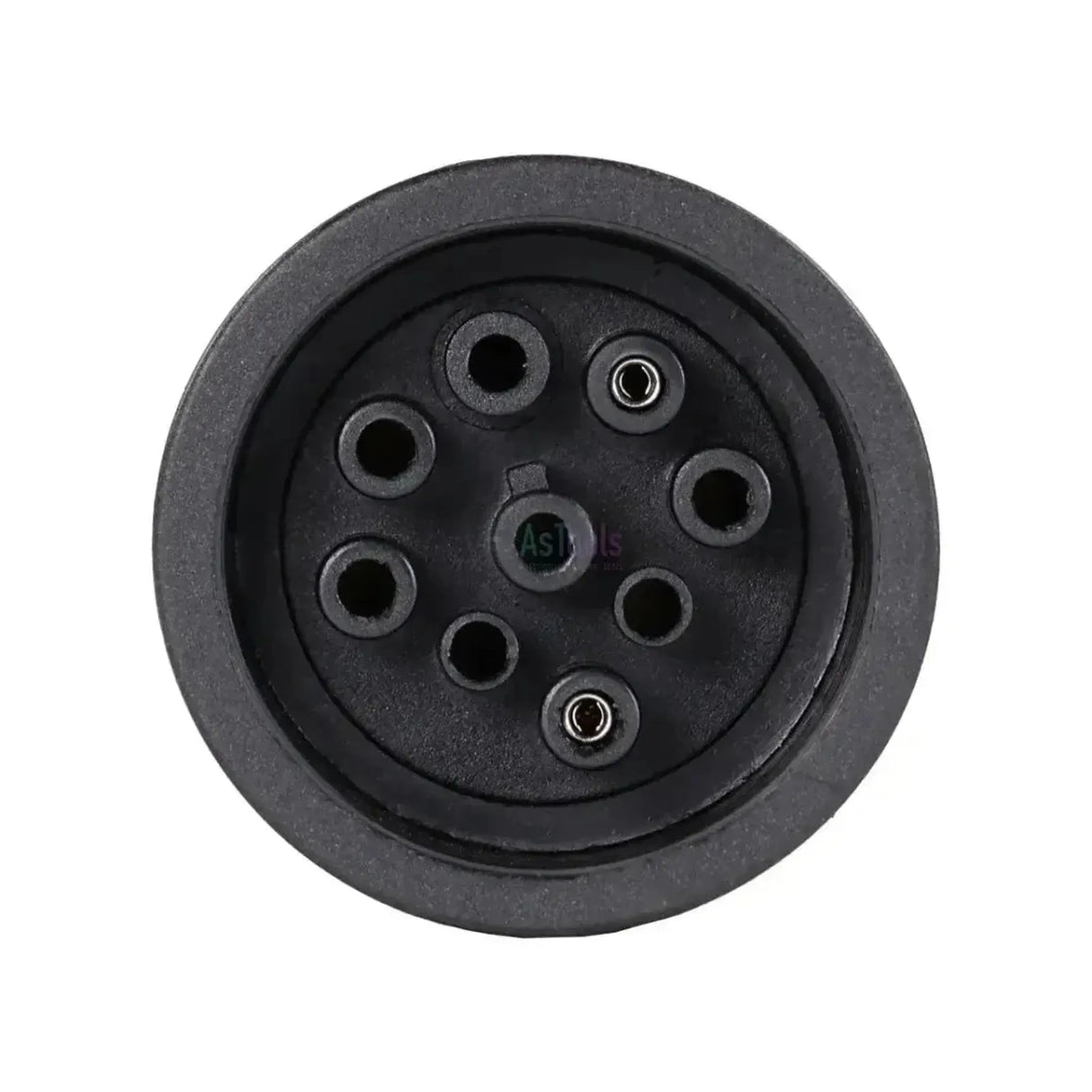

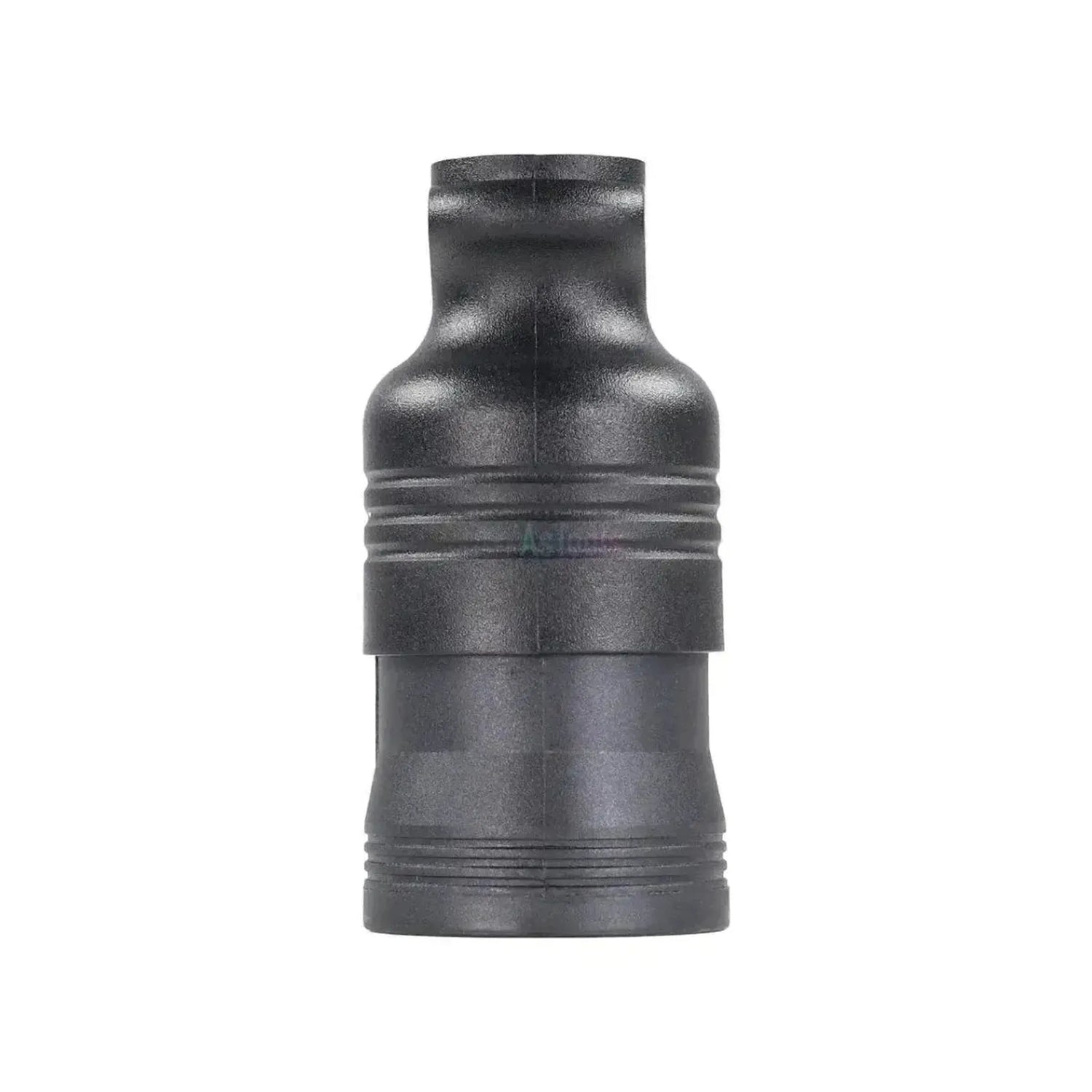

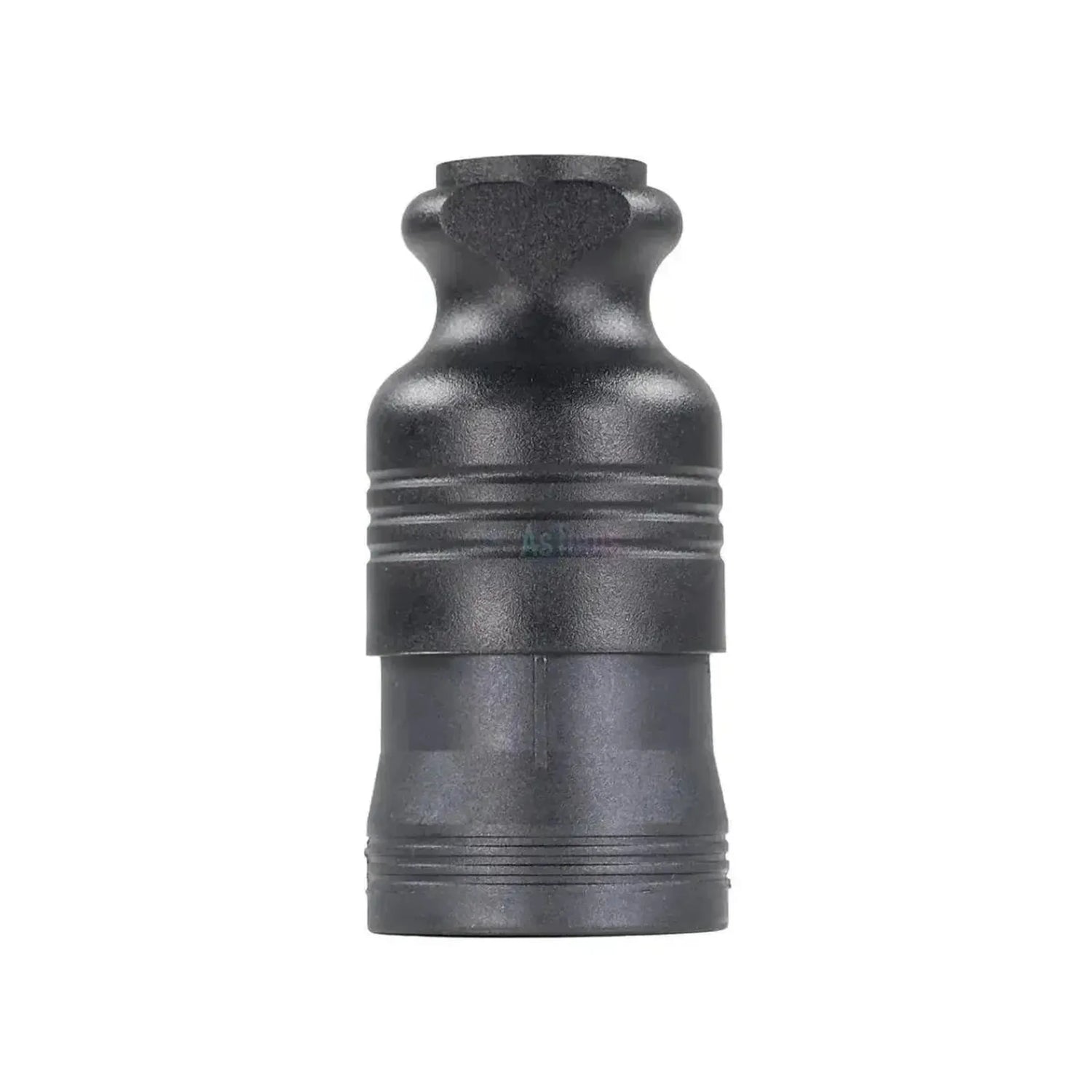

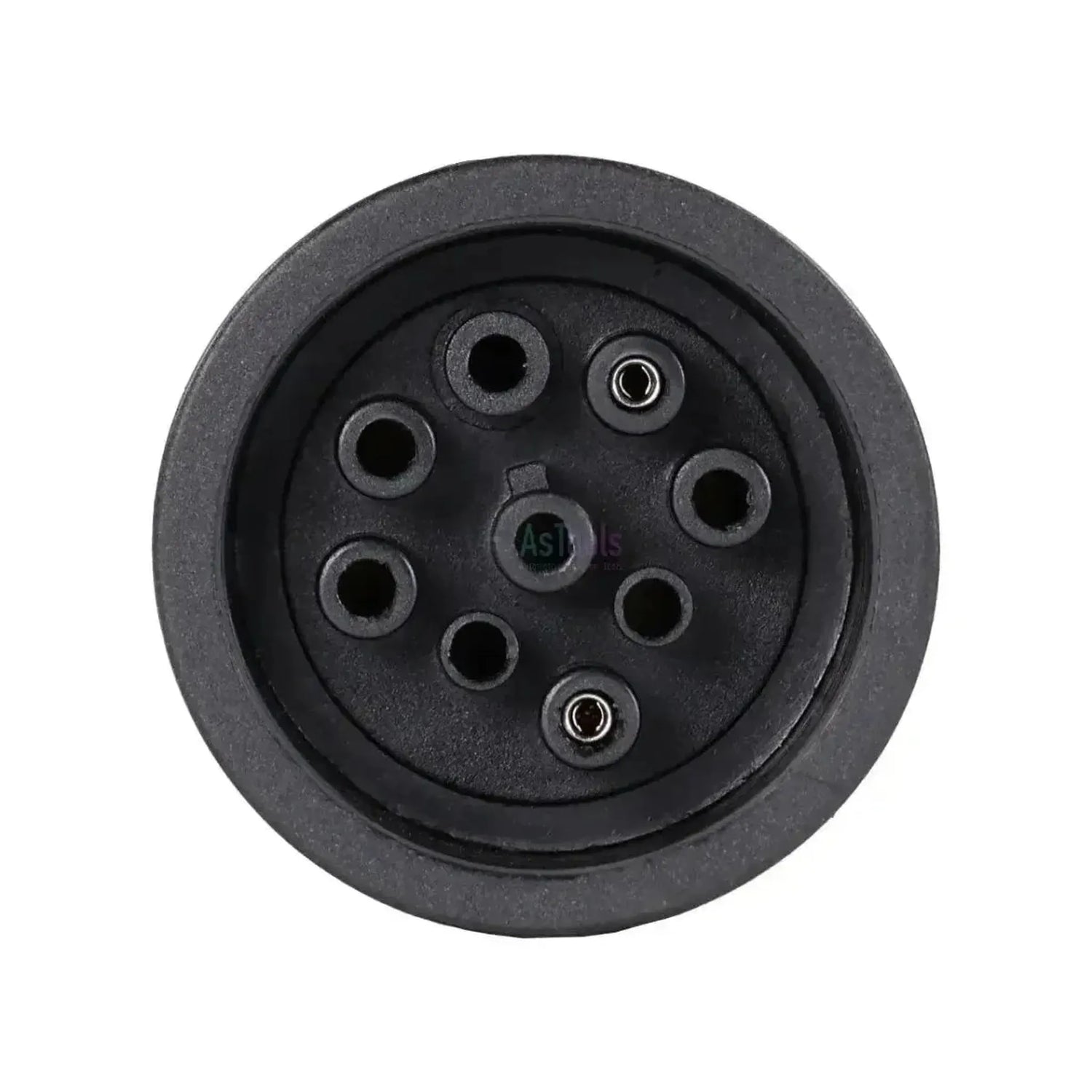

The Jaltest JDC511A is the switch adapter for the 9-pin Deutsch-diagnostic connector on machines from the CNH Group, including New Holland and Case IH; the adapter connects that connector to the 9-pin Deutsch input on your Jaltest diagnostic cable. Between both sides is a switch that lets you select the communication line. CNH Group machines route multiple bus lines to the same diagnostic connector.
Through this connection, your diagnostic equipment accesses the selected bus line and the control units behind it. This way you reach the different systems in the machine from a single connection point, without rewiring the machine; available functions vary by machine, system and model year. The cable falls under Jaltest AGV (agricultural vehicles).
KEY BENEFITS
IMPORTANT NOTES
Applications and features
Using this switch adapter, you can access the control units on the selected communication line with Jaltest software.
Control units you can access
- Control units on the selected bus line: The switch position determines which line is connected and therefore which systems the software detects.
- Varies by machine: The supported models and systems depend on your active Jaltest license and software version.
What you can do
- System selection: Use the switch to select the correct communication line.
- Read and clear fault codes: Per connected system.
- Live data and actuator tests: View measurements and control components.
- Maintenance and calibration: System-specific procedures, depending on coverage.
Compatible vehicles and applications
The connection type is what matters, not the model. This adapter is designed for CNH Group agricultural machinery with a 9-pin Deutsch diagnostic connector. The supported models and systems depend on your active Jaltest license and software version.
CNH Group:
- New Holland with 9-pin Deutsch diagnostic connector
- Case IH with 9-pin Deutsch diagnostic connector
Package contents
- 1x Jaltest (JDC511A) | CNH Group Switch 9-pin Deutsch Adapter | Agricultural Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |

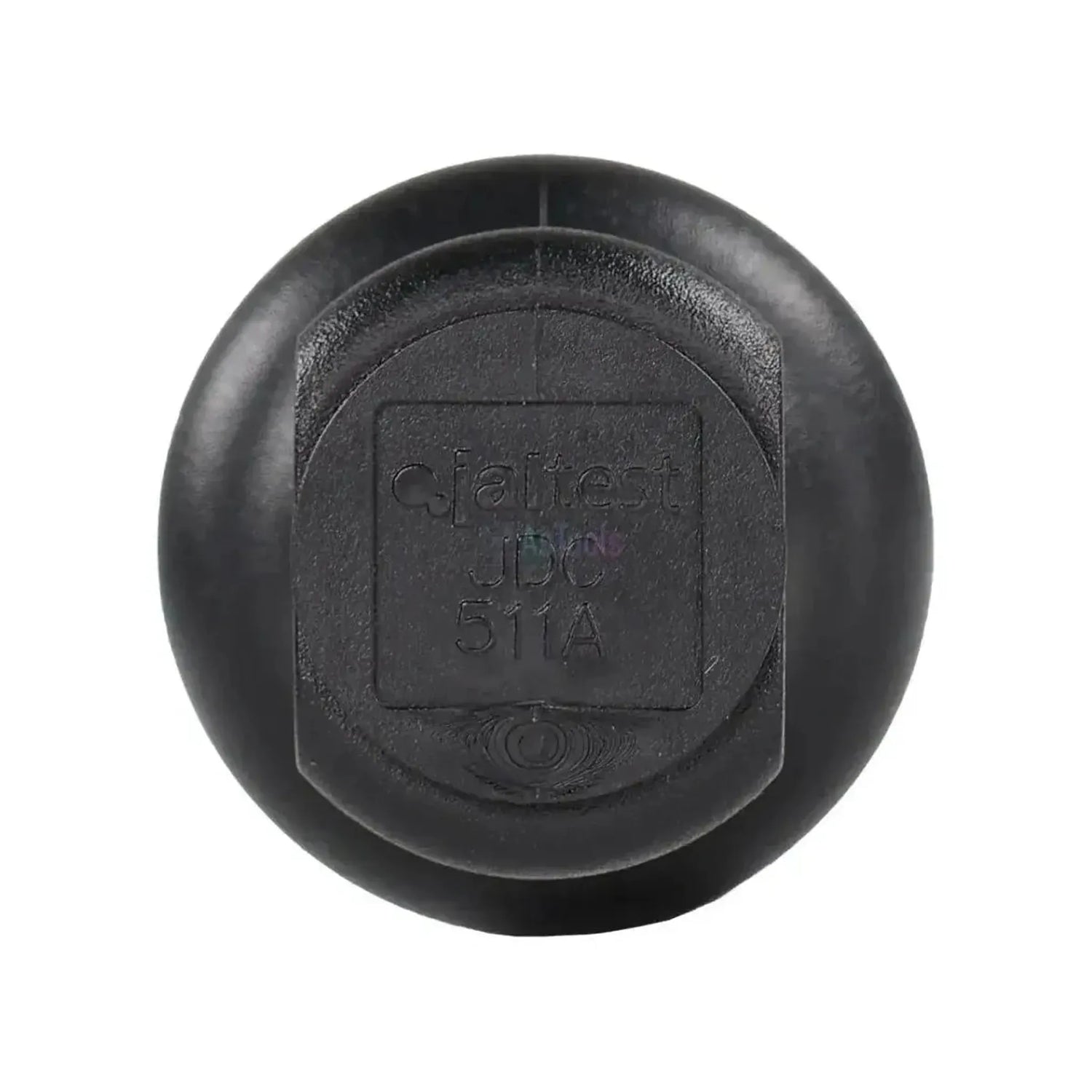

| Reference number | JDC511A |
| Type | Switch adapter |
| Application | CNH Group (New Holland, Case IH) |
| Vehicle-side connection | 9-pin Deutsch |
| Interface-side connection | 9-pin Deutsch (to Jaltest diagnostic cable) |
| Control units | The control units on the selected communication line; varies by machine, system and model year |
| Segment | Agricultural vehicle |
| Jaltest module | Jaltest AGV (agricultural vehicles) |
| Part of cable set | AGV cable set (70002003) |
| Required to use | Jaltest Link with valid software license |
