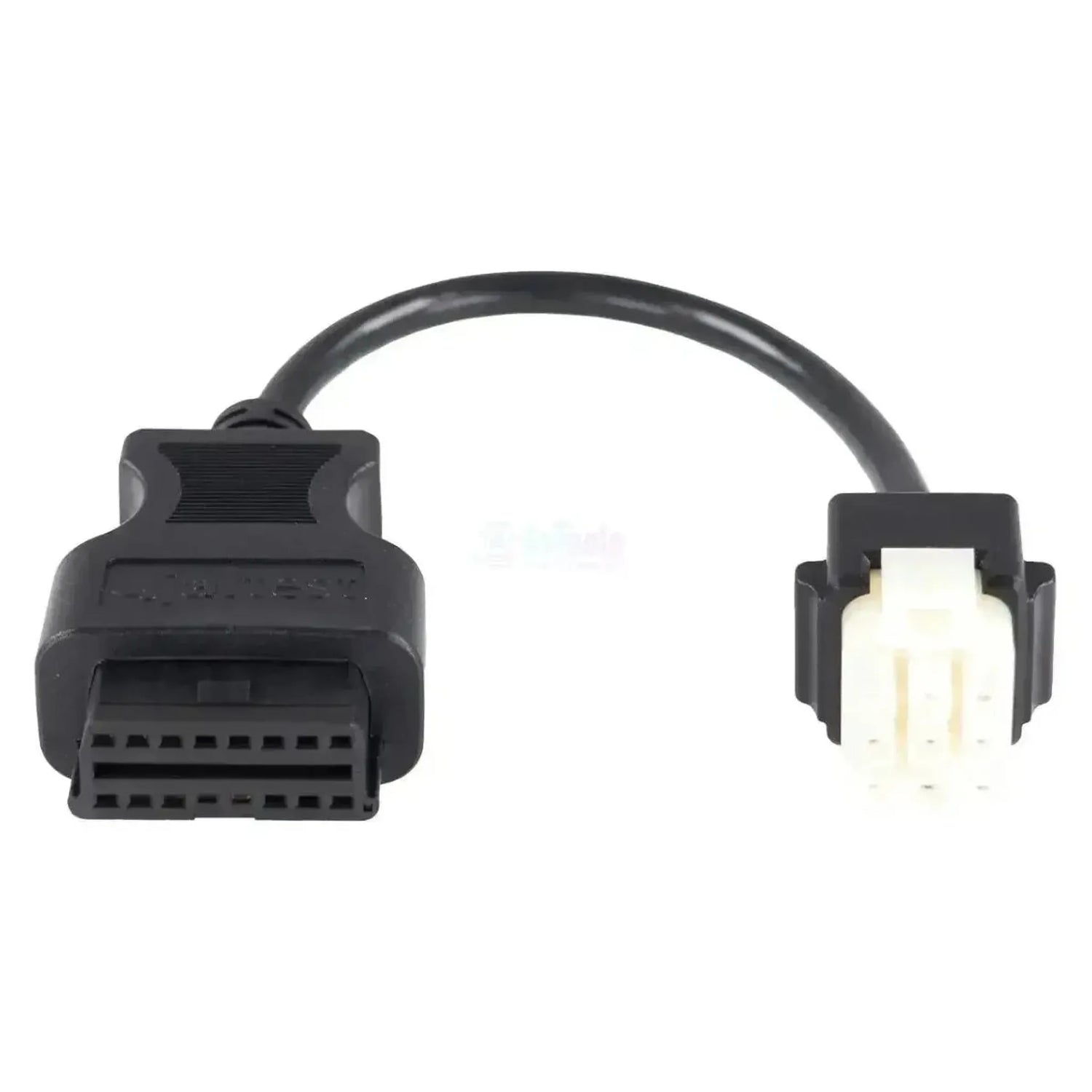

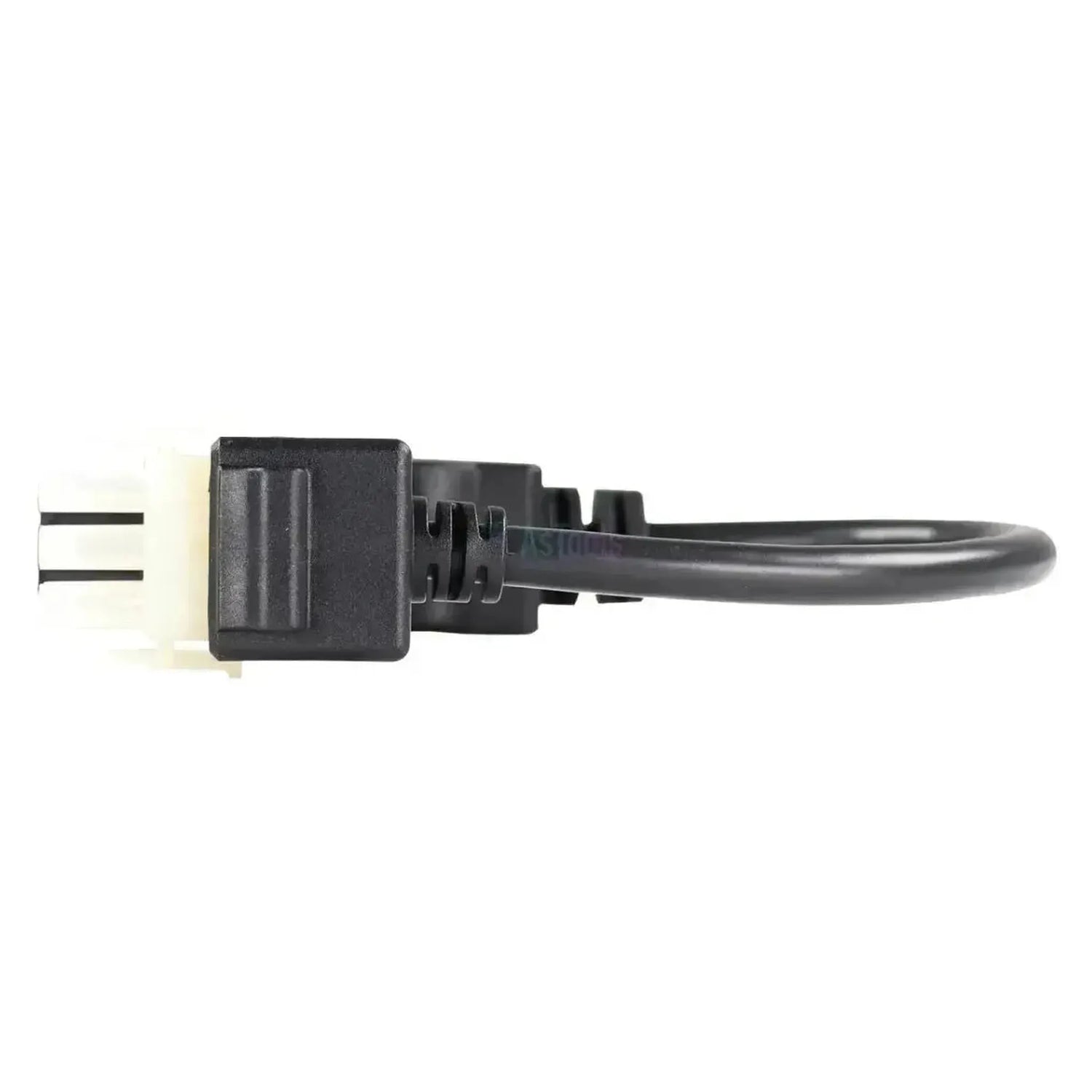

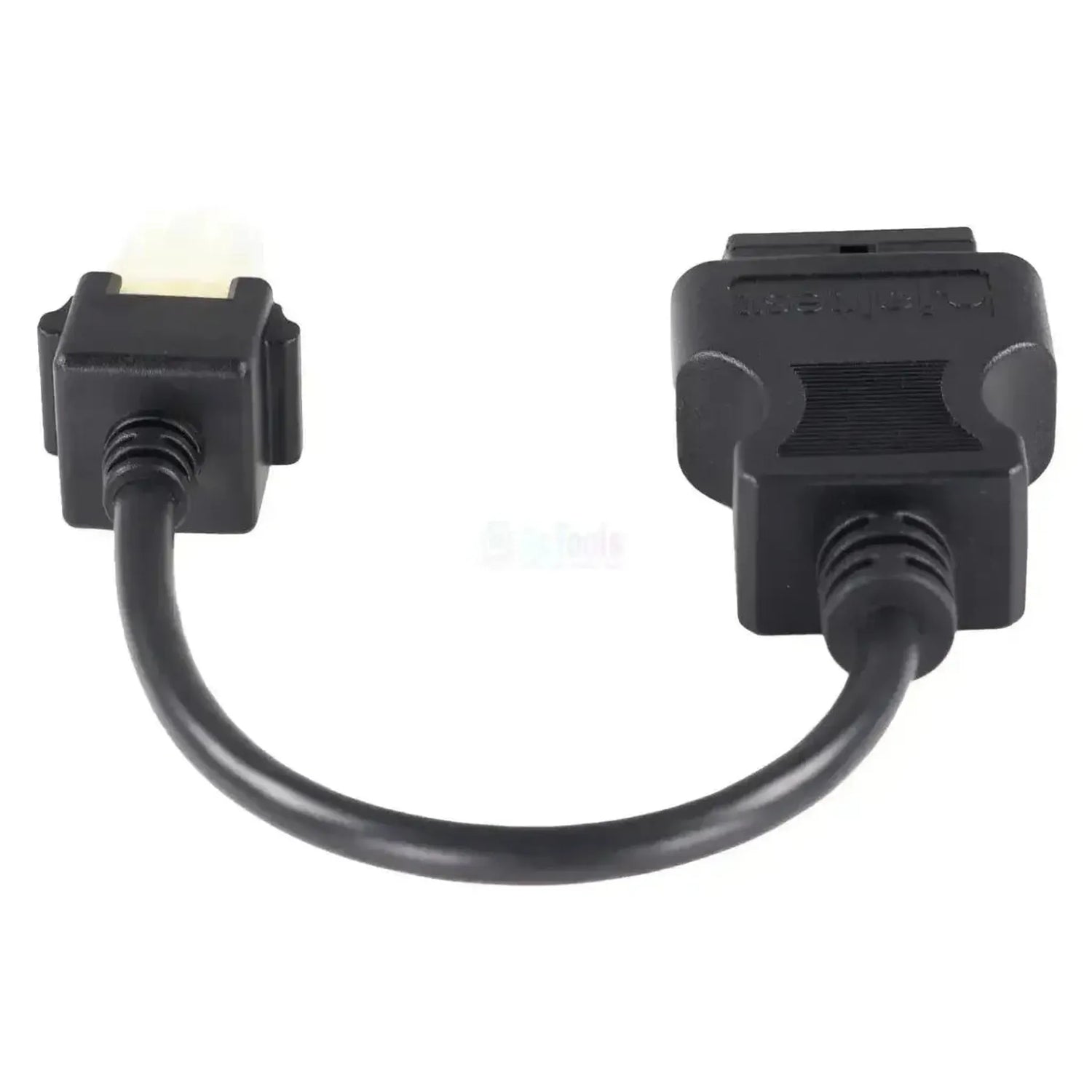

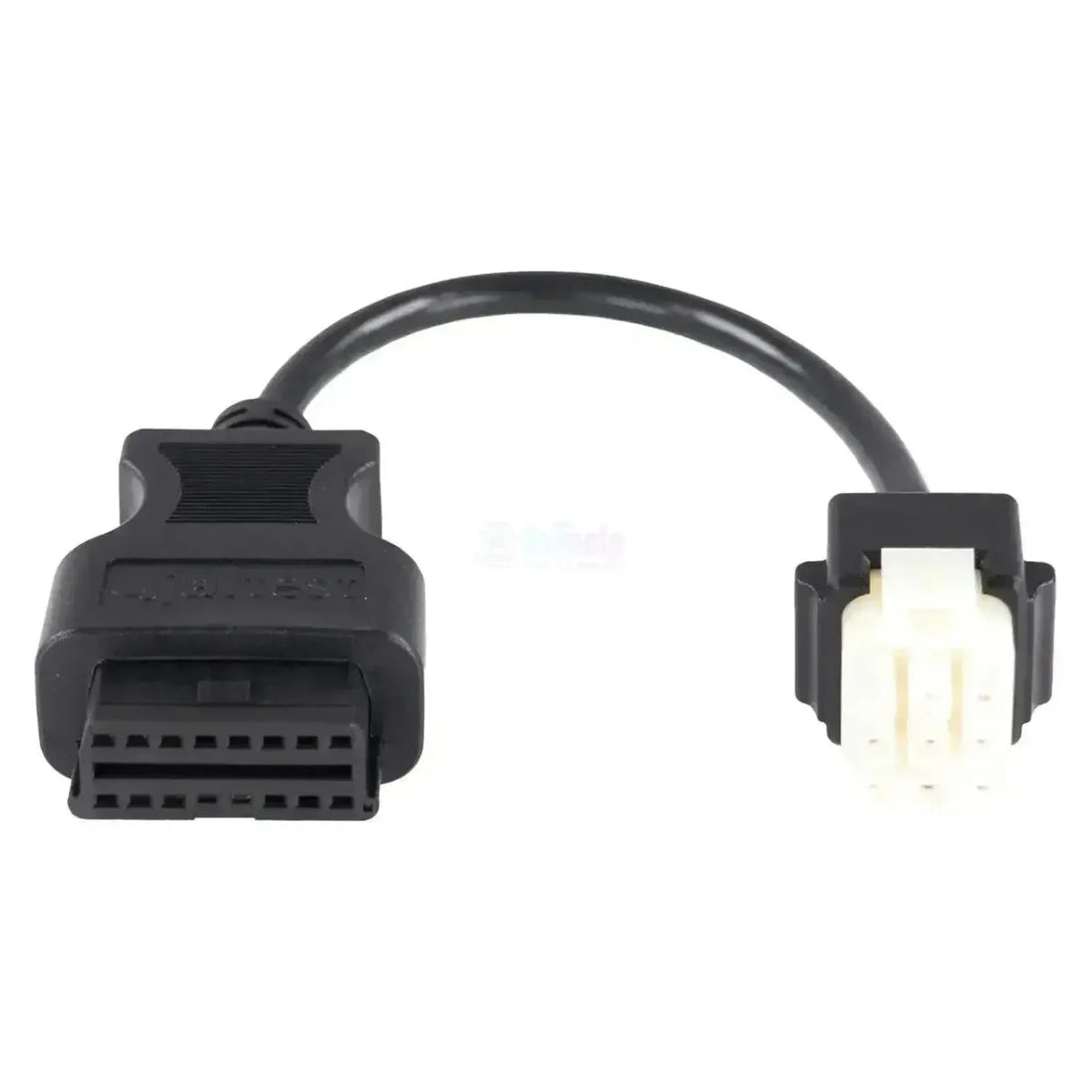

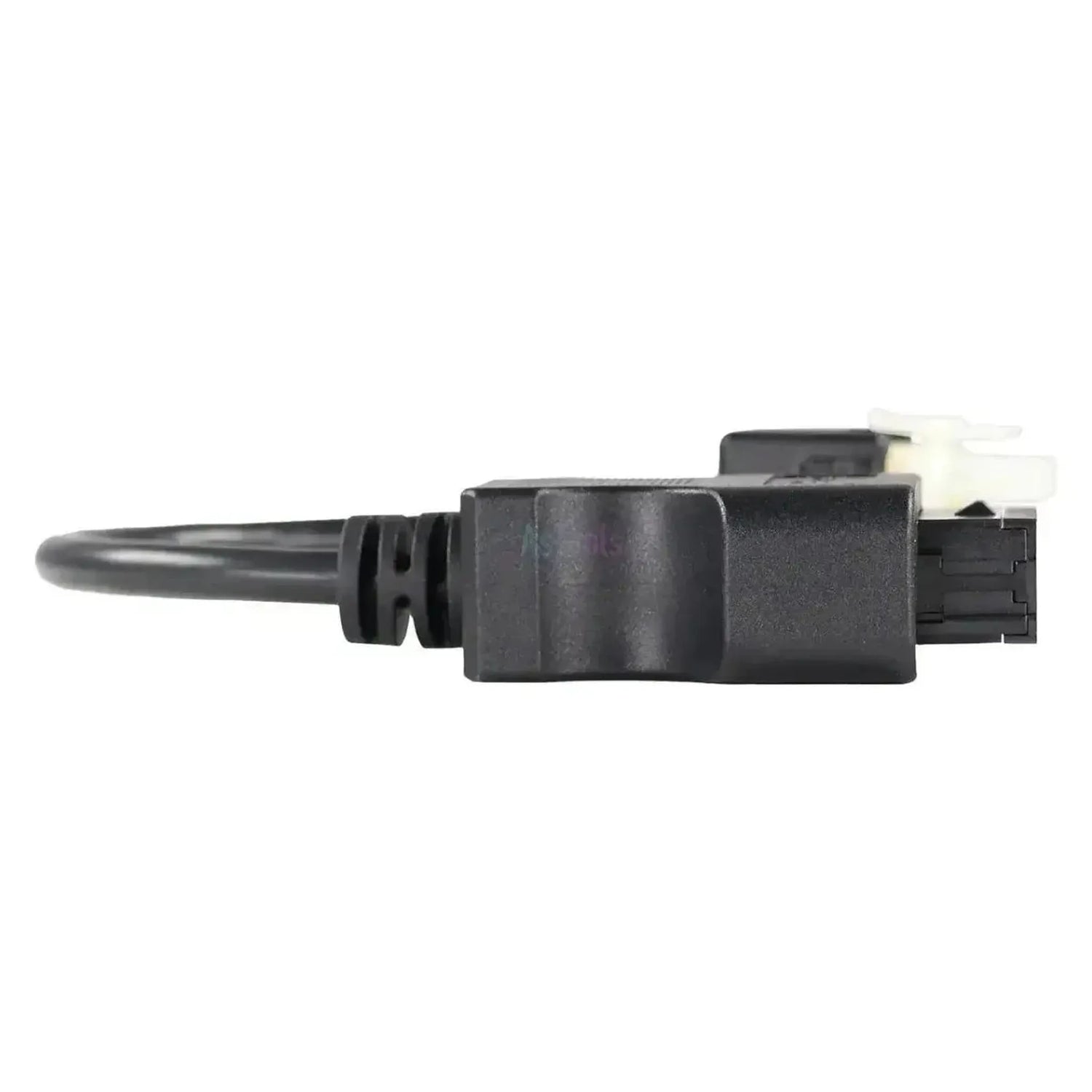

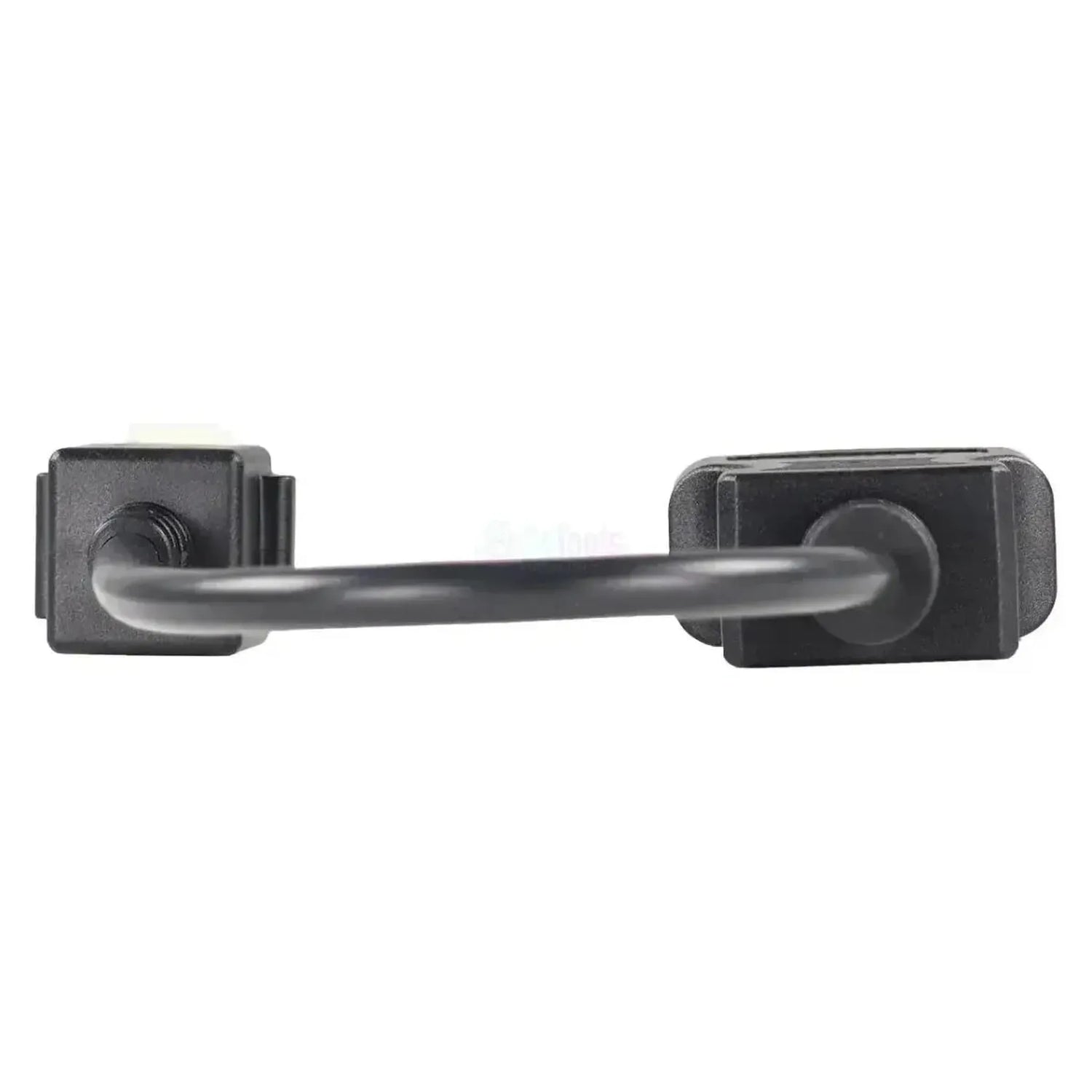

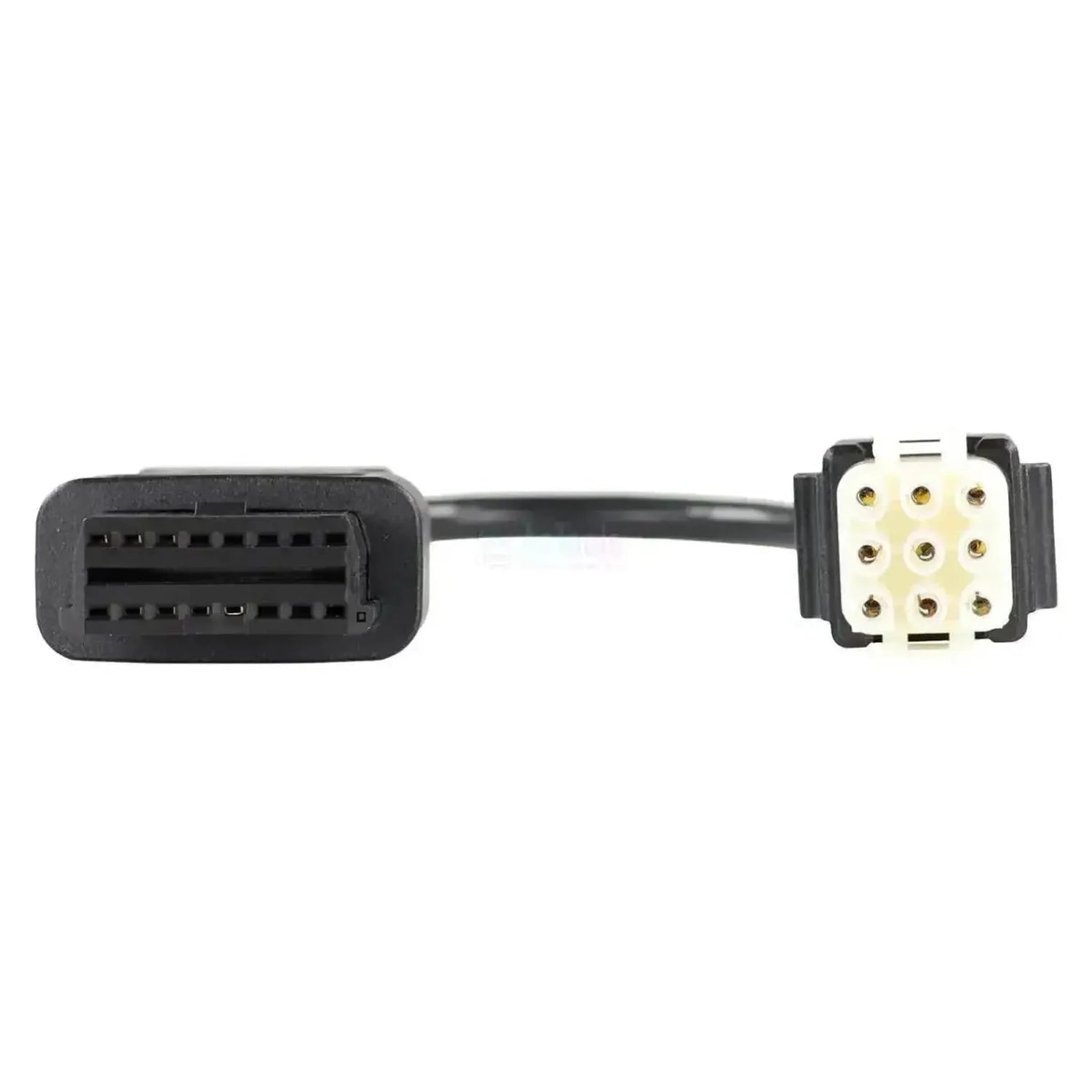

The Jaltest JDC307A is the adapter cable that connects the 9-pin Mate N-Lock diagnostic connector of the ZF Ecomat 4 bus automatic transmission to a standard 16-pin OBD2 interface. On the system side, you'll find the locking 9-pin Mate N-Lock connector, which sits on the transmission control unit of the gearbox itself rather than on the vehicle's OBD port; on the interface side is the 16-pin OBD2 connector of your Jaltest diagnostic cable.
Behind this single connector lies the transmission control of the ZF gearbox, which Jaltest covers under Ecomat 2/4, Automatic gearbox. Once connected, your diagnostic equipment gains access to fault codes, live data, and configuration settings of that control unit; with Ecomat 2/4, the coverage includes not only reading fault codes but also component actuation and parameter adjustment — broader than Ecomat 1 and EcoLife. Because the ZF control unit is what matters, not the chassis manufacturer, the transmission keeps its own diagnostic connector, even on buses with their own OBD port. This cable falls under Jaltest CV (commercial vehicles).
KEY BENEFITS
IMPORTANT NOTES
Applications and features
Through this connection, you access the ZF Ecomat transmission control unit with Jaltest software. Jaltest classifies ZF gearboxes under the ZF Transmissions coverage group.
Control units you can access
- Ecomat 2/4, Automatic gearbox: The ZF bus automatic transmission this cable is designed for, featuring the broadest function set in the Ecomat family.
What you can do
- Read and clear fault codes: Access and clear the fault memory of the transmission control unit after repairs.
- View live data: Monitor current sensor readings from the gearbox.
- Activate components: Directly control valves and actuators on the transmission.
- Configure parameters: Read and adjust the Ecomat 2/4 settings.
- Real-time data monitoring: Track system values during operation in numerical and graphical format.
Compatible vehicles and applications
The connector type is what matters, not the bus brand. This cable fits any bus with a ZF Ecomat automatic transmission featuring a 9-pin Mate N-Lock diagnostic connector; check which connector is on your gearbox on-site.
Application:
- Buses with a ZF Ecomat automatic transmission with 9-pin Mate N-Lock diagnostic connector
- Bus brand is not the determining factor: The cable follows the ZF control unit, not the chassis manufacturer
- Also on buses with a dedicated OBD connector: The ZF transmission control unit maintains its own diagnostic connector
Package contents
- 1x Jaltest (JDC307A) | ZF Ecomat 9-pin OBD to 16-pin OBD2 Adapter Cable | Bus
Technical Specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference Number | JDC307A |
| Type | Adapter Cable |
| Application | ZF Ecomat 4 Mate N-Lock automatic transmission |
| System-side Connection | 9-pin OBD |
| Interface-side Connection | 16-pin OBD2 |
| Control Units | Ecomat 2/4, Automatic gearbox (ZF bus transmission) |
| Segment | Bus |
| Jaltest Module | Jaltest CV (commercial vehicles) |
| Required to Use | Jaltest Link with valid software license |
