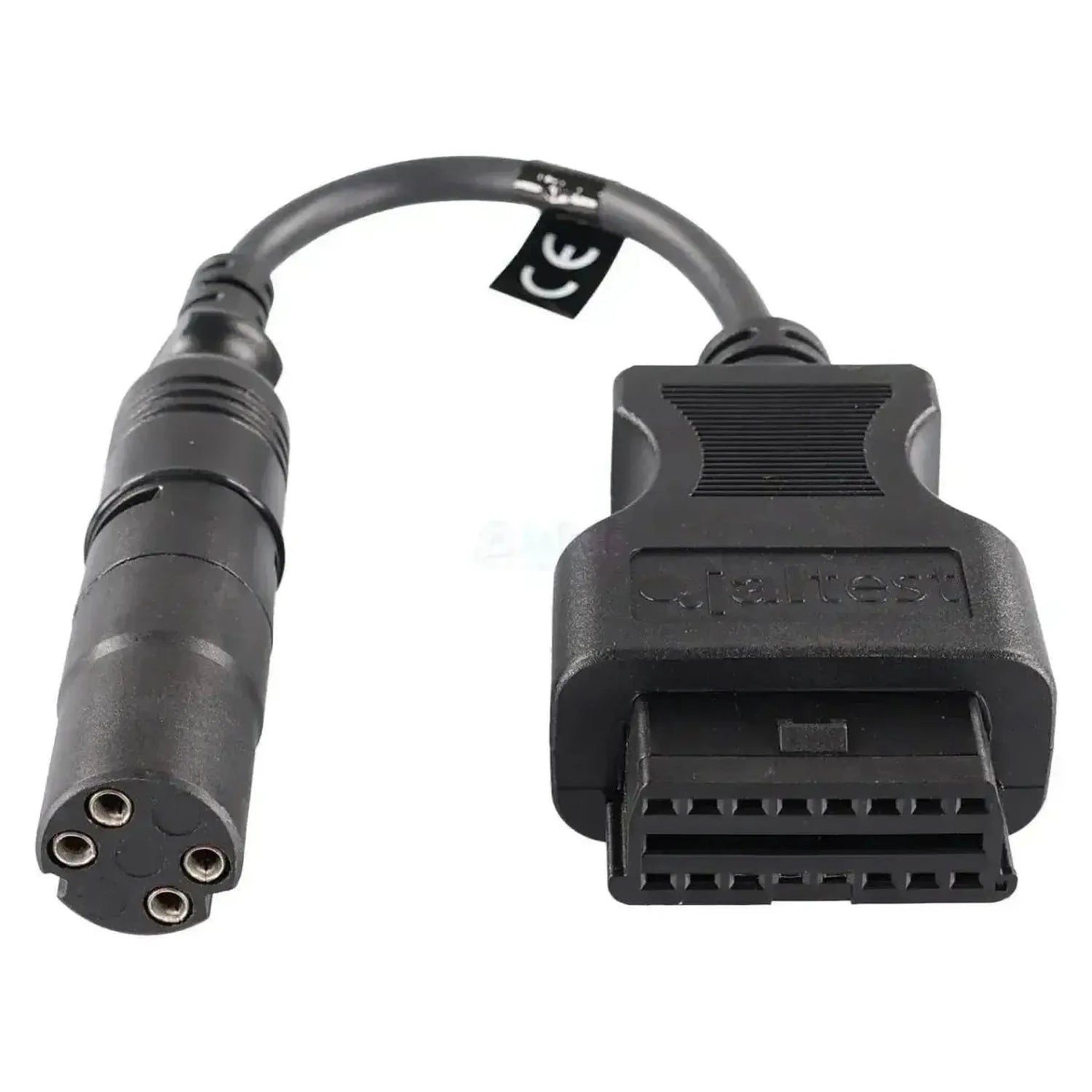

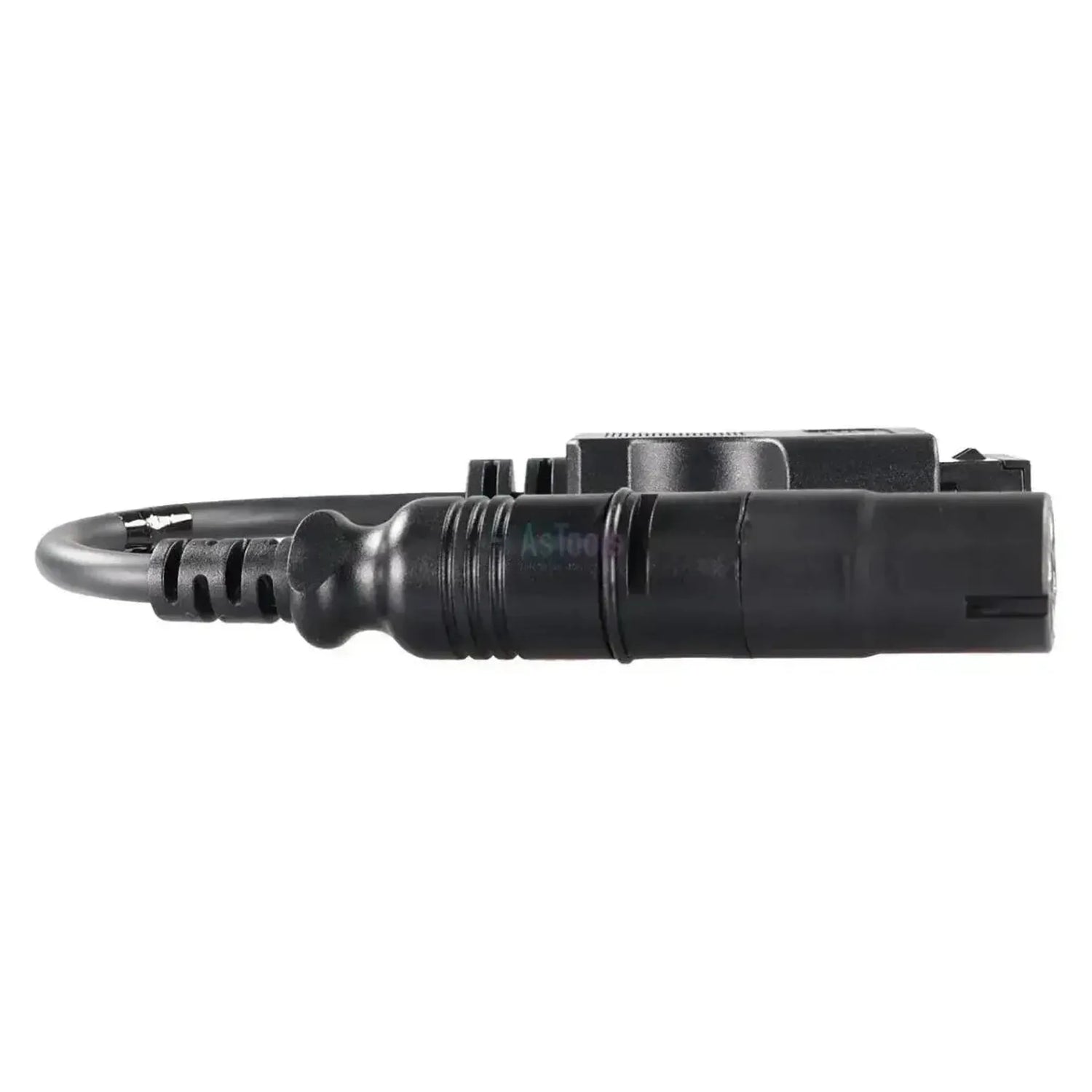

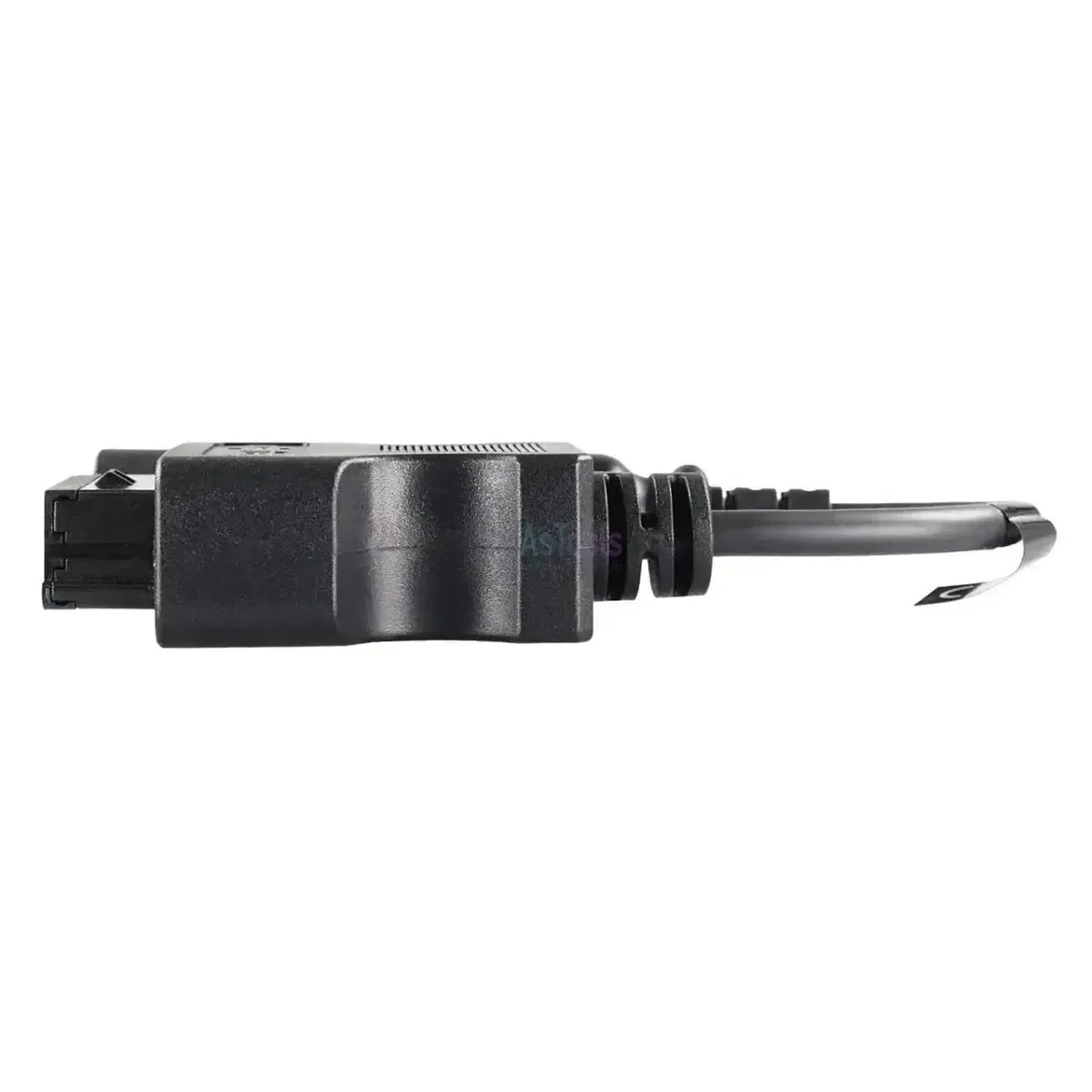

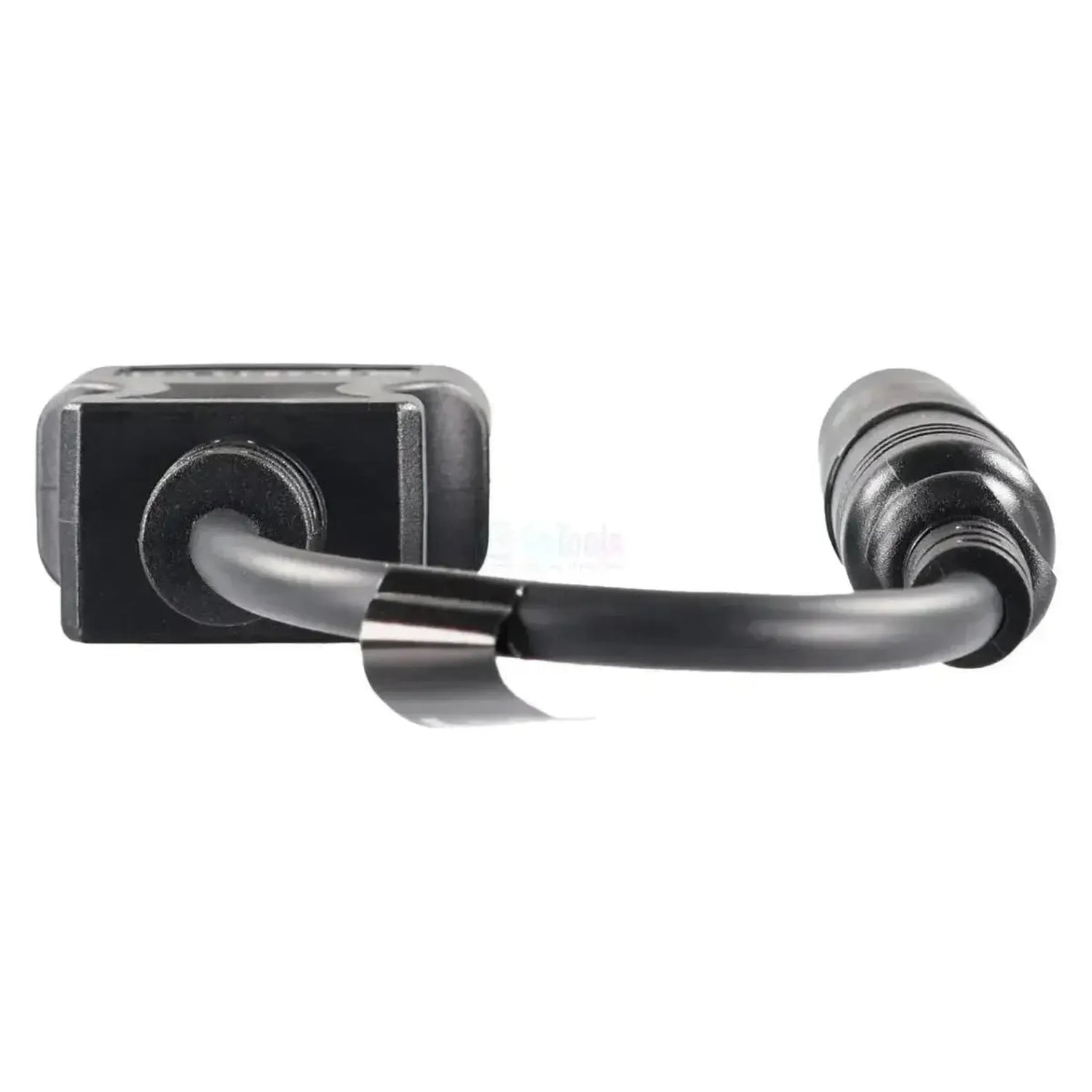

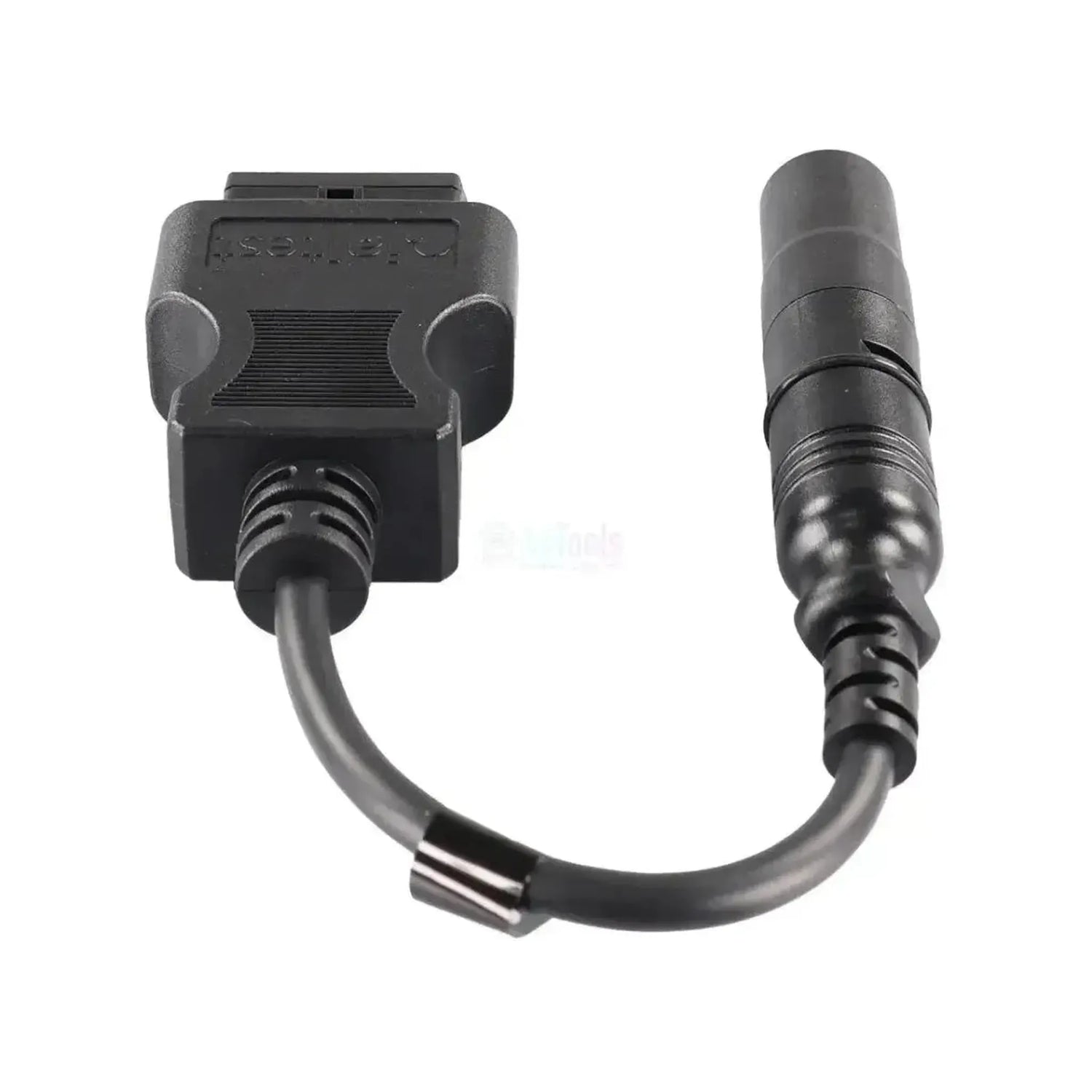

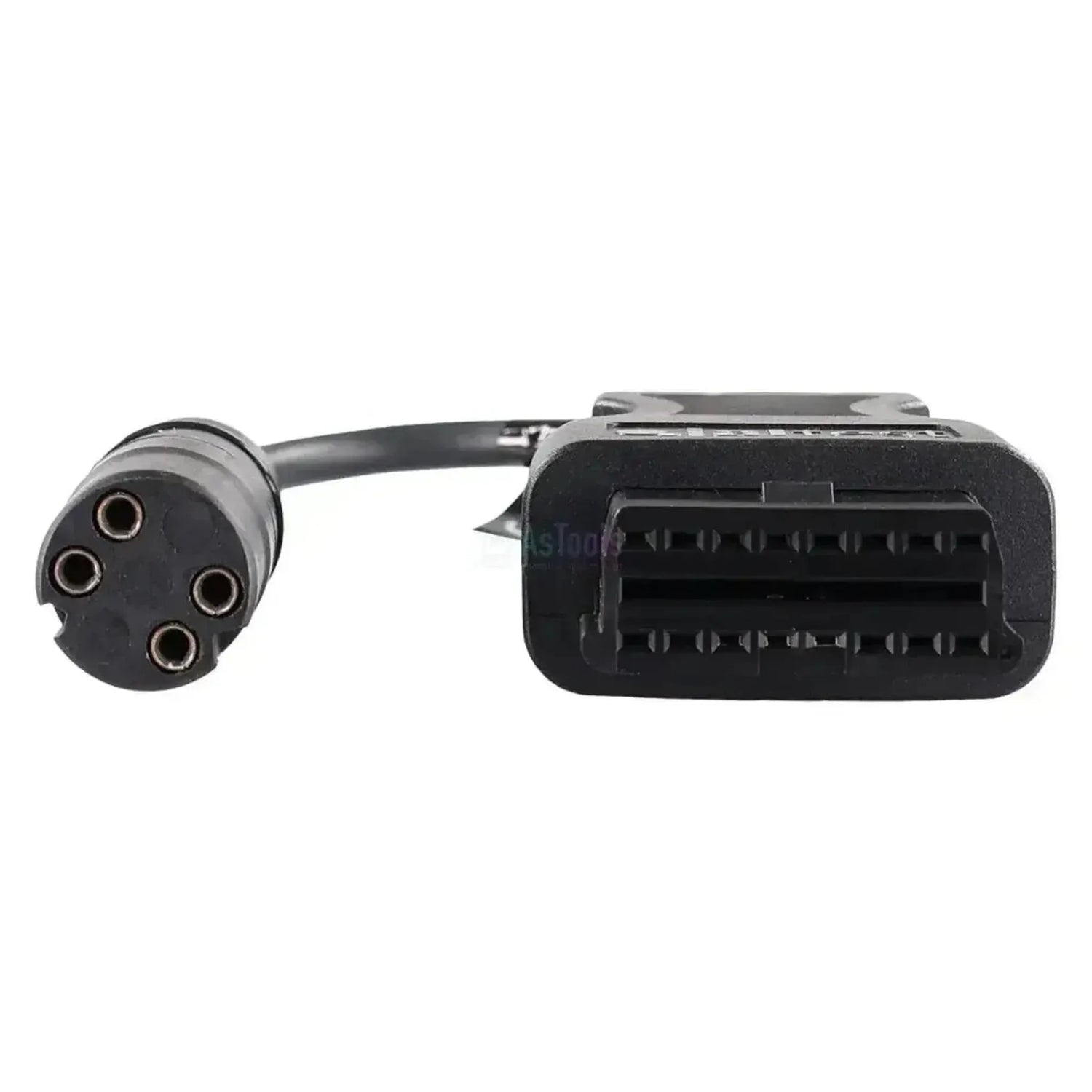

The Jaltest JDC108A is the adapter cable for the Haldex EB+/TRS braking system and the Haldex TPMS tire pressure monitoring with the manufacturer-specific 4-pin connector; on the system side sits that connector, on the interface side the 16-pin OBD2 of your Jaltest diagnostic cable. The connection belongs to the Haldex control unit on the trailer chassis, so both systems connect through the same plug.
With this connection, the Jaltest equipment reads out both systems. With EB+/TRS, the coverage goes beyond reading: In addition to fault codes and measured values, you can control components and adjust parameters. With Haldex TPMS, it's limited to reading fault codes. Since trailers have never been required to have a standardized diagnostic connector, this plug remains in use on newer trailers as well. The cable falls under Jaltest CV (commercial vehicles).
KEY BENEFITS
IMPORTANT NOTES
Applications and features
Use this connection to access Haldex control units on the trailer with Jaltest software.
Control units you can access
- EB+/TRS: The trailer brake control system this cable is designed for.
- Haldex TPMS: Haldex tire pressure monitoring system.
What you can do
- Read and clear fault codes: Access and clear the fault memory of the brake control unit after repairs.
- View live data: Monitor real-time sensor readings from connected components.
- Activate components: Directly trigger parts to test their operation.
- Configure parameters: Read and adjust system settings.
- For TPMS: Access tire pressure monitoring fault codes.
Compatible vehicles and applications
The connector type determines compatibility, not the model. This cable fits any semi-trailer or trailer with a Haldex EB+/TRS control unit or Haldex TPMS featuring a 4-pin diagnostic connector; verify which connector is installed on your chassis on-site.
Application:
- Semi-trailers and trailers with a Haldex EB+/TRS control unit
- Trailers with Haldex TPMS tire pressure monitoring
- Chassis brand doesn't matter: The cable follows the Haldex control unit
- Model year doesn't matter: Trailers have no mandatory diagnostic connector requirement
Package contents
- 1x Jaltest (JDC108A) | Haldex (EB+/TRS, TPMS) 4-pins OBD - 16-pins OBD2 Adapter Cable | Trailer
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC108A |
| Type | Adapter cable |
| Application | Haldex EB+/TRS brake control and Haldex TPMS |
| System-side connector | 4-pins OBD |
| Interface-side connector | 16-pins OBD2 |
| Control units | Haldex EB+/TRS (brake control) and Haldex TPMS (tire pressure monitoring) |
| Segment | Trailer |
| Jaltest module | Jaltest CV (commercial vehicles) |
| Part of cable set | Trailer cable set (70002024) |
| Required to use | Jaltest Link with valid software license |
