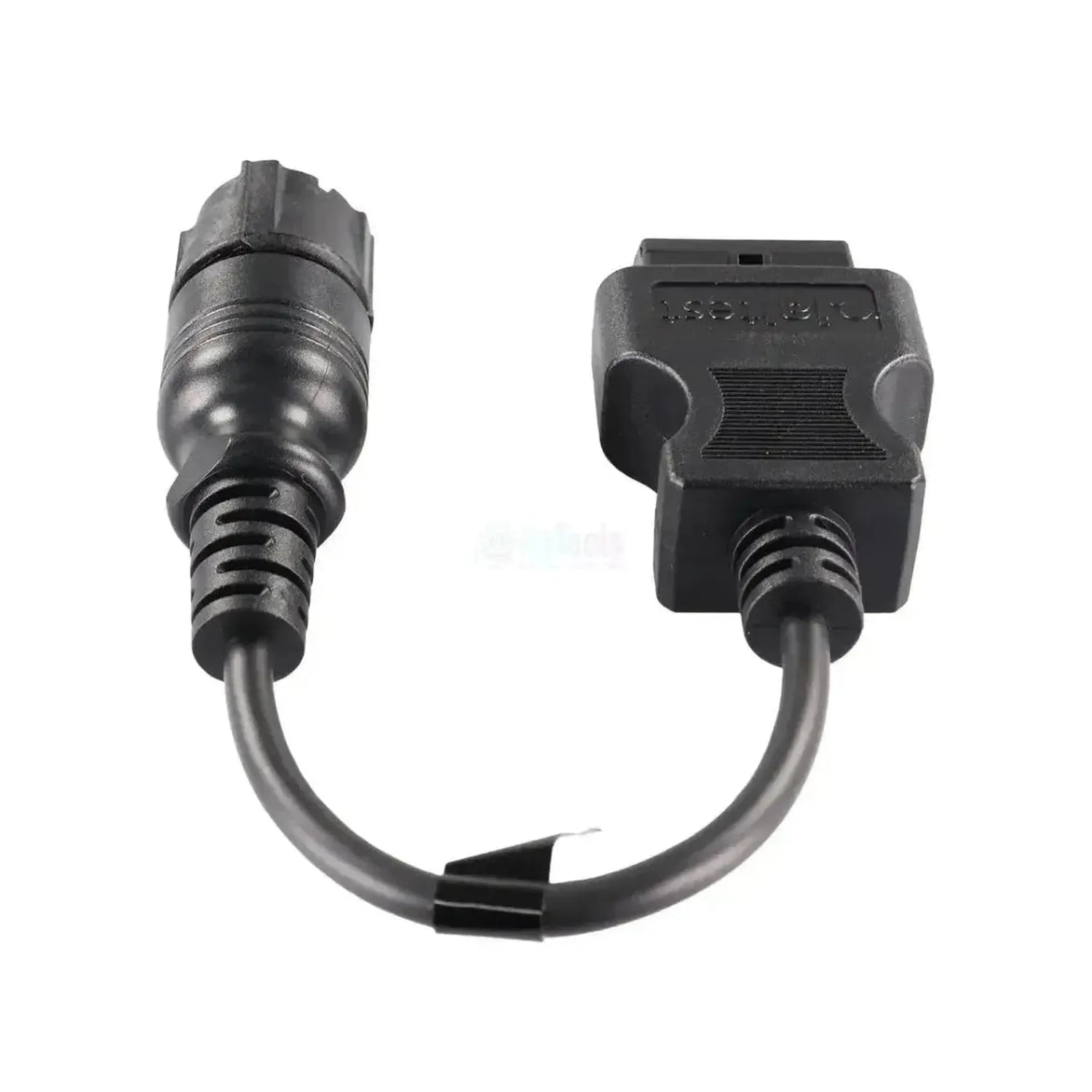

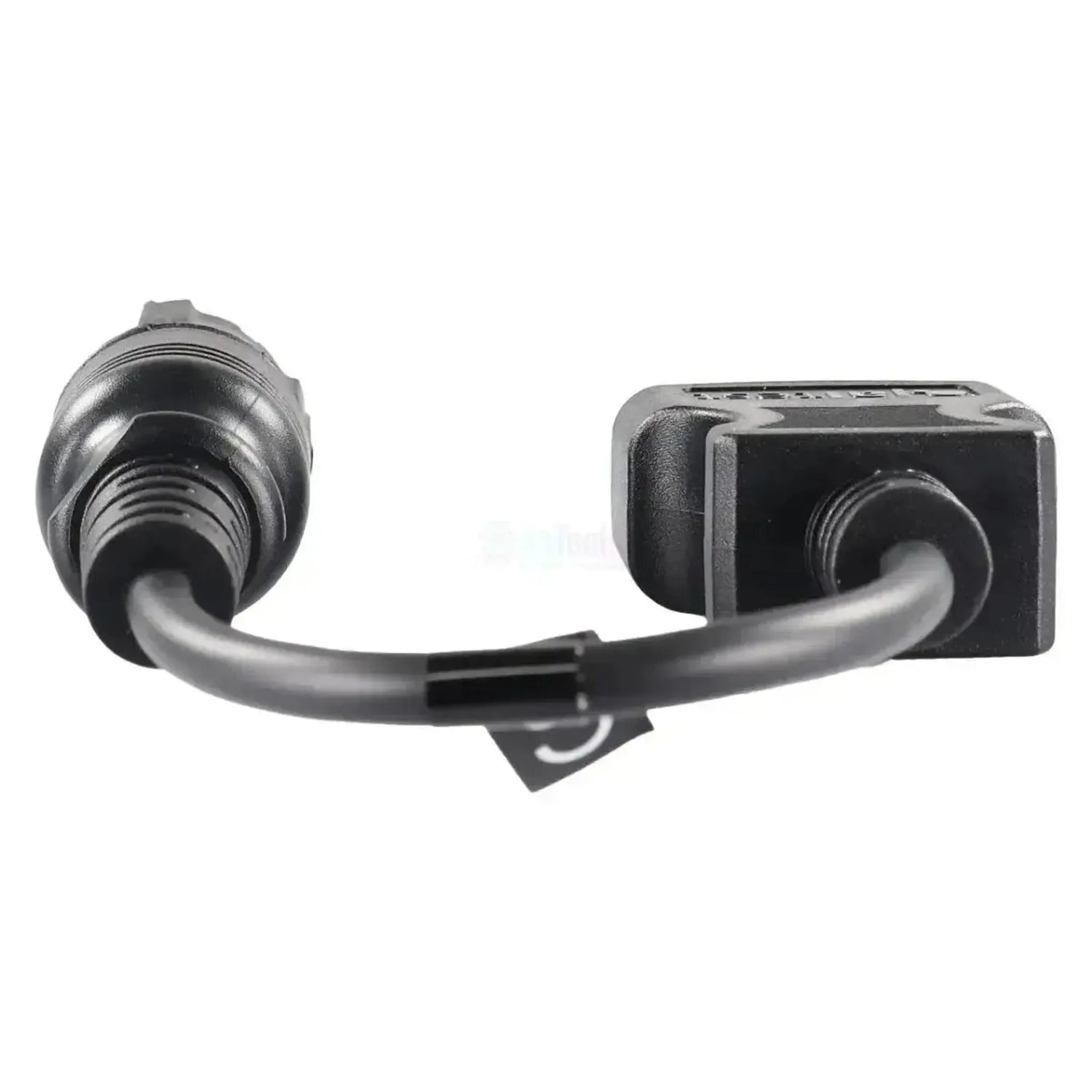

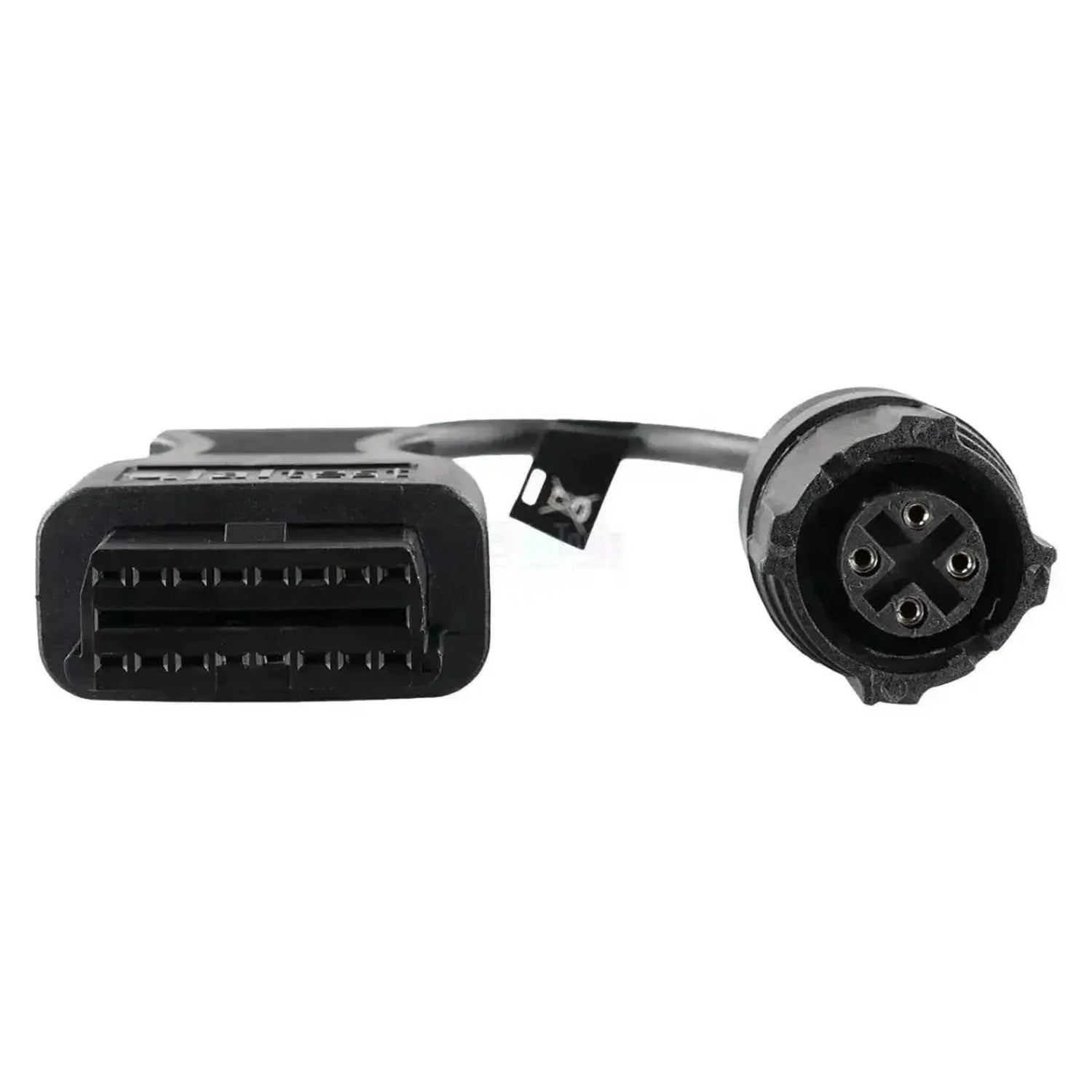

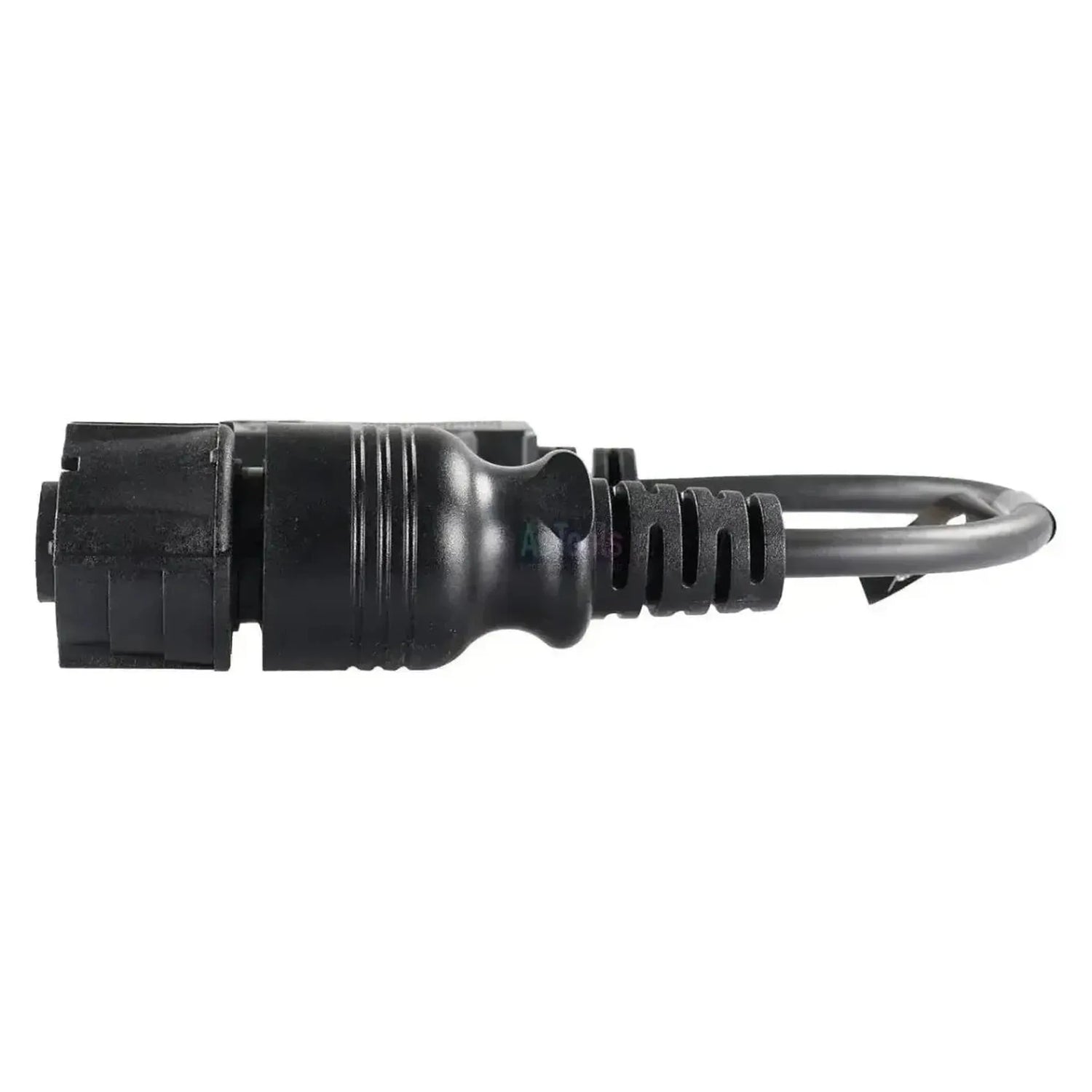

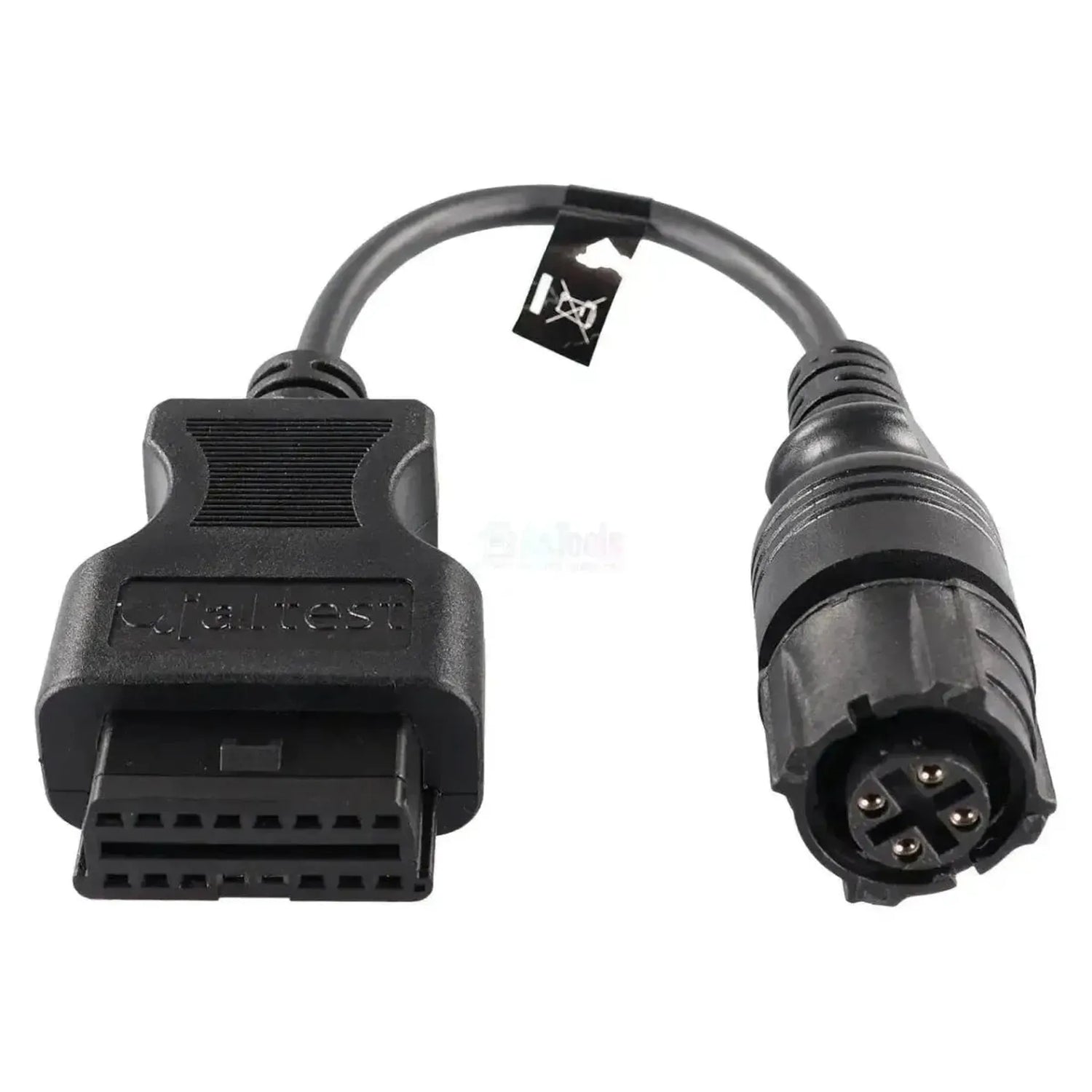

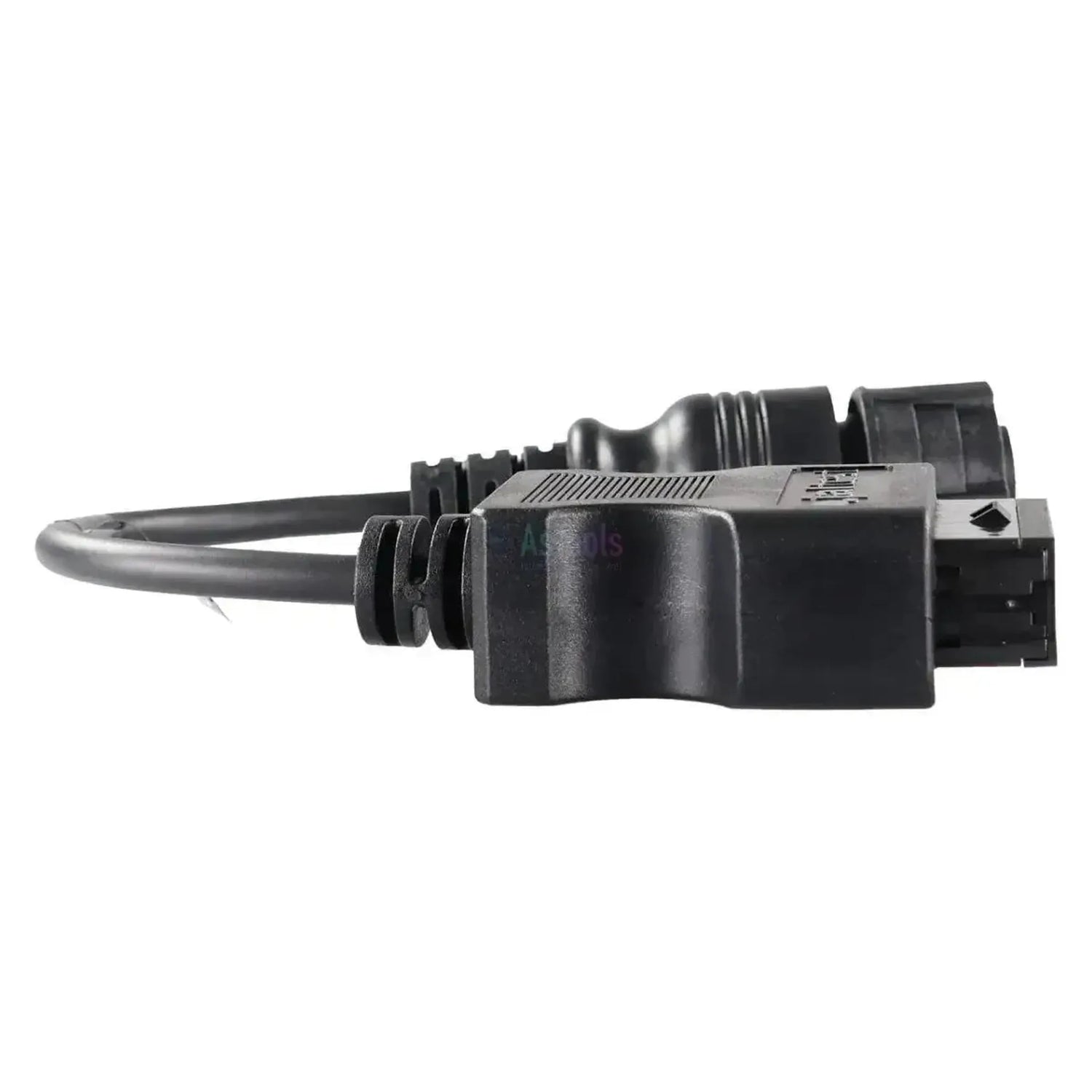

The Jaltest JDC102A is a diagnostic cable specifically designed to connect a diagnostic interface with the Haldex Modular ABS system on trailers. This adapter cable converts the 4-pin Haldex connection from the vehicle to a standard 16-pin OBD2 connector. This establishes a stable and reliable communication link with the electronic control unit (ECU) of the braking system.
The cable enables full diagnostics on the ABS system of a trailer using Jaltest diagnostic equipment. Functions such as reading and clearing fault codes, viewing live data, performing actuator tests, and configuring system parameters are supported. The cable’s construction is tailored to the requirements of a workshop environment.
Application and functionality:
This cable connects the Jaltest V9 Link interface to the diagnostic port of Haldex Modular ABS systems used on various trailers. This enables the following diagnostic operations:
- Fault code management: Reading and clearing fault codes from the ABS ECU memory.
- System analysis: Monitoring live data, such as wheel speeds and system pressure, for detailed analysis.
- Component activation: Activating and testing individual components of the braking system, such as modulators and valves.
- Configuration and calibration: Adjusting system settings and performing calibrations after maintenance or part replacement.
Compatible vehicles and applications:
The JDC102A adapter cable is developed for use on trailers equipped with a specific Haldex braking system.
Haldex:
- Modular ABS systems: Compatible with trailers equipped with a 4-pin diagnostic connection for the Haldex Modular ABS.
Important: Before purchasing the product, always check your vehicle’s connection. This may vary by model and year of manufacture.
Package Contents:
- 1x Jaltest (JDC102A) | Haldex ABS Modular 4-pin OBD – 16-pin OBD2 Adapter Cable | Trailer
Technical specifications:
| Product brand | Jaltest |
| Product model | JDC102A |
| Vehicle side connection | Haldex ABS Modular 4-pin |
| Adapter side connection | 16-pin OBD2 |
