AsTools | SKU: A0032

Alfa Romeo/Fiat/Lancia 3-pins OBD1 – 16-pins OBD2 Adapter Cable | Personenauto

Name: Alfa Romeo/Fiat/Lancia 3-pins OBD1 – 16-pins OBD2 Adapter Cable | Personenauto
Brand: AsTools
SKU: A0032
Price: 9.95 EUR
Availability: InStock

€9,95 incl.

€8,22 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

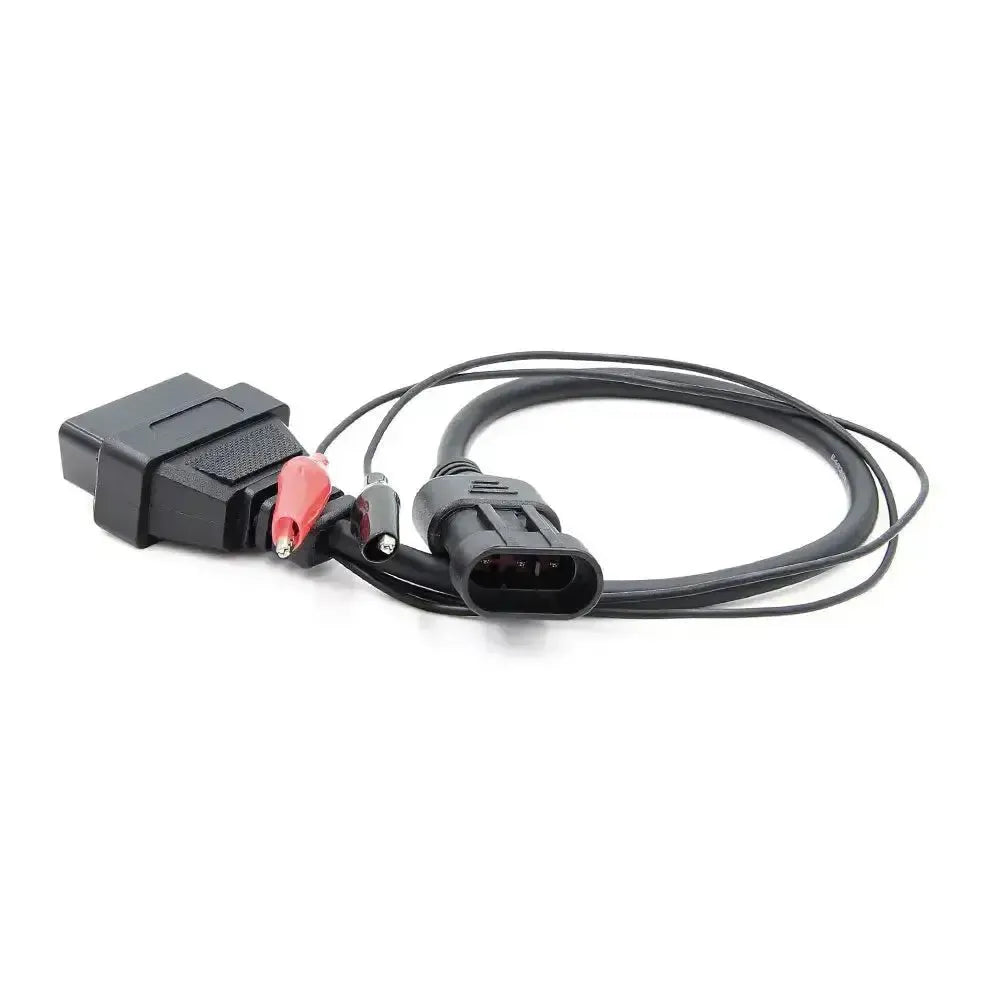

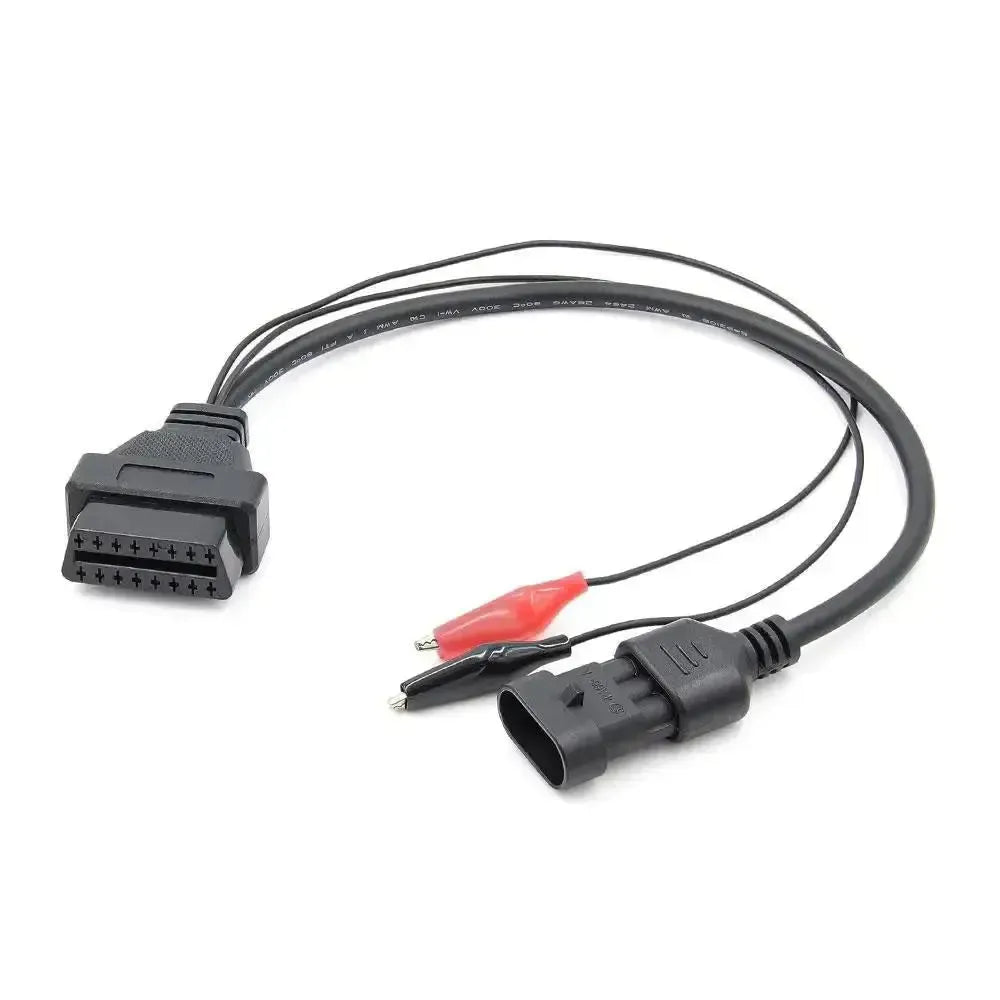

The Alfa Romeo, Fiat and Lancia 3-pin to 16-pin OBD2 adapter cable connects older vehicle models to modern diagnostic equipment. This adapter bridges the vehicle-specific OBD1 connector with a standard OBD2 interface. This enables you to use brand-specific diagnostic software on passenger cars from before the universal OBD2 standardization.

The interface reliably transmits communication signals from the 3-pin diagnostic port to the connected diagnostic scanner. Since the old 3-pin port doesn't supply operating voltage, the cable features two crocodile clamps. These clamps connect directly to the 12V vehicle battery to supply the connected diagnostic device with the required power supply.

KEY FEATURES

✔ Enables communication with older vehicle modules via OBD2.

✔ Powers the diagnostic scanner through external battery clamps.

✔ Ready to use without configuration or software installation.

✔ Standard 16-pin OBD2 port compatible with any common diagnostic cable.

IMPORTANT NOTES

✕ Always requires connection of an external 12V power source.

✕ Does not support modern or broadband CAN-bus networks.

✕ Diagnostic capabilities depend entirely on the diagnostic software used.

Features and Functions

This adapter cable supports basic and advanced diagnostic functions for pre-OBD2 vehicles from the Fiat group.

Read fault codes: Access stored diagnostic trouble codes within the engine control unit (ECU).
Live data: Real-time display of available sensor readings while the engine is running.
Service reset: Support for resetting maintenance intervals using compatible diagnostic equipment.
Actuator testing: Ability to control specific components when using specialized software such as MultiECUScan.

Compatible Vehicles and Applications

This adapter is specifically designed for vehicles equipped with a 3-pin diagnostic connector.

Alfa Romeo:

145 / 146: (1994 - 2000)
155: (1992 - 1998)
GTV / Spider (916): (1995 - 2000)

Fiat:

Bravo / Brava: (1995 - 2001)
Cinquecento: (1991 - 1998)
Punto (176): (1993 - 1999)

Lancia:

Dedra: (1989 - 1999)
Delta II: (1993 - 1999)
Y (840): (1995 - 2003)

💡

Good to know: On these models, the 3-pin diagnostic connector is typically located in the engine bay, near the engine control unit (ECU) or firewall. Always connect the battery terminals first (red to positive, black to ground) before initiating communication.

Package contents

1x Alfa Romeo/Fiat/Lancia 3-pin OBD1 – 16-pin OBD2 Adapter Cable | Passenger Vehicle

Technical specifications

Specification	Description
Product type	Adapter cable (OBD1 to OBD2)
Vehicle-side connector	3-pin OBD1 (Alfa Romeo / Fiat / Lancia)
Device-side connector	16-pin OBD2 (J1962), female
Power supply	2x alligator clips (red/black) for 12V battery
Compatible brands	Alfa Romeo, Fiat, Lancia (pre-OBD2)
Type	Passive adapter cable
Color	Black
