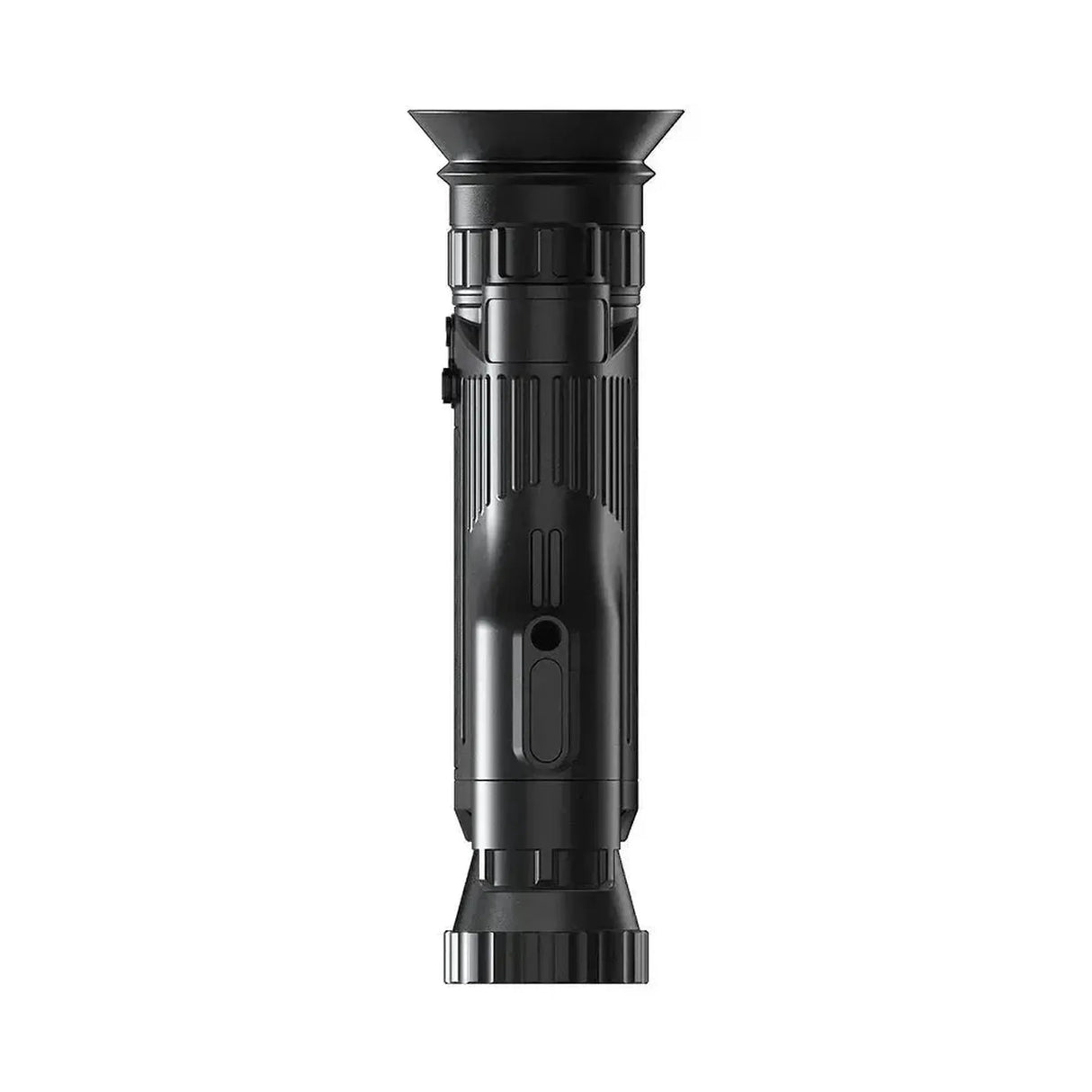

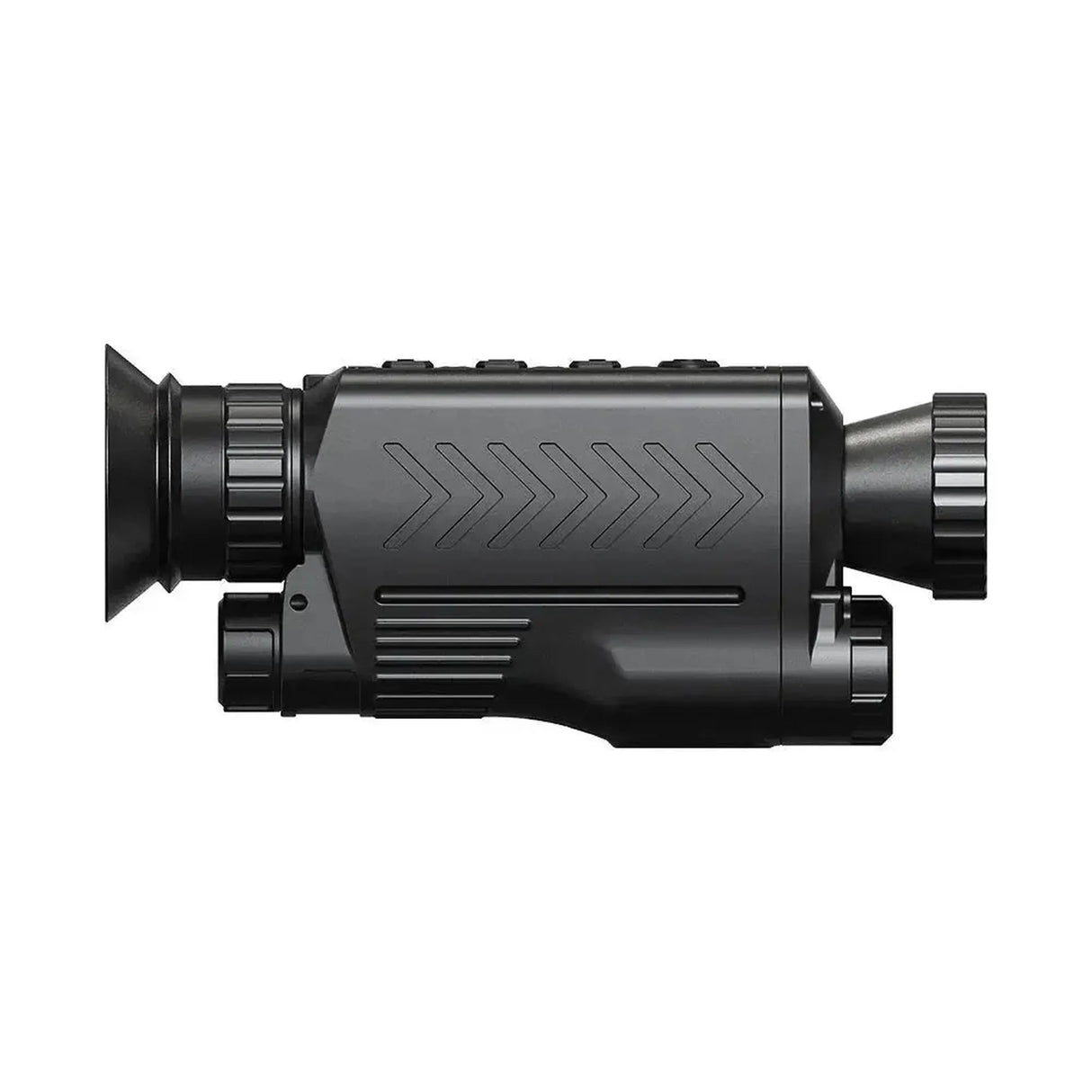

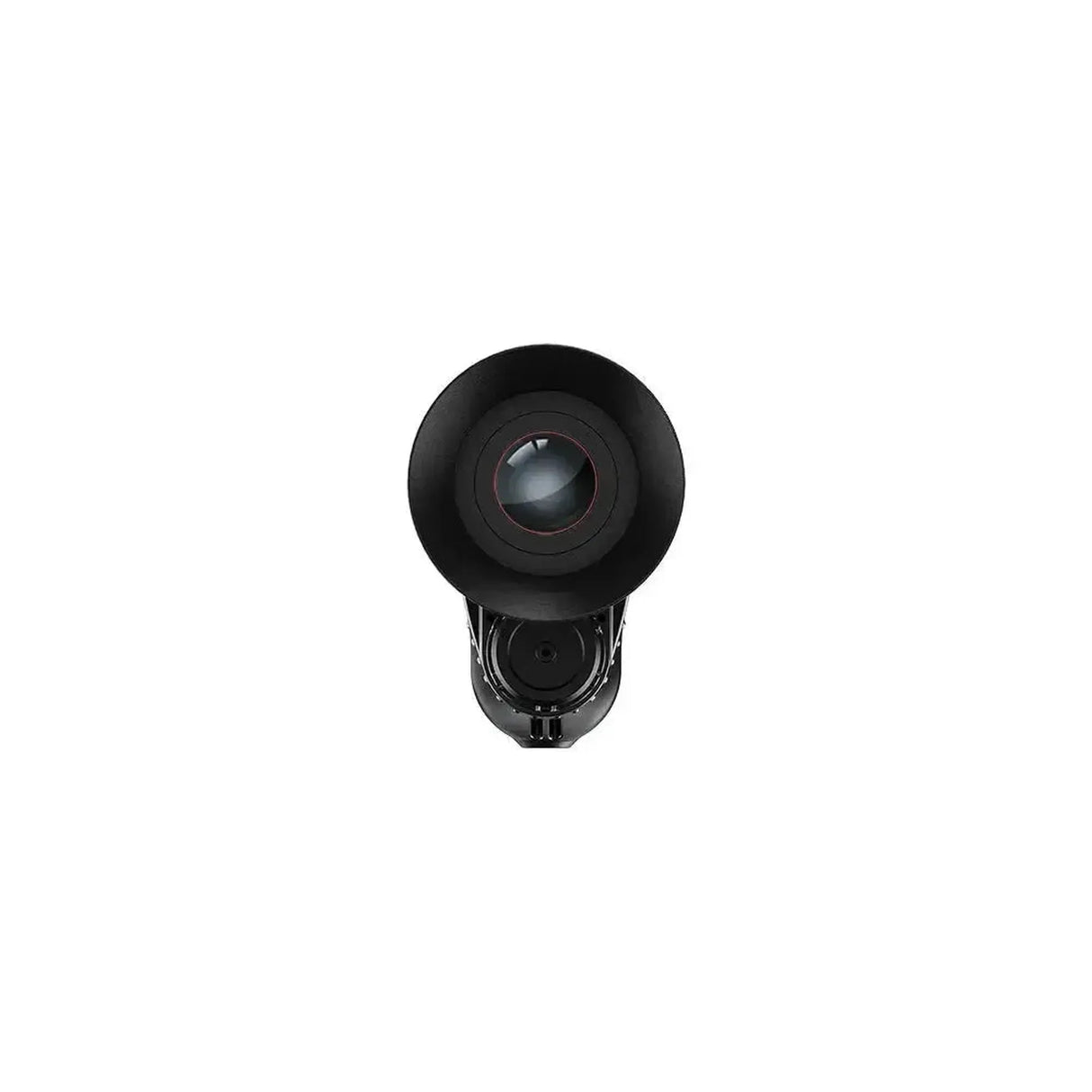

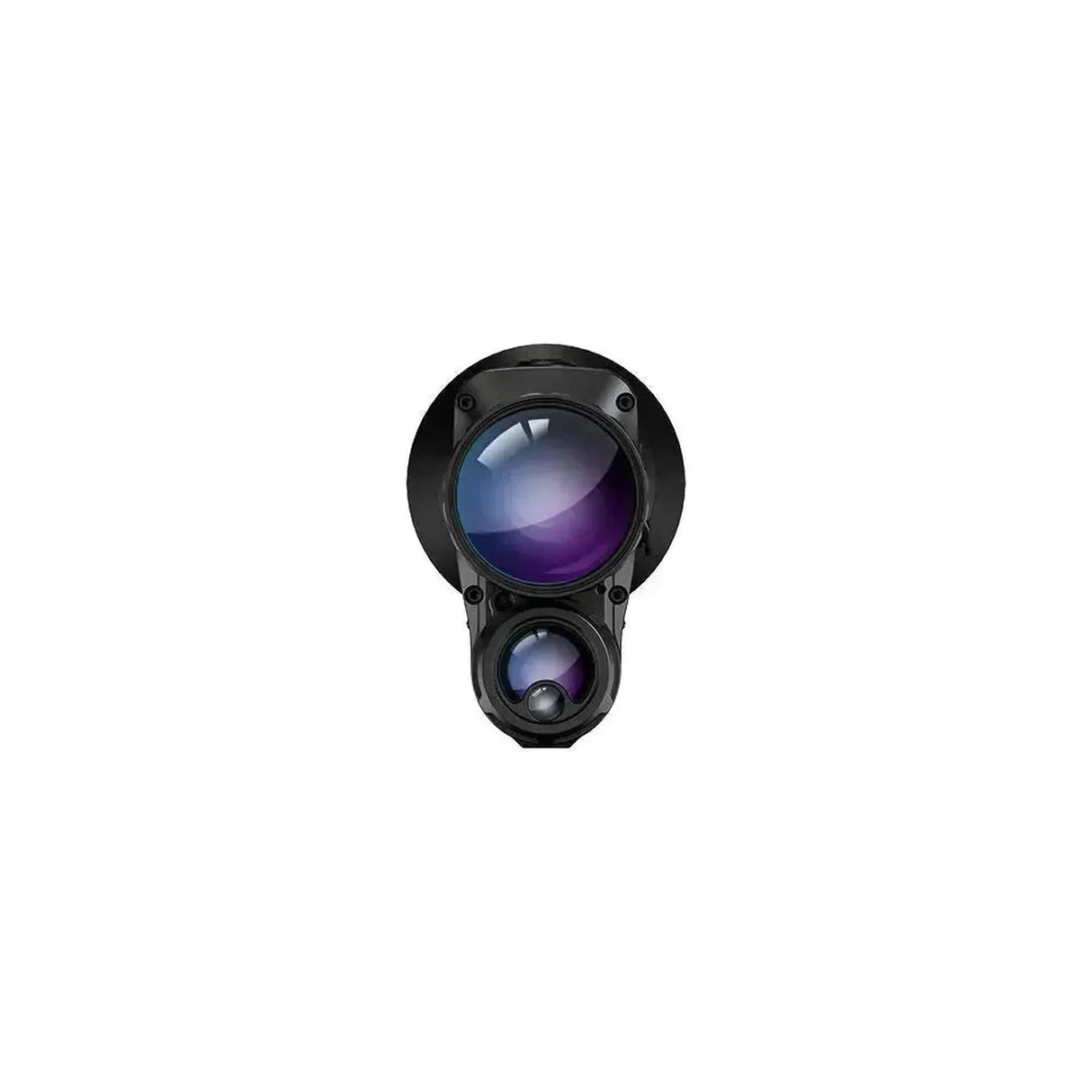

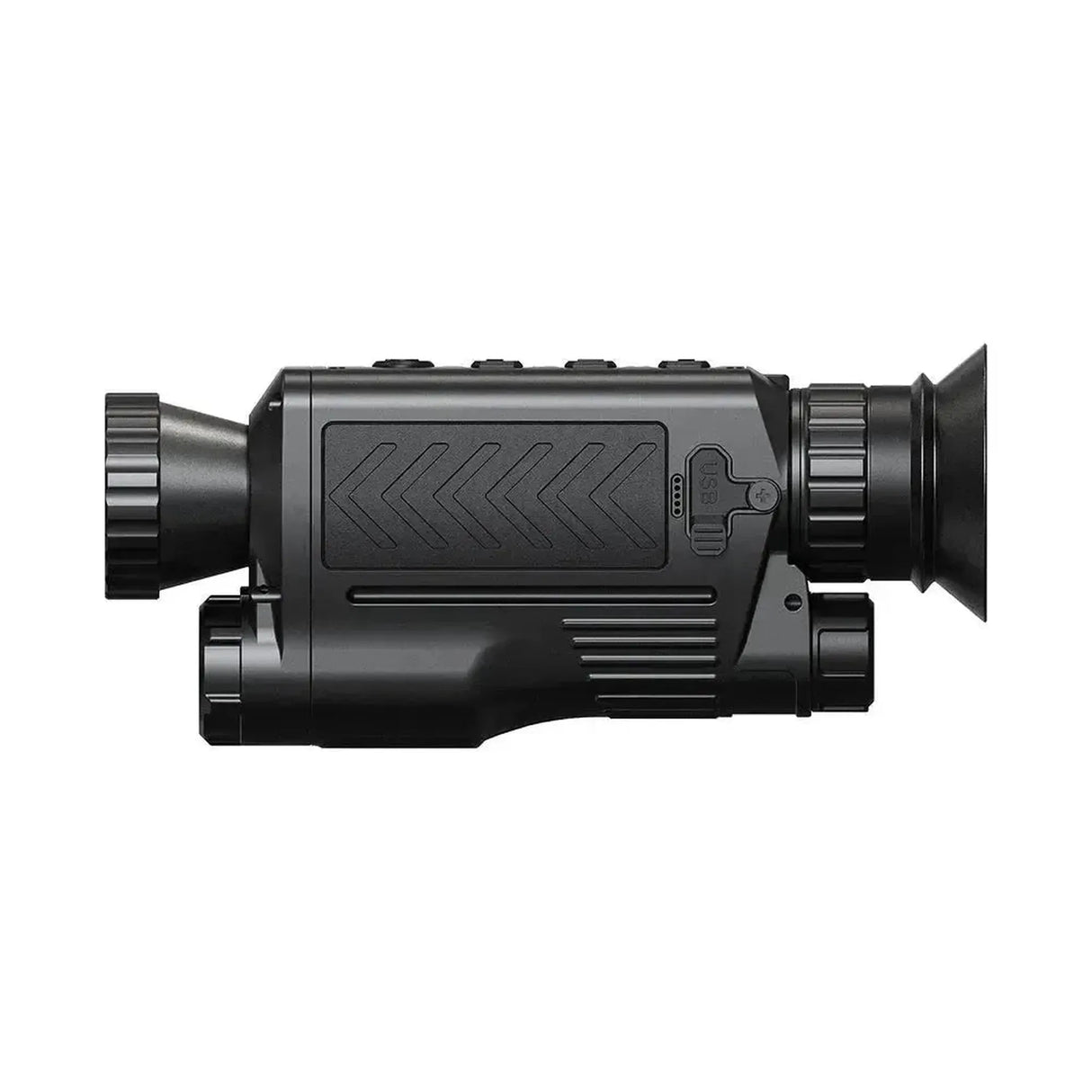

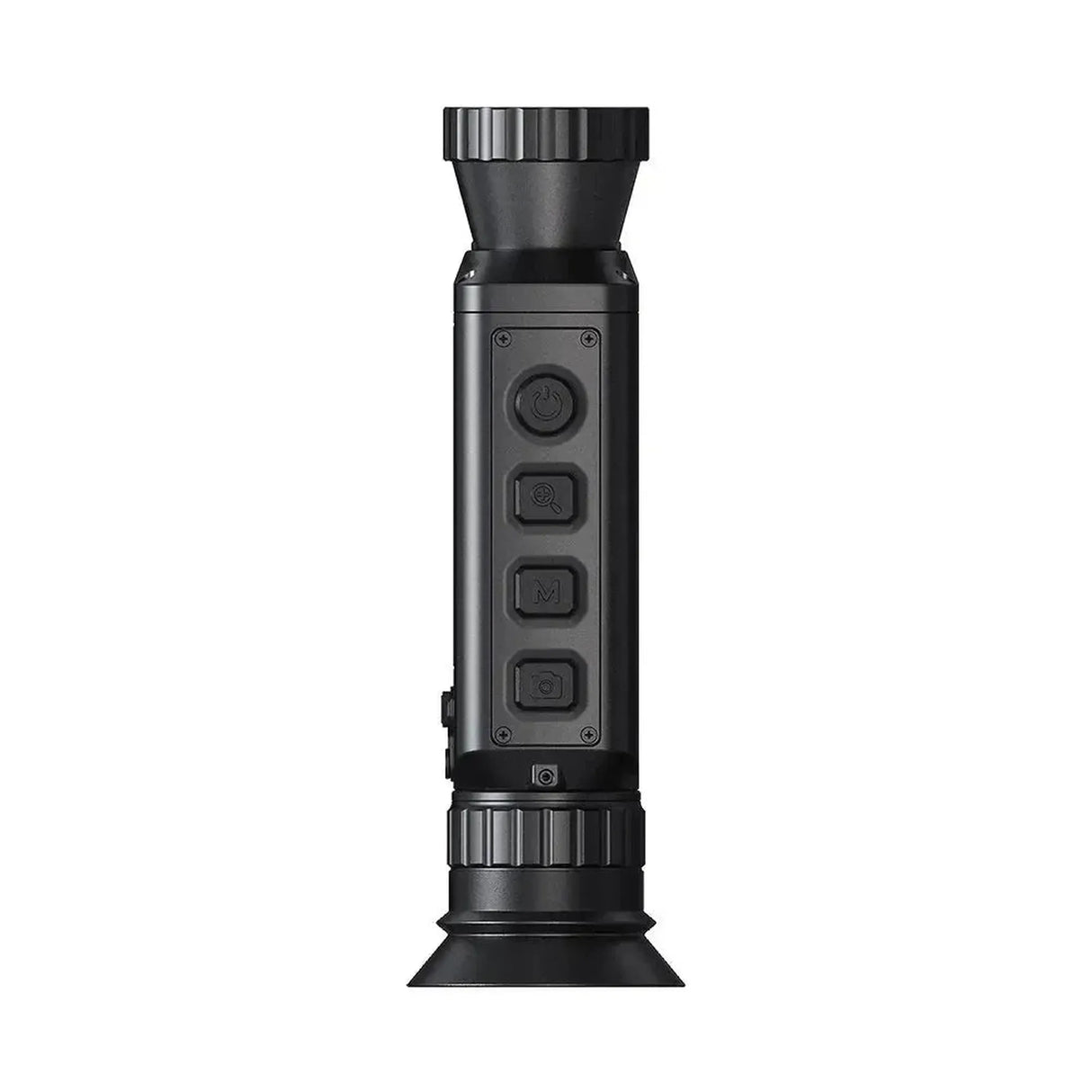

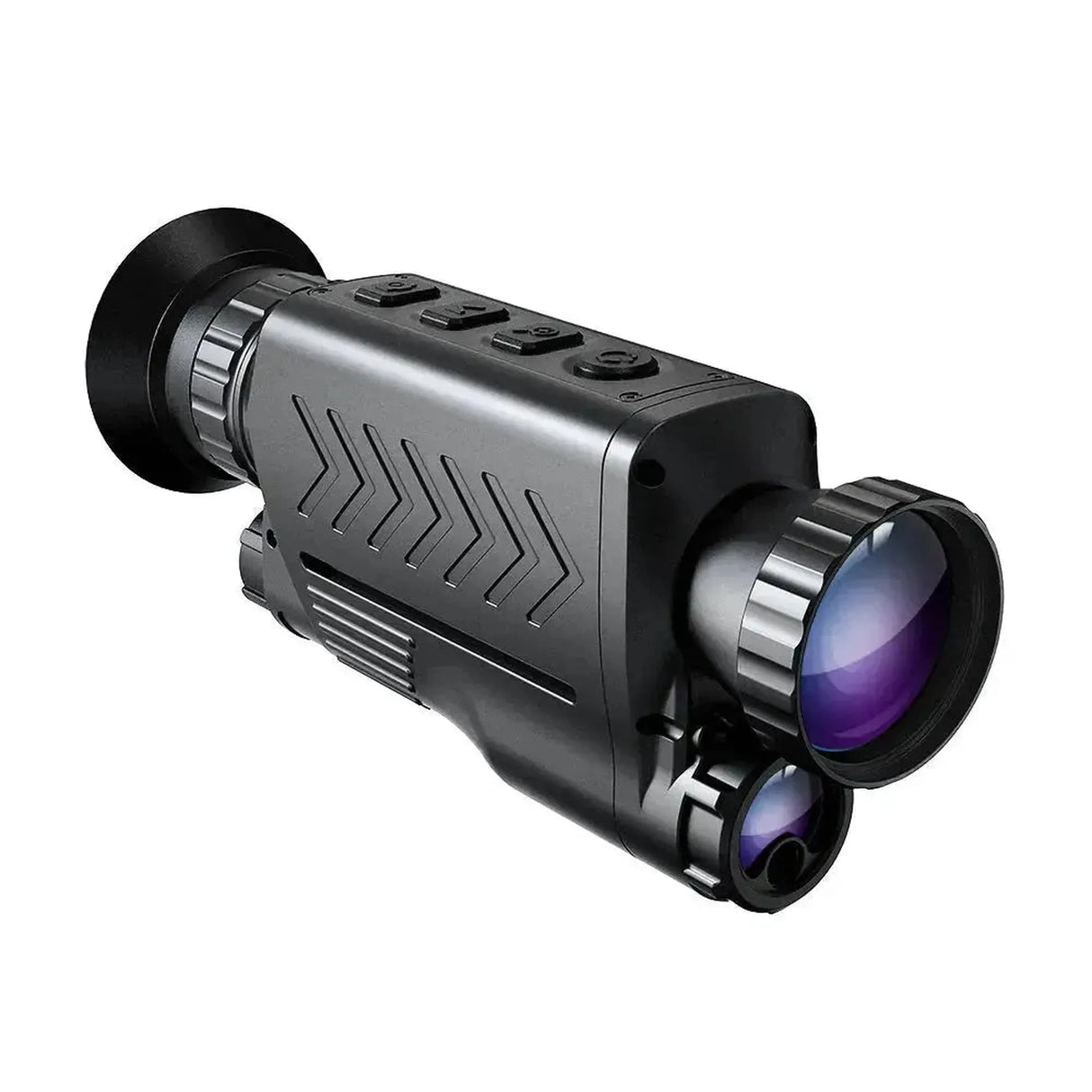

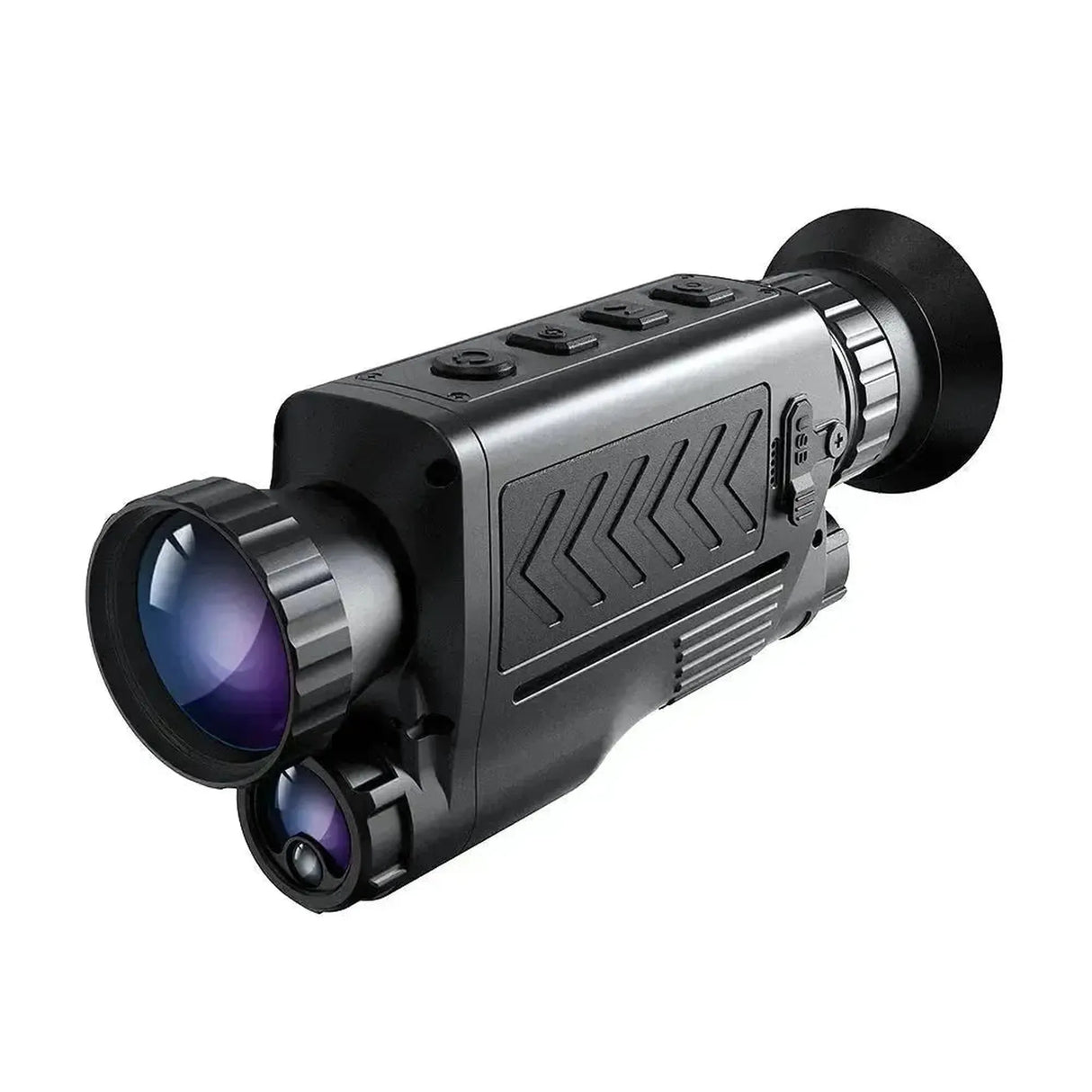

The Topdon TS005 thermal imaging camera is a high-quality thermal monocular specifically developed for long-distance observation and detection in challenging conditions. The instrument is equipped with an advanced sensor with an IR resolution of 384x288 pixels and a pixel pitch of 12µm, resulting in sharp thermal images. The optical configuration includes an adjustable 35mm lens, combined with a frame rate of 50Hz for smooth display of moving objects. The system offers an impressive detection range up to 1280 meters, supported by an integrated laser rangefinder.
This thermal camera visualizes temperature differences on a high-contrast 1024x768 OLED display and offers extensive image analysis capabilities via a digital zoom from 1x to 8x. For documentation and later analysis, the device has 64GB internal memory, suitable for storing large amounts of photos and video material. Power is supplied by two replaceable 18650 rechargeable batteries, while the housing with an IP65 rating is dust and water resistant, ensuring reliable performance in various operational environments.
ADVANTAGES
ATTENTION POINTS
Applications and functionalities
The Topdon TS005 is designed for users who need thermal detection over longer distances and precise imaging in darkness or poor weather conditions.
- Laser distance measurement: Accurate determination of the distance to the object up to 594 meters (650 yards).
- Thermal sensor: Uncooled focal plane array with a sensitivity (NETD) of less than 35mK.
- Image Display: High-quality OLED screen with a resolution of 1024x768 for sharp details.
- Digital Zoom: Variable magnification from 1x, 2x, 4x to 8x for detailed observation.
- Storage Medium: Built-in 64GB memory for direct storage of inspection data.
Special Features and Capabilities
In addition to standard thermal functions, the TS005 has specific features that enhance usability and convenience in the field.
- Replaceable Battery System: Uses standard 18650 batteries that can be inserted without polarity alignment for quick swaps.
- Adjustable Lens: The 35mm lens can be manually focused for optimal image quality at various distances.
- Robust Construction: IP65-certified housing provides protection against dust ingress and water jets.
Application Areas and Inspection Uses
The technical specifications make this thermal imaging camera suitable for specific inspection and security tasks where range is essential.
- Inspection Application: Inspection of high-voltage lines and insulators at great heights or distances.
- Technical Analysis: Detection of thermal leaks or hotspots in extensive infrastructure works.
- Diagnostic Application: Security surveillance and locating people or animals in complete darkness.
Package Contents
- 1x Topdon TS005 Thermal Imaging Camera
- 1x USB-A to USB-C Cable
- 1x Video Cable
- 1x Battery Charger
- 2x 18650 Rechargeable Battery
- 1x Carrying Case
- 1x Manual
Technical specifications
General
- The manufacturer of the thermal imaging camera.Brand
- Topdon
- A standalone handheld camera, a camera that connects to your phone, or a monocular for viewing at distance. This determines how and where you use it.Type of camera
- Monocular
- The number of pixels in the thermal sensor. More pixels mean sharper detail of small hot spots.Thermal image resolution
- 384 x 288 pixels
- The smallest temperature difference the camera can detect. A lower figure means finer differences are visible.Thermal sensitivity (NETD)
- 35 mK
- The number of images the camera produces per second. A higher rate gives smoother images when moving.Frame rate
- 50 Hz
- How wide the camera's view is. A wide field of view suits close work, a narrow one suits viewing at distance.Field of view
- 10.4° x 7.9°
- The focal length of the lens. A longer focal length lets you view further away, but with a narrower image.Focal length
- 35 mm
- Whether the lens has a fixed focus or can be adjusted manually.Focusing
- Adjustable
- The maximum distance at which you can detect a warm object such as a person or animal.Detection range
- 1,280 m
Measurement and functions
- A built in laser measures the distance to an object.Laser distance meter
- Yes
Connectivity
- How much space is available for storing photos and videos.Storage
- 64 GB
Battery
- How long you can use the camera on a full battery.Operating time
- 3 hours
- How much energy the battery can store. A higher mAh figure usually means longer operation.Battery capacity
- Replaceable 18650 (3300mAh)
- You can swap a depleted battery for a charged one yourself, allowing you to keep working.Replaceable battery
- Yes
Dimensions and weight
- How heavy the camera is. A lighter camera remains comfortable to hold over time.Weight
- 400 g
- How well the camera is protected against dust and water. A higher IP rating withstands heavier use.Protection rating
- IP65
- The ambient temperature range in which the camera operates properly, for example outdoors in winter.Operating temperature
- -20 to 55 °C
Other specifications
- Pixel Interval
- 12 µm
- Display
- 1024 x 768 OLED
- Detection Range
- Up to 1280 meters (1400 yards)
- Laser Rangefinder
- Up to 594 meters (650 yards)
- Digital Zoom
- 1x, 2x, 4x, 8x
