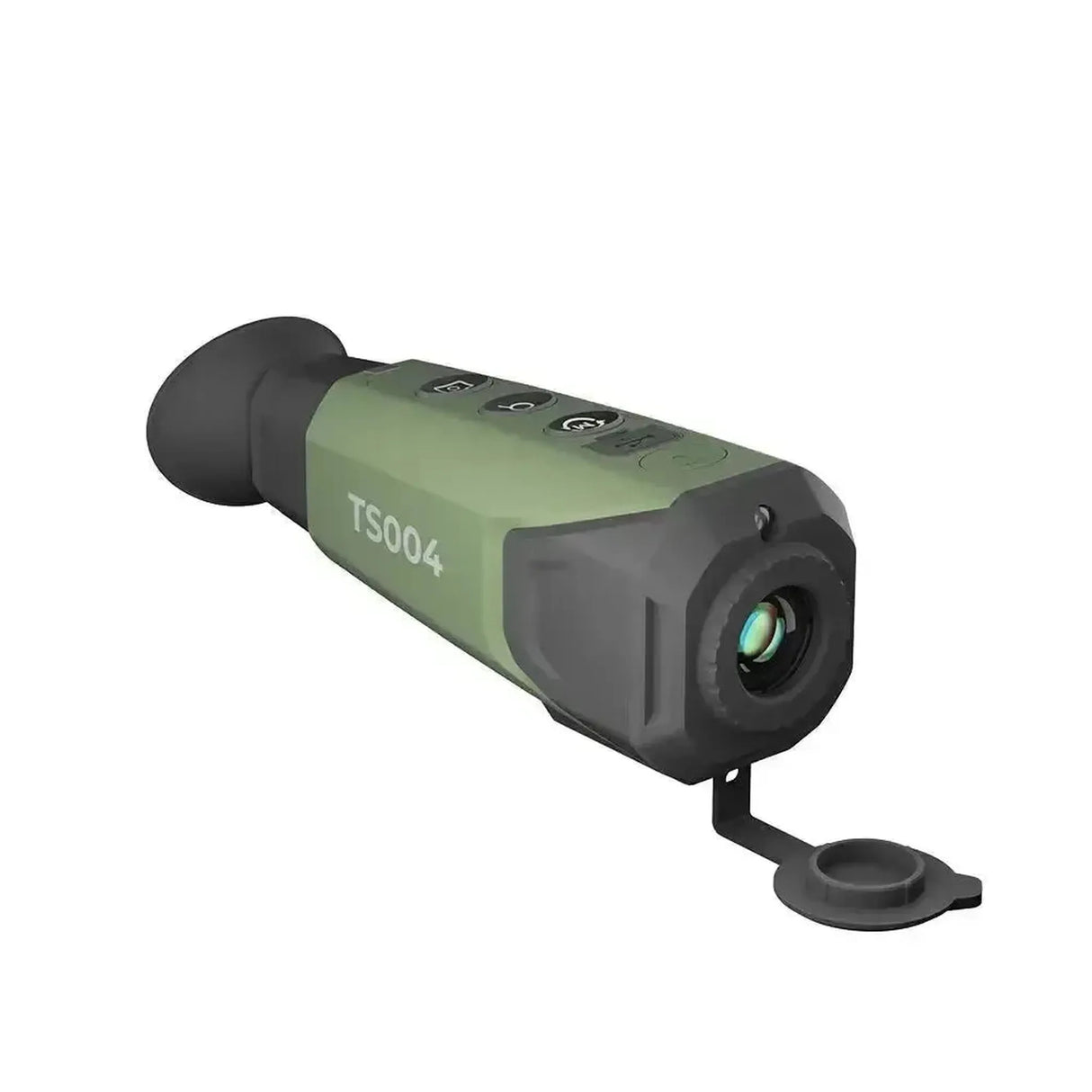

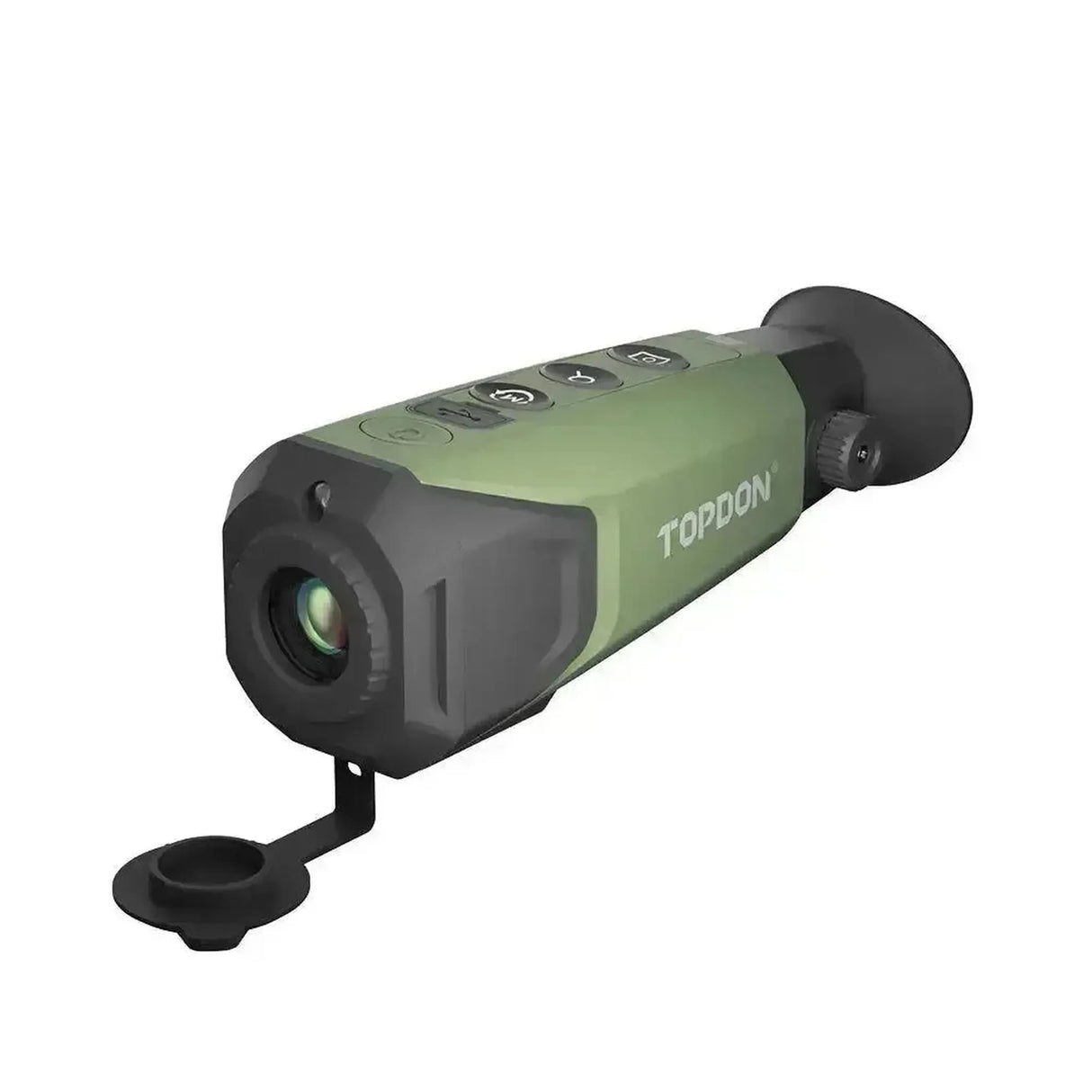

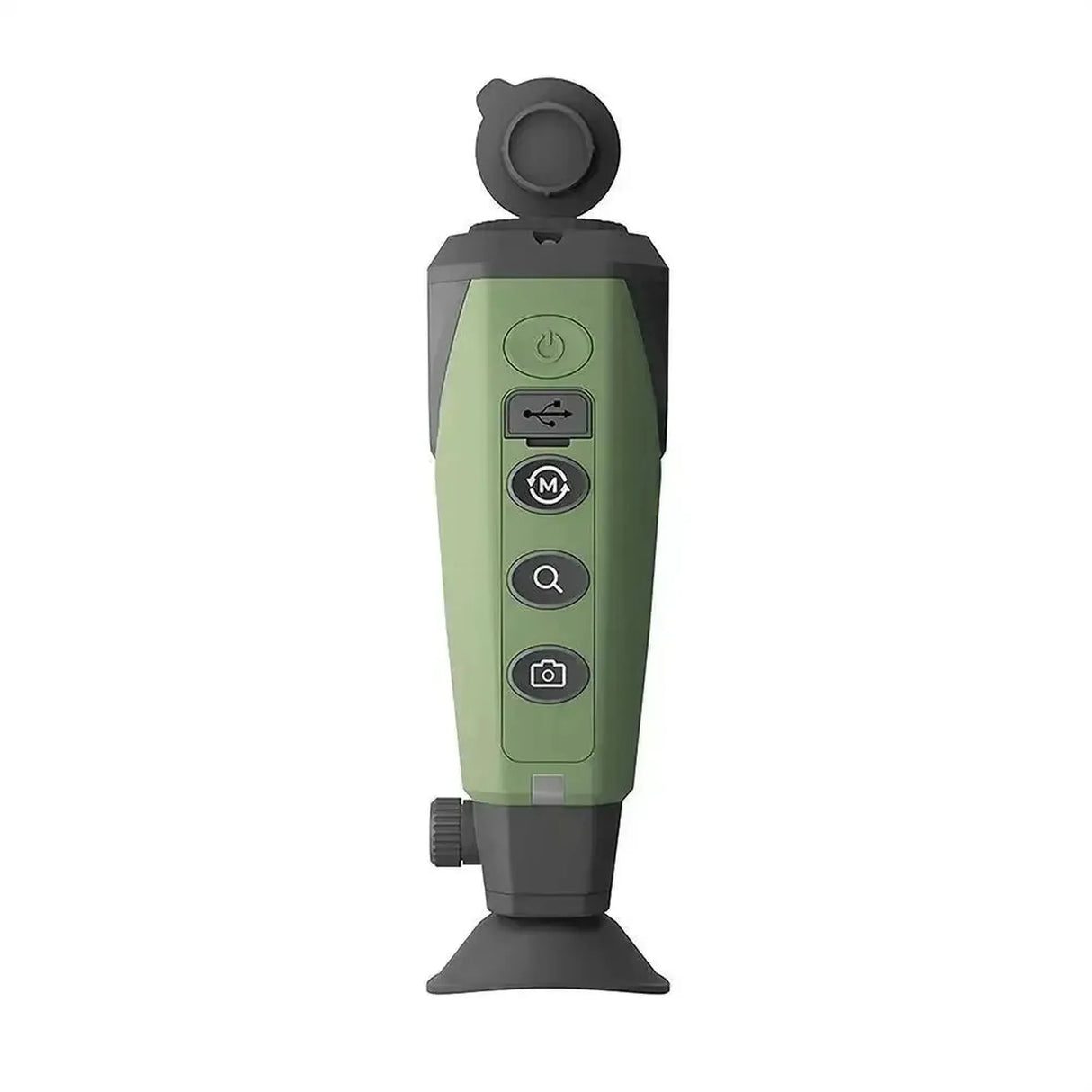

The Topdon TS004 is a compact, handy thermal imaging camera designed as a monocular, intended for long-distance detection and inspection in low-visibility conditions. The device is equipped with a thermal sensor resolution of 256x192 pixels and features a frame rate of 50Hz, ensuring extremely smooth display of moving objects. The optical configuration includes a 13mm lens, allowing heat sources to be detected up to a distance of 410 meters and recognition of specific objects up to 91 meters.
This thermal camera offers extensive analysis capabilities thanks to an 8x digital zoom and the choice of five different color palettes for optimal thermal contrasts. For documentation and analysis, the TS004 has an internal memory of 32GB for photo and video storage, as well as Wi-Fi connectivity for live streaming via the accompanying app. Power is supplied by a powerful 5000mAh battery that guarantees up to 11 hours of continuous use, while the housing with an IP67 rating is completely water- and dustproof.
ADVANTAGES
KEY POINTS
Applications and functionalities
The Topdon TS004 is designed to map invisible heat differences over long distances, supported by modern connectivity options for reporting and analysis.
- Thermal sensor: Uncooled focal plane array with a resolution of 256x192 pixels for sharp images.
- Digital Zoom: Adjustable magnification from 1x, 2x, 4x up to 8x for closer viewing of distant objects.
- Storage Capacity: Internal 32GB memory provides space for hours of video footage and thousands of photos.
- Wireless Connection: Wi-Fi hotspot functionality for pairing with smartphones or tablets.
Special Features and Capabilities
In addition to standard imaging, this model has specific features that enhance usability in the field and workshop.
- TopInfrared App: Capability for live monitoring and file transfer to mobile devices.
- LED Flashlight: Integrated lighting for navigation and inspection in dark environments.
- Multicolor Display: 5 selectable color palettes (including White Hot, Black Hot, Red Hot) for situation-dependent analysis.
- Robust Construction: Drop-resistant and waterproof according to IP67 standard.
Application Areas and Inspection Uses
This instrument is suitable for various technical and observational tasks where heat signatures are crucial for detection or diagnosis.
- Inspection Application: Detection of heat sources in industrial sites or large storage areas.
- Technical Analysis: Observing heat generation in heavy machinery or vehicles from a safe distance.
- Diagnostic Application: Identification of leaks, overheating, or insulation issues in hard-to-reach structures.
Package Contents
- 1x Topdon TS004 Thermal Imaging Camera

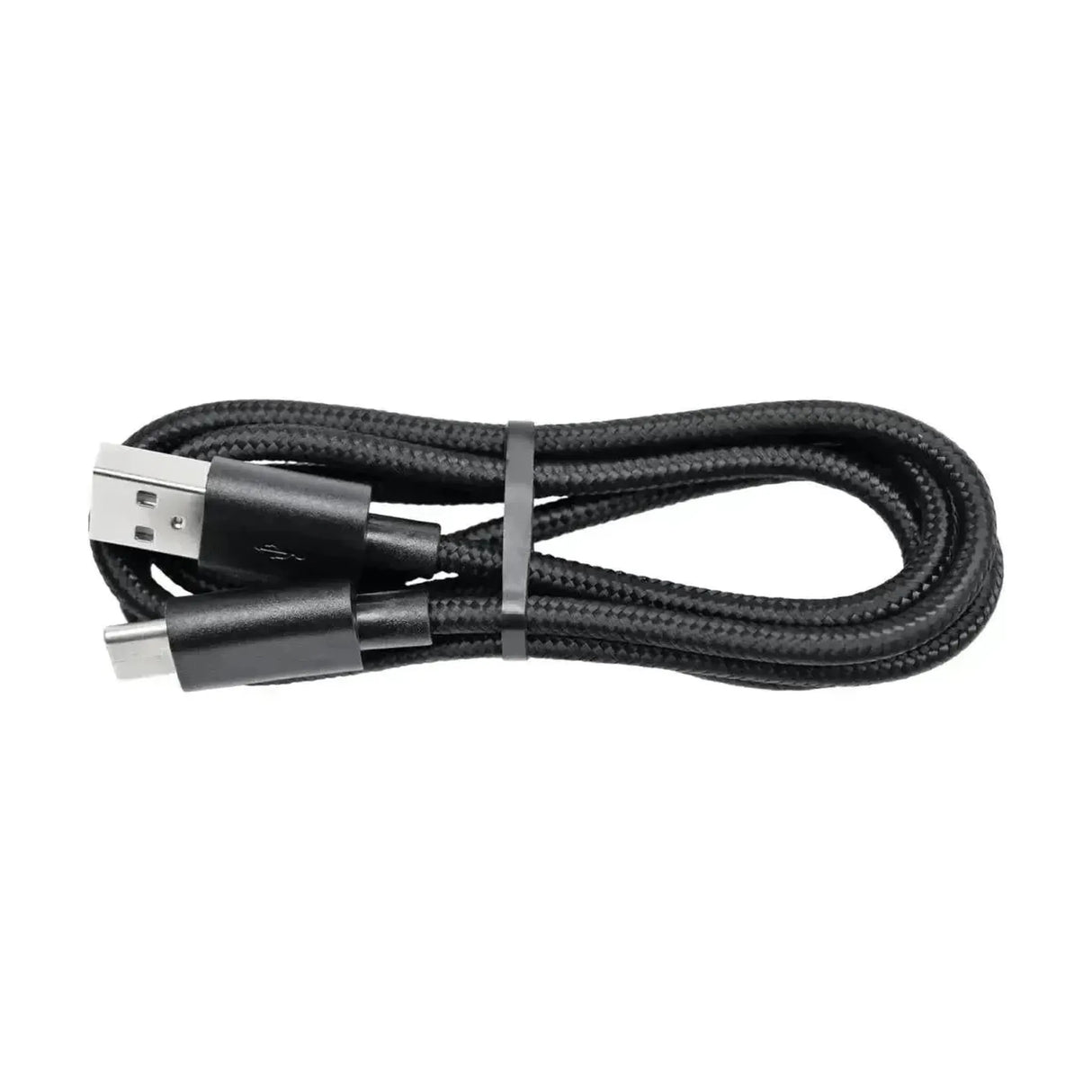

- 1x USB-A to USB-C Cable

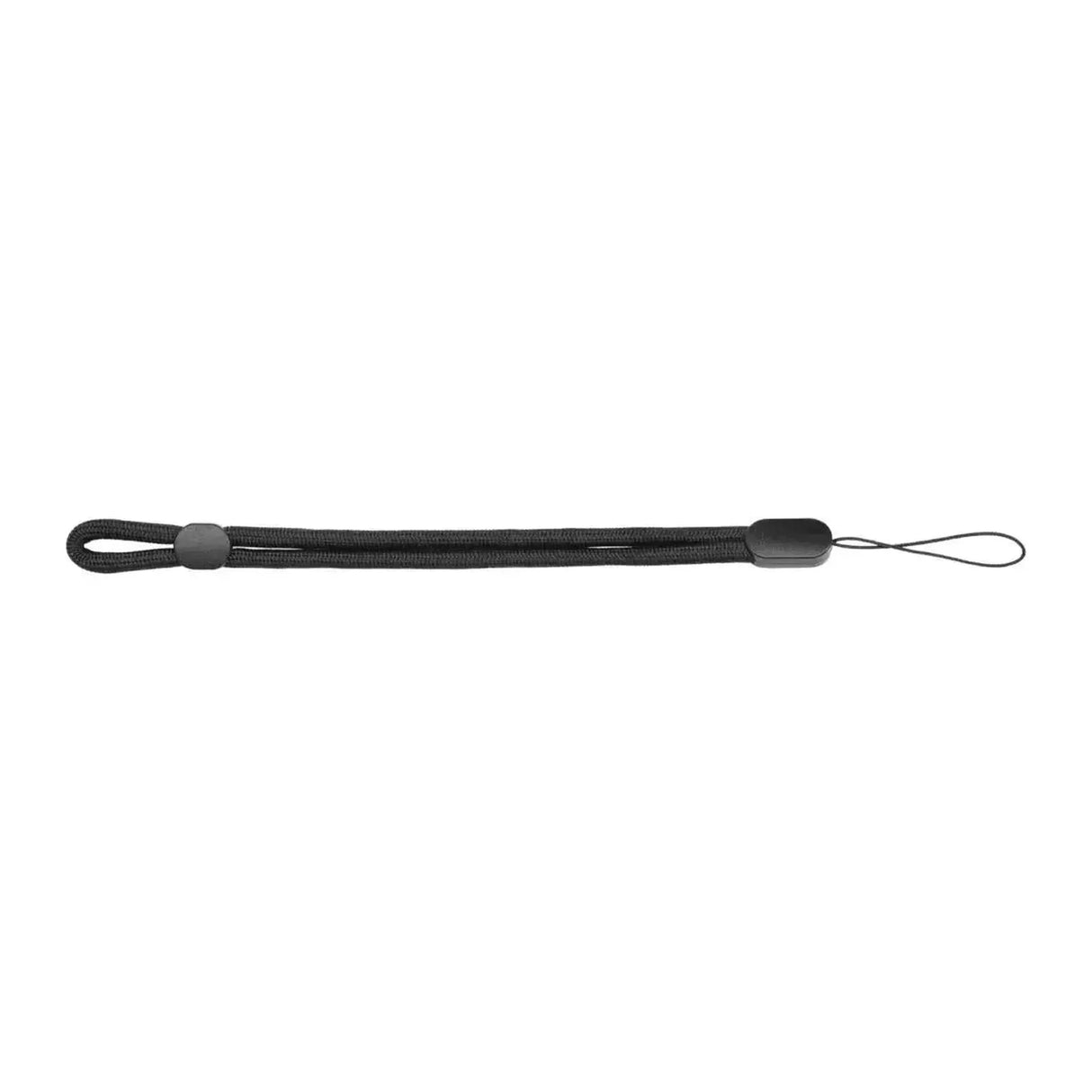

- 1x Lanyard

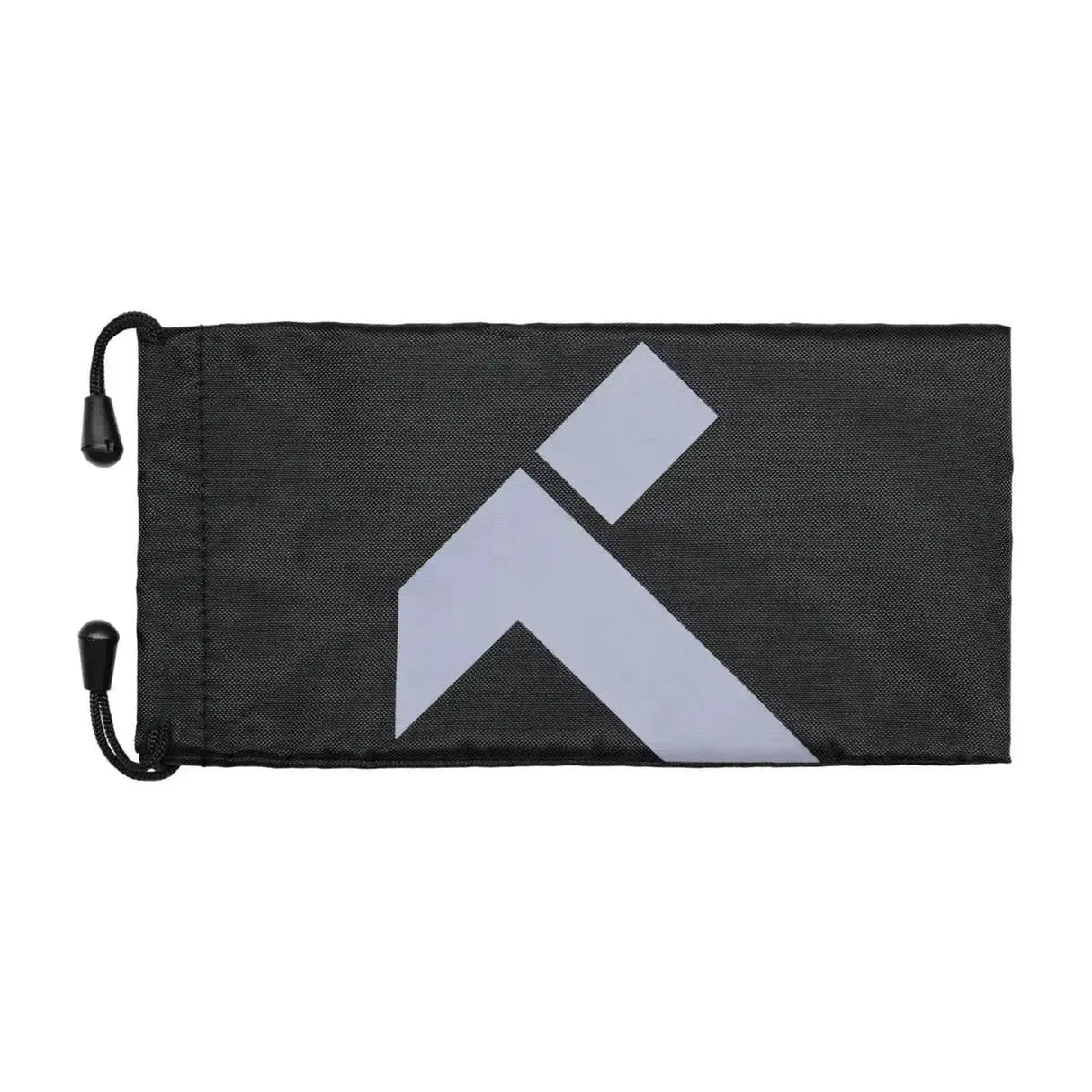

- 1x Protective Carrying Case
- 1x Quick Start Guide
Technical Specifications
| Specification | Description |
|---|---|
| Product Brand | Topdon |
| Product Model | TS004 |
| Sensor Resolution | 256 x 192 pixels |
| Image Frequency | 50Hz |

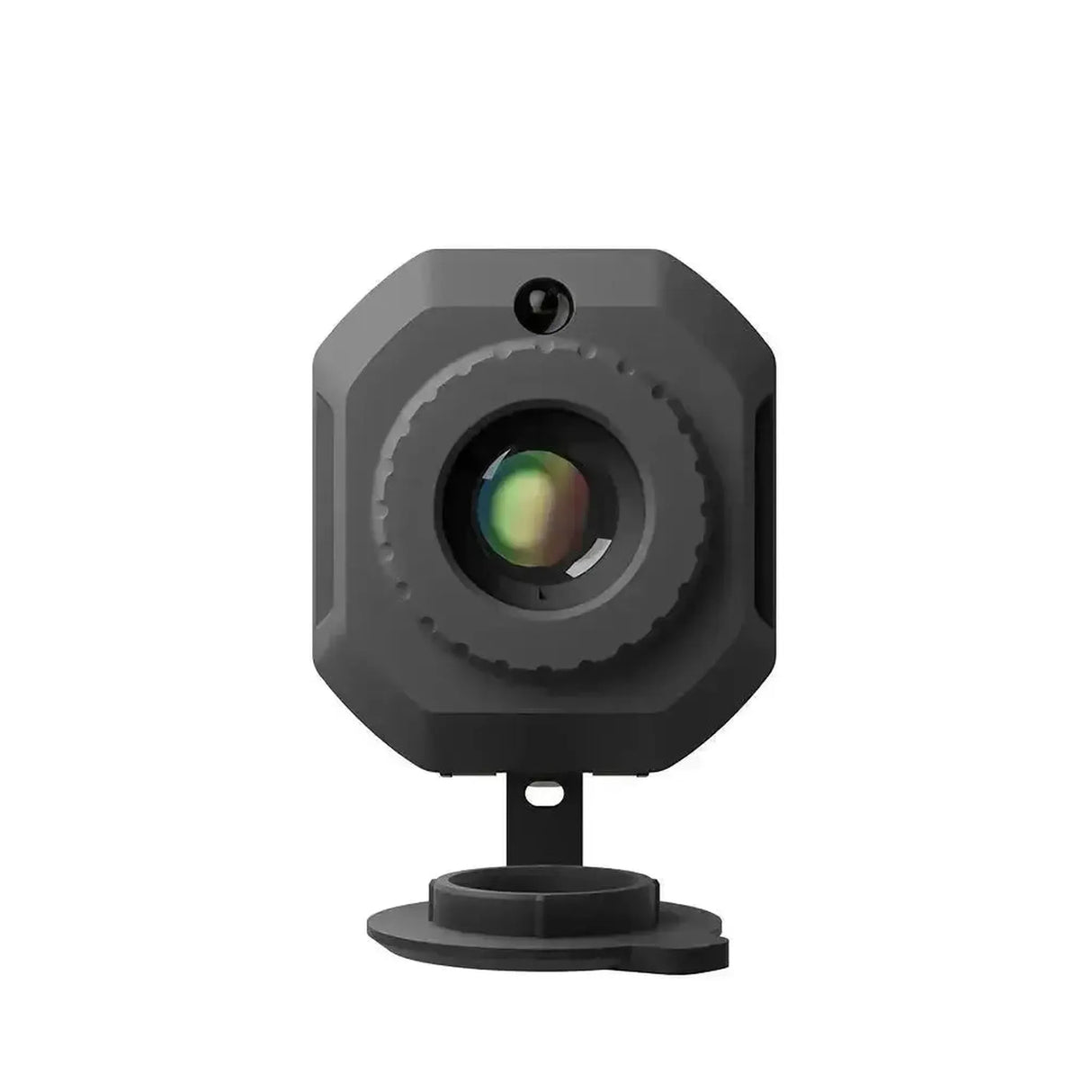

| Lens | 13mm fixed focus |
| Detection Range | Up to 410 meters (450 yards) |
| Zoom | 1x, 2x, 4x, 8x digital |
| Battery Capacity | 5000mAh (approx. 11 hours use) |
| Storage | 32GB built-in |
| Water Resistance | IP67 |
| Weight | 310 grams |
| Dimensions | 180 x 64 x 54 mm |
| Operating Temperature | -20°C to 45°C |
