Topdon TCView TS001 | Thermal Imaging Camera
Regular price
€297,95 incl.
€246,24 excl.
Unavailable
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

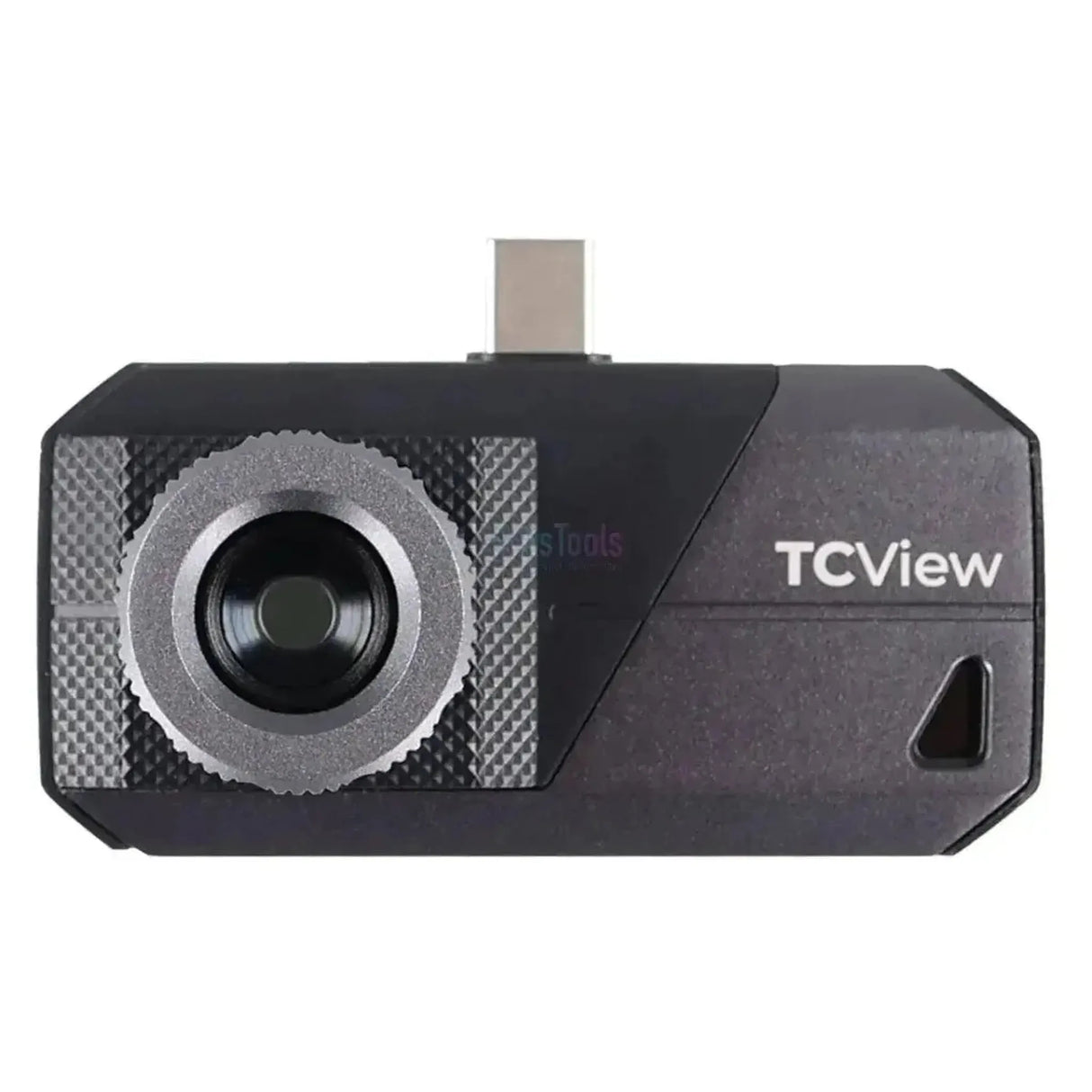

The Topdon TCView TS001 is a high-quality thermal camera designed to transform a smartphone or PC into a powerful thermal inspection tool. The device is equipped with an infrared sensor with a resolution of 256x192 pixels and offers smooth display thanks to the frame rate of 25 Hz. A distinctive feature is the adjustable 9mm lens, which ensures sharp focus over a distance ranging from 0.1 meters to 500 meters, with a field of view (FOV) of 13° by 10°.

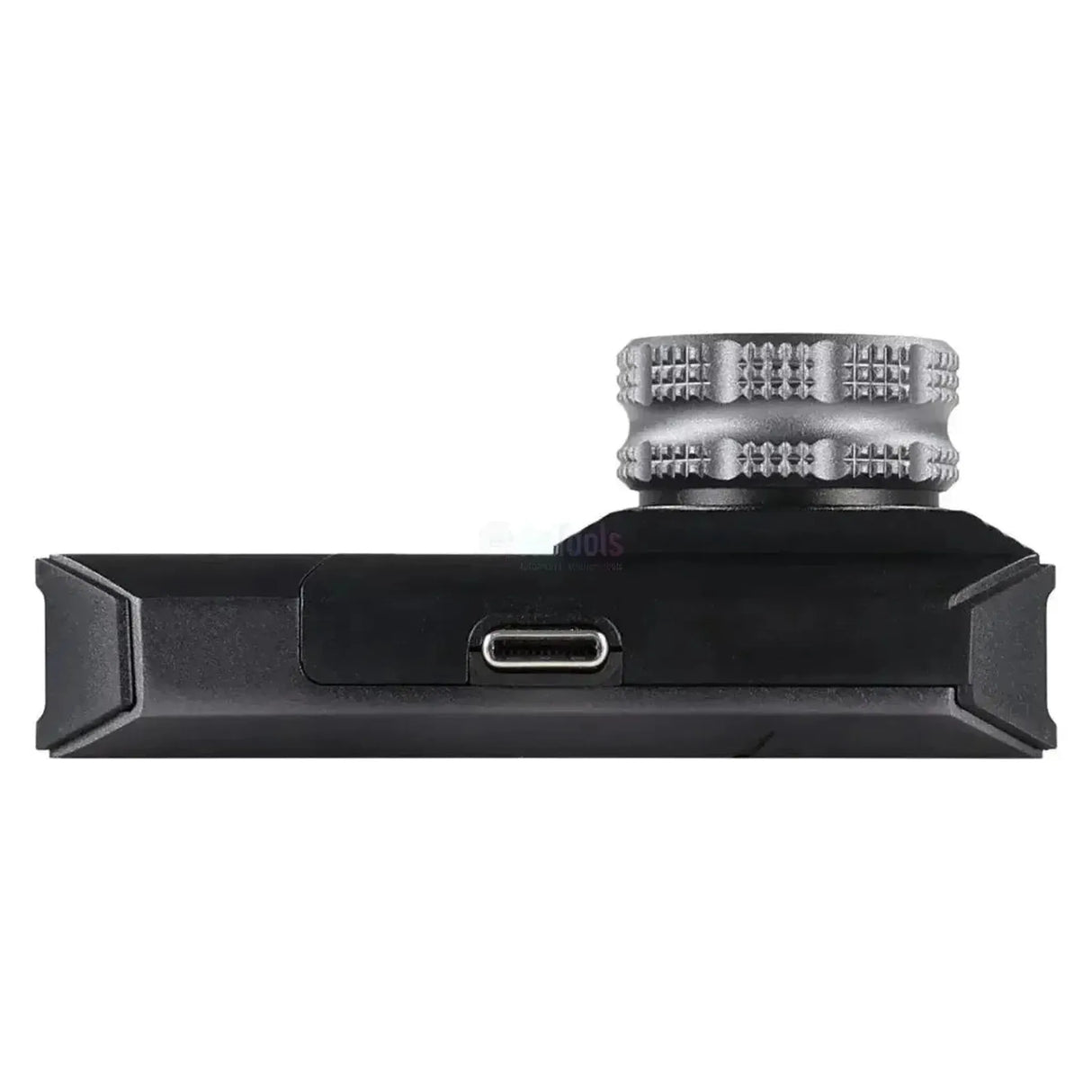

This thermal camera offers extensive capabilities for thermal imaging and data analysis, including a measurement mode and an observation mode. The camera supports a temperature range of -20°C to 550°C with an accuracy of ±3°C or 3%. Features such as temperature alarms, secondary image analysis, and waveform graphs allow the user to diagnose complex thermal issues. Power supply and data transfer are handled directly via the USB connection of the connected device.
ADVANTAGES
✔
Sharp imaging at long distances thanks to the adjustable 9mm lens.
✔
High thermal resolution of 256x192 pixels for detailed analysis.
✔
Smooth video playback during inspections thanks to the 25 Hz frame rate.
✔
Capability for extensive analysis and reporting via PC software.
KEY POINTS
✕
Requires an external device such as a smartphone or PC for display.
✕
The field of view is relatively narrow at 13°x10°, making it less suitable for tight spaces.
Applications and functionalities
The TCView TS001 is designed to enable both quick observations and precise measurements. The software offers various modes to interpret thermal data.
- Measurement mode: Provides accurate temperature measurements for specific points or areas.
- Observation mode: Enables quick target capture and monitoring.
- Dual Light Mode: Combines the visual image with the infrared image for better orientation.
- Waveform graph: Visualizes temperature changes over time on the screen.
Special features and capabilities
In addition to standard thermography, the TS001 offers features that simplify diagnosing complex faults.

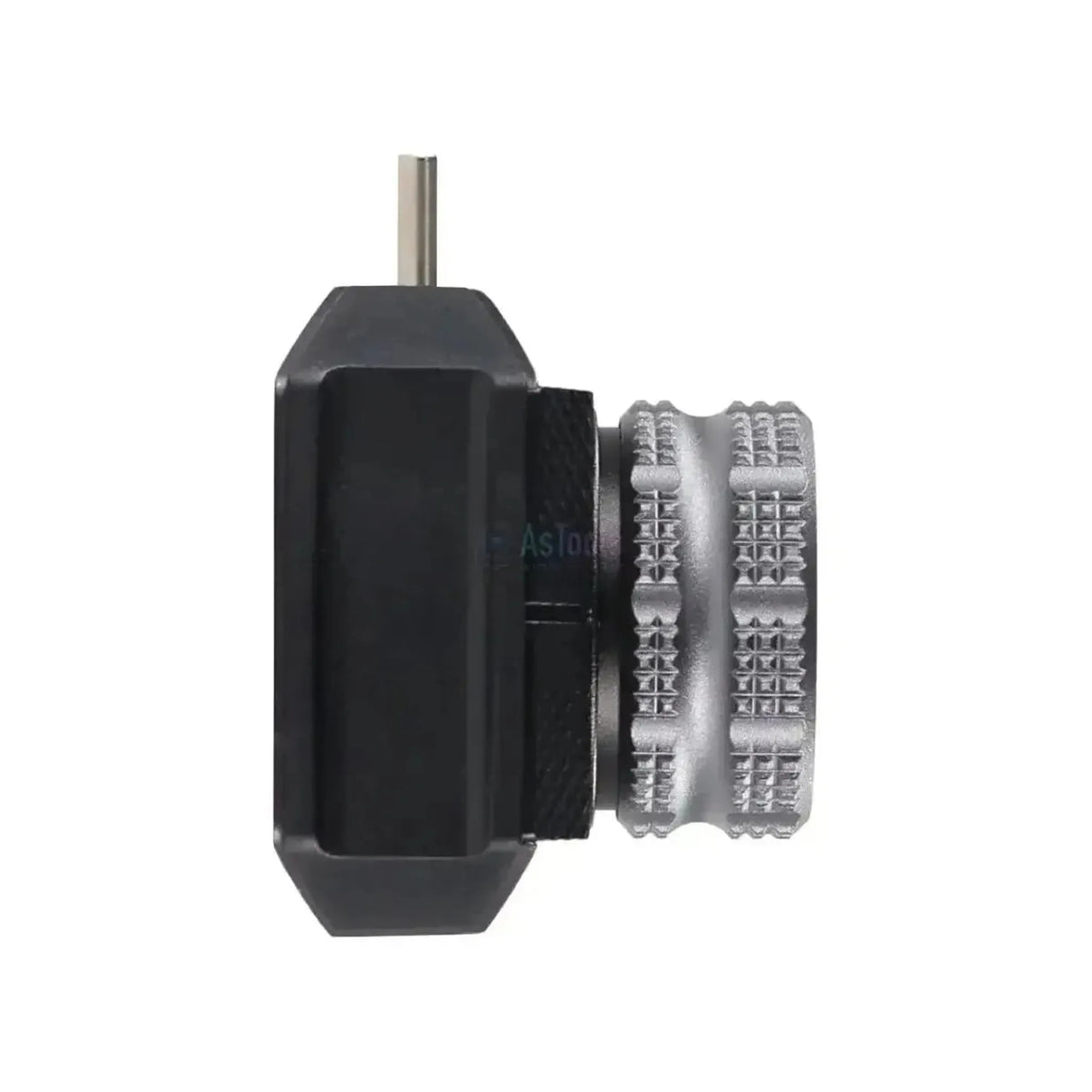

- Adjustable lens: Allows focusing from 0.1 meter for macro inspection to 500 meters for long-distance detection.
- Smart Temperature Alert: Automatically alerts the user when preset temperature limits are exceeded.
- Secondary Image Analysis: Enables post-processing and in-depth analysis of stored infrared images.
- Custom Reporting: Generates professional infrared reports directly from the software.
Application areas and inspection uses
Thanks to the combination of high resolution and long-distance focus, this camera is suitable for various technical inspections.
- Inspection application: Detection of overheated fuses or connectors in electrical switch cabinets.
- Technical analysis: Locating friction heat in bearings or mechanical transmissions remotely.
- Diagnostic application: Identification of insulation leaks or cooling issues in vehicle systems.
💡
Good to know: Set the emissivity correctly for the material to be measured to avoid measurement errors on reflective surfaces.

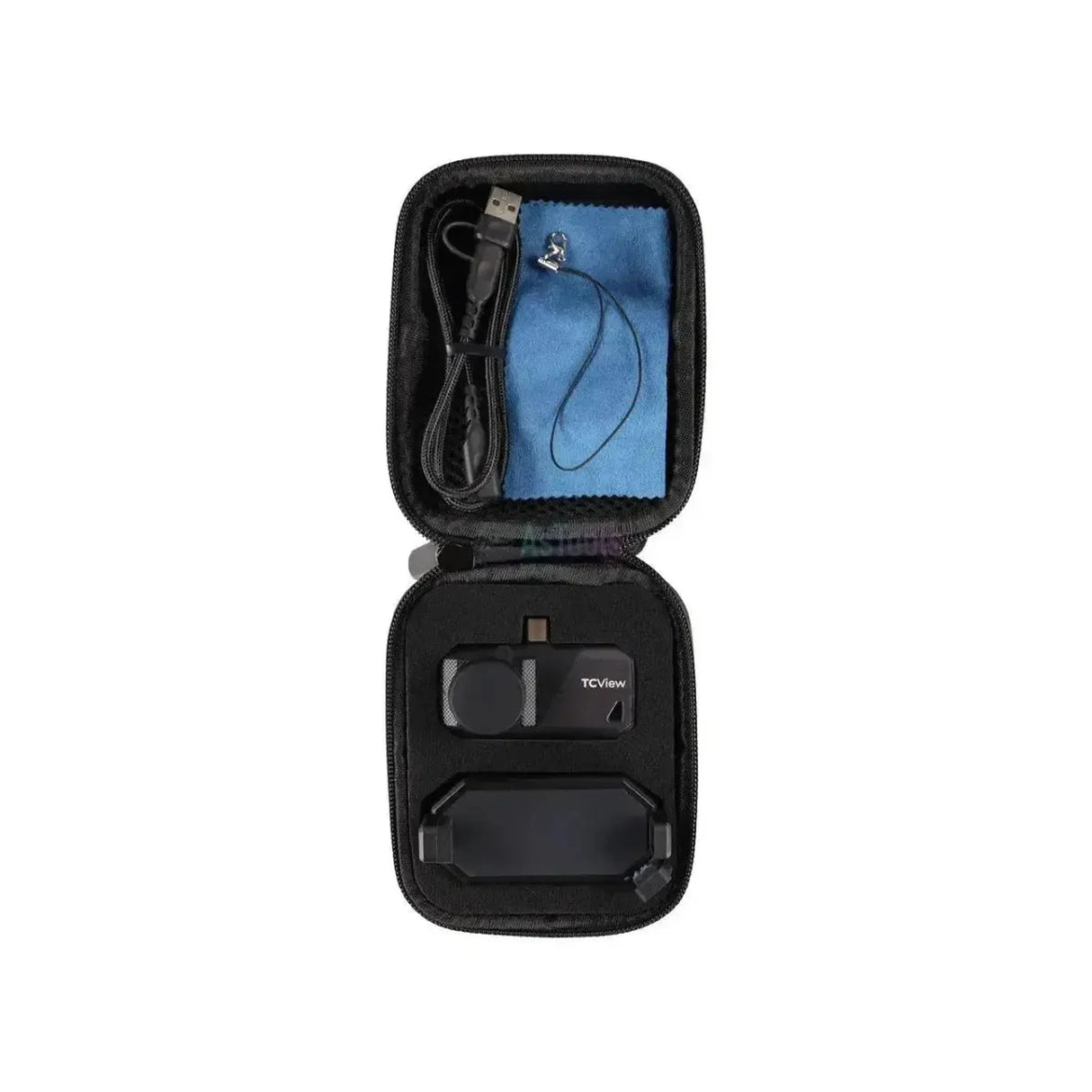

Package Contents
- 1x Topdon TCView TS001 Thermal Imaging Camera
- 1x Phone holder
- 1x Extension cable (50 cm)

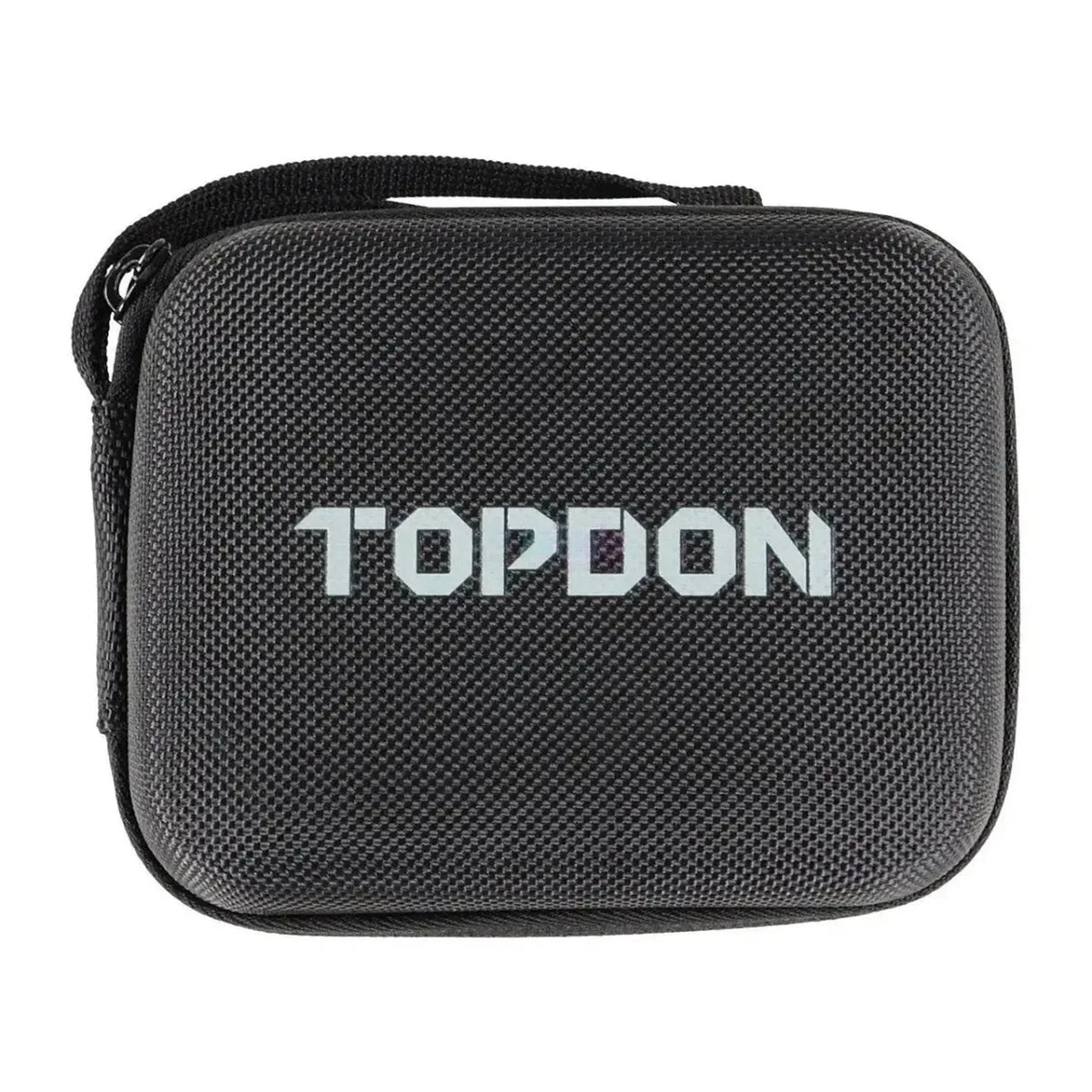

- 1x EVA carrying case
- 1x Cleaning cloth
- 1x Quick start guide
Technical specifications
General
- The manufacturer of the thermal imaging camera.Brand
- Topdon
- A standalone handheld camera, a camera that connects to your phone, or a monocular for viewing at distance. This determines how and where you use it.Type of camera
- Smartphone camera
- The number of pixels in the thermal sensor. More pixels mean sharper detail of small hot spots.Thermal image resolution
- 256 x 192 pixels
- The smallest temperature difference the camera can detect. A lower figure means finer differences are visible.Thermal sensitivity (NETD)
- 40 mK
- The number of images the camera produces per second. A higher rate gives smoother images when moving.Frame rate
- 25 Hz
- How wide the camera's view is. A wide field of view suits close work, a narrow one suits viewing at distance.Field of view
- 13° x 10°
- The focal length of the lens. A longer focal length lets you view further away, but with a narrower image.Focal length
- 9 mm
- Whether the lens has a fixed focus or can be adjusted manually.Focusing
- Adjustable
- How many colour displays you can choose, such as iron red or white hot. This lets you pick what works best.Number of colour palettes
- 10 palettes
- The maximum distance at which you can detect a warm object such as a person or animal.Detection range
- 500 m
Measurement and functions
- The lowest and highest temperature the camera can measure. Important for hot components such as exhausts.Temperature range
- -20 to 550 °C
- How much the measured temperature may deviate from the actual temperature.Accuracy
- ±3 °C or ±3%
- The camera warns you when a temperature exceeds or falls below a set limit.Temperature alarm
- Yes
- You can create a report from your measurements, for example to show a customer.Report creation
- Yes
- Software on your computer lets you review images later and analyse temperatures.PC analysis software
- Yes
Connectivity
- The devices the camera can connect to or be used with via the app.Compatible with
- Android
- Windows
Other specifications
- Measuring distance
- 0.1 m to 500 m
