The Topdon TC004 thermal imaging camera is an advanced handheld scanner developed for precise industrial and automotive inspections. The device is equipped with a sensor that delivers a thermal resolution of 256 x 192 pixels and operates at an image frequency of 25 Hz, ensuring smooth display of moving images. The camera features a lens with a focal length of 3.2 mm and covers a wide temperature measurement range from -20°C to +350°C, making it suitable for various diagnostic purposes.
For detailed image analysis, this thermal camera offers a high thermal sensitivity (NETD) of < 40 mK, making even minimal temperature differences visible on the 2.8-inch screen. The TC004 supports offline analysis via the included 32 GB memory card and offers connectivity via USB for data transfer to a PC for reporting. The robust design integrates advanced features such as automatic detection of hotspots and coldspots, supported by an internal power supply for mobile use in the workshop.
ADVANTAGES
KEY POINTS
Applications and functionalities
The Topdon TC004 is designed to assist diagnostic technicians in visualizing invisible temperature issues. The camera combines hardware measurement precision with software analysis capabilities.
- PC analysis software: Ability to read and analyze stored images on a computer for comprehensive reporting.
- Automatic tracking: The system automatically marks the highest and lowest temperature in the image field.
- Image storage: Direct storage of radiometric images on the SD card for later evaluation.
- Alarm function: Adjustable temperature alarms alert the user when threshold values are exceeded.
Special features and capabilities
This model stands out with specifications usually found in more expensive segments, specifically focused on measurement accuracy and ease of use in a stand-alone housing.
- High thermal sensitivity: With an NETD of less than 40 mK, extremely small temperature deviations are detected, essential for insulation inspections and moisture detection.
- Wide spectral range: The sensor operates in the spectral range of 8 to 14 µm, which is the standard for uncooled microbolometers in industrial applications.
Application areas and inspection uses
The TC004 is versatile for both automotive and general maintenance tasks. The temperature range and resolution make it suitable for various sectors.
- Inspection application: Checking fuse boxes, relays, and wiring for overload and poor contacts.
- Technical analysis: Detection of friction and overheating in bearings, engines, and mechanical drive trains.
- Diagnostic application: Detecting blockages in cooling systems, leaks in air conditioning systems, and faulty seat heating.

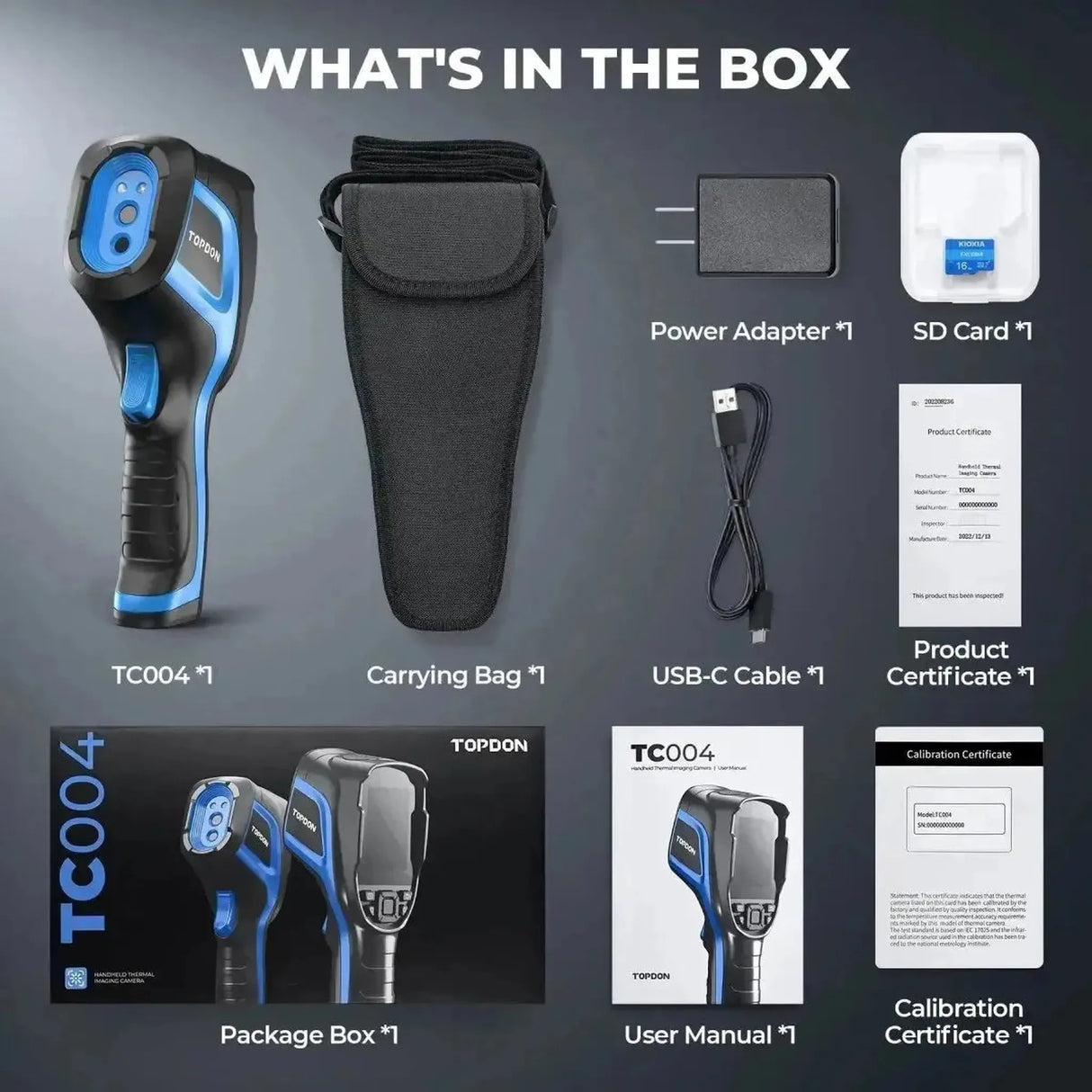

Package Contents
- 1x Topdon TCView TC004 Thermal Imaging Camera
- 1x USB-C data cable and charger
- 1x 32 GB Micro-SD memory card
- 1x Protective case
- 1x Manual
Technical specifications
General
- The manufacturer of the thermal imaging camera.Brand
- Topdon
- A standalone handheld camera, a camera that connects to your phone, or a monocular for viewing at distance. This determines how and where you use it.Type of camera
- Handheld camera
- The number of pixels in the thermal sensor. More pixels mean sharper detail of small hot spots.Thermal image resolution
- 256 x 192 pixels
- The smallest temperature difference the camera can detect. A lower figure means finer differences are visible.Thermal sensitivity (NETD)
- 40 mK
- The number of images the camera produces per second. A higher rate gives smoother images when moving.Frame rate
- 25 Hz
- The focal length of the lens. A longer focal length lets you view further away, but with a narrower image.Focal length
- 3.2 mm
- Whether the lens has a fixed focus or can be adjusted manually.Focusing
- Fixed focus
- The size of the built in screen. Cameras for smartphones use your phone's screen instead.Screen diagonal
- 2.8 inches
Measurement and functions
- The lowest and highest temperature the camera can measure. Important for hot components such as exhausts.Temperature range
- -20 to 350 °C
- The camera warns you when a temperature exceeds or falls below a set limit.Temperature alarm
- Yes
- You can create a report from your measurements, for example to show a customer.Report creation
- Yes
- Software on your computer lets you review images later and analyse temperatures.PC analysis software
- Yes
Connectivity
- How much space is available for storing photos and videos.Storage
- 32 GB
Dimensions and weight
- The length, width and height of the camera.Dimensions
- 240 x 70 x 90 mm
- How heavy the camera is. A lighter camera remains comfortable to hold over time.Weight
- 520 g
Other specifications
- Display
- 2.8-inch LCD (7.1 cm)
- Spectral range
- 8 - 14 µm
