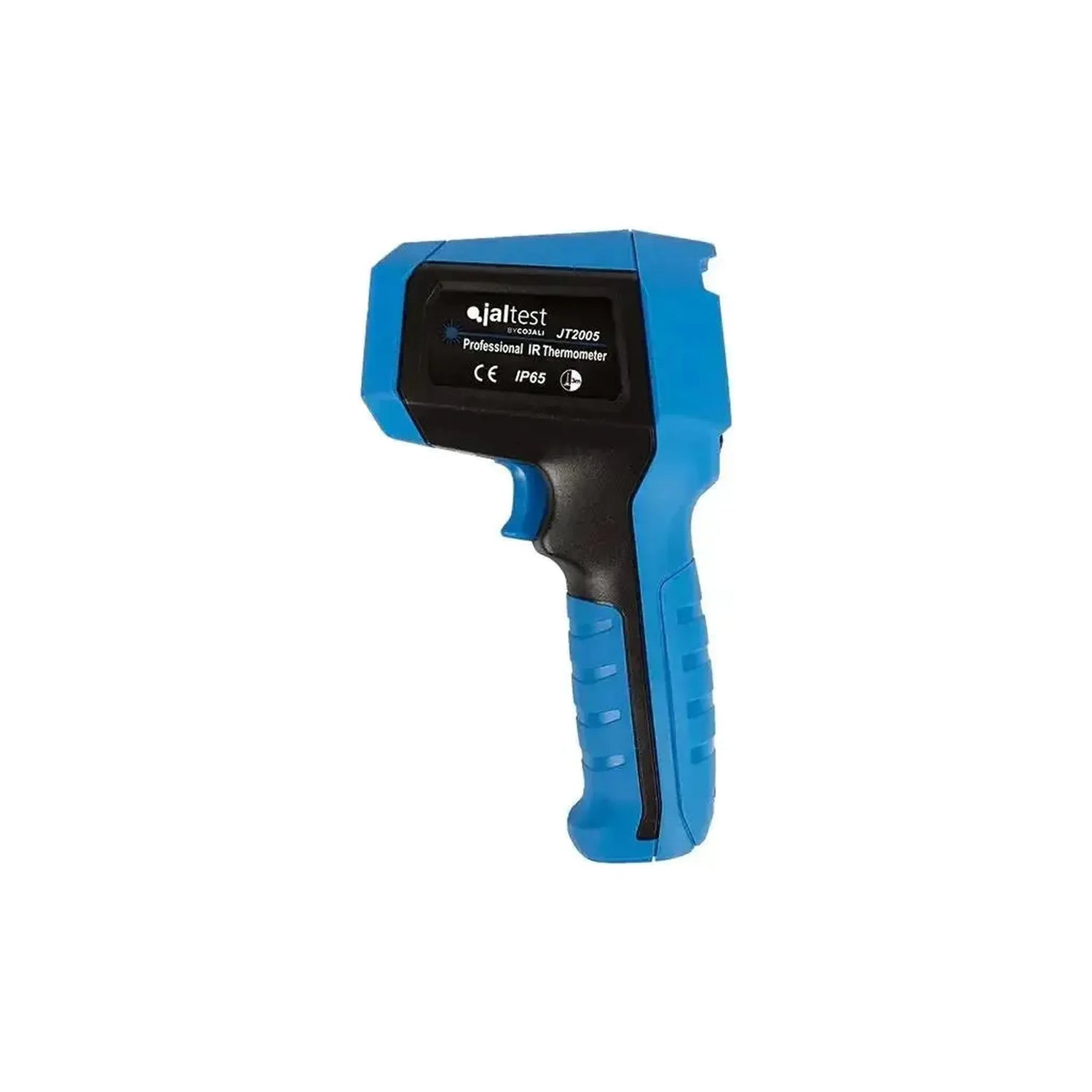

Jaltest JT2005 Infrared Thermometer
The Jaltest JT2005 is an infrared thermometer for contactless temperature measurement. The instrument has a temperature range of -35°C to 850°C. Thanks to the 20:1 optical ratio (distance to measurement spot), measurements can be performed at a safe distance from the object.
For accurate measurements on different surfaces, the emissivity value is adjustable from 0.1 to 1.0. The dual laser pointer helps precisely aim at the measurement surface. The thermometer features internal memory for storing up to 99 measurements and an illuminated LCD display for good readability in dark environments. This makes the device suitable for applications in the automotive sector, industry, and HVAC systems.
Application and functionality:
The JT2005 is designed for fast and contactless measurement of surface temperatures in various environments. The main features focus on accuracy and data analysis.
- High and low temperature alarms: Adjustable thresholds with a visual signal (blinking LED) when exceeded or undershot.
- MAX/MIN/AVG/DIF mode: Displays the maximum, minimum, average, and difference in temperature during a measurement.
- Data storage: Stores up to 99 measurements for later analysis.
- Lock function: Enables continuous measurements without holding the trigger.
Measurement capabilities and applications:
This instrument offers a wide measurement range and a fast response, making it suitable for a variety of professional applications.
- Temperature range: -35°C to 850°C
- Accuracy: ±1.8°C or ±1.8% of the measured value (above 0°C).
- Response time: 250 ms (0.25 seconds).
- Application: Suitable for checking brakes, engines, exhaust systems, air conditioning, and industrial processes.
Storage and additional functions:
The thermometer is equipped with various functions that increase usability and measurement accuracy.
- Storage: Internal memory for up to 99 measurements.
- Laser pointer: Dual laser for clear delimitation of the measurement area.

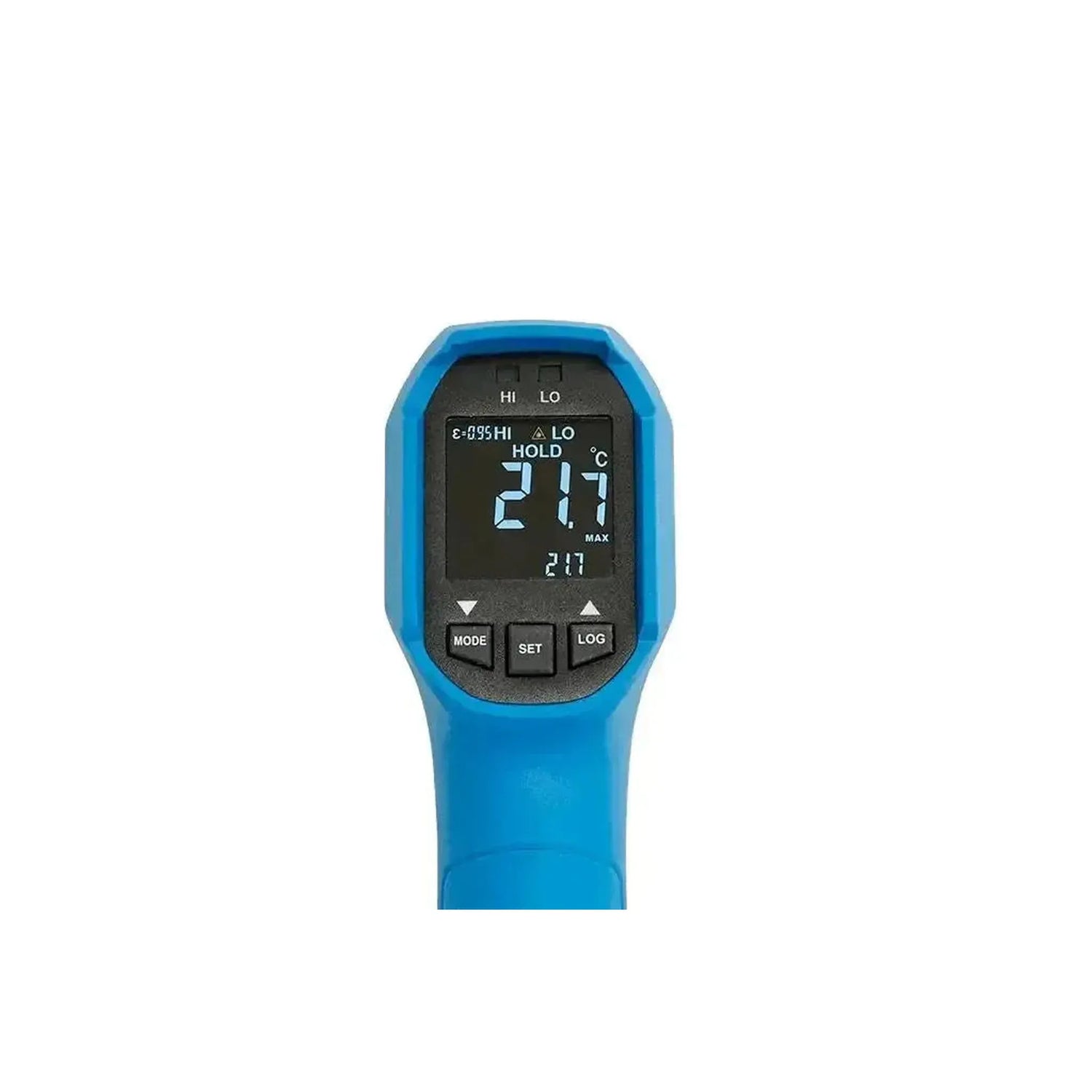

- Backlight: White illuminated LCD display for reading in low light.
- Emissivity setting: Manually adjustable from 0.1 to 1.0 for measurements on different materials.
Package Contents:
- 1x Jaltest JT2005 infrared thermometer
- 1x 9V battery
- 1x Manual
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Jaltest |
| Product model | JT2005 |
| Temperature range | -35°C to 850°C |
| Accuracy | ≥0°C: ±1.8°C or ±1.8% of the measured value; <0°C: ±(1.8°C + 10% of the measured value) |
| Response time | 250 ms (0.25 seconds) |
| Emissivity value | Adjustable from 0.1 to 1.0 |
| Laser pointer | Yes, dual laser (Class II) |
| Display | LCD with backlight |
| Storage | 99 measurements |
| Power Supply | 1x 9V battery (1604A) |
| Dimensions | 189 x 118 x 55 mm |
| Weight | 292 grams |
