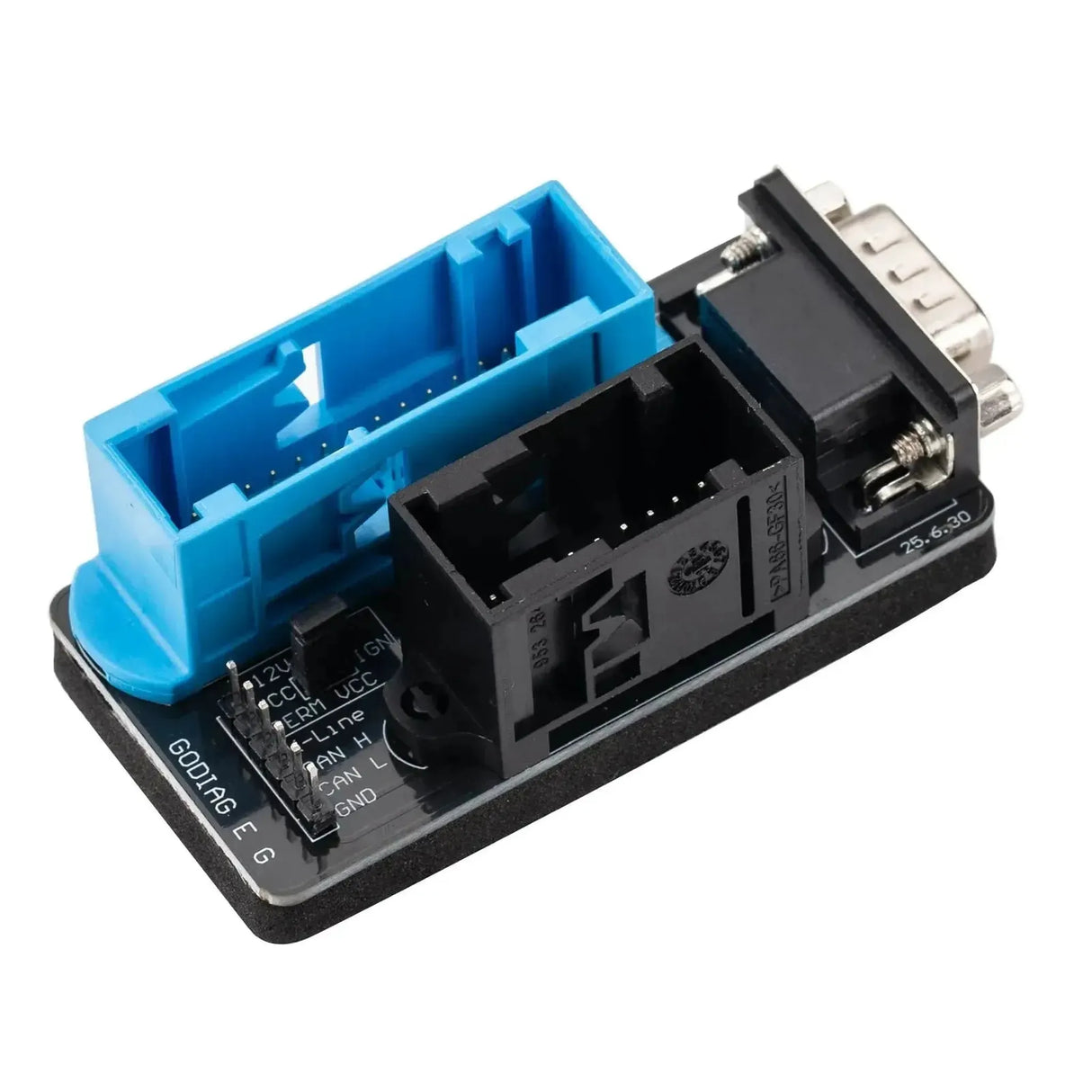

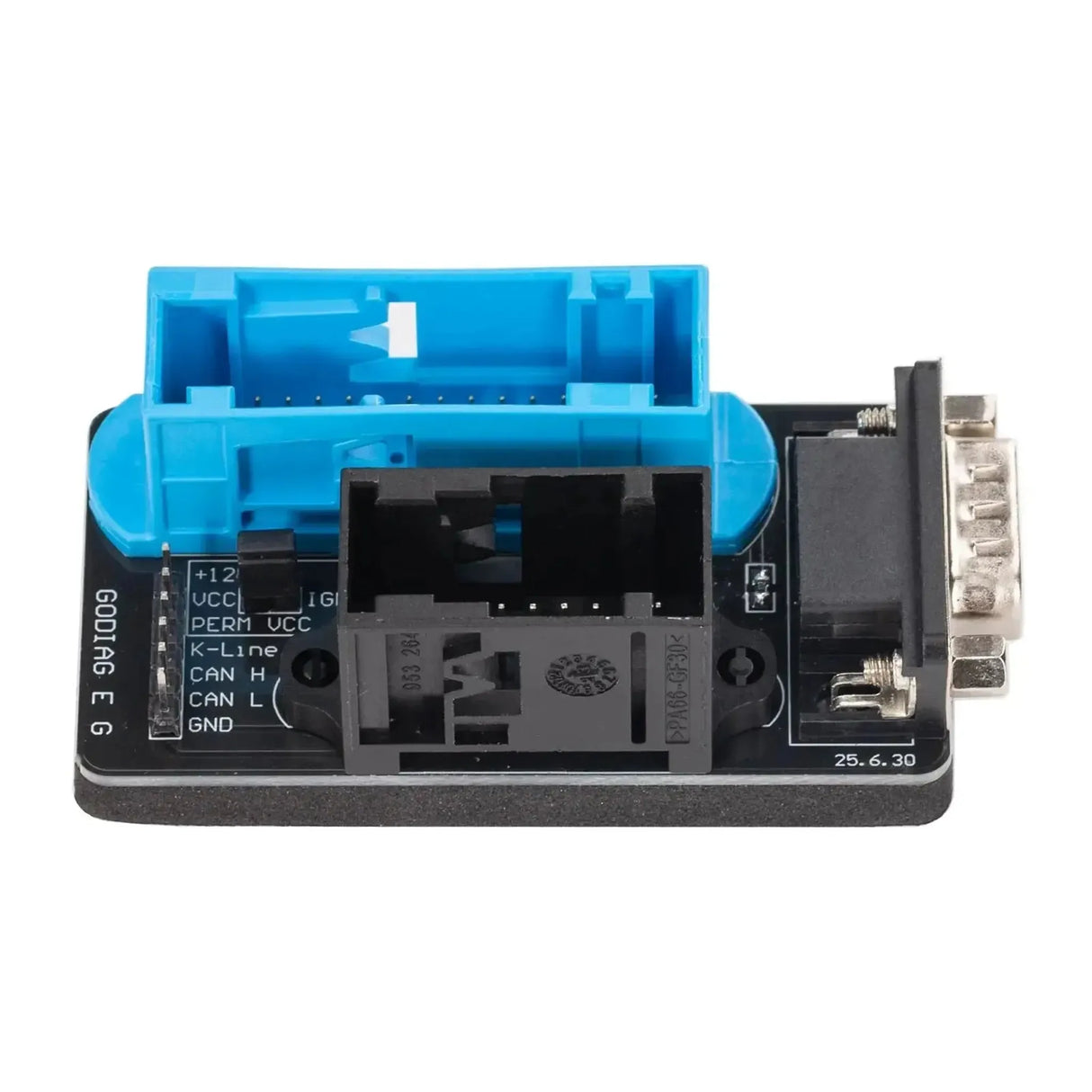

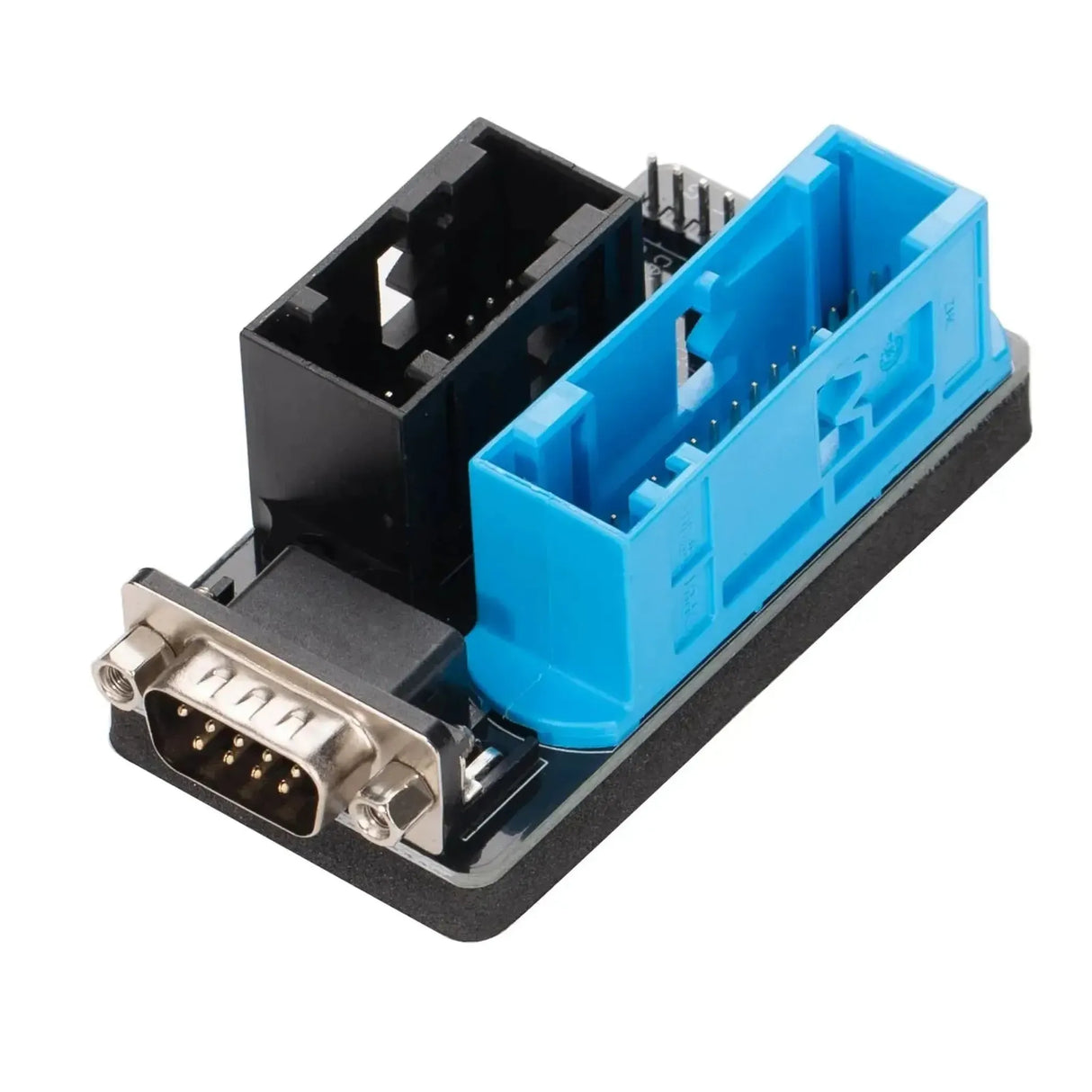

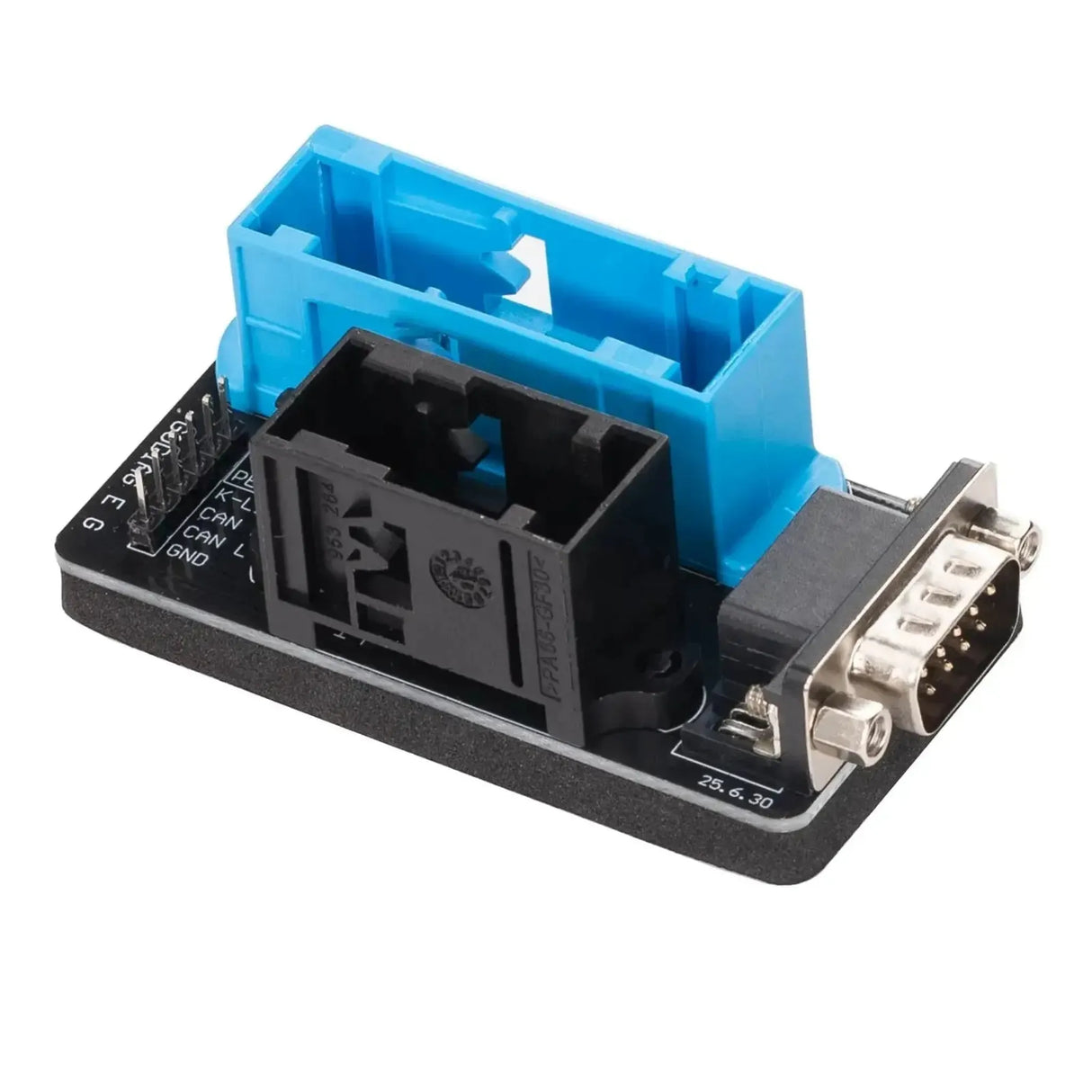

GoDiag | MQB Data Collector (ELV/TCM-DSG) | Transmission Adapter

The GoDiag MQB Data Collector is a transmission Adapter, specifically designed for collecting data from the ELV (Electronic Steering Lock) and the TCM (Transmission Control Module) of DSG transmissions. This Adapter is developed for use on vehicles based on the MQB platform of the Volkswagen Group. It works in combination with other Godiag adapters, such as the GT115 and GT107+, to establish a complete connection for data acquisition.

This data collector enables diagnosis and the ability to read and write data on the workbench (outside the vehicle). By connecting to the vehicle’s instrument connector, the Adapter can collect synchronization data needed for procedures such as key learning in situations where all keys are lost (AKL). The Adapter can be connected with a full-protocol OBD2 jumper cable or other OBD2 CANbus protocol cables.

Application and functionality:

The Adapter is developed to facilitate data acquisition from immobilizer-related components on the MQB platform. The functionalities include:

• ELV data collection: Enables collection of ELV data via the vehicle instrument connector for immobilizer purposes.
• Workbench diagnosis TCM: Provides the ability to perform diagnosis on the workbench and read or write data to the transmission module (TCM).
• Support for All Keys Lost (AKL): Collects the necessary synchronization data for programming new keys when all original keys are lost.
• System compatibility: Works in combination with the Godiag GT115 (SF414) and Godiag GT107+ (SF380-FULL) adapters for a complete data connection.
• Direct connection: Supports connection via a full-protocol OBD2 jumper cable (such as the SF341) or other OBD2 CANbus protocol cables for data transfer.

Package Contents:

• 1x Godiag MQB Data Collector (ELV/TCM-DSG)

Technical specifications:
