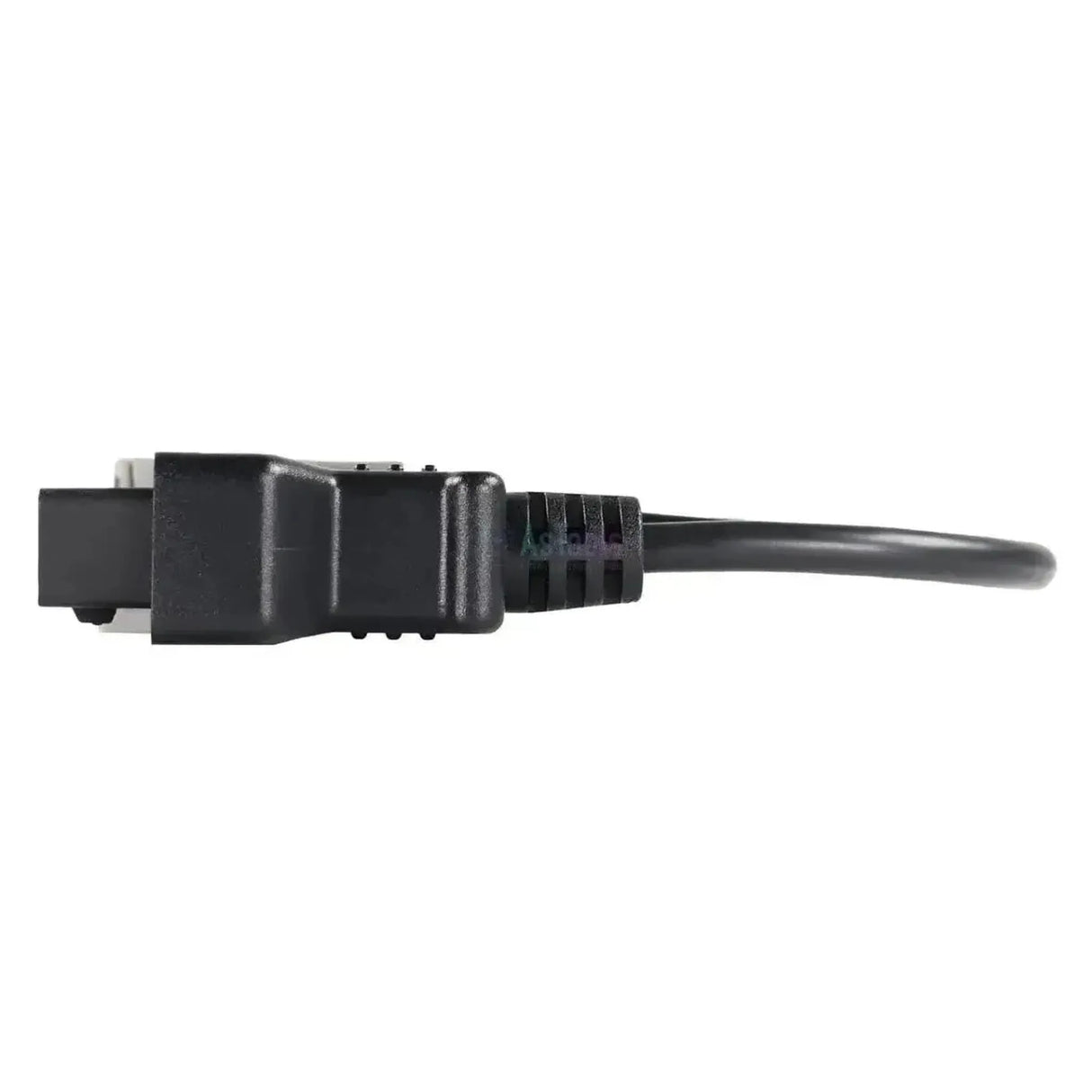

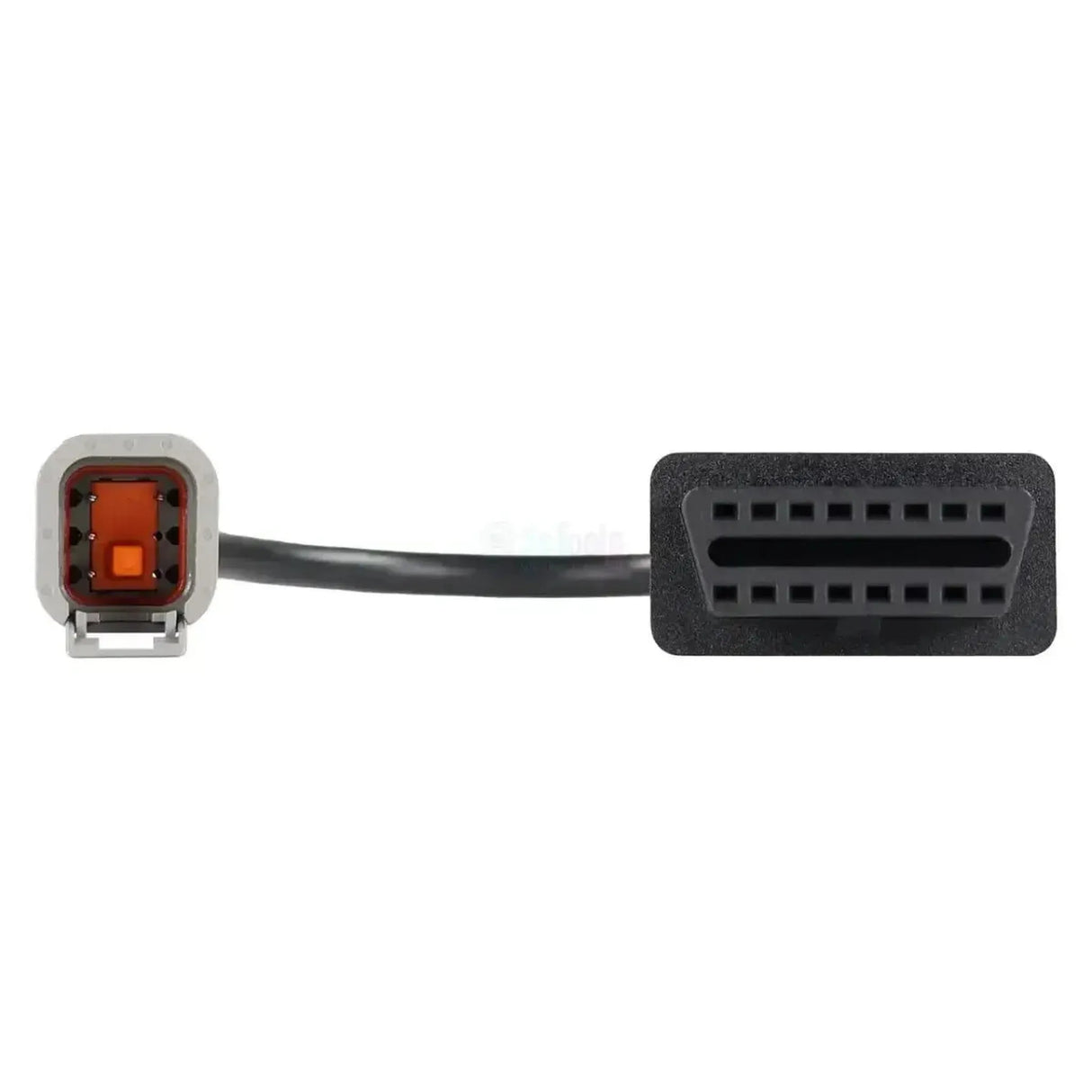

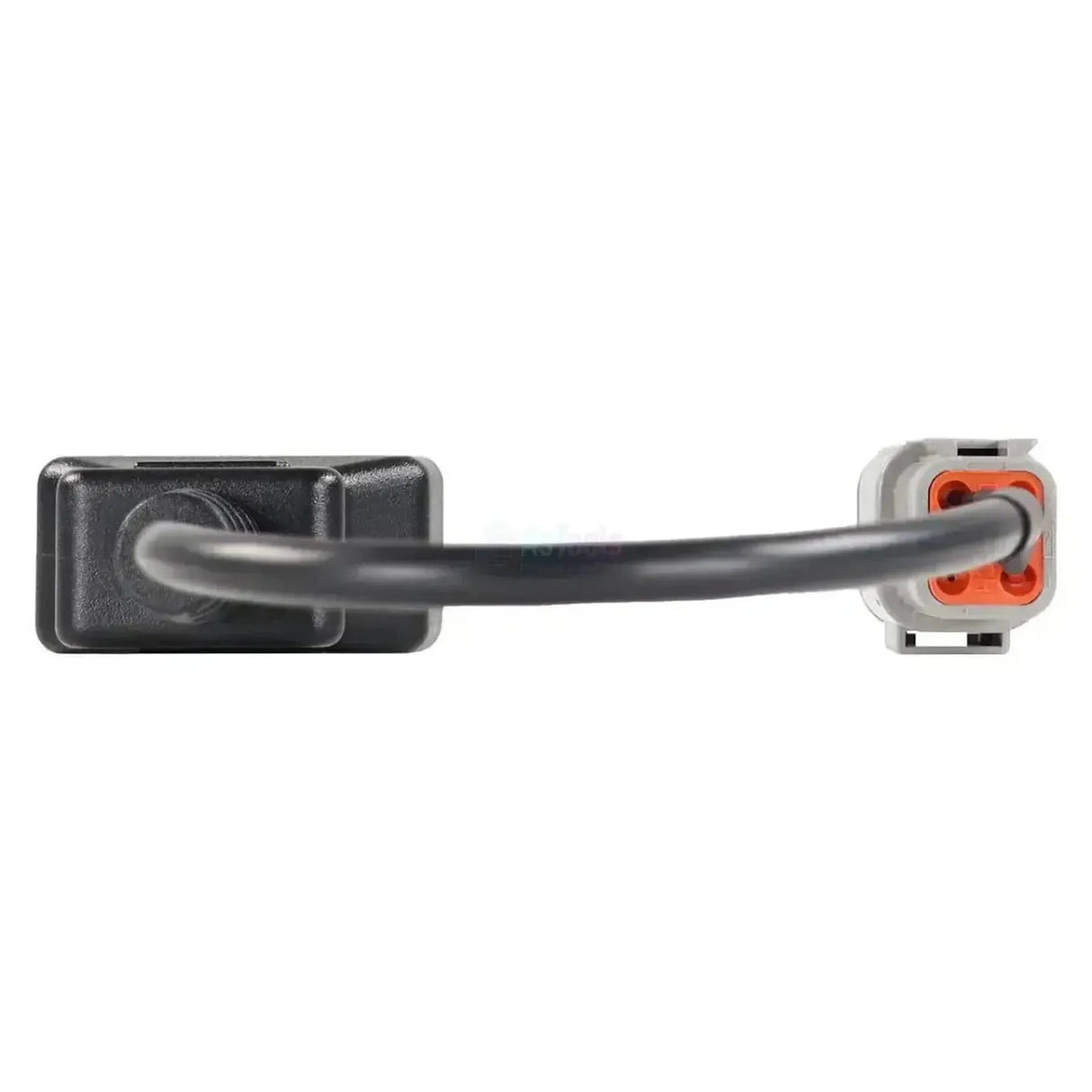

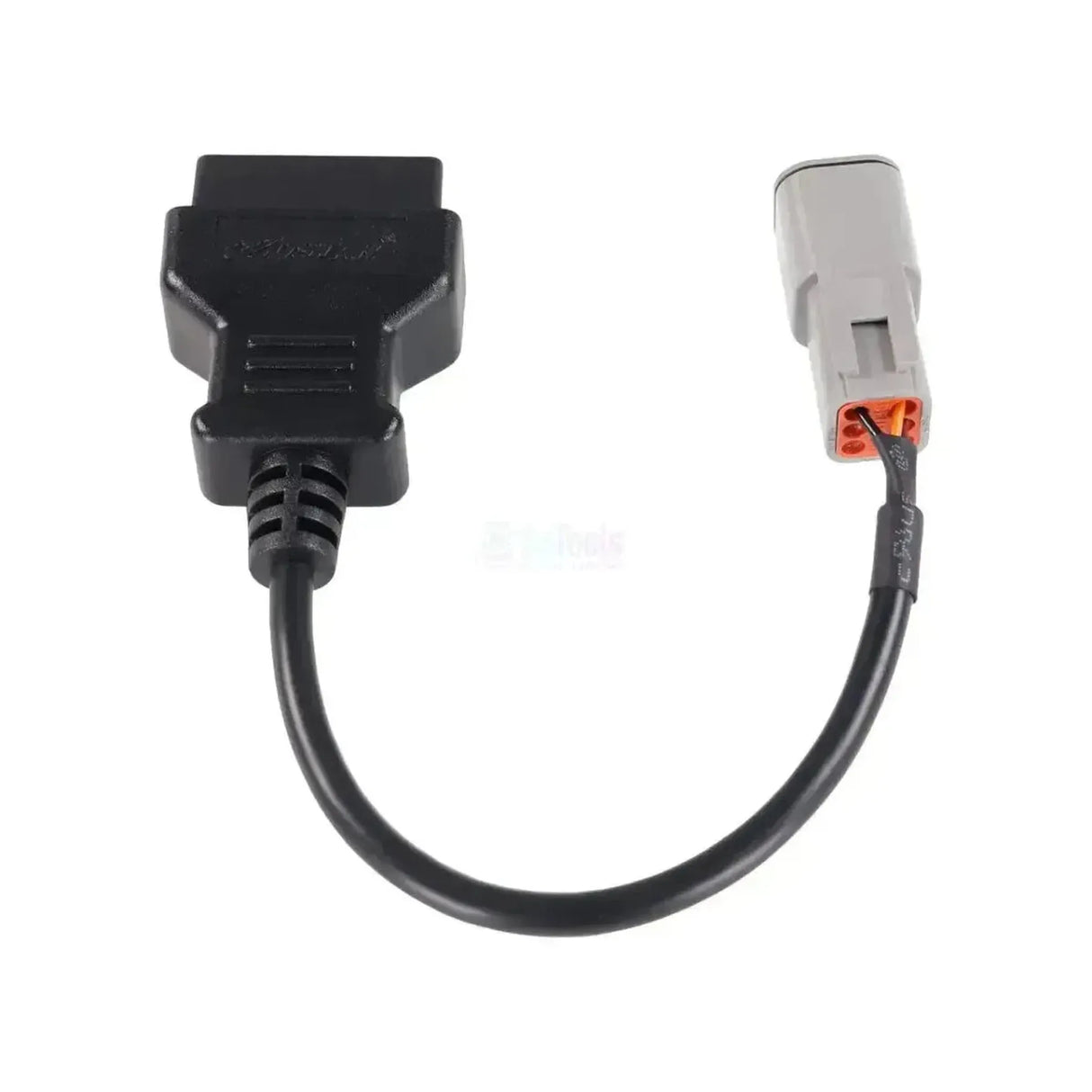

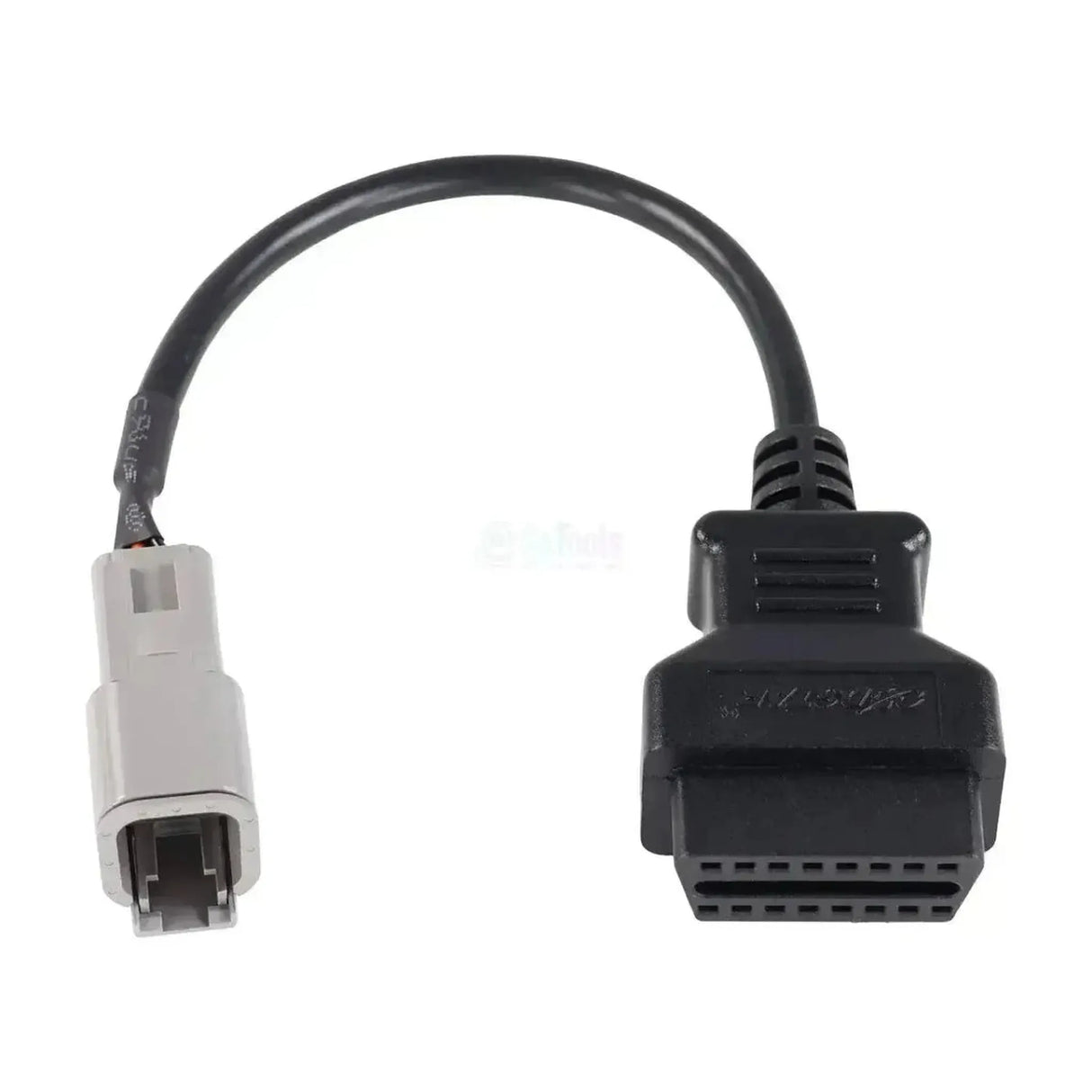

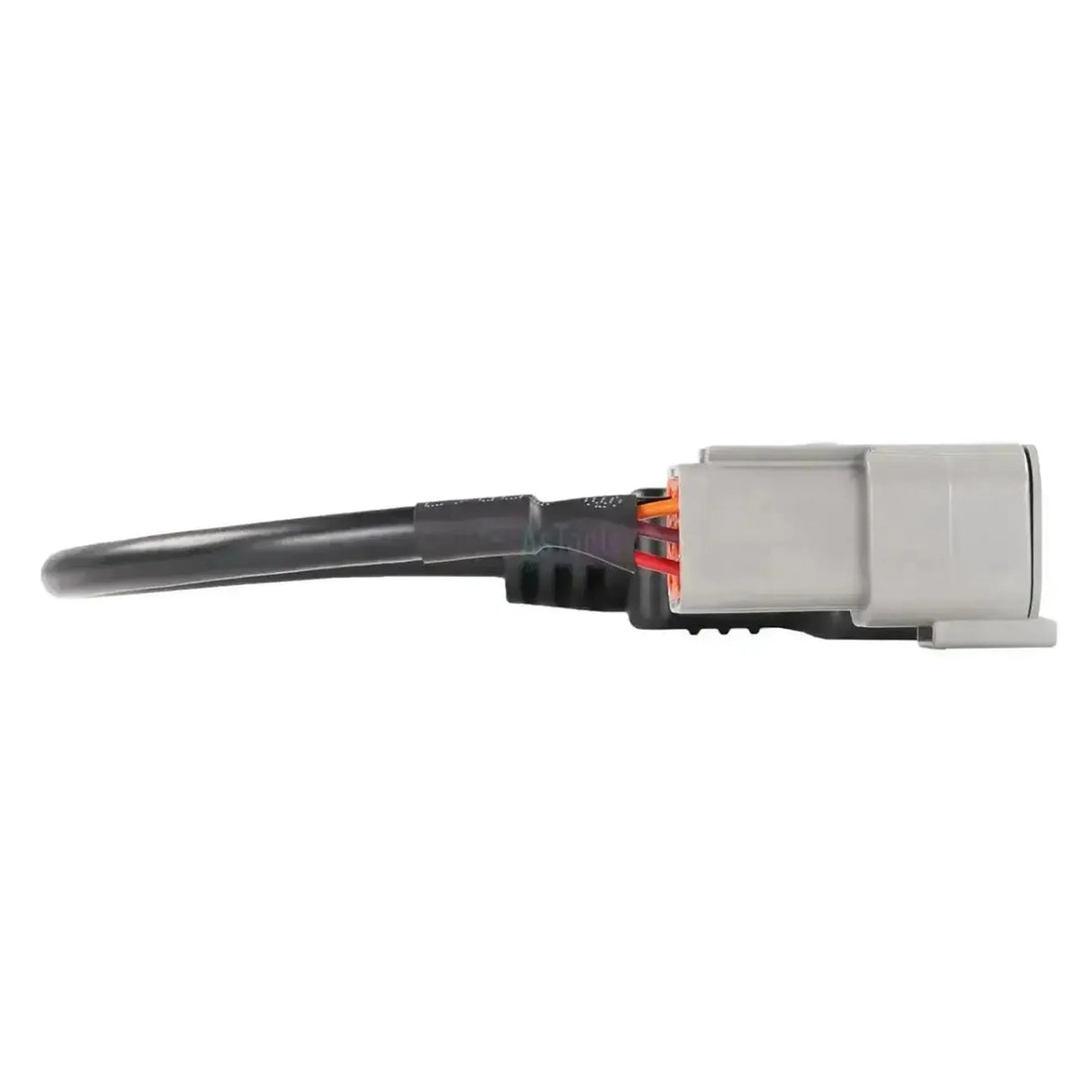

The OBDSTAR M075 is the adapter cable for the 6-pin Toyota/Yanmar diagnostic connector on marine combustion engines. The cable connects that connector to the 16-pin OBD2 (J1962)-port on your OBDSTAR device and plugs into the factory diagnostic port on the engine side.
Toyota and Yanmar marine engines share the same proprietary 6-pin diagnostic connector, which doesn't fit standard OBD2 equipment. The cable translates the pin configuration to the corresponding pins on the OBD2 port. There's no active electronics inside: the signal adaptation is completely passive and works through fixed wiring.
The cable unlocks the engine control unit of the marine engine. Which fault codes and engine parameters you can then read depends on the coverage of your connected OBDSTAR device, not the cable itself.
KEY BENEFITS
IMPORTANT NOTES
Applications and Features
Through the 6-pin connector, you access the engine control unit of the marine combustion engine.
Control units you can reach
- Engine control unit: the control module of the Toyota or Yanmar marine engine behind the 6-pin diagnostic connector.
- Other modules: whether additional units are accessible varies depending on the engine system and device.
What you can do
- Read diagnostic trouble codes: retrieve fault codes (DTCs) from the engine control unit and display them on the OBDSTAR device.
- Clear diagnostic trouble codes: remove stored fault codes from the engine control unit's memory after diagnosis.
- Monitor engine parameters: track real-time values such as RPM, temperature, and load during operation.
- Establish connection: the 6-pin marine connector is passively converted to your device's OBD2 format.
- Please note: available functions vary depending on the engine system and OBDSTAR device.
Compatible vehicles and applications
The determining factor is the 6-pin Toyota/Yanmar diagnostic connector, not the engine type. Only marine engines with this connector are supported. OBDSTAR does not specify particular engine types with model years.
- Toyota: Toyota Marine gasoline engines with 6-pin OBD connection
- Yanmar: Yanmar Marine gasoline engines with 6-pin OBD connection
Package contents
- 1x OBDSTAR (M075) | Toyota/Yanmar 6-pin OBD – 16-pin OBD2 Adapter Cable | Gasoline Engine
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | M075 |
| Type | Adapter cable |
| Application | 6-pin Toyota/Yanmar diagnostic connector for marine gasoline engines |
| Vehicle-side connection | Toyota/Yanmar 6-pin OBD |
| Device connection | 16-pin OBD2 |
| Control units | Marine engine control module |
| Segment | Internal combustion engine |
| Supported brands | Toyota and Yanmar |
| Model range | Not limited by year of manufacture; determined by the presence of the 6-pin Toyota/Yanmar connector |
| Required to use | OBDSTAR diagnostic device or programmer with 16-pin OBD2 port |
| Additional requirements | None; the cable is passively wired and operates without power |
| Weight | 0.1 kg |
