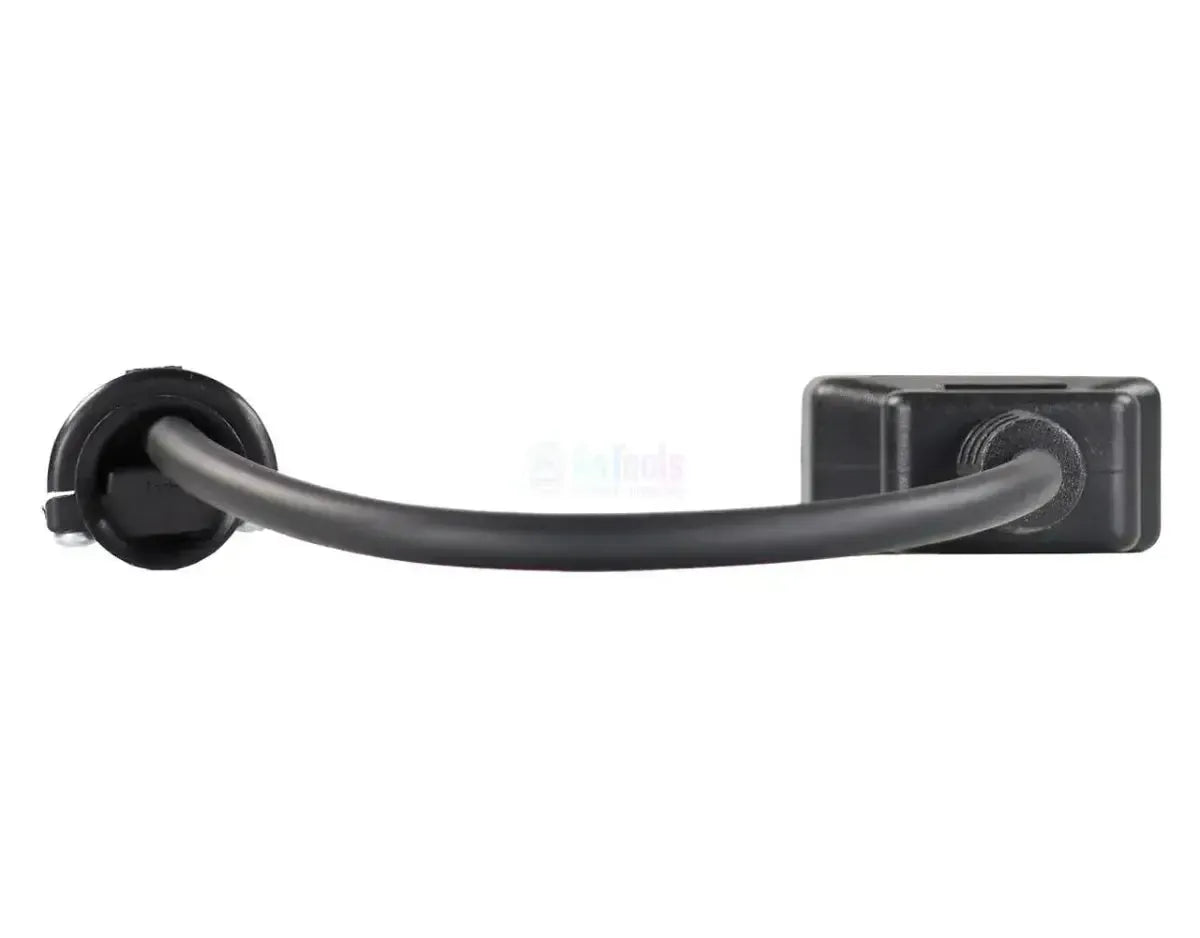

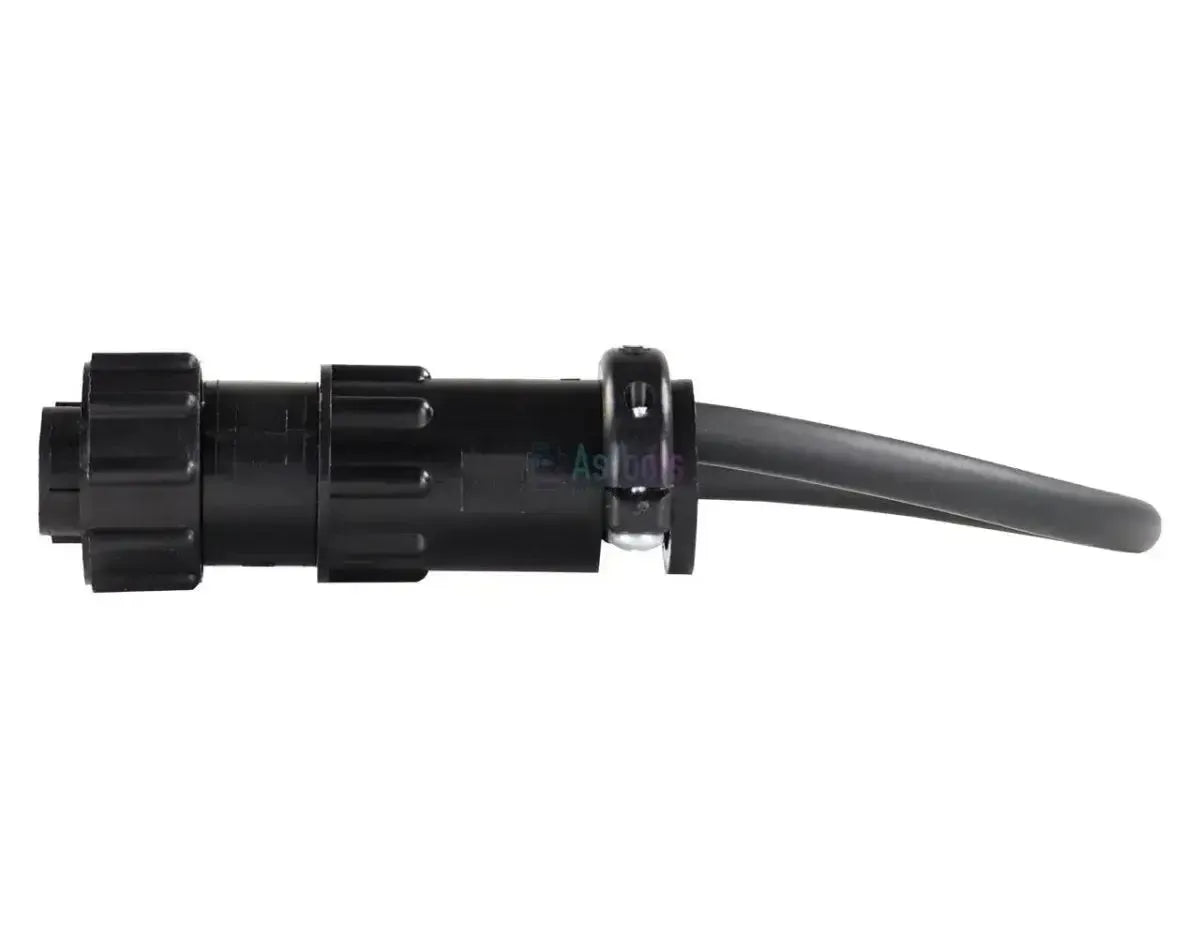

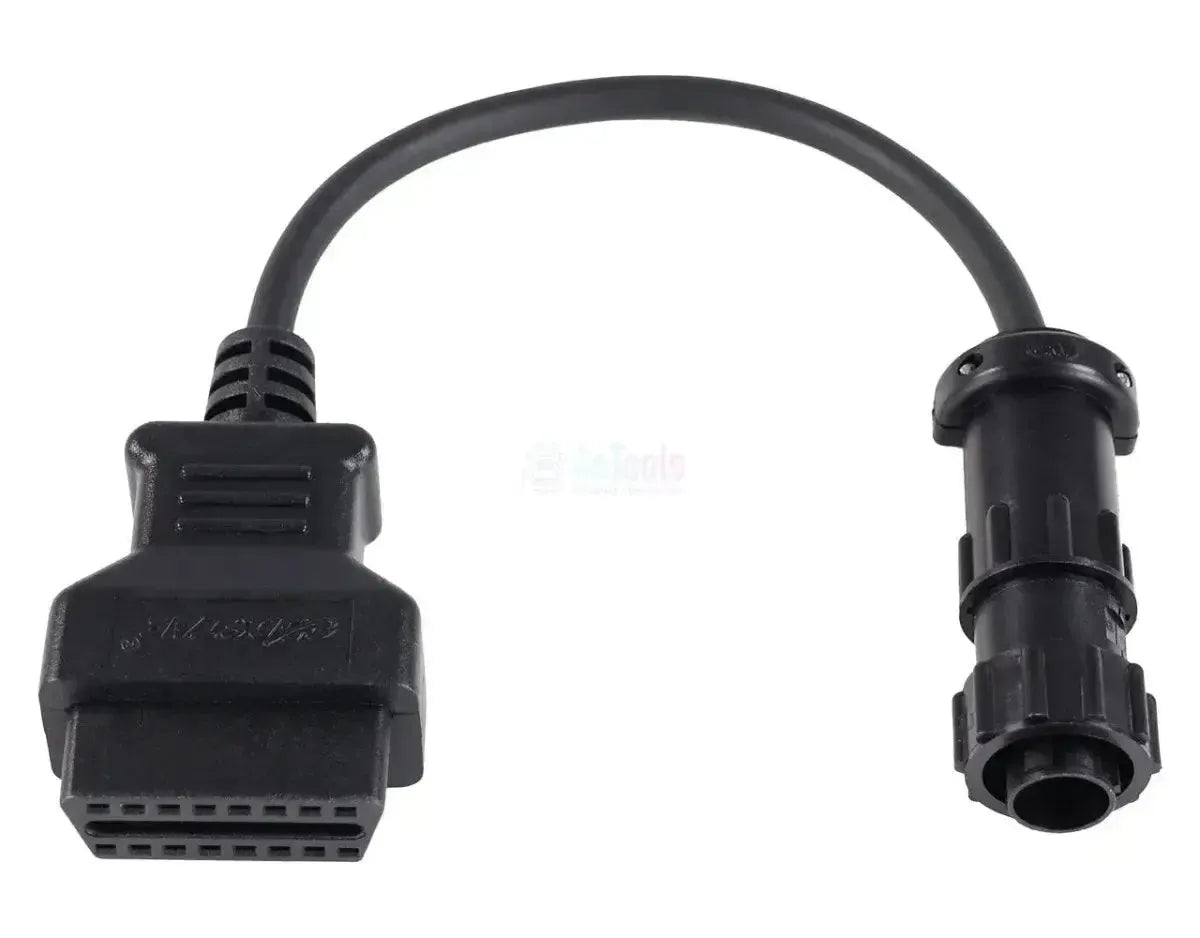

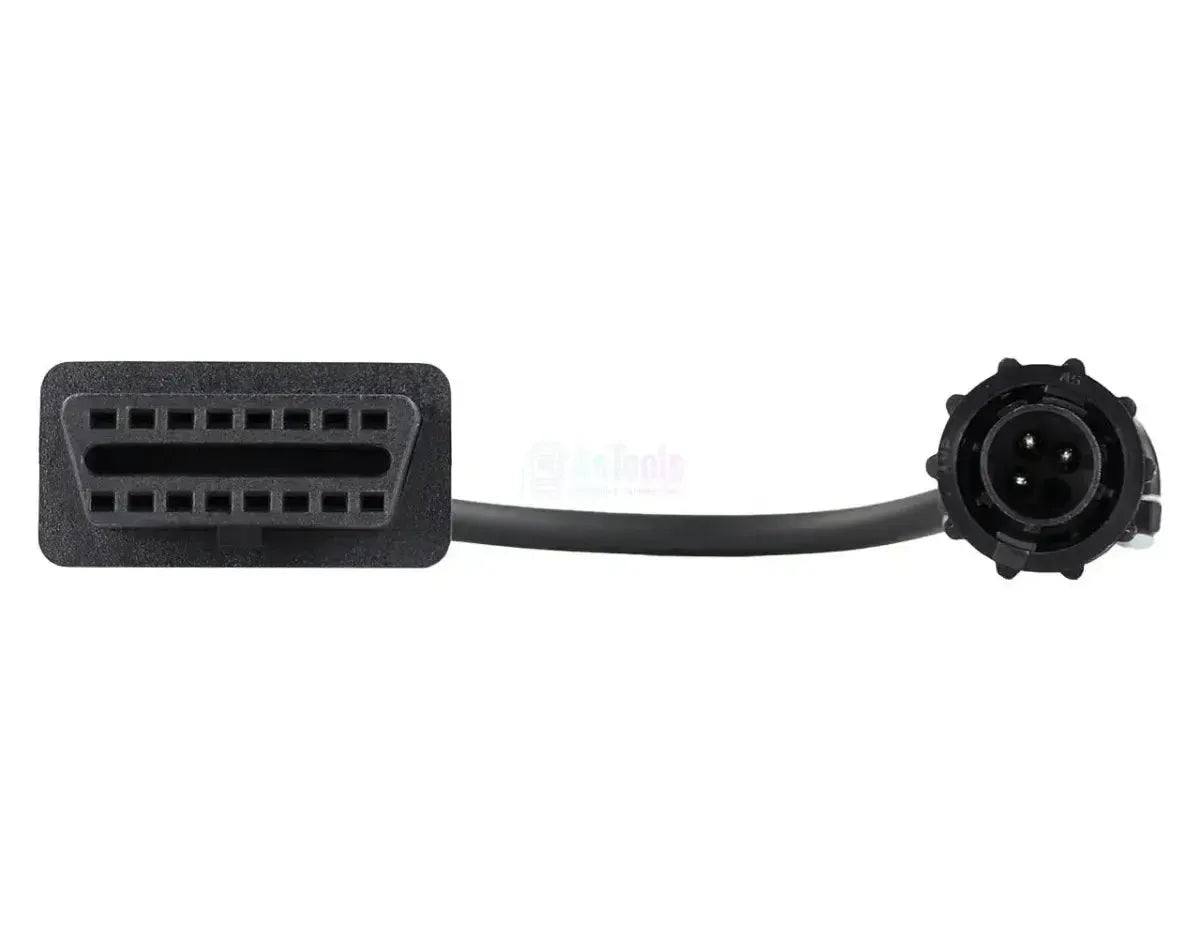

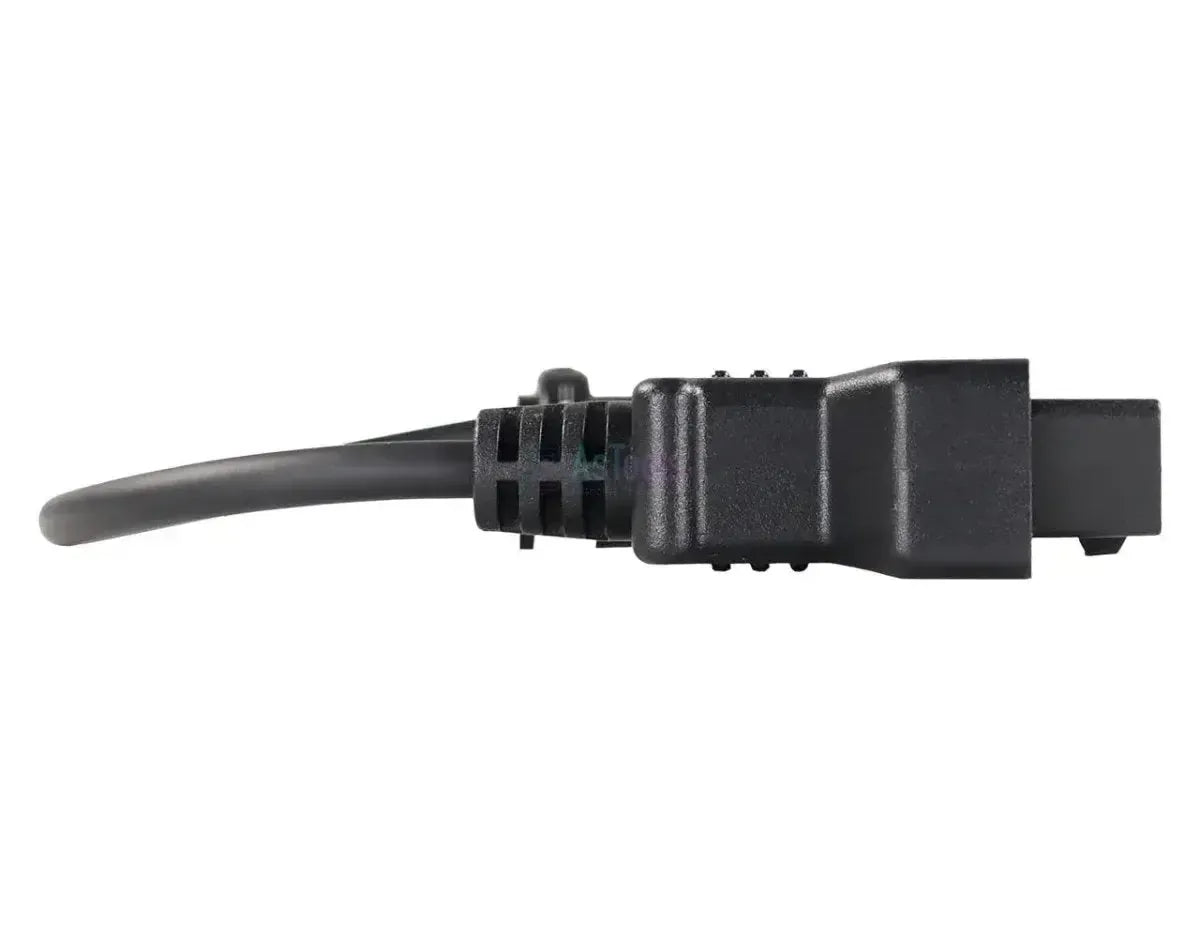

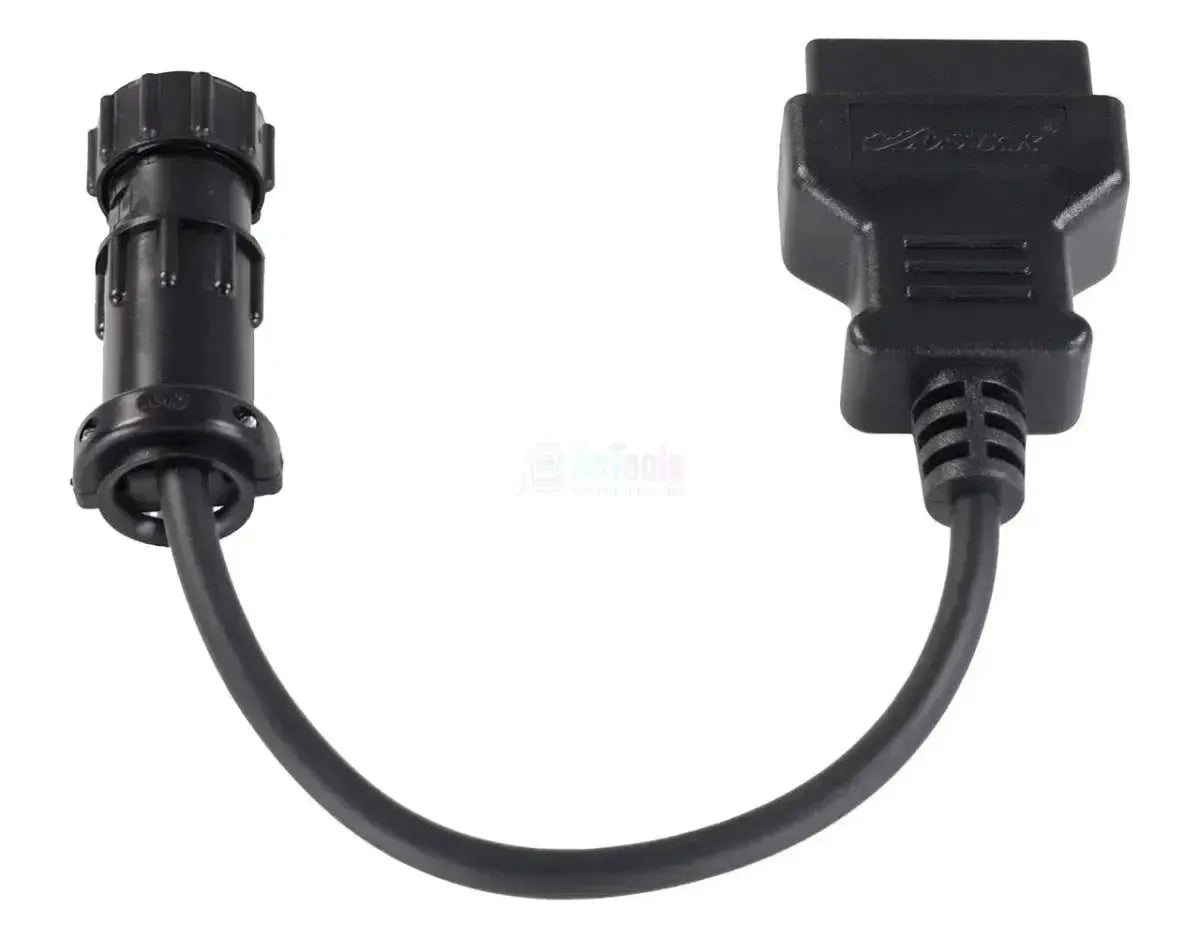

The OBDSTAR M076 is the adapter cable for the proprietary 4-pin diagnostic port found on MerCruiser and VM Motori marine engines. It connects that port to the 16-pin OBD2 (J1962)-connector on your OBDSTAR diagnostic device, linking directly to the engine port on the vehicle side.
These marine engines lack a standard OBD2 port. The cable bridges the gap between the non-standard port layout and the universal OBD2 interface, allowing your device to communicate with the engine control unit (ECU) without requiring additional adapters.
The cable provides access to engine management only. Which diagnostic functions you can perform depends on your OBDSTAR device's software and the diagnostic protocol supported by the engine.
KEY BENEFITS
IMPORTANT LIMITATIONS
Applications and Capabilities
Through the 4-pin port, you gain access to the engine control unit.
Control Units You Can Access
- Engine Control Unit (ECU): the management module of your MerCruiser or VM Motori engine behind the 4-pin diagnostic port.
- Other modules: whether additional units are accessible varies by engine and device.
What you can do
- Read fault codes: retrieve diagnostic trouble codes (DTCs) from the engine control unit to identify faults.
- Clear fault codes: remove stored codes from the ECU after diagnosis and repair.
- Display live data: monitor real-time engine parameters such as RPM, temperature, and sensor readings.
- Establish ECU communication: enable the device to communicate with the engine control unit via the available diagnostic protocol.
- Please note: which functions are actually available depends on the OBDSTAR device and engine type.
Compatible vehicles and applications
The 4-pin OBD diagnostic port is what matters, not the engine model. Only engines with this port are supported; a model list with production years is not available for this cable.
- MerCruiser: inboard engines with 4-pin OBD diagnostic port
- VM Motori: combustion engines with 4-pin OBD diagnostic port
Package contents
- 1x OBDSTAR (M076) | MerCruiser/VM Motori 4-pin OBD – 16-pin OBD2 Adapter Cable | Combustion Engine
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | M076 |
| Type | Adapter cable |
| Application | MerCruiser/VM Motori 4-pin diagnostic port |
| Vehicle-side connector | MerCruiser/VM Motori 4-pin OBD |
| Device connection | 16-pin OBD2 |
| Control units | Engine control unit (ECU) |
| Segment | Internal combustion engine |
| Supported brands | MerCruiser and VM Motori |
| Model range | Not limited by year of manufacture; determined by the presence of the 4-pin diagnostic port |
| Required to use | OBDSTAR diagnostic reader or programmer with 16-pin OBD2 connector |
| Additional requirements | None; the cable works without adapter or power supply |
| Weight | 0.1 kg |
