OBDSTAR  |  SKU: VW 7in1 TCM KIT

OBDSTAR VAG (7in1 TCM) Adapter Cable | Car

€84,95 incl.
€70,21 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

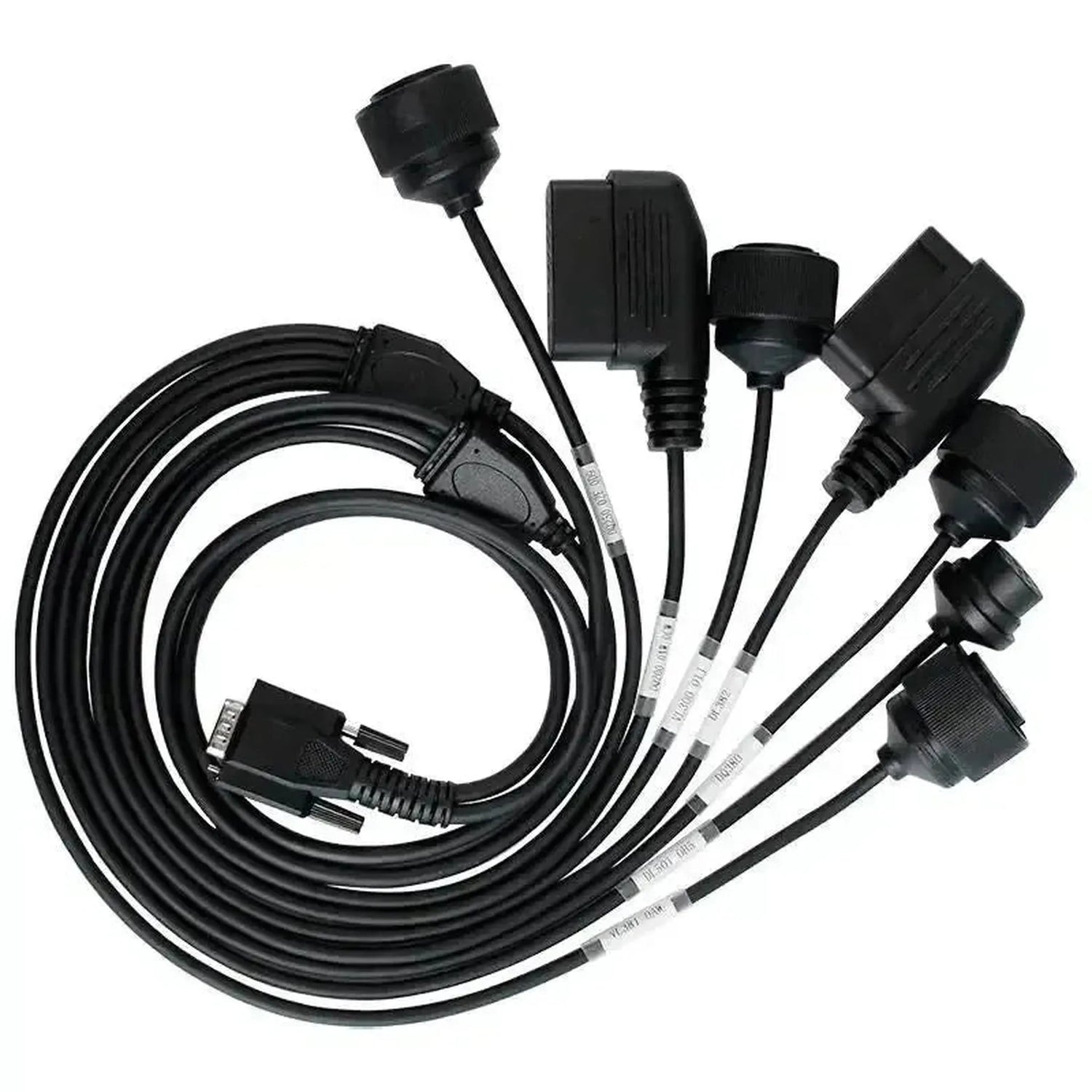

The OBDSTAR VAG (7in1 TCM) adapter cable set consists of six individual adapter cables (TCM-001A through TCM-006) that connect directly to the transmission control module (TCM) in Volkswagen vehicles. The set includes connectors for the gearbox control modules DQ200, DQ250, DL501, Di382, DQ380/DQ381/DQ500 and VL381, each fitted with a specific connector that matches the TCM connector of the respective transmission. The cables are compatible with TEMIC- and BOSCH-control modules within the VW platform.

Each cable in the set connects the TCM connector on the transmission via a 16-pin OBD2 connector (J1962) to OBDSTAR diagnostic devices or programmers, enabling direct communication with the transmission control module outside the vehicle network. This method, also known as bench connection or direct TCM coupling, allows you to access the module without powering the vehicle through the OBD2 port in the cabin. Signal transmission uses the original pin configuration of the respective TCM housing, allowing data to be read or written directly at the transmission control module level.

KEY BENEFITS

✔ The set covers six different TCM connectors for the most common VW automatic and DSG transmissions in one package.
✔ Direct connection via the TCM connector on the transmission enables diagnosis and programming without reliance on the vehicle network.
✔ Compatible with both TEMIC and BOSCH control modules, allowing you to service multiple TCM types within the VW platform.

IMPORTANT NOTES

✕ These adapter cables work exclusively with OBDSTAR diagnostic devices and programmers and are not compatible with diagnostic equipment from other manufacturers.
✕ The set is specifically designed for Volkswagen transmissions; other brands or platforms are not supported.
✕ CONTINENTAL control modules are only supported through the TCM-KIT 1 bundle and are not included in the individual cables TCM-001A through TCM-006.

Applications and Features

This adapter cable set supports the following functions at the transmission control unit level via direct TCM connection with compatible OBDSTAR equipment.

  • Read TCM: Software and calibration data from the transmission control module are read directly through the TCM connector to your connected OBDSTAR device.
  • Program TCM: Modified or replacement software data is written back to the TCM, using the pin configuration of your specific transmission connector for error-free transfer.

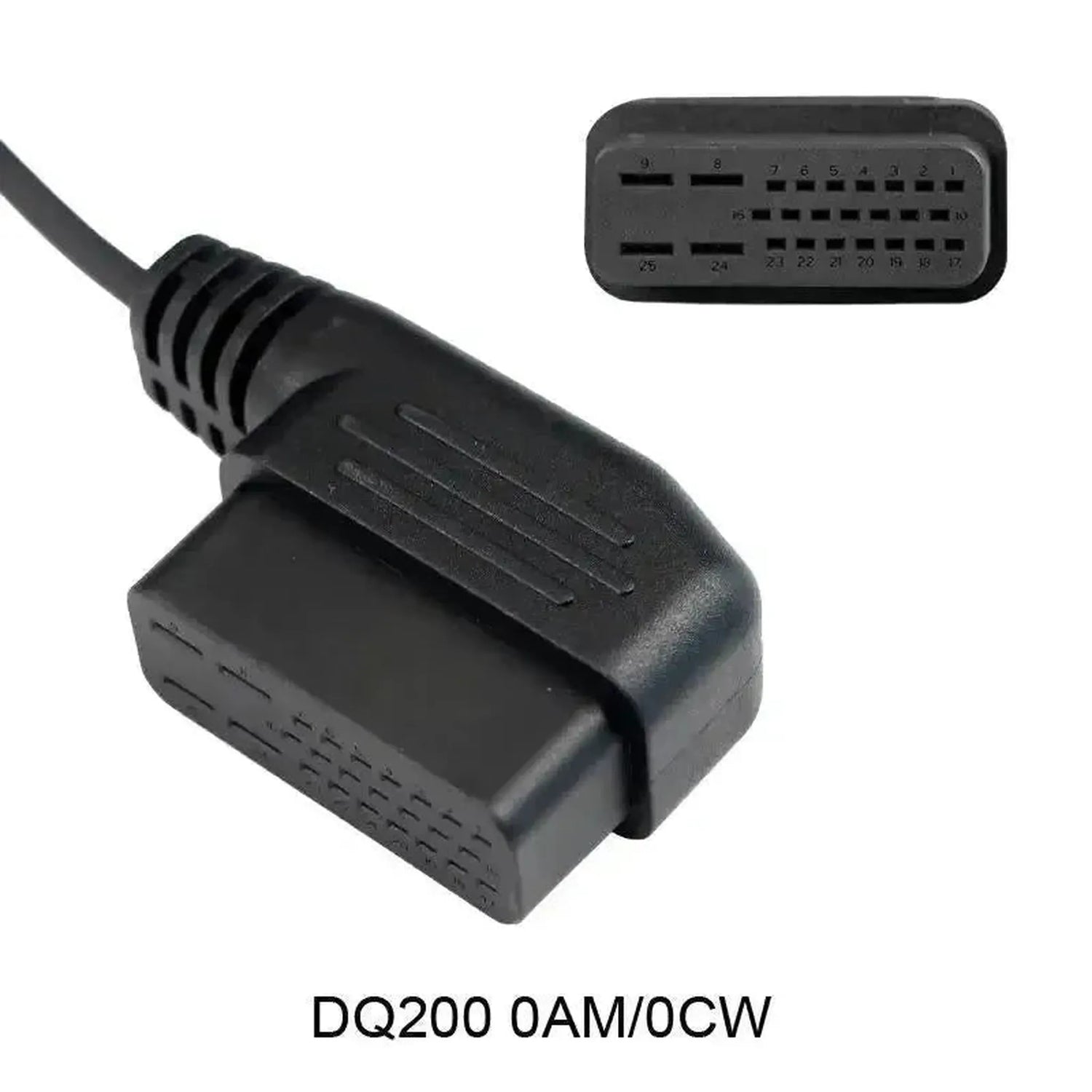

  • Bench connection DQ200 (0AM/0CW): Cable TCM-001A connects the TEMIC control module of the DQ200 dry-clutch DSG directly for reading and writing.

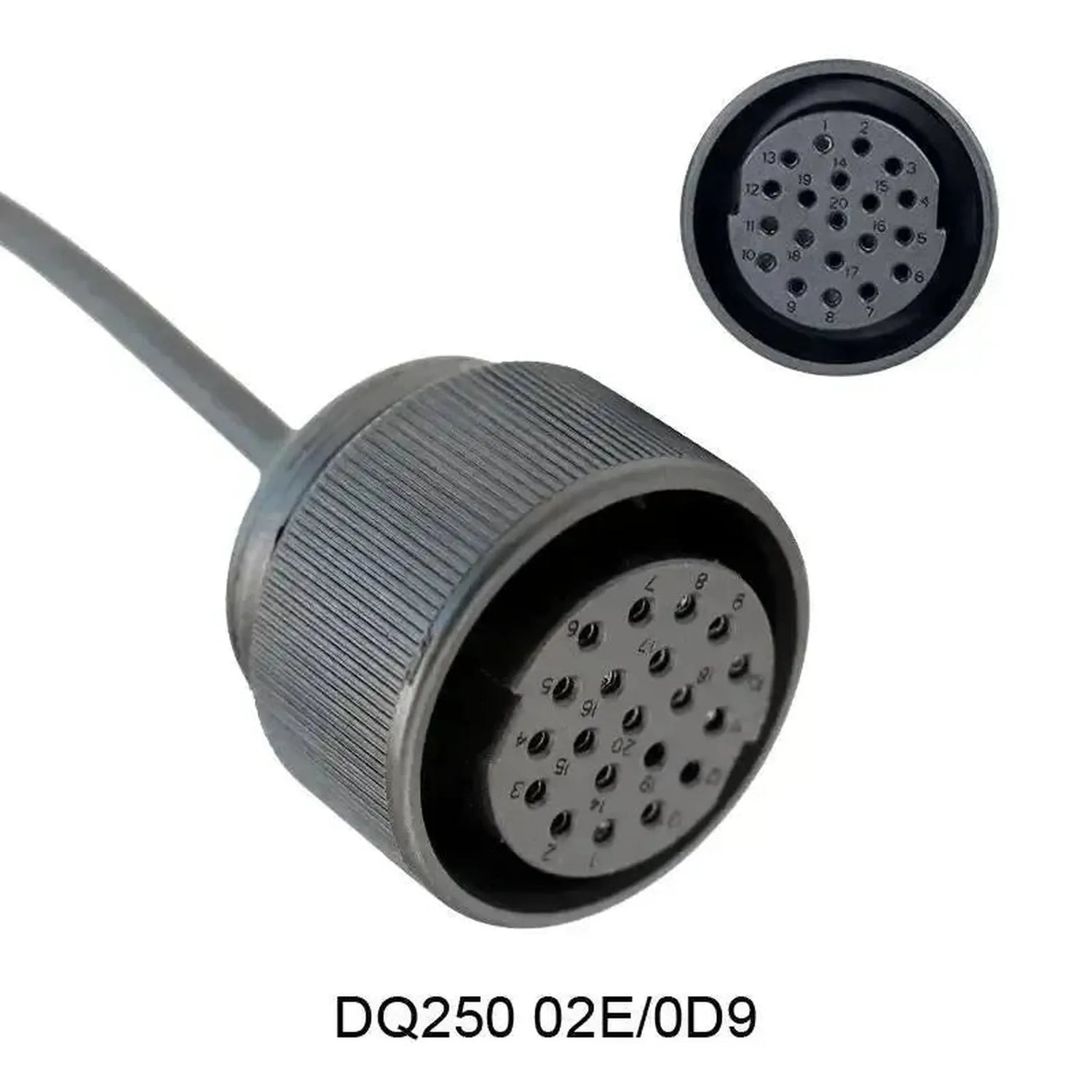

  • Bench connection DQ250 (02E/0D9/CXX): Cable TCM-002A provides direct access to the TEMIC TCM of the DQ250 wet-clutch DSG.

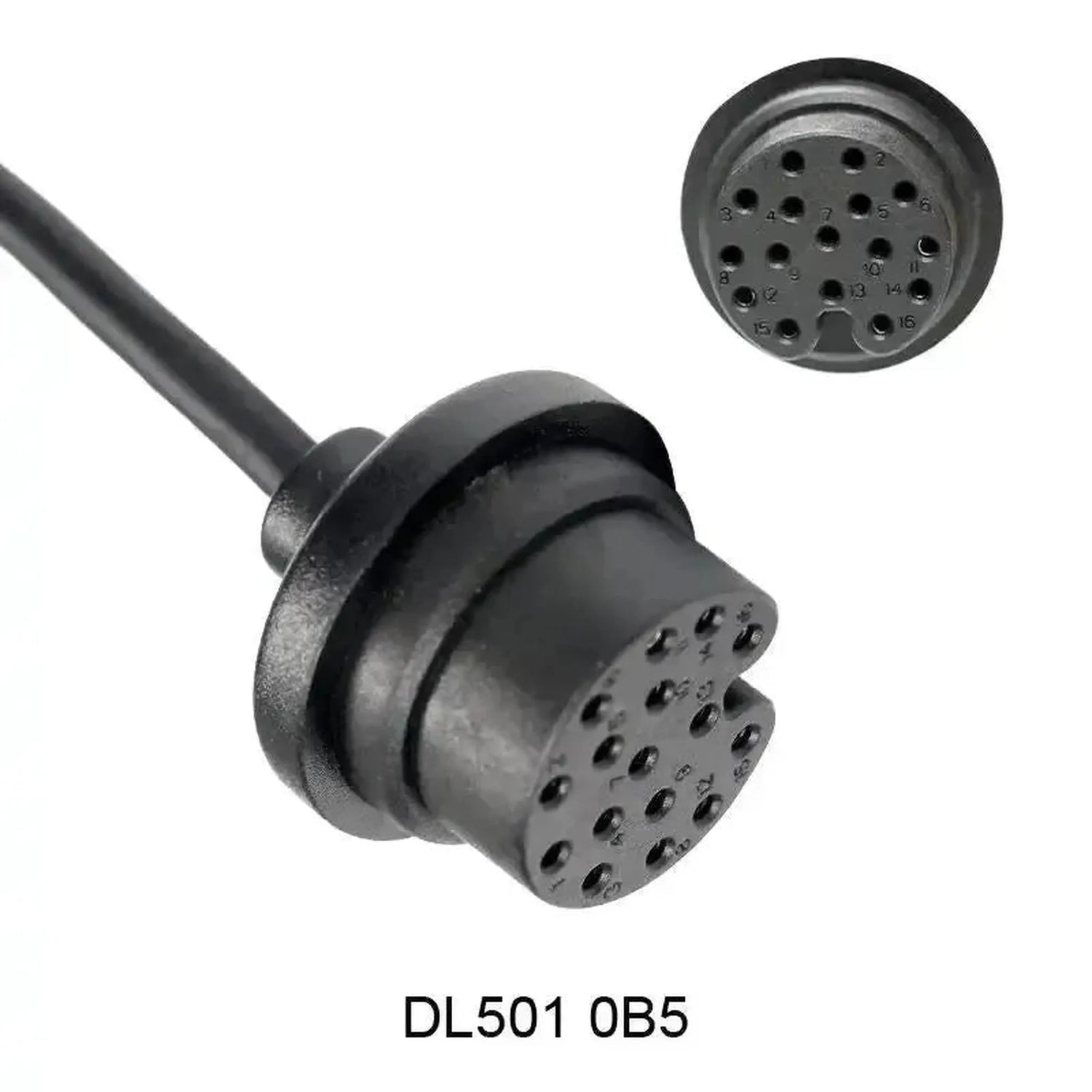

  • Bench connection DL501 (0B5): Cable TCM-003 connects the TEMIC control unit of the DL501 seven-speed automatic directly.

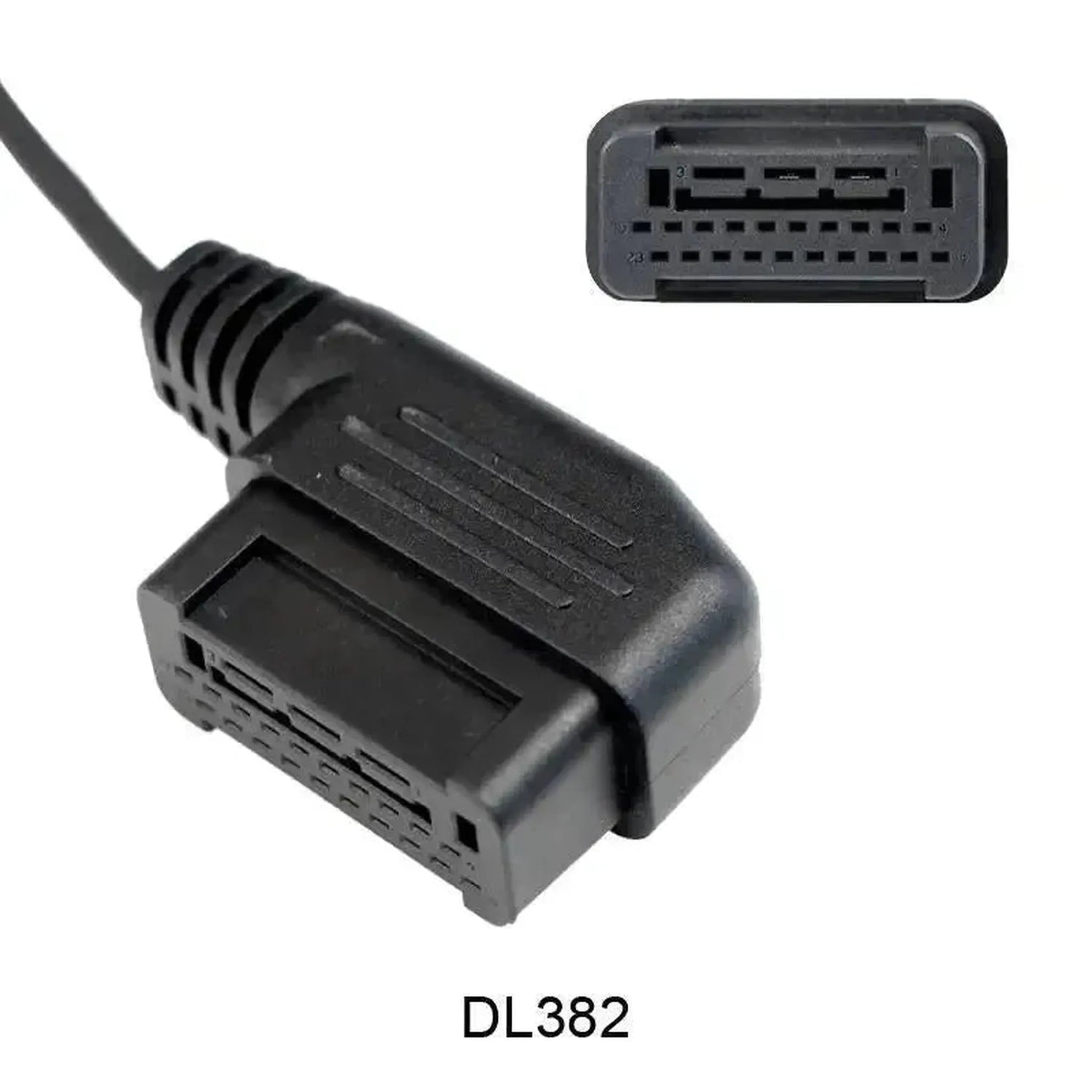

  • Bench Connection Di382: Cable TCM-004 connects the TEMIC control module of the Di382 transmission to the OBDSTAR device.
  • Bench Connection DQ380/DQ381/DQ500 (0DE): Via cable TCM-005, the BOSCH TCM of the larger DSG variants for heavy-duty vehicles is connected directly.

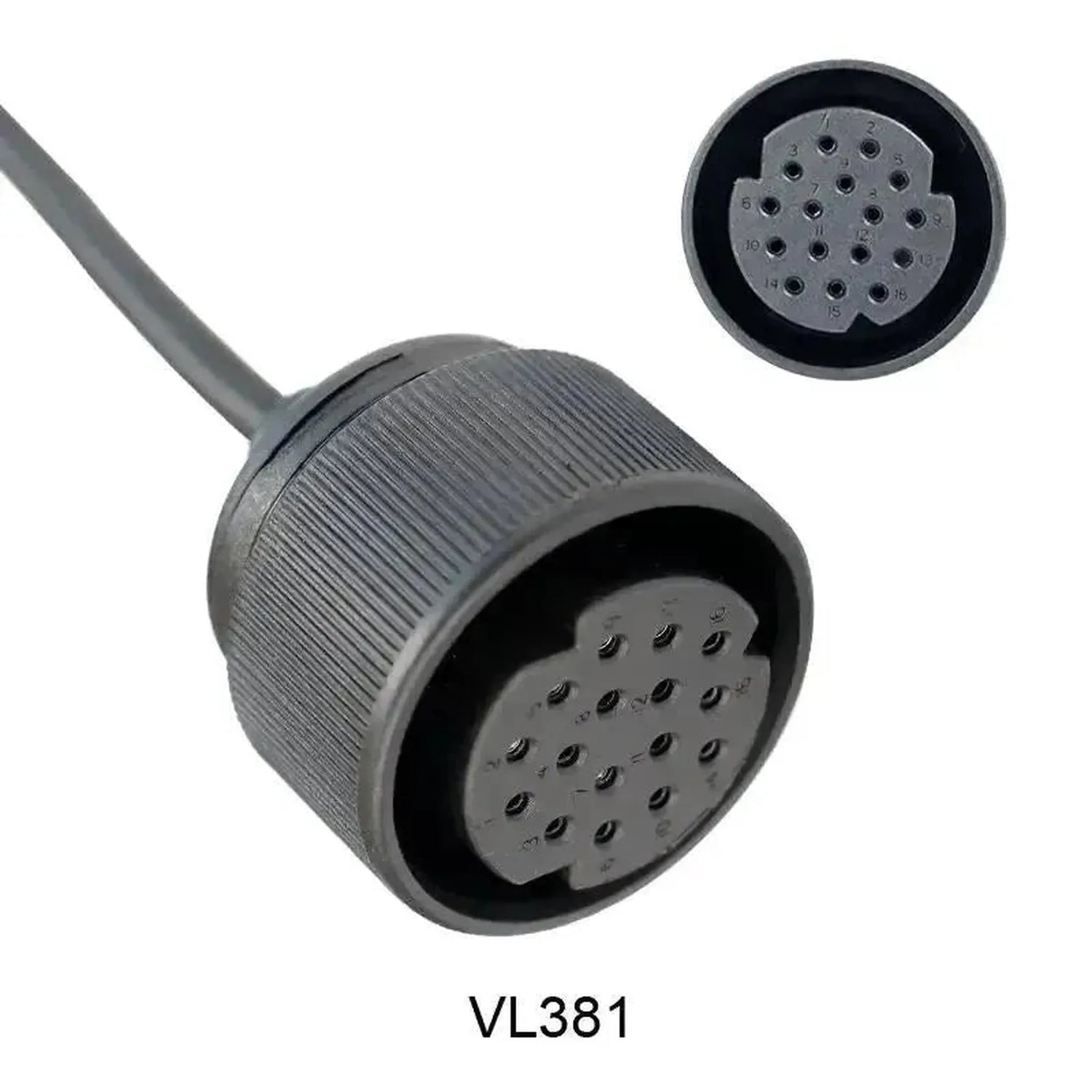

  • Bench Connection VL381 (0AW): Cable TCM-006 connects the TEMIC control module of the VL381 automatic transmission to the OBDSTAR programmer.

Compatible Vehicles and Applications

The transmissions and associated vehicles listed below are supported by this adapter cable kit. Compatibility has been verified based on transmission type and corresponding TCM connector.

Volkswagen:

  • DQ200 (0AM/0CW) — DSG 7-speed dry clutch: Applicable to models equipped with this transmission such as Golf, Polo, A3 and similar platforms
  • DQ250 (02E/0D9/CXX) — DSG 6-speed wet clutch: Applicable to models equipped with this transmission such as Golf GTI, Tiguan and similar platforms
  • DL501 (0B5) — S tronic 7-speed: Applicable to Audi models with longitudinal drivetrain such as A4, A5 and Q5
  • Di382 — DSG automatic: Applicable to VW models equipped with the Di382 transmission
  • DQ380/DQ381/DQ500 (0DE) — DSG 7-speed wet clutch (high torque): Applicable to models such as Tiguan, Touareg, Transporter and similar heavy-duty platforms
  • VL381 (0AW) — 8-speed automatic: Applicable to VW models equipped with the VL381 transmission
💡
Good to know: The TCM connector is located directly on the transmission. For bench connection, the transmission must be removed from the vehicle or the connector must be accessible for direct connection.

Package Contents

  • 1x OBDSTAR VAG (7in1 TCM) Adapter Cable | Auto

Technical Specifications

Specification Description
Brand OBDSTAR
Part Number VW 7in1 TCM KIT
Product Type Adapter Cable
Vehicle-Side Connection VAG (7in1 TCM)
Vehicle Category Car
Supported Brands Volkswagen
Compatible With OBDSTAR diagnostic devices and programmers
Weight 0.74 kg
