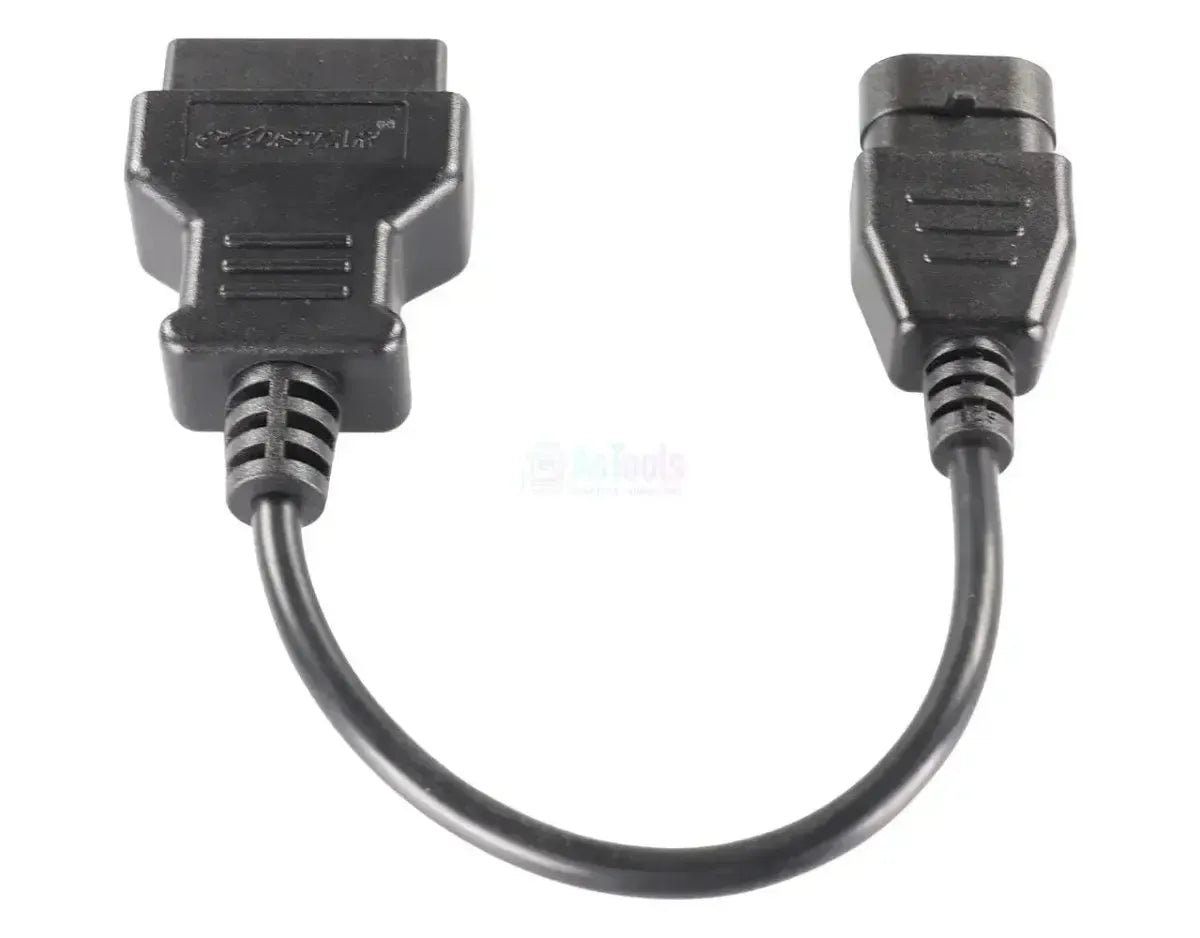

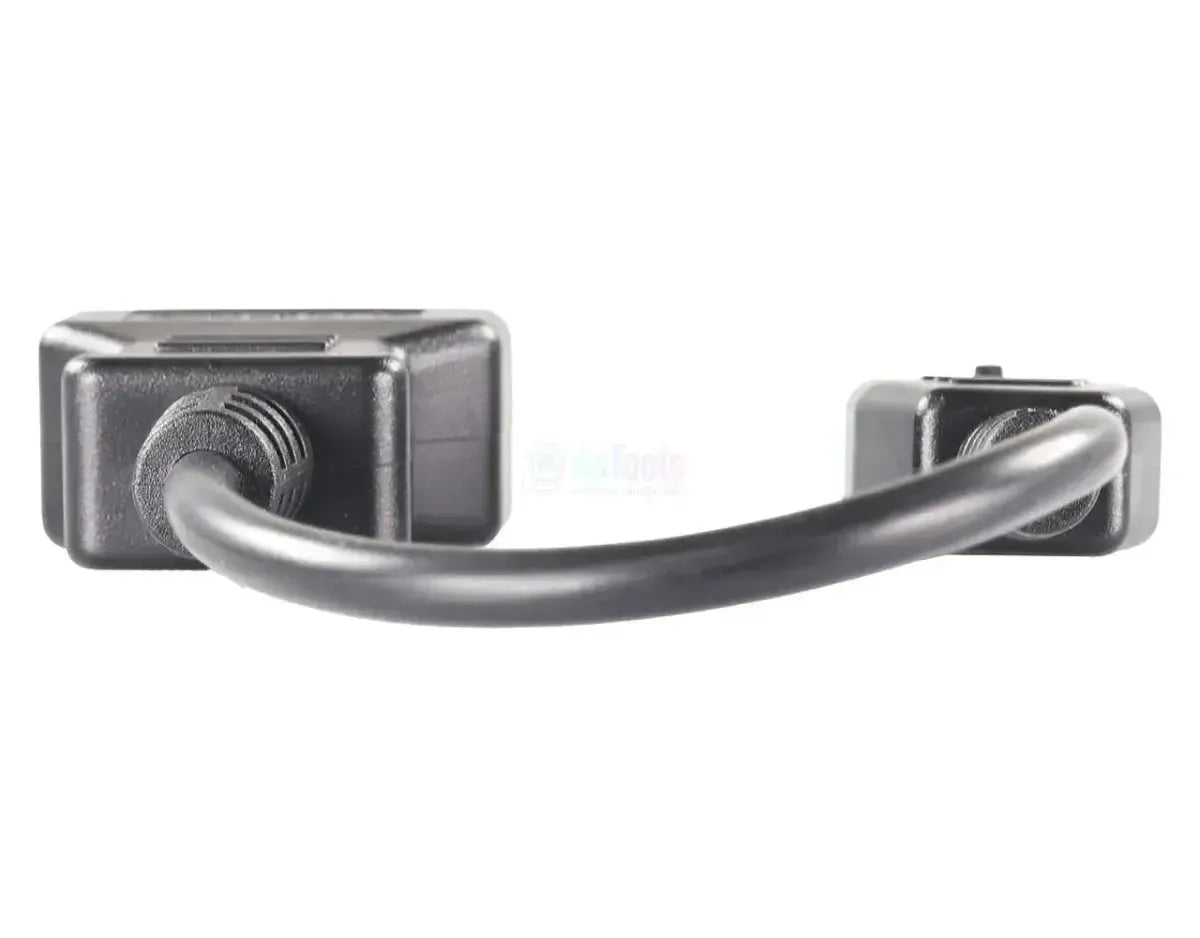

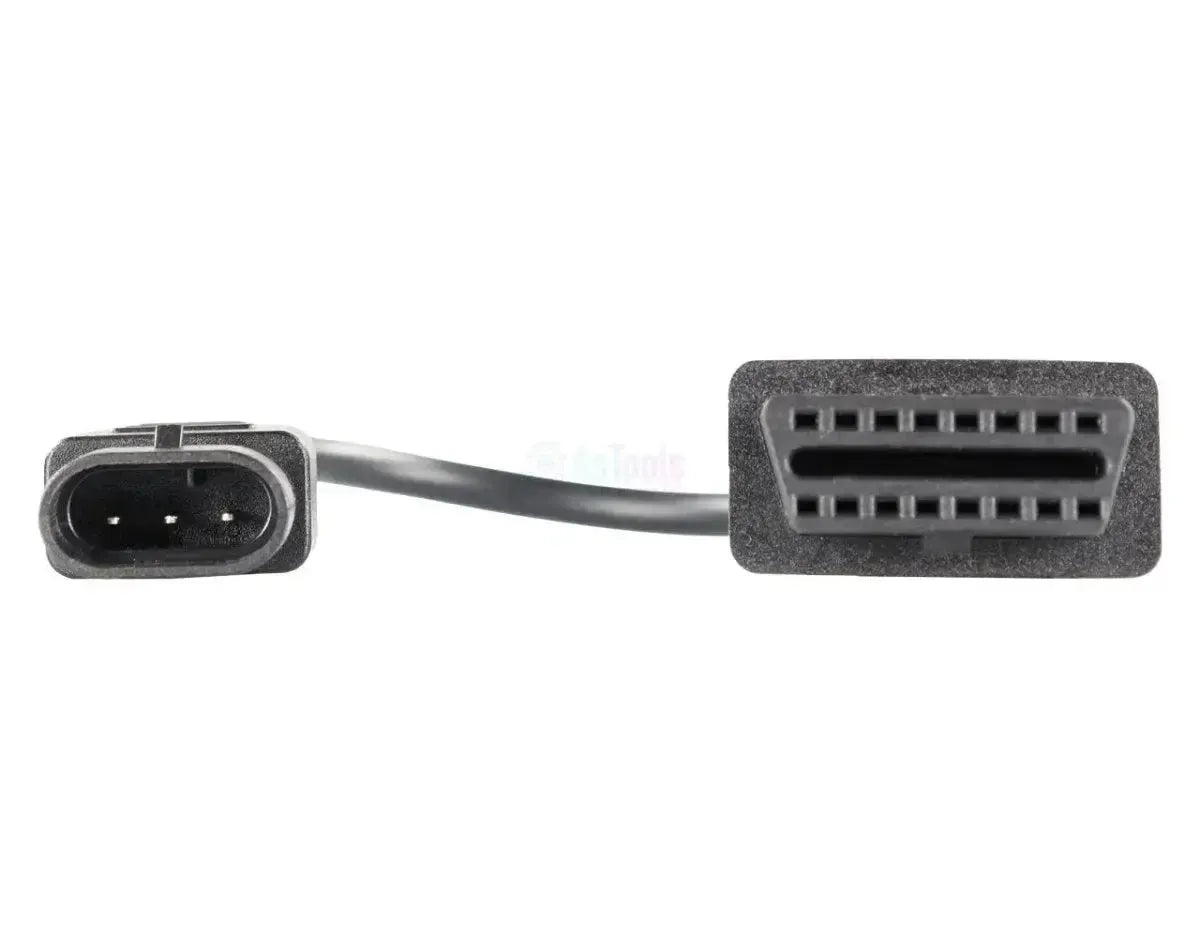

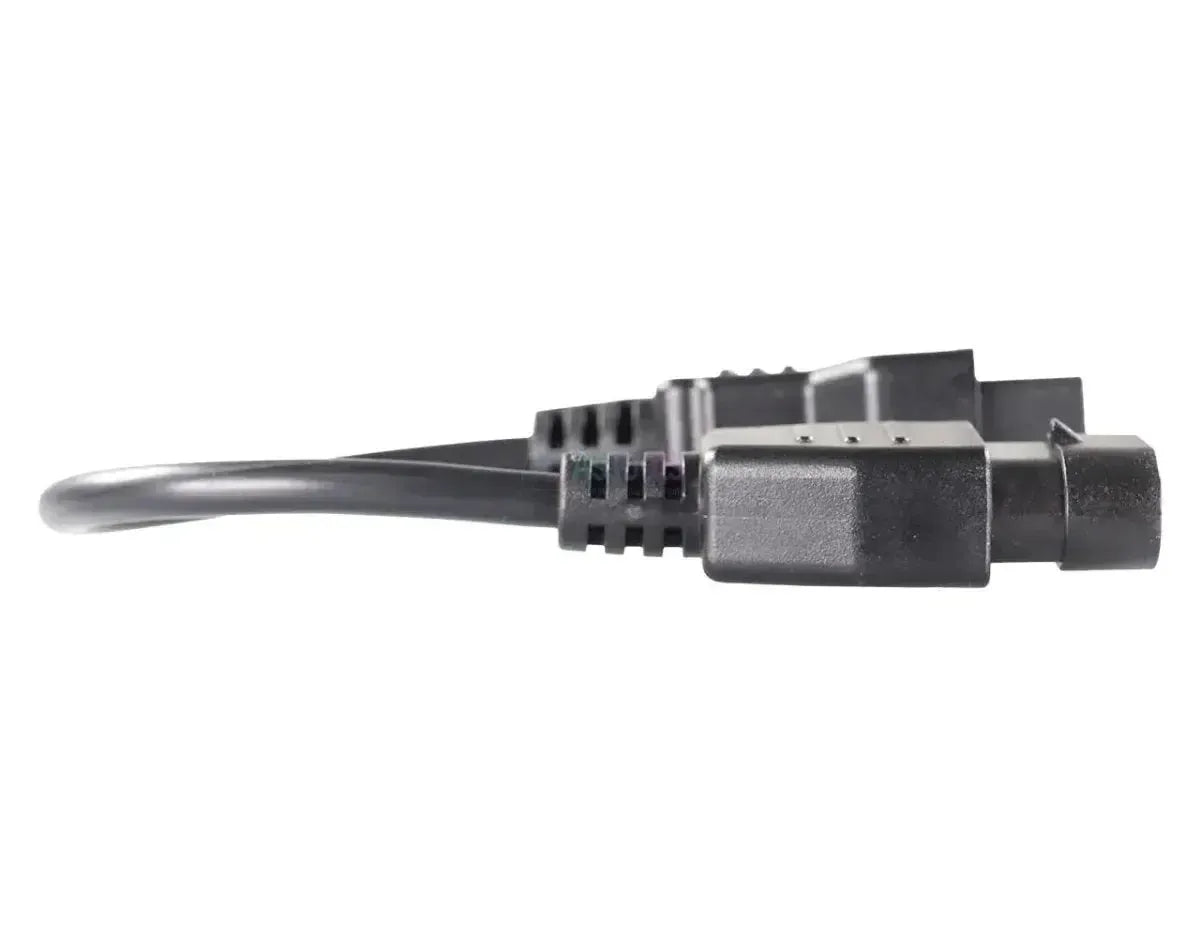

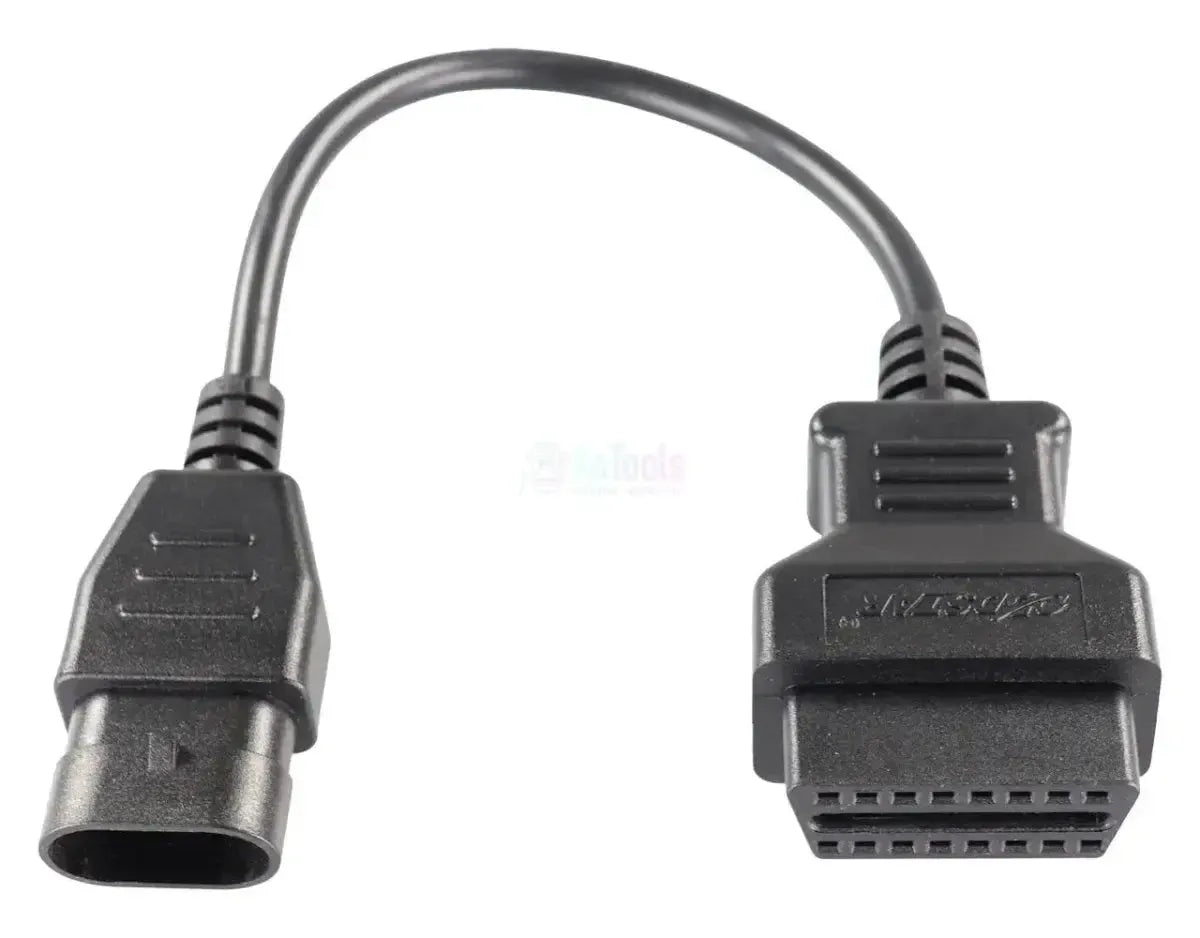

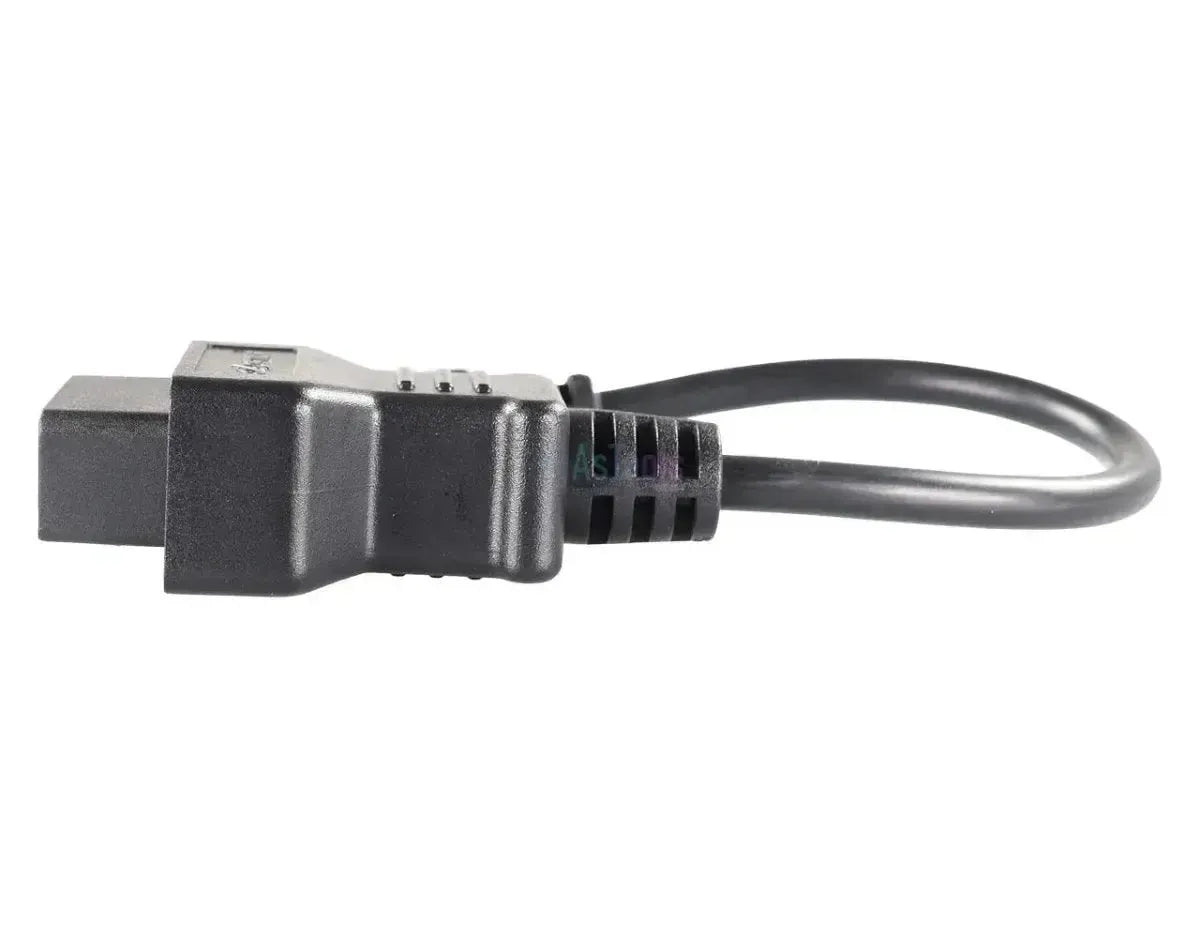

\nThe OBDSTAR M004 is a adapter cable that has a universal 3-pin OBD connector converts to a 16-pin OBD2 (J1962) connector, specifically designed for use with OBDSTAR diagnostic readers or programmers. The cable is suitable for diagnostics and programming of scooters and motorcycles from brands like Aprilia, Ducati, Honda, KTM, Piaggio, Vespa and Yamaha. The 3-pin connector connects to the diagnostic port found on many two-wheelers engine management system to use.\n
\nThe M004 adapter cable converts the 3-pin diagnostic pinout from the vehicle to the standard 16-pin OBD2 formatthat is recognized by OBDSTAR diagnostic equipment. Through this connection, the diagnostic reader can communicate with theelectronic control unit (ECU) of the vehicle via the available diagnostic bus, such as K-line. This makes it possible to read fault codes, to retrieve system data and programming tasks supported by the connected OBDSTAR device.\n
\nKEY FEATURES\n
IMPORTANT NOTES
Applications and Features
The OBDSTAR M004 adapter cable supports the following diagnostic functions via compatible OBDSTAR equipment:
- Reading fault codes: Via the 3-pin connection, error codes are retrieved from the vehicle's ECU and transmitted to the connected OBDSTAR device using the OBD2 protocol.
- Clearing fault codes: After diagnosis, stored error codes in the motorcycle's control unit can be cleared via the OBDSTAR device.
- Live data retrieval: Real-time sensor data from engine management systems is read and displayed on the connected diagnostic device.
- ECU programming: Depending on the OBDSTAR model and vehicle support, programming tasks can be performed via the 3-pin connection.
Compatible Vehicles and Applications
The following brands and vehicle categories are confirmed compatible via the 3-pin OBD connection. Exact model years depend on OBDSTAR device support.
- Aprilia: models with 3-pin diagnostic connector
- Ducati: models with 3-pin diagnostic connector
- Honda: motorcycles and mopeds with 3-pin diagnostic connector
- KTM: models with 3-pin diagnostic connector
- Piaggio: scooters and mopeds with 3-pin diagnostic connector
- Vespa: models with 3-pin diagnostic connector
- Yamaha: motorcycles and mopeds with 3-pin diagnostic connector
Package Contents
- 1x OBDSTAR (M004) | Universal 3-pin OBD to 16-pin OBD2 Adapter Cable | Moped/Motorcycle
Technical Specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part Number | M004 |
| Product Type | Adapter Cable |
| Vehicle-Side Connector | Universal 3-pin OBD |
| Device-Side Connector | 16-pin OBD2 |
| Vehicle Category | Moped/Motorcycle |
| Supported Brands | Aprilia, Ducati, Honda, KTM, Piaggio, Vespa, and Yamaha |
| Compatible With | OBDSTAR diagnostic readers and programmers |
| Weight | 0.1 kg |
