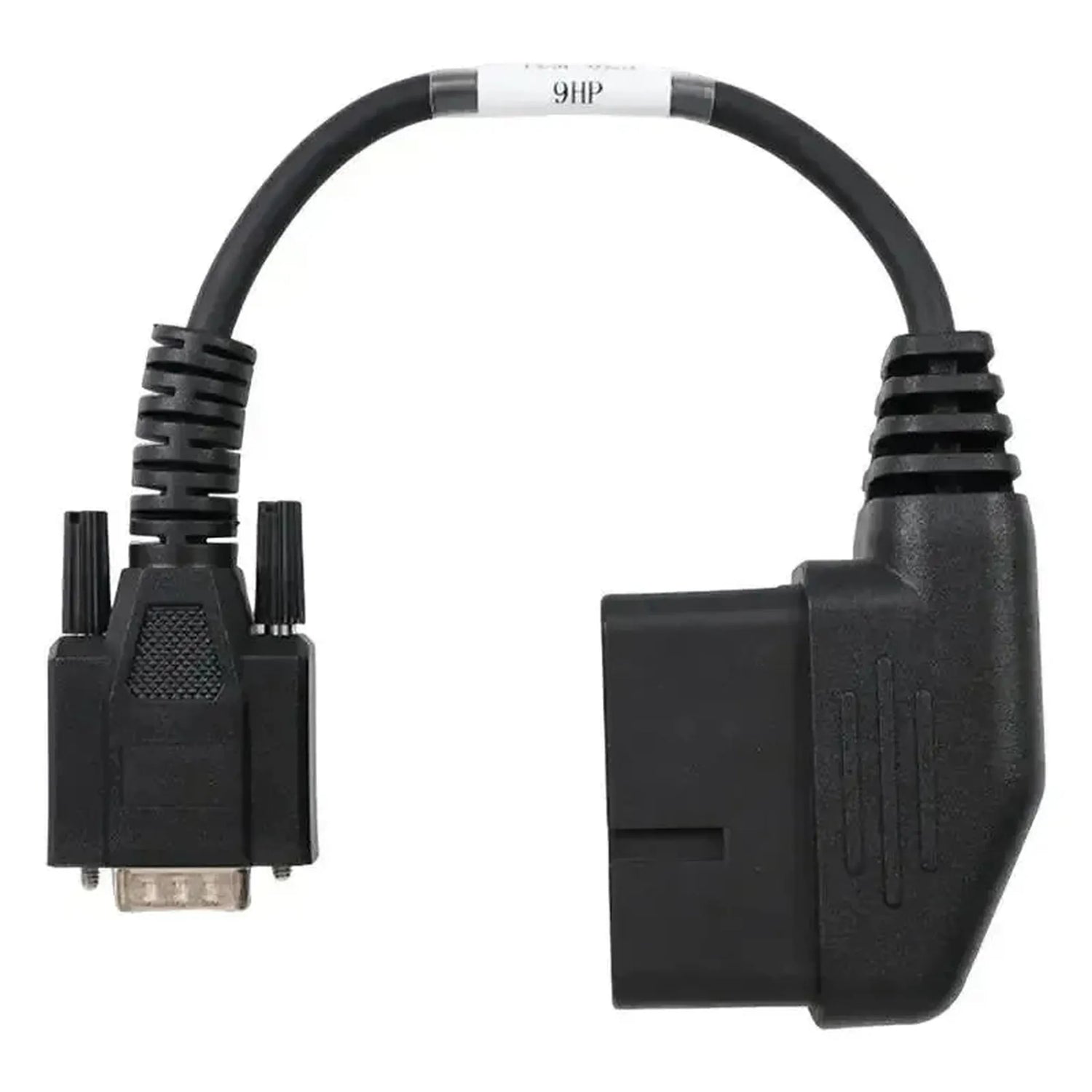

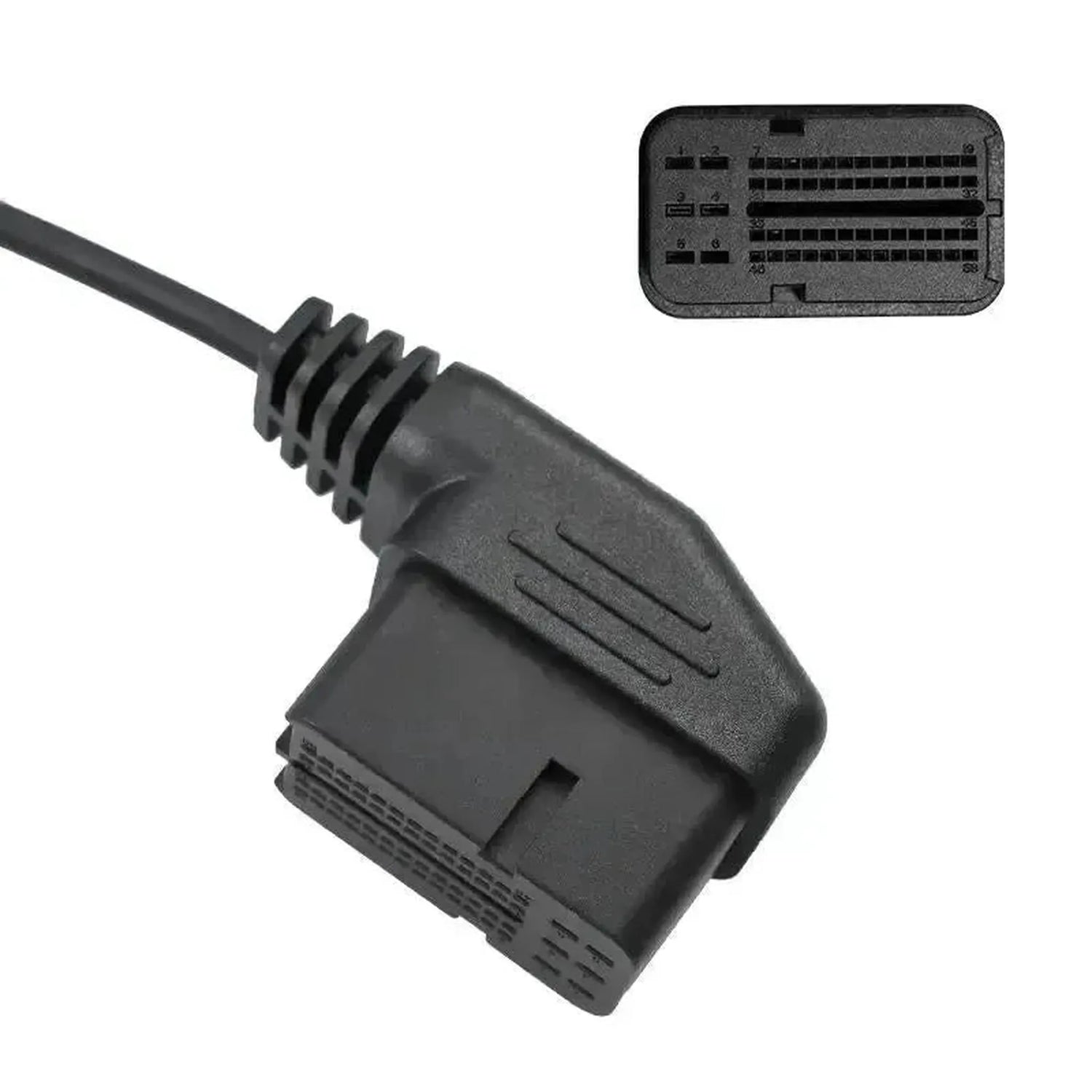

The OBDSTAR TCM-023 is an adapter cable featuring a 58-pin connector on the vehicle side for the transmission control module and a 15-pin DB15 connector on the device side. The 58-pin side connects directly to the original TCM connector of the ZF 9HP automatic transmission, whose control unit is typically integrated inside the gearbox; the vehicle's OBD2 port remains unused.
The ZF 9HP is a nine-speed automatic transmission licensed and deployed by various manufacturers; in Stellantis models, the same transmission carries the licensed name Chrysler 948TE. Its proprietary multi-pin TCM connection enables bench access: the diagnostic system bypasses the vehicle network and communicates directly with the control module. This allows software data to be read and written even when vehicle network communication fails—for example, with a faulty or non-responsive TCM.
The cable provides access to this transmission control module only. Which operations are actually possible depends on the connected OBDSTAR device and its software support; the cable itself adds no additional vehicle coverage. For bench use, the TCM must also be supplied with separate power and ground connections.
KEY ADVANTAGES
IMPORTANT NOTES
Applications and Capabilities

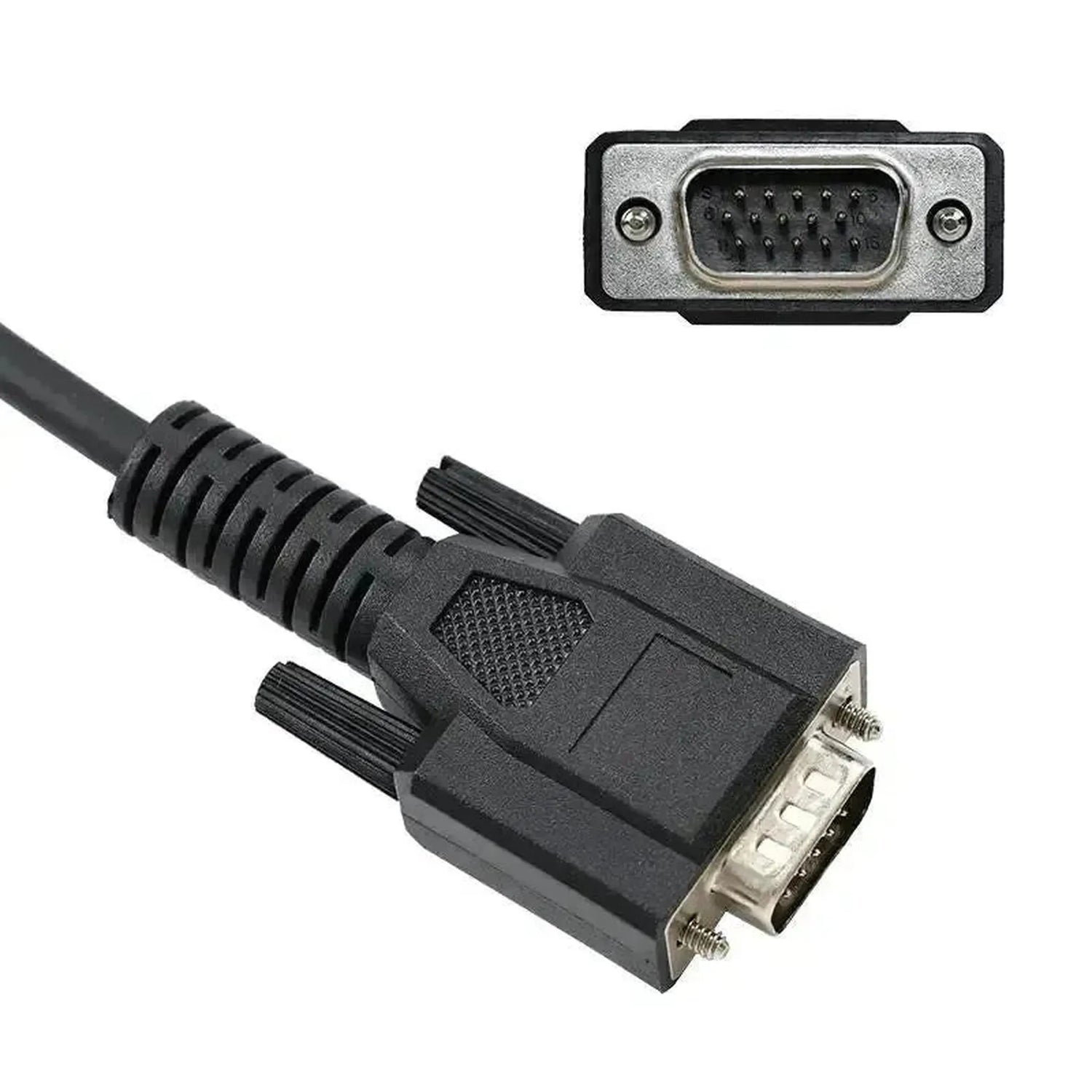

The TCM-023 establishes a bench connection between the transmission control module of a ZF 9HP and the DB15 port of your OBDSTAR device.
Control modules you can access
- ZF 9HP transmission control module: the TCM of the nine-speed automatic, via the original 58-pin connector.
- Non-communicating module: even a faulty or unresponsive TCM remains accessible through this method, outside the vehicle network.
What you can do
- Read TCM data: retrieve current software content and configuration data via the 58-pin connection, independent of the vehicle network.
- Write TCM software: Write modified or replacement software, for example when replacing the control unit or making a software update.
- Identify the TCM: Read hardware version, software version, and calibration identifiers to verify before or after a programming operation.
- Perform bench programming: Access and program the unit outside the vehicle, even if the control unit is not communicating.
- Important note: The functions mentioned are only available if the connected OBDSTAR device supports them; the cable provides the connection only.
Compatible vehicles and applications
What matters is the presence of the ZF 9HP automatic transmission, not the vehicle model. For Stellantis models, the same transmission is known under the Chrysler 948TE license name. The vehicles listed below are equipped with this automatic.
Acura:
- MDX: (2016–2020)
- TLX V6: (2015–2020)
Chrysler:
- 200: (2015–2017)
Fiat:
- 500X: (2015–present)
- Toro (Pick-up): (mainly South America)
Honda:
- Civic 1.6 i-DTEC (European diesel models): (2018–2020)
- CR-V 1.6 i-DTEC (European diesel models): (2015–2018)
- Passport: (2019–2023)
- Pilot (higher trim levels): (2016–2020)
Jaguar:
- E-Pace X540: (model year 2017–present)
Jeep:
- Cherokee KL: (2014–present)
- Compass MP: (2017–present)
- Renegade BU: (2015–present)
Land Rover:
- Discovery Sport L550: (model year 2015–present)
- Range Rover Evoque L538 / L551: (model year 2014–present)
Ram:
- ProMaster City: (2015–2022)
Package contents
- 1x OBDSTAR (TCM-023) | ZF (9HP) 58-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | TCM-023 |
| Type | Adapter cable |
| Application | Bench reading and programming of the ZF 9HP transmission control module (Chrysler 948TE) |
| Vehicle-side connector | ZF (9HP) 58-pin TCM |
| Device-side connector | 15-pin DB15 |
| Control units | Transmission control module (TCM) |
| Segment | Passenger vehicle |
| Supported brands | Acura, Chrysler, Fiat, Honda, Jaguar, Jeep, Land Rover, and Ram |
| Model range | Models equipped with the ZF 9HP nine-speed automatic transmission, also sold under the Chrysler 948TE license designation |
| Required to use | OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit |
| Additional requirements | External power supply and ground for the TCM when bench programming |
| Weight | 0.1 kg |
