OBDSTAR (TCM-022) | Continental (6HP) 16-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car
Sign up and receive an email as soon as it is back in stock.
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

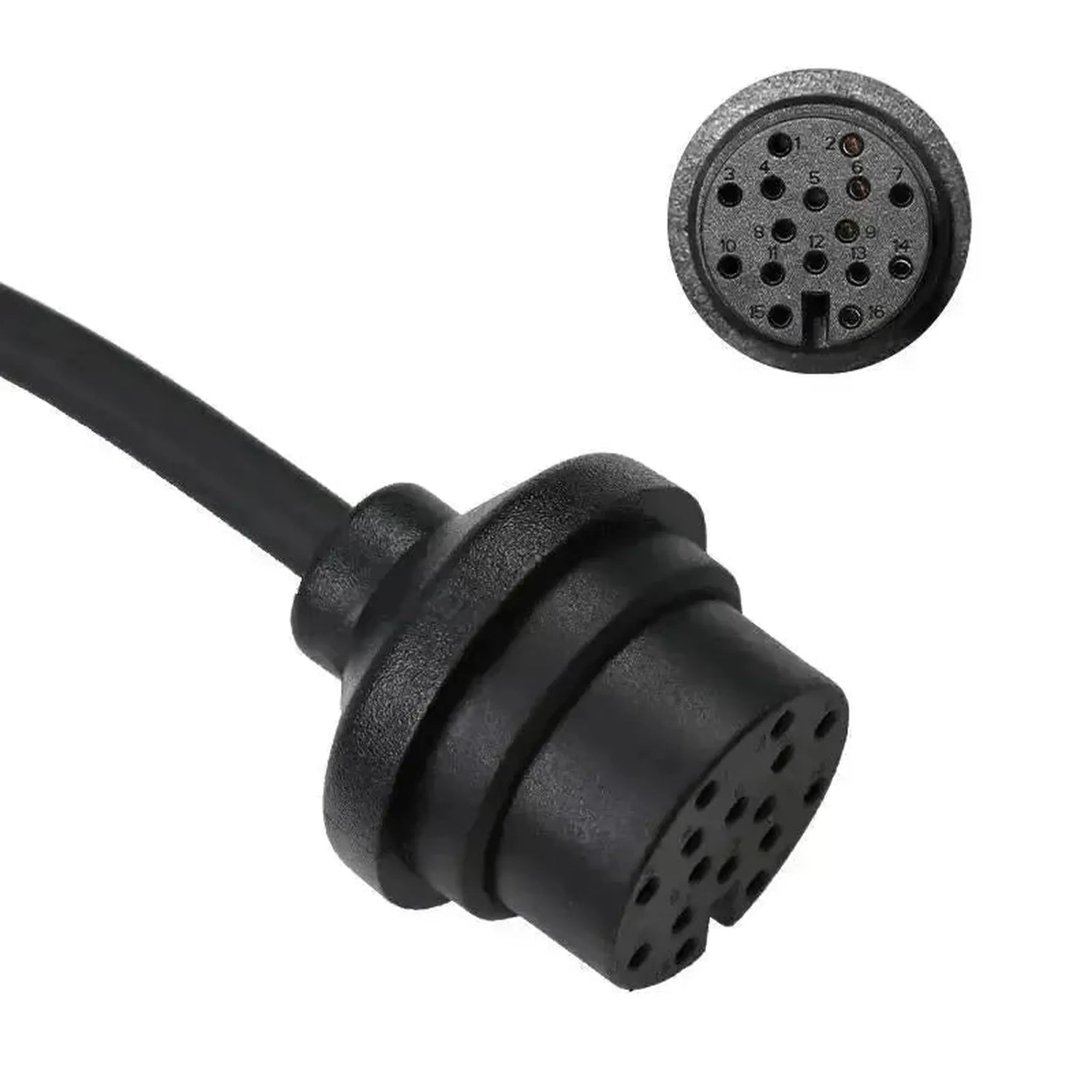

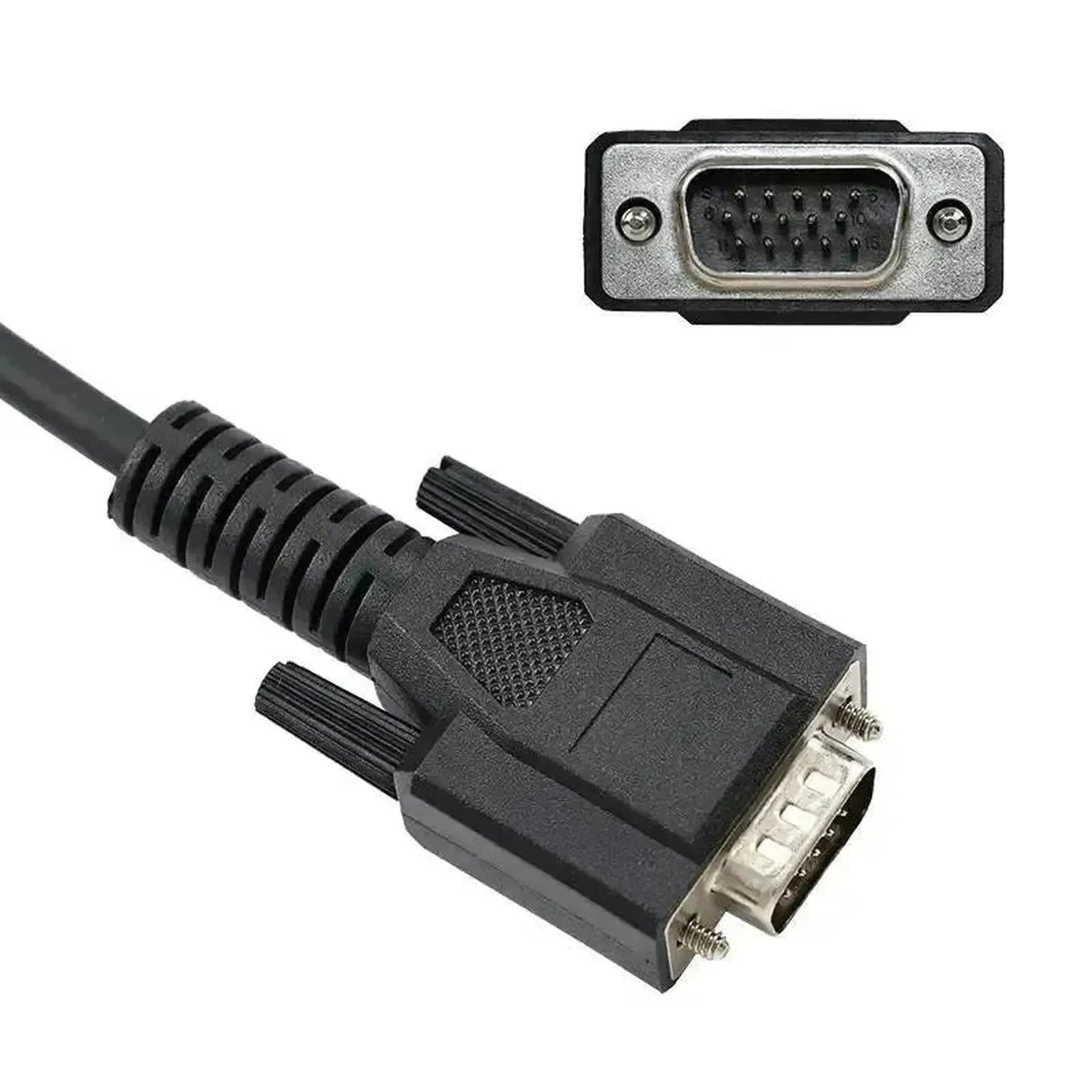

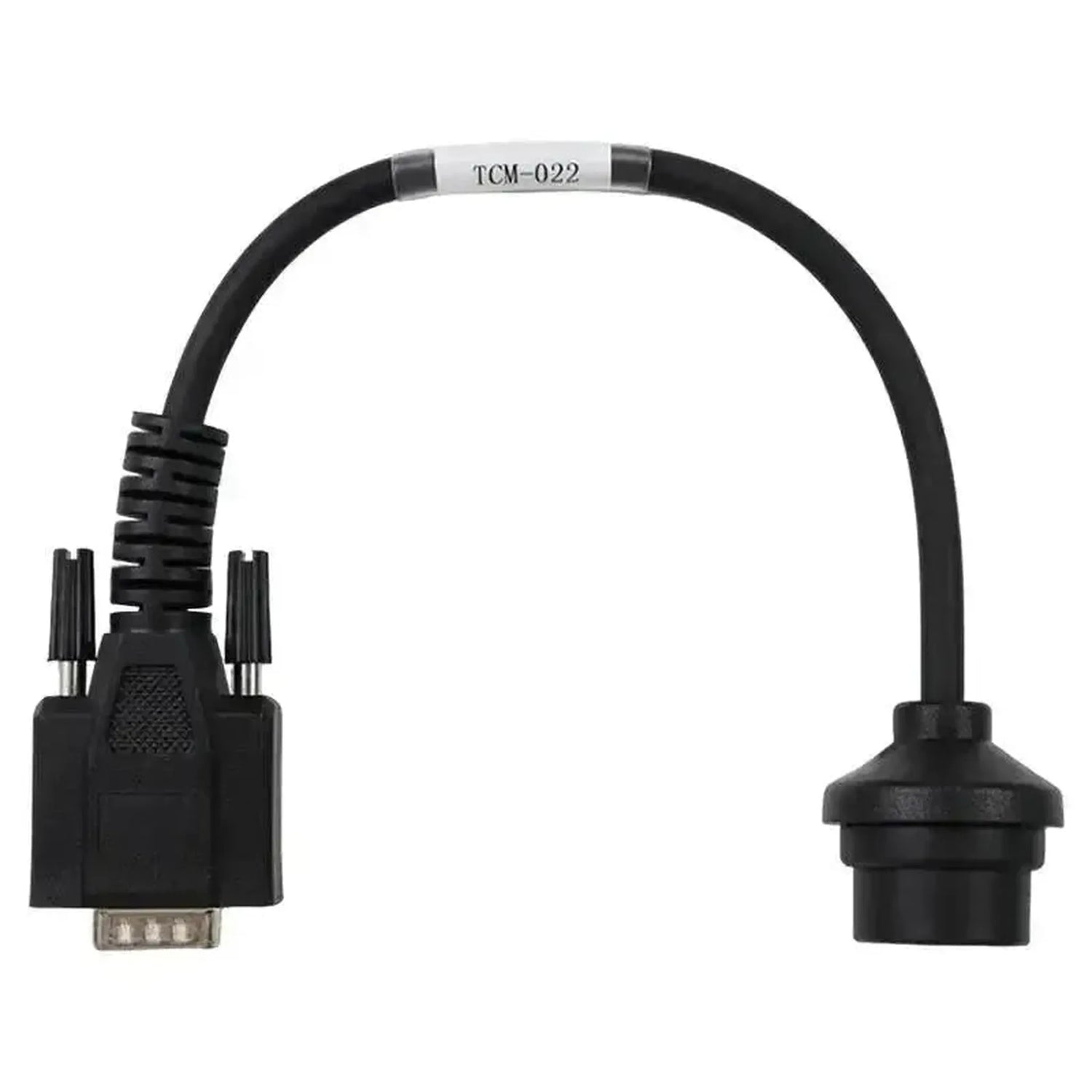

The OBDSTAR TCM-022 is an adapter cable featuring a 16-pin connector on the vehicle side for the Continental transmission control unit and a 15-pin DB15 connector on the device side. The 16-pin side connects to the Continental TCU port in the mechatronic unit of a ZF 6HP automatic transmission, as found in the 6HP19, 6HP21, 6HP26 and related variants.
The mechatronic unit is housed internally within the transmission housing and features its own connector on the module itself. This direct connection provides wired access to the TCM outside the vehicle's OBD2 port, even when the CAN-bus or K-line cannot be reached through the standard diagnostic connector. This direct access route is essential when the transmission is serviced separately on the workbench, or when communication issues through the vehicle prevent proper diagnostics.
This cable is exclusively compatible with Continental units in the ZF 6HP transmission series; the same gearbox fitted with a TCU from another supplier is not supported. Reading, reprogramming, and calibration are only possible to the extent that your OBDSTAR device's software supports these functions.
KEY FEATURES
IMPORTANT NOTES
Applications and Features
The TCM-022 connects the Continental transmission control module in a ZF 6HP automatic gearbox to the DB15 port on your OBDSTAR device.
Control units you can reach
- Continental TCU in the ZF 6HP:the transmission control unit in the mechatronic assembly, via the 16-pin port on the module.
- Automatic transmission:the same connection can be used when the transmission is removed and powered externally.
What You Can Do
- TCM reading:Extract the current software version, calibration parameters and fault codes from the Continental unit via the wired connection.
- TCM programming: write new software or make adjustments, even when vehicle communication is impossible due to CAN-bus faults.
- Calibrate the TCM: reset the transmission's adaptive parameters after replacing or repairing the mechatronic unit.
- Perform bench diagnostics: access the TCM with the transmission removed and powered externally.
- Important: which of these operations are available depends on your OBDSTAR device's software and license; the cable only provides the connection path.
Compatible vehicles and applications
The TCM supplier in the ZF 6HP transmission is what matters, not the vehicle model. The vehicles listed below are equipped with a Continental TCM in the ZF 6HP automatic transmission and are therefore compatible with this cable when used with OBDSTAR equipment.
BMW:
- 1 Series E81 / E82 / E87 / E88: 120i, 125i, 130i, 135i, 120d, 123d (2004–2013)
- 3 Series E90 / E91 / E92 / E93: 320i, 325i, 330i, 335i, 320d, 330d, 335d (2005–2013)
- 5 Series E60 / E61 LCI: 520i, 523i, 525i, 530i, 535i, 550i, 520d, 525d, 530d, 535d (2007–2010)
- 6 Series E63 / E64 LCI: 630i, 650i, 635d (2007–2010)
- 7 Series E65 / E66 LCI: 730d, 740i, 750i – early 6-speed models (2005–2008)
- 7 Series F01 / F02: Early 6-speed models 730d, 740i, 750i (2008–2012)
- X1 E84: With 6-speed automatic (2009–2015)
- X3 E83 LCI: With 6-speed automatic (2006–2010)
- X5 E70: With 6-speed automatic (2006–2013)
- X6 E71: With 6-speed automatic (2008–2014)
- Z4 E89: 23i, 30i, 35i (2009–2016)
Land Rover:
- Discovery 4: Early 6-speed models (2010–2013)
- Range Rover Sport L320 Facelift: 5.0L V8 and 3.0 TDV6 (2010–2013)
- Range Rover Vogue L322: 5.0L V8 (2010–2012)
Package contents
- 1x OBDSTAR (TCM-022) | Continental (6HP) 16-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | TCM-022 |
| Type | Adapter cable |
| Application | Read, program and calibrate Continental TCM units in ZF 6HP automatic transmissions |
| Vehicle-side connector | Continental (6HP) 16-pin TCM |
| Device-side connector | 15-pin DB15 |
| Communication | Direct TCM connection, even when CAN-bus or K-line is unreachable |
| Control units | Continental transmission control unit (TCU) in the mechatronic unit |
| Segment | Passenger vehicle |
| Supported brands | BMW and Land Rover |
| Model range | Models equipped with a ZF 6HP automatic transmission featuring Continental mechatronic unit |
| Required to use | OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit |
| Weight | 0.1 kg |
