OBDSTAR  |  SKU: TCM-019 / 7.52.1

OBDSTAR (TCM-019) | GM (6L45/50/80/90) 16-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

€29,95 incl.
€24,75 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

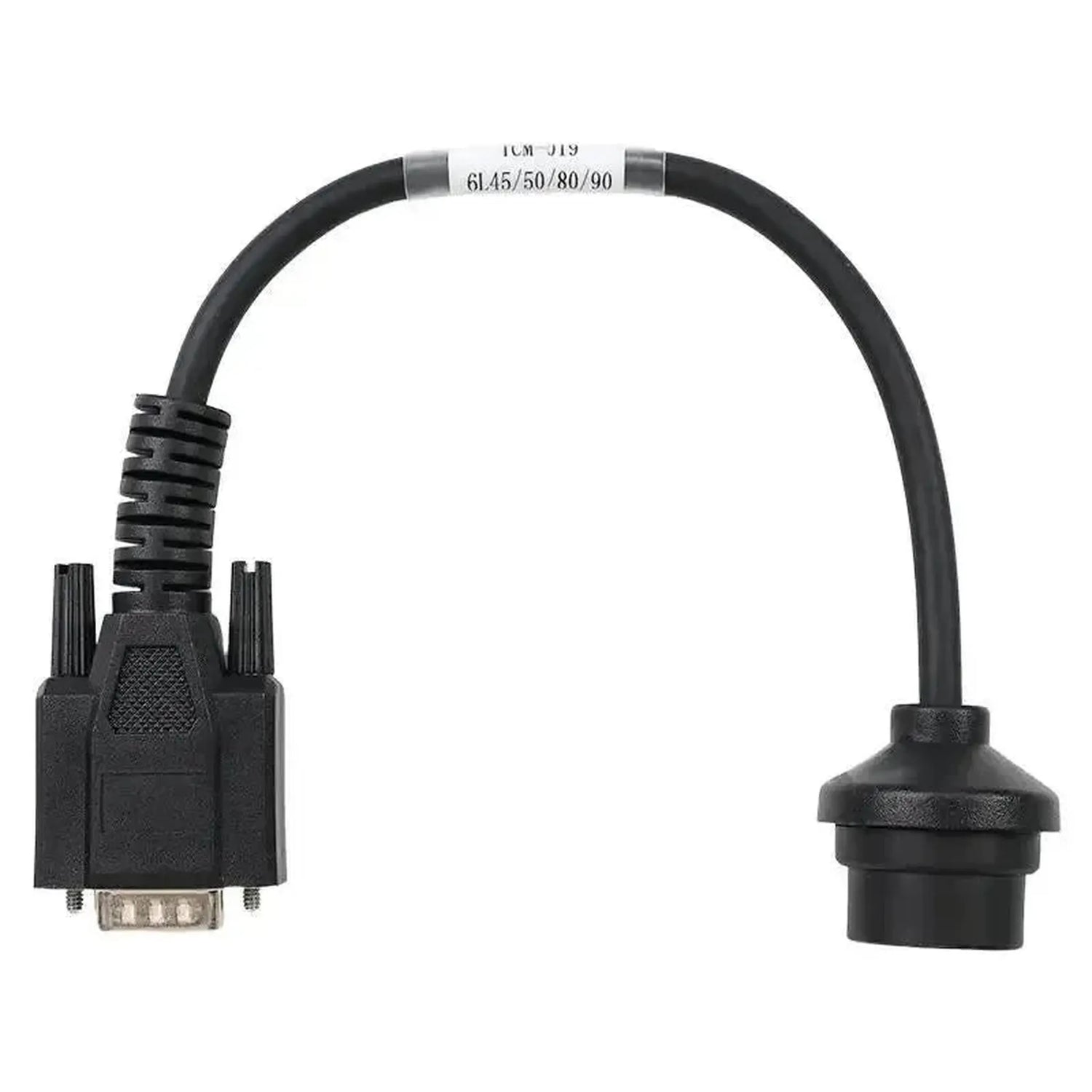

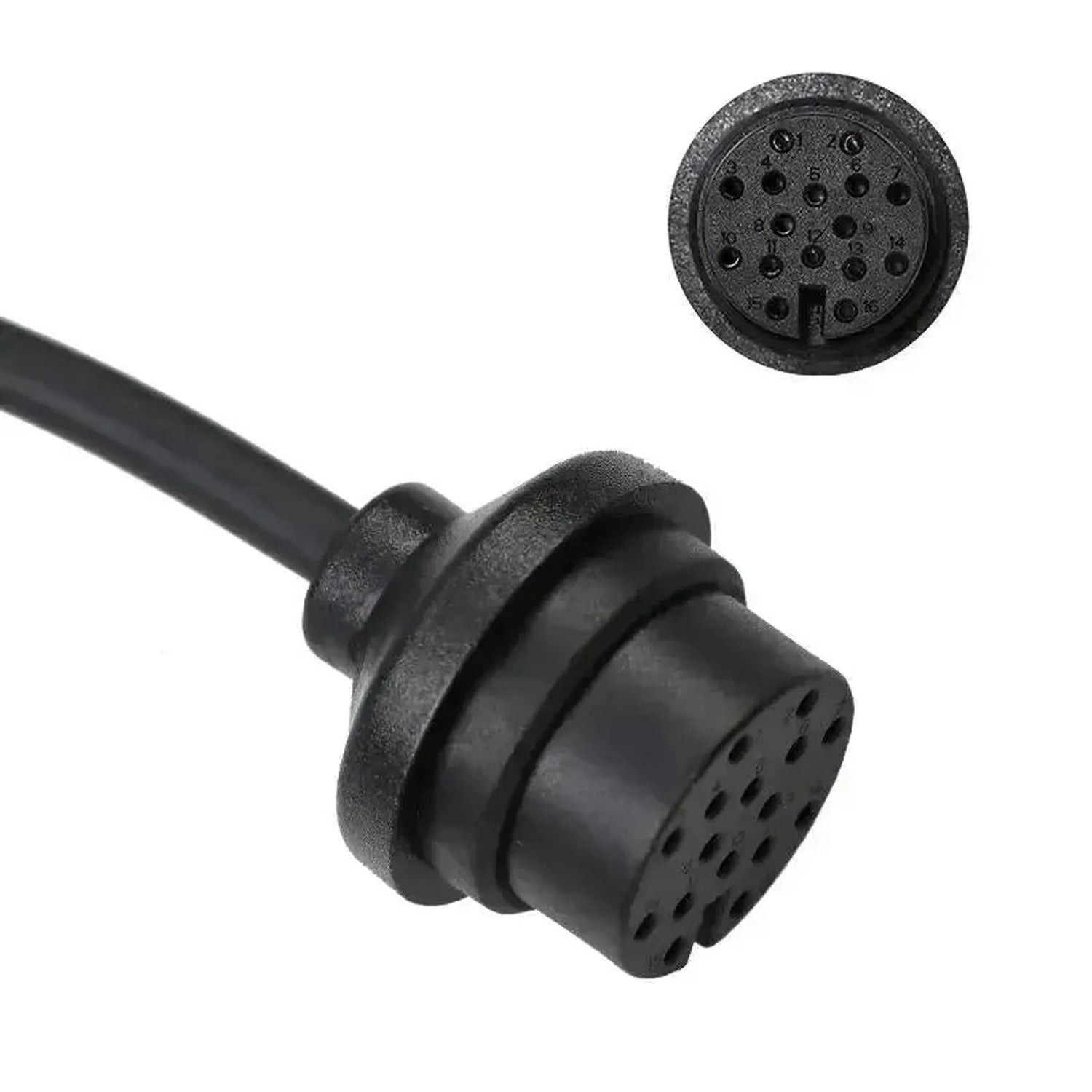

The OBDSTAR TCM-019 adapter cable is designed to establish a direct connection with the Transmission Control Module (TCM) of General Motors. This cable connects the specific 16-pin connector of the GM 6L45, 6L50, 6L80, and 6L90 automatic transmissions to a standard 15-pin DB15 interface. This makes it possible to connect the control unit directly via a workbench setup for complex diagnostic procedures and targeted data transfer.

Within the diagnostic context, this adapter facilitates exact power supply and data communication for reading and writing internal transmission software. Due to the OEM-specific pin configuration, CAN-bus signals are transmitted stably and without data loss between the disconnected module and the diagnostic equipment. The wiring is calibrated to ensure constant voltage during critical programming processes. This cable is exclusively compatible with OBDSTAR readers or programmers.

ADVANTAGES

✔ Enables a direct bench connection without needing to install the transmission in the vehicle.
✔ Ensures interference-free transmission of CAN-bus data during flashing.

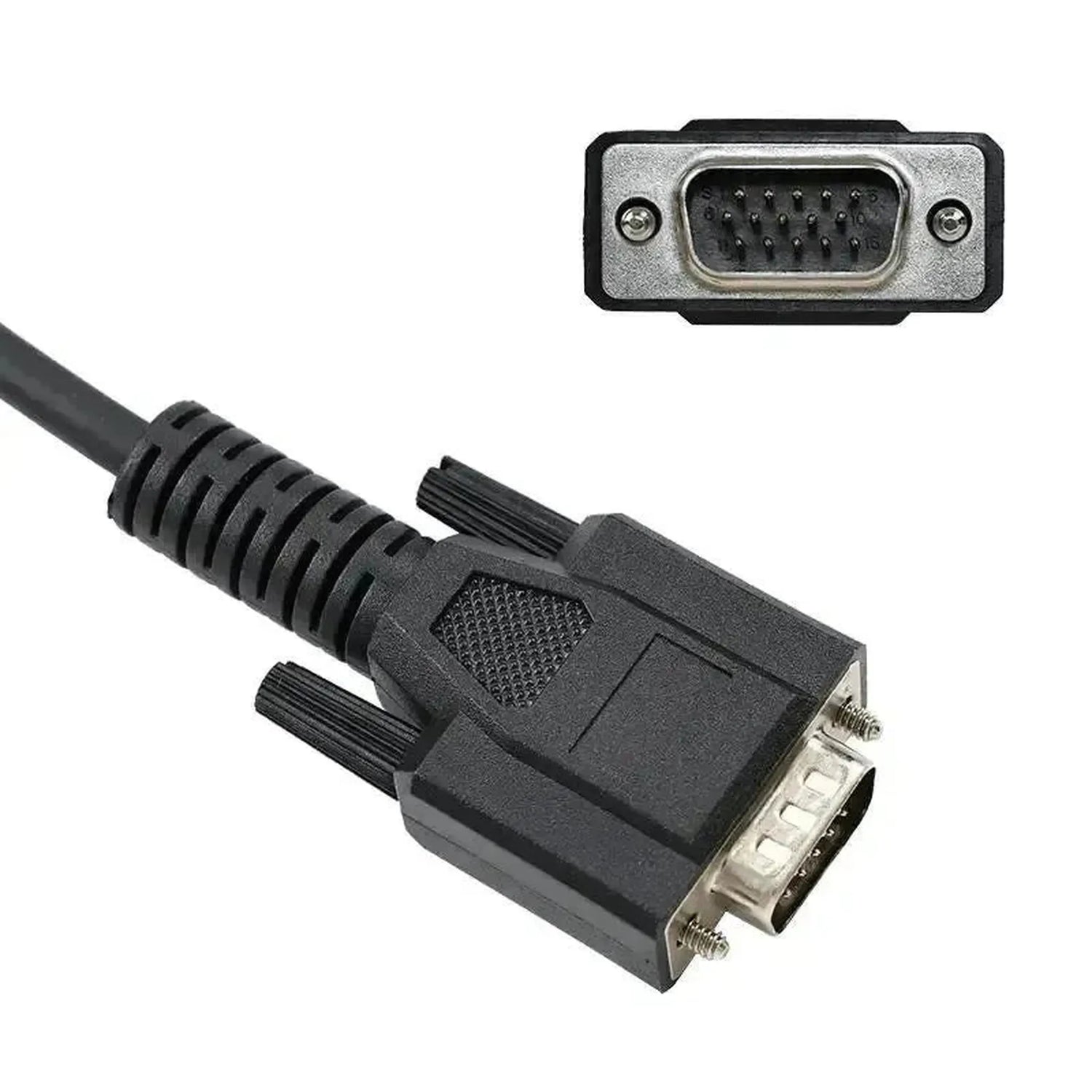

✔ Robust DB15 connector for secure anchoring to the programmer.

ATTENTION POINTS

✕ Exclusively designed for and compatible with OBDSTAR programmers.
✕ Only applicable to the specific GM 6L-series automatic transmissions.

Applications and functionalities

This adapter cable offers the following technical functionalities when working on GM transmission control units via a workbench setup:

  • TCU Cloning: Duplicating the complete firmware and calibration data to a new or replacement transmission control unit.
  • Software flashing: Overwriting or updating the existing software within the automatic transmission.
  • Direct communication: Reading specific fault codes (DTCs) and real-time data directly from the disassembled module.

Compatible vehicles and applications

The adapter cable is designed for use with GM 6L45, 6L50, 6L80, and 6L90 transmissions, which are found in the following vehicle brands:

Cadillac:

  • Models with 6L-series TCM: (2006 - present)

Chevrolet:

  • Models with 6L-series TCM: (2006 - present)

Daewoo:

  • Models with 6L-series TCM: (2006 - present)

GMC:

  • Models with 6L-series TCM: (2006 - present)

Holden:

  • Models with 6L-series TCM: (2006 - present)

Hummer:

  • Models with 6L-series TCM: (2006 - 2010)

Pontiac:

  • Models with 6L-series TCM: (2006 - 2010)

UAZ:

  • Models with 6L-series TCM: (2019 - present)
💡
Good to know: Always ensure a stable external power supply when reading the TCM on the workbench. Voltage drops during the cloning or flashing process can result in irreparable data corruption in the control unit.

Package Contents

  • 1x OBDSTAR (TCM-019) | GM (6L45/50/80/90) 16-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
