Discover similar products: OBDSTAR, Vehicle OBD Extension Cables & Adapters
OBDSTAR  |  SKU: TCM-011

OBDSTAR (TCM-011) | Getrag (VGS2-FCVT) 6-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

€29,95 incl.
€24,75 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

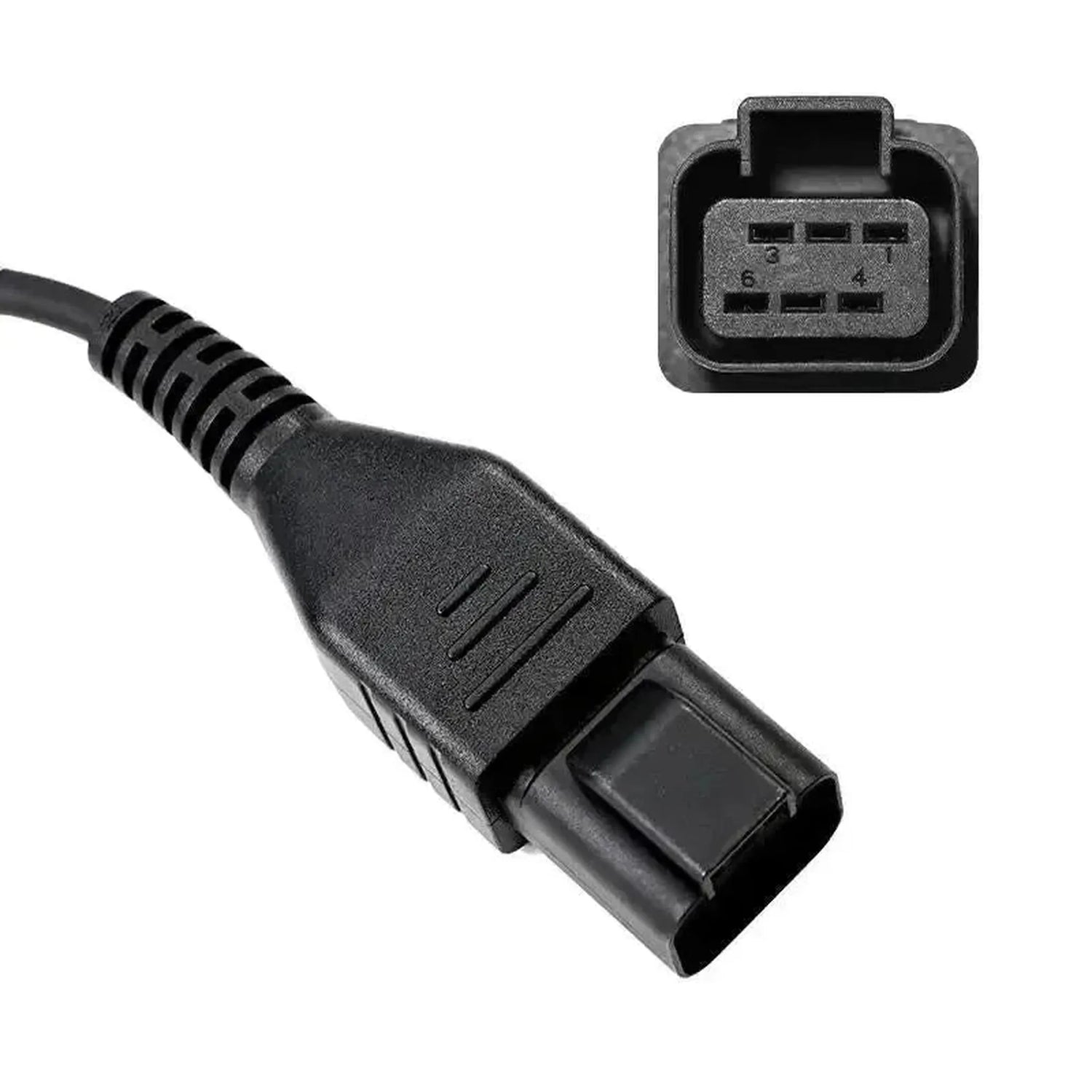

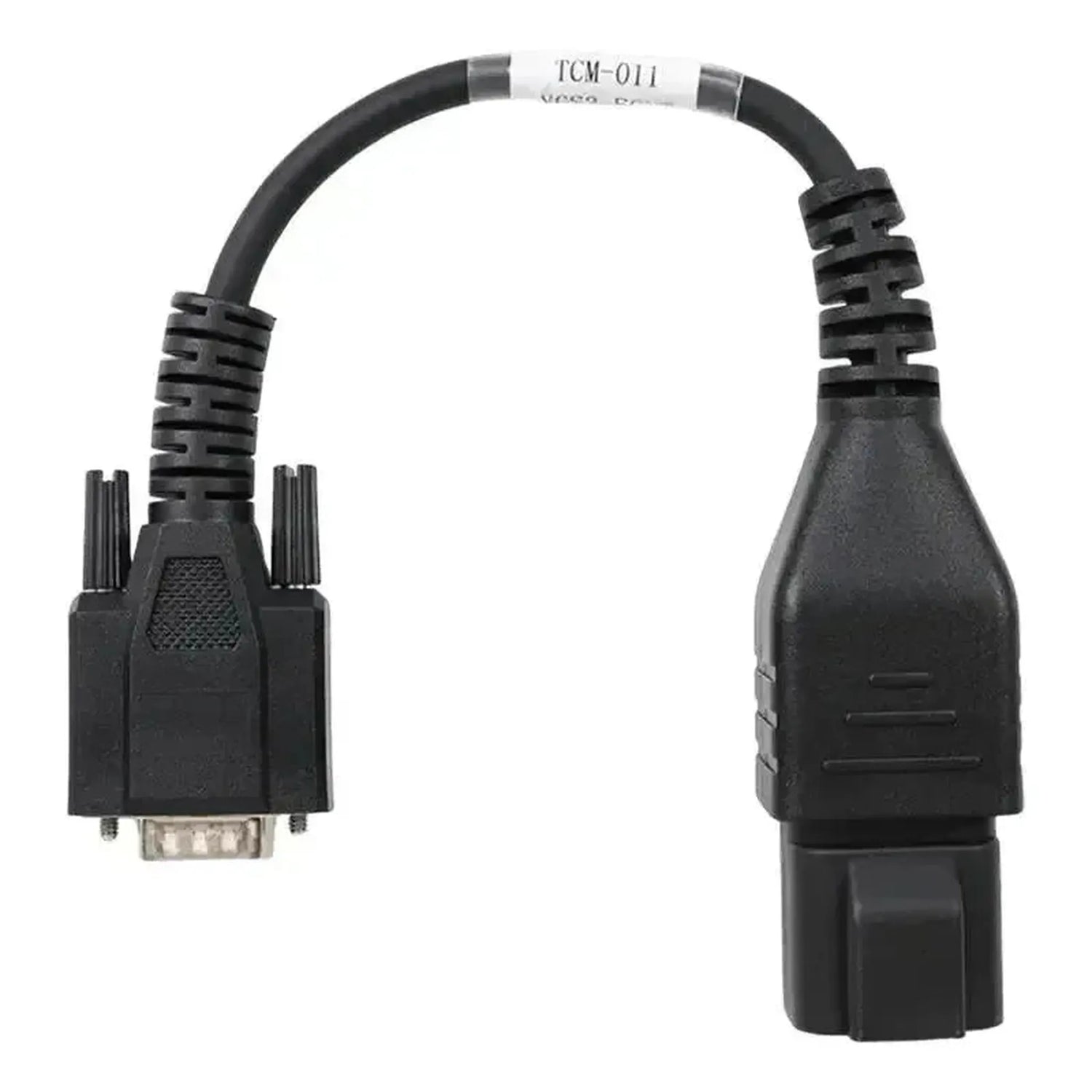

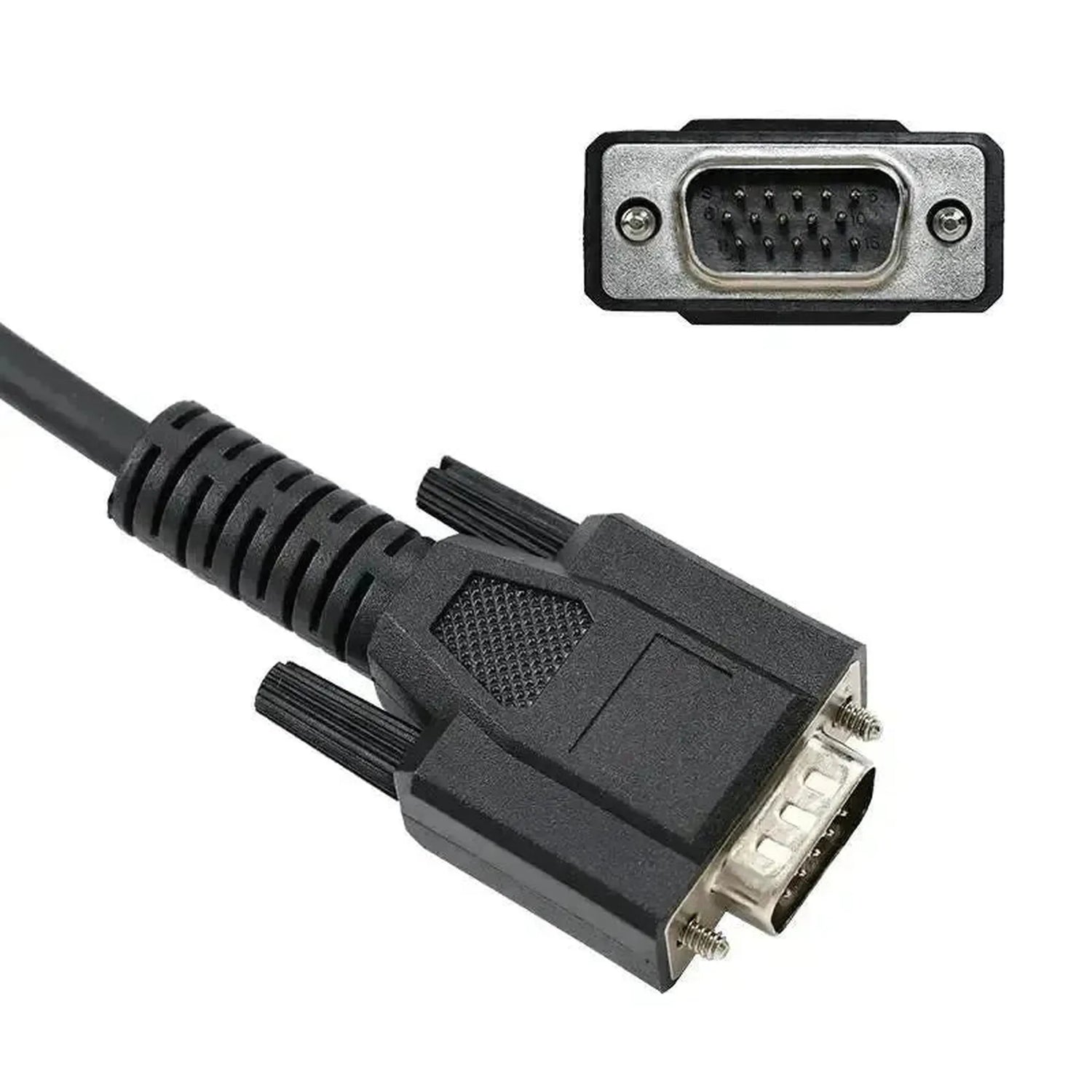

The OBDSTAR TCM-011 is an adapter cable featuring a 6-pin connector on the vehicle side for the Getrag VGS2-FCVT transmission control module and a 15-pin DB15 connector on the device side. The 6-pin side connects directly to the TCM connector located within the transmission itself, which becomes readily accessible once the module is removed from the vehicle.

The VGS2-FCVT is the control unit for a continuously variable transmission (CVT) supplied by Getrag for compact Mercedes-Benz passenger vehicles. Its dedicated 6-pin connection allows you to access the module independently, bypassing the OBD2 port and vehicle network entirely. This is exactly what you need for tasks like cloning or reprogramming the TCM outside the vehicle. The cable length and connector design are optimized for workshop use.

This cable unlocks access to this CVT control unit only and no other modules. Which TCM functions you can perform depends on your connected OBDSTAR device and its software version; the cable itself does not add any vehicle coverage.

KEY BENEFITS

✔Direct connection — access the Getrag VGS2-FCVT TCM without relying on the OBD2 port or vehicle network.
✔Proper connector fit — the plug matches the VGS2-FCVT's 6-pin socket, ensuring a mechanically correct connection.
✔Off-vehicle programming — ideal for TCM programming when the module is on the workbench, separate from the car.
✔Workshop-ready design — cable length and construction are tailored for workshop environments.

IMPORTANT NOTES

✕OBDSTAR only — the DB15 side is designed for OBDSTAR diagnostic devices and programmers; you cannot connect equipment from other manufacturers.
✕No additional coverage — available TCM functions depend on your OBDSTAR device and its software version, not the cable.
✕Module removal required — the 6-pin connector is located on the transmission; in practice, you'll need to remove the module from the vehicle first.
✕Single transmission type — compatible only with vehicles equipped with the Getrag VGS2-FCVT; other transmission types and control modules are not supported.

Applications and Functions

The TCM-011 connects your Getrag VGS2-FCVT transmission control unit to the DB15 port on your OBDSTAR device.

Control units you can access

  • Getrag VGS2-FCVT TCM: the continuously variable transmission control unit, via the 6-pin connector on the module.
  • This module only: other control units in the vehicle cannot be reached with this cable.

What you can do

  • Read TCM data: retrieve current programming data and configuration settings from the control unit.
  • Clone the TCM: copy the complete contents of an original module to a replacement unit to preserve transmission settings.
  • Reprogram the TCM: overwrite or update the software via direct connection to the 6-pin connector, independent of the vehicle network.
  • Convert signal to DB15: pass the 6-pin TCM signal to the DB15 input of the device for stable data transfer.
  • Important: which of these operations are possible depends on your OBDSTAR device's software version; the cable only provides the connection.

Compatible vehicles and applications

What matters is the presence of the Getrag VGS2-FCVT transmission, not the model. Only vehicles with this specific transmission control unit are compatible; the variants listed below came equipped with it.

Mercedes-Benz:

  • A-Class W169 – A 150 / A 160 (Petrol): (2004–2012)
  • A-Class W169 – A 170 / A 180 (Petrol): (2004–2012)
  • A-Class W169 – A 200 / A 200 Turbo (Petrol): (2004–2012)
  • A-Class W169 – A 160 CDI / A 180 CDI / A 200 CDI (Diesel): (2004–2012)
  • B-Class W245 – B 150 / B 160 (Petrol): (2005–2011)
  • B-Class W245 – B 170 / B 180 / B 180 NGT (Petrol / Natural Gas): (2005–2011)
  • B-Class W245 – B 200 / B 200 Turbo (Petrol): (2005–2011)
  • B-Class W245 – B 180 CDI / B 200 CDI (Diesel): (2005–2011)
💡
Good to know: the VGS2-FCVT control unit is located inside the transmission itself. The 6-pin TCM connector is only directly accessible after removing the module from the vehicle, so plan for disassembly work before you can connect. Verify that your vehicle actually has the VGS2-FCVT and that you can remove the module before ordering.

Package contents

  • 1x OBDSTAR (TCM-011) | Getrag (VGS2-FCVT) 6-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle

Technical specifications

Specification Description
Brand OBDSTAR
Part number TCM-011
Type Adapter Cable
Application Read, clone, and reprogram the Getrag VGS2-FCVT transmission control unit
Vehicle-side connector Getrag (VGS2-FCVT) 6-pin TCM
Device-side connector 15-pin DB15
Control units Transmission control unit (TCM) for CVT
Vehicle class Passenger car
Supported brands Mercedes-Benz
Model range Mercedes-Benz A-Class W169 (2004–2012) and B-Class W245 (2005–2011) with VGS2-FCVT
Required to use OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit
Weight 0.1 kg
