OBDSTAR | SKU: TCM-003 / 7.38.2

OBDSTAR (TCM-003) | Temic (DL501) 16-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

Name: OBDSTAR (TCM-003) | Temic (DL501) 16-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car
Brand: OBDSTAR
SKU: TCM-003 / 7.38.2
Price: 29.95 EUR
Availability: InStock

€29,95 incl.

€24,75 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

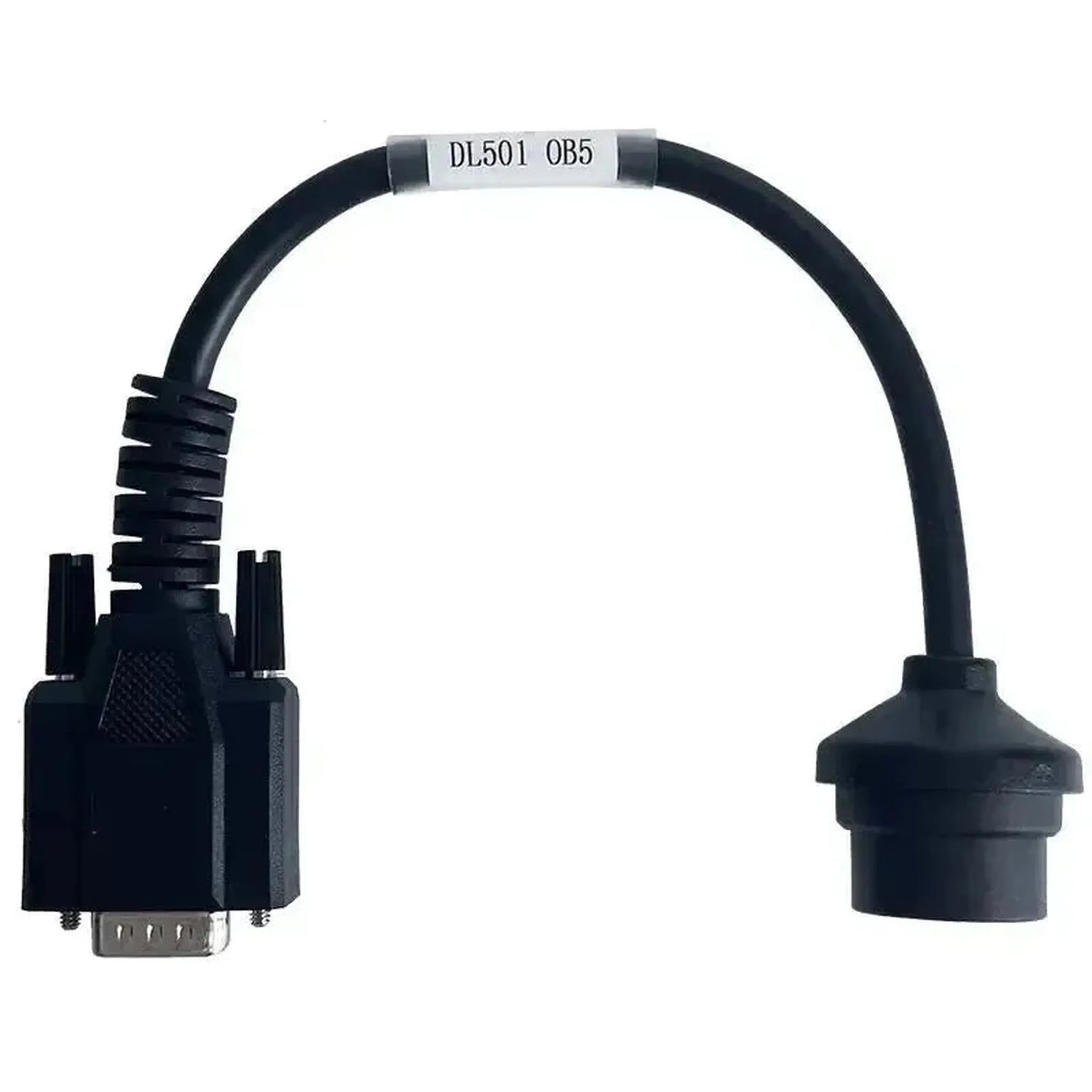

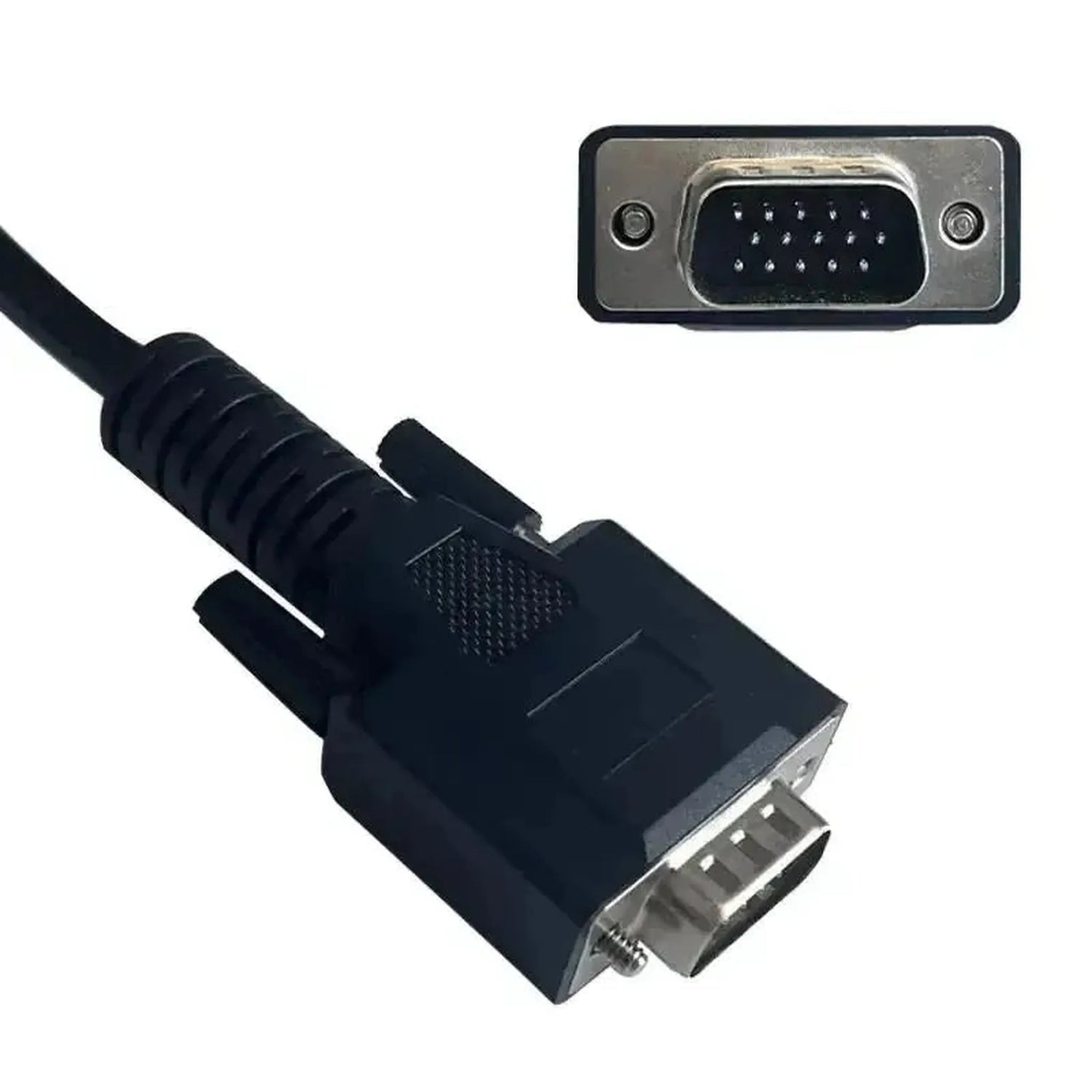

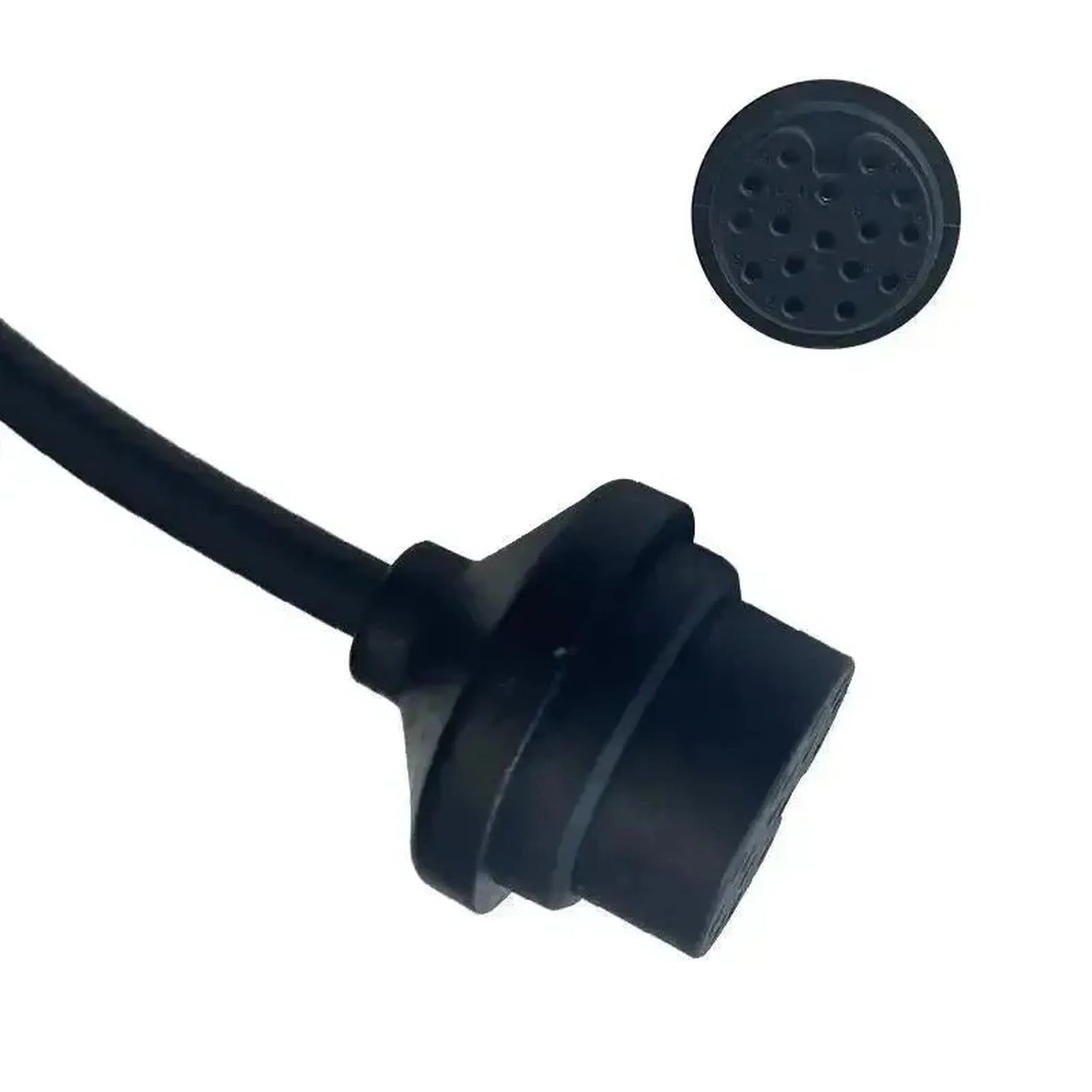

The OBDSTAR TCM-003 is a specific Adapter Cable designed for direct connection to Temic DL501 (0B5) transmission control units (TCM). This cable features a round 16-pin TCM connector on the vehicle side and a 15-pin DB15 connector on the diagnostic side. The Adapter Cable creates a physical bridge between the automatic transmission mechatronics and the diagnostic and programming equipment on the workbench.

Within the diagnostic context, this adapter facilitates stable signal transmission for accurate reading and writing of module data. It allows technicians to communicate via the CAN bus protocol, which is necessary for cloning and addressing the transmission module. The wiring is specifically configured for the pin-out of the VAG 7-speed DSG/S-tronic system, safely routing the required operating voltage and data communication to the connected hardware.

ADVANTAGES

✔ Direct connection to the Temic DL501 (0B5) module without the need for universal pin cables.

✔ Prevents short circuits and connection errors through a correctly configured pin-out.

✔ Equipped with a robust DB15 interface for secure data flow to the programmer.

✔ Enables safe TCU cloning and data extraction on the bench.

KEY POINTS

✕ This adapter cable is only compatible with OBDSTAR diagnostic devices or programmers.

✕ Requires disassembly or physical access to the TCM mechatronics outside the vehicle.

✕ Not suitable for other VAG transmission systems than the DL501/0B5 architecture.

Applications and functionalities

This adapter cable is developed for specific programming and diagnostic tasks on VAG automatic transmissions on the bench.

TCU Cloning: Reading and writing EEPROM and flash data for replacing a defective transmission module.
Bench Diagnosis: Testing and direct communication with the control unit without involving the vehicle network.
Parameter Configuration: Reading the current configuration for calibration purposes via a compatible programmer.

Compatible vehicles and applications

This cable is designed for use with specific passenger cars equipped with the longitudinal 7-speed DSG/S-tronic (DL501/0B5) transmission. Note: the adapter cable is only compatible with OBDSTAR diagnostic devices and bench programmers.

Audi:

A4 (B8/B9): (2008 - 2015)
A5 (8T/8F): (2008 - 2017)
A6 (C7): (2011 - 2018)
A7 (4G): (2010 - 2018)
Q5 (8R): (2008 - 2017)

Porsche:

Macan: (2014 - 2021)

💡

Good to know: The Temic DL501 (0B5) TCM is located in the mechatronics. Before programming on the bench, it is crucial that the module is completely free of transmission oil to prevent connection issues on the pins.

Package Contents

1x OBDSTAR (TCM-003) | Temic (DL501) 16-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
