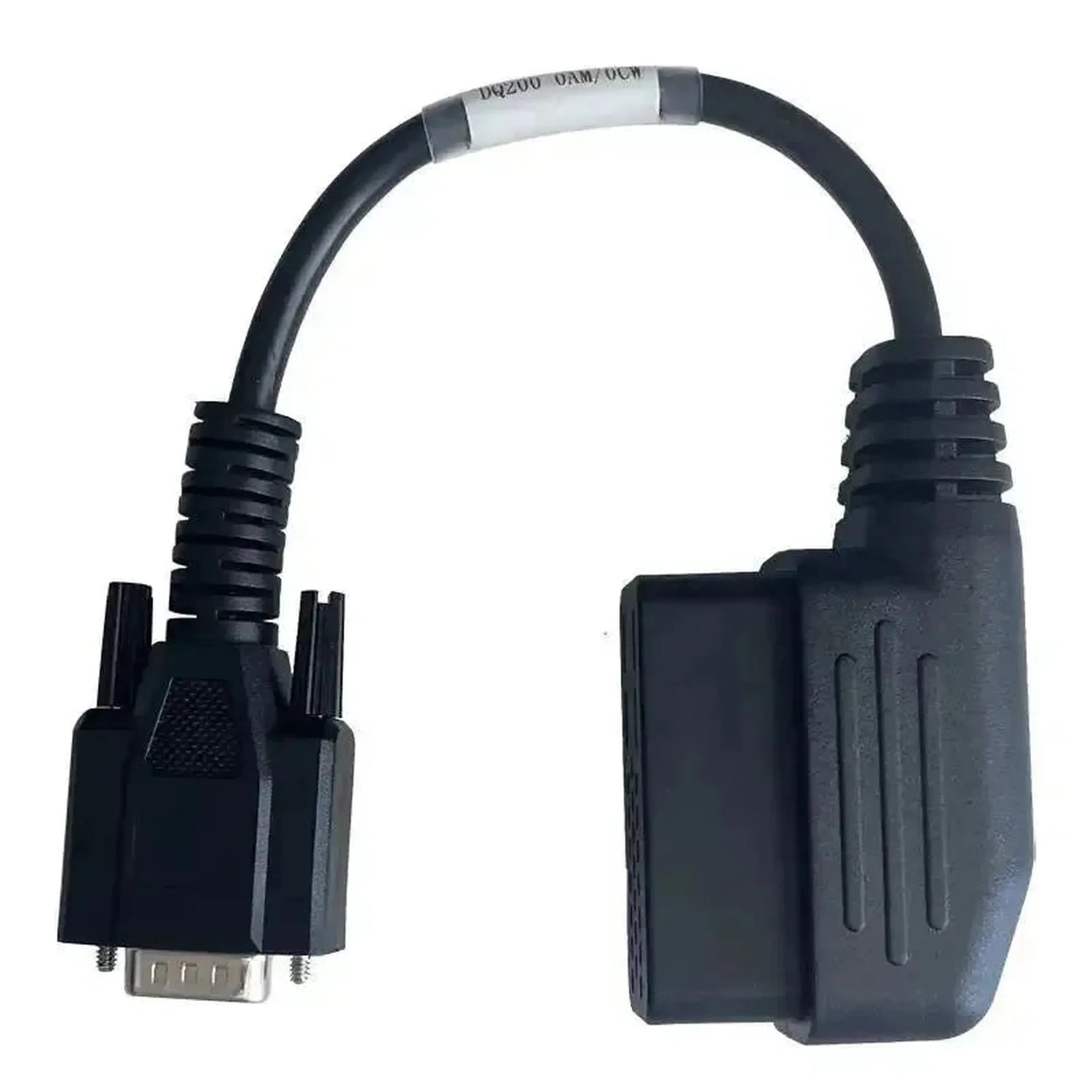

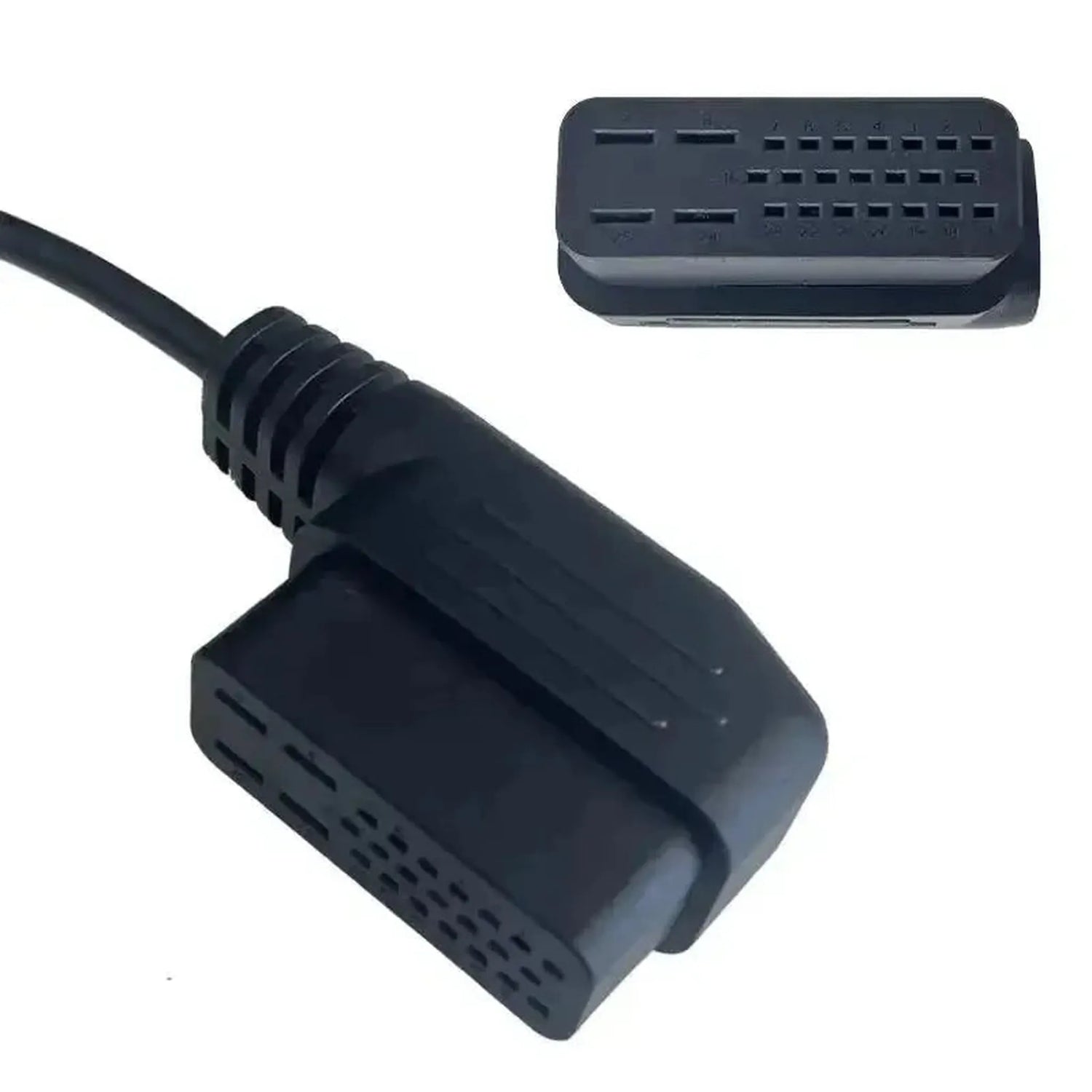

The OBDSTAR TCM-001A adapter cable connects the 25-pin connector of a Temic DQ200 transmission control unit (TCM) to the 15-pin DB15 port of compatible diagnostic equipment. This configuration allows diagnostic technicians to establish a direct connection to the mechatronics of the VAG 7-speed DSG gearbox, specifically for the 0AM and 0CW variants, in a bench setup outside the vehicle.

Within the diagnostic context, the adapter facilitates the transfer of CAN bus signals and the necessary power supply required for safe reading and writing of data. The pin configuration is hardware-tuned to the Temic protocol to prevent signal loss during transmissions. This specific cable is exclusively compatible with OBDSTAR diagnostic devices or programmers and does not work with interfaces from other manufacturers.

ADVANTAGES

✔ Enables direct communication with the Temic DQ200 TCM via a bench setup.

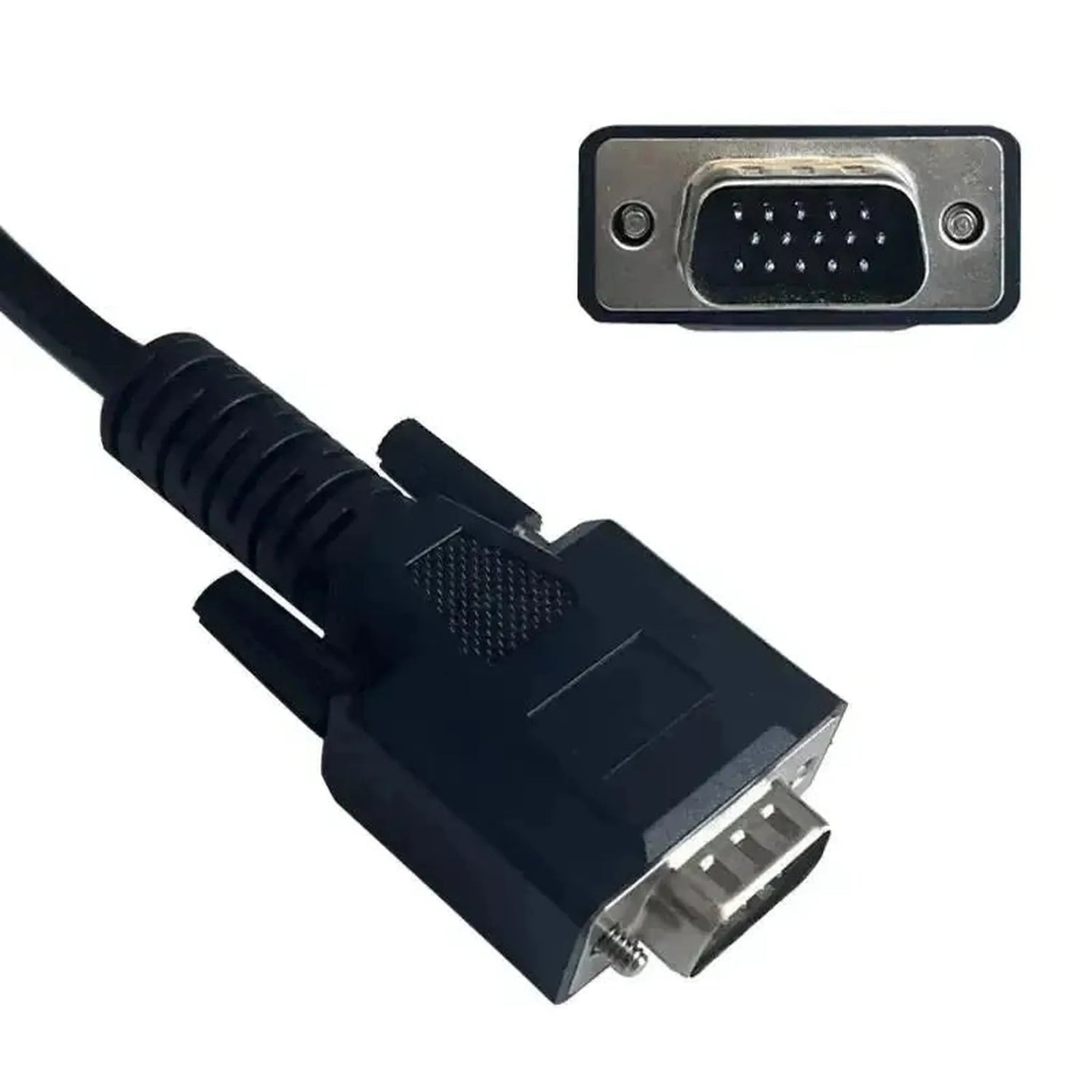

✔ Equipped with a robust 15-pin DB15 connector for secure data transfer.

✔ Supports both the 0AM if the 0CW hardware variants.

ATTENTION POINTS

✕ Only to be used in combination with OBDSTAR diagnostic devices or programmers.

✕ Requires removal of the TCM (mechatronics) from the vehicle for use.

Applications and functionalities

This adapter cable is used for specific transmission-related programming and diagnostic tasks directly on the workbench (bench mode).

TCM cloning: Reading and writing EEPROM and flash data to duplicate the transmission control unit.
Software flashing: Updating or restoring the control software of the DQ200 mechatronics.
Bench diagnosis: Locally reading fault codes and real-time parameters without the unit being installed in the vehicle.

Compatible vehicles and applications

This adapter cable is designed for use on VAG vehicles equipped with the 7-speed DSG transmission (Temic DQ200 / 0AM / 0CW).

Audi:

A1 (8X / GB): (2010 - present)
A3 (8P / 8V / 8Y): (2008 - present)

Seat:

Ibiza (6J / 6F): (2008 - present)
Leon (1P / 5F / KL): (2009 - present)

Skoda:

Fabia (Mk2 / Mk3 / Mk4): (2010 - present)
Octavia (1Z / 5E / NX): (2009 - present)

Volkswagen:

Golf (Mk6 / Mk7 / Mk8): (2008 - present)
Polo (6R / 6C / AW): (2009 - present)

💡

Good to know: When cloning or flashing the DQ200 TCM on a bench setup, always ensure a stable external power supply to the programmer to prevent data corruption.

Package Contents

1x OBDSTAR (TCM-001A) | Temic (DQ200) 25-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
