OBDSTAR  |  SKU: N026

OBDSTAR (N026) | SYM 3-pin OBD – 16-pin OBD2 Adapter | Moped

€24,95 incl.
€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

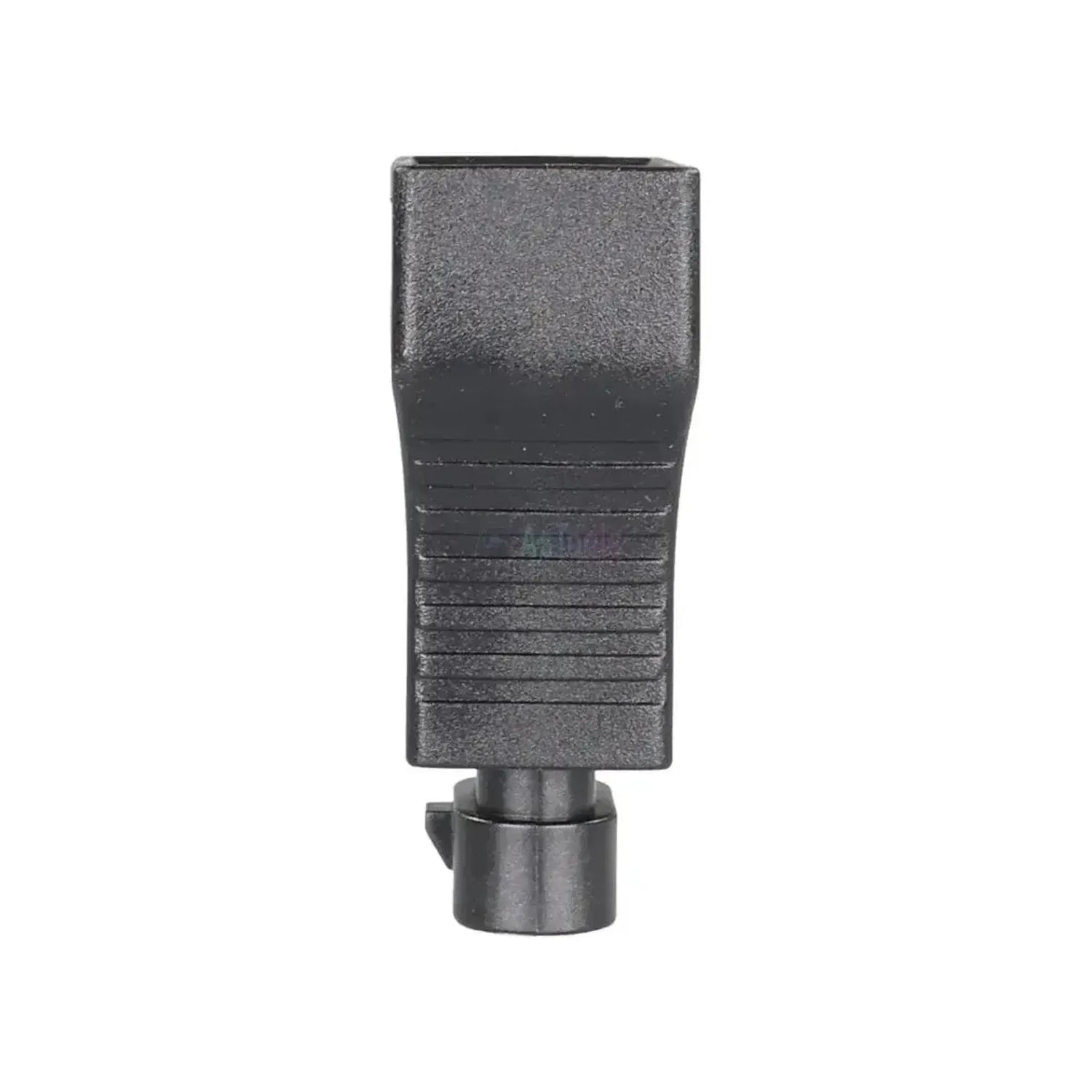

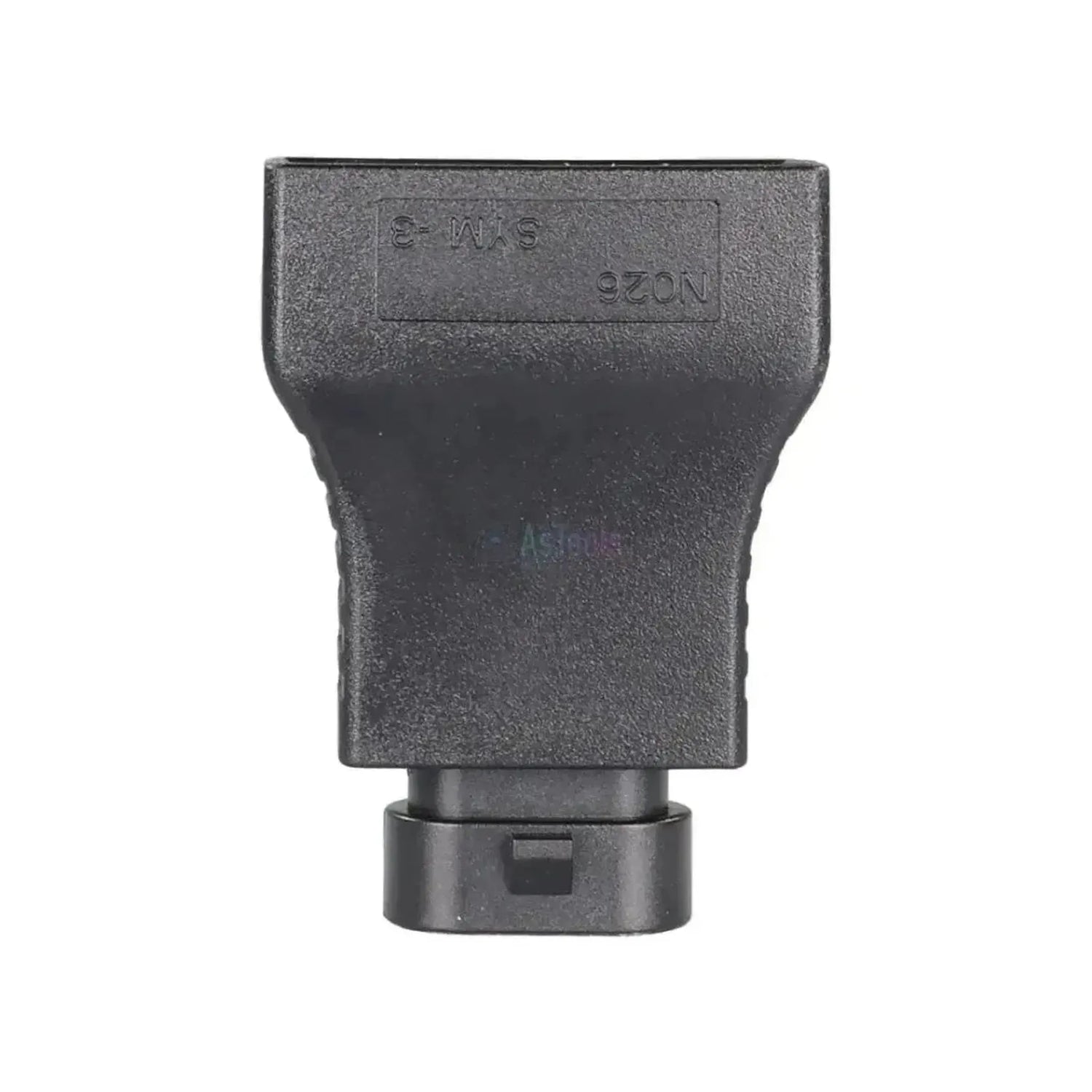

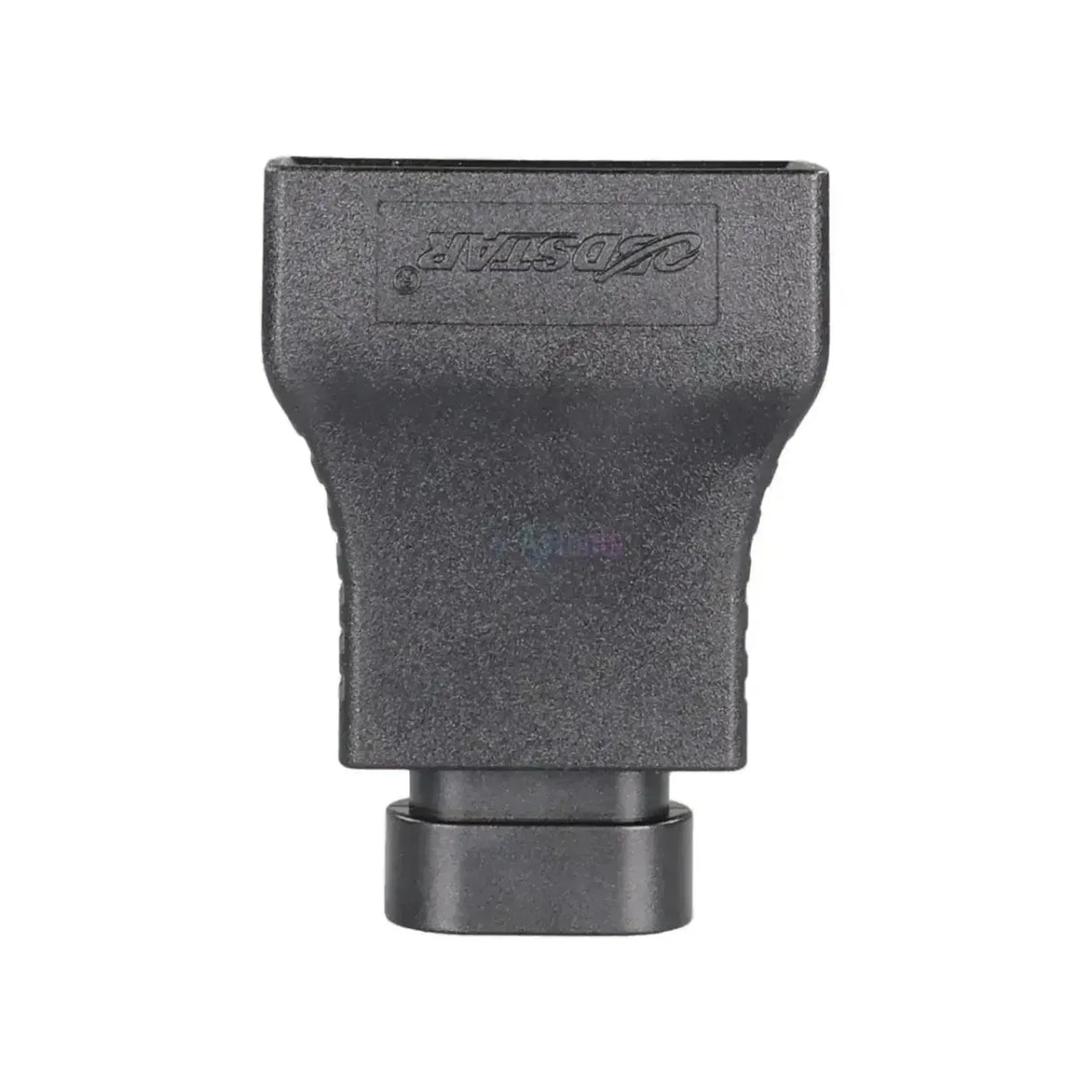

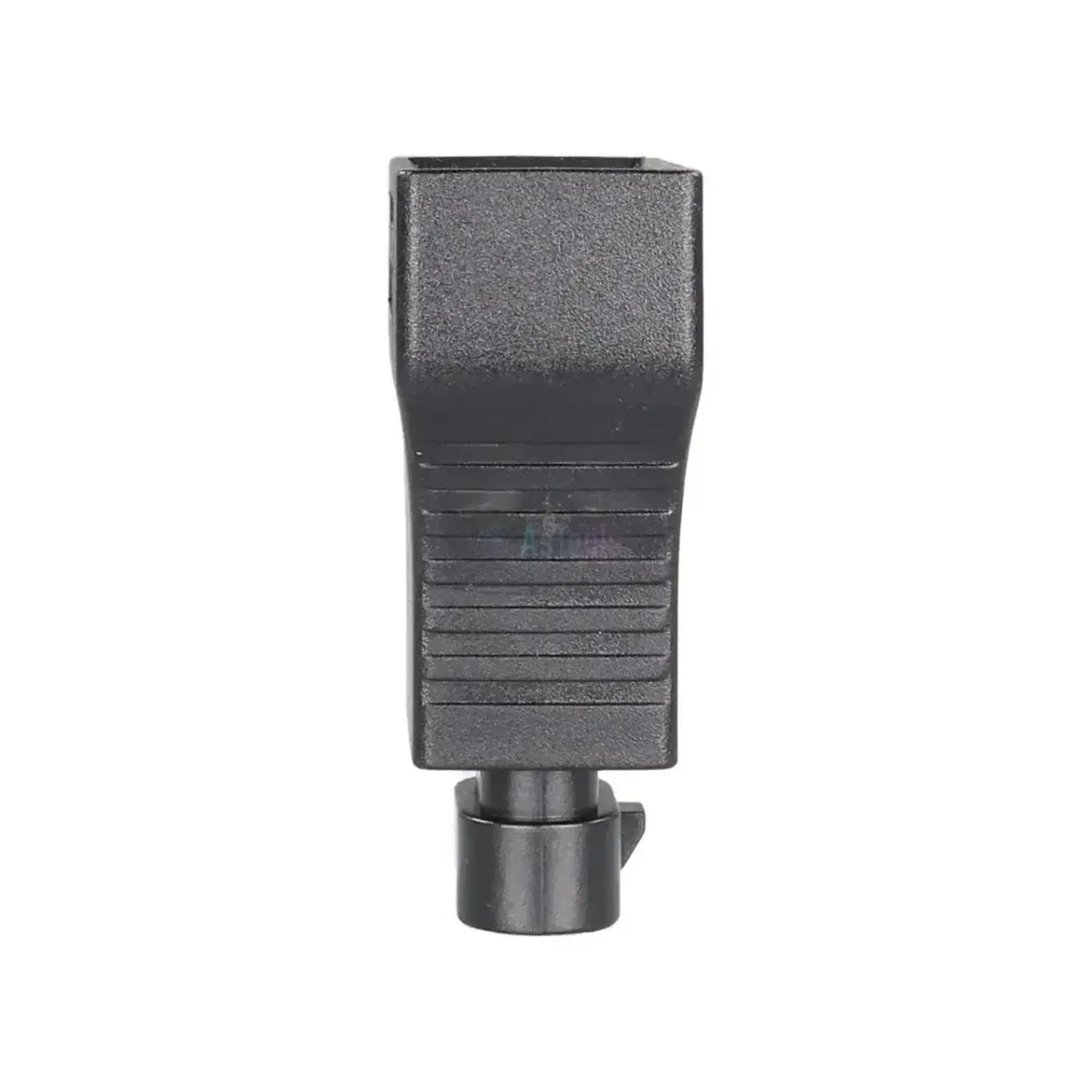

The OBDSTAR N026 converts the 3-pin SYM diagnostic connector on the vehicle side to a 16-pin OBD2 port (J1962) on the device side. The compact housing fits directly onto the three-pin connector of the moped, which is typically located under the seat or behind a panel near the dashboard.

SYM mopeds don't have a built-in OBD2 port. The adapter passes through SYM's proprietary pin configuration to the corresponding OBD2 pins without any active electronics in the adapter itself. The signals that run across these lines are standard in this vehicle category, including the K-line; which protocol a specific model uses varies by variant.

The adapter simply makes the port accessible — nothing more. Available functions depend on your OBDSTAR device's software for the relevant SYM model and year. The source lists three model series without production years; outside that specification, only the three-pin connector matters.

KEY BENEFITS

✔OBD2 diagnostics without an OBD2 port — mopeds that lack a J1962 connection become accessible to your diagnostic scanner.
✔Passive and power-independent — with no active electronics, no extra power supply or configuration is needed before you start.
✔Correct pin-through connection — SYM's proprietary pin layout maps to the corresponding OBD2 pins.
✔Compact design — the small housing works in tight spaces under the seat or behind the dashboard panel.

IMPORTANT NOTES

✕OBDSTAR equipment only — the adapter is designed for OBDSTAR diagnostic scanners and programmers; compatibility with other diagnostic tools is not supported.
✕No expanded coverage — the adapter doesn't change what your device can do. Support for the specific SYM model and year is built into the software.
✕3-pin version only — mopeds with a different connector type, even from SYM itself, cannot be used with this adapter.
✕Models without production years — the source lists Fiddle, Orbit, and Symphony without year ranges. Within these series, variants with different connectors may exist.

Applications and Functions

When paired with an OBDSTAR device that supports motorcycles, the adapter enables the following operations on SYM mopeds with the three-pin port.

Control units you can access

  • Engine control unit: the moped's ECU is accessed via the three-pin diagnostic connector.
  • Vehicle system via K-line: communication runs through looped signal lines; the protocol used varies by model.

What you can do

  • Read diagnostic trouble codes: retrieve stored fault codes from the engine control unit using your diagnostic device.
  • Clear diagnostic trouble codes: remove stored codes from the ECU memory after fixing a fault.
  • Read live data: monitor real-time engine data such as RPM, temperature and sensor readings while the vehicle is running.
  • Connect the brand-specific connector: communicate with the vehicle system via the 3-pin SYM connector without modifying your moped.
  • Important: which of these functions are actually available depends on the support your OBDSTAR device offers for that model and year.

Compatible vehicles and applications

The three-pin SYM diagnostic connector is what matters, not the model name. The source lists three model series without production years. Check the connector instead: if it has three pins and no 16-pin version, this is the right adapter.

SYM:

  • Fiddle: moped models with 3-pin OBD connector.
  • Orbit: moped models with 3-pin OBD connector.
  • Symphony: moped models with 3-pin OBD connector.
💡
Good to know: The 3-pin diagnostic port on SYM mopeds is typically located under the seat or behind a panel near the dashboard; your vehicle manual shows the exact location.Check that the connector has three pins and is not similar to another brand version before ordering.

Package contents

  • 1x OBDSTAR (N026) | SYM 3-pin OBD – 16-pin OBD2 Adapter | Moped

Technical specifications

Specification Description
Brand OBDSTAR
Part number N026
Type Adapter
Application Diagnostic connector for SYM mopeds with 3-pin OBD connector

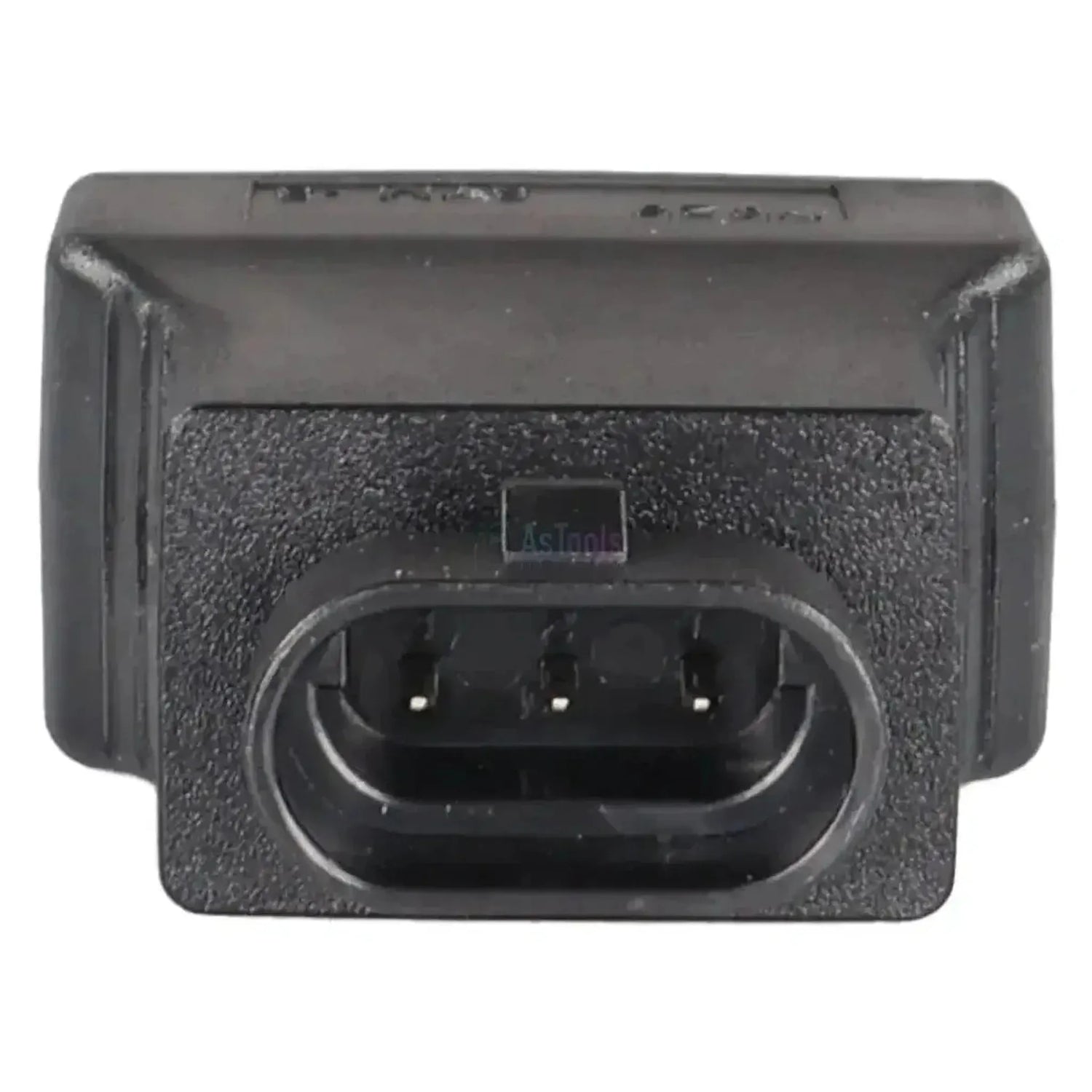

Vehicle-side connection SYM 3-pin OBD

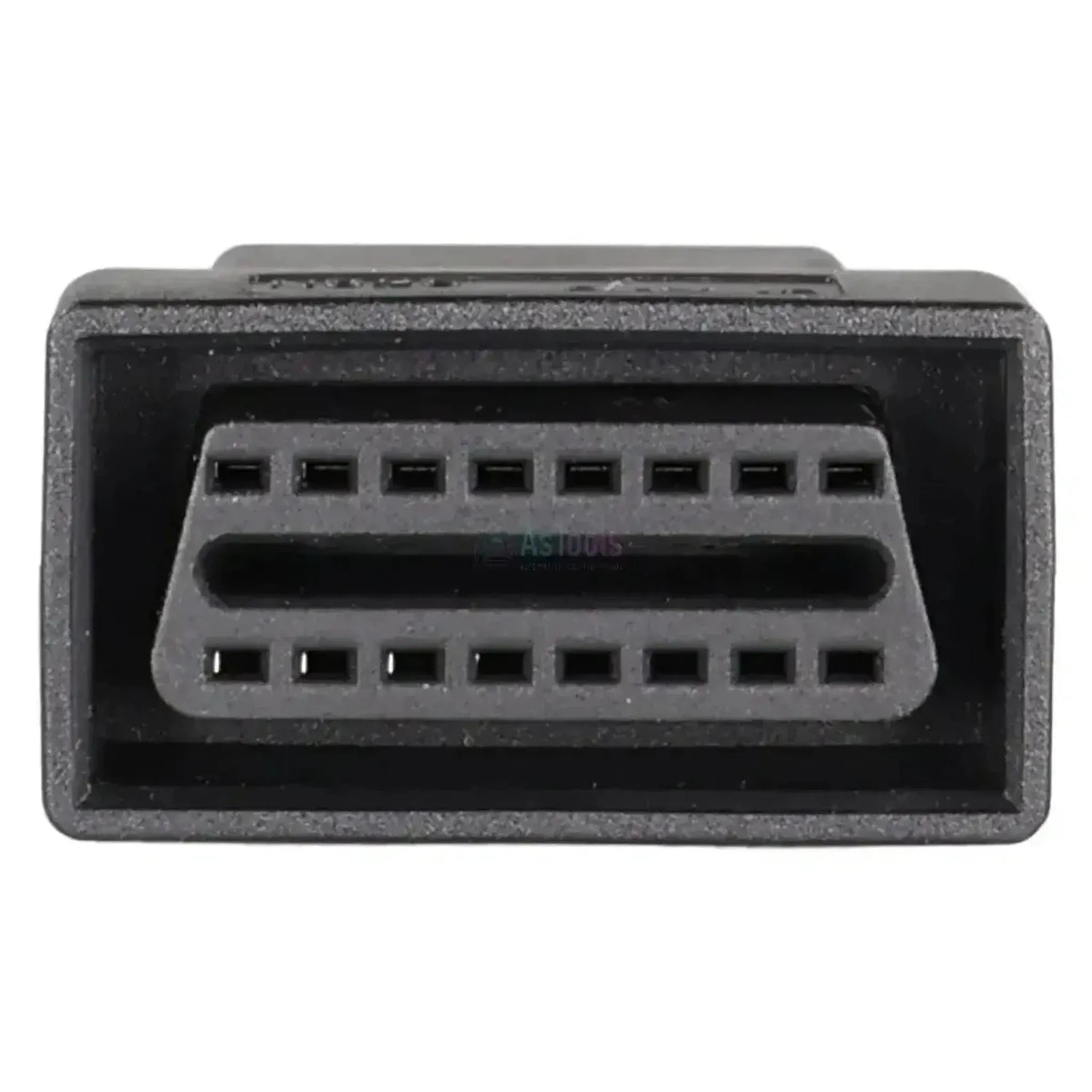

Device-side connection 16-pin OBD2
Communication K-line; the protocol used varies by model
Control units Engine control unit (ECU)
Category Moped
Supported brands SYM
Model range Fiddle, Orbit and Symphony with 3-pin OBD connector; model years not specified
Required to use OBDSTAR diagnostic scanner with motorcycle coverage, such as the MS50, MS70 or MotoMaster
Additional requirement Standard 16-pin OBD2 cable from the OBDSTAR device
Weight 0.05 kg
