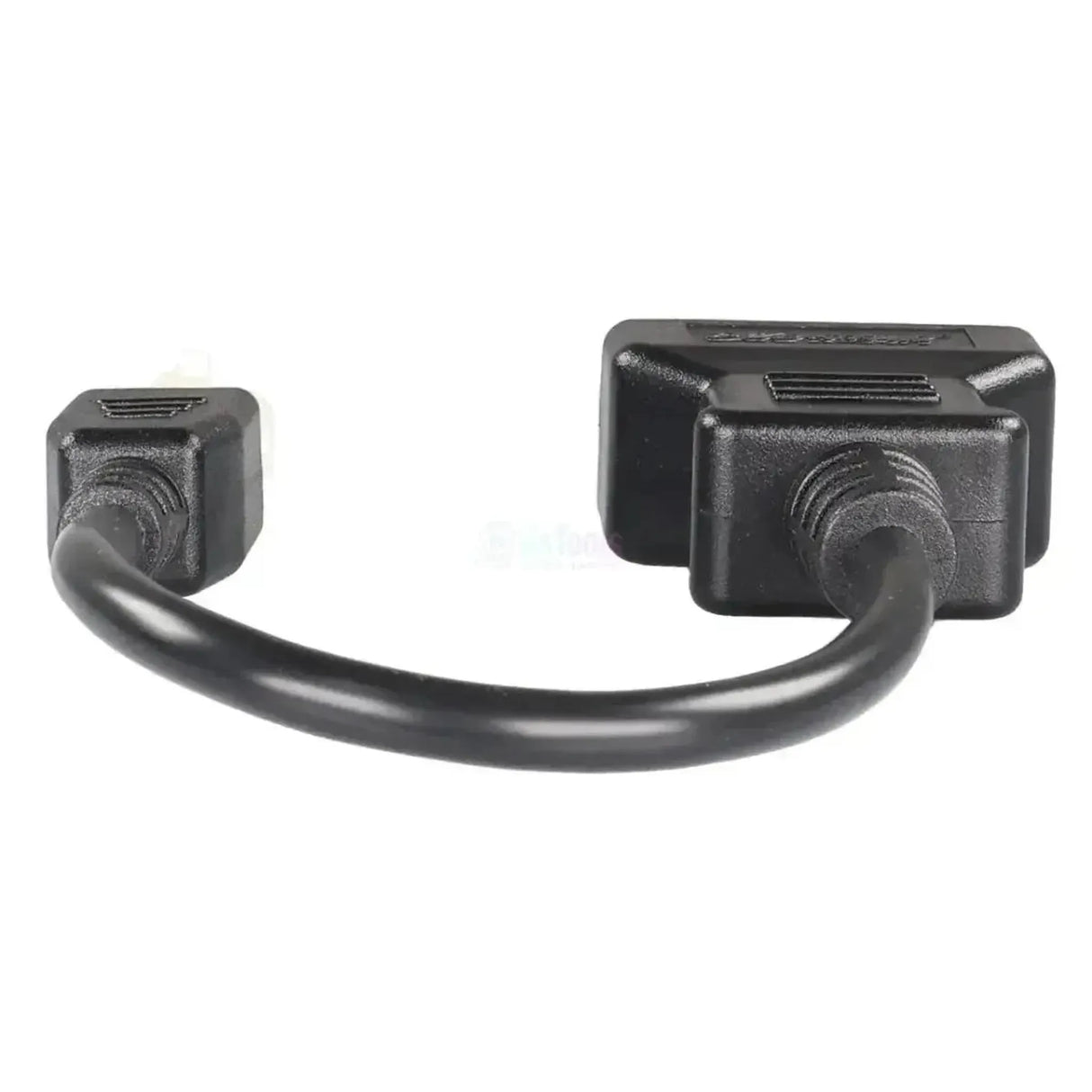

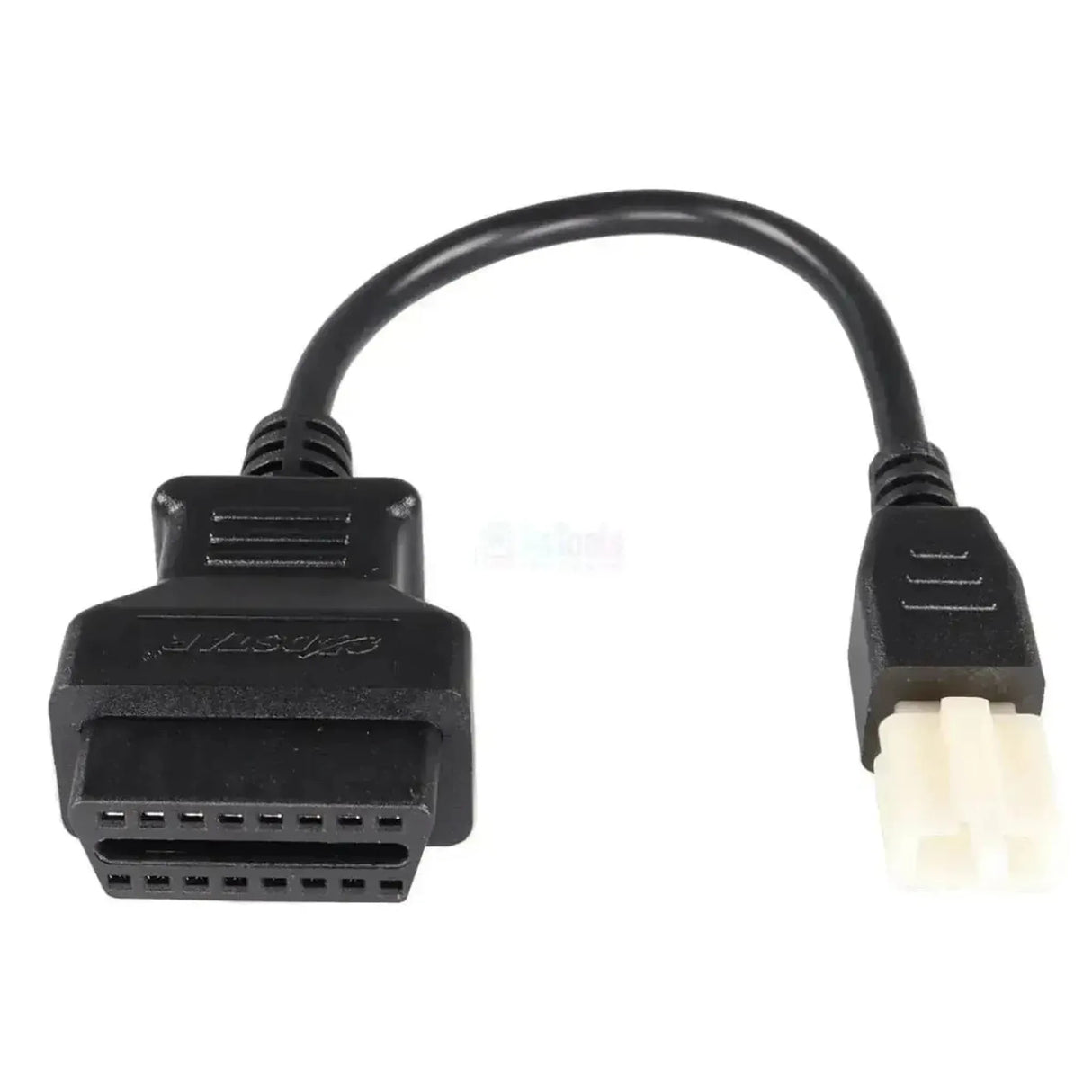

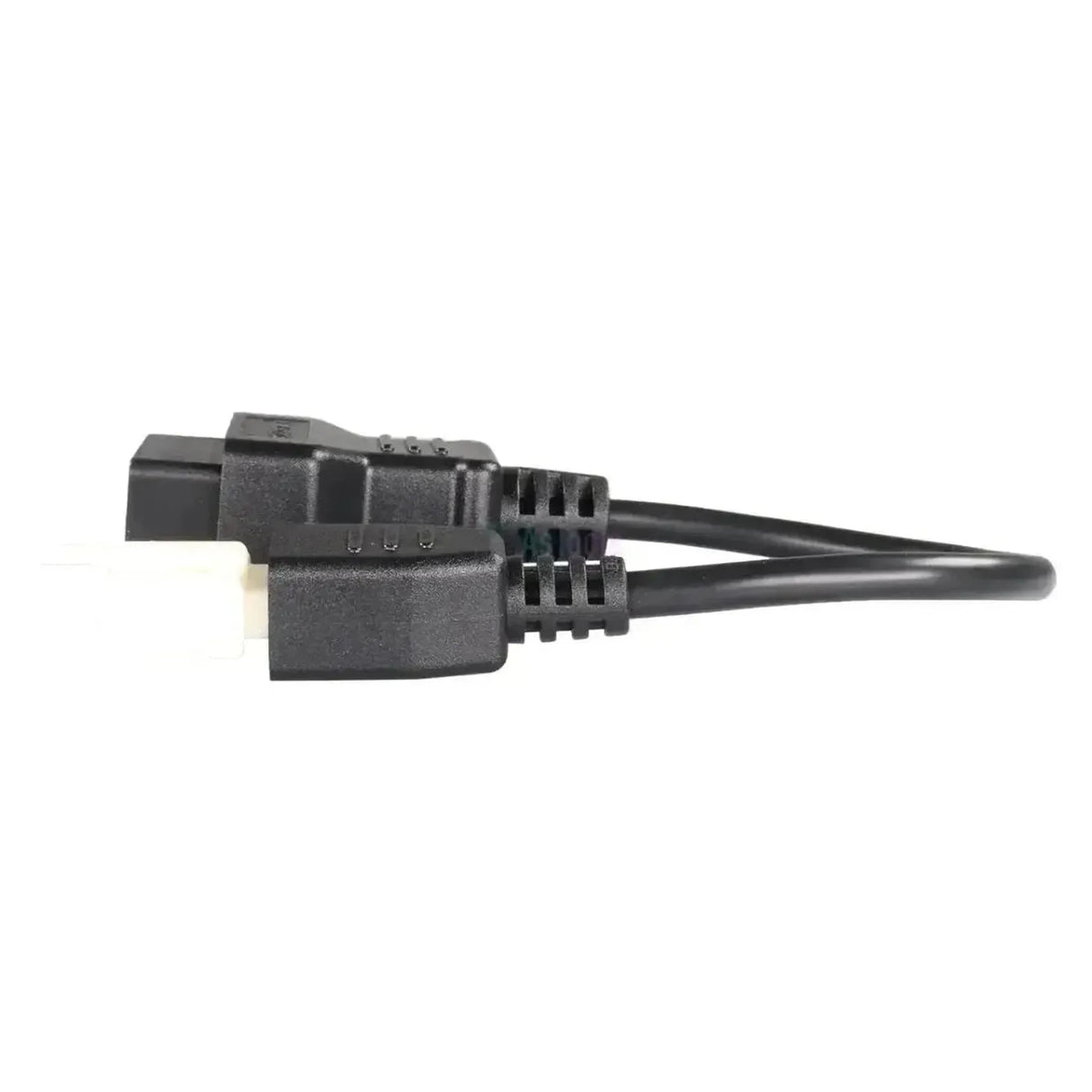

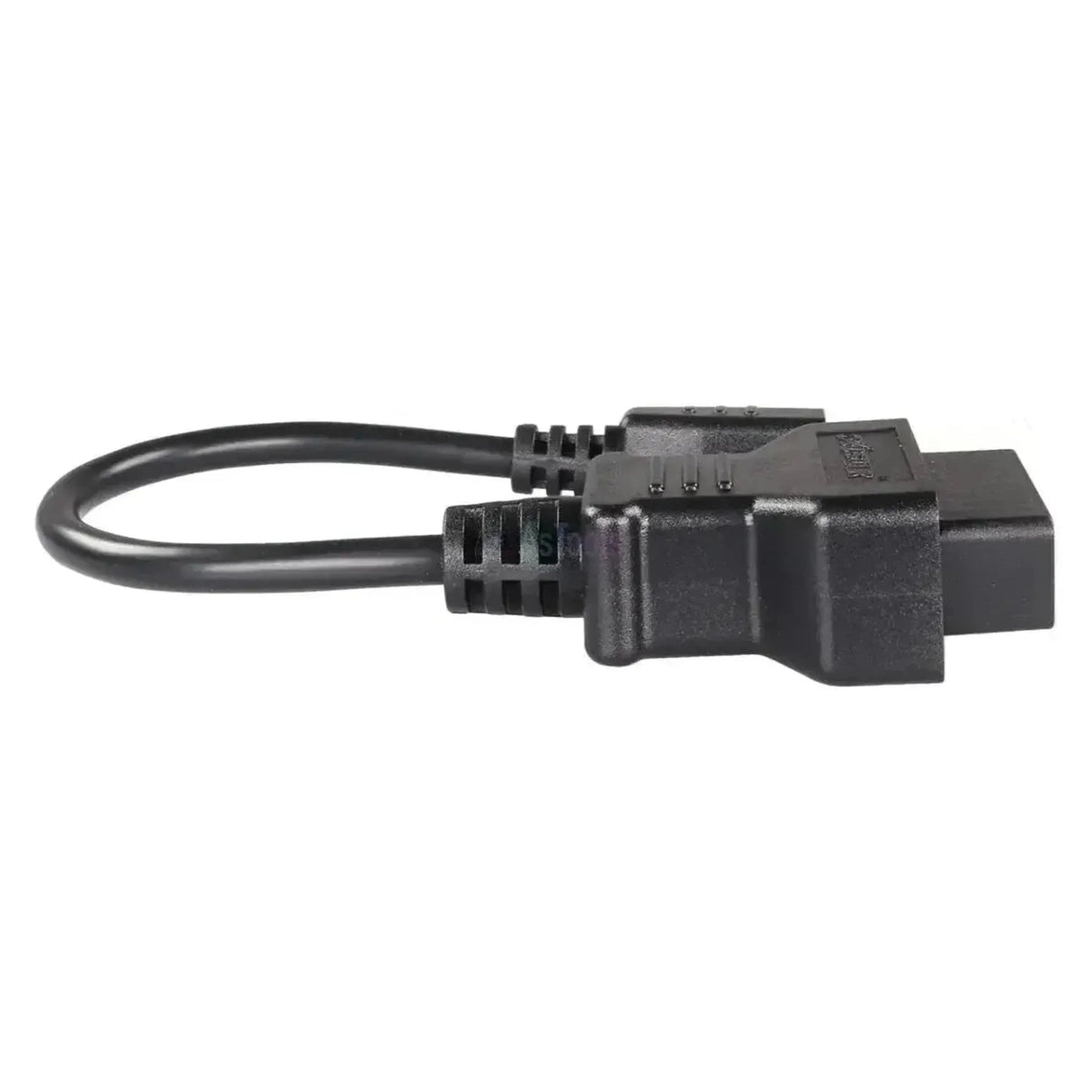

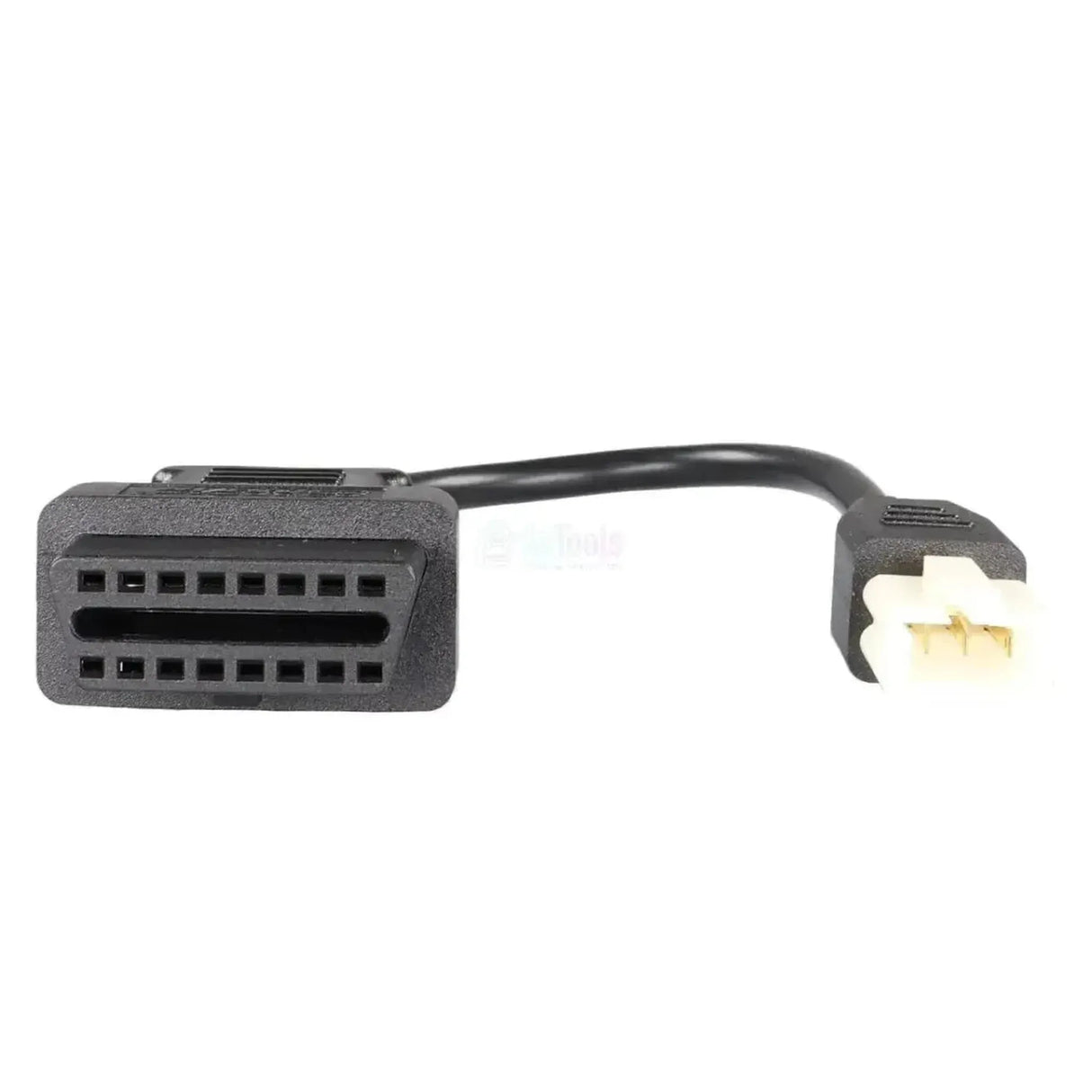

The OBDSTAR M024 converts the 3-pin diagnostic connector on SYM motorcycles to a standard 16-pin OBD2 (J1962) connector. The 3-pin side connects to your motorcycle's factory connector, while the OBD2 side plugs into your OBDSTAR diagnostic scanner.
SYM motorcycles with this connector lack a built-in OBD2 port. The cable routes the diagnostic lines — including the K-line — to the correct pins on the OBD2 connector, allowing your scanner to properly interpret vehicle communication. No modifications to your motorcycle's wiring are needed.
The cable enables communication with your motorcycle's engine system; actual diagnostics come from the OBDSTAR motorcycle software on your device. Without that software, vehicle communication won't be established.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Through the 3-pin connector, you can reach the engine system of your SYM motorcycle.
Control units you can access
- Engine control unit (ECU): the control module connected via K-line to the 3-pin connector.
- Other systems: whether additional systems are accessible varies by model and depends on your device's coverage.
What you can do
- Read fault codes: retrieve stored and temporary fault codes from the ECU via K-line communication.
- Clear fault codes: delete registered codes from the engine control unit's memory after diagnosis.
- Read live data: monitor sensor values and engine parameters in real time for analysis during or after operation.
- Vehicle identification: allow the system to recognize your vehicle so the device selects the correct diagnostic procedure.
- Note: which procedures are available depends on the OBDSTAR motorcycle software on your device.
Compatible vehicles and applications
The 3-pin diagnostic connector is what matters, not the model. Specific SYM models or model years are not listed; only the presence of this connector counts.
- SYM: motorcycles with 3-pin diagnostic connector.
Package contents
- 1x OBDSTAR (M024) | SYM 3-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Item number | M024 |
| Type | Adapter cable |
| Application | SYM motorcycles with 3-pin diagnostic connector |
| Vehicle-side connector | SYM 3-pin OBD |
| Device-side connector | 16-pin OBD2 (J1962) |
| Communication | K-line |
| Control units | Motorcycle engine control unit (ECU) |
| Segment | Motorcycle |
| Supported brands | SYM |
| Model range | SYM motorcycles with 3-pin diagnostic connector; model years not specified |
| Required to use | OBDSTAR diagnostic scanner with motorcycle coverage, such as the MS50, MS70 or MotoMaster |
| Additional requirement | The corresponding OBDSTAR motorcycle software installed on your device |
| Weight | 0.1 kg |
