OBDSTAR  |  SKU: M054

OBDSTAR (M054) | Suzuki/Yamaha 12+18-pins IMMO – 16-pins OBD2 Adapter Cable | Motorcycle

€32,95 incl.
€27,23 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

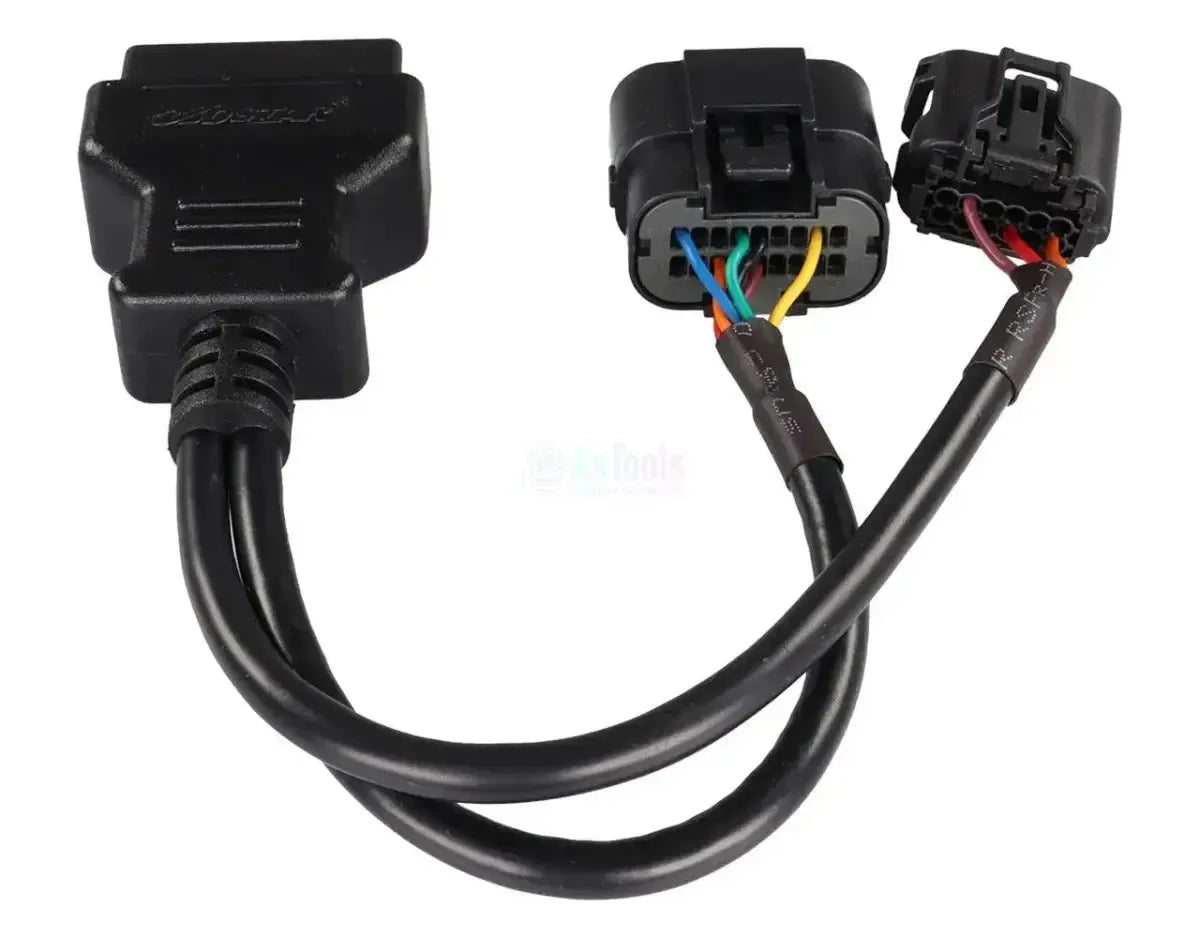

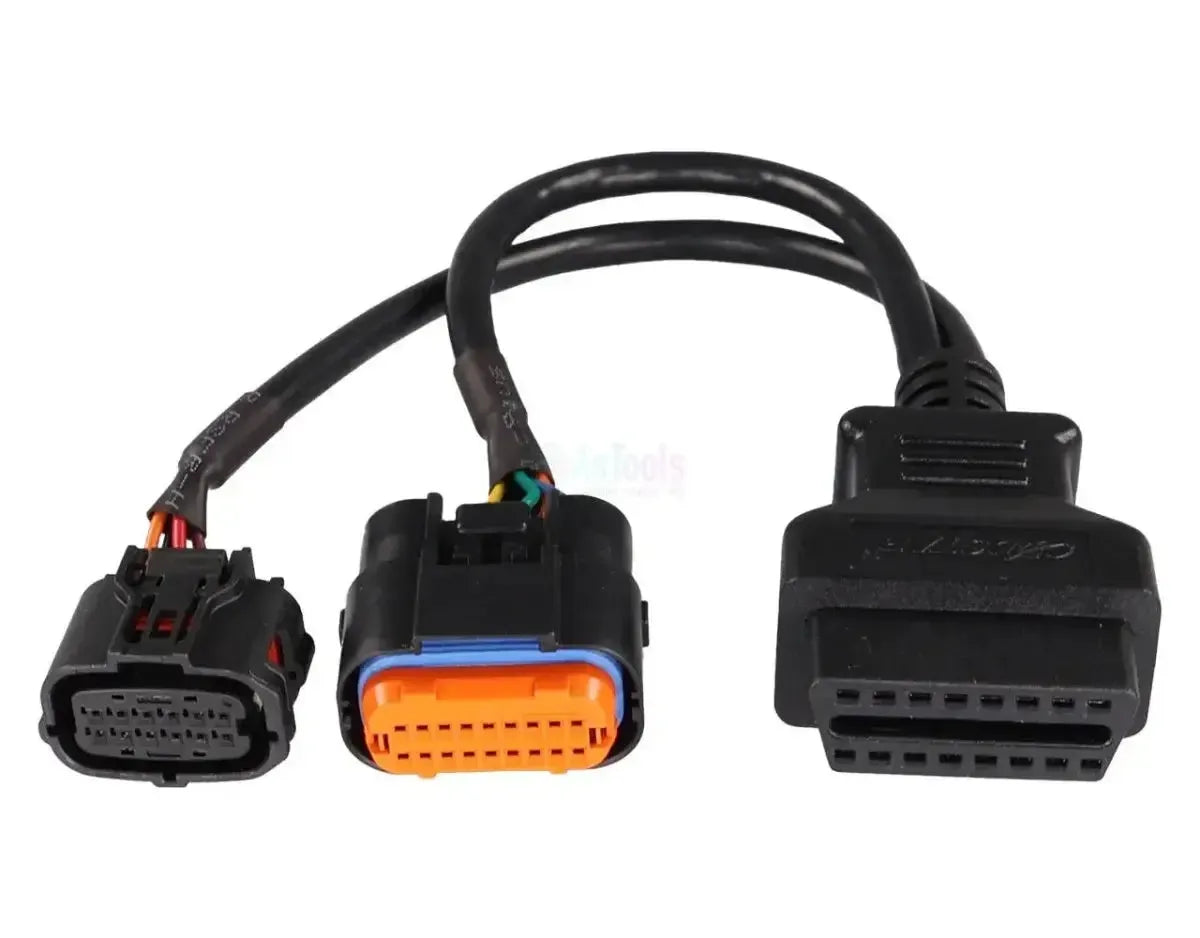

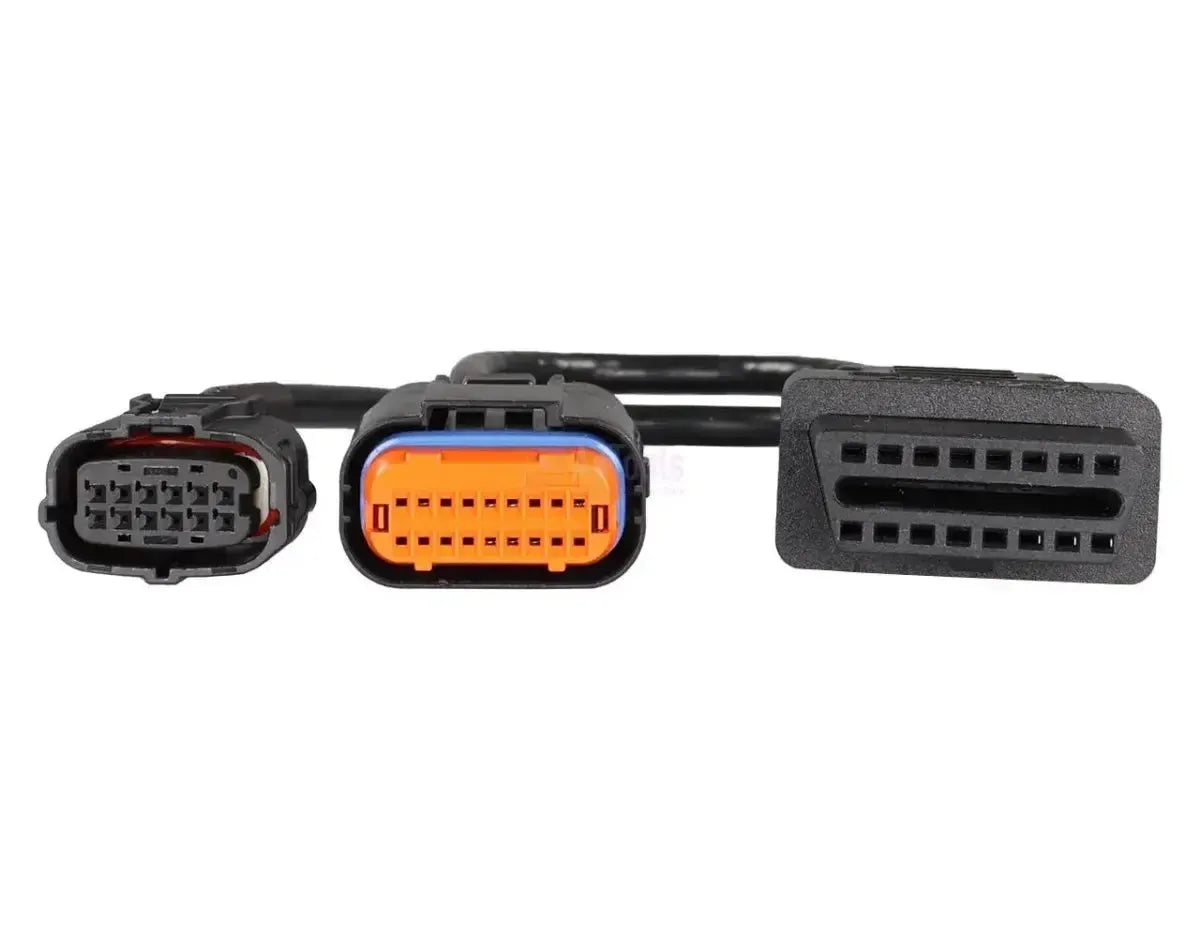

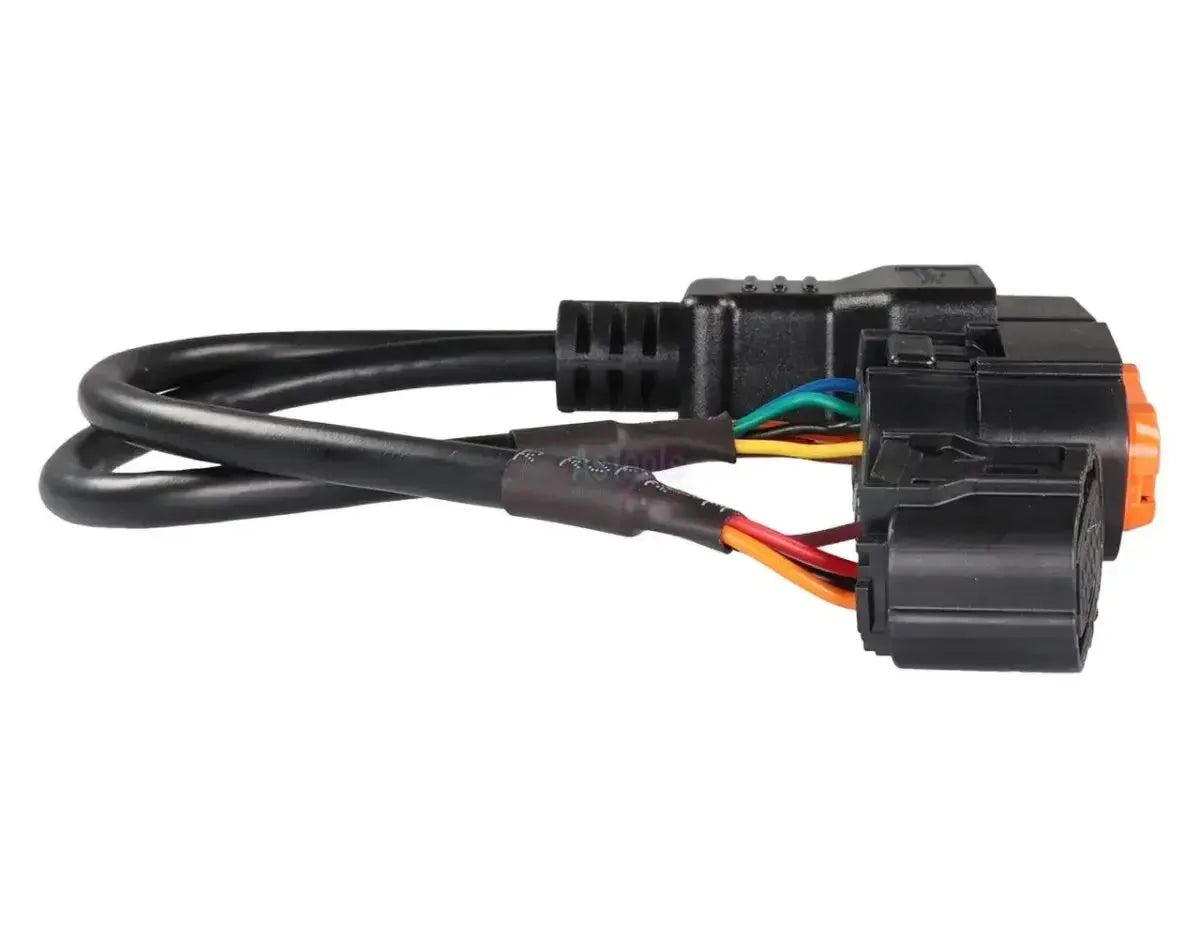

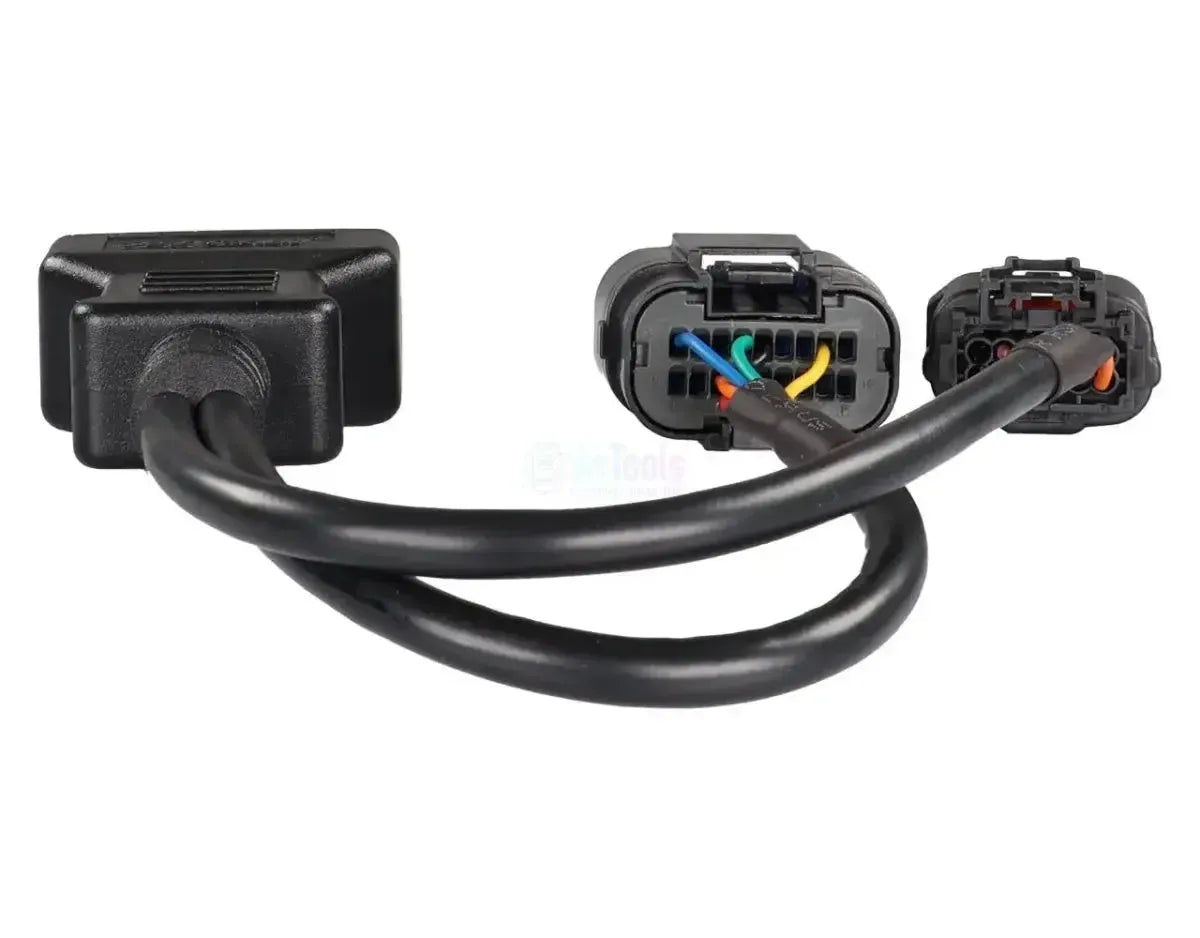

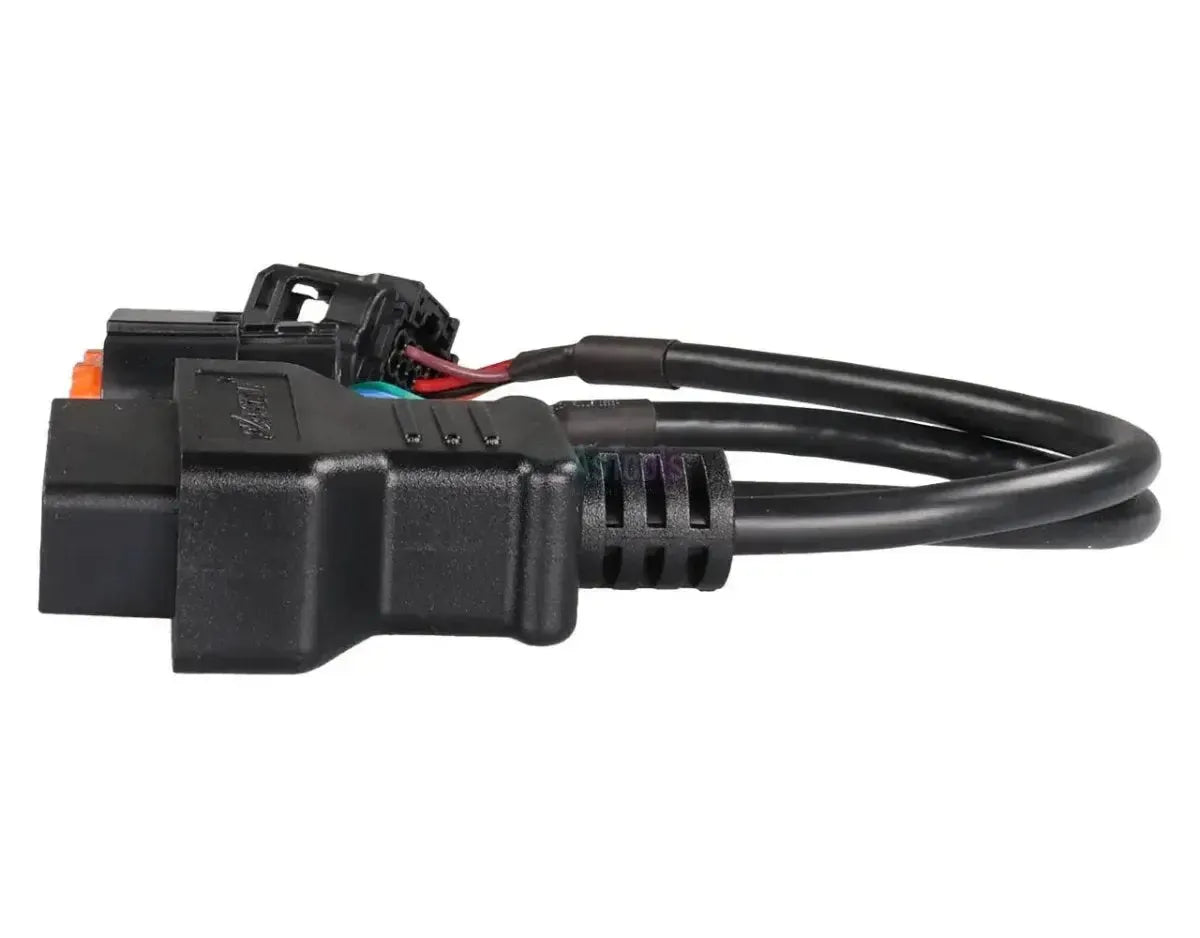

The OBDSTAR M054 is the adapter cable for the 12-pin and 18-pin diagnostic connectors on Suzuki and Yamaha motorcycles. Both brand-specific plugs are located on the vehicle side; the other end features a standard 16-pin OBD2 (J1962)-connector for your diagnostic device or programmer.

The cable provides a physical bridge between the vehicle's native connection point and the OBD2 interface of your diagnostic equipment. Through the 12-pin or 18-pin connector, the relevant signal lines—including the K-line or CAN-bus, are routed to the correct pins of the 16-pin connector. This allows the device to communicate with the motorcycle's immobilizer system.

The cable is designed for immobilizer work: reading key data, programming keys, and system reset. Which of these functions are actually available depends on your OBDSTAR device and its corresponding software version.

KEY BENEFITS

✔Two connector sizes on one cable — Both the 12-pin and 18-pin diagnostic ports are supported, covering two vehicle variants.
✔Direct OBD2 connection — The 16-pin output connects directly to the diagnostic interface of compatible OBDSTAR devices without an intermediate adapter.
✔Built for immobilizer tasks — Engineered for reading and programming immobilizer data on motorcycles.
✔Carries K-line and CAN-bus signals — Signal lines are routed unchanged to the correct pins of the OBD2 connector.

IMPORTANT NOTES

✕No model list with production years — For Suzuki and Yamaha, only the presence of a 12- or 18-pin diagnostic connector is confirmed; your device's vehicle list is the definitive reference.
✕Suzuki and Yamaha motorcycles only — Other vehicle types and manufacturers are outside the scope of this cable.
✕OBDSTAR devices only — The cable is not compatible with diagnostic equipment from other manufacturers.
✕Does not add vehicle coverage — Available IMMO functions depend on your device and its software version.

Applications and features

This connection gives you access to the immobilizer system of Suzuki or Yamaha motorcycles.

Control units you can reach

  • IMMO control unit: the immobilizer system where key data and configuration are stored.
  • Other systems: whether additional modules are accessible alongside the IMMO system depends on your device.

What you can do

  • Read immobilizer: Read existing key data and IMMO configuration via the 12-pin or 18-pin connector.
  • Program key: Pair a new or replacement key with the IMMO system so the vehicle recognizes it.
  • Release immobilizer: Temporarily or permanently release the IMMO system, depending on your connected device's capabilities.
  • Read PIN code: Retrieve the security code from the immobilizer system for key replacement or reinitialization.
  • Important: check vehicle coverage in your OBDSTAR device's software before you start.

Compatible vehicles and applications

The 12-pin or 18-pin diagnostic connector determines compatibility, not the model. No model-specific list with production years is available for these two brands. Always verify vehicle coverage in the software of your OBDSTAR device.

Suzuki:

  • Motorcycles with 12-pin or 18-pin diagnostic connector: Consult the OBDSTAR vehicle list for specific models and production years.

Yamaha:

  • Motorcycles with 12-pin or 18-pin diagnostic connector: Consult the OBDSTAR vehicle list for specific models and production years.
💡
Good to know: The diagnostic connector on Suzuki and Yamaha motorcycles is typically located under the seat or behind a cover panel; consult the model's service manual for the exact location. Before ordering, verify which of the two connectors your motorcycle has and whether the model is listed in your device's vehicle coverage.

Package contents

  • 1x OBDSTAR (M054) | Suzuki/Yamaha 12+18-pins IMMO – 16-pins OBD2 Adapter Cable | Motorcycle

Technical specifications

Specification Description
Brand OBDSTAR
Part Number M054
Type Adapter Cable
Application Suzuki and Yamaha 12-pin and 18-pin IMMO diagnostic connectors
Vehicle-side Connection Suzuki/Yamaha 12+18-pin IMMO (dual connectors)
Device-side Connection 16-pin OBD2 (J1962)
Communication K-line or CAN-bus
Control Units IMMO control unit (immobiliser)
Segment Motorcycle
Supported Brands Suzuki and Yamaha
Model Range Motorcycles with 12-pin or 18-pin diagnostic connector; not specified by model or year
Required to Use OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster
Additional Requirements None; the cable operates without adapter or external power
Weight 0.1 kg
