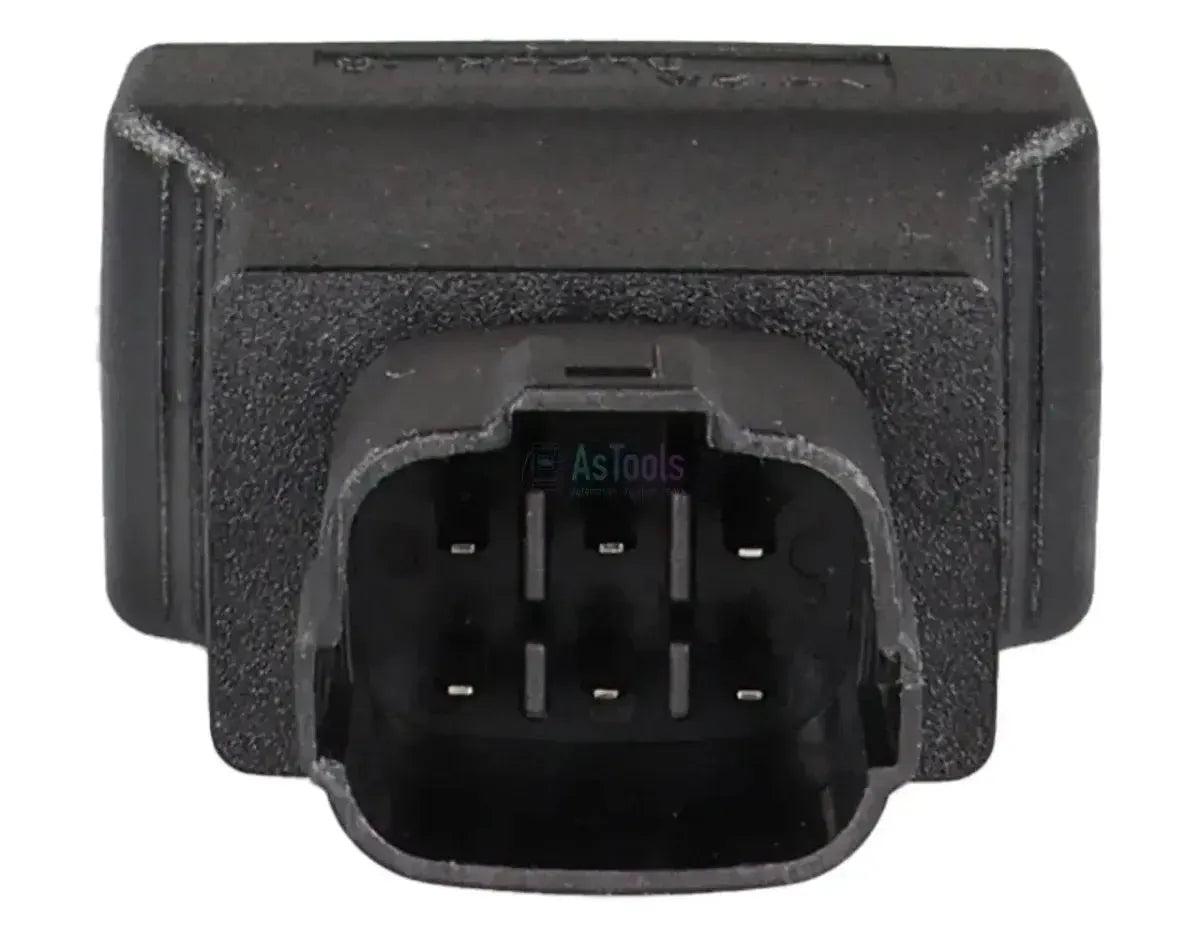

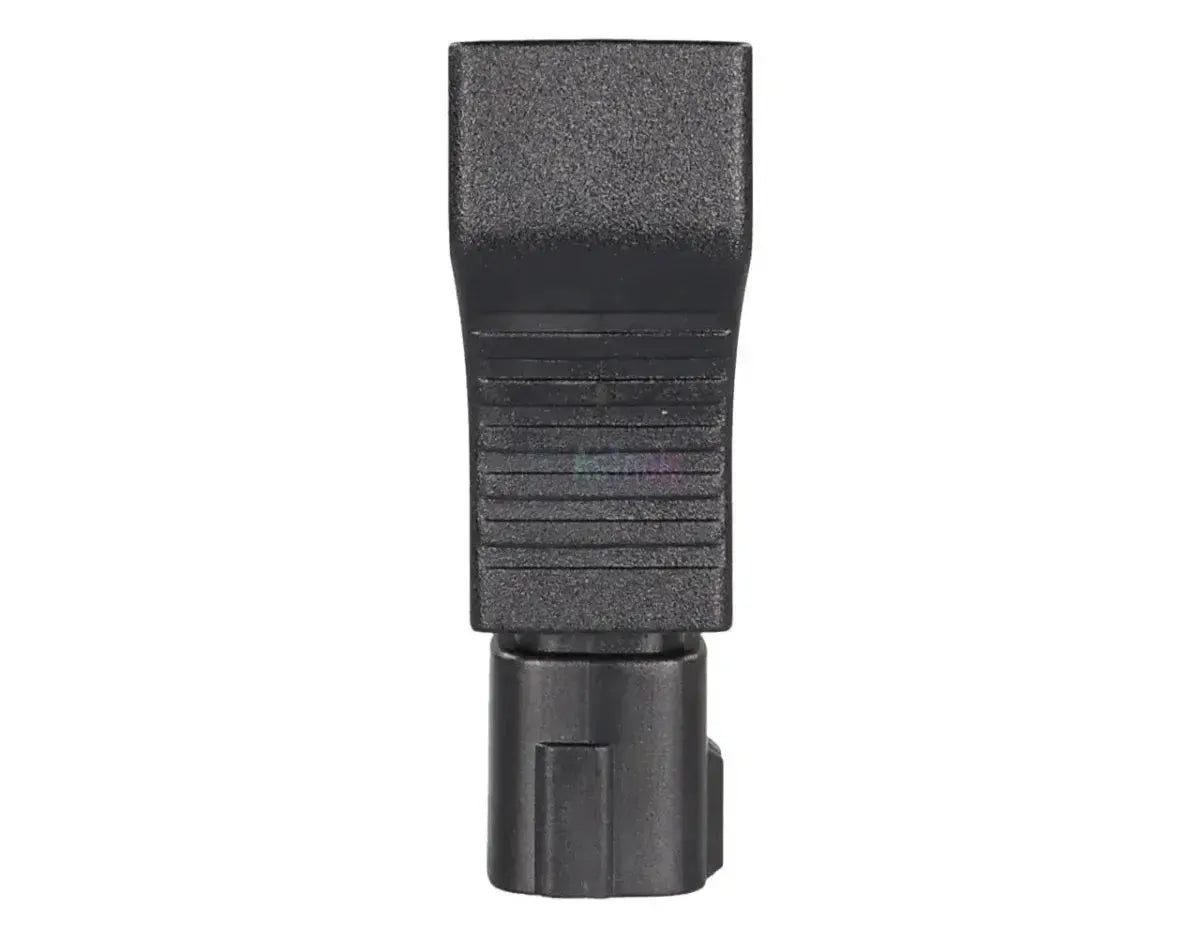

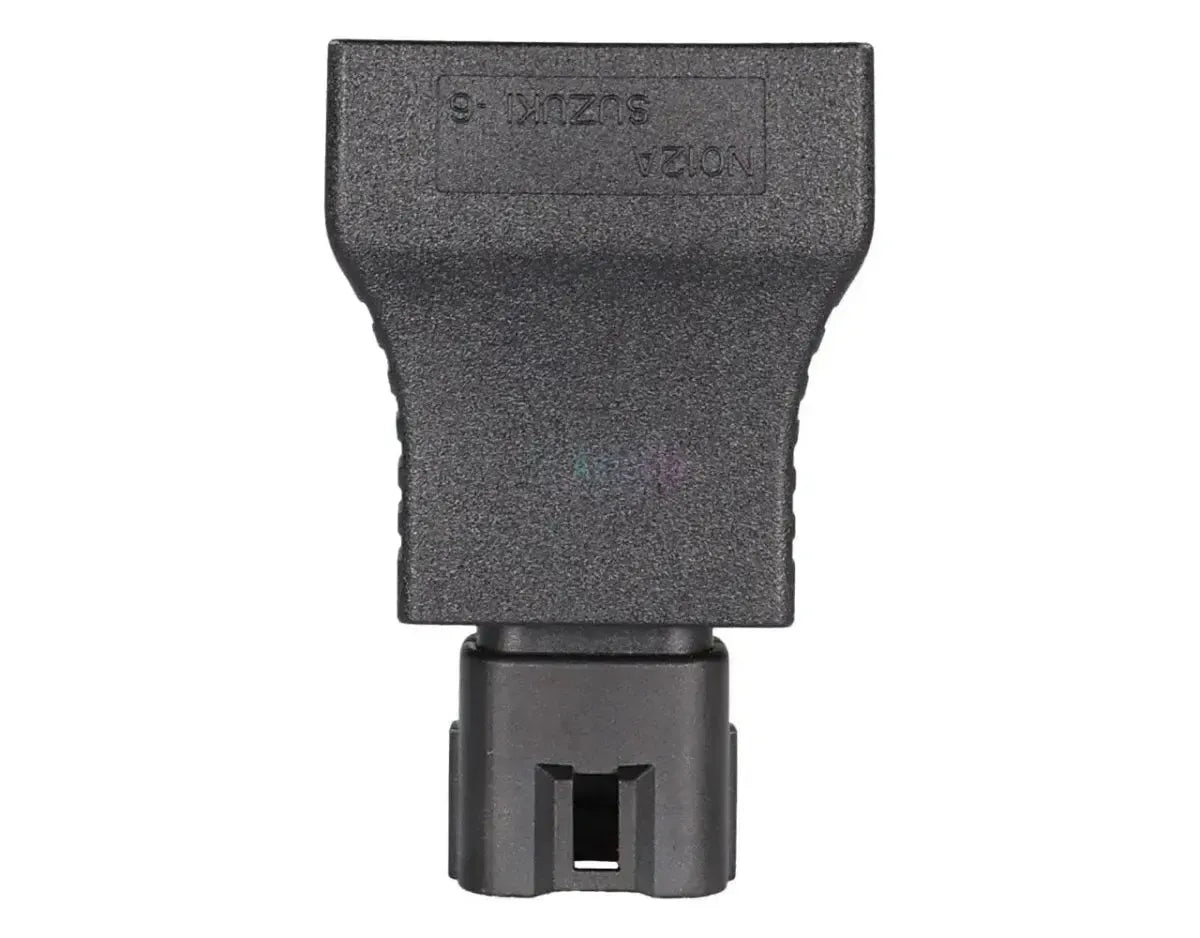

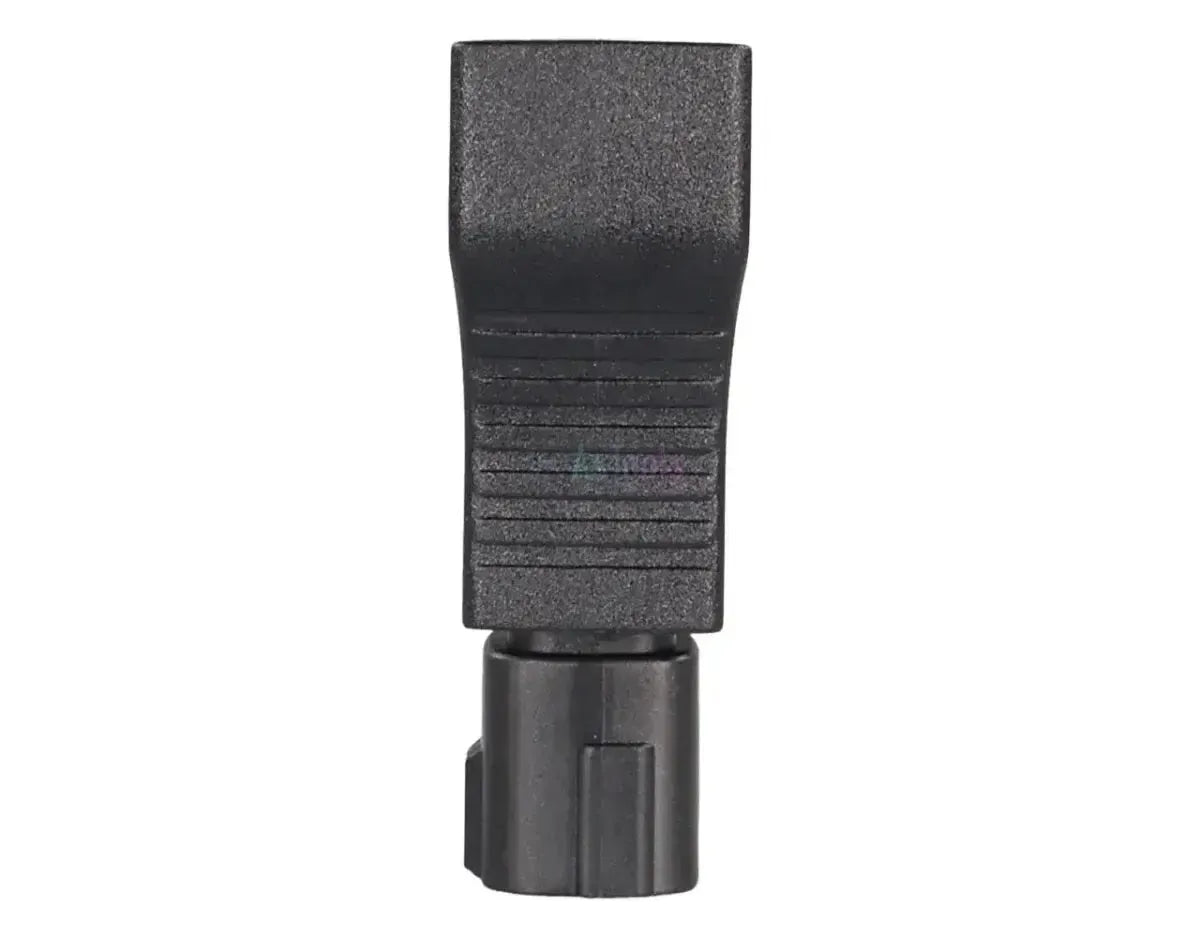

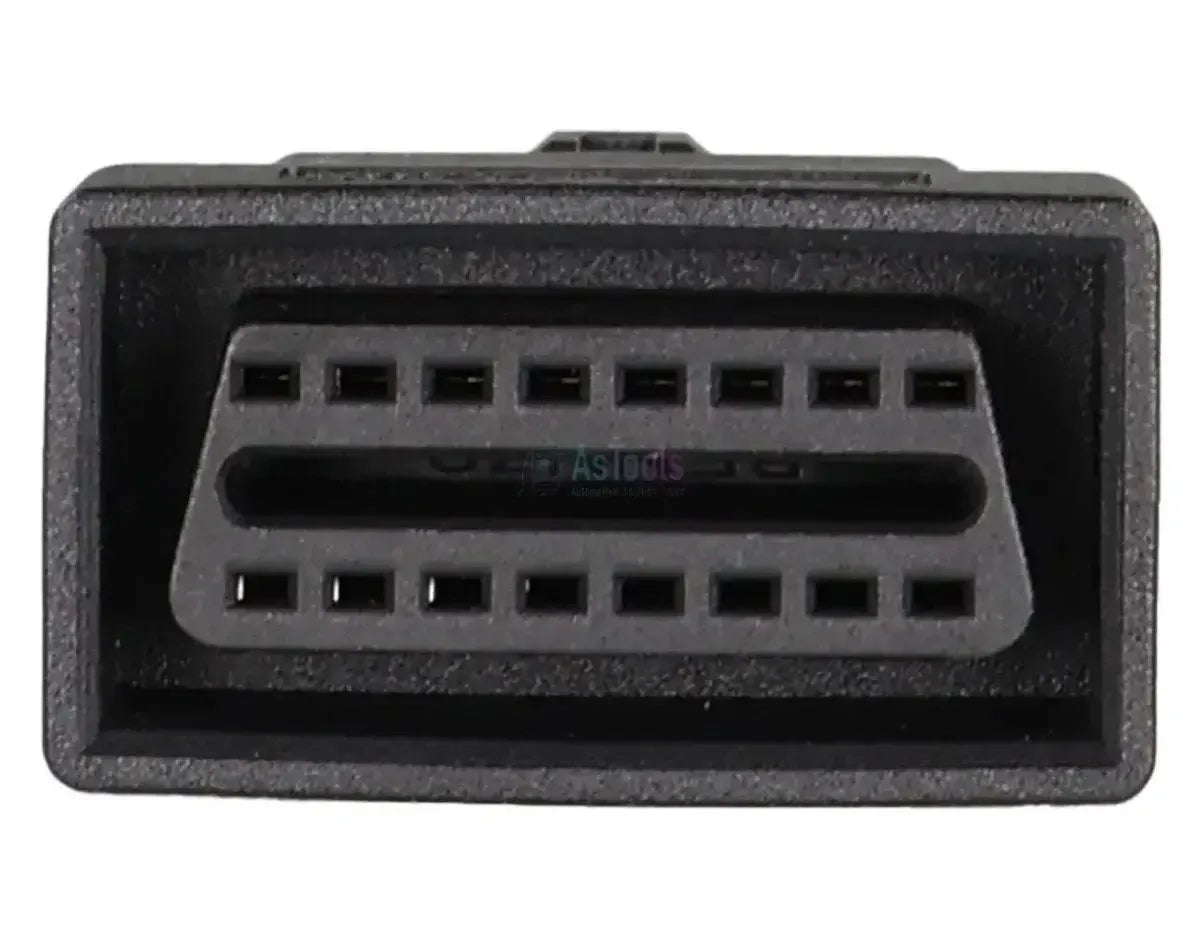

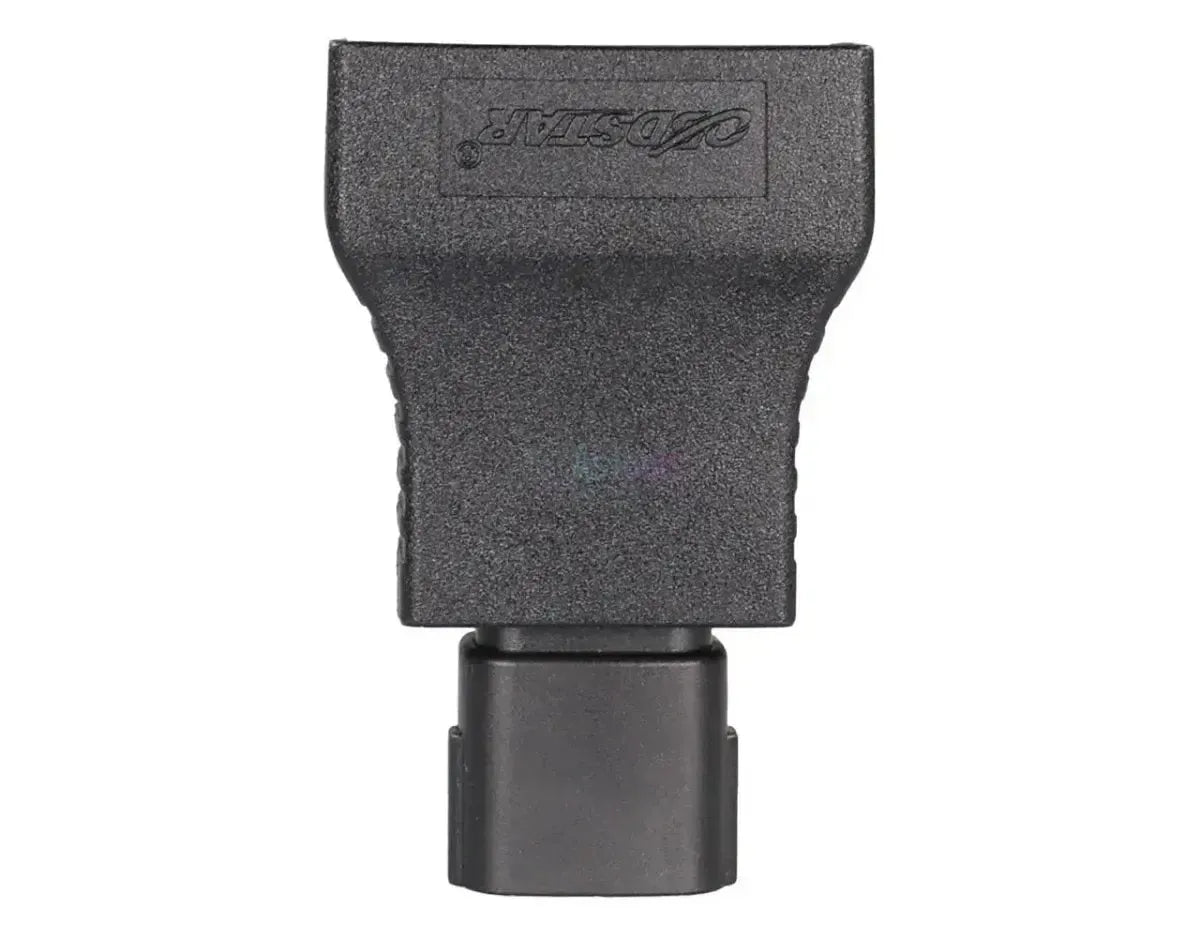

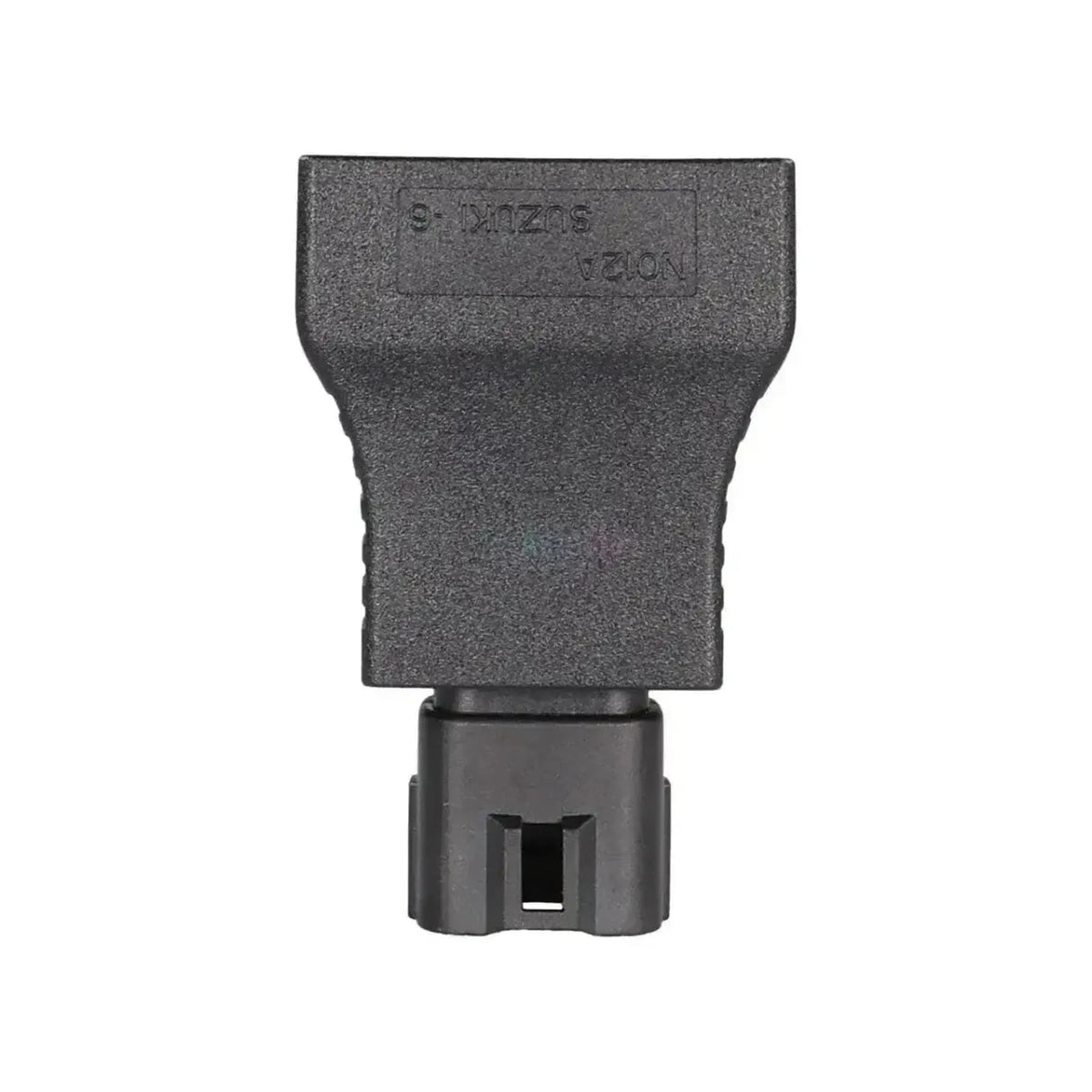

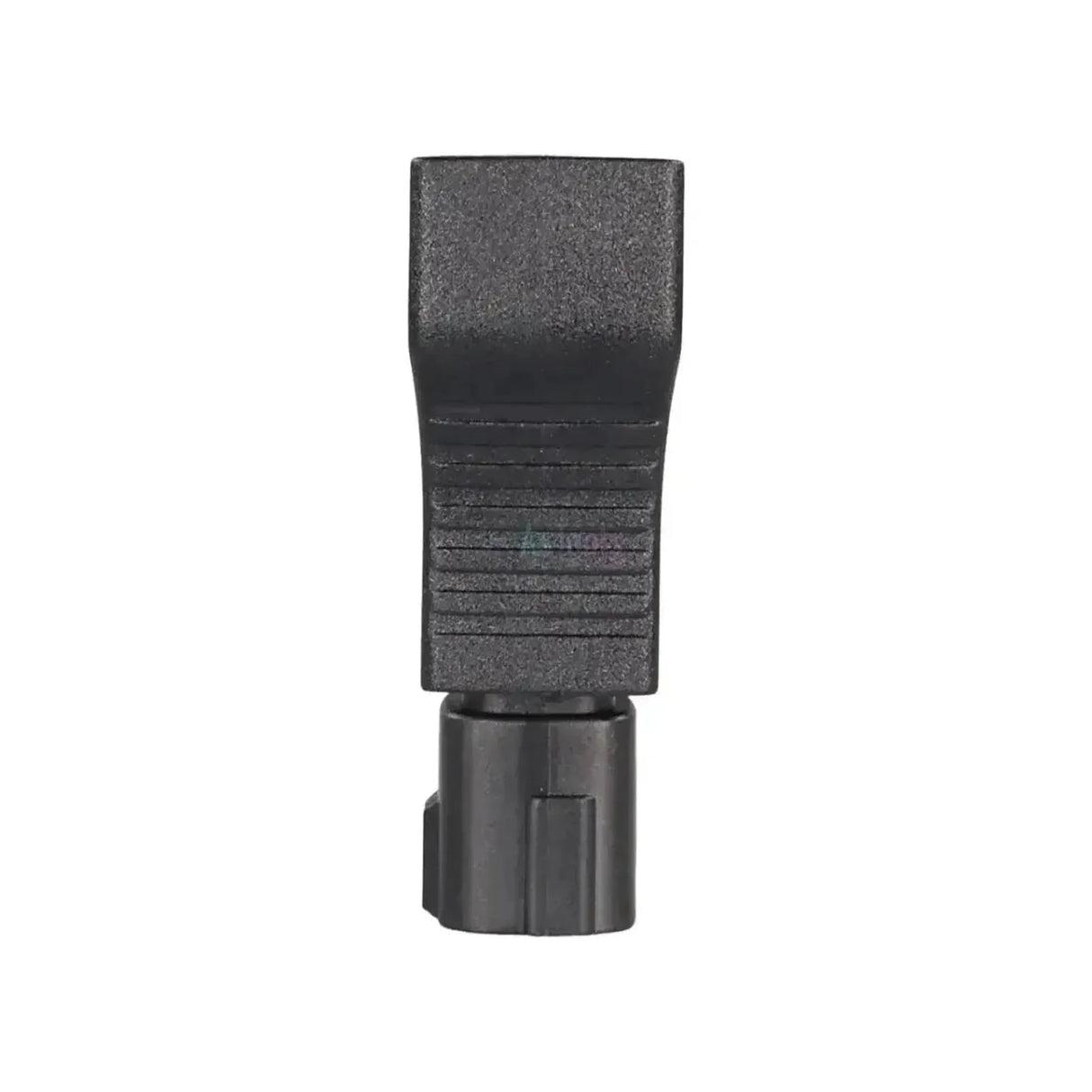

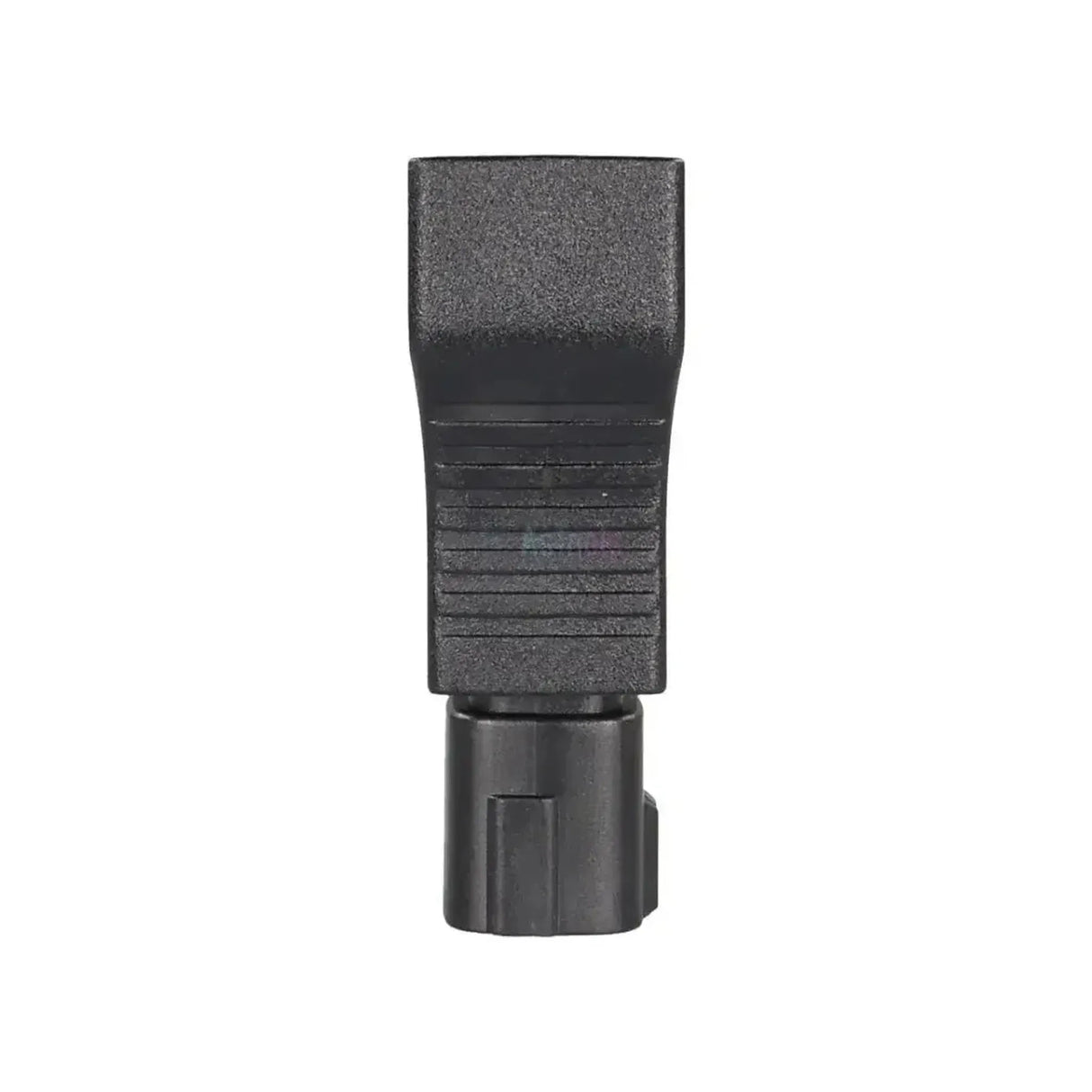

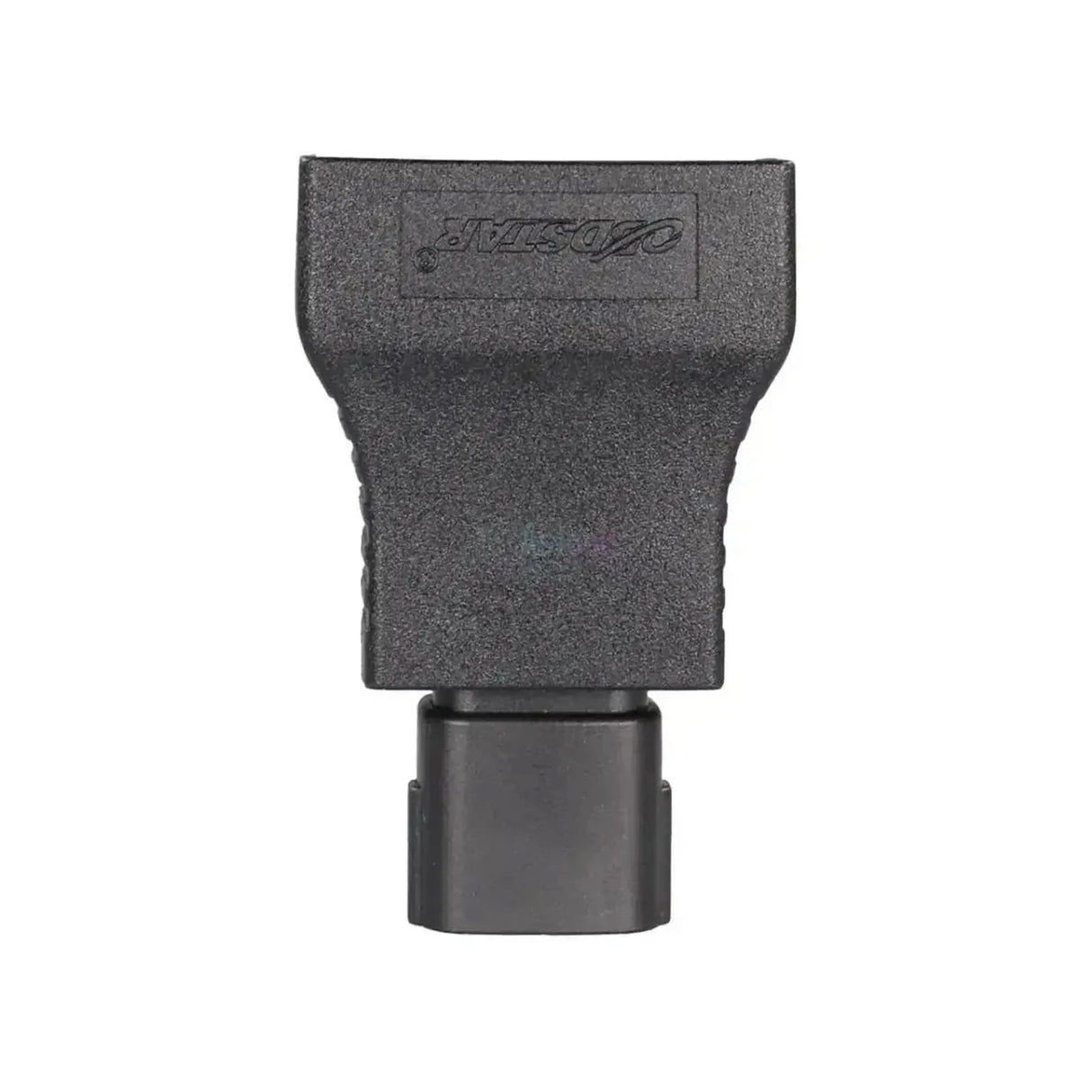

The OBDSTAR N012A is a pass-through adapter with a Suzuki 6-pin diagnostic connector on the vehicle side and a 16-pin OBD2 port (J1962) on the device side. The adapter connects directly to the manufacturer-specific 6-pin diagnostic socket on Suzuki motorcycles, which is typically located under the seat or behind a cover panel.
Suzuki has not fitted a standard 16-pin OBD2 connection on all of its motorcycles; instead, some models use a proprietary 6-pin connector. The N012A's pin configuration is matched to Suzuki's communication lines, ensuring correct signal transmission between the motorcycle and diagnostic equipment without any wiring modifications. The adapter is compact and cable-free, providing a stable connection in the tight space under the seat.
The adapter simply makes the manufacturer's port accessible—nothing more. It physically connects your OBDSTAR device to the motorcycle but adds no additional functions or vehicle coverage. Which systems you can actually read and what operations are available depend entirely on your device's software for that specific model. The current product information does not list individual Suzuki models; only the presence of the 6-pin port matters.
KEY BENEFITS
IMPORTANT NOTES
Applications and Functions
When paired with an OBDSTAR device that supports motorcycle diagnostics, the adapter provides access to the motorcycle's diagnostic communication.
Control units you can reach
- Engine management: the motorcycle's engine control unit is accessed via the 6-pin Suzuki connector.
- Other control units: which additional systems are accessible varies by model; the current product information does not list them individually.
What You Can Do
- Read Fault Codes: retrieve stored and active diagnostic trouble codes (DTCs) from the engine control unit.
- Clear Fault Codes: remove stored DTCs from memory after diagnosis and repair.
- View Live Data: monitor real-time sensor readings and engine parameters on your connected OBDSTAR device.
- Run System Diagnostics: establish communication with the engine management system using the manufacturer-specific pin layout of the 6-pin connector.
- Important: this adapter performs no functions on its own. The connected device and its software determine what diagnostics are available for your specific Suzuki.
Compatible Vehicles and Applications
What matters is the 6-pin Suzuki diagnostic connector on your motorcycle, not the model. If there's a proprietary 6-pin connector under the seat instead of a standard 16-pin OBD2 port, this is the right adapter. Current product information does not include a detailed model list.
Suzuki:
- Motorcycles with 6-pin manufacturer-specific diagnostic port: models not equipped with a standard 16-pin OBD2 connection that use the Suzuki 6-pin connector for diagnostic communication.
Package Contents
- 1x OBDSTAR (N012A) | Suzuki 6-pin OBD – 16-pin OBD2 Adapter | Motorcycle
Technical Specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part Number | N012A |
| Type | Adapter |
| Application | Diagnostic connection for Suzuki motorcycles with manufacturer-specific 6-pin port |

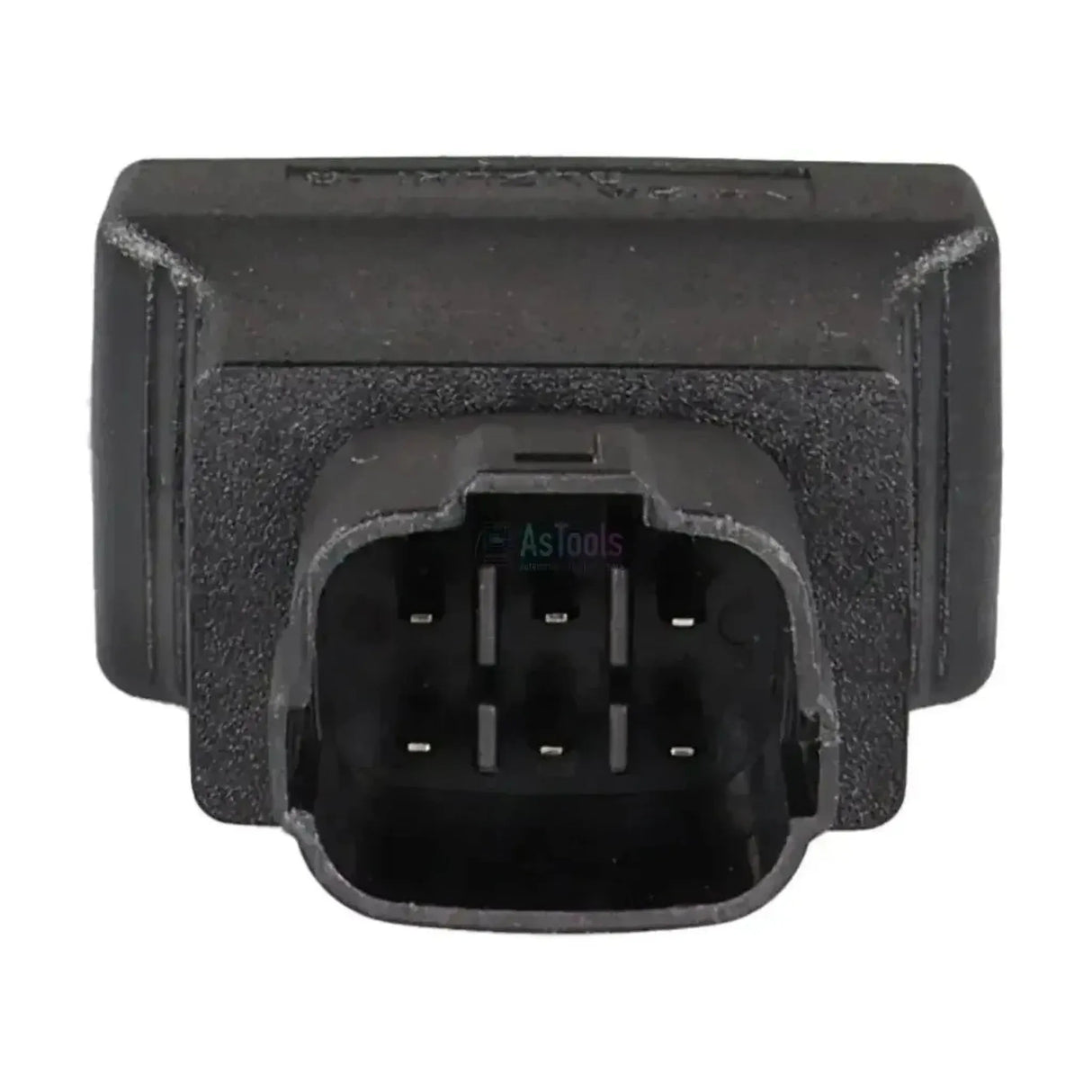

| Vehicle-Side Connection | Suzuki 6-pin OBD |

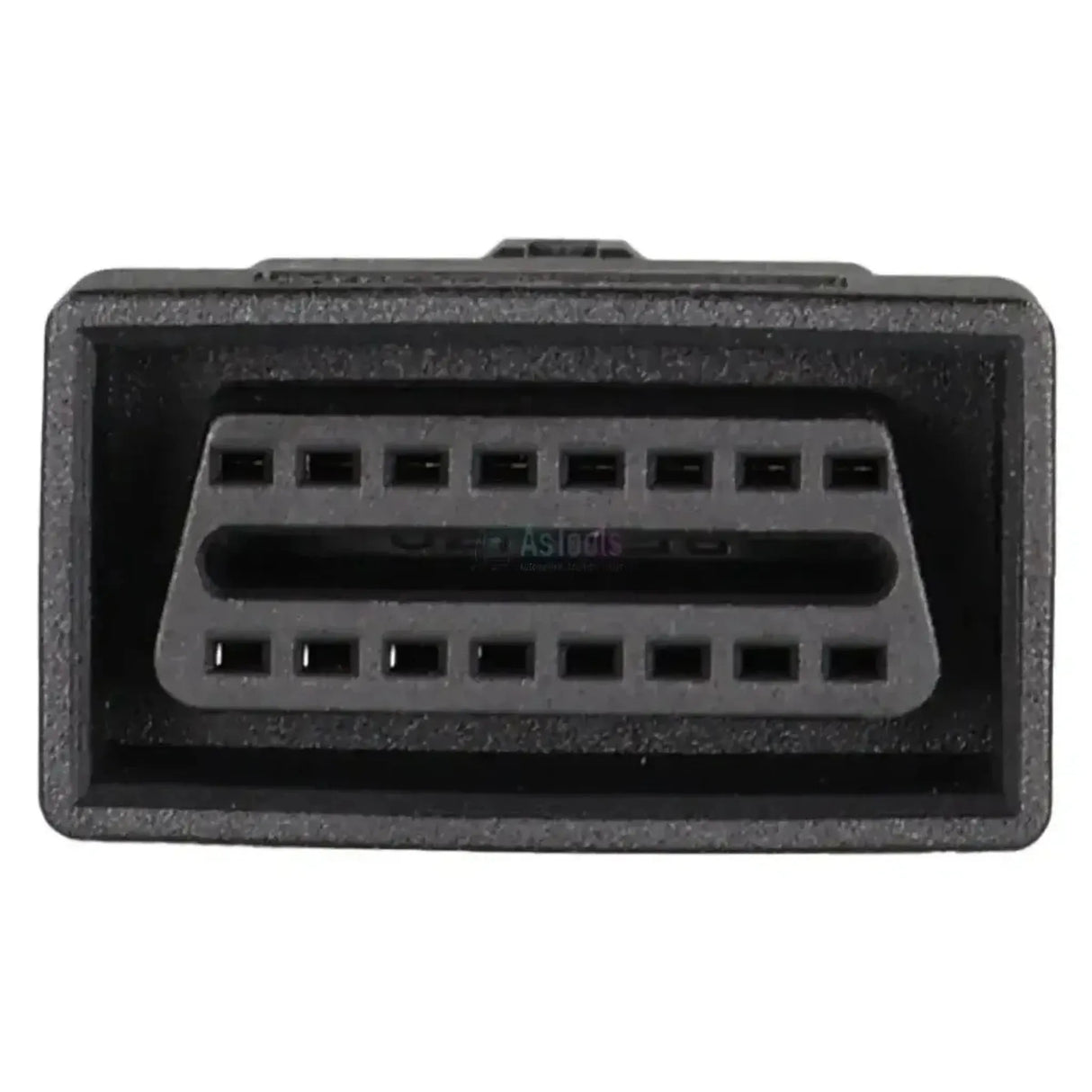

| Device-Side Connection | 16-pin OBD2 |
| Control Units | Engine Control Unit (ECU) |
| Category | Motorcycle |
| Supported Brands | Suzuki |
| Model Range | Suzuki motorcycles with 6-pin diagnostic port; no model list provided |
| Required to Use | OBDSTAR diagnostic reader with motorcycle coverage, such as the MS50, MS70, or MotoMaster |
| Additional Required | Standard 16-pin OBD2 cable from your OBDSTAR device |
| Weight | 0.05 kg |
