OBDSTAR | SKU: M014 / 7.7.2

OBDSTAR (M014) | Suzuki 4-pins OBD – Dealer/Mode Switch Adapter Cable | Motorcycle

Name: OBDSTAR (M014) | Suzuki 4-pins OBD – Dealer/Mode Switch Adapter Cable | Motorcycle
Brand: OBDSTAR
SKU: M014 / 7.7.2
Price: 24.95 EUR
Availability: InStock

€24,95 incl.

€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

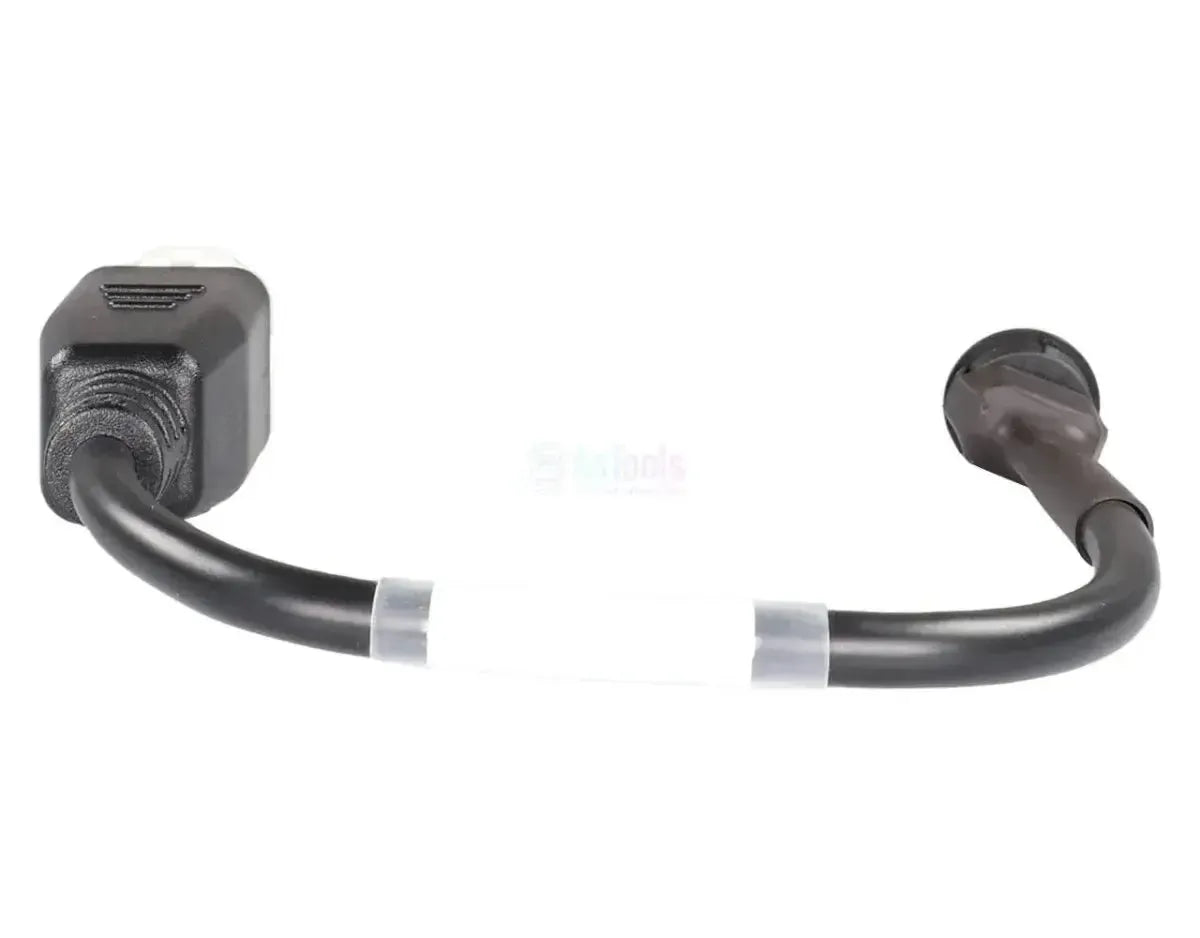

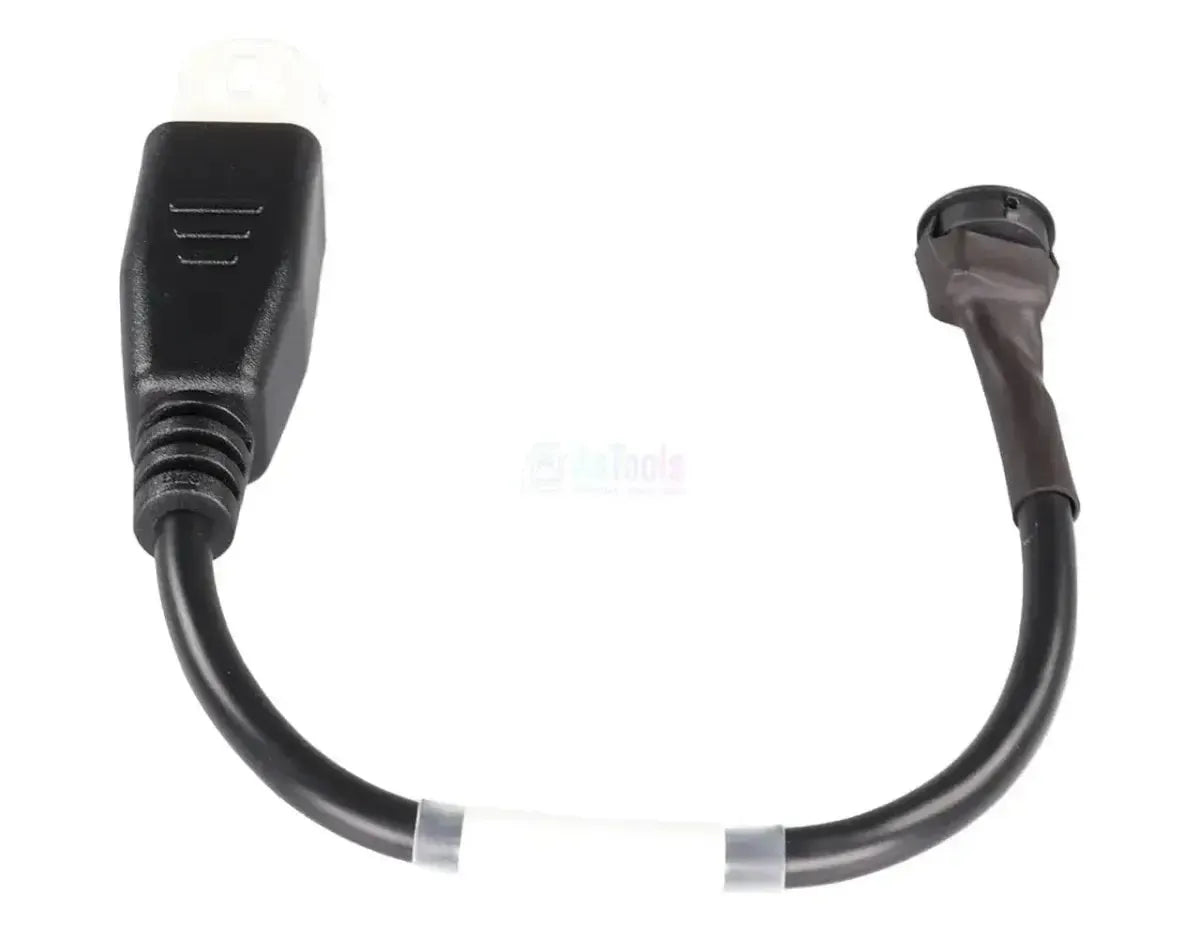

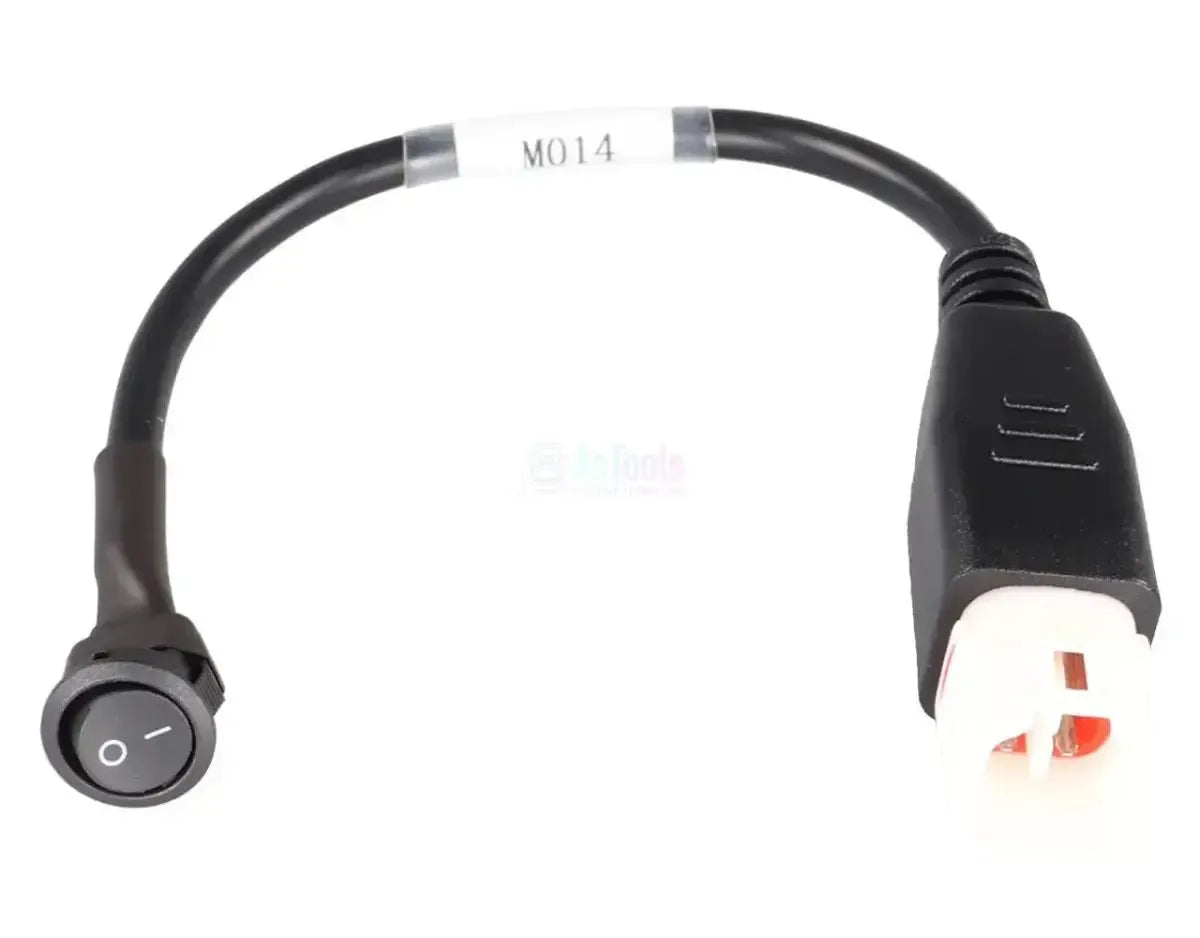

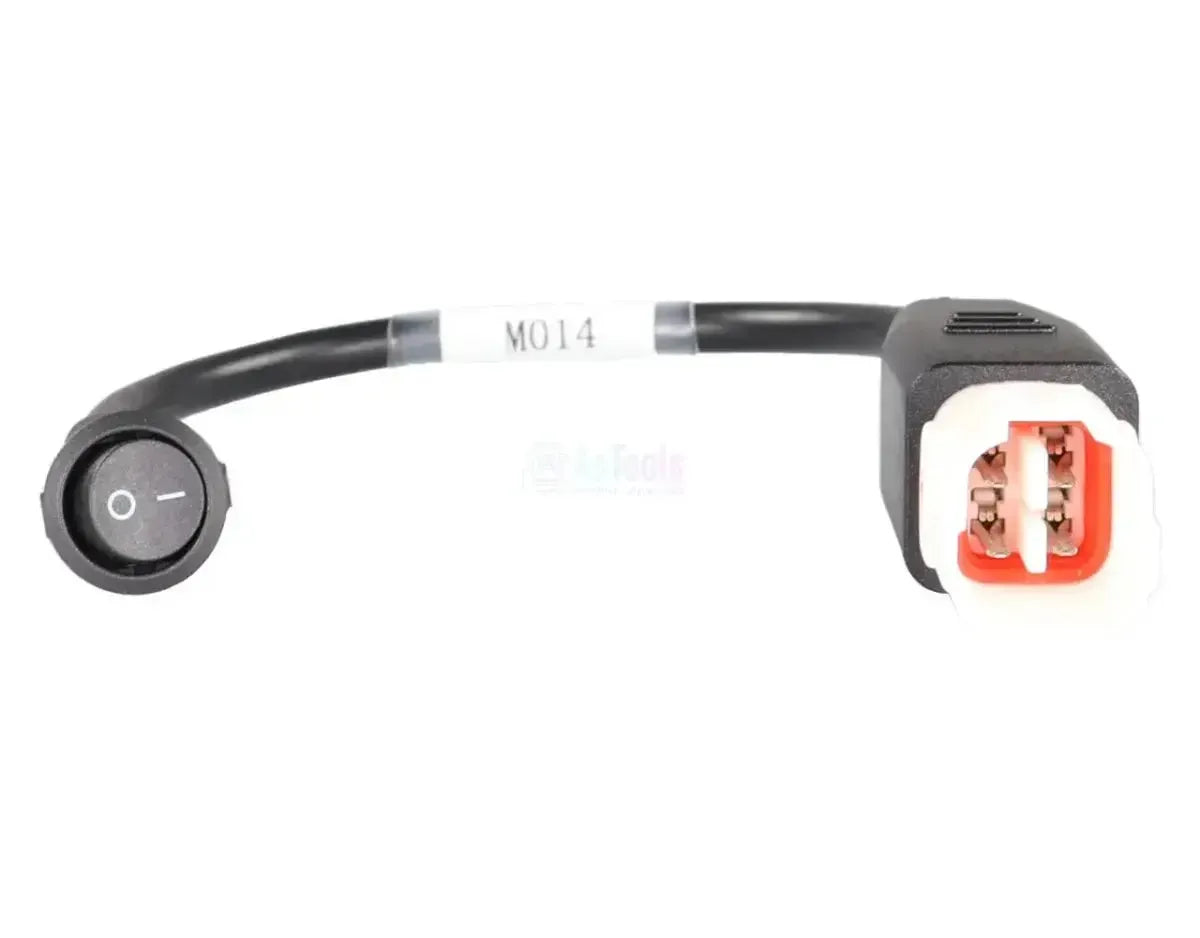

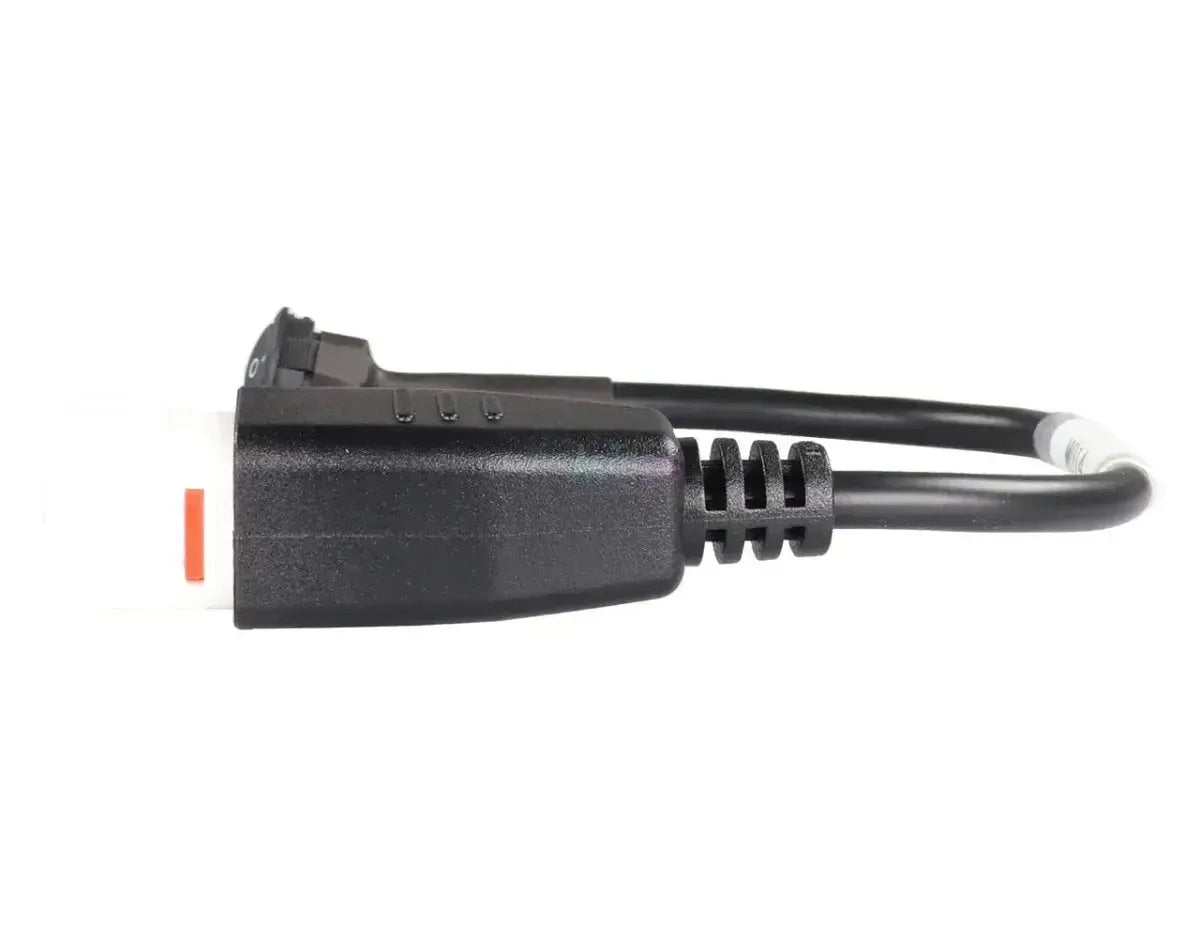

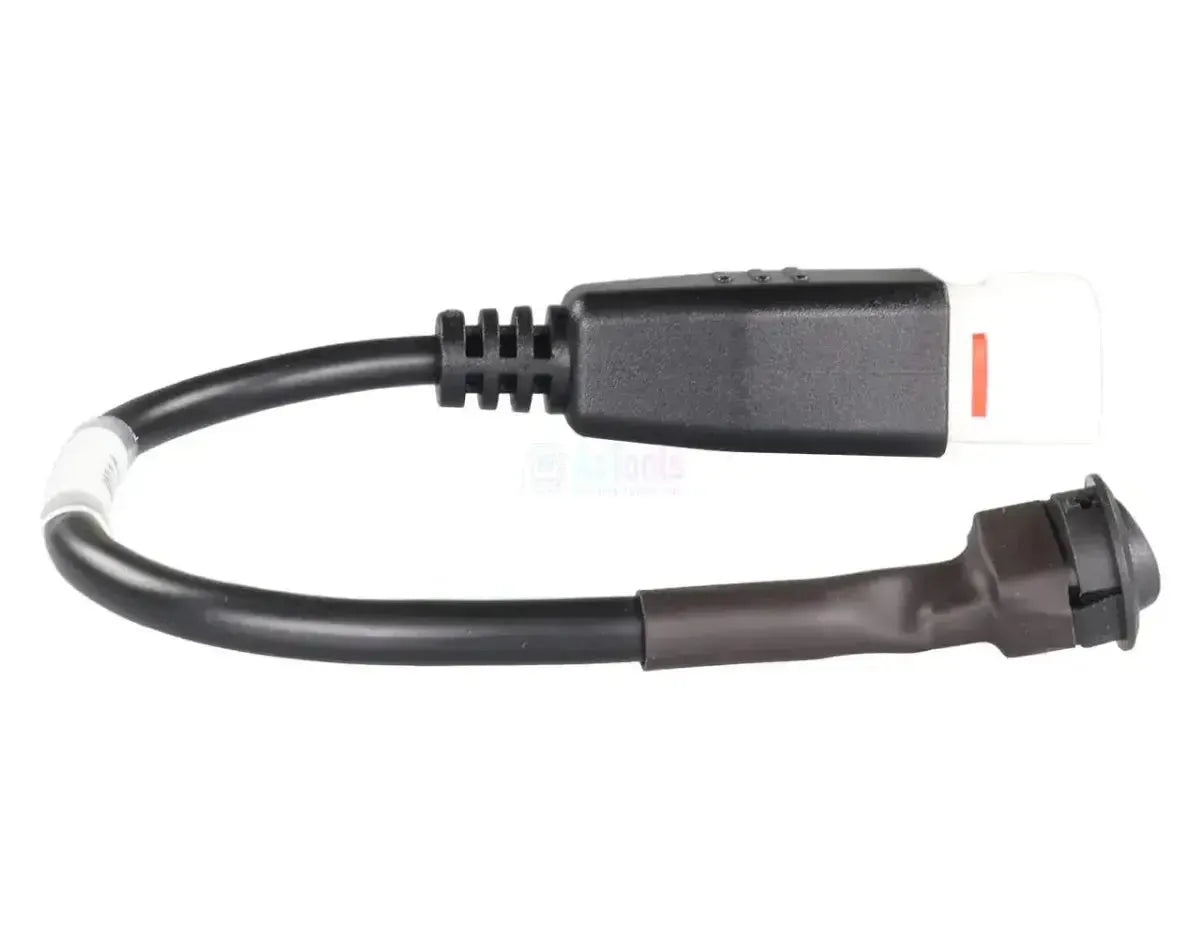

The OBDSTAR M014 Adapter Cable is specifically designed to establish communication between diagnostic equipment and motorcycles of the Suzuki brand. This adapter connects the vehicle-specific, rectangular 4-pin diagnostic port of the motorcycle to the interface of the reading device, enabling access to the electronic control units.

An essential feature of this adapter is the integrated switch, which functions as a Dealer Mode Switch. This switch allows the ECU to be set to the specific diagnostic mode without manual bridging of pins, which is necessary for certain procedures and reading specific data codes on the dashboard or via the diagnostic equipment. The wiring ensures stable signal transmission of data and power supply according to Suzuki's factory specifications.

ADVANTAGES

✔ Equipped with a physical switch for easy activation of Dealer Mode.

✔ Specific fit for the Suzuki 4-pin diagnostic connector.

✔ Robust construction suitable for intensive workshop use.

✔ Seamless integration with OBDSTAR diagnostic systems for motorcycles.

ATTENTION POINTS

✕ Not compatible with newer models using the red Euro 5 (6-pin) connector.

✕ Must be connected to a compatible OBDSTAR main cable or diagnostic system.

Applications and functionalities

This adapter cable enables specific diagnostic functions by facilitating the correct hardware connection. The functionalities depend on the diagnostic software used and the capabilities of the motorcycle.

Dealer Mode Activation: Switches the ECU into diagnostic mode via the integrated switch for advanced procedures.
Error Code Diagnosis: Reading and clearing stored error codes in the engine control unit.
Live Data Display: Real-time reading of sensor values and parameters during operation.
Identification: Reading ECU information such as software version and hardware number.

Compatible vehicles and applications

The M014 Adapter is designed for use with OBDSTAR diagnostic systems and is compatible with various Suzuki motorcycles equipped with the specific white, square 4-pin diagnostic connector.

Suzuki:

Various Models: Motorcycles and scooters with pre-Euro 5 OBD preparation (mostly models from before 2020).

Compatible Diagnostic Systems:

OBDSTAR: MS50
OBDSTAR: MS80
OBDSTAR: iScan Suzuki

💡

Good to know: The 4-pin diagnostic port on Suzuki motorcycles is often located under the passenger seat or behind one of the side panels, covered with a rubber protective cap.

Package Contents

1x OBDSTAR (M014) | Suzuki 4-pin OBD – Dealer/Mode Switch Adapter Cable | Motorcycle
