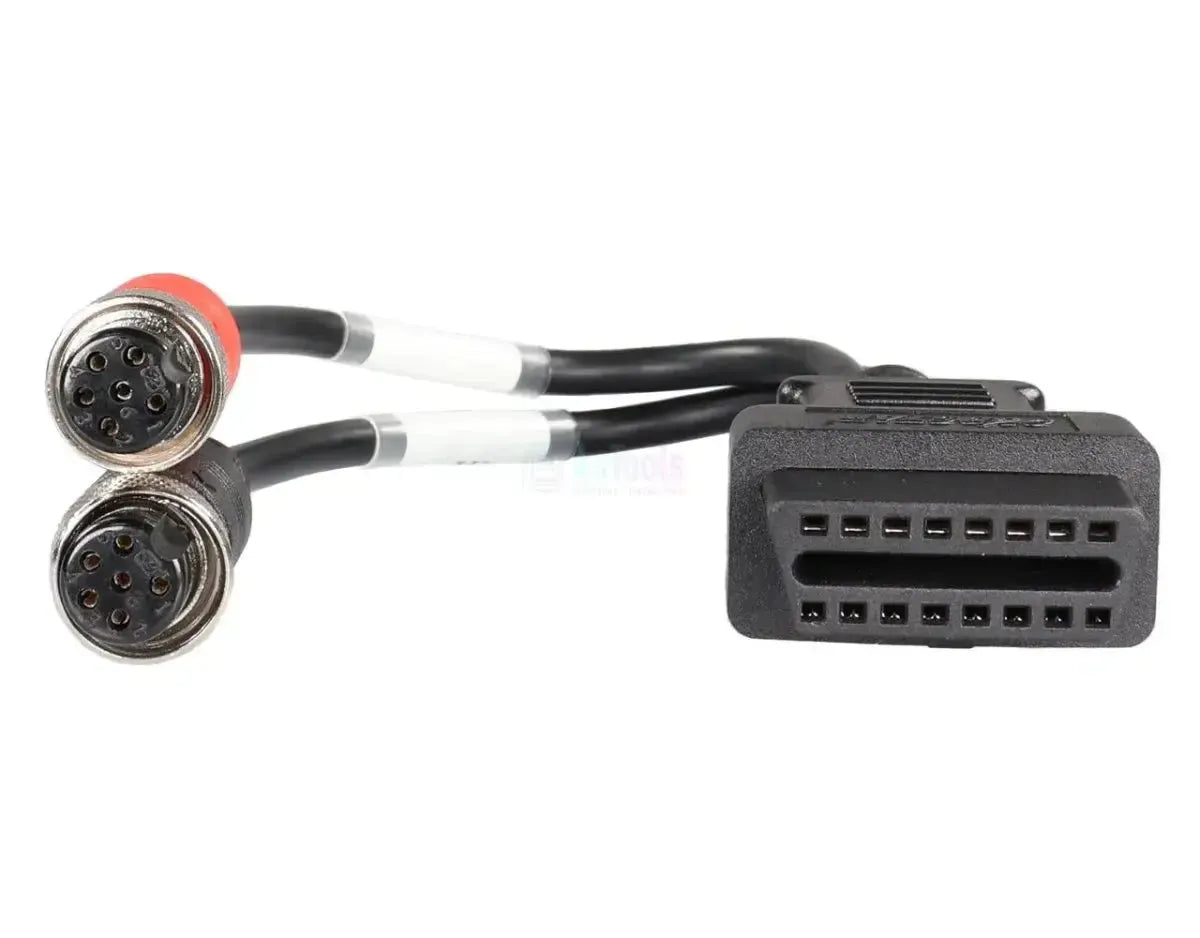

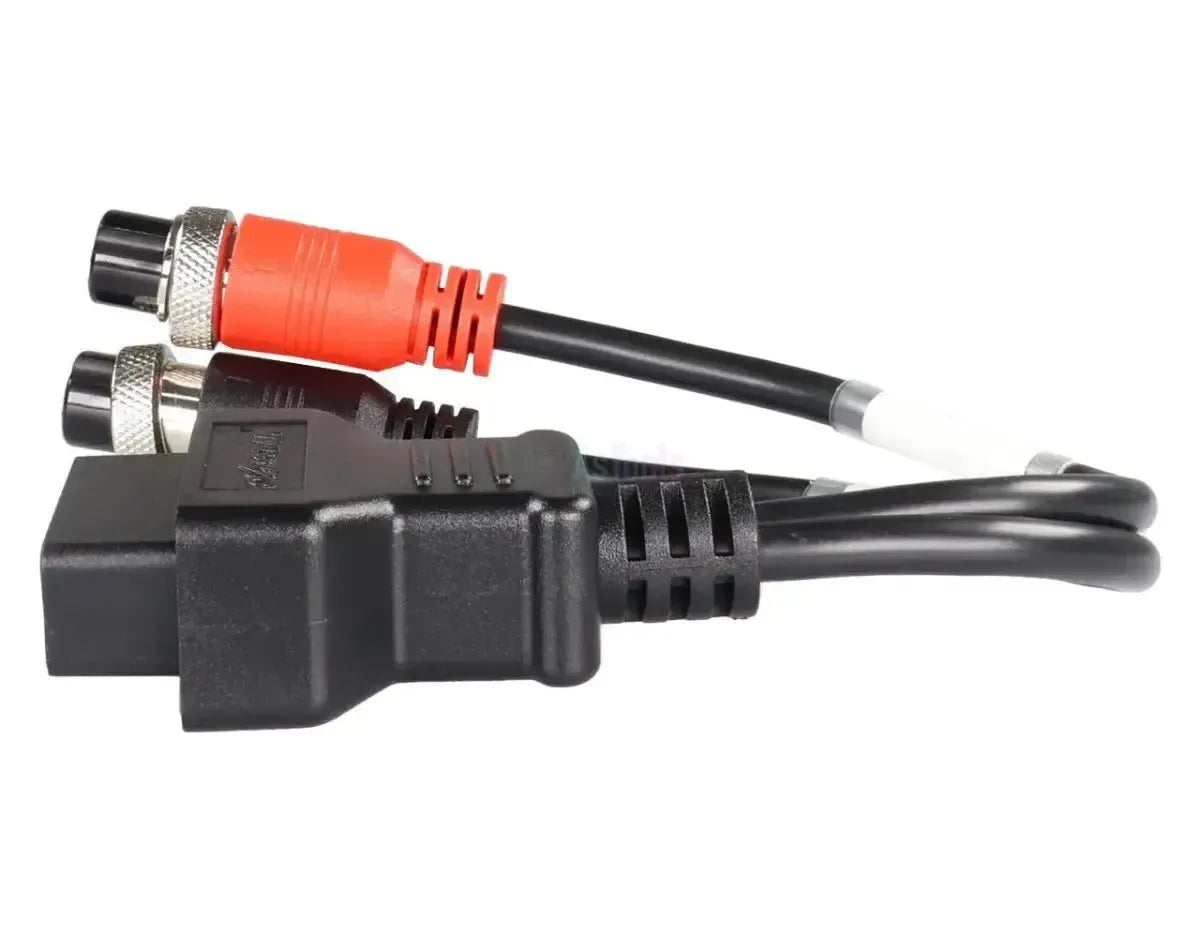

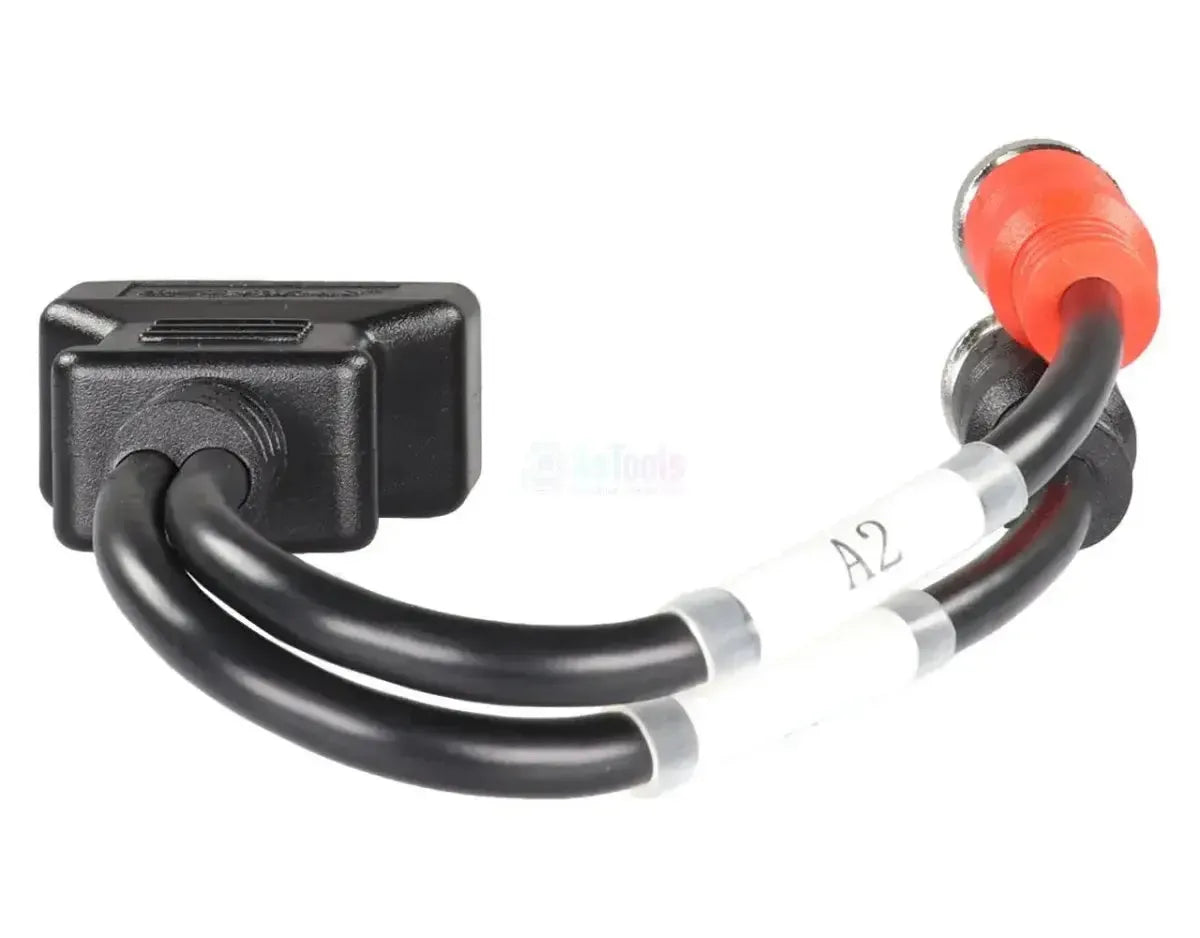

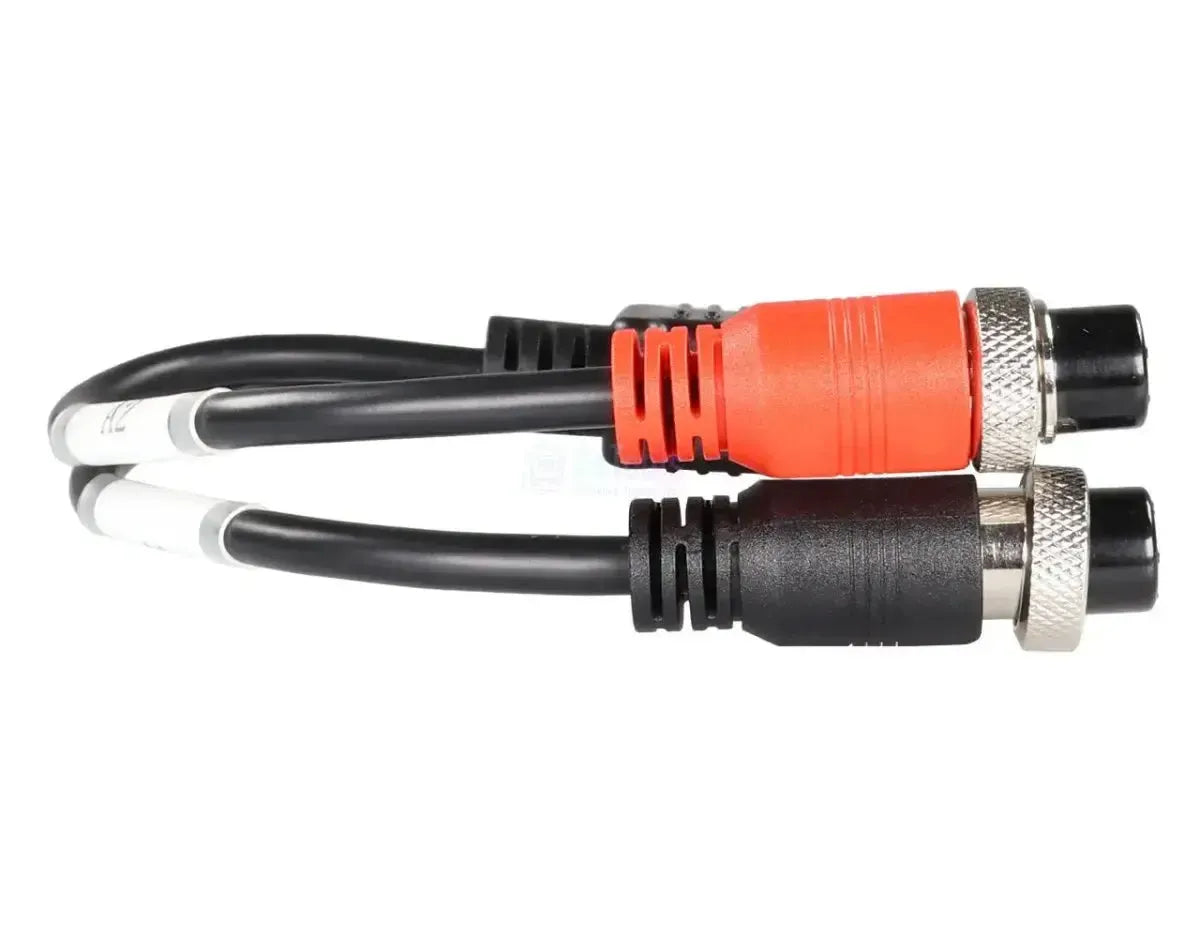

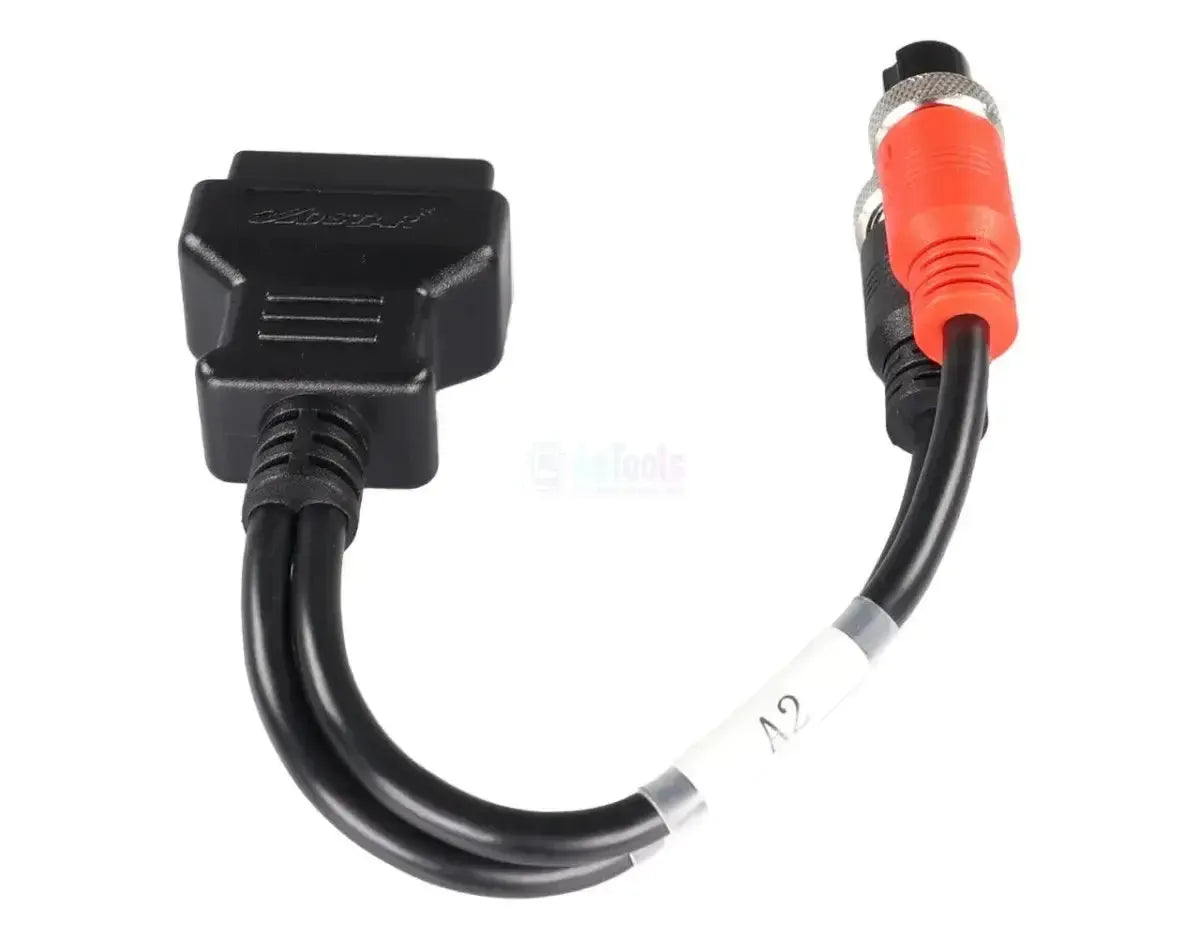

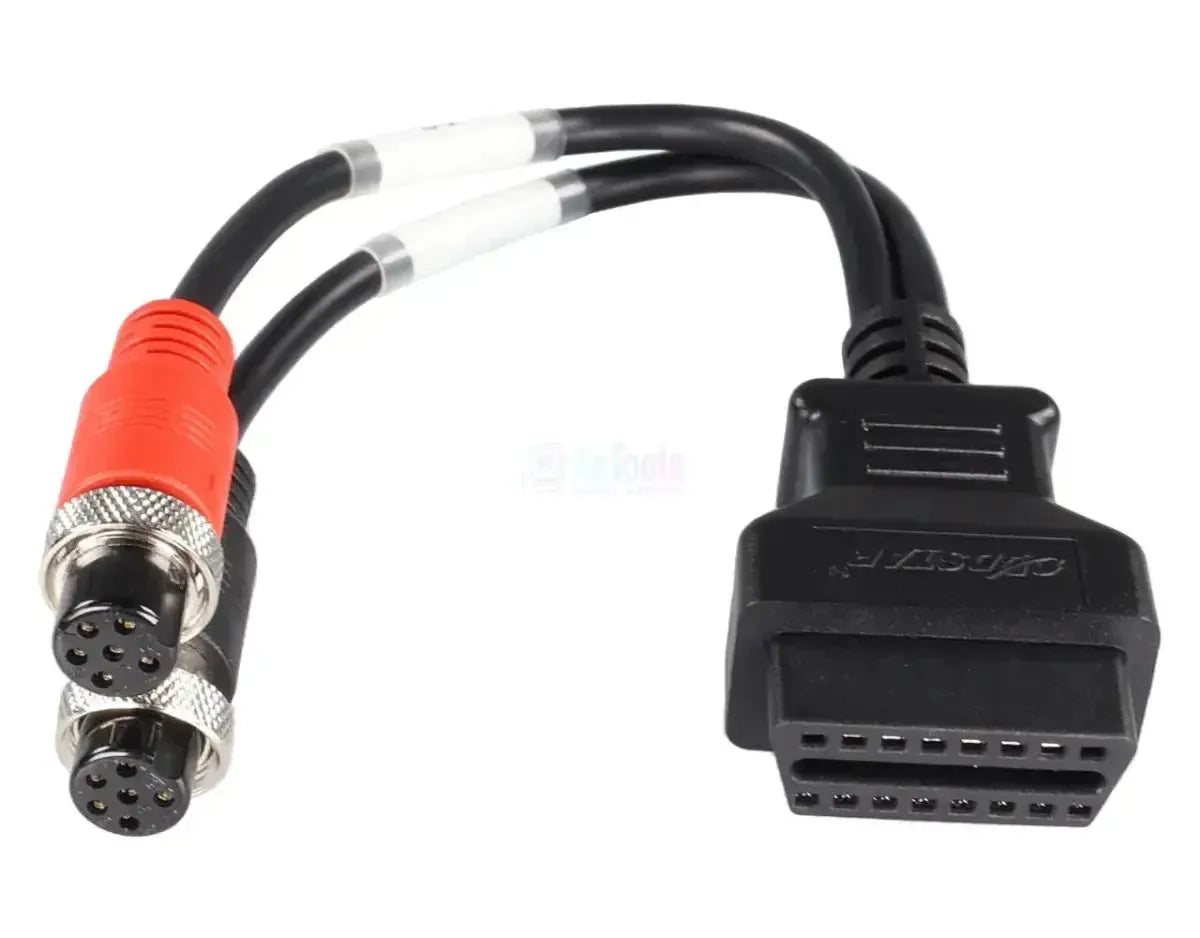

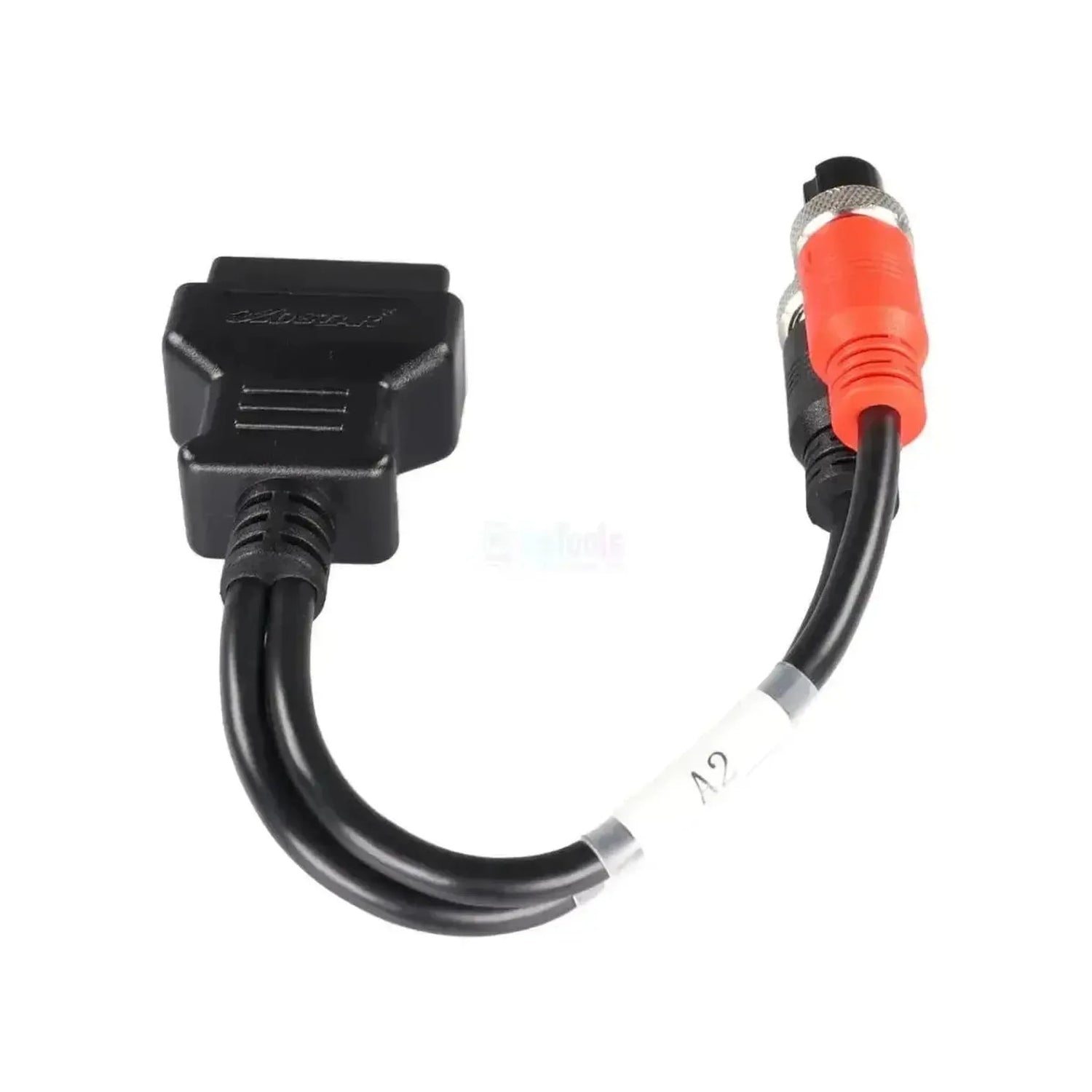

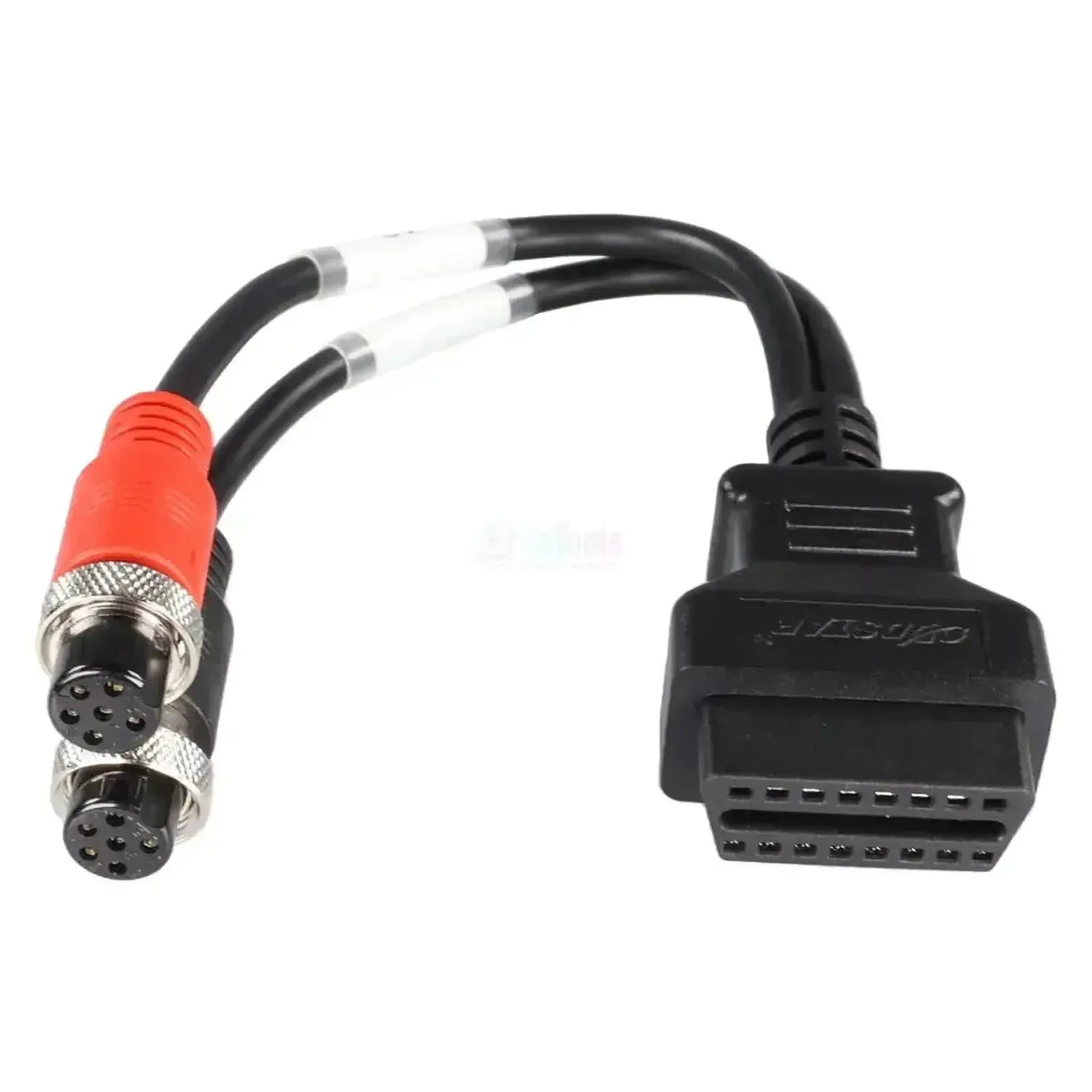

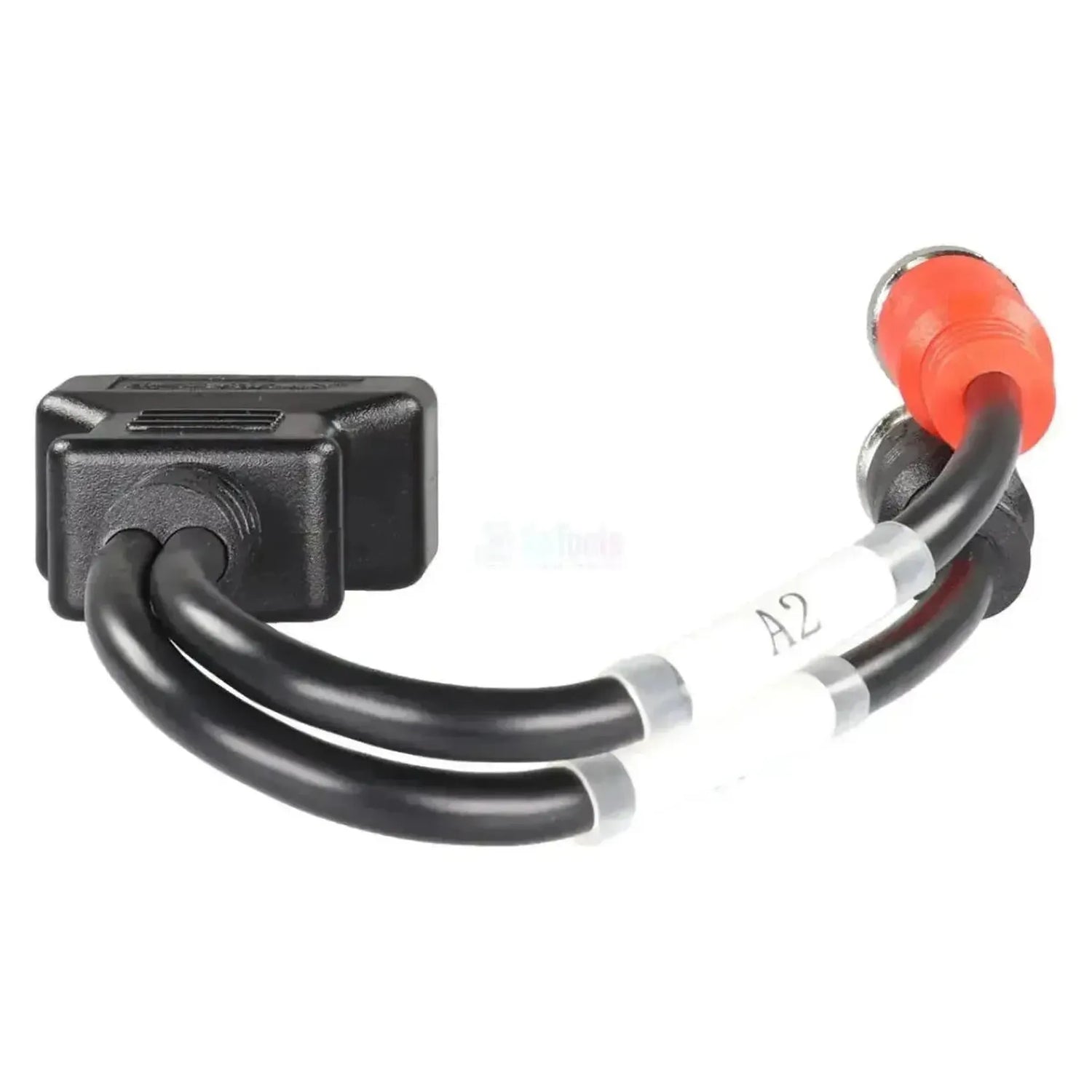

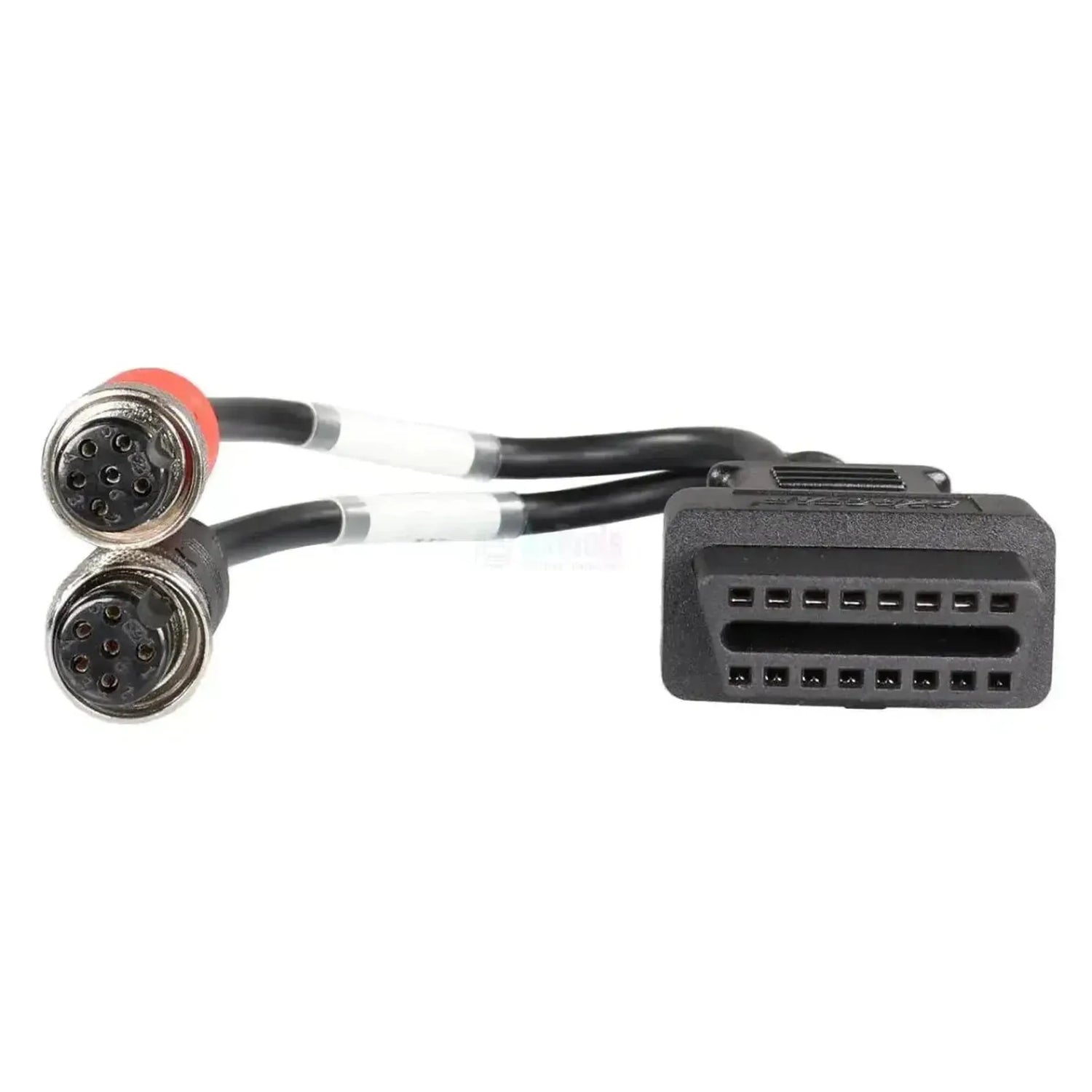

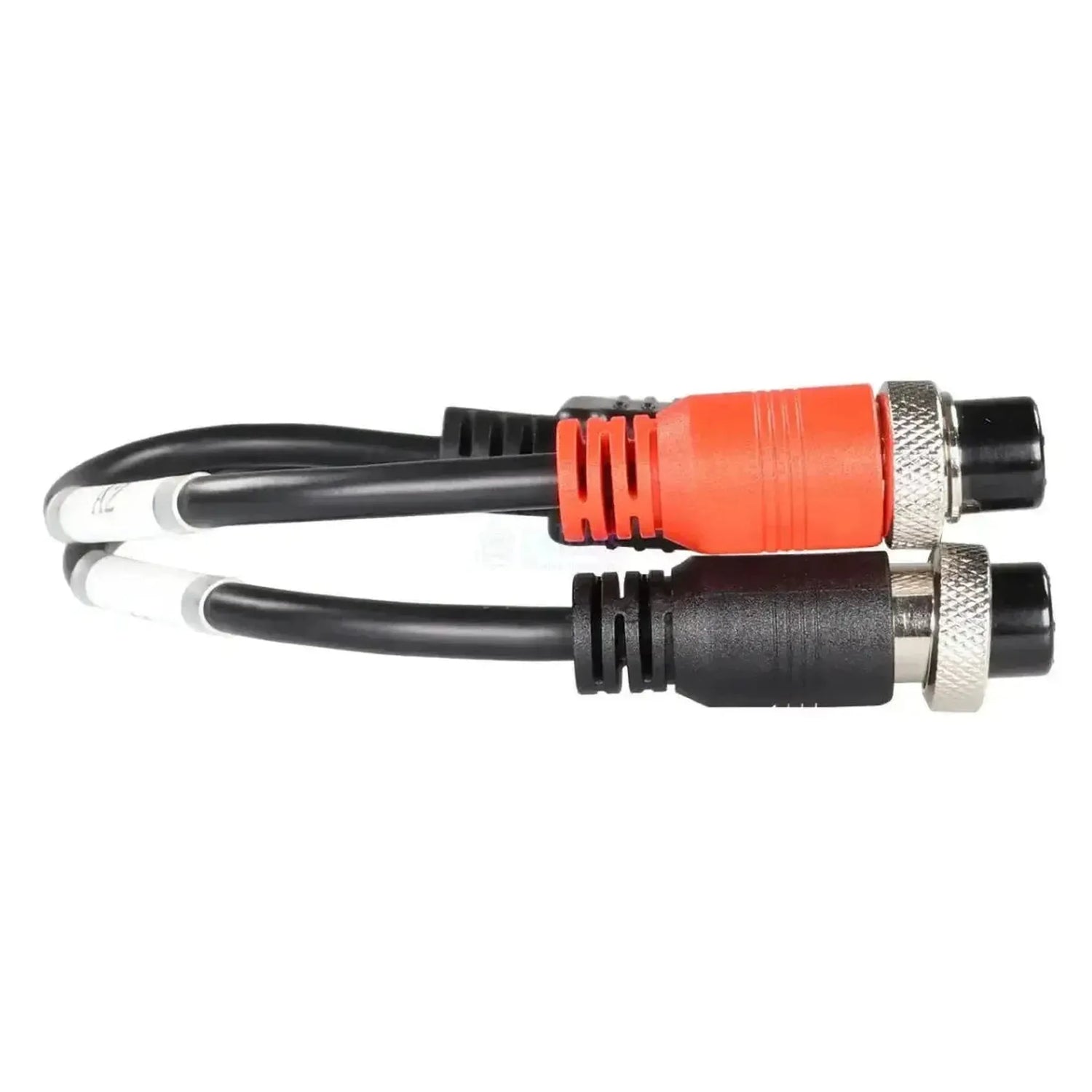

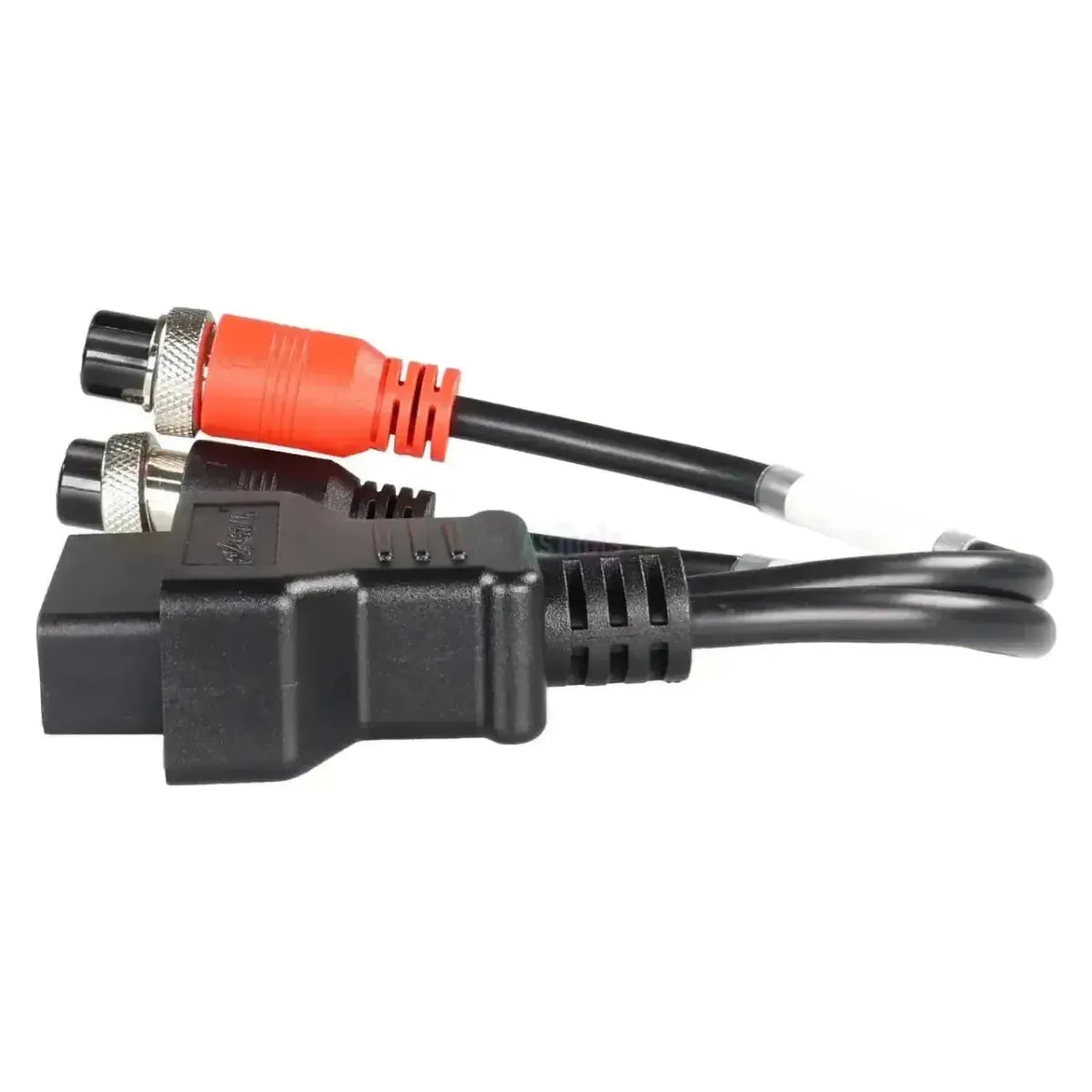

The OBDSTAR M028 is the adapter cable for the shared diagnostic port on PGO motorcycles, which consists of two separate 6-pin connectors. Both connect to the vehicle simultaneously; on the other end sits a single 16-pin OBD2 (J1962) connector for your OBDSTAR diagnostic device.
Because PGO splits the diagnostic connection across two connectors, the signal lines are only complete when both are plugged in. The cable combines them into the OBD2 output, including the K-line communication circuit and power pins. The cable itself contains no active electronics.
This allows the device to communicate with the engine control unit (ECU) of the motorcycle. The diagnostic functions themselves come from your connected OBDSTAR device and its software, not from the adapter cable.
KEY BENEFITS
IMPORTANT NOTES
Applications and Features
Through the combined 6+6-pin connector, you gain access to the engine electronics of your PGO motorcycle.
Control units you can reach
- Engine Control Unit (ECU): the engine management system connected via K-line to the shared diagnostic port.
- Other modules: whether additional units are accessible varies by model and device.
What you can do
- Read fault codes: retrieve stored diagnostic trouble codes (DTCs) from the motorcycle's ECU.
- Clear fault codes: remove codes from the ECU memory after diagnosis and repair.
- Vehicle identification: query vehicle and system information via the K-line connection, such as the VIN number and ECU data.
- Read live data: monitor sensor readings and engine parameters in real-time over the active communication line.
- Please note: which functions you get depends on the connected OBDSTAR device and its accompanying software.
Compatible vehicles and applications
The 6+6-pin diagnostic port is what matters, not the model alone. The PGO models listed below are equipped with this port; only confirmed applications are shown.
PGO:
- Bugrider 250: (2004–present)
- Gmax 300i: (2012–present)
- T-Rex 50: (2005–present)
- T-Rex 110: (2005–present)
Package contents
- 1x OBDSTAR (M028) | PGO 6+6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| SKU | M028 |
| Type | Adapter cable |
| Application | PGO models with shared 6+6-pin diagnostic connector |
| Vehicle-side connector | PGO 6+6-pin OBD |
| Device-side connector | 16-pin OBD2 (J1962) |
| Communication protocol | K-line |
| Control units | Motorcycle electronic control unit (ECU) |
| Category | Motorcycle |
| Compatible brands | PGO |
| Model range | PGO models from 2004 onwards, provided they have the 6+6-pin diagnostic connector |
| Required to use | OBDSTAR diagnostic scanner with motorcycle coverage, such as the MS50, MS70 or MotoMaster |
| Additional requirements | None; the cable operates without an adapter or separate power supply |
| Weight | 0.1 kg |
