OBDSTAR  |  SKU: M078

OBDSTAR (M078) | Universal 9-pin OBD – 16-pin OBD2 Adapter Cable | Motorboat

€24,95 incl.
€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

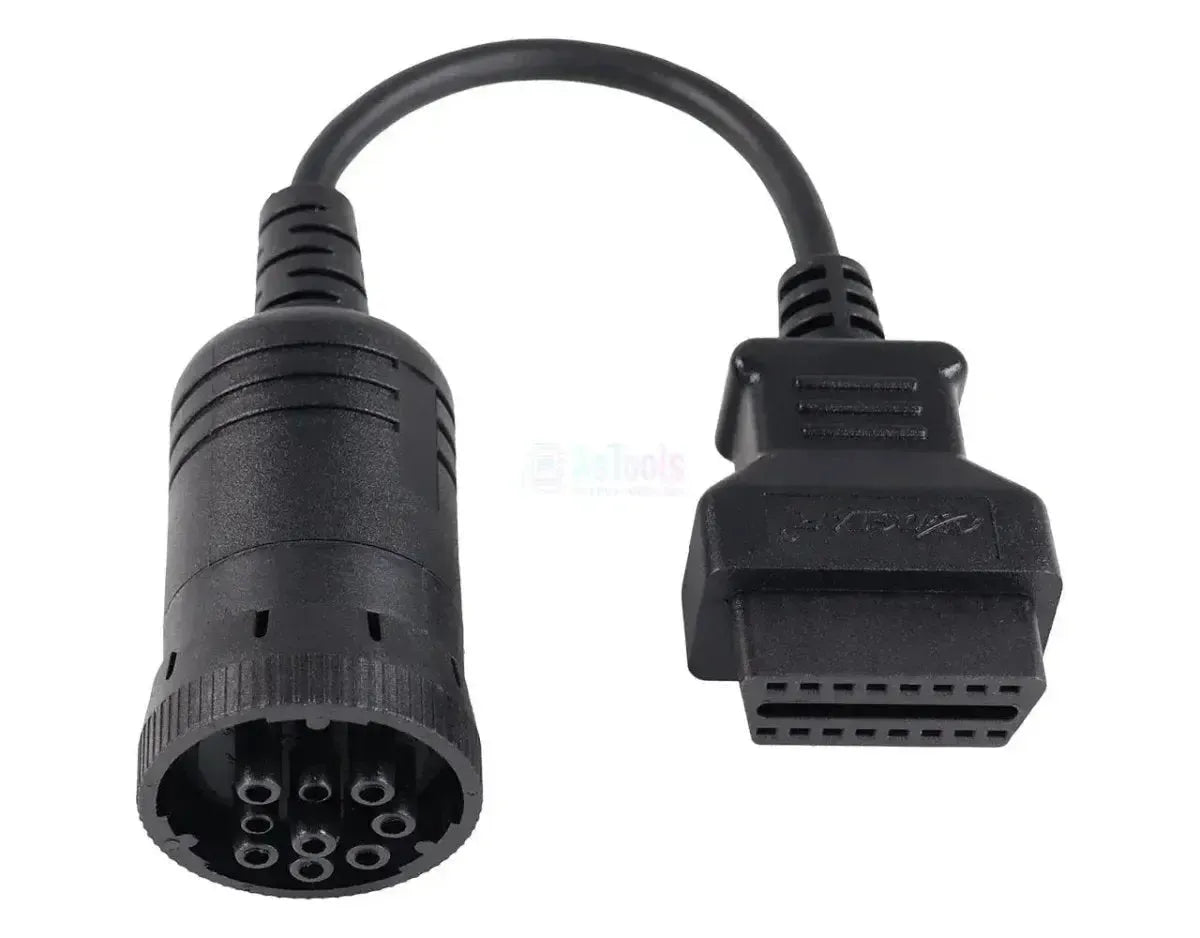

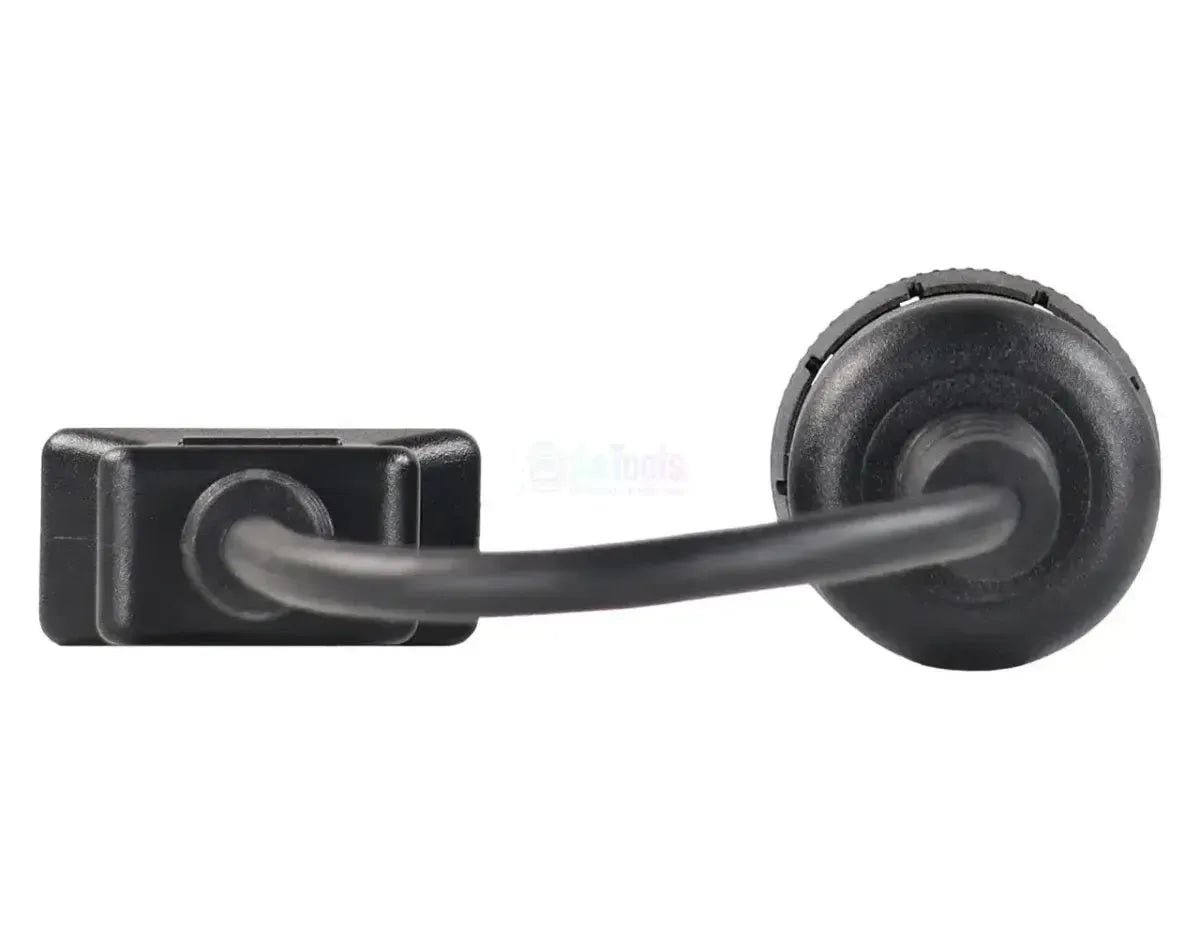

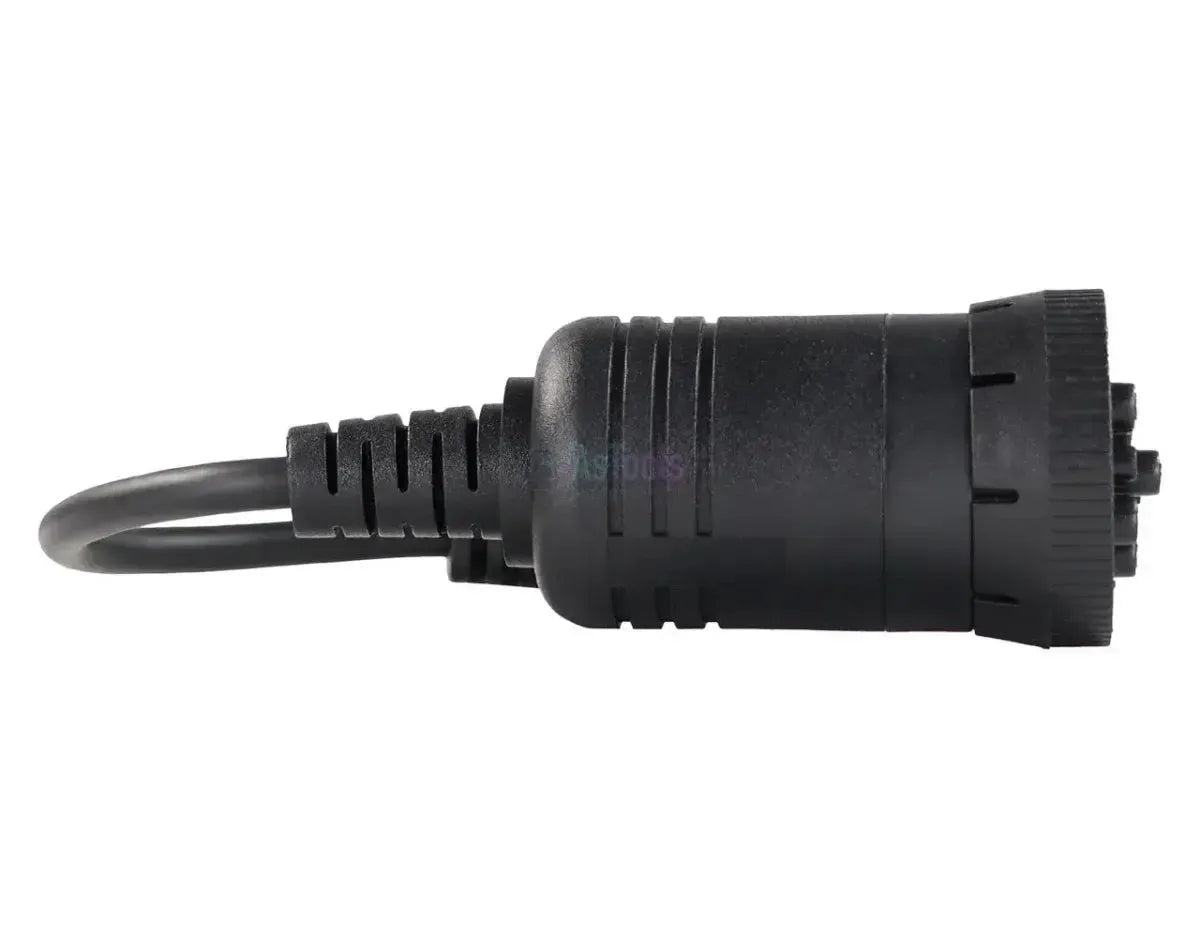

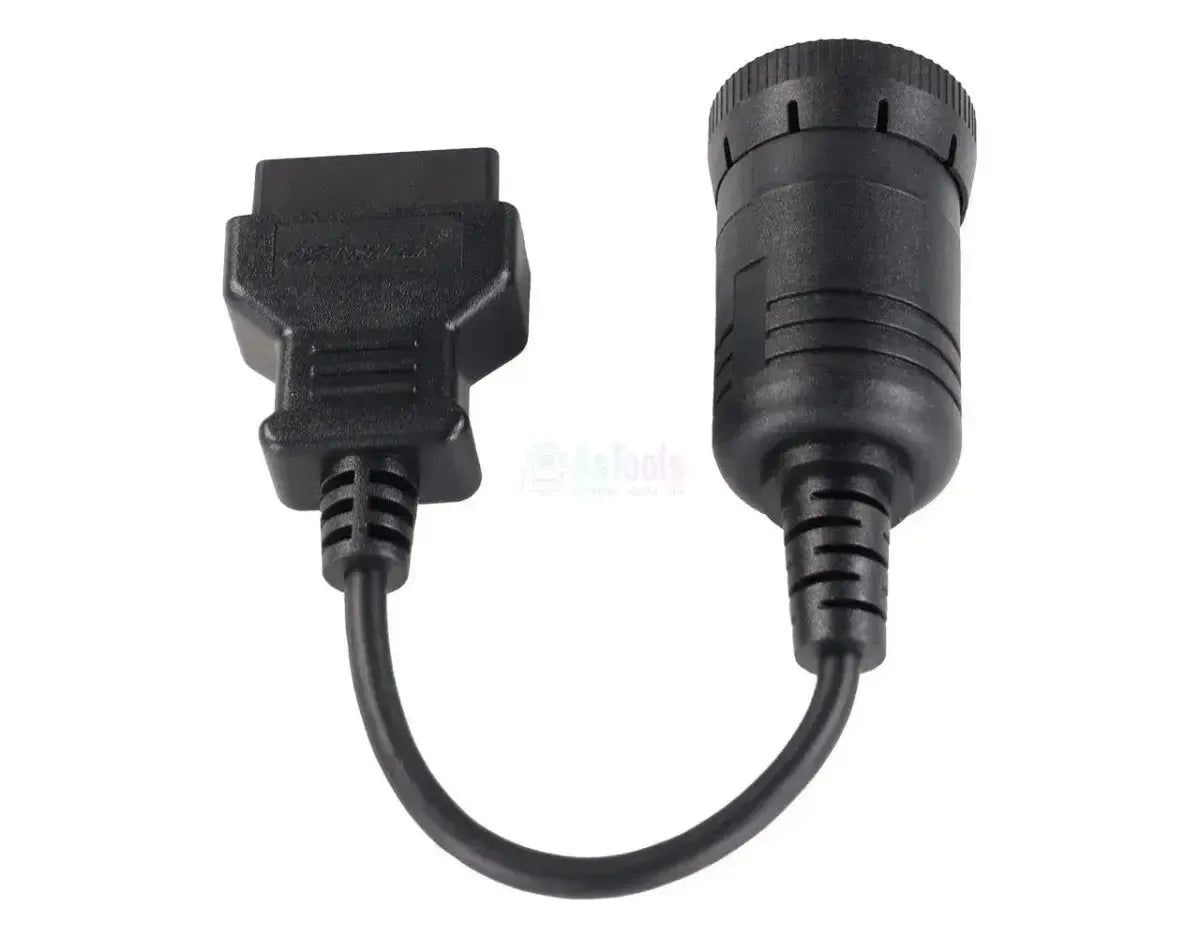

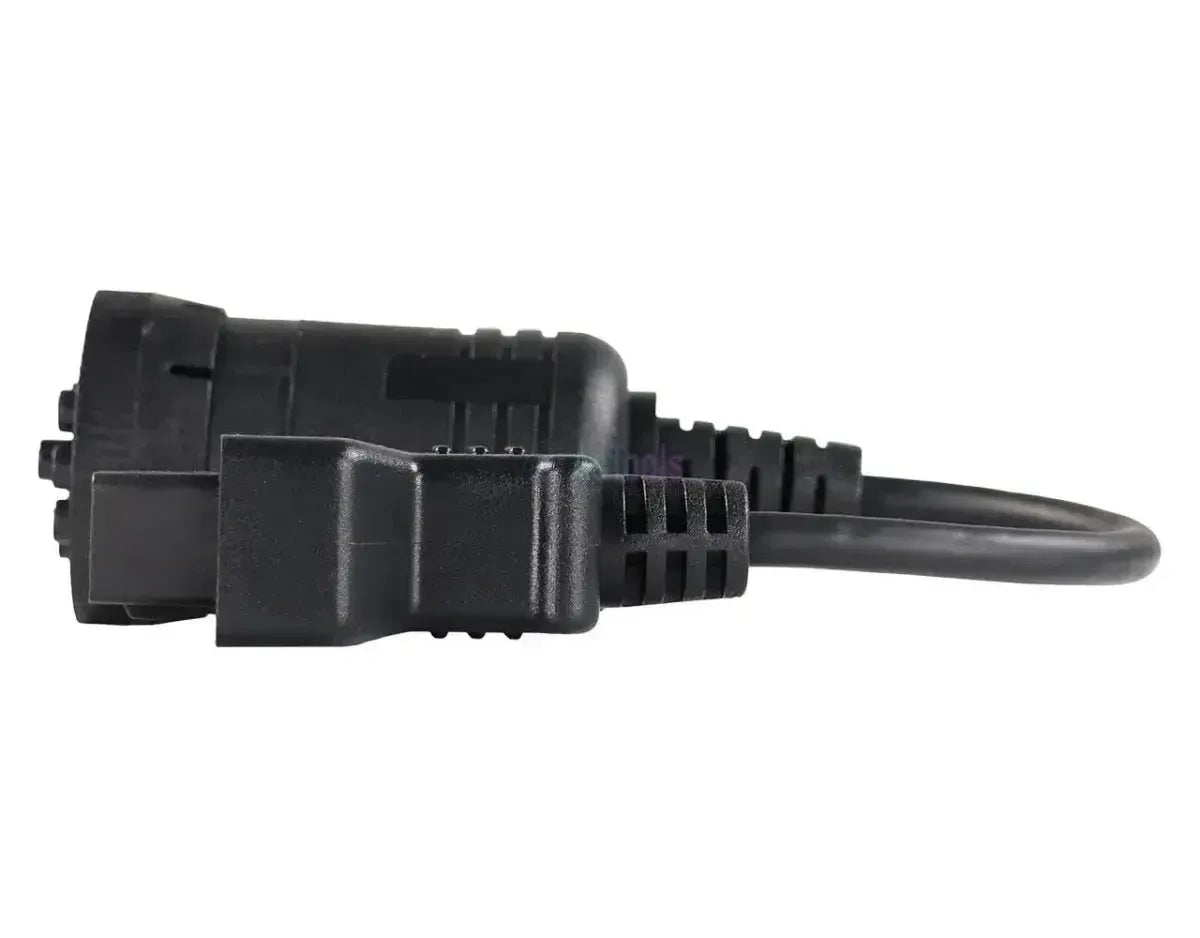

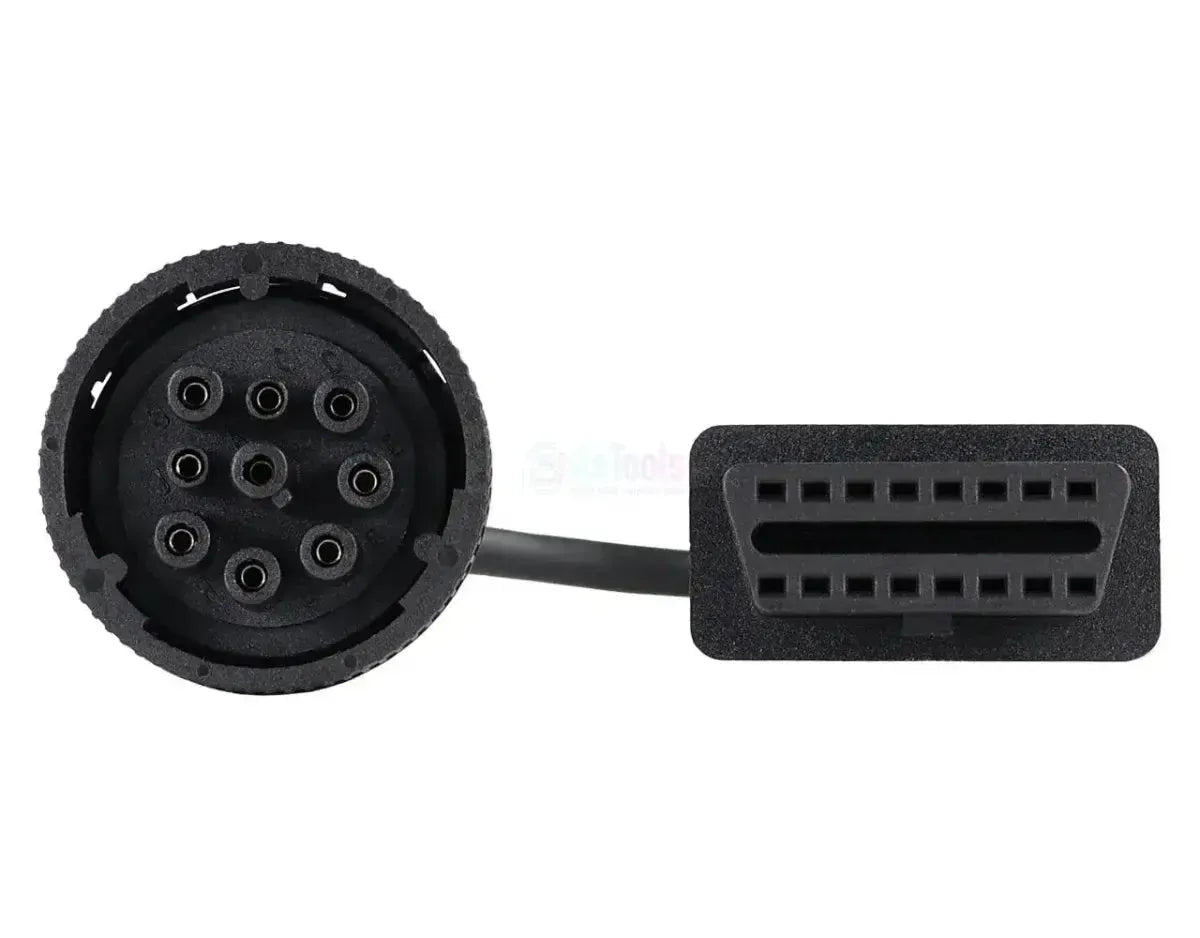

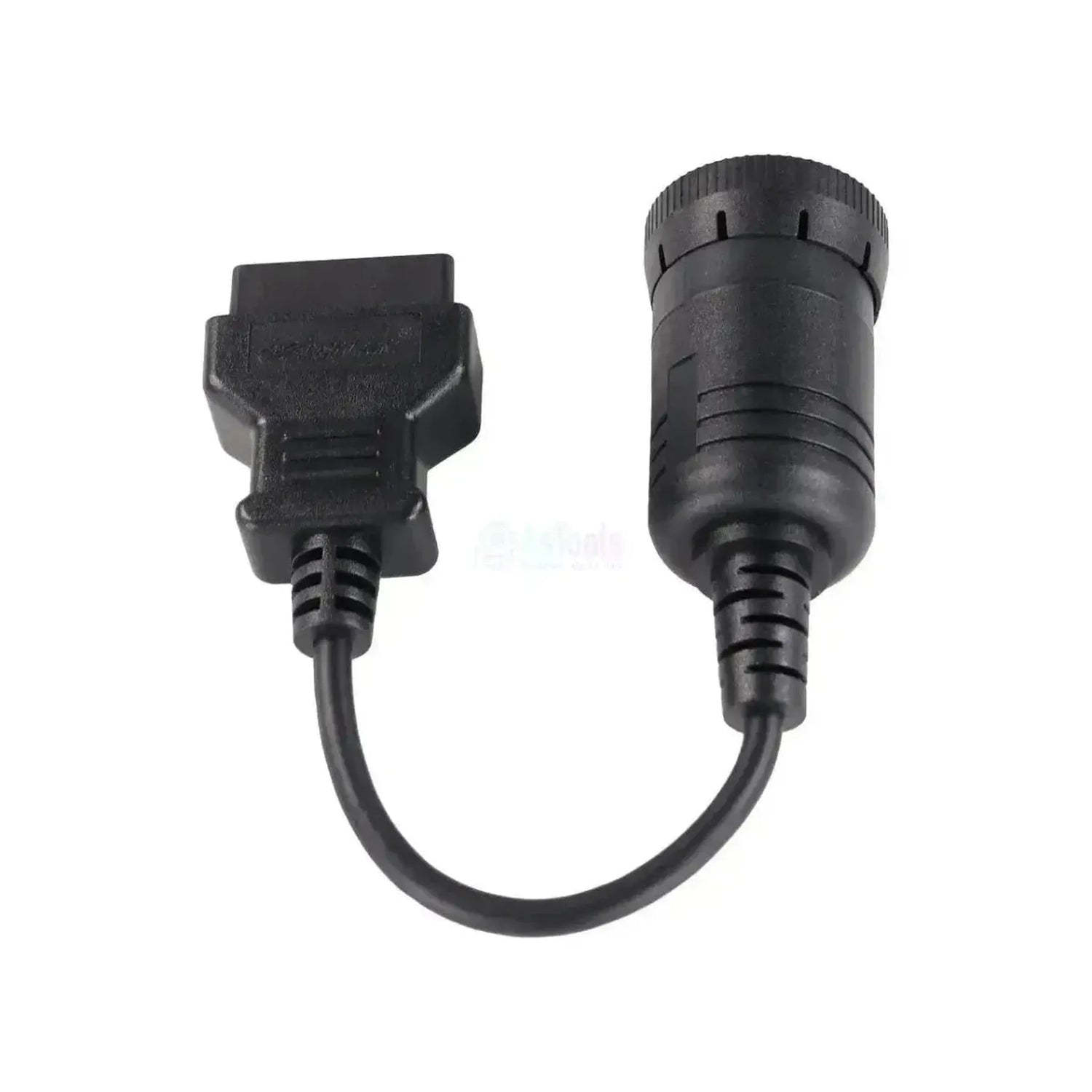

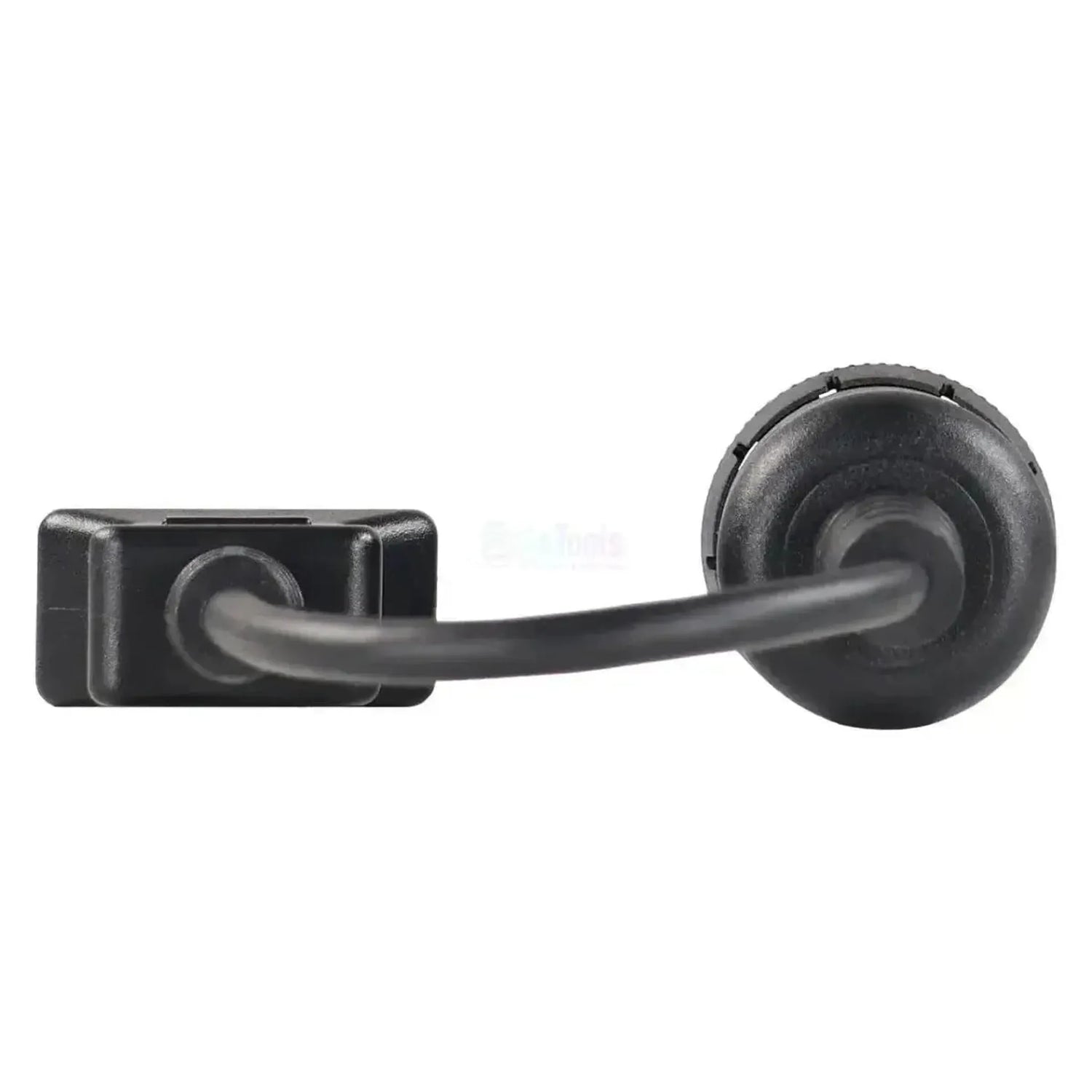

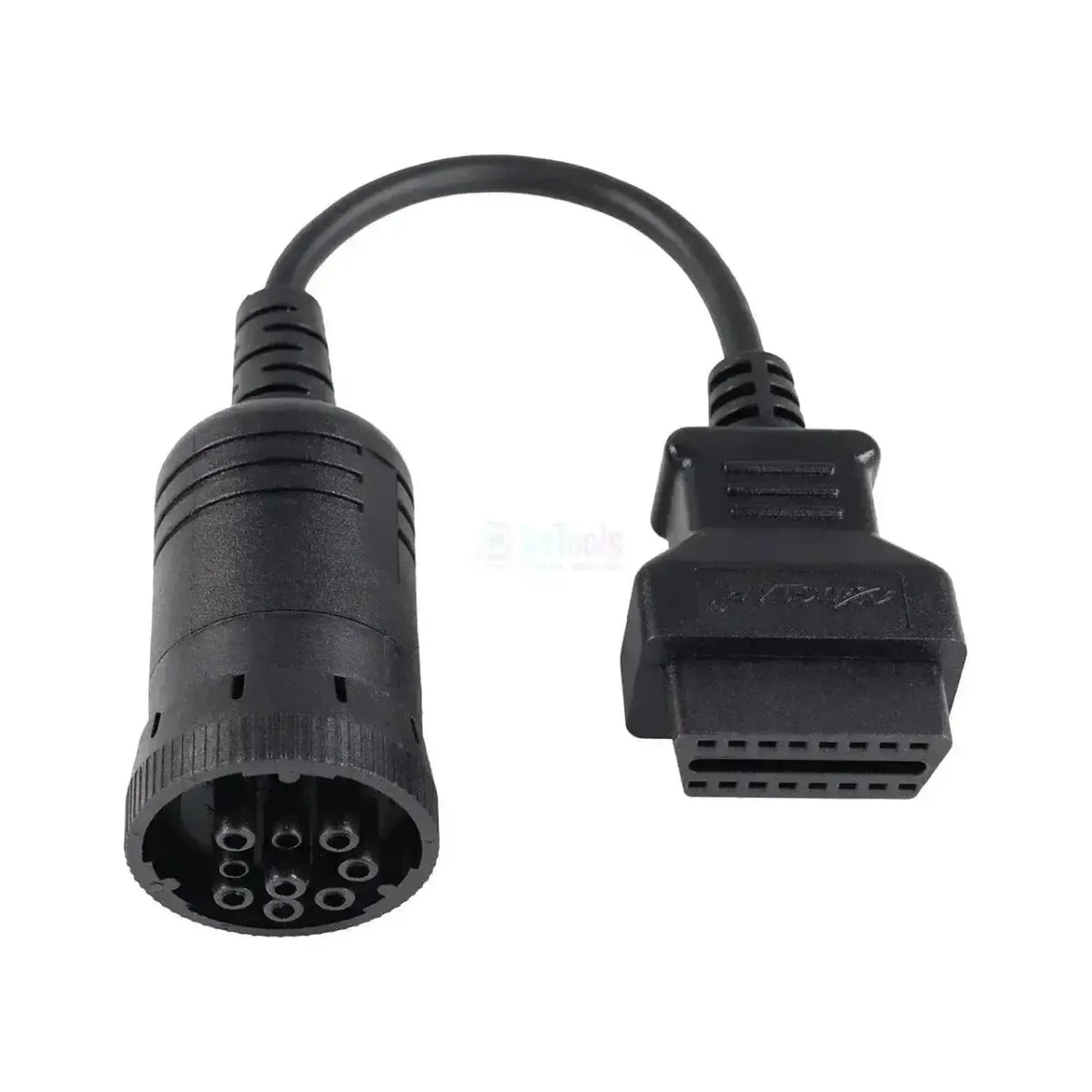

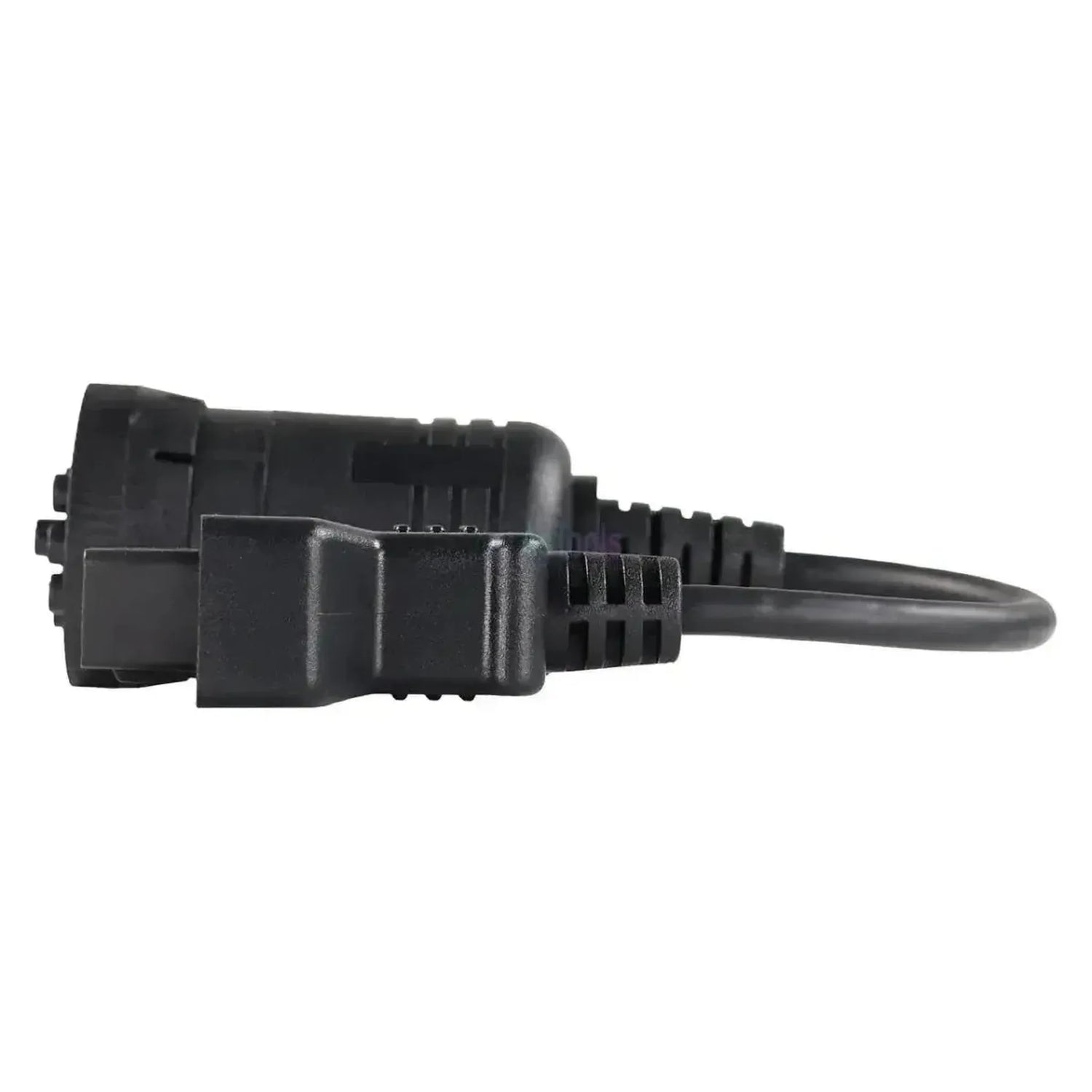

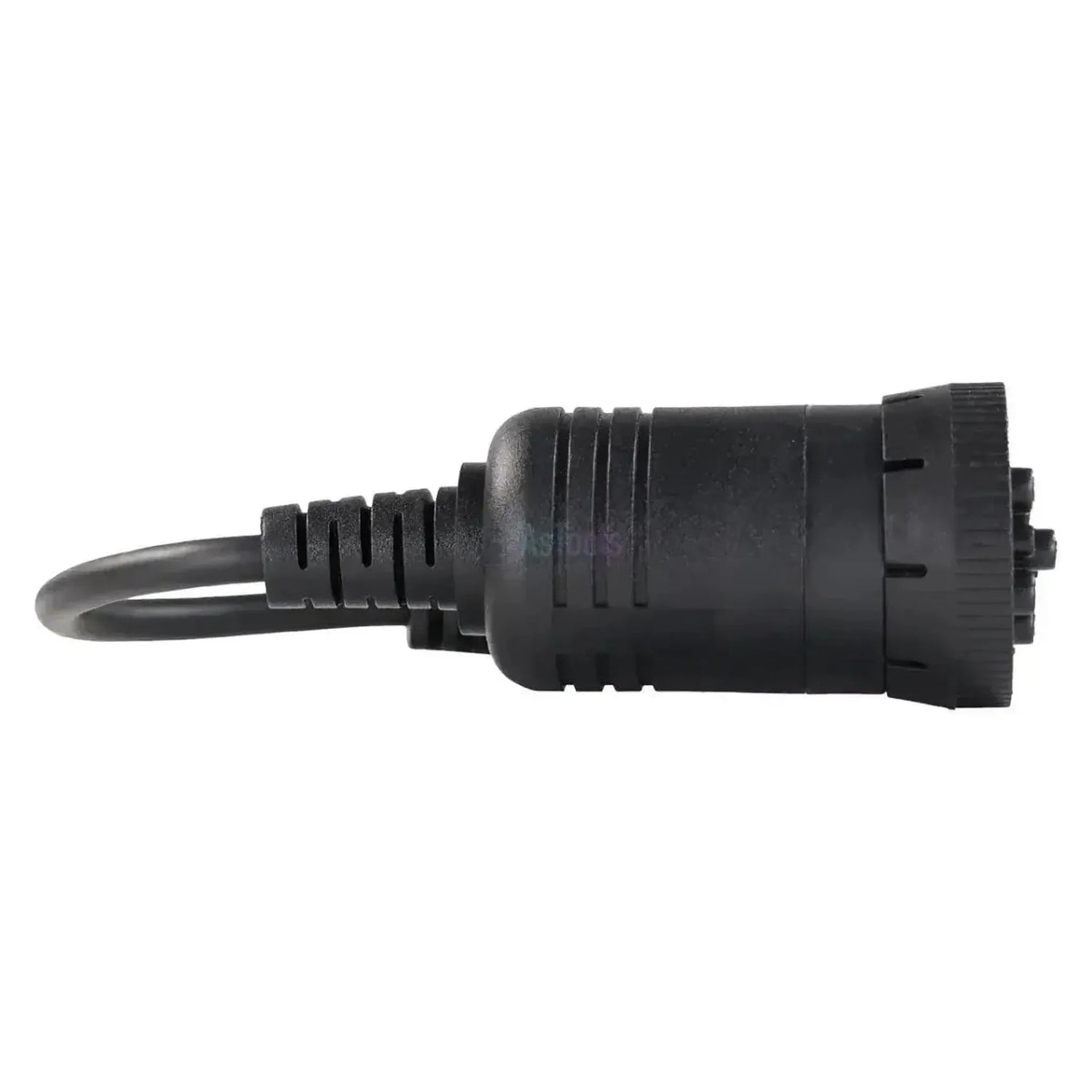

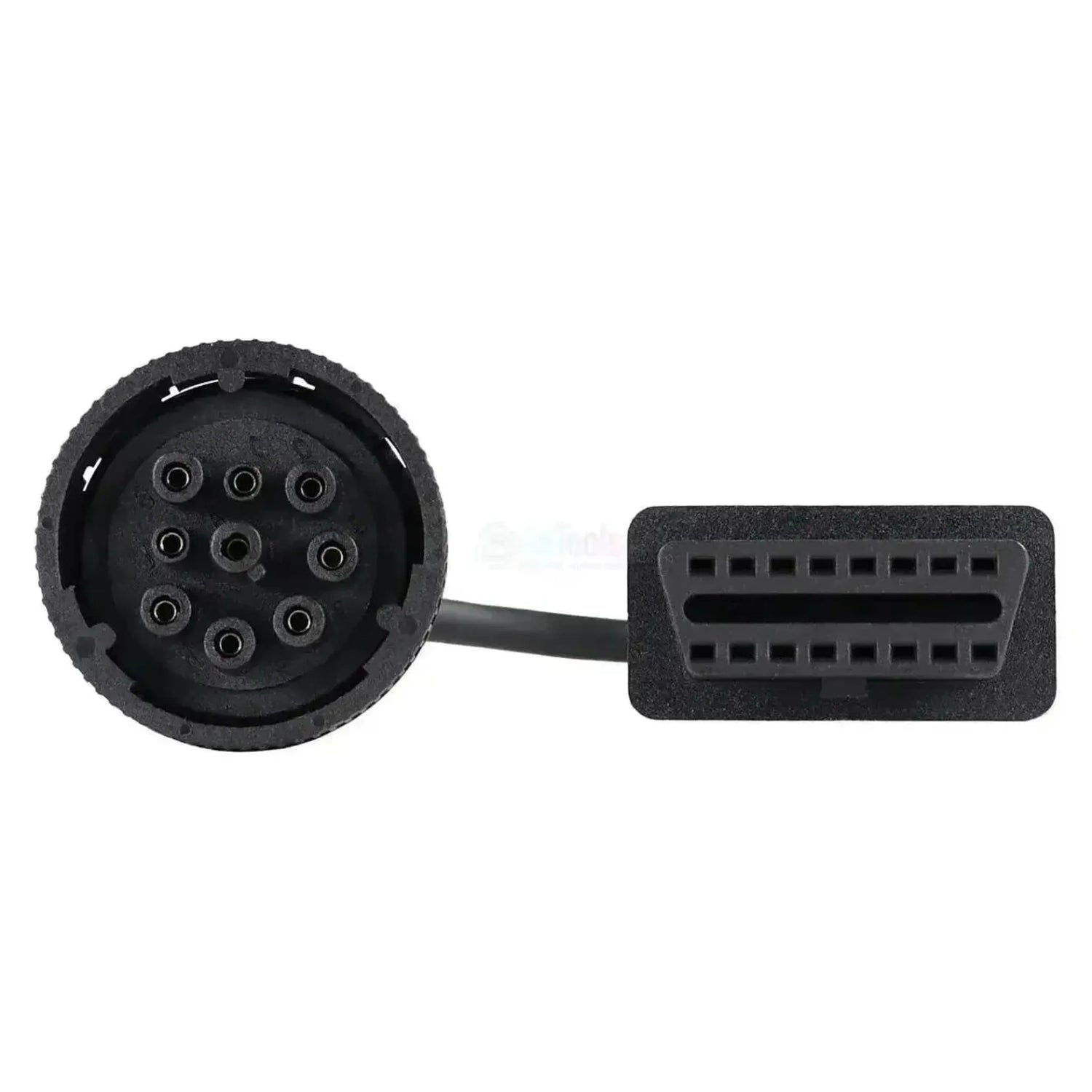

The OBDSTAR M078 is the adapter cable for the 9-pin round OBD diagnostic connector on marine diesel engines. The cable connects that connector to the 16-pin OBD2 (J1962)-port on your OBDSTAR diagnostic tool and plugs directly into the engine's diagnostic socket on the motor side.

Several marine diesel engine manufacturers use the same round 9-pin connector instead of a standard OBD2 port. The cable enables signal transmission between the engine system and diagnostic device, allowing communication protocols such as CAN and K-line to pass through unchanged.

The cable unlocks the engine control system of the diesel motor. Which fault codes, live data, and identification information you can then retrieve depends on the support available in the OBDSTAR software for that specific engine model and year.

KEY BENEFITS

✔Four brands on one connector type — Cummins MerCruiser Diesel, Kohler Power Systems, Mercury Diesel, and VM Motori all use this round 9-pin connector.
✔Direct signal transmission — CAN and K-line communication pass through without intermediate conversion.
✔Plug-and-play installation — the cable connects to the existing diagnostic socket; no modifications to the engine are required.
✔For engines without OBD2 port — these diesel engines lack a standard diagnostic connection; the cable makes diagnostics possible anyway.

IMPORTANT NOTES

✕Check the part number carefully — OBDSTAR offers more than one 9-pin marine cable; the brand list and part number determine which version you need.
✕Not for cars or vans — vehicles with a standard OBD2 diagnostic connector are outside the scope of this product.
✕OBDSTAR only — use with other diagnostic tools is not supported.
✕Cable does not expand coverage — available functions depend on OBDSTAR software support for that specific engine model and year.

Applications and Features

Access your marine diesel engine's control system through the 9-pin round connector.

Control units you can reach

  • Engine management system: the diesel engine control unit where the 9-pin round diagnostic connector is located.
  • Other modules: availability of additional onboard units varies by manufacturer and installation.

What you can do

  • Read fault codes: retrieve stored and active diagnostic trouble codes (DTC) from the engine management system to identify faults.
  • Clear fault codes: delete read error codes from engine memory after diagnosis and repair.
  • Display live data: monitor real-time engine parameters such as RPM, engine temperature, and fuel pressure during operation.
  • Request system identification: read engine identification data such as engine number and engine control software version.
  • Please note: OBDSTAR software support varies depending on engine type and model year.

Compatible vehicles and applications

The 9-pin round diagnostic connector is what matters, not the engine model. The manufacturers listed below use this connector. OBDSTAR does not specify particular models with production years.

  • Cummins MerCruiser Diesel: marine diesel engines with 9-pin round diagnostic connector
  • Kohler Power Systems: marine engines with 9-pin round diagnostic connector
  • Mercury Diesel: marine diesel engines with 9-pin round diagnostic connector
  • VM Motori: marine diesel engines with 9-pin round diagnostic connector
💡
Good to know: The 9-pin round diagnostic connector is typically located directly on or near the marine diesel engine housing; exact location varies by engine type and manufacturer. Verify your engine brand is listed above before ordering.

Package contents

  • 1x OBDSTAR (M078) | Universal 9-pin OBD to 16-pin OBD2 Adapter Cable | Marine Engine

Technical specifications

Specification Description
Brand OBDSTAR
SKU M078
Type Adapter Cable
Application 9-pin round diagnostic connector on marine diesel engines
Vehicle-side Connection Universal 9-pin OBD
Device-side Connection 16-pin OBD2
Communication CAN and K-line
Control Units Marine diesel engine management system
Segment Motorboat
Supported Brands Cummins MerCruiser Diesel, Kohler Power Systems, Mercury Diesel and VM Motori
Model Range Not limited by year of manufacture; determined by the presence of the 9-pin round diagnostic connector
Required to Use OBDSTAR diagnostic scanner with marine coverage, such as the Marine Master or an iScan version
Additional Requirements None; the cable operates without adapter or external power
Weight 0.2 kg
