OBDSTAR  |  SKU: M060

OBDSTAR (M060) | Mercury 10-pins OBD – 16-pins OBD2 Adapter Cable | Motorboat

€24,95 incl.
€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

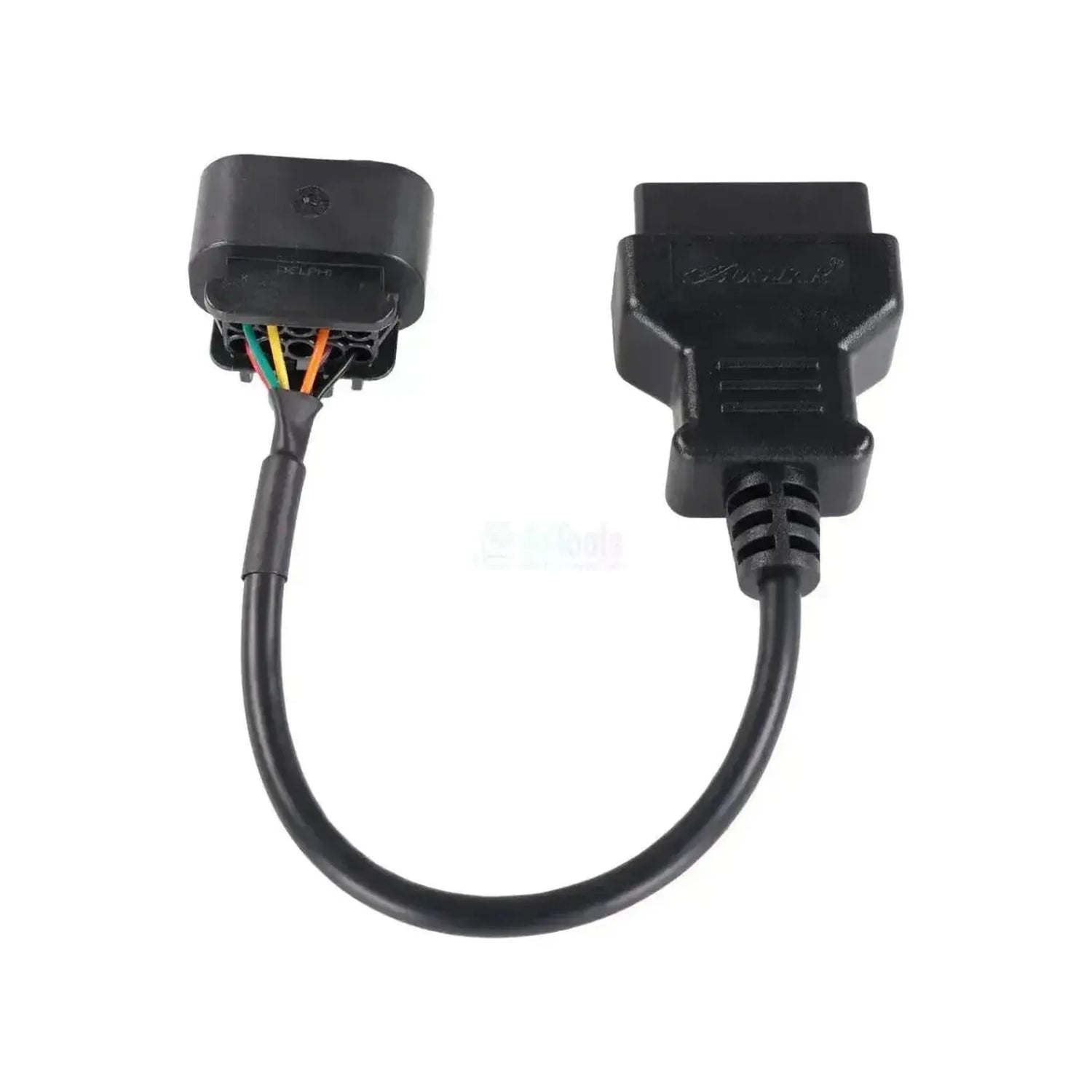

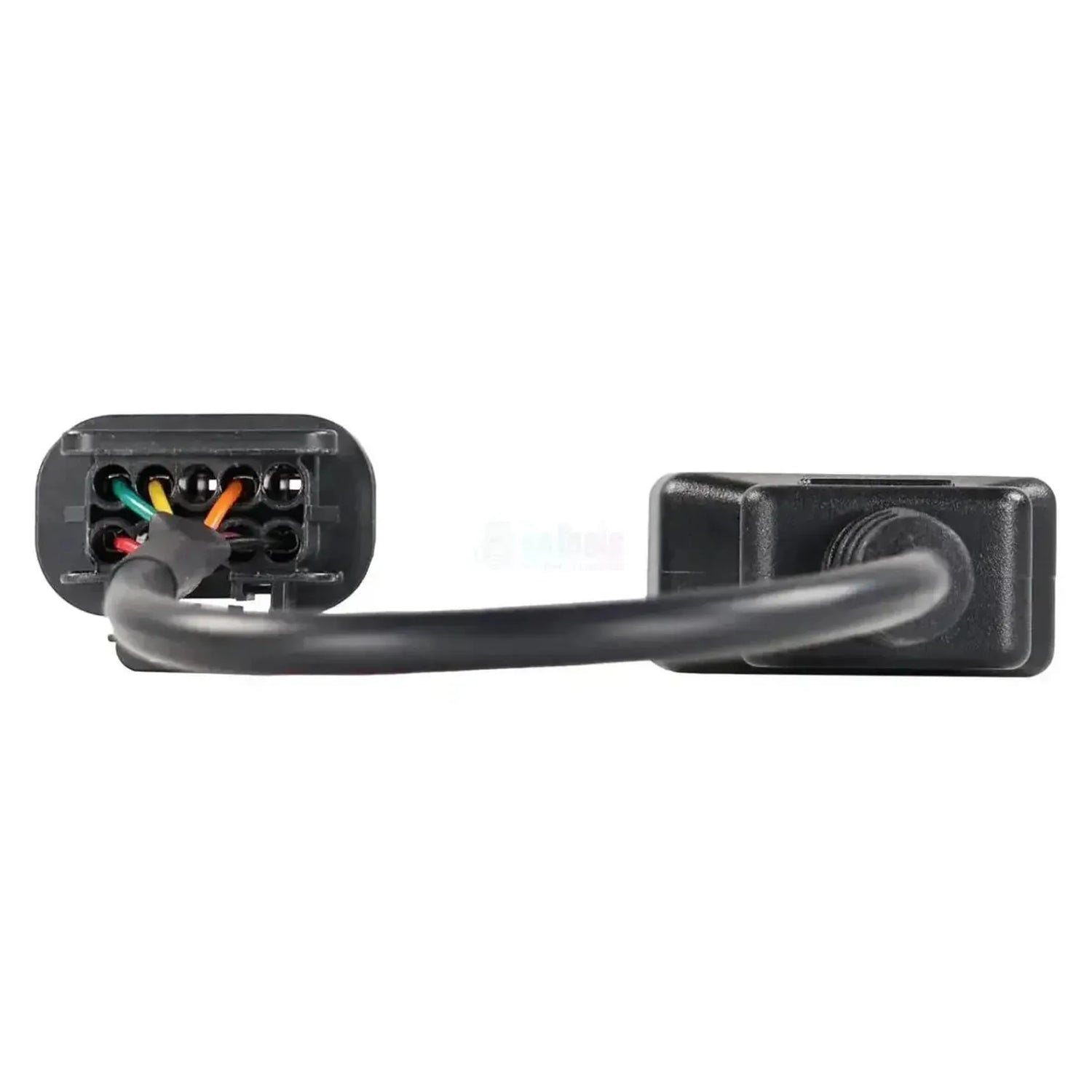

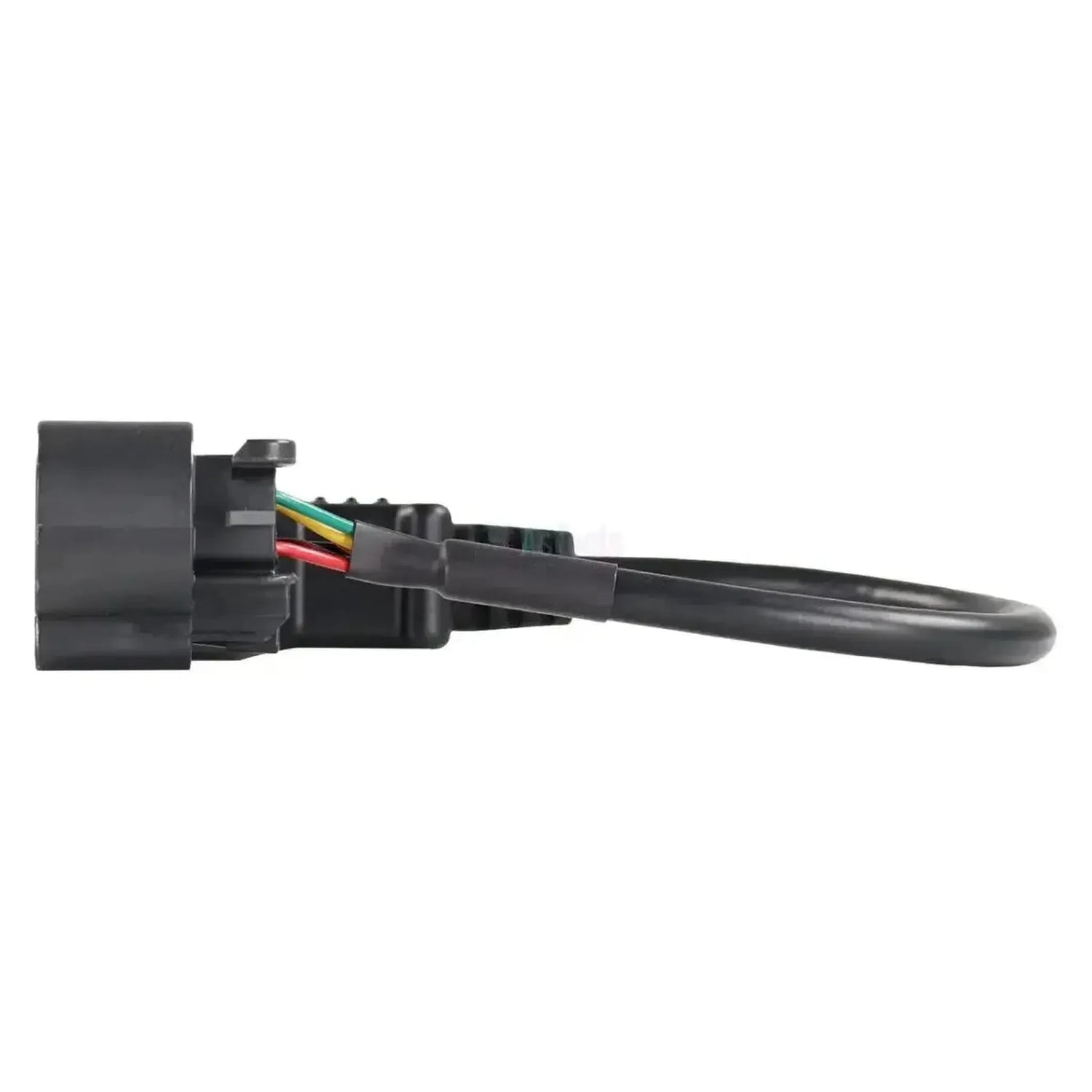

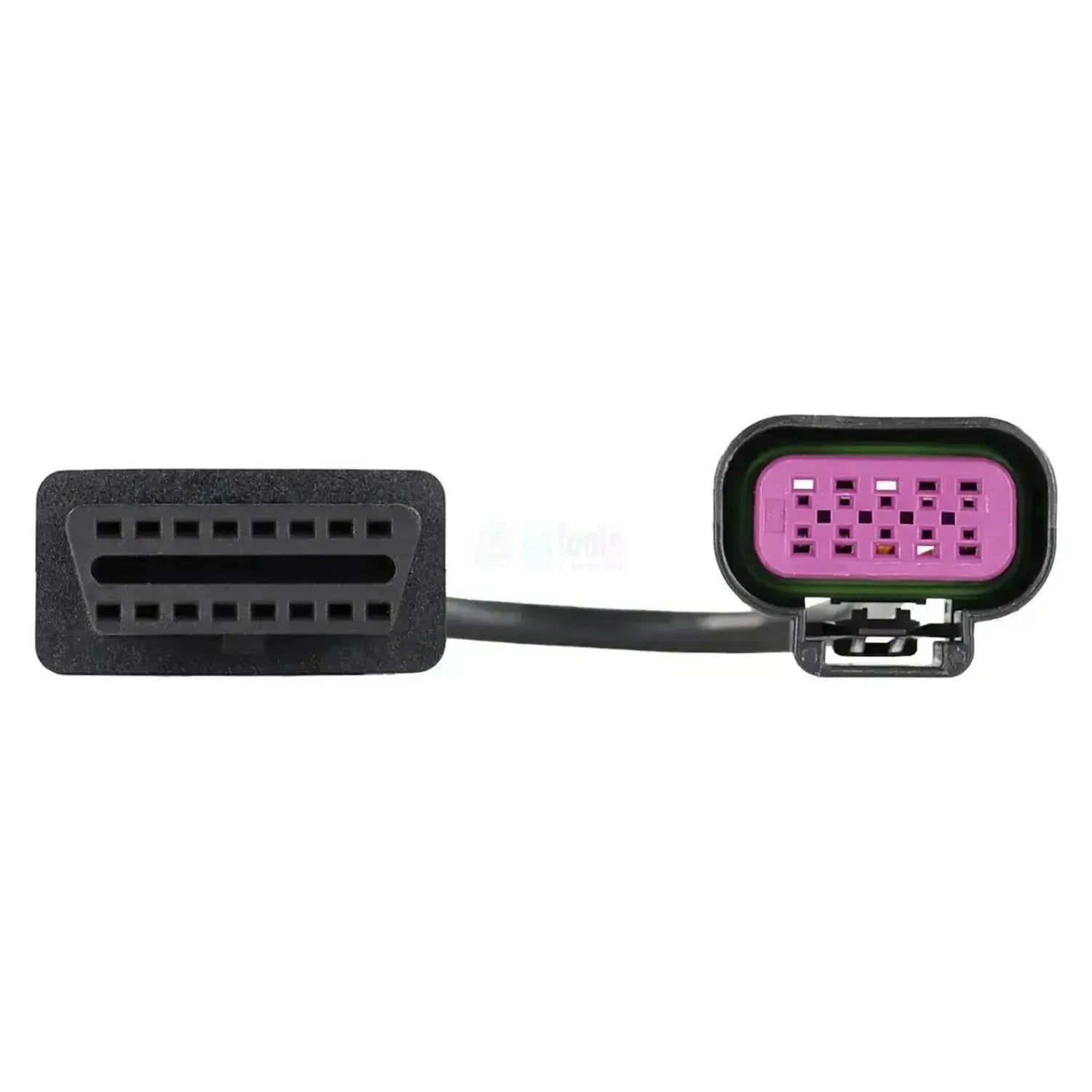

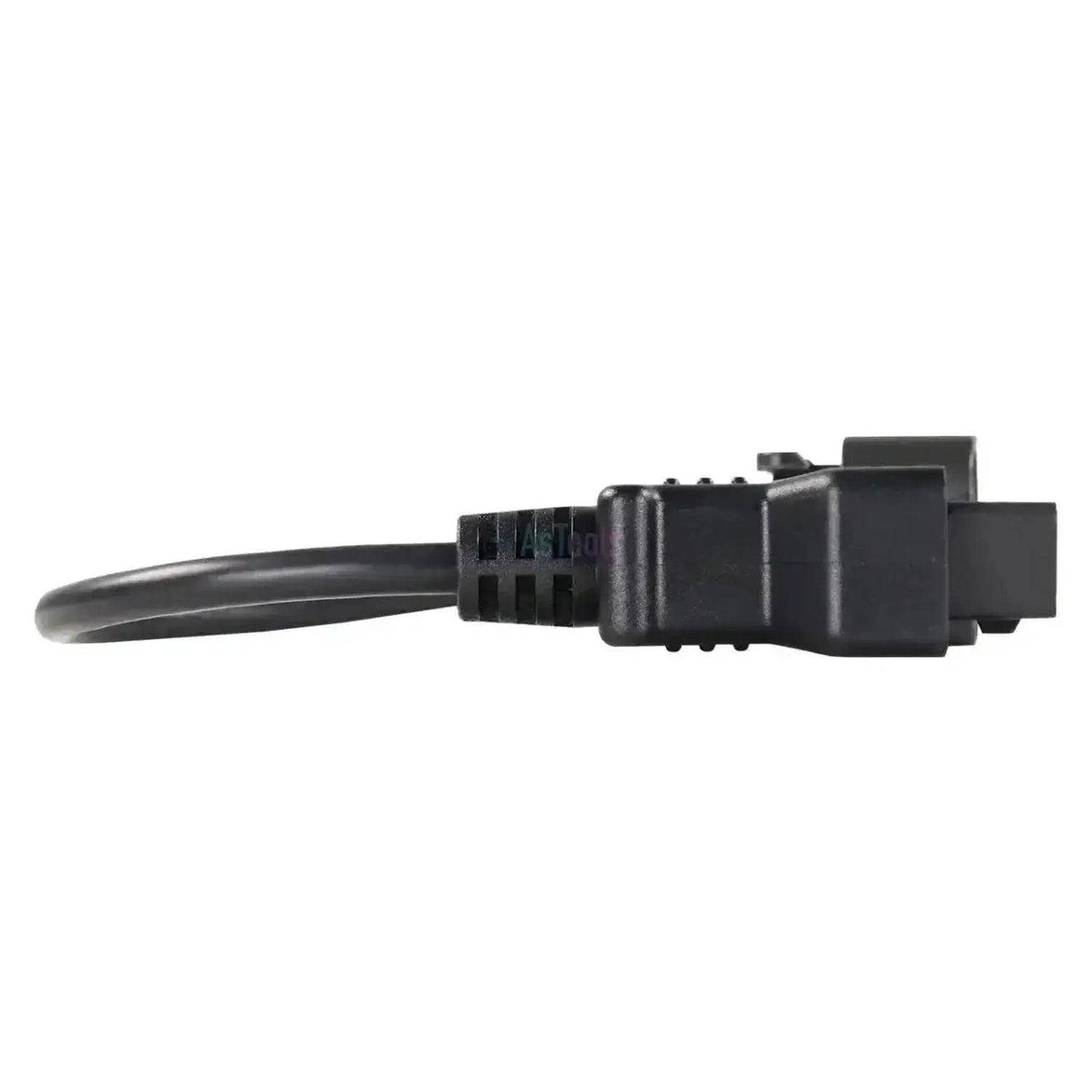

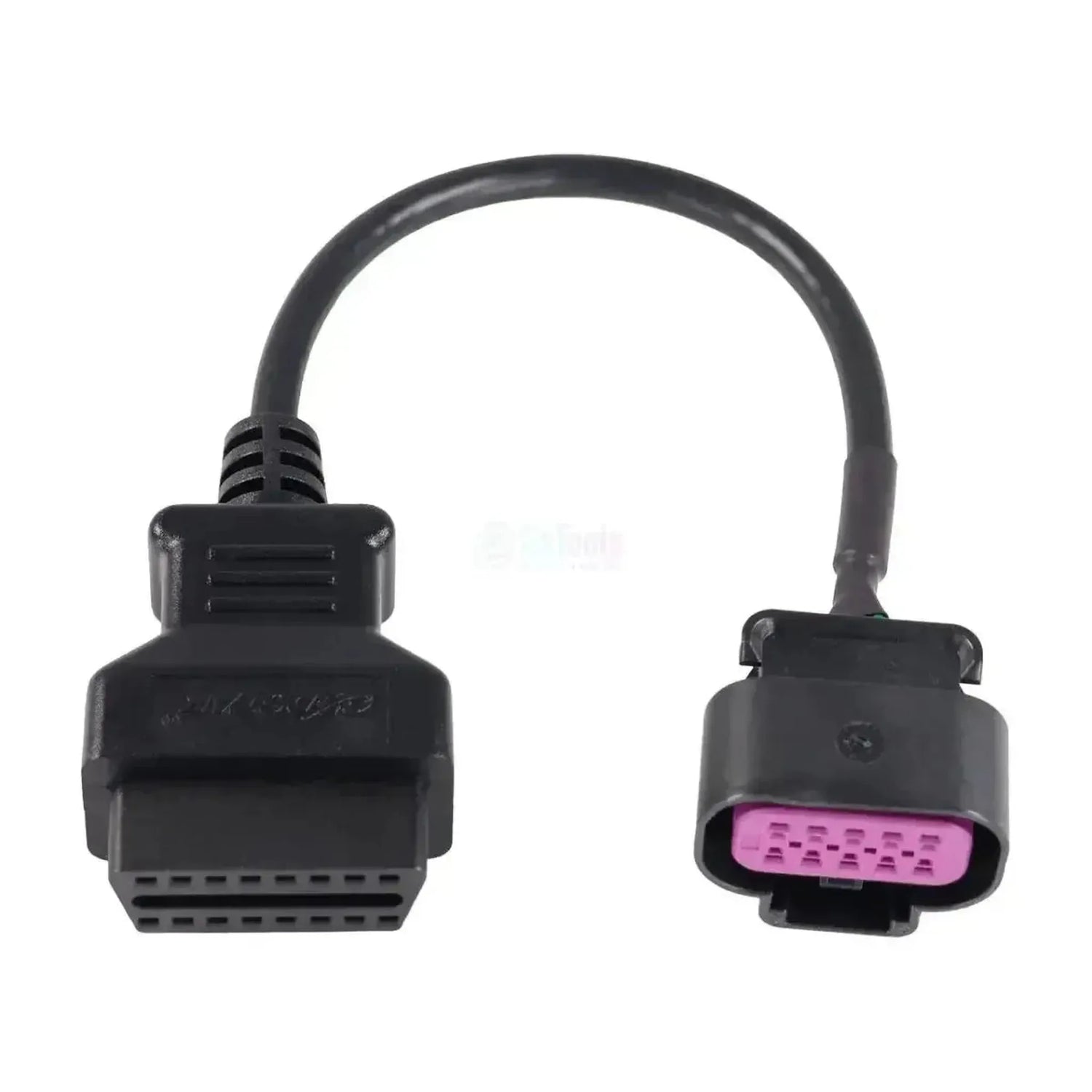

The OBDSTAR M060 is an adapter cable that converts a Mercury 10-pin diagnostic connector to a standard 16-pin OBD2 (J1962) plug. The cable is intended for use with Mercury marine engines equipped with a proprietary 10-pin diagnostic connector and therefore cannot be directly connected to an OBD2 diagnostic cable. The adapter cable is exclusively compatible with OBDSTAR diagnostic devices or programmers.

The cable connects the 10-pin Mercury diagnostic connector on the motorboat to the 16-pin OBD2 input of the OBDSTAR device. Through this connection, signals from the Mercury Engine Control Unit (ECU) are transmitted to the diagnostic device, allowing diagnosis of the outboard or inboard engine. The pin configuration of the Mercury 10-pin connector differs from the OBD2 standard; the adapter cable ensures correct pin assignment so communication via the CAN bus or K-line protocol can be established.

ADVANTAGES

✔ Enables OBD2 diagnosis on Mercury engines that have a non-standard 10-pin diagnostic connector.
✔ Ensures correct pin assignment between the Mercury connector and the J1962 OBD2 port of the diagnostic device.
✔ Suitable for diagnosing both outboard and inboard engines from Mercury.

KEY POINTS

✕ The adapter cable is exclusively compatible with OBDSTAR diagnostic devices or programmers and does not work with diagnostic equipment from other brands.
✕ Not intended for use on road vehicles or other engine brands; the cable is specifically designed for Mercury marine applications.
✕ The available diagnostic functions depend on the connected OBDSTAR device and the supported software version.

Applications and functionalities

The OBDSTAR M060 Adapter Cable enables the following diagnostic functions on Mercury marine engines via an OBDSTAR device:

  • Error code diagnosis: Reading and clearing stored fault codes (DTCs) from the Mercury ECU, allowing quick identification of engine problems.
  • Live data measurement: Display of real-time engine parameters such as RPM, engine temperature, and fuel pressure directly from the control unit of the outboard or inboard motor.
  • ECU communication: Establishing a diagnostic communication connection via CAN bus or K-line between the OBDSTAR device and the Mercury engine management ECU.

Compatible vehicles and applications

The compatibility below is based on the use of the Mercury 10-pin diagnostic connector in marine applications. Only Mercury motorboat engines equipped with the 10-pin diagnostic connector are supported.

Mercury:

  • Outboard motors with 10-pin OBD connection: (refer to the OBDSTAR compatibility list for specific model years and power classes)
  • Inboard motors (MerCruiser) with 10-pin OBD connection: (refer to the OBDSTAR compatibility list for specific model years and engine types)
💡
Good to know: The 10-pin Mercury diagnostic connector is usually located on the wiring harness of the outboard motor or in the engine compartment for inboard motors. The exact location varies by engine type and model year.

Package Contents

  • 1x OBDSTAR (M060) | Mercury 10-pin OBD – 16-pin OBD2 Adapter Cable | Motorboat
