OBDSTAR  |  SKU: M019

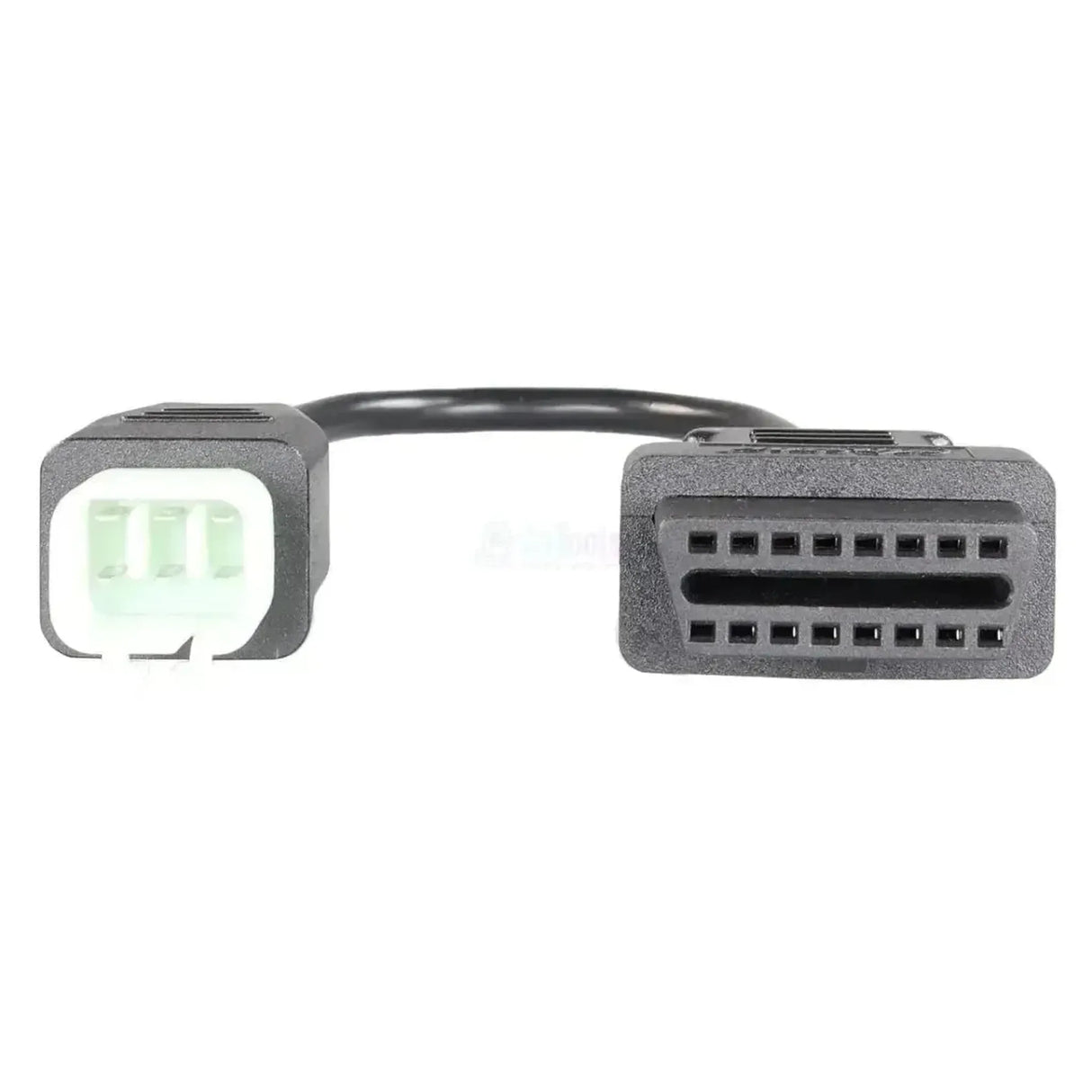

OBDSTAR (M019) | KTM 6-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

5,0 1 review
€24,95 incl.
€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

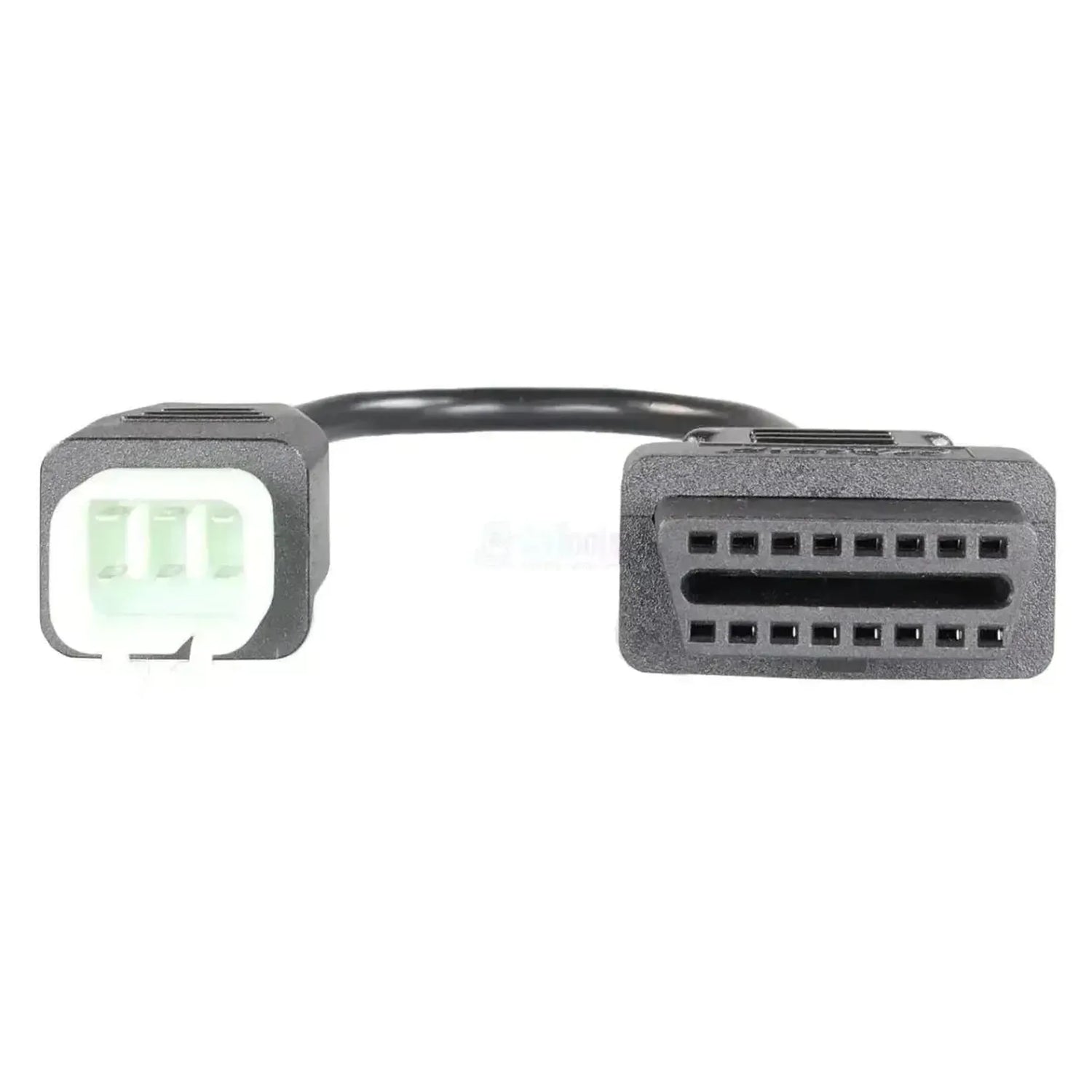

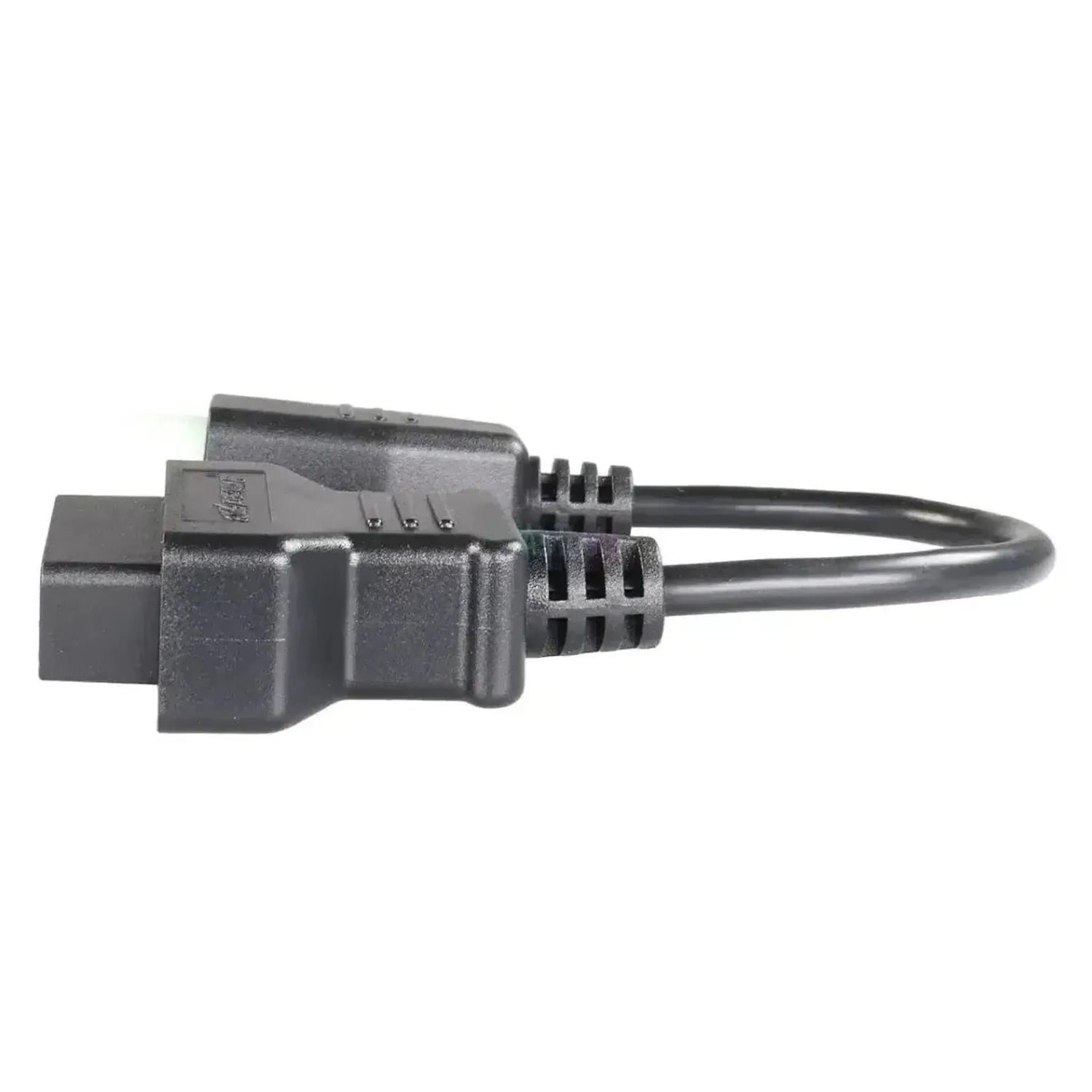

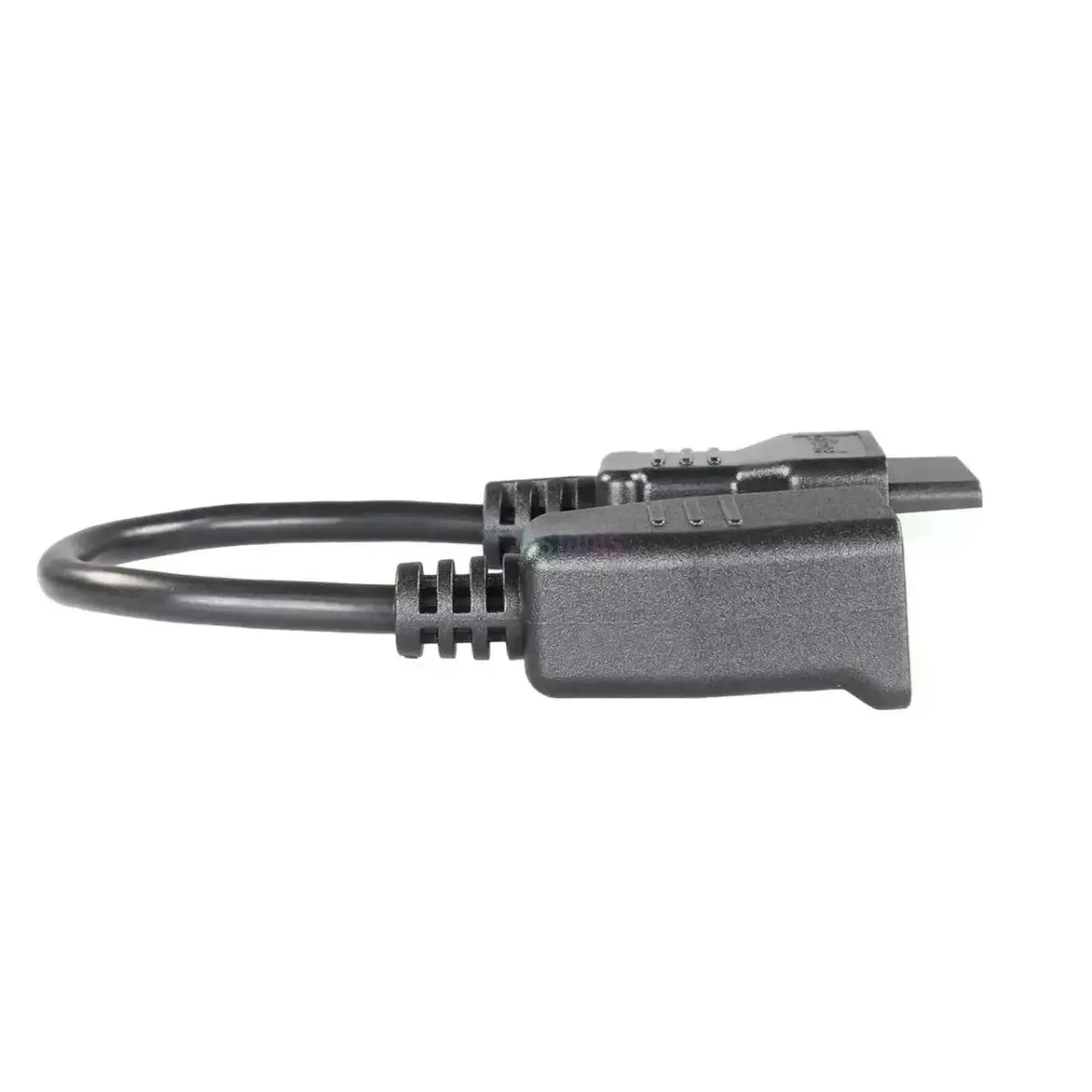

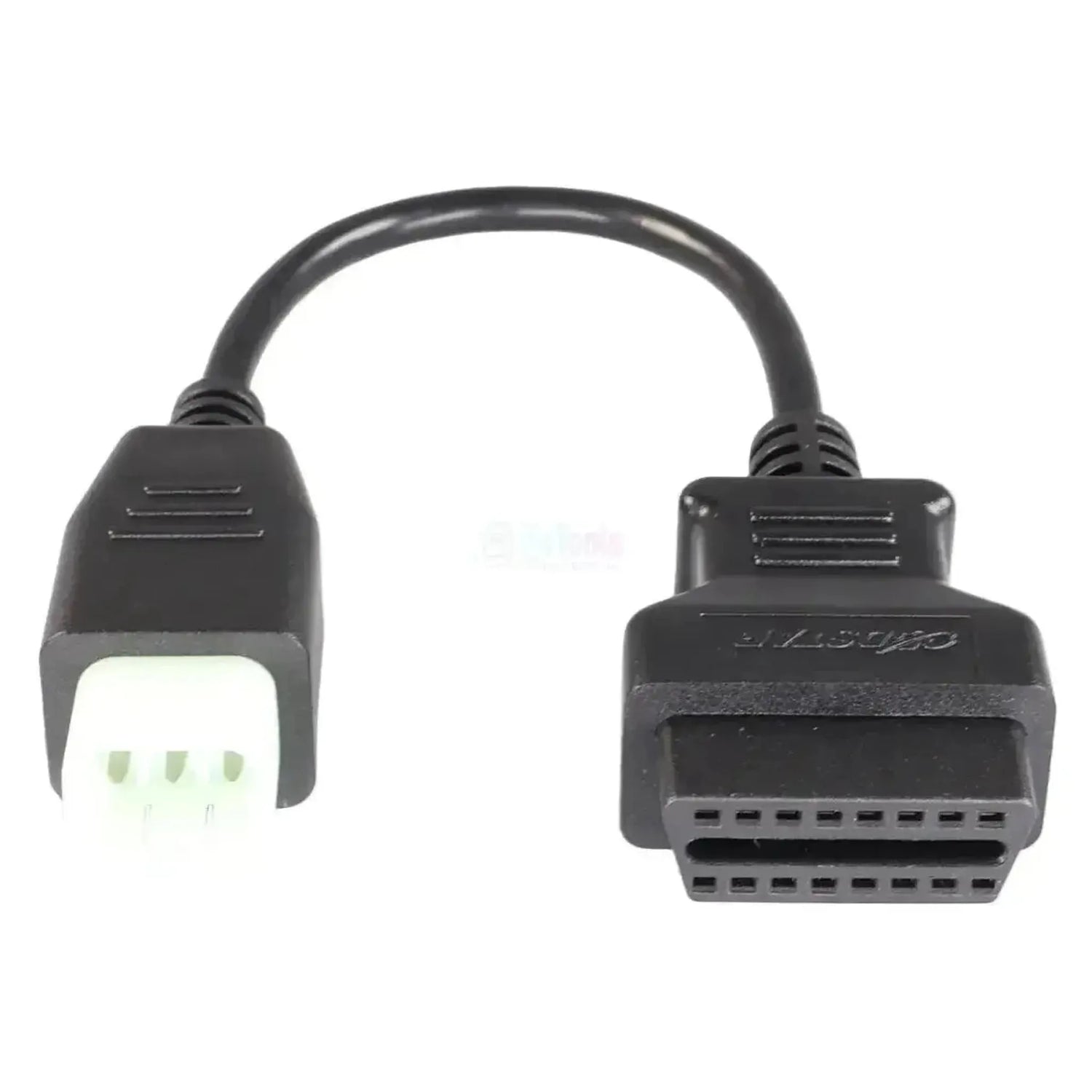

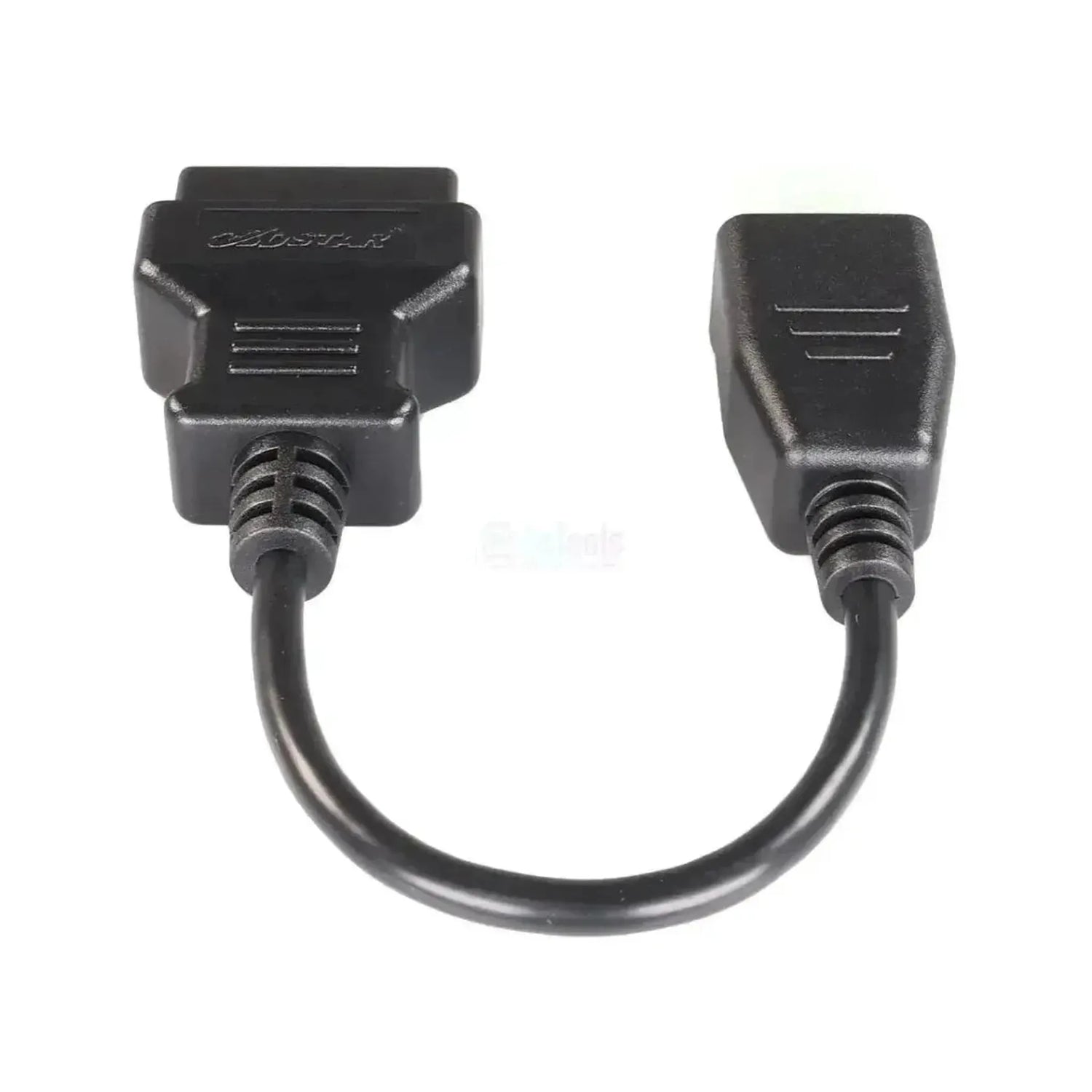

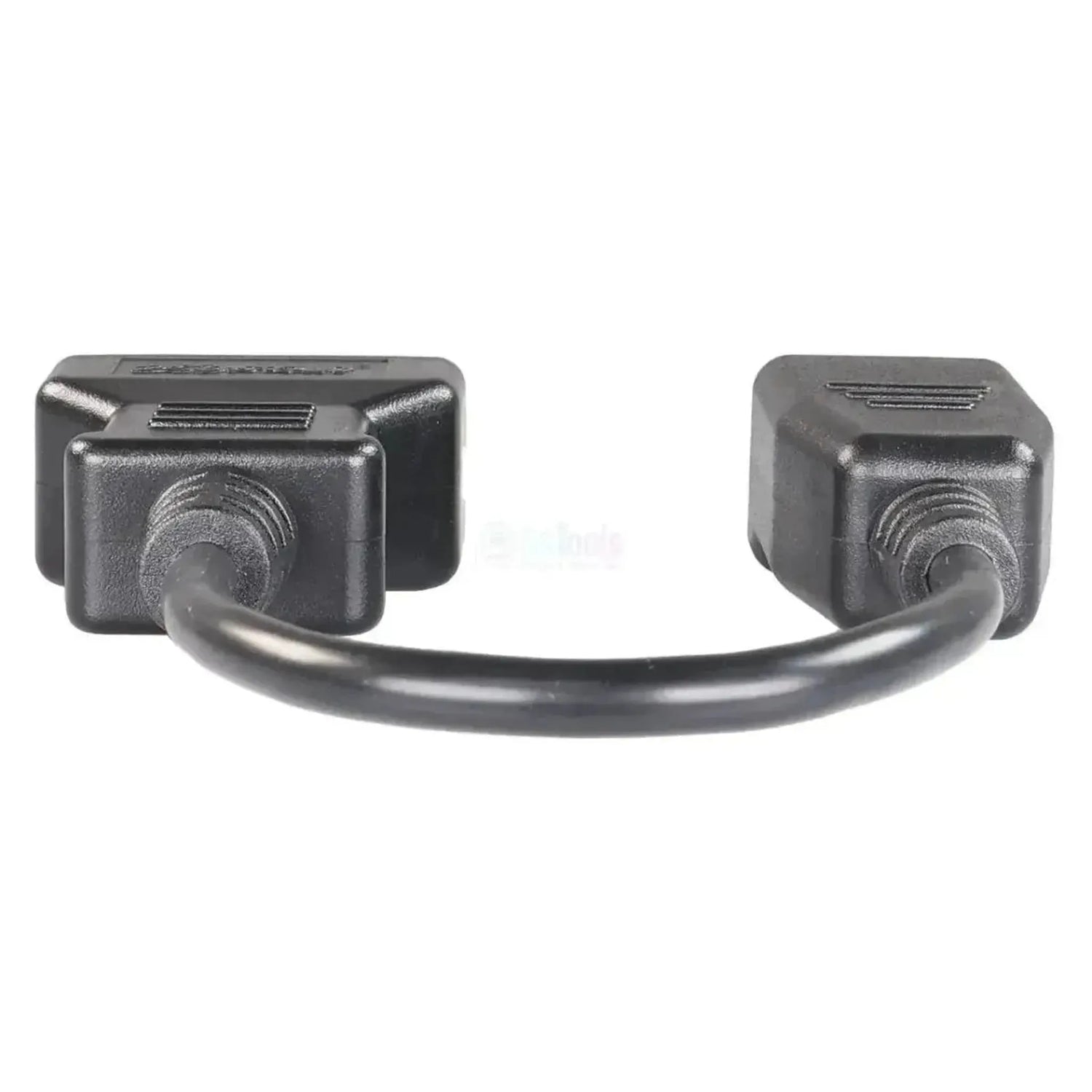

The OBDSTAR M019 adapts the 6-pin diagnostic connector from KTM to the 16-pin OBD2 (J1962) port on your OBDSTAR equipment. On the vehicle side, a compact 6-pole connector fits the diagnostic socket of the motorcycle.

KTM uses a proprietary 6-pin diagnostic connector on many of its models instead of the standard automotive OBD2 connector. The cable is passively wired: the pins are physically connected according to the KTM pin assignment, with no active signal or protocol conversion. Diagnostic communication therefore reaches the device unmodified. Through the cable, you access the engine control unit of the motorcycle. Supported programming or immobiliser functions come from the device itself and depend on the software licence; the cable adds no additional coverage.

KEY BENEFITS

✔Fits the KTM diagnostic connector — the 6-pin connector follows the KTM pin assignment, ensuring a secure connection to the vehicle socket.
✔Broad KTM model range — from the Duke series to Adventure and RC models equipped with the 6-pin connector.
✔Passive connection — no active electronics in the cable; signals pass through unmodified to the device.
✔Compact workshop setup — the short cable length keeps your diagnostic or programming station organised and tidy.

LIMITATIONS

✕6-pin KTM connector only — models with different connector configurations cannot be connected with this cable.
✕Immobiliser functions require a software module — key and transponder coding is only possible if your device includes the KTM module.
✕OBDSTAR equipment only — use with diagnostic equipment from other manufacturers is not supported.
✕Does not add vehicle coverage — available functions are determined by your device's software and licence.

Applications and functionality

This connection gives you access to the engine control electronics of KTM motorcycles.

Control units you can reach

  • Engine control unit: The control unit connected to the 6-pin diagnostic connector.
  • Immobiliser system: On supported models and with the correct software module, also the key and transponder component.

What you can do

  • Read fault codes: Retrieve stored diagnostic trouble codes (DTCs) from the engine control unit.
  • Clear fault codes: Erase the fault memory of the control unit after diagnosis.
  • Request vehicle data: View live data and parameter values, such as sensor readings and driving conditions.
  • Immobiliser functions: Perform key and transponder coding, depending on your device and the available software module for KTM.
  • Note: Available functions depend on the connected OBDSTAR device and its associated software licence.

Compatible vehicles and applications

The 6-pin diagnostic connector is the determining factor, not the model. The KTM models listed below are equipped with this connector and work in combination with OBDSTAR diagnostic hardware.

KTM:

  • Duke 125: (2011–present)
  • Duke 200: (2011–present)
  • Duke 390: (2013–present)
  • Duke 690: (2012–present)
  • Duke 790: (2018–present)
  • Duke 890: (2020–present)
  • Duke 1290 Super Duke R: (2014–present)
  • RC 125 / RC 200 / RC 390: (2014–present)
  • Adventure 390: (2020–present)
  • Adventure 790: (2019–present)
  • Adventure 890: (2021–present)
  • Adventure 1090 / 1190 / 1290: (2013–present)
💡
Useful to know: The 6-pin diagnostic connector on KTM motorcycles is typically located beneath the seat or near the steering area; consult the vehicle-specific wiring diagram for the exact location. Verify that your KTM is equipped with the 6-pin connector before ordering.

Package contents

  • 1x OBDSTAR (M019) | KTM 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

Specification Description
Brand OBDSTAR
Part number M019
Type Adapter cable
Application KTM motorcycles with 6-pin diagnostic connector
Vehicle-side connector KTM 6-pin OBD
Device-side connector 16-pin OBD2 (J1962)
Control units Engine control unit; immobiliser system on supported models
Segment Motorcycle
Supported brands KTM
Model range KTM models from 2011 onwards, provided they are equipped with the 6-pin diagnostic connector
Required to use OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster
Additional requirements None; the cable operates without adapter or separate power supply
Weight 0.1 kg
