OBDSTAR | SKU: M068

OBDSTAR (M068) | Kawasaki 4-pins OBD – 16-pins OBD2 Adapter Cable | Jet Ski

Name: OBDSTAR (M068) | Kawasaki 4-pins OBD – 16-pins OBD2 Adapter Cable | Jet Ski
Brand: OBDSTAR
SKU: M068
Price: 24.95 EUR
Availability: InStock

€24,95 incl.

€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

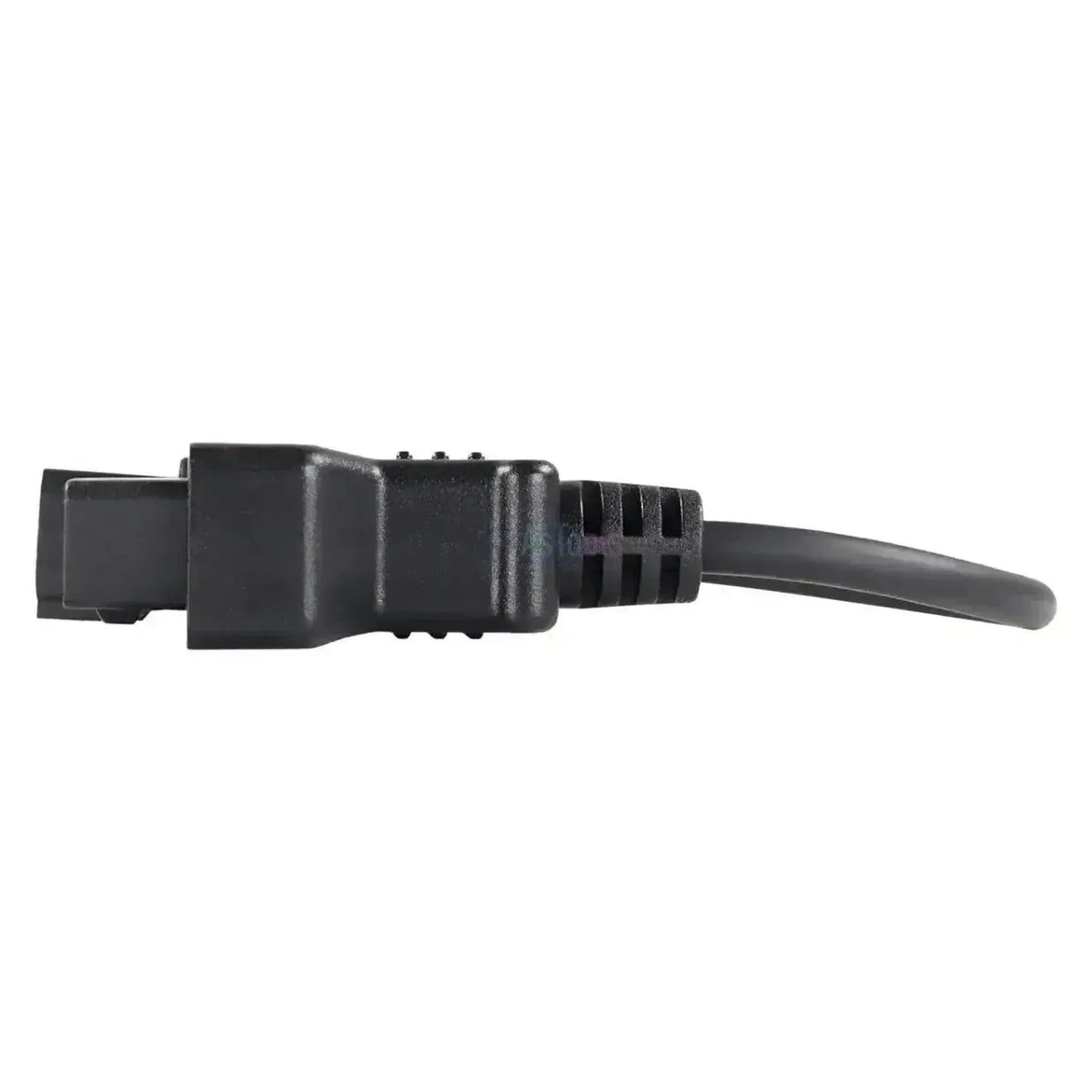

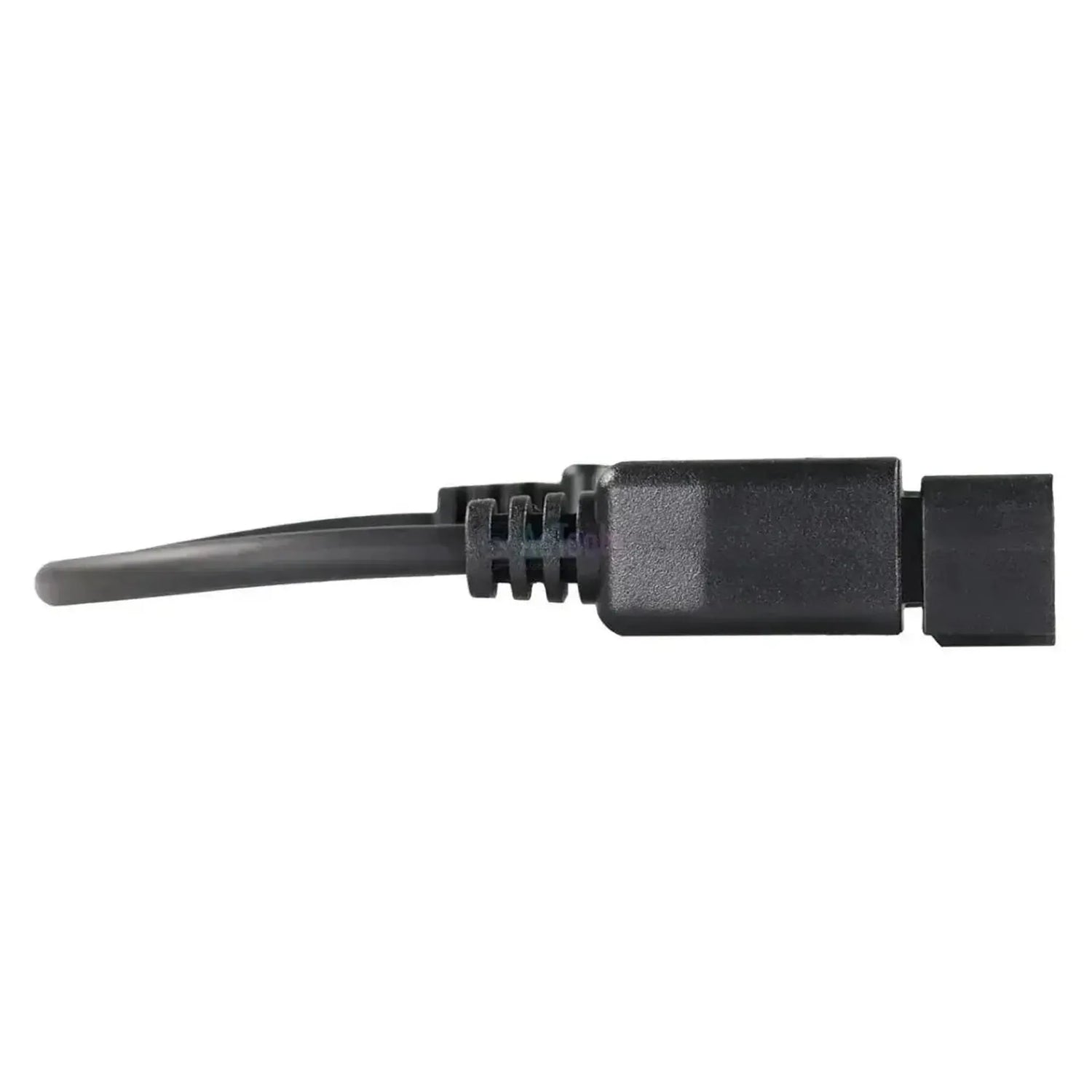

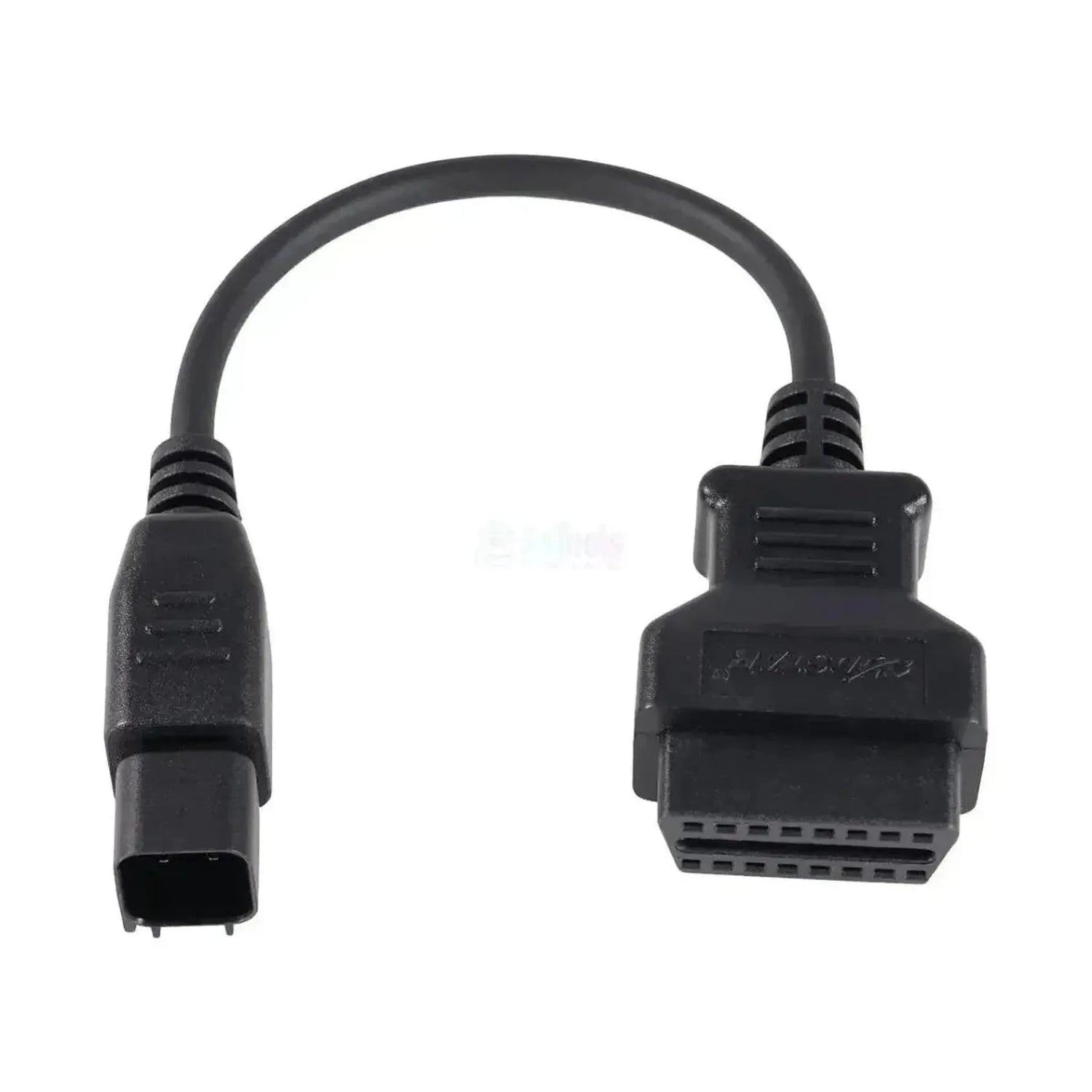

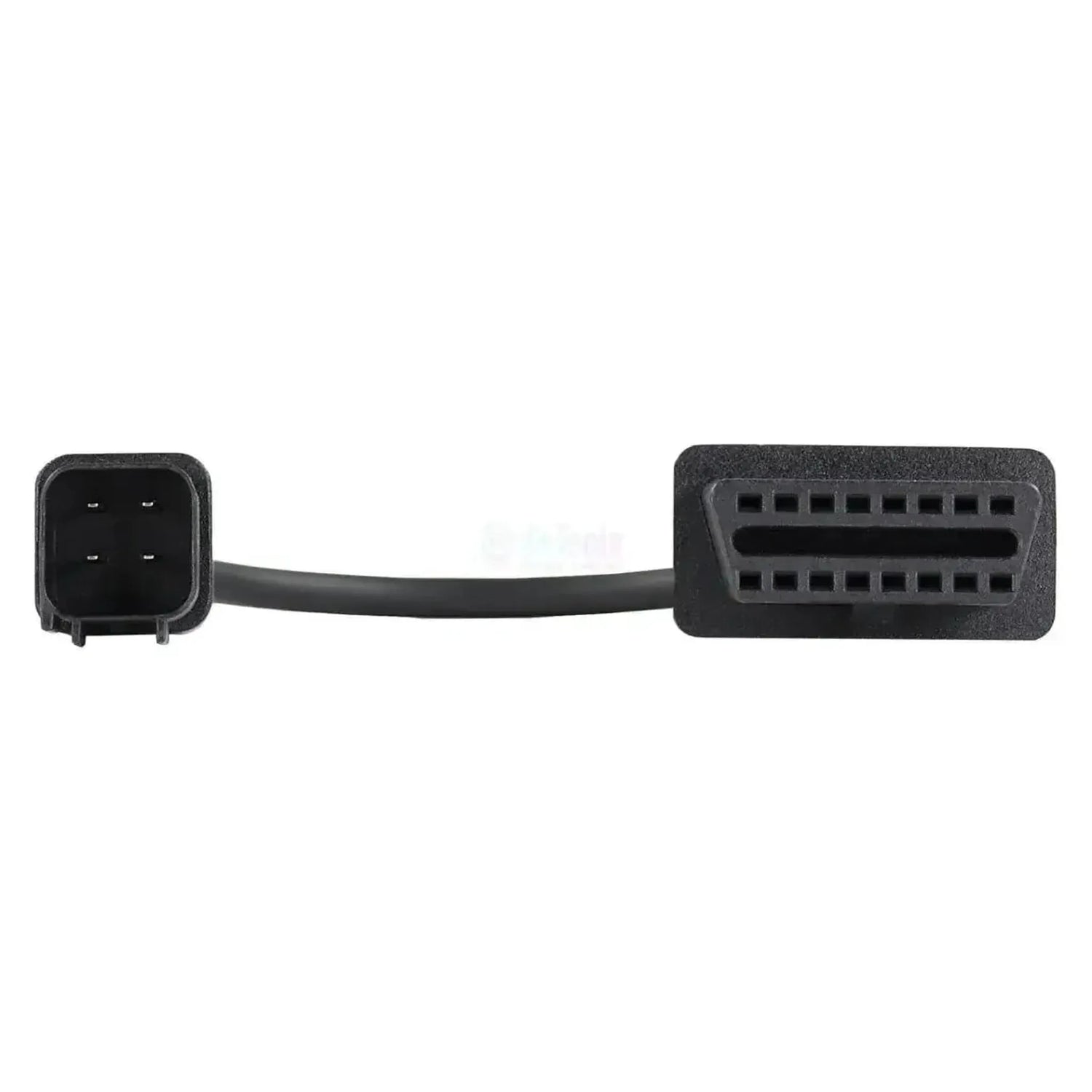

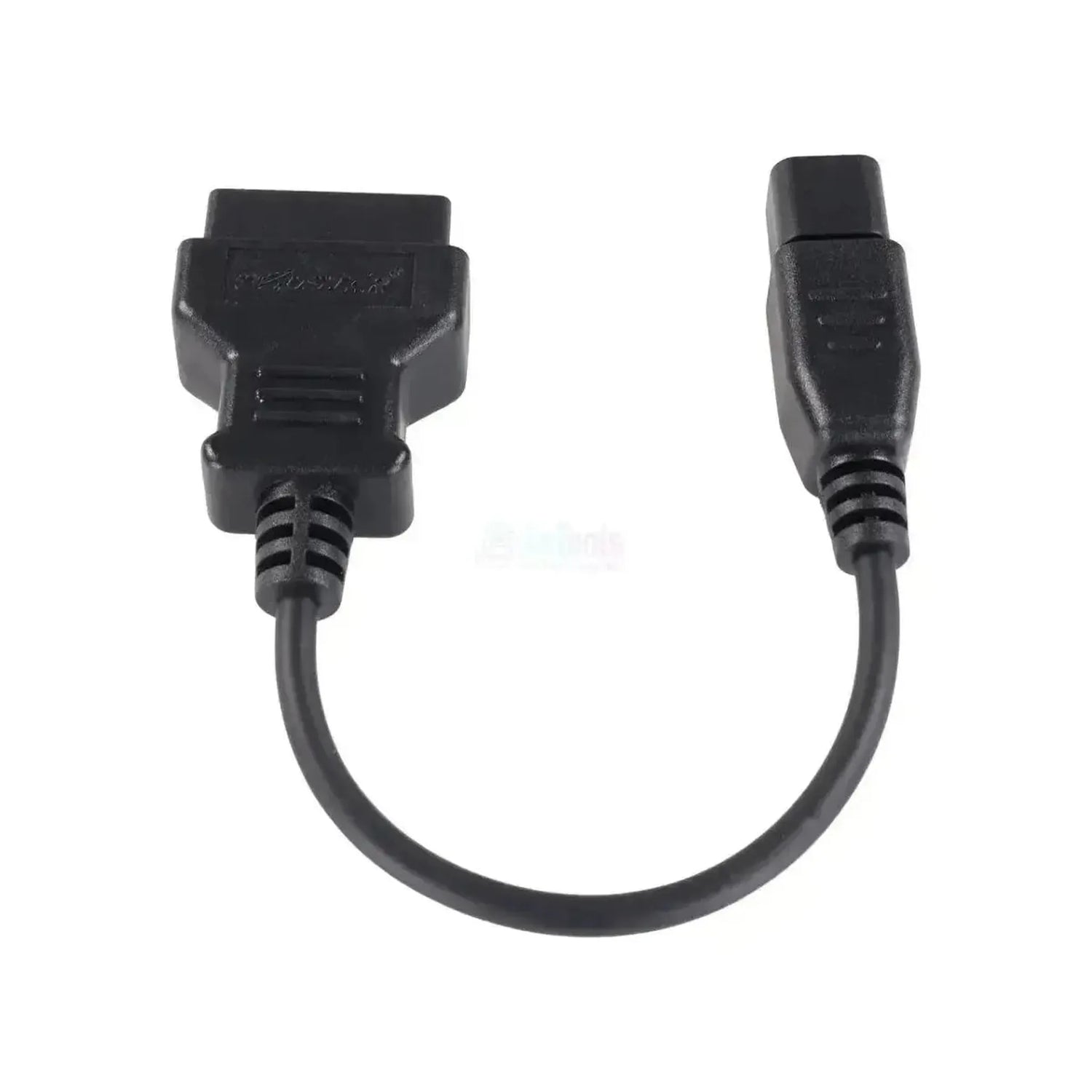

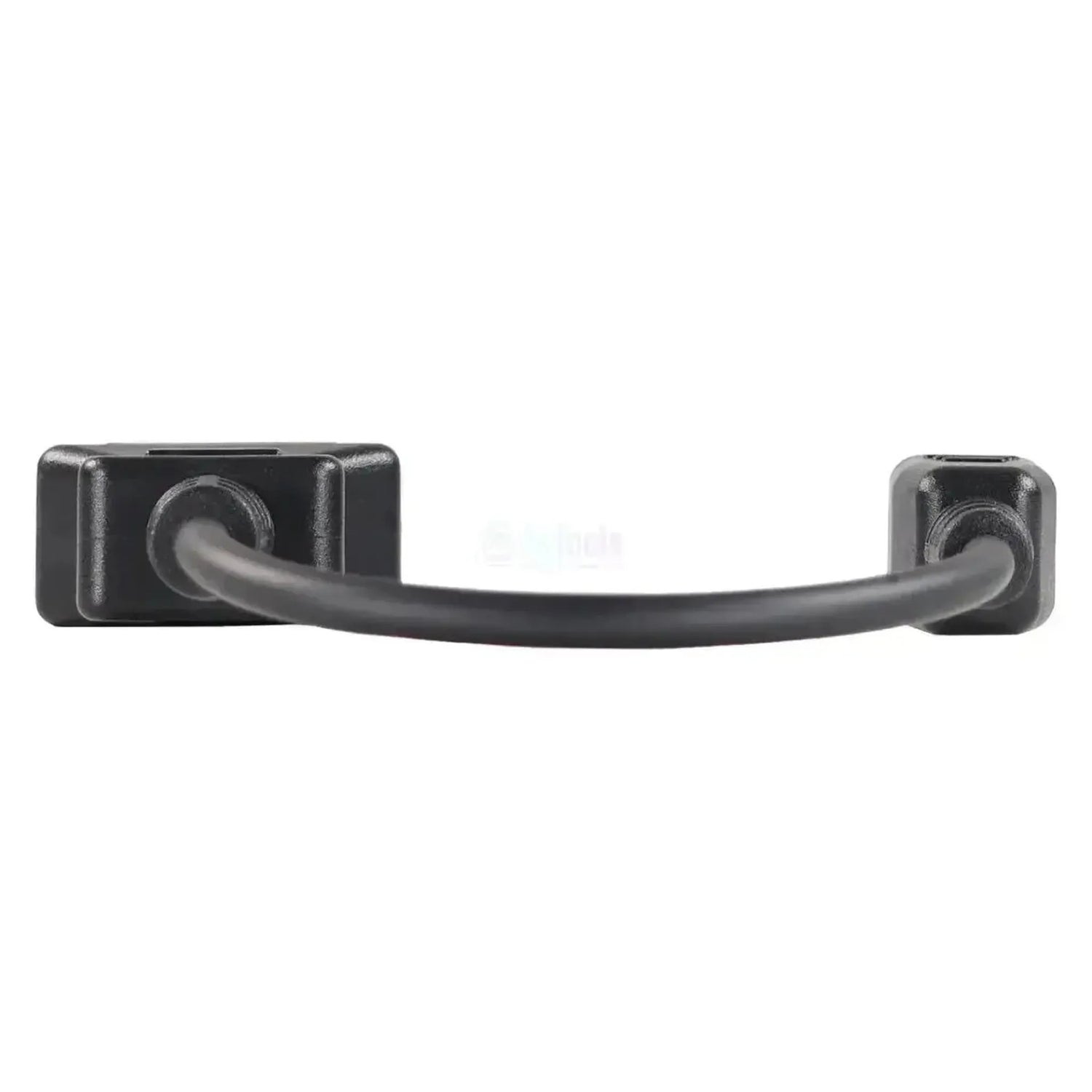

The OBDSTAR M068 is the adapter cable for the 4-pin diagnostic port on Kawasaki jet skis. One end features the manufacturer's proprietary 4-pin connector, while the other end connects to the 16-pin OBD2 (J1962) connector on your OBDSTAR diagnostic device. On the vehicle side, the cable plugs into the jet ski's diagnostic port, which provides access to the engine control system.

Kawasaki has never used the standard automotive OBD2 connector on its jet ski line; instead, it employs a proprietary 4-pin connector. The pin configuration is manufacturer-specific and differs from the international OBD2 standard, which is why a standard OBD2 cable won't work here — this adapter cable is essential for proper signal transmission.

The cable establishes a connection to the jet ski's engine control system only. Which fault codes, sensor readings, and other functions you can actually access depends on your OBDSTAR device's software and the supported protocols for that particular model — the cable itself doesn't add any additional coverage.

KEY BENEFITS

✔Direct connection to the 4-pin jet ski port — the cable plugs in without requiring any modifications or alterations to your watercraft.

✔Standard OBD2 connector — the 16-pin end connects directly to your OBDSTAR device's diagnostic input; no intermediate adapter needed.

✔Covers an extensive model range — from the 2004 STX-15F through the latest Ultra 310 and SX-R models, Kawasaki maintained the same 4-pin connection.

✔For a segment without standardized ports — in jet ski diagnostics, standard OBD2 cables cannot be used due to the different connector design.

IMPORTANT NOTES

✕Not for Kawasaki motorcycles — this cable is designed exclusively for jet skis with the 4-pin port; motorcycle connections from the brand require different cables.

✕Year and model don't determine compatibility — the presence of the 4-pin connector is what matters; verify it on your watercraft before purchasing.

✕Works only with OBDSTAR equipment — the cable is designed for OBDSTAR devices and programmers and is not compatible with diagnostic systems from other manufacturers.

✕No additional vehicle coverage — available functions depend on your device and the supported protocols for each model; the cable only establishes the connection.

Applications and Capabilities

Through this connection, you gain access to the jet ski's engine electronics.

Control units you can reach

Engine control system: the control unit connected to the jet ski's 4-pin diagnostic port.
Other control modules: whether additional control units are accessible alongside the engine management system varies by model and device.

What you can do

Read diagnostic trouble codes: retrieve fault codes (DTC) from the jet ski's engine management system via the converted 4-pin connection.
Clear diagnostic trouble codes: remove stored codes after diagnosis is complete.
Request live data: monitor sensor readings and system parameters in real time for diagnostic purposes.
Signal conversion: the manufacturer-specific 4-pin signal is converted to the 16-pin OBD2 format, enabling OBDSTAR communication.
Important note: what's available on each jet ski depends on the model and the OBDSTAR device being used.

Compatible vehicles and applications

The 4-pin OBD connector is what matters, not the model name. The Kawasaki jet skis listed below are equipped with that port. Before use, verify that your specific model and year actually has a 4-pin OBD connector.

Kawasaki:

STX-15F: (2004–2015)
Ultra 260X / 260LX: (2009–2010)
Ultra 300X / 300LX: (2011–2013)
Ultra 310X / 310LX / 310R: (2014–present)
SX-R 1500: (2017–present)

💡

Good to know: On Kawasaki jet skis, the 4-pin diagnostic port is typically located under a cover in the front compartment of the hull; consult your model's service manual for the exact location. Confirm your jet ski has the 4-pin connector before ordering.

Package contents

1x OBDSTAR (M068) | Kawasaki 4-pin OBD – 16-pin OBD2 Adapter Cable | Jet Ski

Technical specifications

Specification	Description
Brand	OBDSTAR
Item number	M068
Type	Adapter Cable
Application	Kawasaki 4-pin diagnostic port on jet skis
Vehicle-side connector	Kawasaki 4-pin OBD
Device-side connector	16-pin OBD2
Control units	Engine management system
Segment	Jet ski
Supported brands	Kawasaki
Model range	STX-15F from 2004 through current Ultra 310 and SX-R 1500 versions, provided they have the 4-pin connector
Required to use	OBDSTAR diagnostic scanner with marine coverage, such as the Marine Master or an iScan version
Additional requirements	None; the cable operates without an adapter or power supply
Weight	0.1 kg
