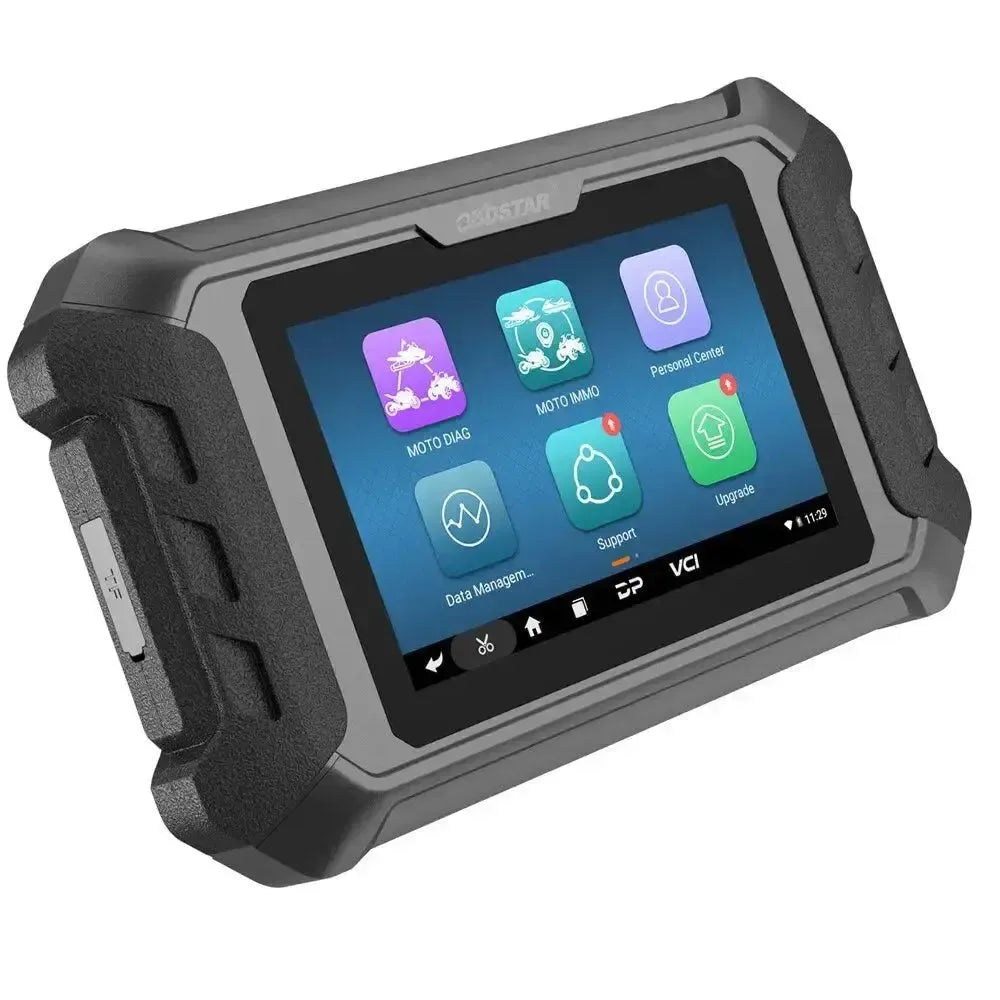

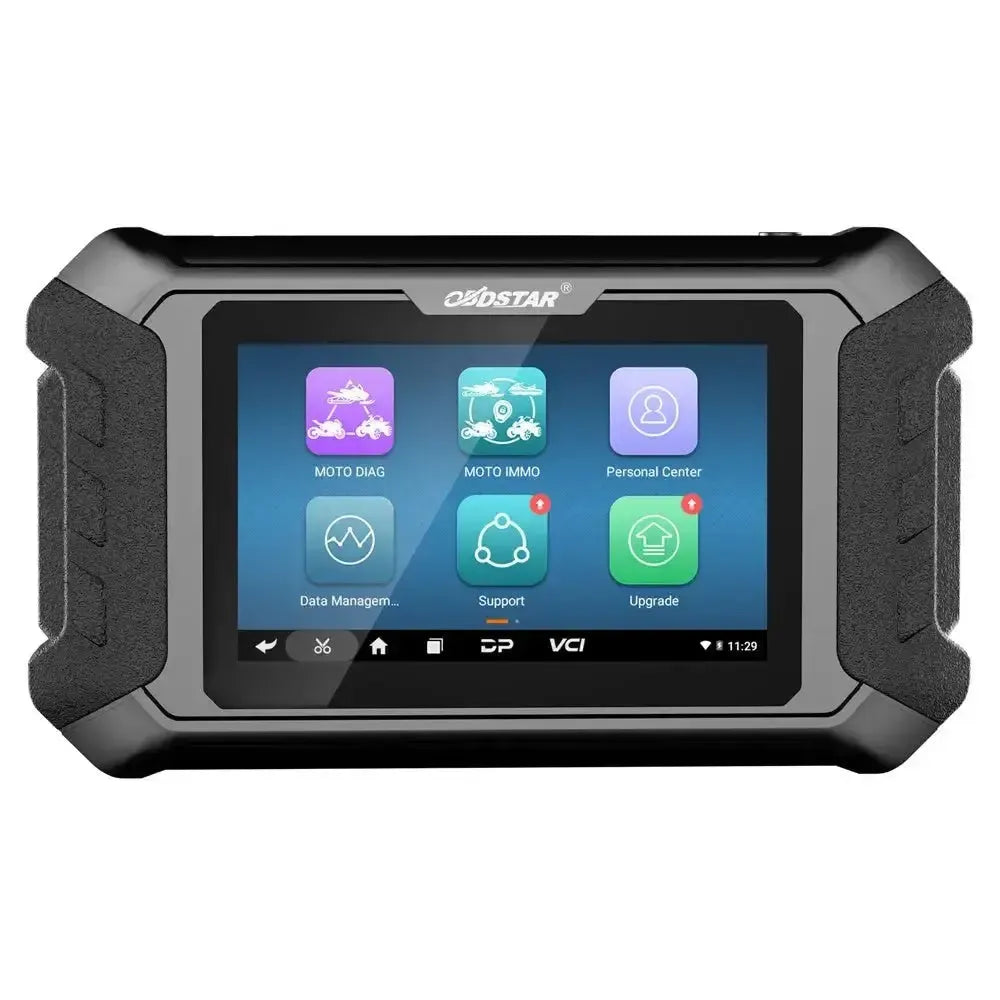

The OBDSTAR IScan Japan is a portable diagnostic tool specifically developed for diagnostics on Japanese motorcycles, scooters, ATVs, UTVs, and snowmobiles from Honda, Kawasaki, Suzuki, and Yamaha. The device features a 5.0-inch capacitive touchscreen, a RK3128 quad-core processor, and runs on Android 5.1.1. In addition to full diagnostic functions such as reading and clearing fault codes, live data streams, actuator tests, and coding, the device also supports key programming for the mentioned brands. The software license is valid for 1 year upon purchase.
The IScan Japan offers additional features such as automatic VIN recognition, automatic scanning, and menu-driven coding of control modules. The device supports live data display in text, waveform, and gauge formats, enabling quicker localization of sensor and component faults. Software updates can be installed directly via the WiFi connection, and the one-click remote function allows technical support remotely by OBDSTAR staff. Real-time data streams can be recorded and played back for later analysis.
ADVANTAGES
IMPORTANT NOTES
Diagnostic functions
The IScan Japan supports full diagnostics on the electronic control systems of Japanese motorcycles, scooters, ATVs, and UTVs. The functions below apply to all supported vehicle systems.
- Read fault codes: Read current and stored fault codes from control modules with corresponding descriptions.
- Clear fault codes: Remove stored fault codes after completed repair.
- Live data streams: Real-time display of sensor and actuator values in text, waveform, or gauge view.
- Actuator test: Activating actuators for functional checking of components.
- Read ECU information: Displaying module identification such as software version and part number.
- Coding: Modifying module configuration via menu-driven coding.
- Module settings: Adjusting parameters in control modules according to factory procedures.

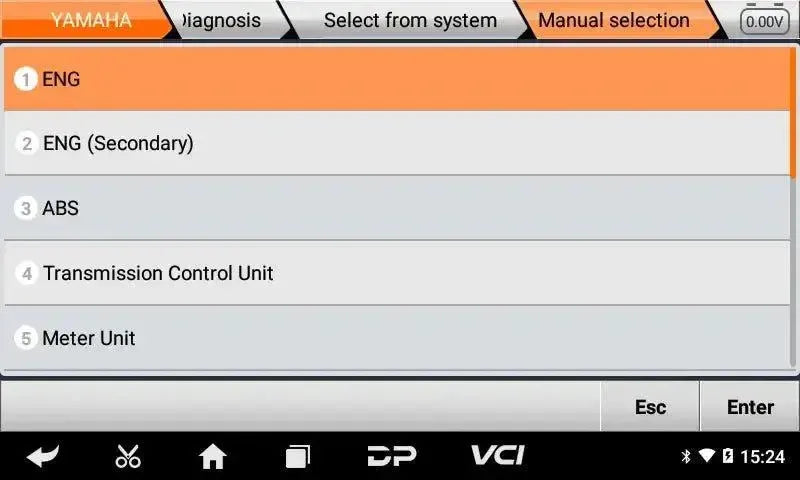

- Automatic scanning: Full system scan across all control modules present on the vehicle.
- Automatic VIN recognition: Automatically recognizing the frame number for faster vehicle identification.
- Record and playback data: Capturing live data streams during a test ride for later analysis.
Key and EEPROM functions
IScan Japan supports key programming for Honda, Kawasaki, Suzuki, and Yamaha. In combination with the optional P001 IMMO kit and P003+ IMMO adapter, advanced EEPROM and FLASH operations are also possible.
- Register key/remote control: Teaching new keys or remote controls to the immobilizer system.
- Immobilizer key registration: Registering keys in the motorcycle's IMMO module.
- Register steering lock unit: Learning a new steering lock unit after replacement.
- Register engine control unit: Pairing a replaced or new ECU with the IMMO system.
- Write frame number: Programming the VIN into the control module after ECU replacement.
- EEPROM and FLASH operations: Reading and writing data from engine ECUs via the optional P003+ Adapter, without soldering.
- ECU cloning: Cloning an ECU via the optional P001 IMMO kit.
Service and maintenance functions

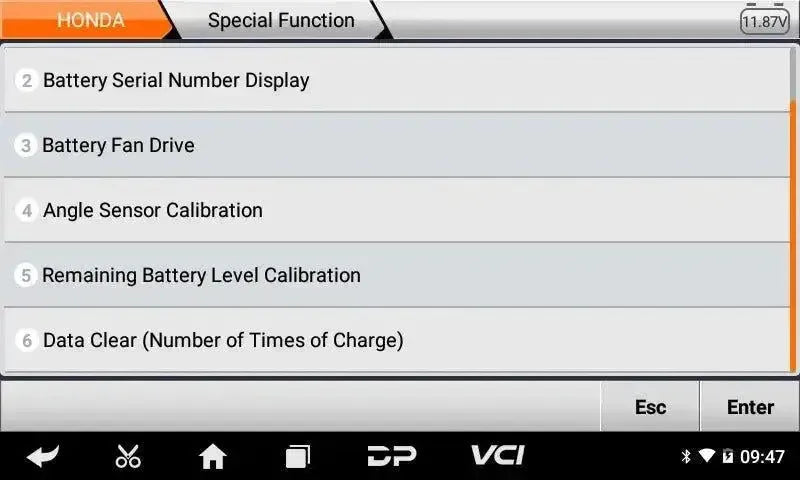

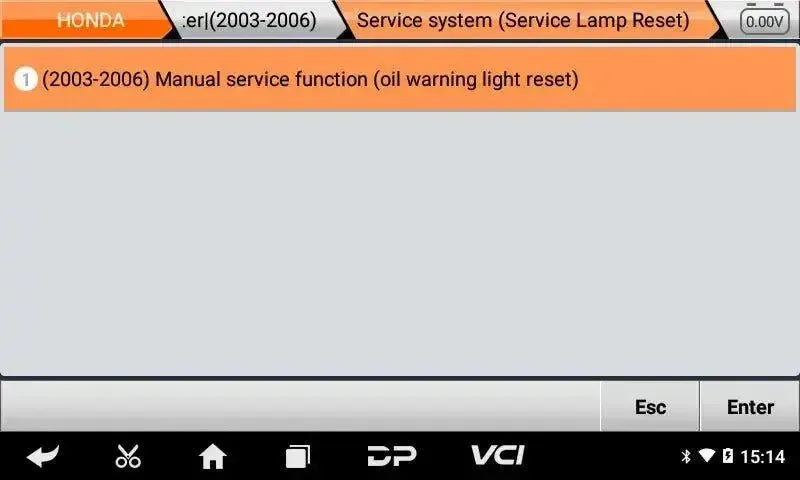

The IScan Japan supports multiple service and maintenance functions specifically tailored for motorcycles, scooters, ATVs, and UTVs. Available functions may vary by vehicle brand, model, and year.
Engine and drivetrain
- Adjust idle speed: Setting the engine's idle speed.
- Idle speed learning: Learning the standard values for idle speed after maintenance or repair.
- Throttle body learning value reset: Resetting learning values after cleaning or replacing the throttle body.
- Throttle valve position zero point reset: Resetting the zero position of the throttle valve.
- Throttle position sensor learning value reset: Resetting the learning values of the throttle position sensor.
- CO adjustment: Adjust the CO value for exhaust gas control.
- Lambda sensor learning value reset: Reset learning values of the lambda sensor.
- Oxygen sensor learning value reset: Reset learning values of the oxygen sensor.
- Ethanol index learning value reset: Reset learning values for the ethanol index in flex-fuel engines.
- Adjust correction value for ethanol fuel: Set the correction factor for ethanol fuel.
- Long-term fuel correction reset: Reset long-term fuel correction values.
- Engine running hours reset: Reset the engine running hours counter.
- Range reset: Reset the range calculation.
- Remove standard limit: Remove the standard set RPM or speed limit.
- Rotor angle sensor learning: Learn the rotor angle sensor after replacement or maintenance.
Transmission and drivetrain
- Clutch learning procedure: Learn the clutch system after maintenance.
- Clutch actuator replacement reset: Reset learning values after clutch actuator replacement.
- Clutch actuator reassembly reset: Reset learning values after clutch actuator reassembly.
- Clutch pack replacement reset: Reset learning values after clutch pack replacement.
- Shift drum angle sensor learning: Learn the shift drum angle sensor for correct gear registration.
- Shift position learning value reset: Reset learning values for shift position recognition.
Brake and stability systems
- Bleed ABS brake system: Guided procedure for bleeding the ABS brake system.
Steering and chassis
- Steering angle sensor calibration: Calibrate the steering angle sensor after replacement or maintenance.
- IMU learning value reset: Reset learning values of the inertial measurement unit.
Other service and maintenance functions
- Set clock: Set the clock in the instrument panel.
- Enable and disable transport mode: Activate or deactivate the transport mode.
Special features and capabilities
In addition to standard diagnostics and service, the IScan Japan offers some additional features that support the diagnostic process.
- One-click remote support: Direct remote support by OBDSTAR technicians via internet connection.
- One-click software upgrade: Easy software update via WiFi connection.
- Help data and technical bulletins: Built-in fault guidance, help data, technical bulletins, and diagnostic connection information to support the technician.
- Data stream display modes: Display of live data in text form, waveform diagram, or instrument display.
- Data recording and playback: Real-time data streams can be recorded and played back for later analysis.

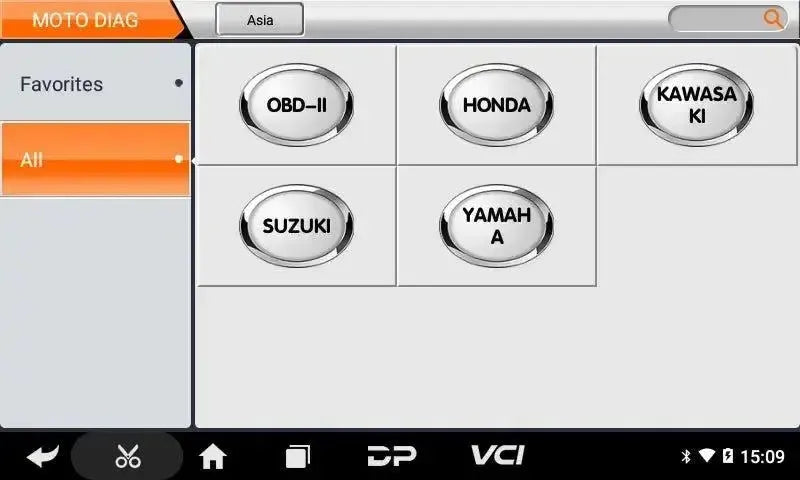

Supported vehicle brands
The IScan Japan is specifically developed for diagnosis and key programming on Japanese motorcycles, scooters, ATVs, UTVs, and snowmobiles.
- Asian: Honda, Kawasaki, Suzuki, Yamaha
Optional additions and expansions
The IScan Japan can be expanded with a wide range of brand-specific diagnostic adapters and IMMO modules, further increasing the range and functionality for specific models.
Hardware modules and accessories
- M003A Multifunctional Jumper Cable: Universal cable for performing specific diagnostic tests and configurations that require a direct pin connection.
- M008 Kawasaki Diagnostic Adapter: Adapter for connecting the diagnostic device to the specific diagnostic port of supported Kawasaki models.
- M009 Kawasaki Diagnostic Adapter: Adapter for connecting the diagnostic device to the specific diagnostic port of supported Kawasaki models.
- M011 Kawasaki Diagnostic Adapter: Adapter for connecting the diagnostic device to the specific diagnostic port of supported Kawasaki models.
- M013 Lifan/Suzuki Diagnostic Adapter: Adapter for connecting the diagnostic device to the specific diagnostic port of supported Lifan and Suzuki models.
- M014 Suzuki Diagnostic Adapter: Adapter for connecting the diagnostic device to the specific diagnostic port of supported Suzuki models.
- M023 Suzuki Diagnostic Adapter: Adapter for connecting to an alternative diagnostic port on specific Suzuki models for advanced functions.
- M029 Yamaha Diagnostic Adapter: Adapter for connecting the diagnostic device to the specific diagnostic port of supported Yamaha models.
- M039 Kawasaki Diagnostic Adapter Set: Adapter set for connection to the separate diagnostic ports for ECU and ABS on certain Kawasaki models.
- M053 Honda IMMO Adapter: Specific Adapter for performing immobilizer and key programming tasks on supported Honda motorcycles.
- M054 Suzuki/Yamaha IMMO Adapter: Specific Adapter for performing immobilizer and key programming tasks on supported Suzuki and Yamaha motorcycles.
- M055 Honda Diagnostic Adapter: Adapter for connecting the Diagnostic Tool to the specific diagnostic port of supported Honda models.
- M061 Yamaha Diagnostic Adapter: Adapter for connecting the Diagnostic Tool to the specific diagnostic port of supported Yamaha models.
- N004 Universal Diagnostic Adapter: Adapter for diagnostics on various European and Japanese motorcycle brands, including Aprilia, Ducati, Honda, and KTM.
- N027 Kymco/Kawasaki Diagnostic Adapter: Adapter for connecting the Diagnostic Tool to the specific diagnostic port of supported Kymco and Kawasaki models.
- P001 IMMO Kit: Programming kit for reading and writing data for key programming, ECU cloning, and immobilizer functions.
- P003+ IMMO Adapter: Adapter for reading and writing EEPROM and FLASH data from motorcycle ECUs without the need for soldering.
License information
When purchasing the OBDSTAR IScan Japan, a 1-year software license is included, providing access to all available software updates for the supported Japanese brands during this period.
- License period: 1 year of free software updates from the first activation of the device.
- Software updates: Include support for new models and model years of Honda, Kawasaki, Suzuki, and Yamaha, expansions of service and key functions, and improvements or fixes in existing software.
- Extended features: Online features such as one-click remote support, online updates, and the latest diagnostic and key programming protocols require an active license.
- After license expiration: The device will continue to work with the last installed software version. New updates and online features will only be available again after renewing the license.

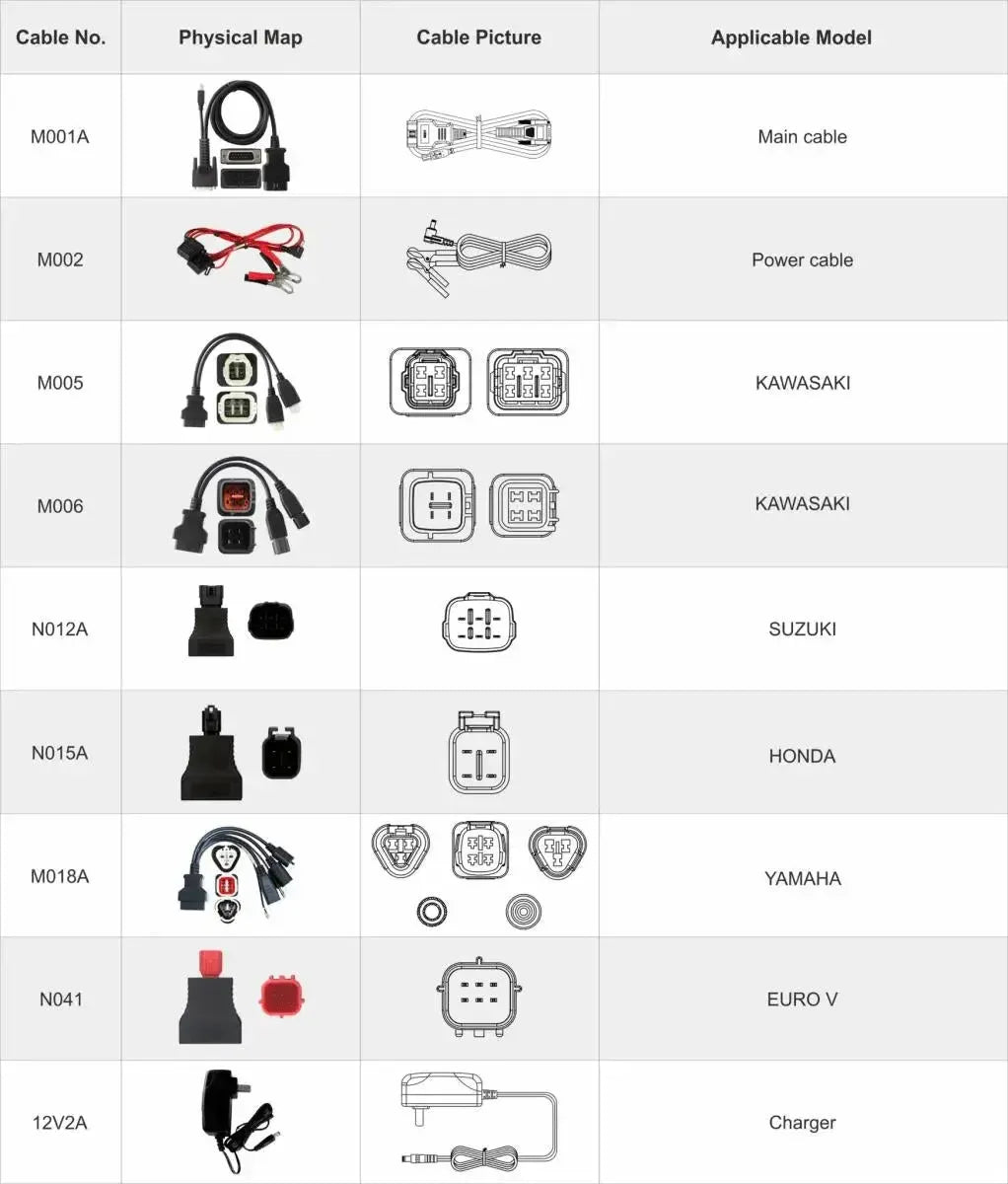

Package Contents
- 1x OBDSTAR IScan Japan Diagnostic Tool
- 1x 12V2A charger
- 1x M001A main cable
- 1x M002 power cable
- 1x M005 Kawasaki Adapter
- 1x M006 Kawasaki Adapter
- 1x N012A Suzuki Adapter
- 1x N015A Honda Adapter
- 1x M016A Yamaha Adapter
- 1x N041 Euro V Adapter
Technical specifications
General
- The manufacturer of the diagnostic device. Useful if you already know which brand works well in your workshop.Brand
- OBDSTAR
- Whether it is a tablet, a standalone handheld unit, a dongle with an app, or an interface for a PC.Type of device
- Diagnostic tablet
- Which types of vehicles or machines the device supports. An engine tester, for example, will not work on a truck.Vehicle types
- Motorcycles
- Mopeds
- ATVs and UTVs
- Snowmobiles
- How many vehicle brands the device can read. The more brands, the more often it can be used in a workshop with a wide range of vehicles.Number of brands
- 4 brands
- Which parts of the world the supported brands come from. This shows whether American or Chinese vehicles are also covered.Brand origin
- Asian brands
Diagnostics
- The device shows sensor readings while the engine is running. This lets you check whether a component is working correctly.Live data
- Yes
- The device can operate components directly, such as a fan or valve. This allows you to test them without removal.Active tests
- Yes
- The device recognises the vehicle automatically by its chassis number, saving time searching through menus.Automatic vehicle recognition
- Yes
Special functions
- Adjusting control unit settings, for example after replacing a component. Required for more than just reading data.ECU coding
- Yes
- Linking new or additional keys to the vehicle. Useful when a customer has lost a key.Key programming (IMMO)
- Yes
- A technician from the manufacturer can view and assist remotely via the internet. Useful for difficult faults.Remote assistance
- Yes
Service and maintenance
- Recalibrating the steering angle sensor after wheel alignment or steering work. Important for ESP and driver assistance systems.Steering angle sensor (SAS)
- Yes
- Removing air from the ABS braking system after brake work, so the brake feels correct again.ABS bleeding
- Yes
Hardware
- The system the device or app runs on. For a dongle, this determines compatibility with your phone.Operating system
- Android 5.1.1
- The screen size. A larger screen is easier to read, while a smaller device is more convenient in the vehicle.Screen size
- 5.0-inch capacitive touchscreen
- The number of cores and the speed of the processor. A faster processor loads menus and scans more quickly.Processor
- 4-core
- Whether the device has Wi-Fi. This allows you to install updates and share reports without a cable.Wi-Fi
- Yes
Licence
- How long you receive free new software and vehicle coverage. After this, updates often require payment.Free updates
- 1 year
Other specifications
- Processor
- RK3128 quad-core
- Nutrition
- 12V / 2A charger
