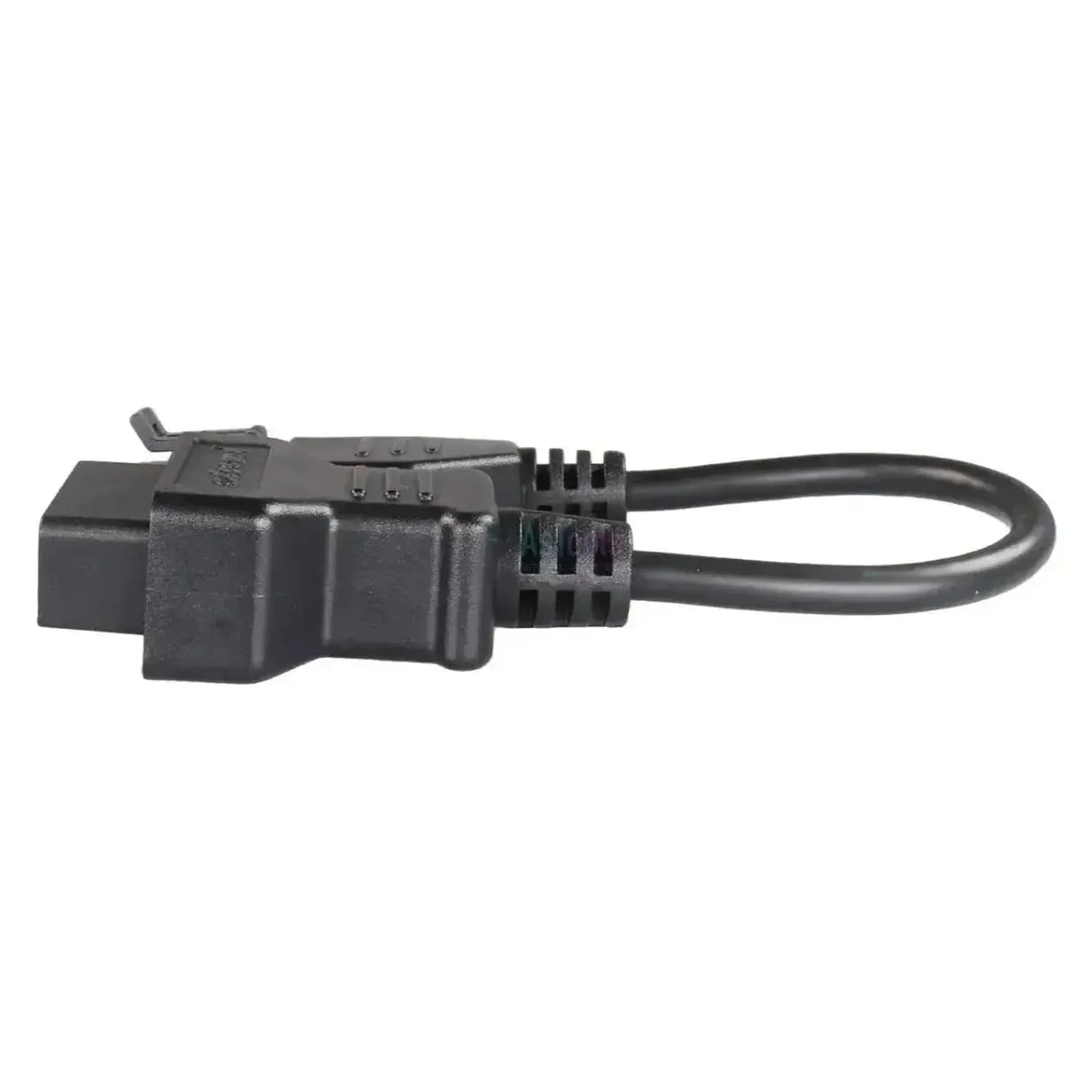

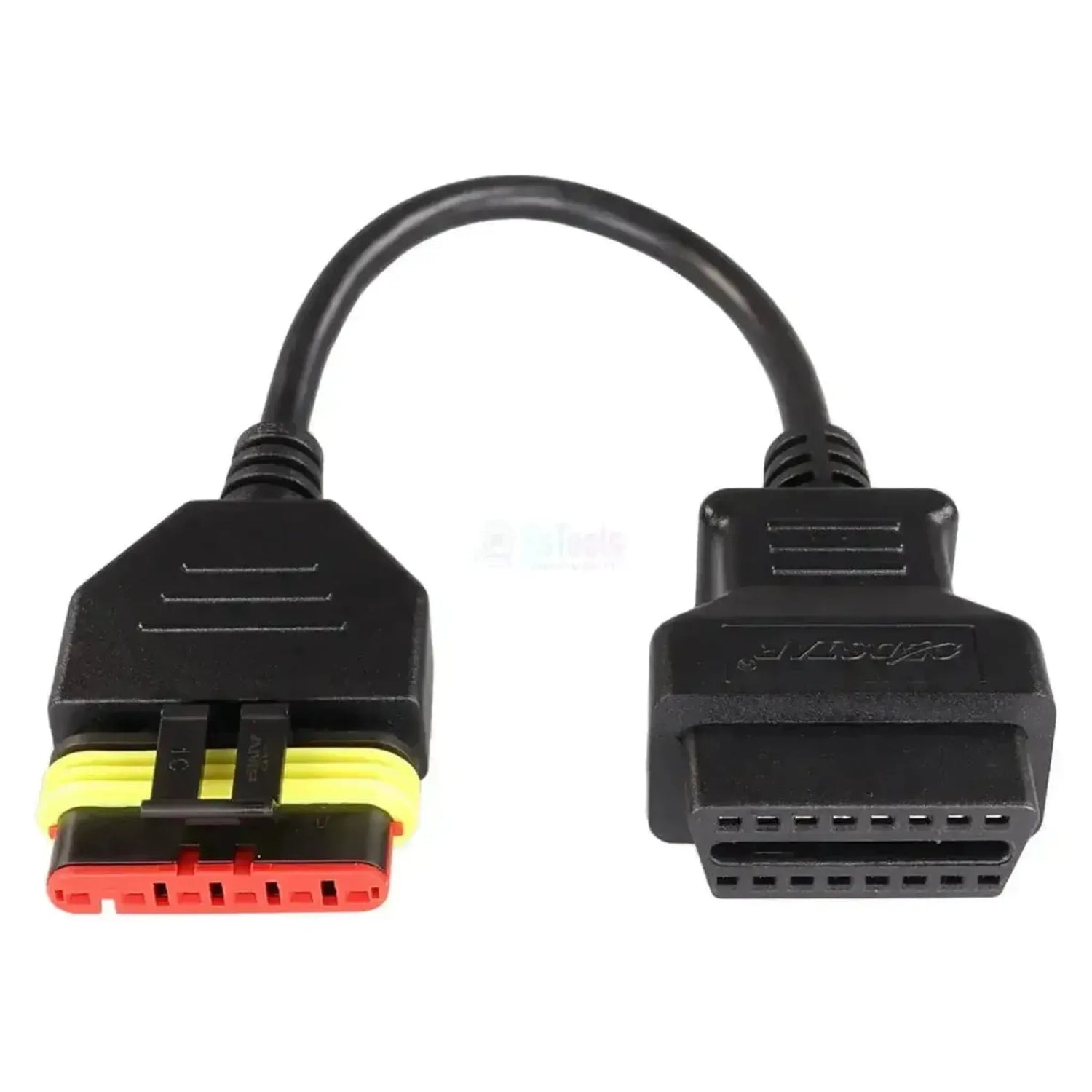

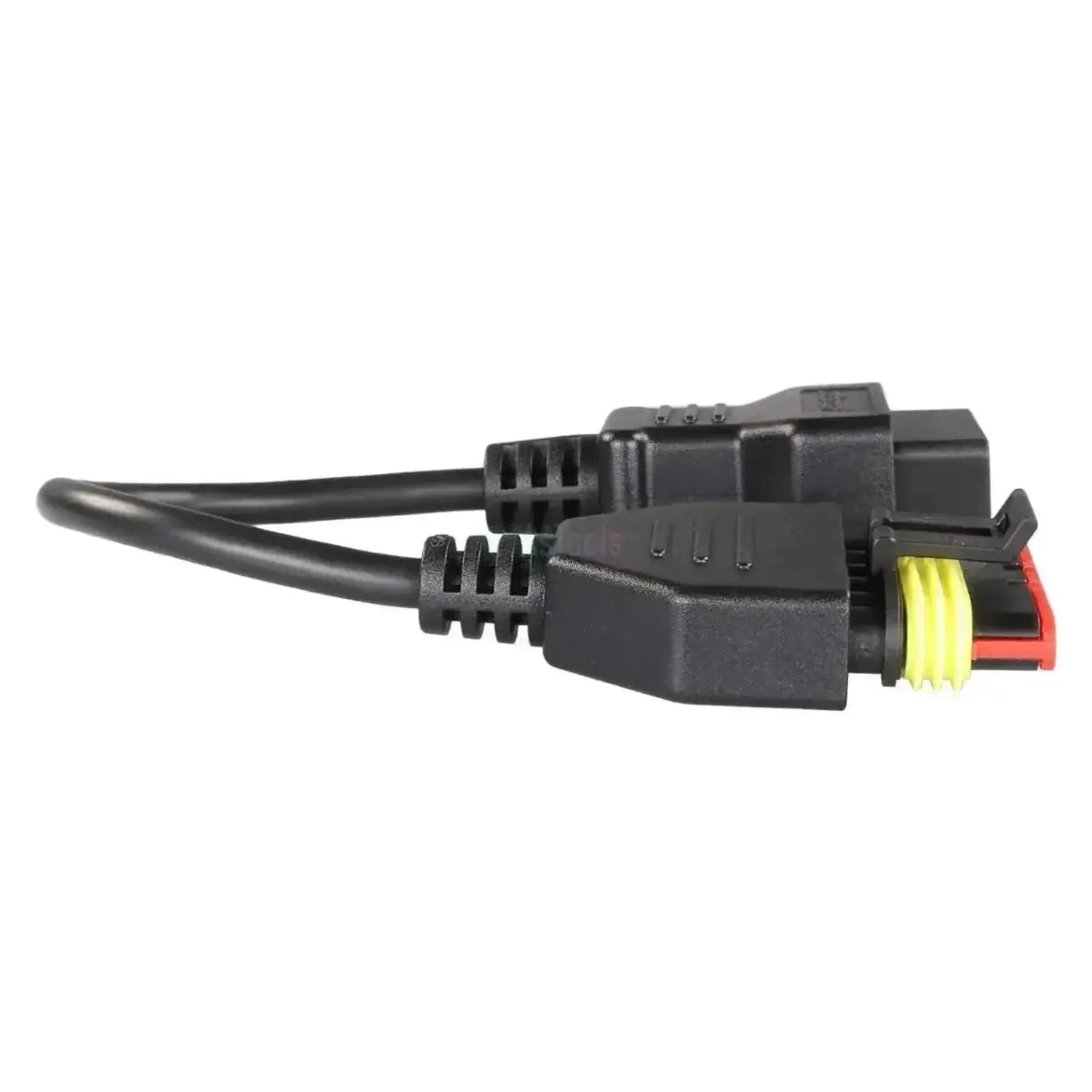

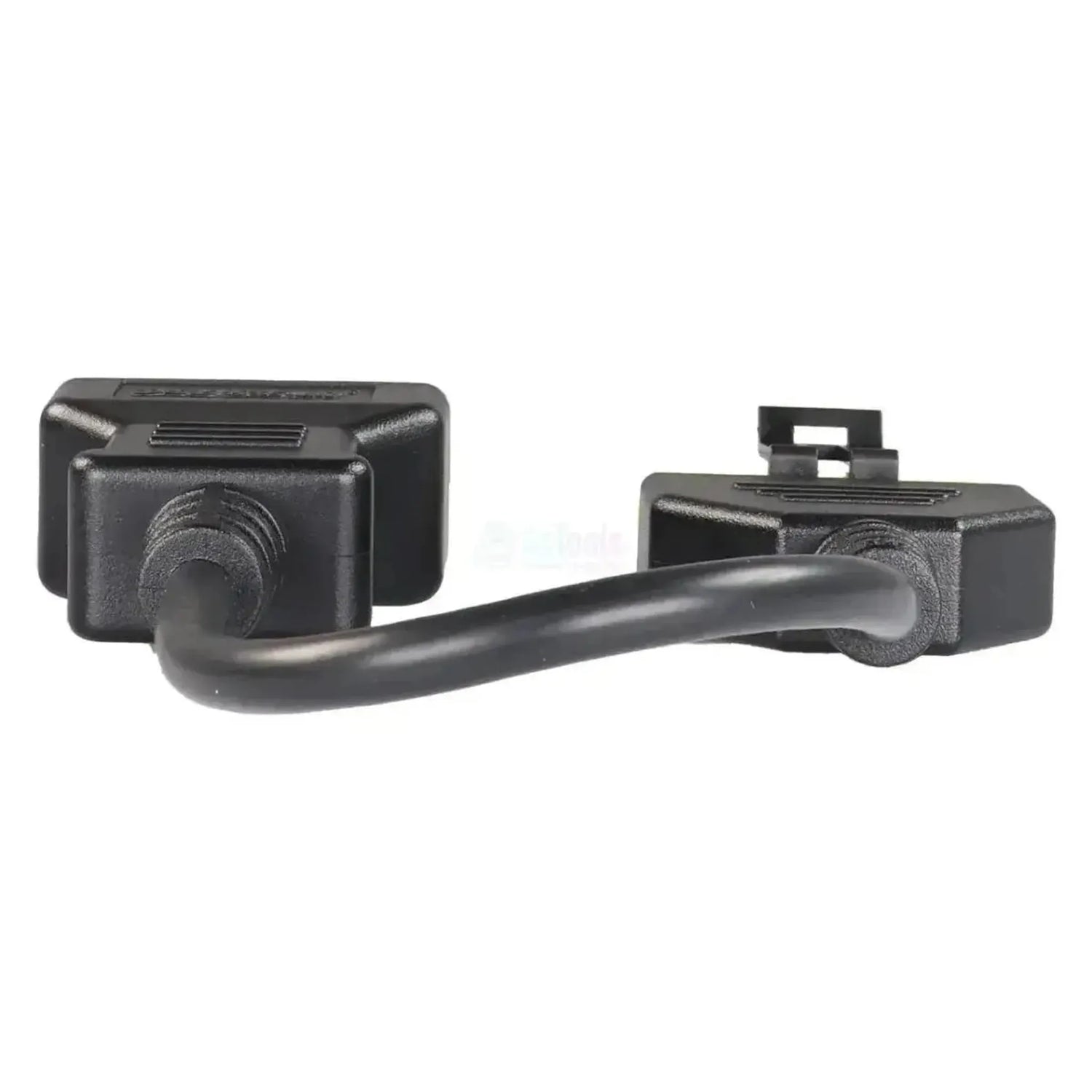

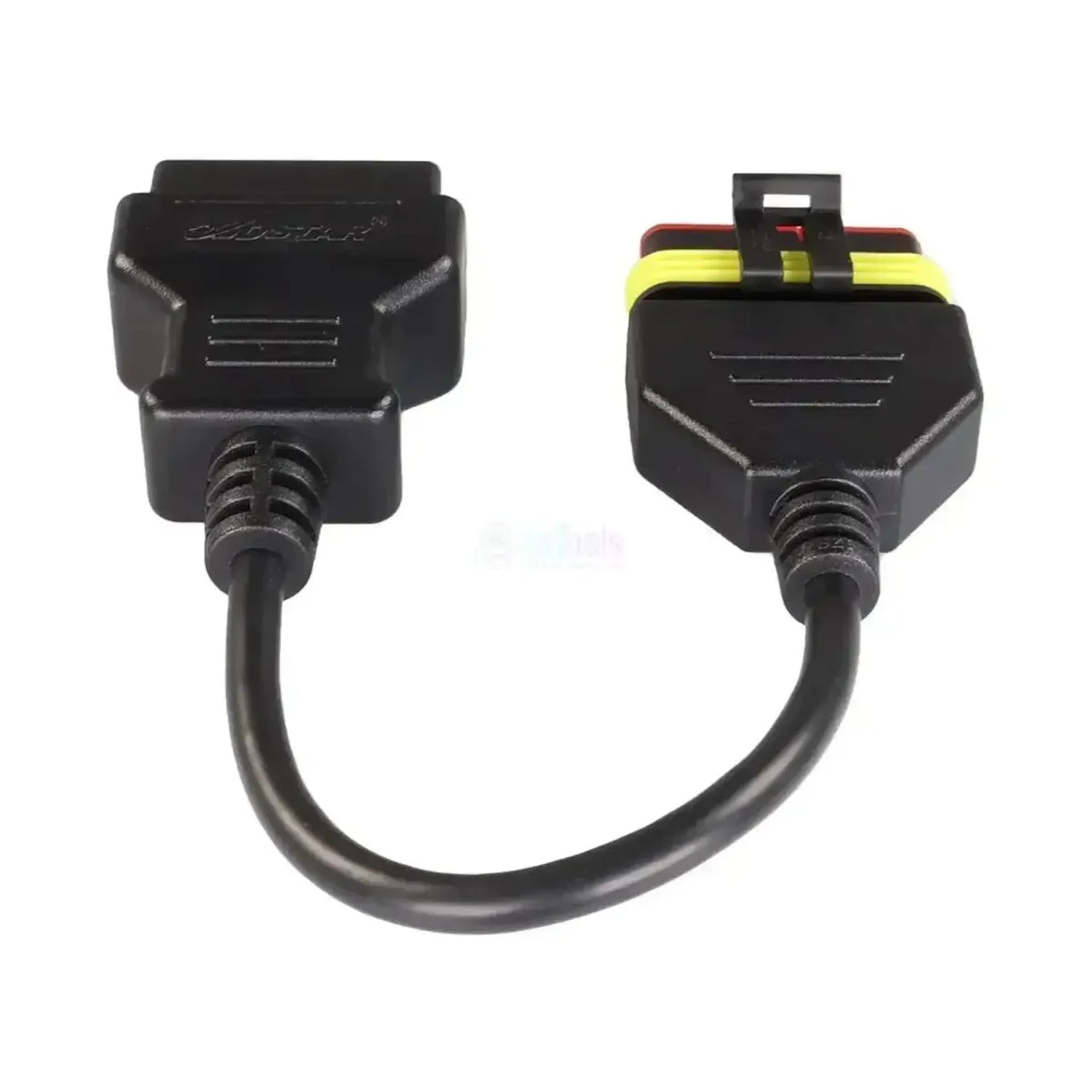

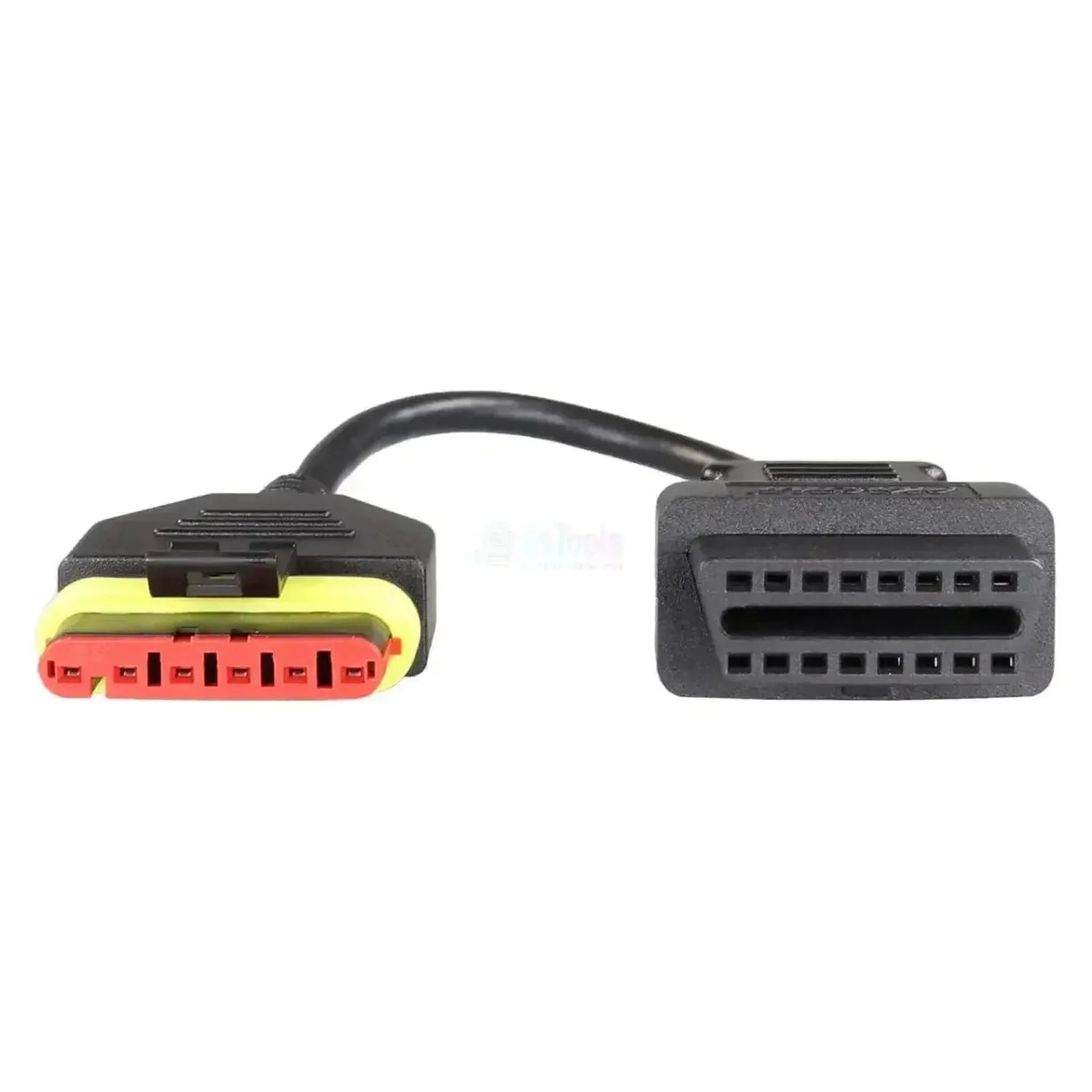

\nThe OBDSTAR M022A is a adapter cable that a Benelli 6-pin diagnostic connector convert to a standard 16-pin OBD2 (J1962) connector. The cable is designed for use with Benelli and Benelli DSK motorcycles that are equipped with a brand-specific 6-pin connector that doesn't directly fit an OBD2 interface. This cable is exclusively compatible with OBDSTAR diagnostic readers and programmers.\n
\nThe adapter cable connects the vehicle-specific 6-pin diagnostic port of the motorcycle with the 16-pin OBD2 connectorfrom the connected OBDSTAR device. Through this connection, diagnostic data can be read out over theK-line or CAN-bus communication line present in the vehicle. The signal is transmitted without active conversion: the cable acts as passive pin conversion where the correct pins of the Benelli connector are matched to the corresponding pins in the OBD2 plug. This enables communication between the diagnostic system and the electronic control units of the motorcycle possible.\n
\nKEY FEATURES\n
IMPORTANT NOTES
Applications and Features
The M022A adapter cable enables the following diagnostic work on Benelli motorcycles when used with a compatible OBDSTAR device.
- Read fault codes: Through the connection, stored and active diagnostic trouble codes from the motorcycle's engine control units can be read and displayed on the OBDSTAR device.
- Clear fault codes: After inspection or repair, stored fault codes can be cleared from the control unit memory via the diagnostic connection.
- Live data display: Real-time sensor readings and system parameters can be monitored during motorcycle operation for diagnosing current system conditions.
- Vehicle identification: Reading the vehicle identification number (VIN) and other vehicle-specific data is possible via the diagnostic connection.
Compatible Vehicles and Applications
The vehicles listed below are equipped with a Benelli 6-pin diagnostic connector and are compatible with the M022A adapter cable when used with an OBDSTAR device.
Benelli:
- Benelli motorcycles with 6-pin OBD connector (Benelli / Benelli DSK): Consult the OBDSTAR compatibility list for specific models and model years.
Package Contents
- 1x OBDSTAR (M022A) | Benelli 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle
Technical Specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part Number | M022A |
| Product Type | Adapter Cable |
| Vehicle-Side Connector | Benelli 6-pin OBD |
| Device-Side Connector | 16-pin OBD2 |
| Vehicle Category | Motorcycle |
| Supported Brands | Benelli |
| Compatible With | OBDSTAR diagnostic readers and programmers |
| Weight | 0.1 kg |
