OBDSTAR | SKU: M002

OBDSTAR (M002) | Battery Clamp Power Cable | Accessories

€27,95 incl.

€23,10 excl.

Title

120 cm

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

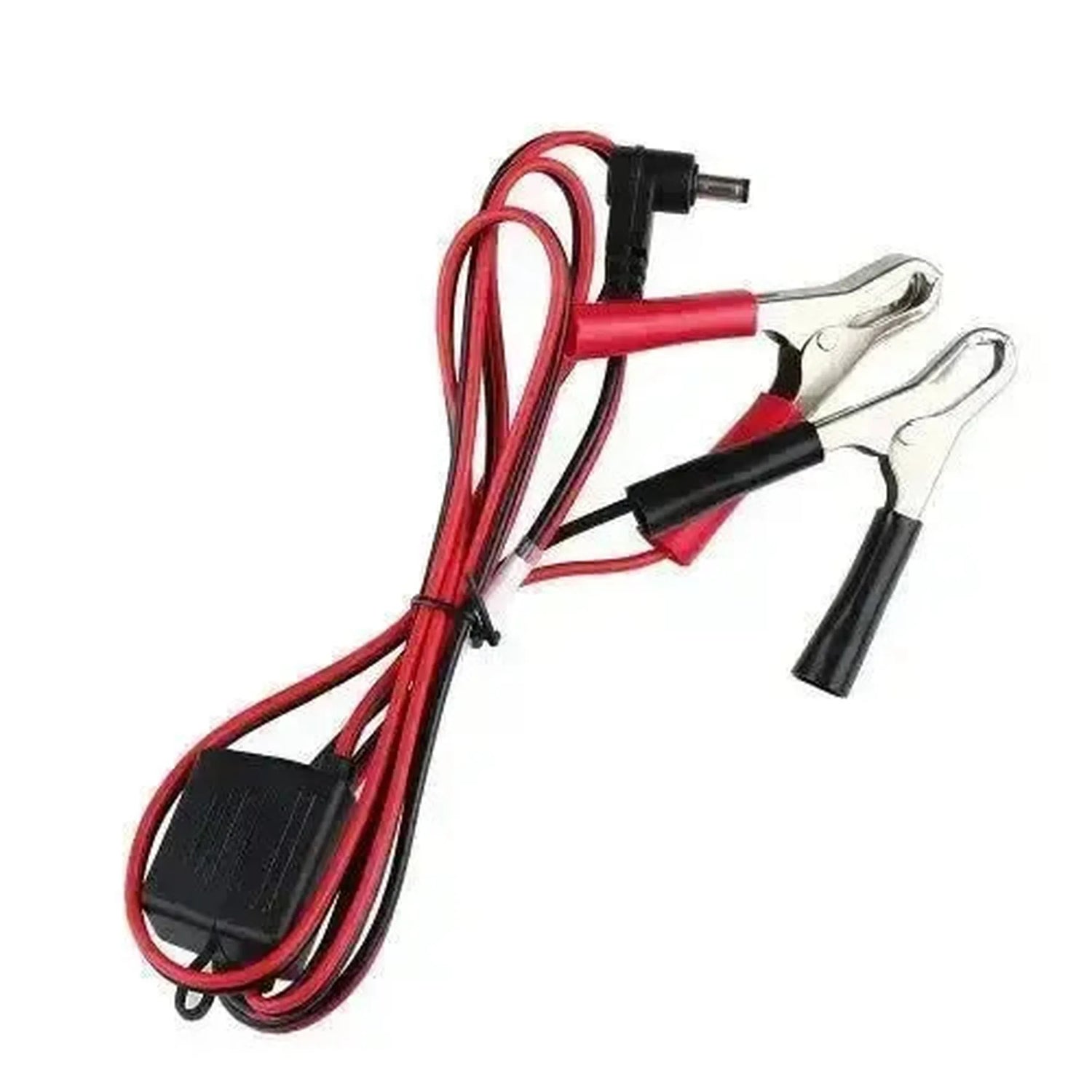

The OBDSTAR M002 is a power cable with battery clamps on one end and a DC connector on the other. The clamps connect directly to the 12V battery — red to positive, black to negative — and the DC connector plugs into the power input of your OBDSTAR device.

The cable is designed to power the host device independently of the OBD port. The cable incorporates an in-line fuse that protects both the device and battery against short circuits and overcurrent. This makes it suitable for bench work and key programming outside the vehicle. The M002 provides power only and does not establish data communication with the vehicle. Diagnostic work still requires a separate data connection, and which functions you can perform depends on your device's software.

KEY BENEFITS

✔Power outside the vehicle — ideal for bench work on keys and modules, away from the car.

✔In-line fuse protection — safeguards the connected device and battery against short circuits and power surges.

✔Colour-coded clamps — red and black prevent polarity reversal during connection.

✔Alternative when OBD port is unavailable — useful if the diagnostic connector is occupied or faulty.

IMPORTANT NOTES

✕No data communication — the cable supplies power only; you still need a separate data connection to the vehicle for diagnostics.

✕External battery or power supply required — for use outside the vehicle, you need your own 12V source; this is not included.

✕OBDSTAR host devices only — your device must have the corresponding DC power input.

✕Does not expand vehicle coverage — the cable does not change which models and functions your device supports.

Applications and functionality

The cable provides power to the host device only, not the data connection.

Control units you can reach

None — power supply only: The cable does not establish a connection with vehicle control units.
Host device: The DC input of the OBDSTAR device powered via the battery.

What you can do

Powering on the workbench: Supply 12V from a battery to the host device for diagnostics and programming outside the vehicle.
Programme keys without a vehicle: Edit keys or immobiliser modules when there is no car nearby.
Supplementary power during diagnostics: Supply power to the device when the OBD port provides no or insufficient voltage.
Short-circuit protection: Protect the device via the inline fuse against spikes and shorts.
Please note: The cable adds no functionality; what you can perform remains dependent on your OBDSTAR device.

Compatible vehicles and applications

The DC power input of your device is the determining factor, not the vehicle model. The source lists no makes or model years: the cable connects to a 12V battery and is therefore make-independent.

Vehicles with 12V battery: The clamps attach to the positive and negative terminals of the battery.
OBDSTAR host equipment with DC input: The device end fits equipment with the corresponding power input.

💡

Good to know: Always connect the red clamp to the positive terminal first, then the black clamp to the negative terminal. Before use, check that the fuse in the line is intact; a blown fuse blocks power completely and is simple to replace. Before ordering, verify that your device has a DC power input that matches this connector.

Package contents

1x OBDSTAR (M002) | Battery Clamp Power Cable | Accessories

Technical specifications

Specification	Description
Brand	OBDSTAR
Part number	M002
Type	Power cable
Application	External power supply for OBDSTAR host equipment
Vehicle-side connection	Battery clamps (red/black)
Device connection	DC connector
Protection	Inline fuse
Category	Accessories
Required to use	OBDSTAR diagnostic device or programmer with 16-pin OBD2 port
Additional requirements	12V battery or external power supply for use outside the vehicle (not included)
Weight	0.1 kg
