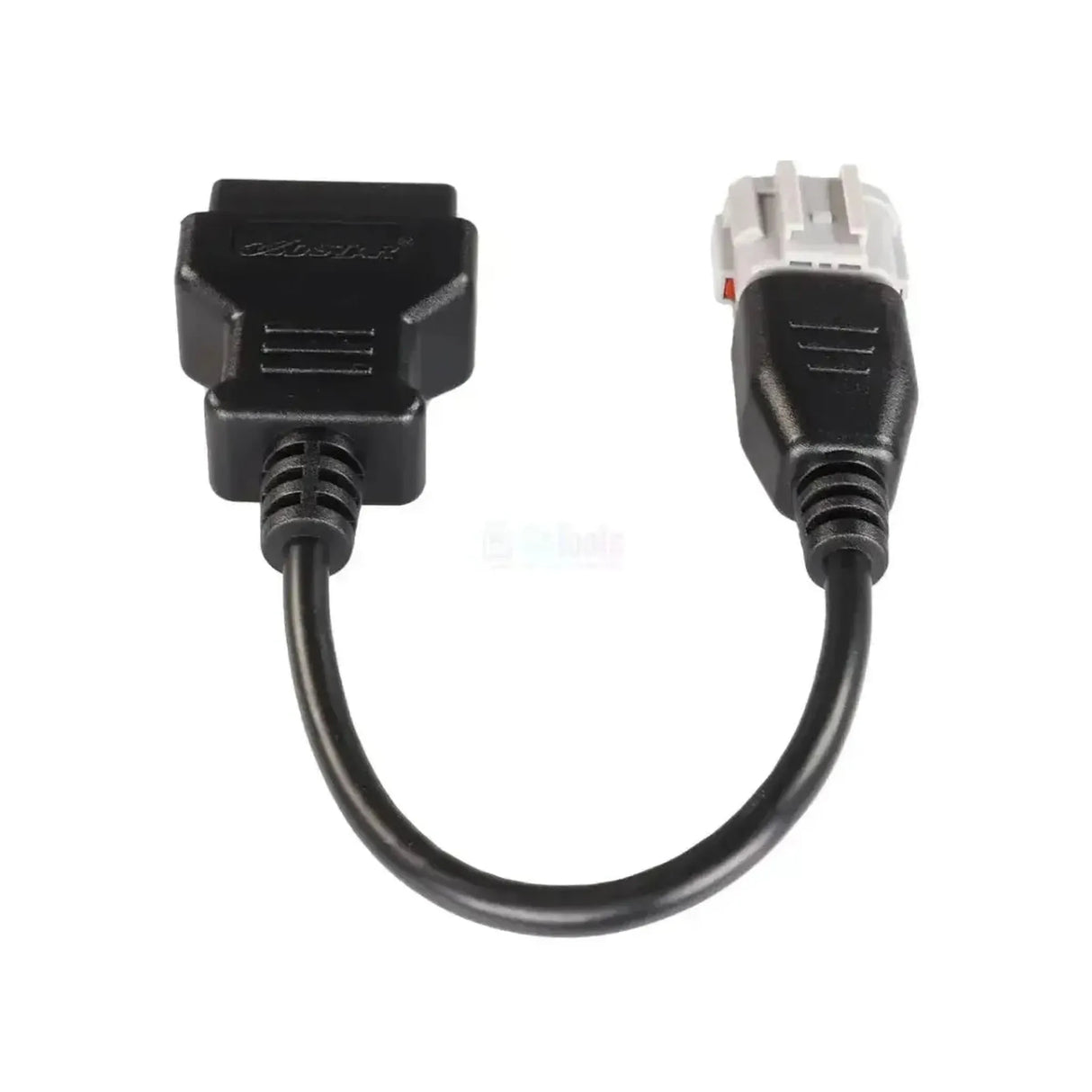

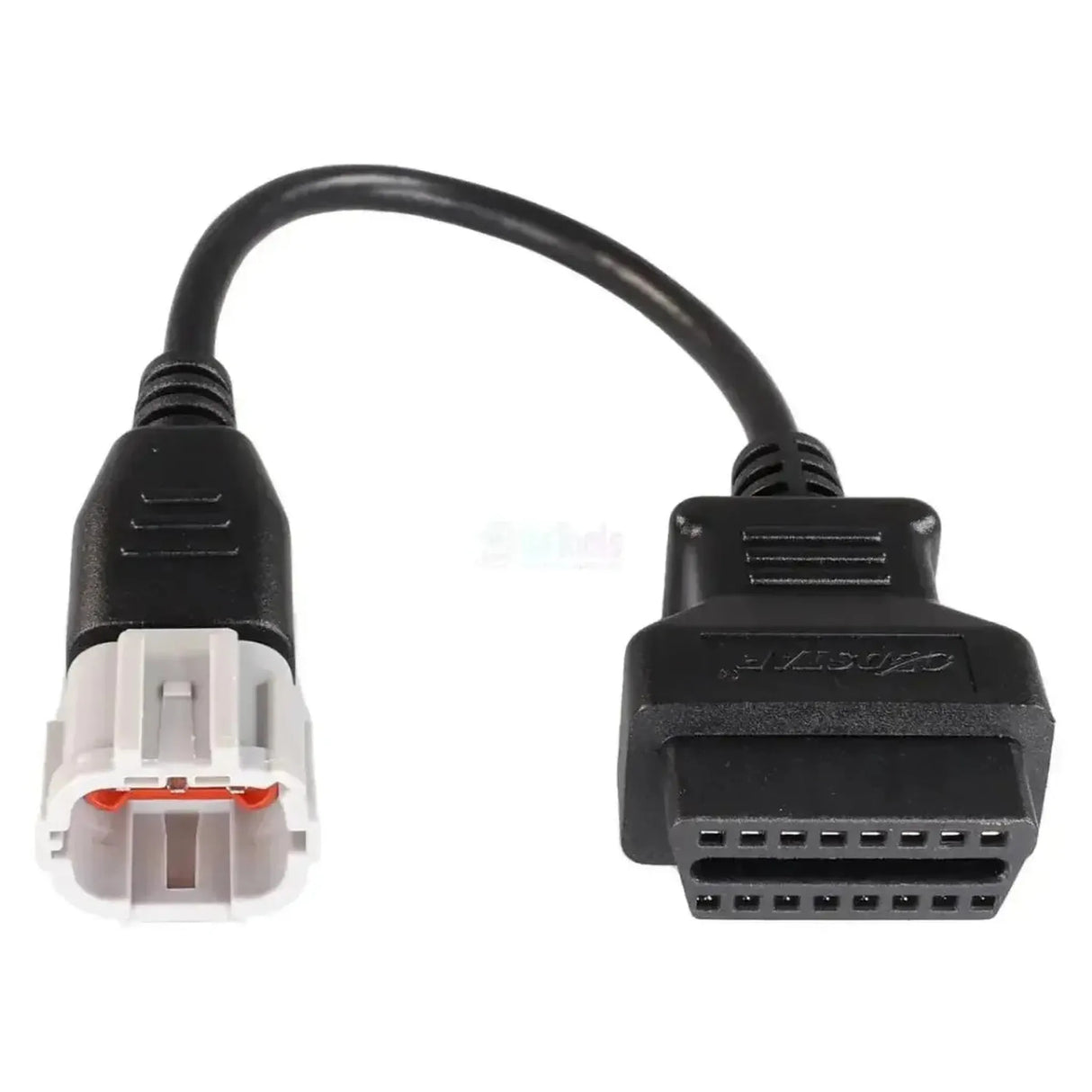

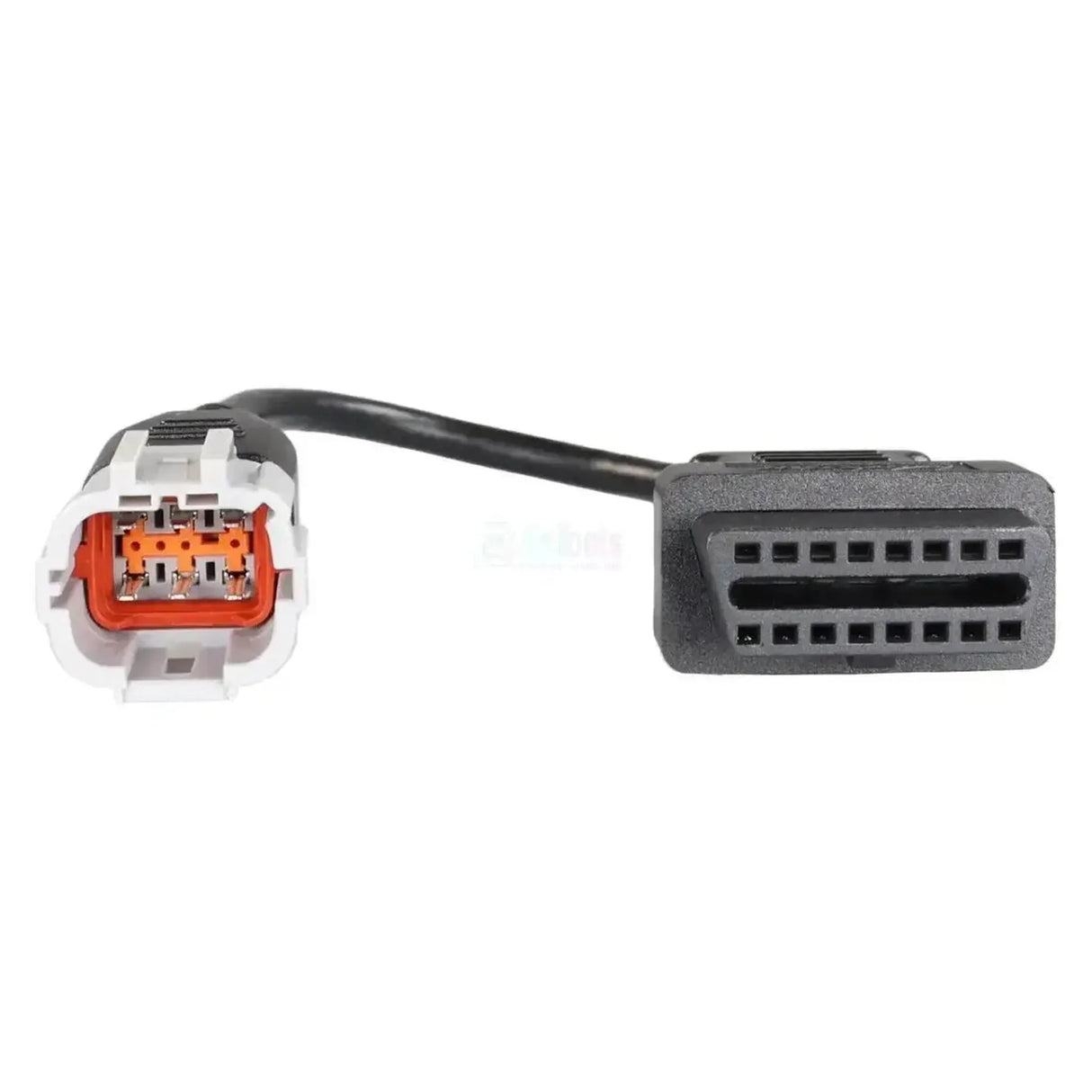

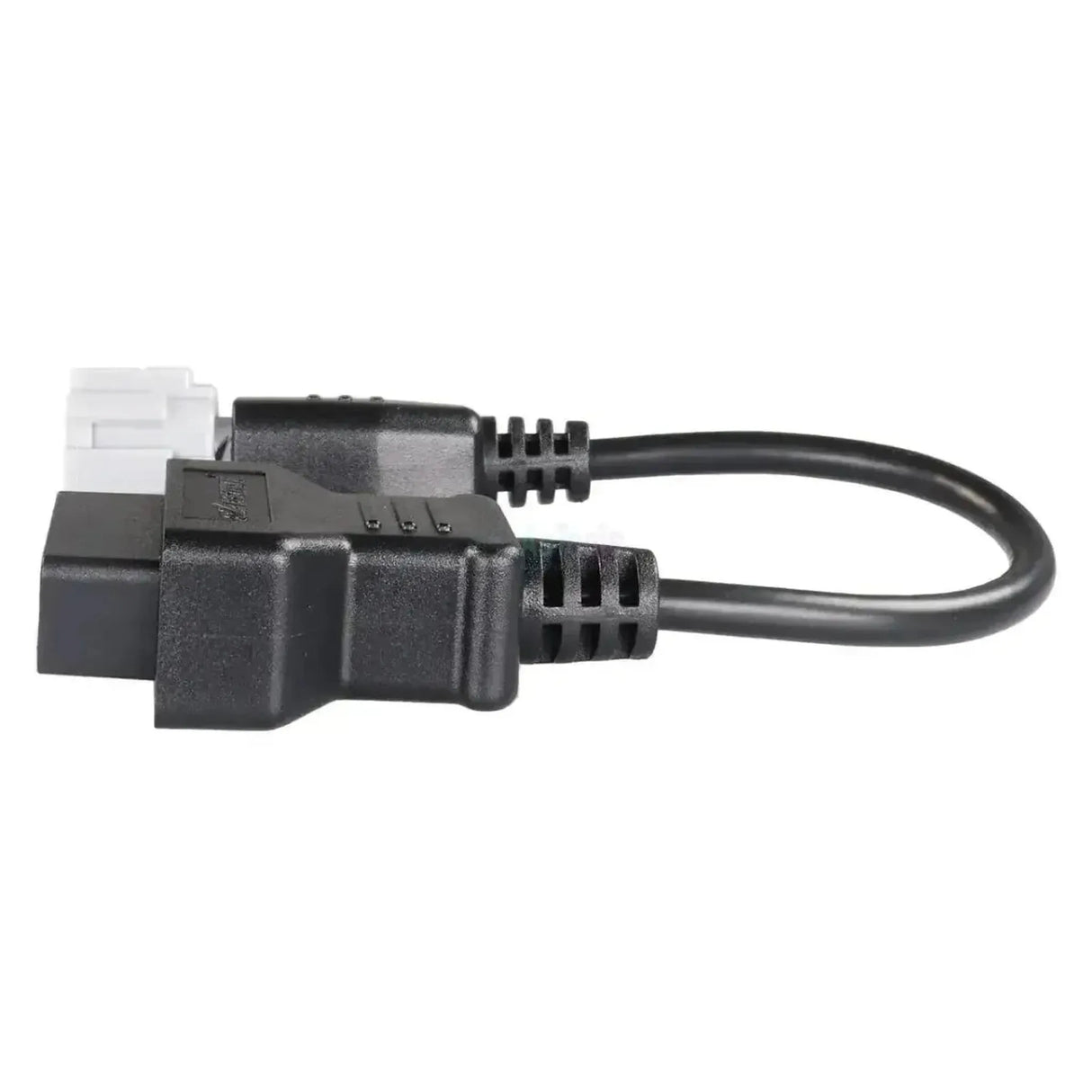

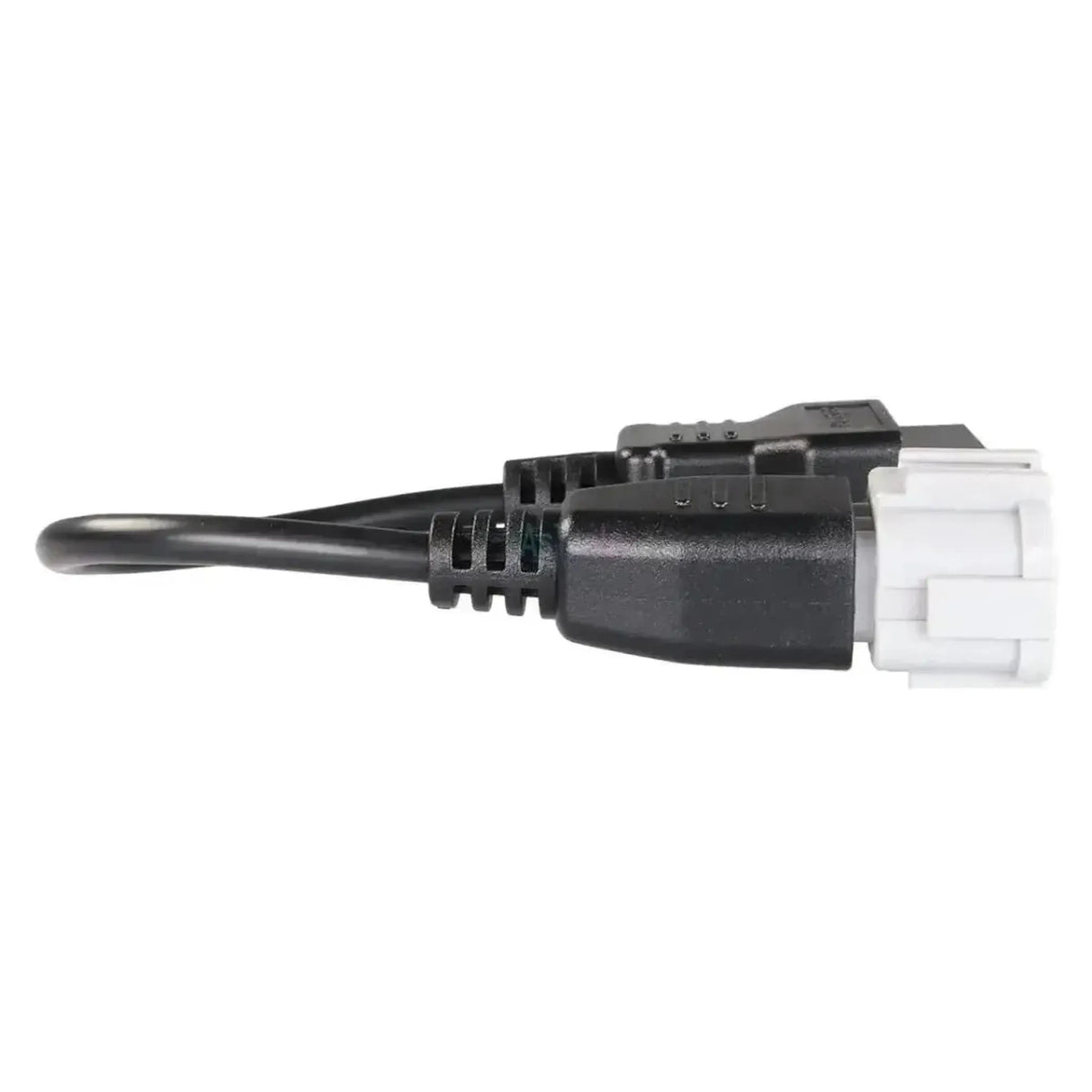

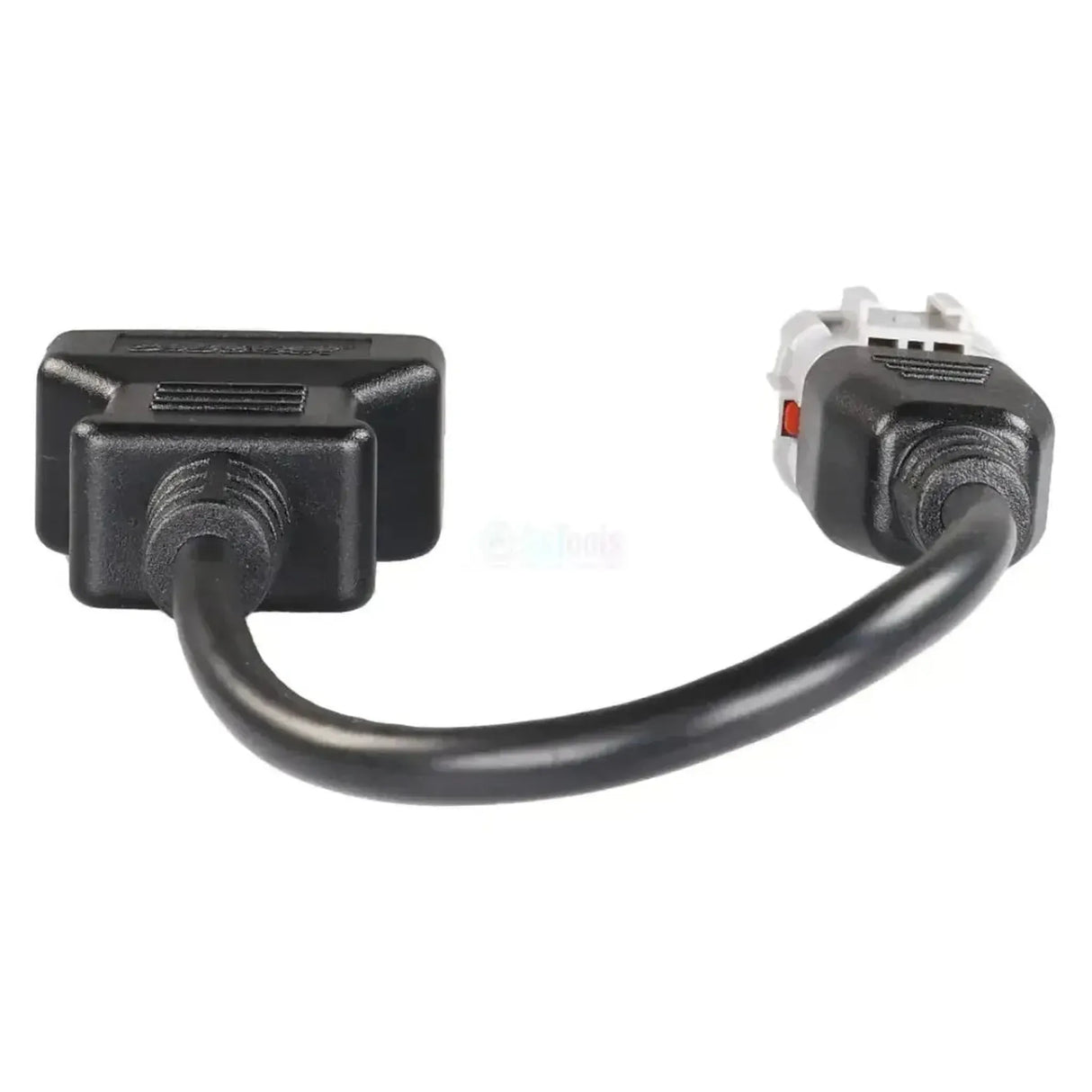

\nThe OBDSTAR M020 is a adapter cable that a 6-pin motorcycle connector from Aeon/Benelli type to a standard 16-pin OBD2 (J1962) connector. The cable is designed for use with OBDSTAR diagnostic readers or programmers and enables you to diagnose motorcycles from brands Aeon and Benelli(including Benelli DSK) to connect to diagnostic systems with an OBD2 port. The cable construction features a6-pin vehicle-side connector and a 16-pin OBD2 connector on the device side.\n
\nThe adapter cable converts the factory-specific 6-pin diagnostic pinout from Aeon and Benelli motorcycles to the standardized J1962 pin configuration that is recognized by OBDSTAR equipment. Through this connection you can diagnostic signals such as fault codes and sensor data are read via the K-line or another supported communication protocol present in the vehicle. The cable performs no active signal conversion, but ensures proper physical and electrical connection between the vehicle port and the diagnostic device.\n
\nKEY FEATURES\n
IMPORTANT NOTES
Applications and Features
The OBDSTAR M020 adapter cable supports the following diagnostic functions on Aeon and Benelli motorcycles via compatible OBDSTAR equipment.
- Read fault codes: Retrieve stored and active diagnostic trouble codes (DTCs) from the vehicle's engine control unit via the 6-pin diagnostic pinout.
- Clear fault codes: Erase retrieved diagnostic trouble codes from the ECU memory following diagnosis or repair of the fault.
- Display live data: Monitor real-time sensor readings and engine parameters such as engine speed, temperature, and throttle position via the diagnostic cable.
- Vehicle identification: Retrieve vehicle-specific information such as the software version number and the ECU identification via the diagnostic connector.
Compatible Vehicles and Applications
The motorcycles listed below are compatible with the OBDSTAR M020 adapter cable. Only vehicles equipped with a 6-pin Aeon/Benelli diagnostic connector are supported.
Aeon:
- Motorcycles with 6-pin OBD diagnostic connector
Benelli:
- Motorcycles with 6-pin OBD diagnostic connector
Benelli DSK:
- Motorcycles with 6-pin OBD diagnostic connector
Package Contents
- 1x OBDSTAR (M020) | Aeon/Benelli 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle
Technical Specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part Number | M020 |
| Product Type | Adapter Cable |
| Vehicle-Side Connector | Aeon/Benelli 6-pin OBD |
| Device-Side Connector | 16-pin OBD2 |
| Vehicle Category | Motorcycle |
| Supported Brands | Aeon, Benelli, and Benelli DSK |
| Compatible With | OBDSTAR diagnostic readers and programmers |
| Weight | 0.1 kg |
