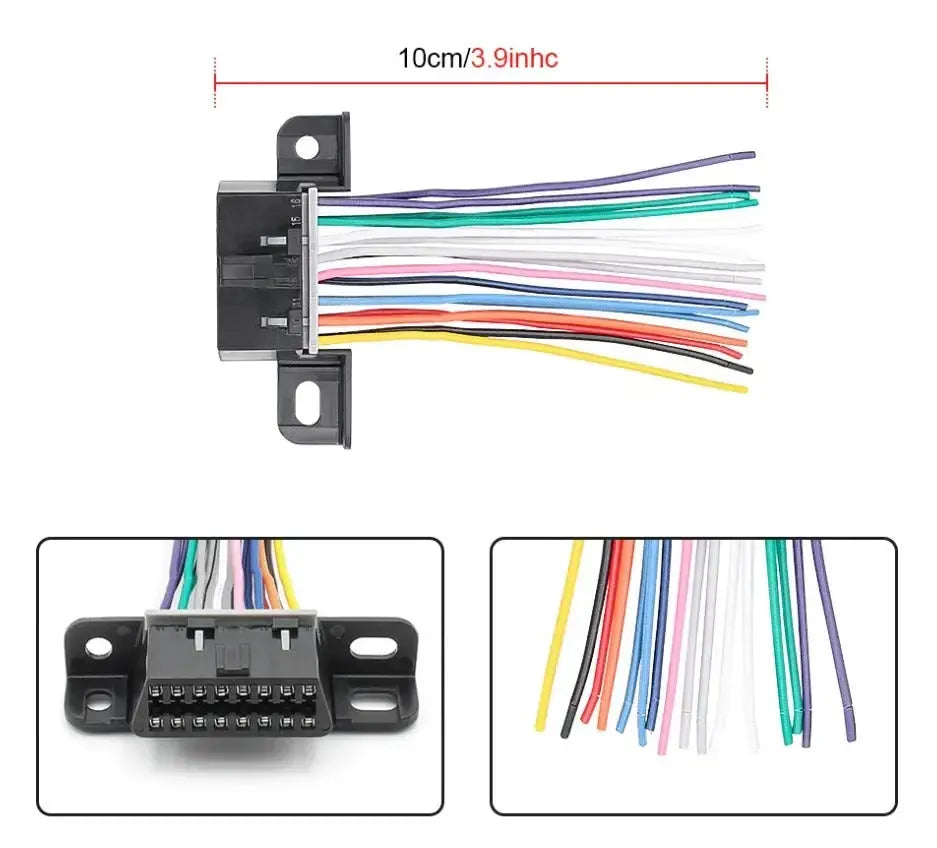

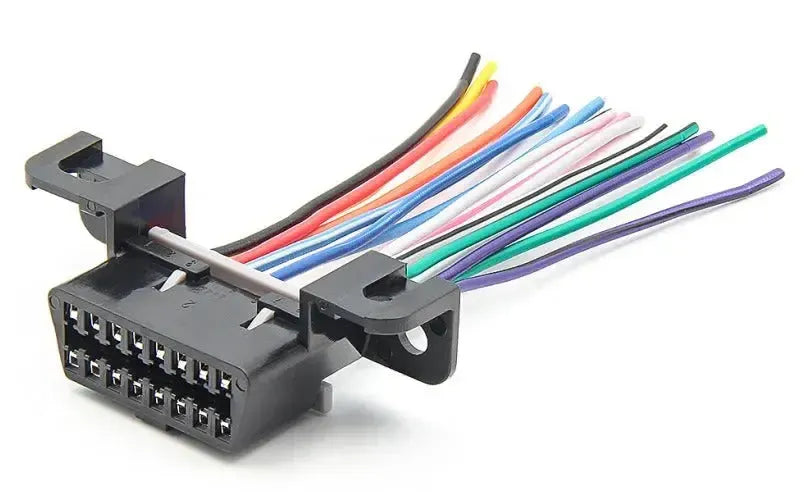

The 16-pin OBD2 port is a female J1962 connector with a short 10 cm cable harness terminating in 16 individual open-end wires. This component is designed for custom wiring applications, vehicle repairs, or replacing a damaged diagnostic port. The short cable length is ideal for compact installations in tight spaces.
With open-end wires, this product offers installation flexibility, allowing each pin to be connected individually to the vehicle's corresponding systems, such as the CAN-bus, K-line, power, and ground. The connector features integrated mounting brackets with screw holes, enabling secure and stable installation in a dashboard or panel.
KEY FEATURES
IMPORTANT CONSIDERATIONS
Applications and Functionality
This OBD2 connector provides a foundation for creating a custom diagnostic interface or repairing a damaged port.
- Custom installation: Enables integration of an OBD2 port in project vehicles, race cars, or classic vehicles being retrofitted with a modern ECU.
- Repair: Serves as a replacement component for a damaged, worn, or corroded factory OBD2 port.
- Test setups: Suitable for installation in test benches, simulators, or prototypes requiring an OBD2 interface.
- Flexible wiring: The 16 open-end wires can be connected to the vehicle's electrical system according to the requirements of a specific application or diagnostic protocol.

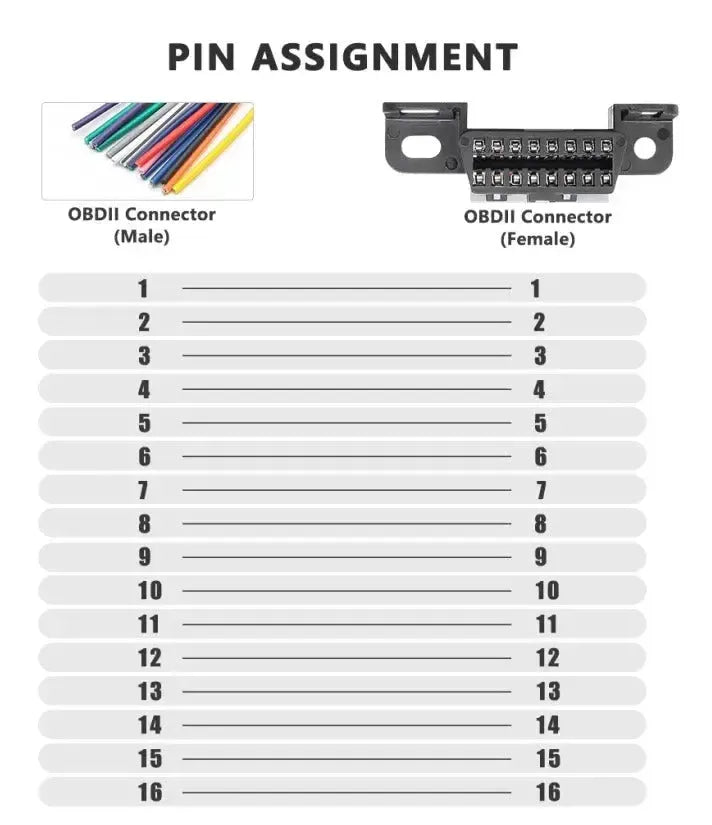

Standard OBD2 Pinout (Reference)
The 16-pin J1962 connector features a standardized pin configuration for communication and power lines. Remaining pins are manufacturer-specific.
- Pin 4: Chassis ground
- Pin 5: Ground/Signal Return
- Pin 6: CAN-High (ISO 15765-4, SAE J-2284)
- Pin 7: K-Line (ISO 9141-2 / ISO 14230-4 KWP2000)
- Pin 10: J1850 Bus- (SAE J1850 PWM/VPW)
- Pin 14: CAN-Low (ISO 15765-4, SAE J-2284)
- Pin 15: L-Line (ISO 9141-2, optional)
- Pin 16: Battery +12V (constant power)
- Pins 1, 3, 8, 9, 11, 12 and 13: Available for OEM-specific functions (varies by manufacturer)
Compatible Vehicles
This product is a universal component and is not specific to any particular make or model. It's designed for custom installations and repairs across diverse applications, including:
- Passenger cars
- Light commercial vehicles
- Project vehicles and kit cars
- Test benches and simulators
- DIY electronics projects
Package Contents
- 1x 16-pin OBD2 Female Connector — 16 Open-End Wires (10 cm)
Technical Specifications
| Specification | Description |
|---|---|
| Connector 1 | 16-pin OBD2 (J1962) female |
| Connector 2 | 16x open-end wires |
| Wire Length | Approximately 10 cm |
| Mounting | Integrated mounting brackets with screw holes |
| Supported protocols | ISO 15765-4 (CAN), ISO 9141-2, ISO 14230-4 (KWP2000), SAE J1850 PWM/VPW |
