Jaltest  |  SKU: 50002003

Jaltest JT2003 | Multimeter

€349,95 incl.
€224,95 incl.
€185,91 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

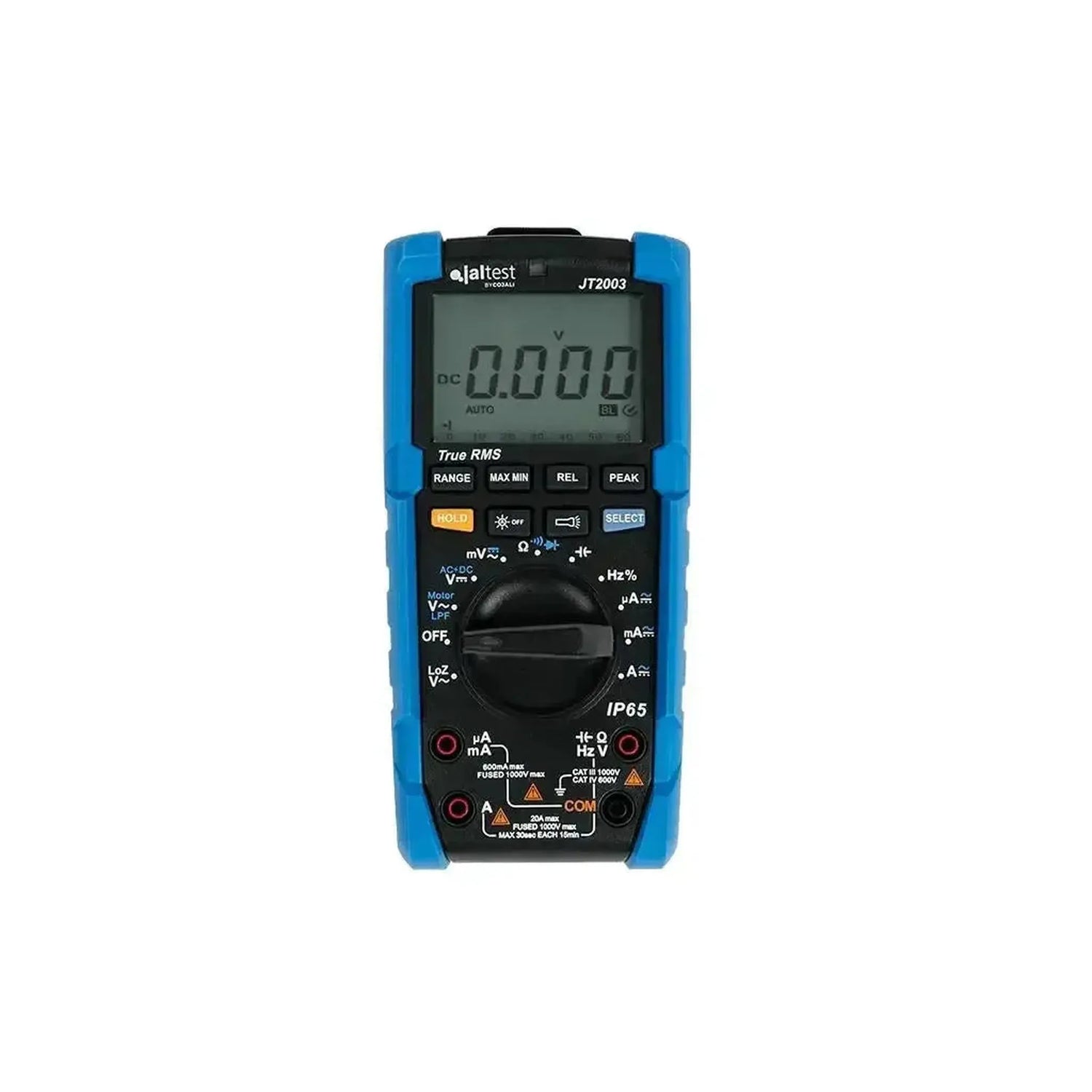

The Jaltest JT2003 is a digital multimeter designed for industrial applications. The device features a True RMS measurement function, guaranteeing accurate measurements of both sinusoidal and non-sinusoidal AC waveforms. The enclosure has an IP65 rating, meaning it is completely dust-tight and protected against water jets. Additionally, the multimeter has been tested for drop resistance up to 2 meters, supporting durability in demanding work environments. The instrument can perform measurements for voltage, current, resistance, capacitance, frequency, duty cycle, and continuity.

This multimeter is equipped with various specialized functions. The Low Pass Filter (LPF) function allows precise voltage and frequency measurements on variable frequency drives (VFDs). The LoZ low input impedance mode helps eliminate ghost voltages for more reliable measurements. A specific MOTOR TEST function is available to check the rotation direction of three-phase motors. Furthermore, the JT2003 features a peak detection of 250 µs for capturing transients, a 6000-count display with backlighting that automatically adjusts to ambient light, and the ability to measure both AC and DC components simultaneously.

Application and functionality:

The JT2003 is developed for diagnosis and maintenance in the automotive, industrial, and maritime sectors. The functions are specifically aimed at measuring electrical and electronic systems.

  • True RMS measurement: Ensures accurate display of AC voltage and current under complex, non-linear loads.
  • IP65 protection rating: The enclosure is fully sealed against dust and resistant to water, enabling use in harsh conditions.
  • Drop resistance: Designed to withstand a 2-meter drop, enhancing robustness.
  • Low pass filter (LPF): Filters high-frequency noise for stable measurements on variable frequency drives and other noisy electrical environments.
  • LoZ voltage measurement: The low input impedance prevents false readings caused by ghost voltages induced by nearby conductors.
  • Motor test: Simplifies the check of phase rotation in three-phase motors.
  • Peak detection (Peak capture): Captures short voltage and current peaks with a response time of 250 microseconds.
  • Automatic backlight: A built-in light sensor automatically adjusts the display brightness, improving readability and extending battery life.

Measurement ranges and functions:

The instrument offers a wide range of measurement capabilities with automatic and manual range selection.

  • DC voltage: 60 mV to 1000 V
  • AC voltage: 60 mV to 1000 V
  • DC current: 600 µA to 20 A
  • AC current: 6000 µA to 20 A
  • Resistance: 600 Ω to 60 MΩ
  • Capacity: 6 nF to 60 mF
  • Frequency: 10 Hz to 10 MHz
  • Duty cycle: 10% to 95%
  • Diode test: Yes, with a test voltage of approximately 3.0 V
  • Continuity test: Yes, with an acoustic signal at resistance below 50 Ω

Package Contents:

  • 1x Jaltest JT2003 digital multimeter
  • 1x Pair of test leads
  • 1x Manual

Technical specifications:

Specification Description
Product brand Jaltest
Product model JT2003
Measurement type True RMS
Safety category CAT III 1000V, CAT IV 600V
IP rating IP65
Display 6000 counts, dual LCD display with analog bar graph
Drop resistance 2 meters
DC voltage range 60 mV / 600 mV / 6 V / 60 V / 600 V / 1000 V
AC voltage range 60 mV / 600 mV / 6 V / 60 V / 600 V / 1000 V
DC current range 600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 20 A
AC current range 6000 µA / 60 mA / 600 mA / 6 A / 20 A
Resistance range 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
Capacity range 6 nF / 60 nF - 600 µF / 6 mF / 60 mF
Frequency range 10 Hz - 10 MHz
Special functions Low Pass Filter (LPF), LoZ, motor phase test, peak detection (250 µs), AC+DC measurement
Power supply 9V battery (6F22)
Fuses F1: 600mA/1000V (6x32mm)
F2: 11A/1000V (8x38mm)
Standards IEC60529, IEC61010-1
