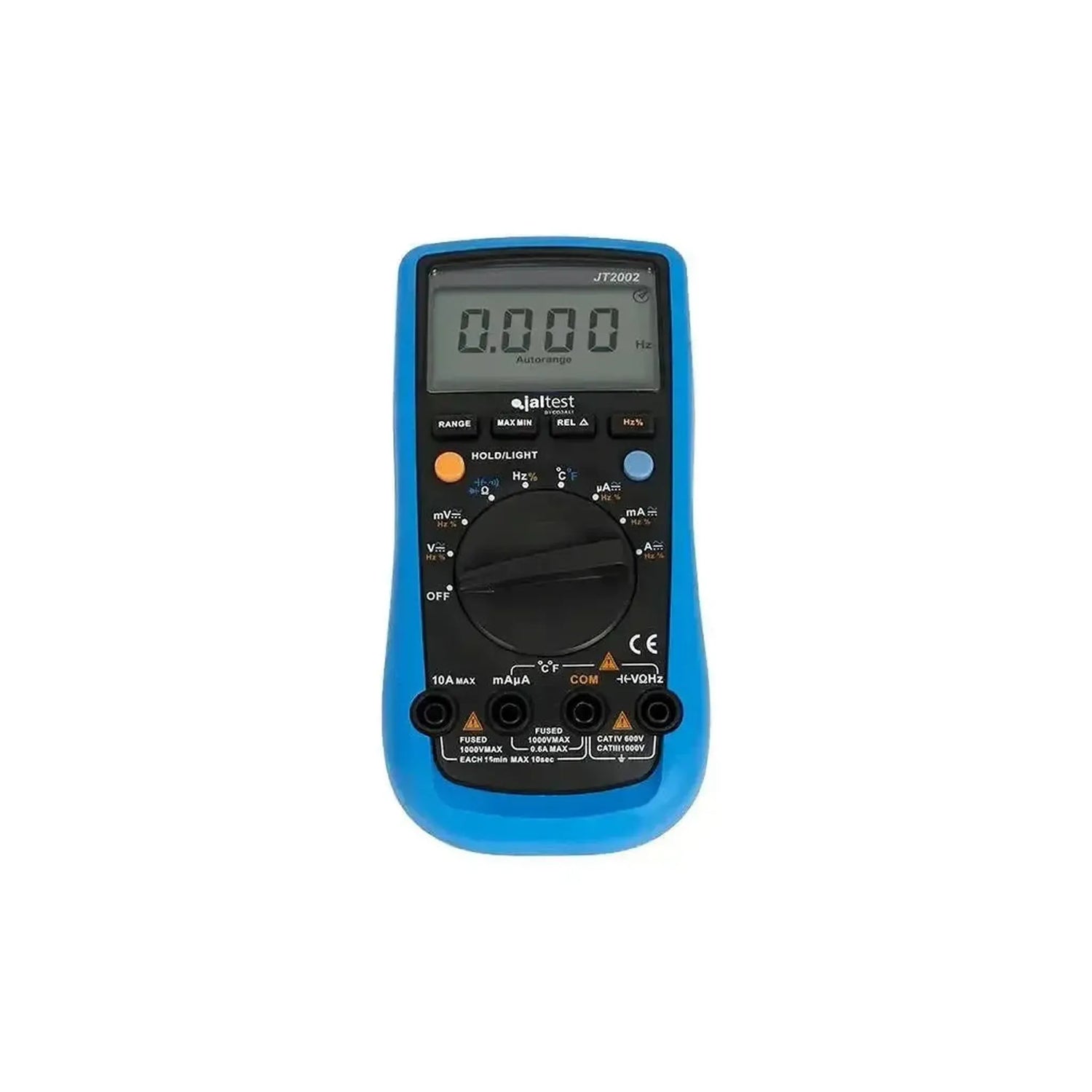

The Jaltest JT2002 is a digital multimeter that selects its measuring range automatically. The display shows Autorange, and the RANGE key lets you set the range manually if required. Below the rotary switch are four input sockets, marked 10A MAX, mA µA, COM, and the socket for voltage, resistance, capacitance and frequency. The marking next to COM reads CAT IV 600V and CAT III 1000V.
In addition to voltage and resistance, the dial has settings for capacitance, for frequency and duty cycle under the Hz% label, and for temperature in °C and °F. A type K thermocouple with a measuring adapter is supplied for this purpose. The three current settings measure DC and AC current in µA, mA and A. The display shows four digits; the orange HOLD/LIGHT key holds the reading and switches on the lighting.
PLUS POINTS
POINTS TO NOTE
Applications and functionality
The JT2002 measures the same quantities as the JT2001, but with automatic range selection and with settings the JT2001 lacks, such as temperature and AC current. The dial and the four input sockets together determine what is possible.
What you measure with the rotary switch
- Voltage: V and mV, DC and AC.
- Resistance: With continuity and diode.
- Capacitance: On the resistance setting.
- Hz%: Frequency and duty cycle.
- Temperature: In °C and °F.
- Current: In µA, mA and A.
What you can do
- RANGE: Select the range manually.
- MAX MIN: Hold the extremes.
- REL: Use the current value as zero reference.
- Hz%: Switch to frequency.
- HOLD/LIGHT: Hold the reading and switch on the lighting.
How to use it
- Select position: Turn the knob to the desired measurement.
- Insert leads: Black into COM, red into the correct socket.
- Range: Leave on Autorange or select with RANGE.
- Measure: Place the test probes on the measuring point.
- Reading: Hold the value with HOLD/LIGHT.
Difference with the other Jaltest multimeters
What matters is what you want to measure, not the type number. The web shop lists three Jaltest multimeters under the name Multimeter. The JT2002 is the only one of the three with a temperature setting and a supplied thermocouple.
Jaltest JT2001 | Multimeter:
- Range selection: Fully manual, with all ranges individually selectable on the rotary switch.
- Measurement sockets: Three, marked 10A MAX, COM and V mA µA.
- Safety category: CAT II 250V.
- Current: DC only, up to 10 A.
- Dedicated position: NCV, for non-contact voltage detection.
- Display: Three digits, without bar graph.
Jaltest JT2003 | Multimeter:
- Measuring principle: True RMS, marked on the front.
- Housing: Marked IP65 and fitted with a built-in torch.
- Current: Separate A socket up to 20 A, compared with 10 A on the JT2002.
- Special settings: LoZ, LPF, Motor, PEAK and a combined AC+DC setting.
- Display: Four digits, with a bar graph scale from 0 to 60.
- What is missing: A temperature setting; that is only on the JT2002.
The measurement sockets
- 10A MAX socket: Fused, marked 1000V max and no more than 10 seconds per 15 minutes.
- mA µA socket: Fused, marked 1000V max and 0.6 A max, and also the connection for the thermocouple.
- COM and voltage sockets: Marked together with CAT IV 600V and CAT III 1000V.
Package contents
- 1x Jaltest JT2002 | Multimeter
- 1x Set of test leads, red and black
- 1x Type K thermocouple with two banana plugs
- 1x Measuring adapter with a connection marked K and two three-pin tips marked P and N
Technical specifications
General
- The manufacturer of the multimeter or test lead set.Brand
- Jaltest
- Whether this is a standard multimeter, a multimeter designed specifically for cars, or a separate lead set. This shows at a glance what you are buying.Device type
- Digital multimeter
- A True RMS meter measures AC voltage and current accurately even when the signal is not a clean sine wave, as is often the case in a car.True RMS
- No
- Whether the meter selects the correct measuring range automatically or you set it with the rotary dial. Automatic is faster and easier.Range selection
- Automatic and manual
Safety
- Indicates at which voltage and installation type you can measure safely. A higher CAT rating offers better protection against voltage spikes.Safety category
- CAT IV 600V
- CAT III 1000V
- A fuse in the current input protects the meter if you accidentally measure too much current.Fused current input
- Yes
Measuring ranges
- The highest current you can measure directly through the meter. A higher rating is useful for tasks such as tracing parasitic drain.Maximum current
- 10 A
Functions
- What you can measure besides voltage, DC current and resistance. More functions mean you can diagnose more faults with one device.Measuring functions
- AC current
- Capacitance
- Frequency
- Duty cycle
- Temperature
- Diode test
- Continuity test
- Convenient buttons that make measuring easier, such as holding a reading or recording the highest value.Additional functions
- Hold reading
- Maximum and minimum reading
- Relative measurement
Display
- With backlighting, you can read the display clearly under a car or in a dark engine bay.Display backlight
- Yes
- The number of terminals for the test leads. A separate terminal for low current gives more accurate readings.Number of input terminals
- 4 terminals
Dimensions and weight
- The size of the meter, so you know whether it fits in your toolbox or hand.Dimensions
- 160 x 58 x 218 mm
- How heavy the product is. A lighter meter is more comfortable to hold for extended periods.Weight
- 350 g
- Whether a thermocouple is included, so you can measure temperature straight away without buying anything extra.Temperature probe included
- Yes
- Reference number
- 50,002,002
Other specifications
- Range selection
- Automatic, shown as Autorange; manual with the RANGE key
- Measurement sockets
- Four sockets, marked 10A MAX, mA µA, COM, and the socket for voltage, resistance, capacitance and frequency
- Rotary positions
- Voltage in V and mV, resistance with diode and continuity, capacitance, Hz%, °C °F, and current in µA, mA and A
- Temperature
- °C and °F setting, with the supplied type K thermocouple
- Fuses
- Socket 10A MAX marked with 1000V max and at most 10 seconds per 15 minutes · mA µA socket fused, 1000V max and 0.6 A max
- Display
- LCD display with four digits and Autorange and Hz indicators, with switchable screen lighting
- Buttons
- RANGE, MAX MIN, REL, Hz% and HOLD/LIGHT
