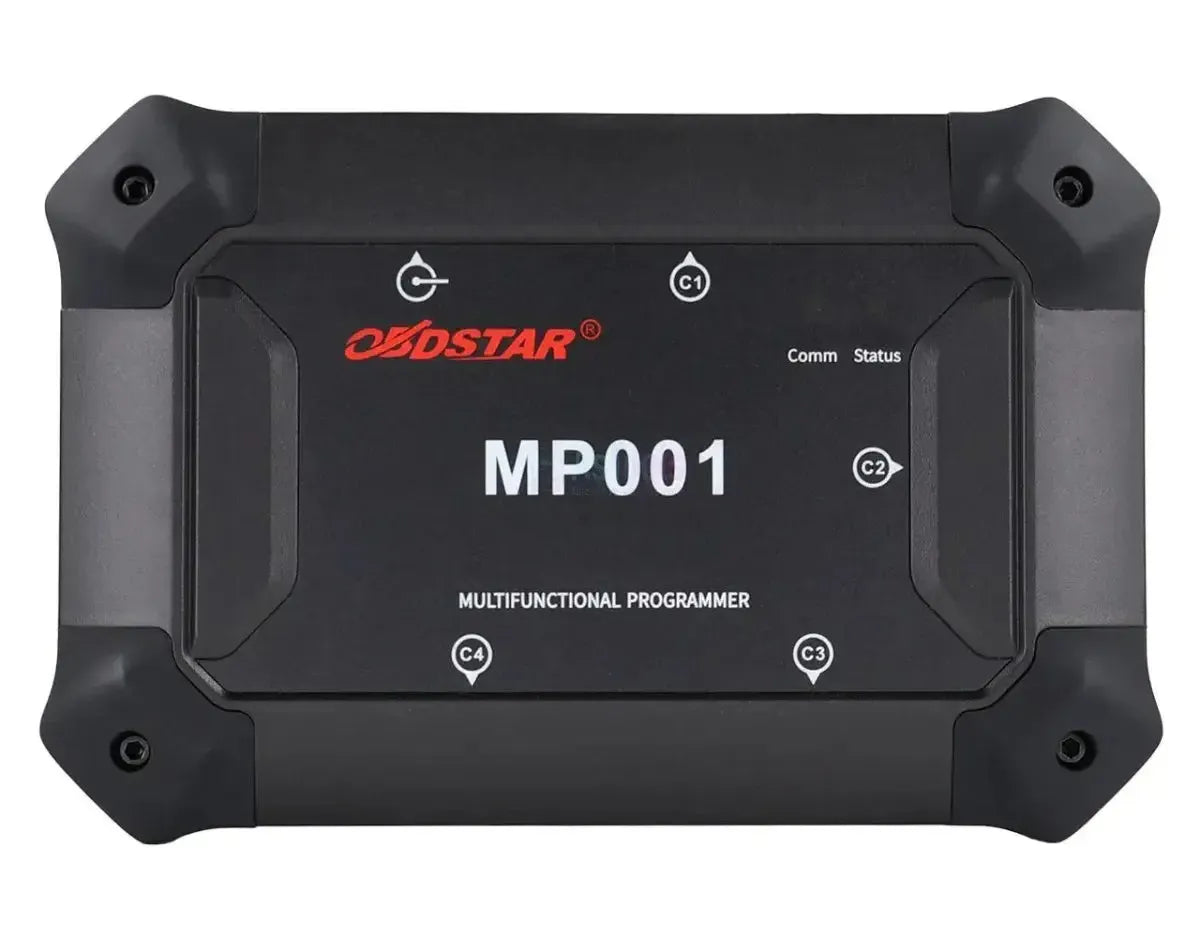

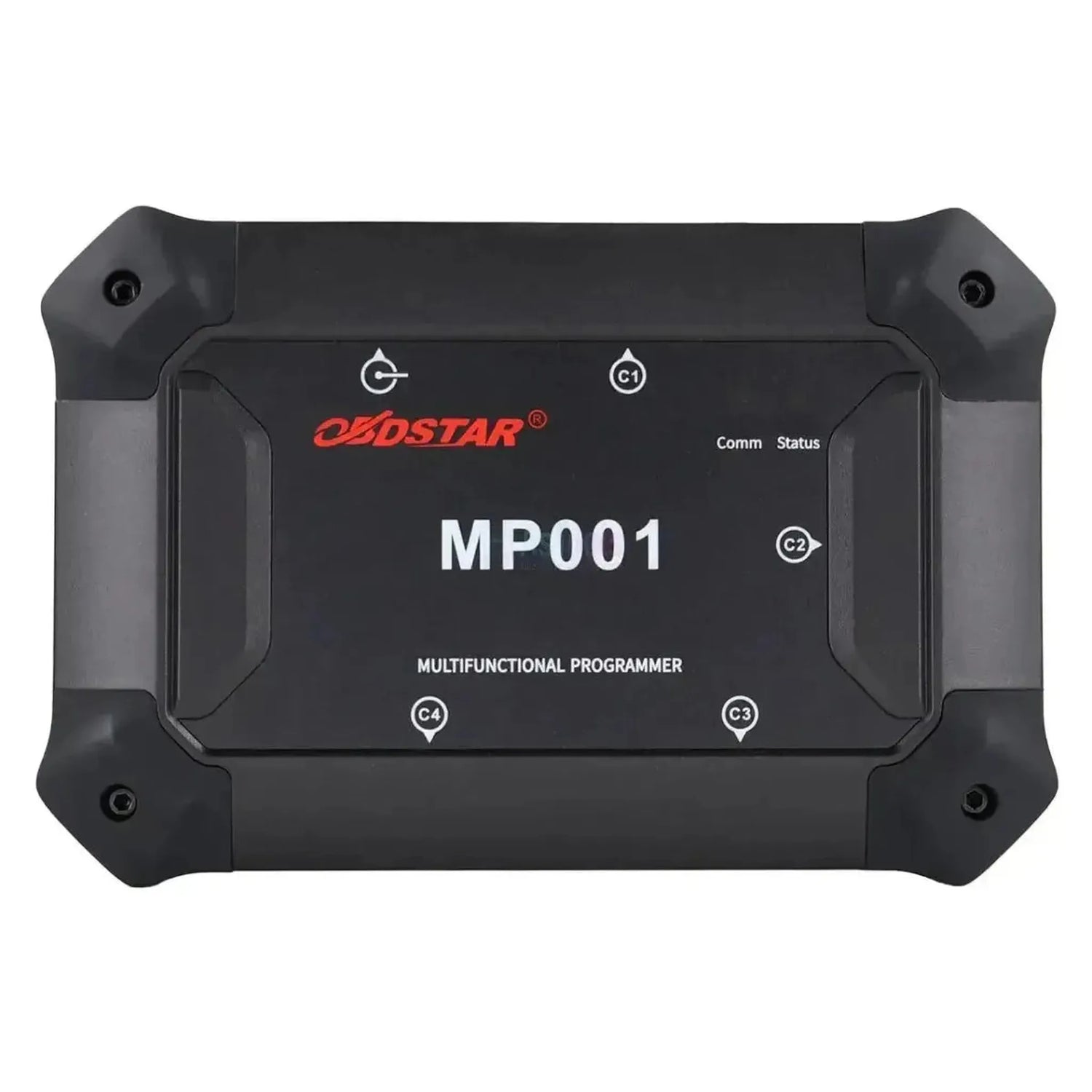

The OBDSTAR MP001 Kit is a multifunctional programmer for EEPROM and MCU operations on vehicle modules. The device supports reading, writing, cloning, and data processing for passenger cars, trucks, electric vehicles, motorcycles, and jetskis. The kit is built around an STM32F407VET6 processor and offers connections via DC power connector, OBD female, OBD male, DB9, and DB25. Additionally, the device is compatible with the functions of the P003 and P003+ adapter, enabling additional operations on engine and transmission modules.

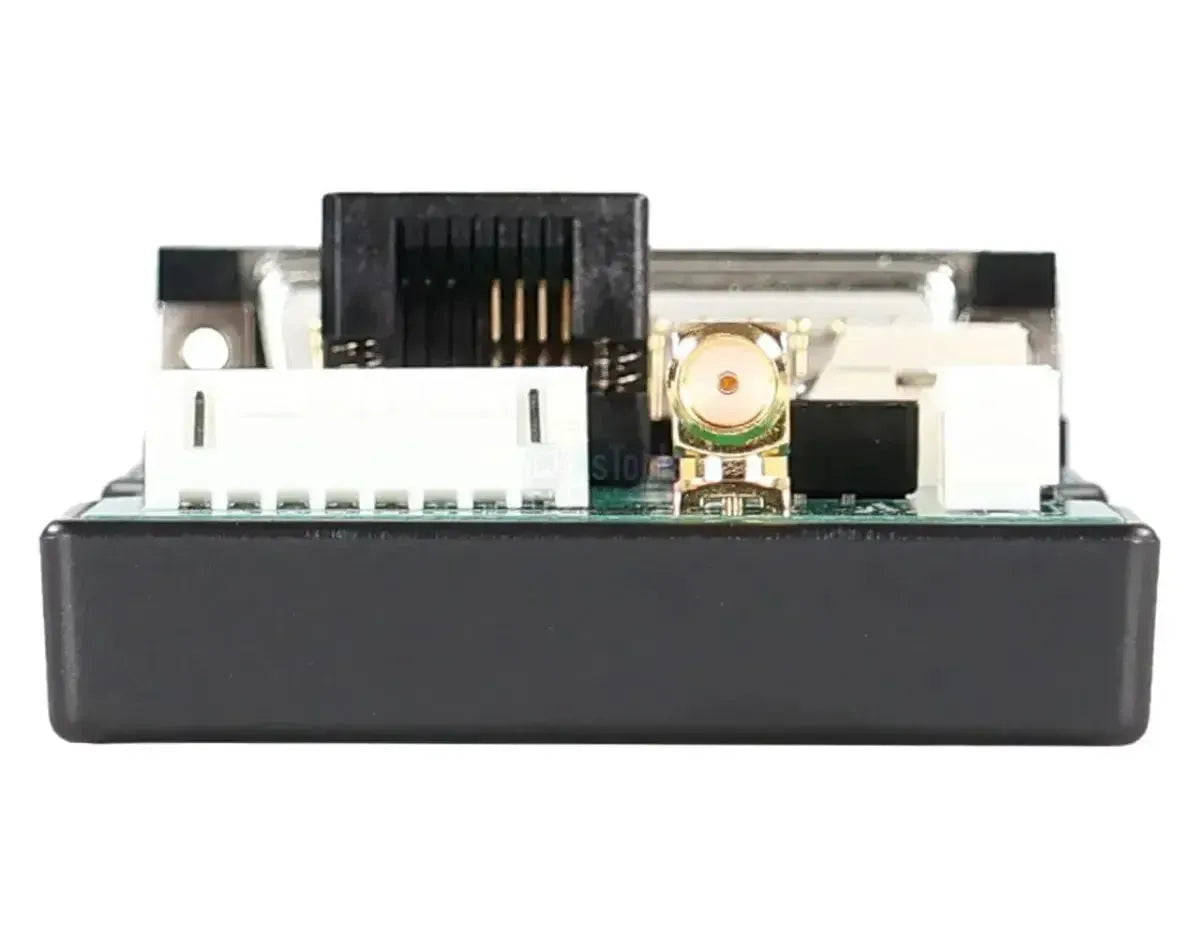

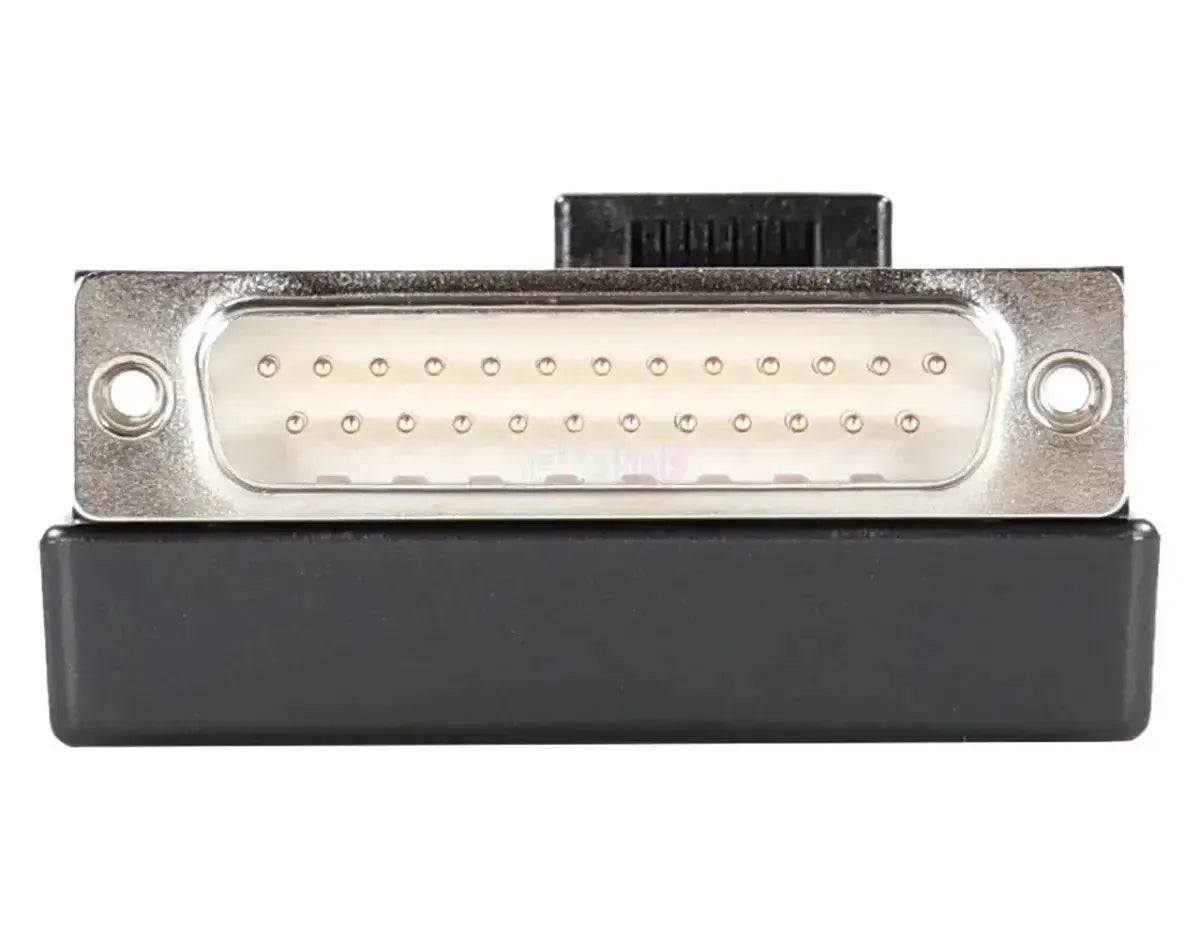

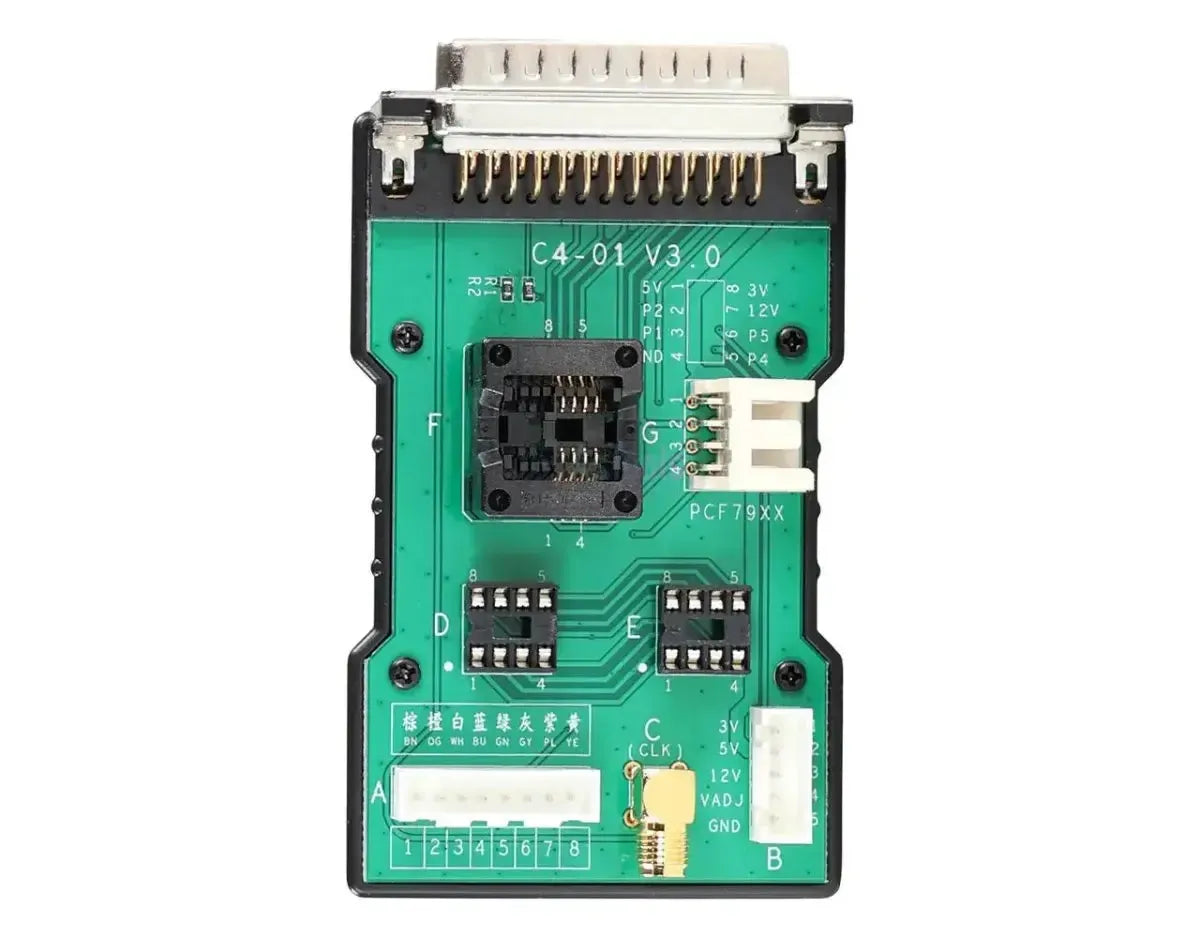

The MP001 communicates with vehicle modules via the supplied cabling and the multifunctional read/write board C4-01. For component-level connection, the W004 and W005 solder wires are used, while the W006 clock frequency wire supports specific chip operations such as RH850/V850 data reading and writing. The device handles, among other things, PIN code extraction, IMMO data synchronization, dashboard mileage calibration, SAS reset, and programming of Mercedes-Benz FBS3 keys. The exact software functions vary depending on the connected host device and configuration.
ADVANTAGES
KEY POINTS
Applications and functionalities
The OBDSTAR MP001 supports the following programming and data processing operations:
- EEPROM/MCU reading and writing: Reading and rewriting memory chips in vehicle modules for repair, cloning, or module data adjustment.
- Key reuse: Reusing existing keys after replacement or repair of the immobilizer module.
- SAS reset: Resetting the steering angle sensor after work on the steering or suspension.
- Body/chassis data processing: Editing data from body and chassis modules for module exchange or reprogramming.
- Reading PIN code: Reading the PIN code from the IMMO module for key programming.
- IMMO data synchronization: Synchronizing immobilizer data between modules after replacement.
- Dashboard mileage calibration: Adjusting the mileage on the instrument cluster after repair or replacement of the cluster.
- ECU data reading and writing: Reading and writing operations on ECU data for cars, trucks, jetskis, and motorcycles.
- Mercedes-Benz FBS3 key programming: Learning and programming keys for vehicles with the FBS3 system.
- RH850/V850 data reading and writing: Operations on modules with Renesas RH850 and V850 microcontrollers, common in modern instrument clusters and gateways.
Package Contents
- 1x OBDSTAR MP001 Kit | Accessories

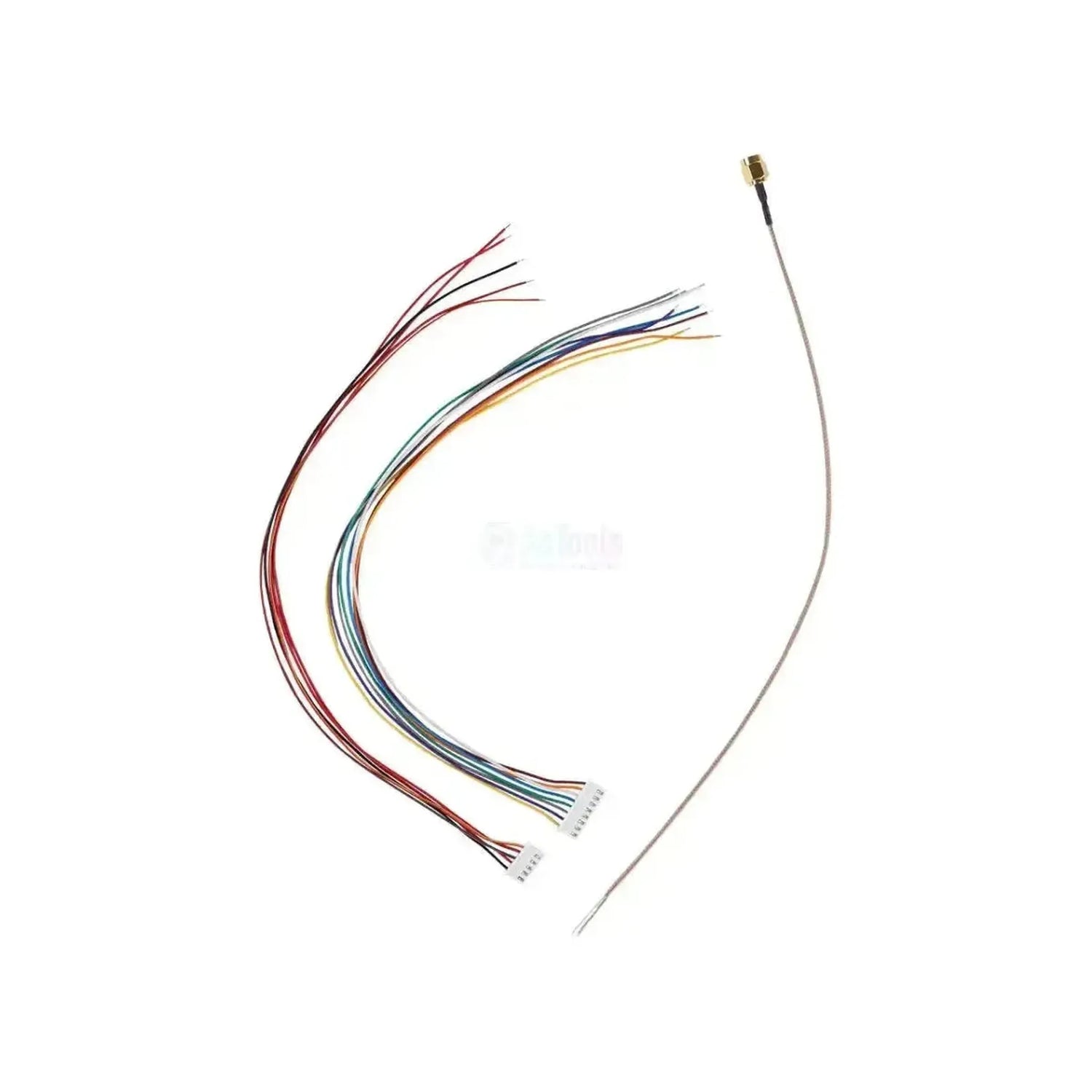

- 1x W004 read/write solder wire
- 1x W005 read/write solder wire
- 1x W006 clock frequency wire

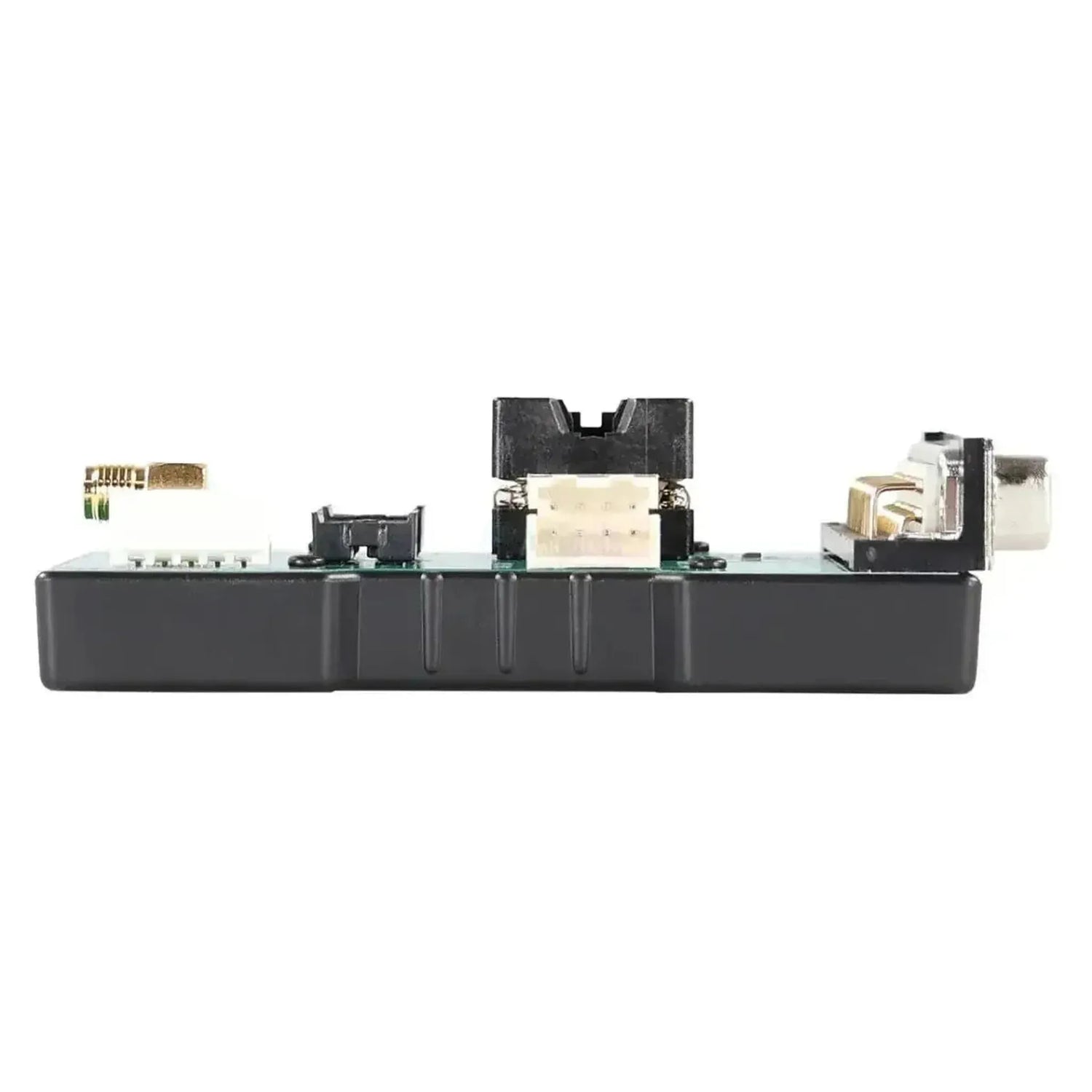

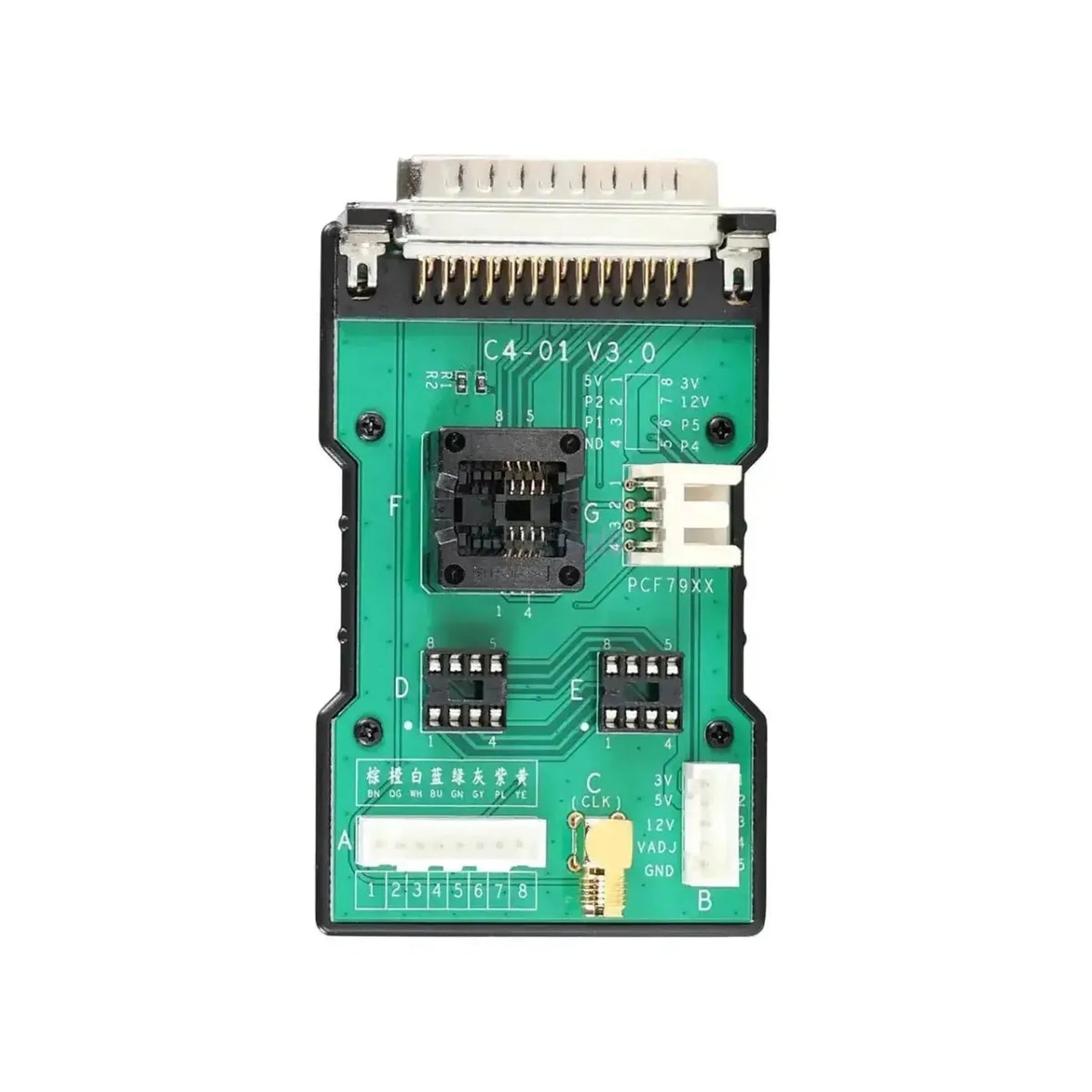

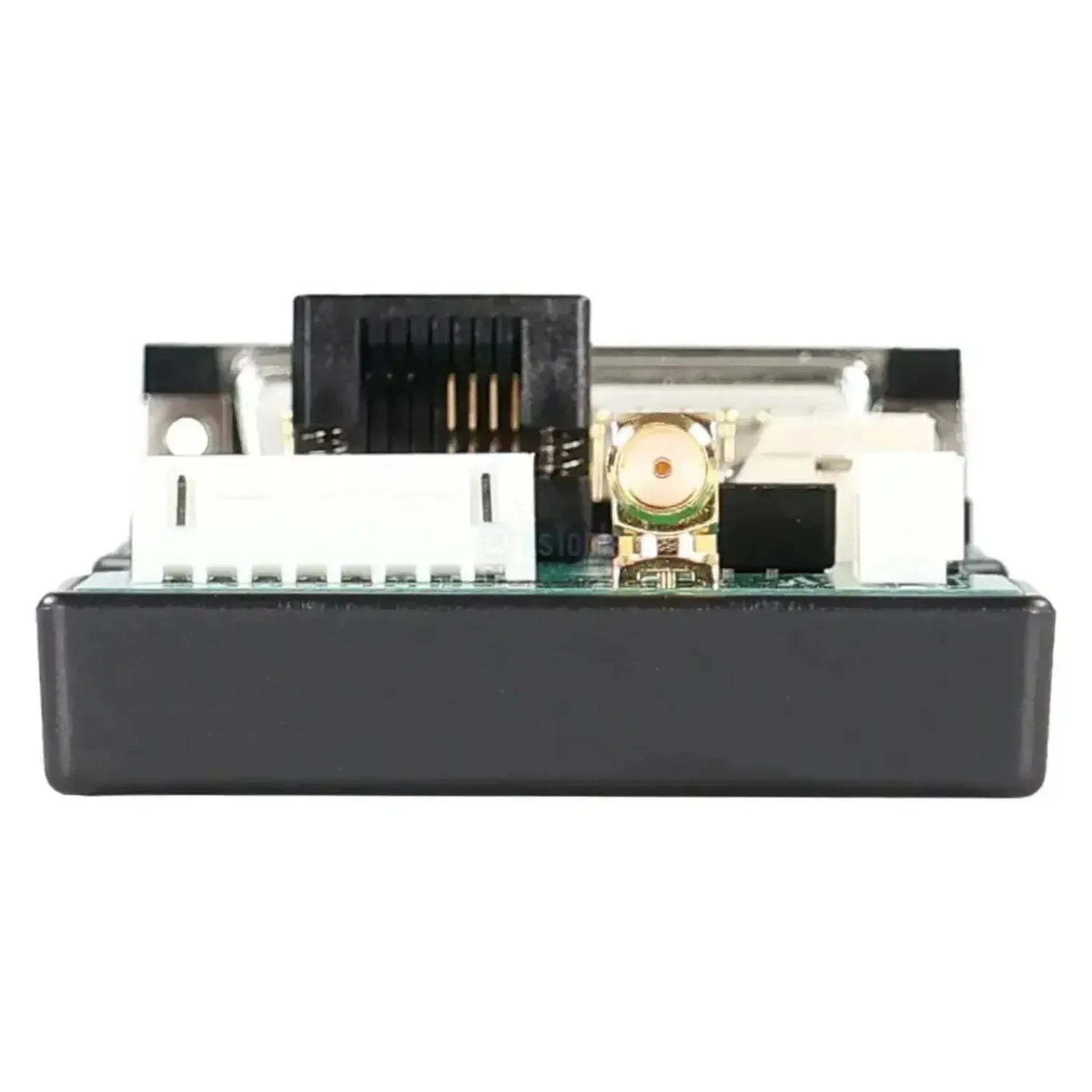

- 1x C4-01 multifunctional read/write board
Technical specifications
| Specification | Description |
|---|---|
| Product brand | OBDSTAR |
| Product model | MP001 Kit |
| Product type | Multifunctional programmer |
| CPU | STM32F407VET6 |

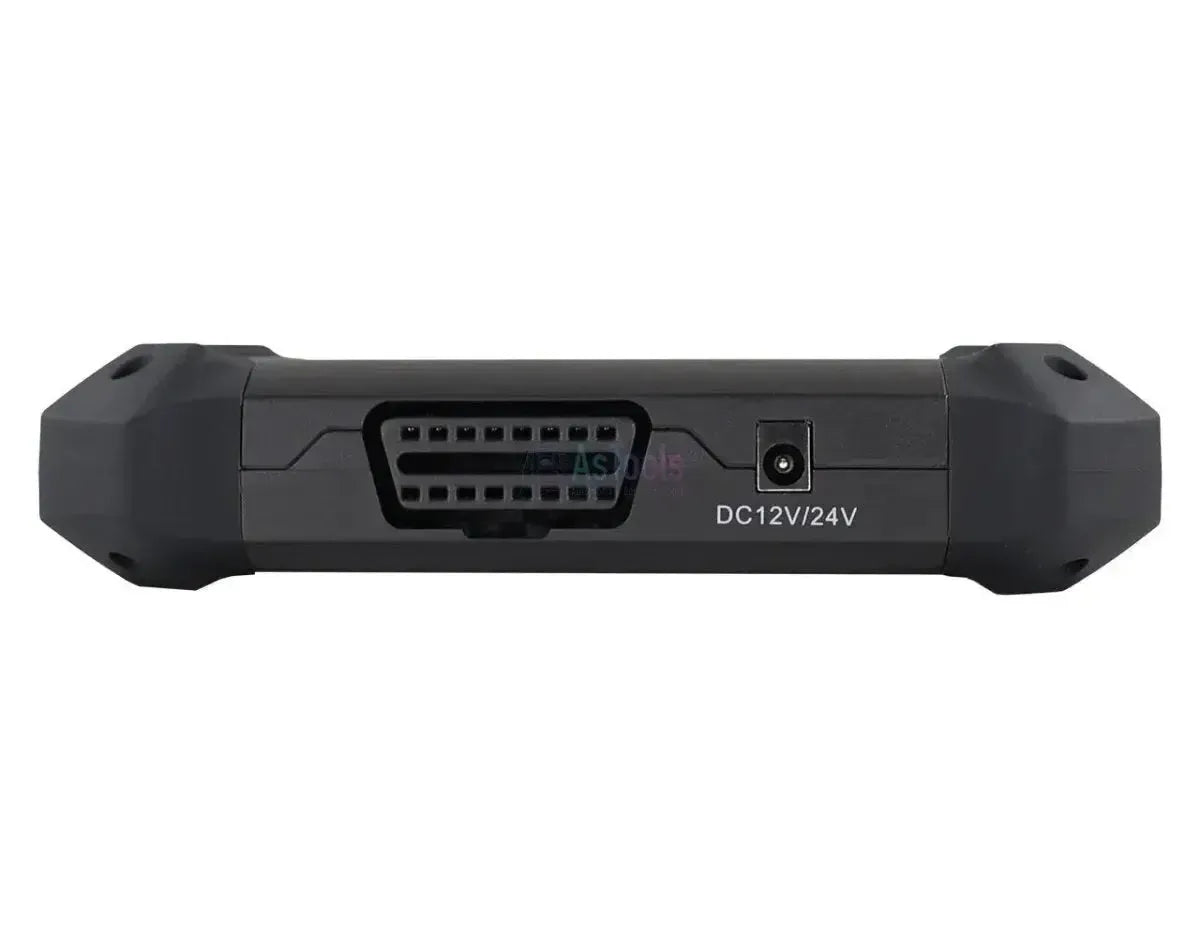

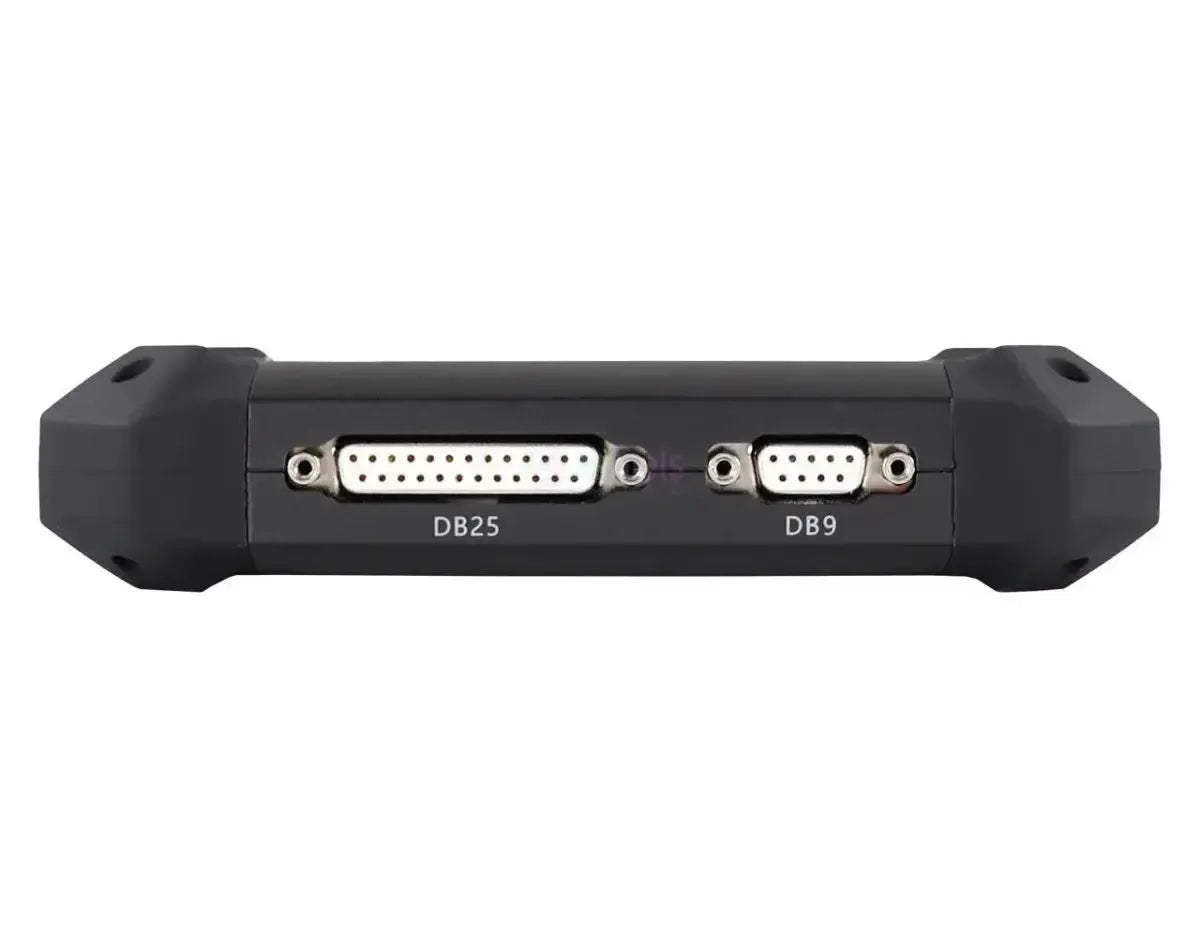

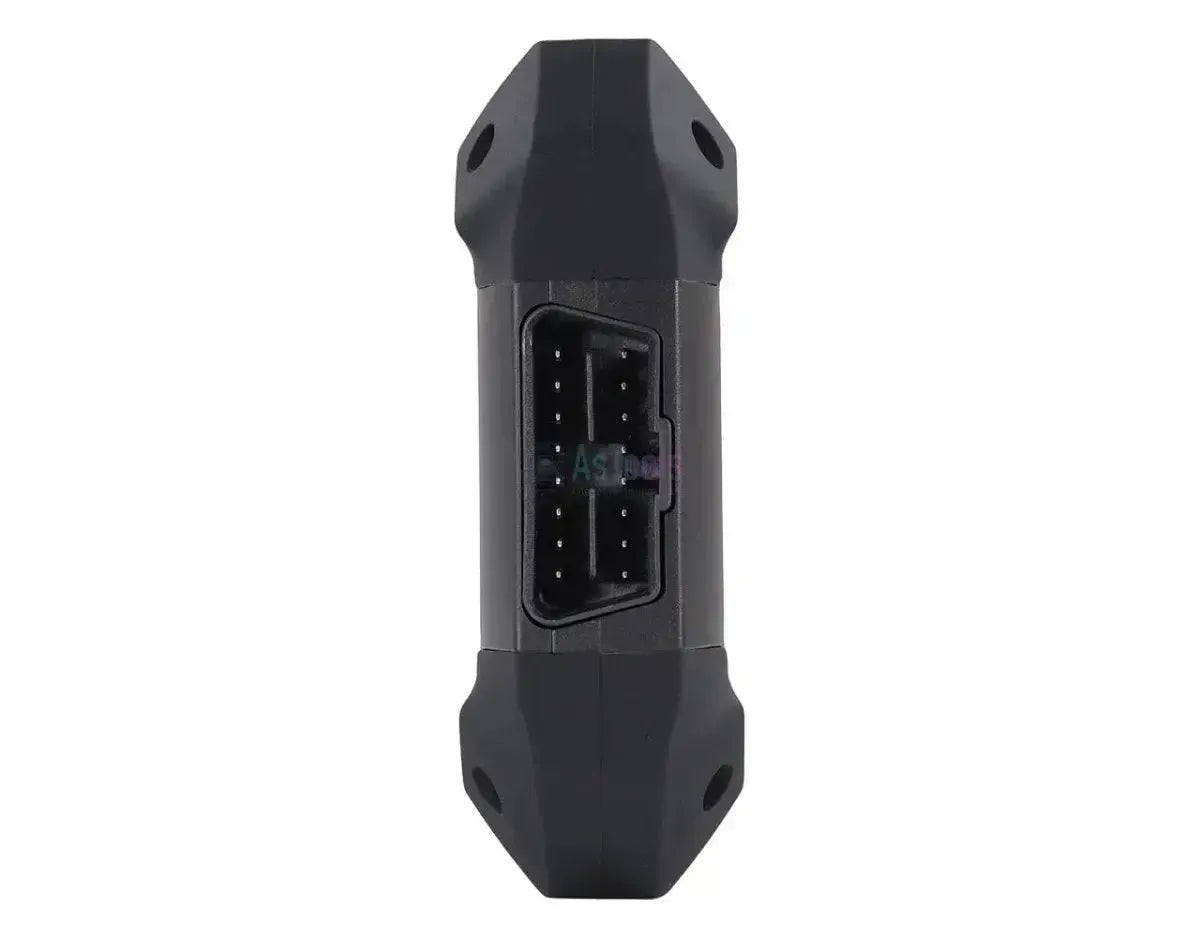

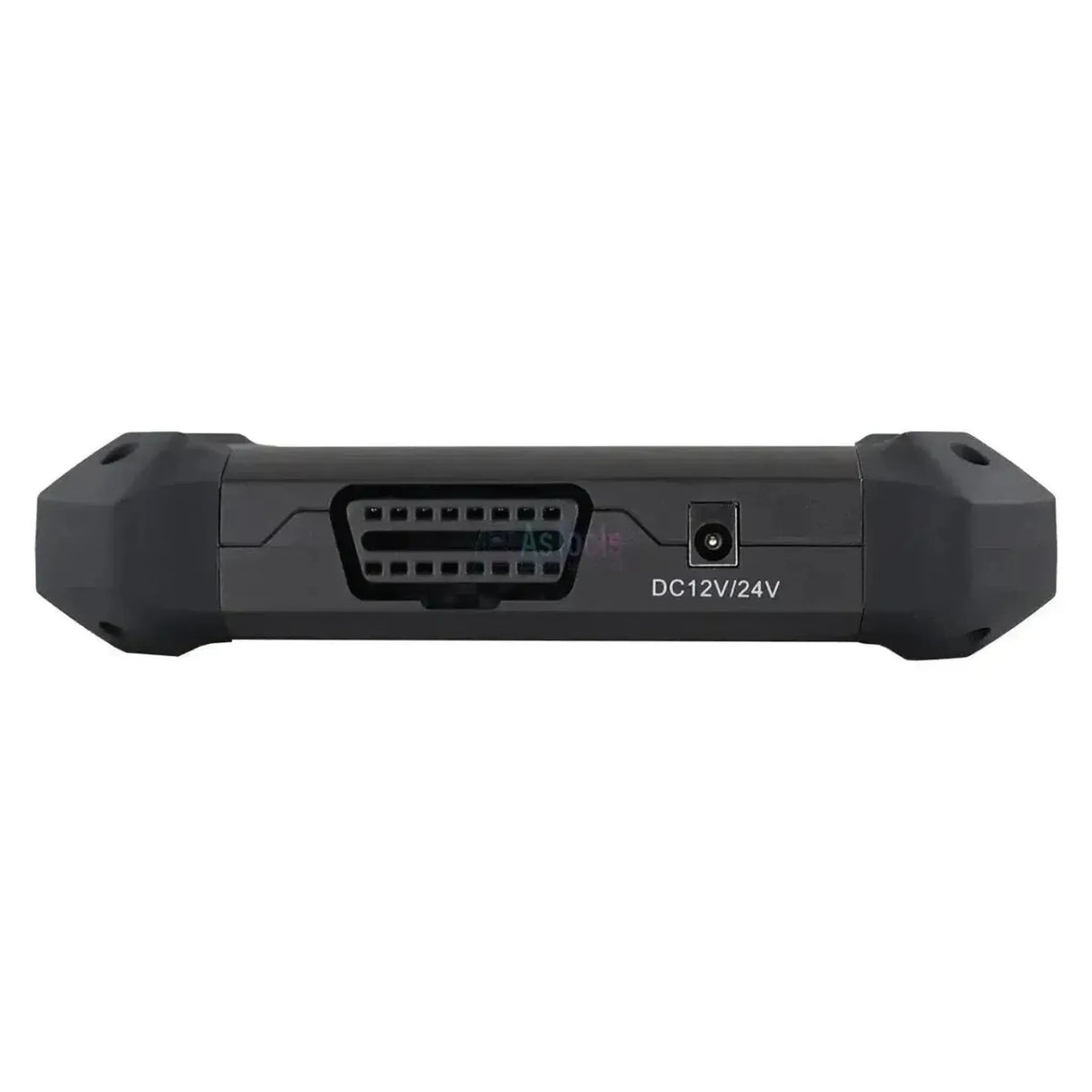

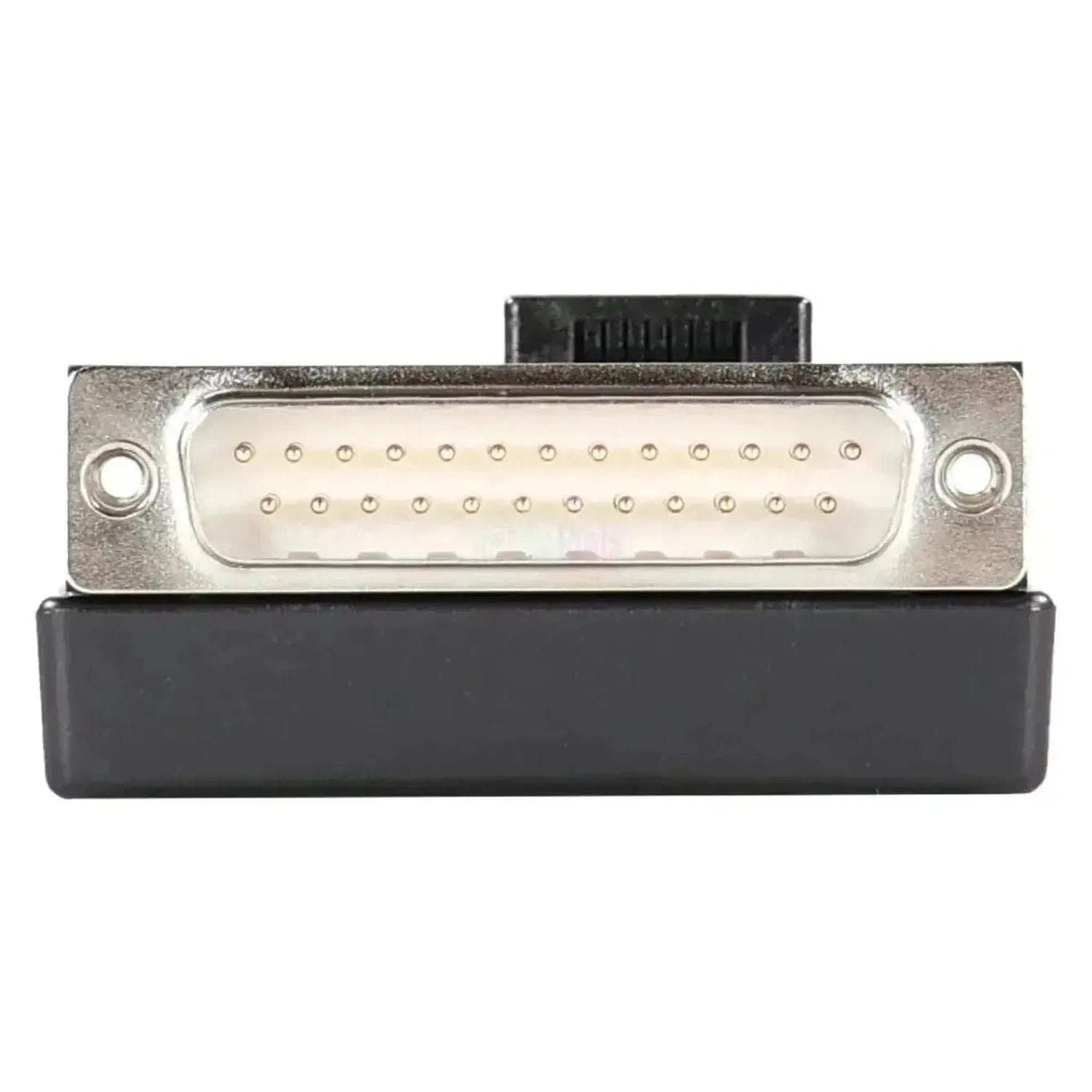

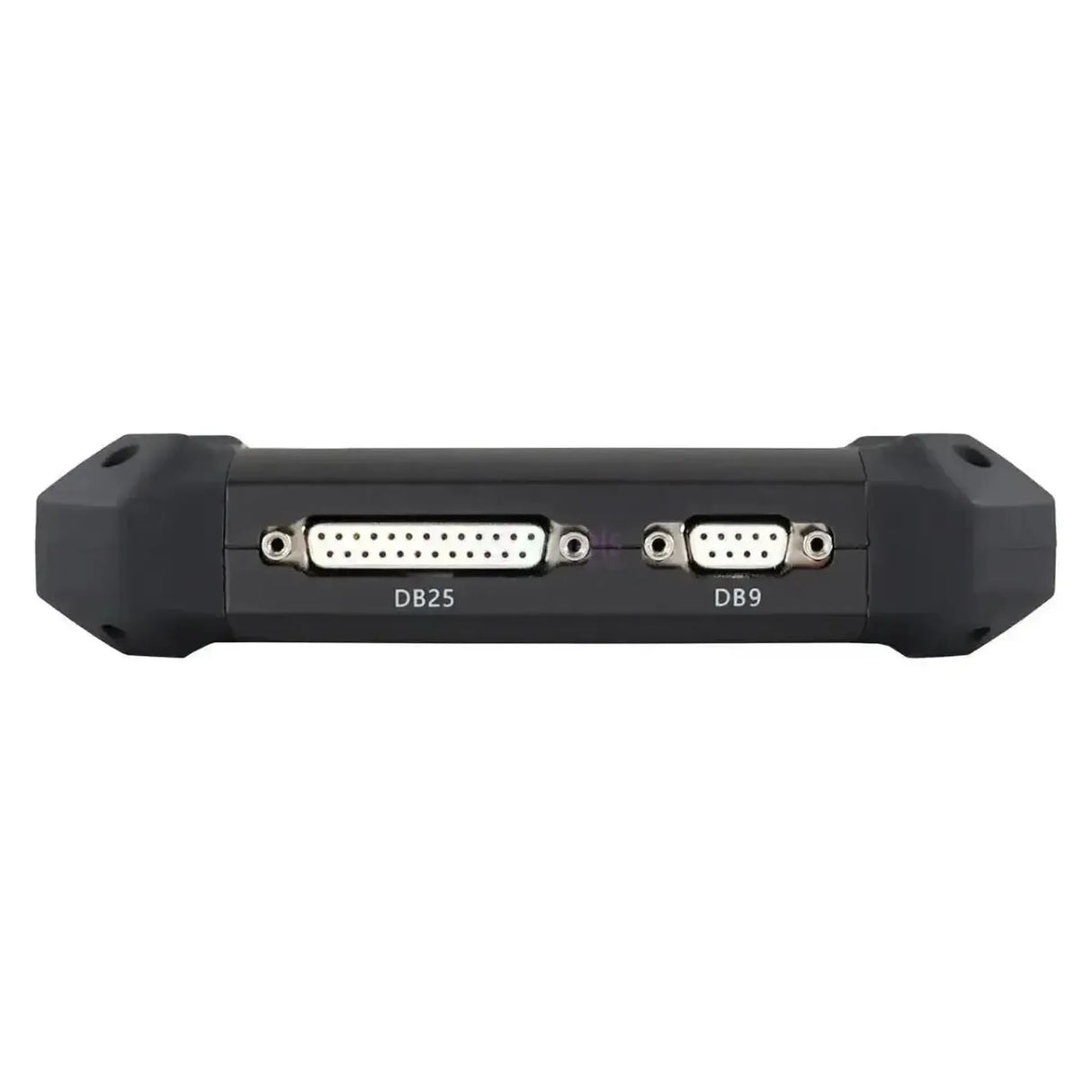

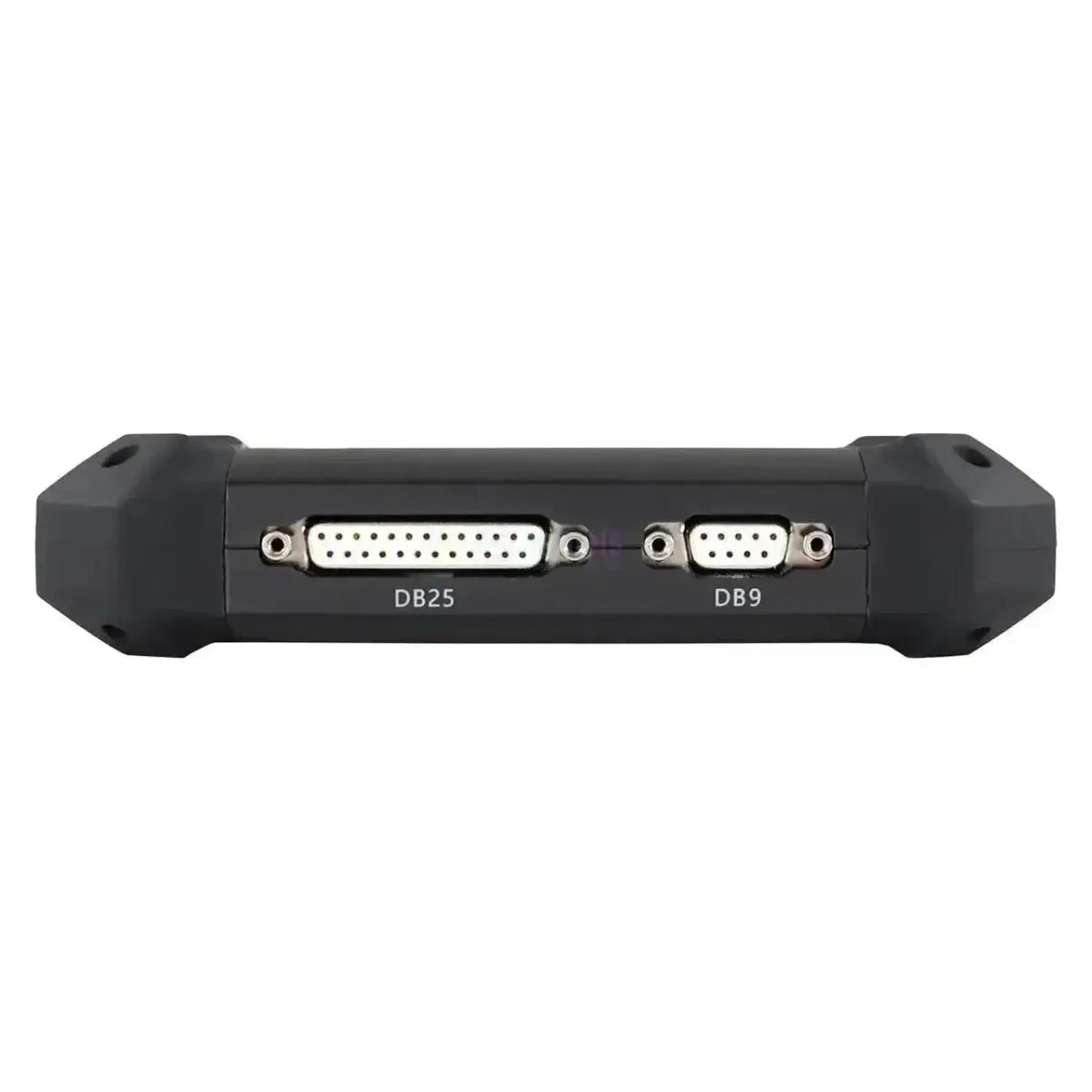

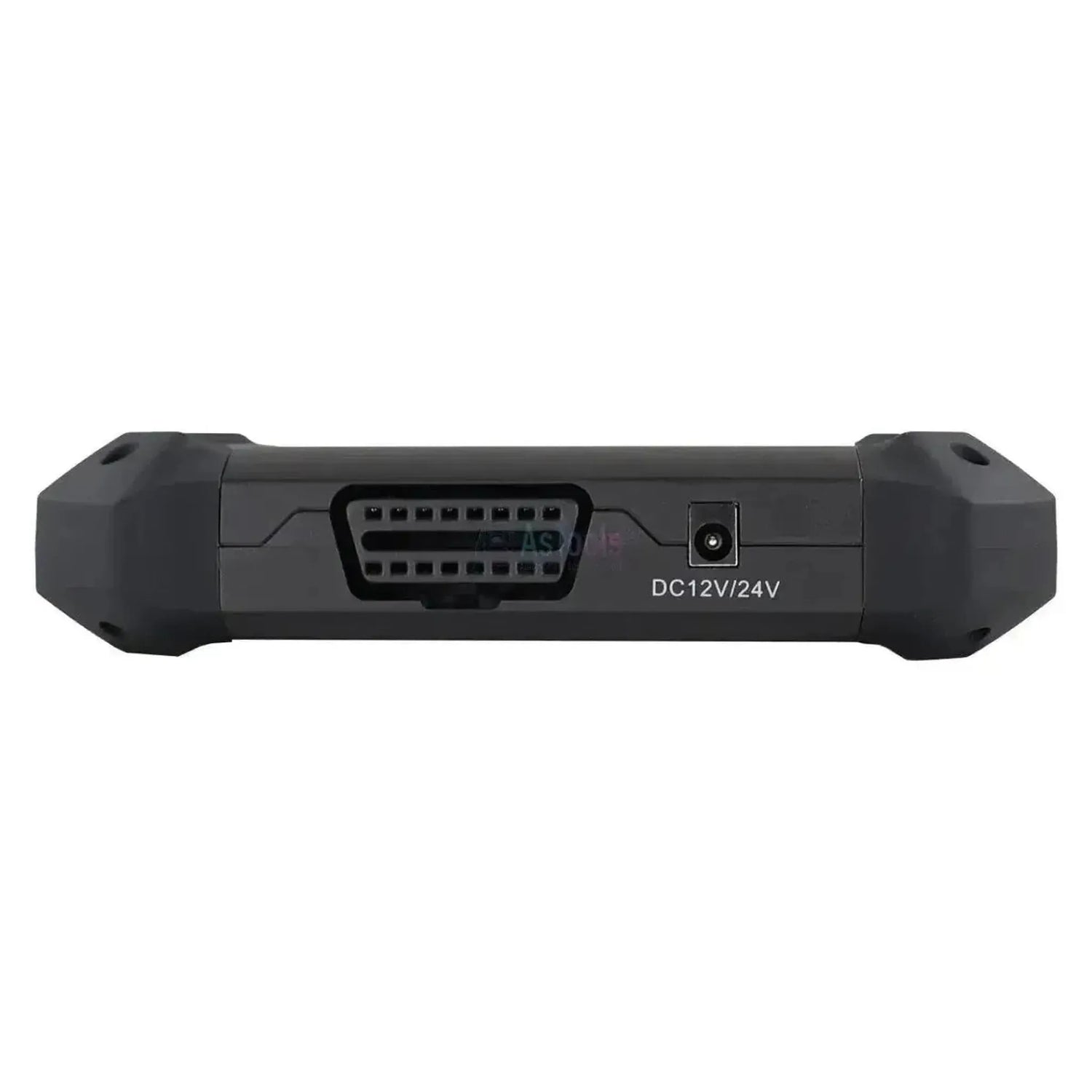

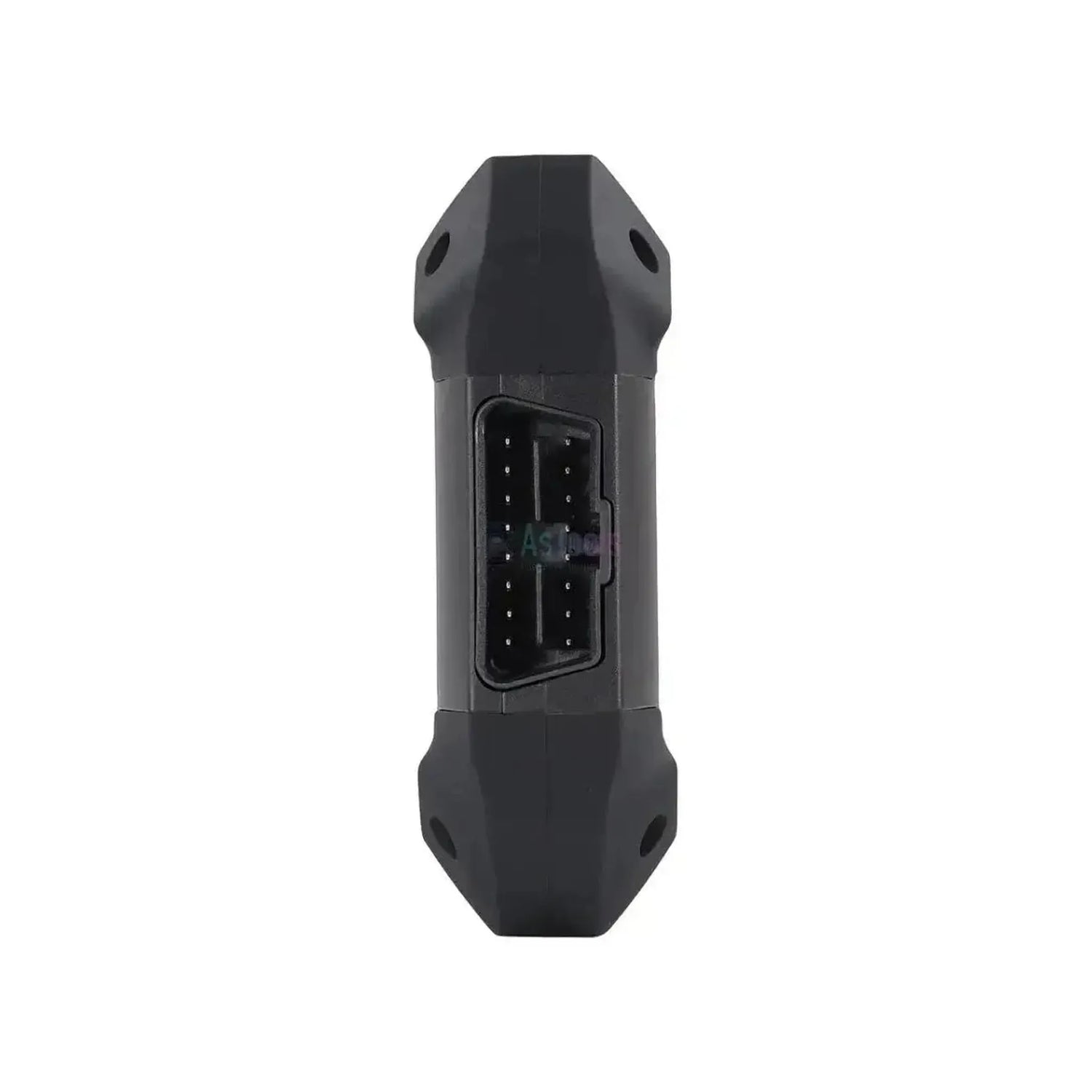

| Interfaces | DC power connector, OBD female, OBD male, DB9, DB25 |
| Input voltage | DC 12 V / 24 V |
| Current | 500 mA |
| Operating temperature | -10 °C to 55 °C |
| Dimensions | 165 × 110 × 35 mm |
| Weight | Approximately 260 g |
| Compatibility | P003 and P003+ adapter |
| Vehicle coverage | Passenger car, truck, electric vehicle, motorcycle, jetski |
