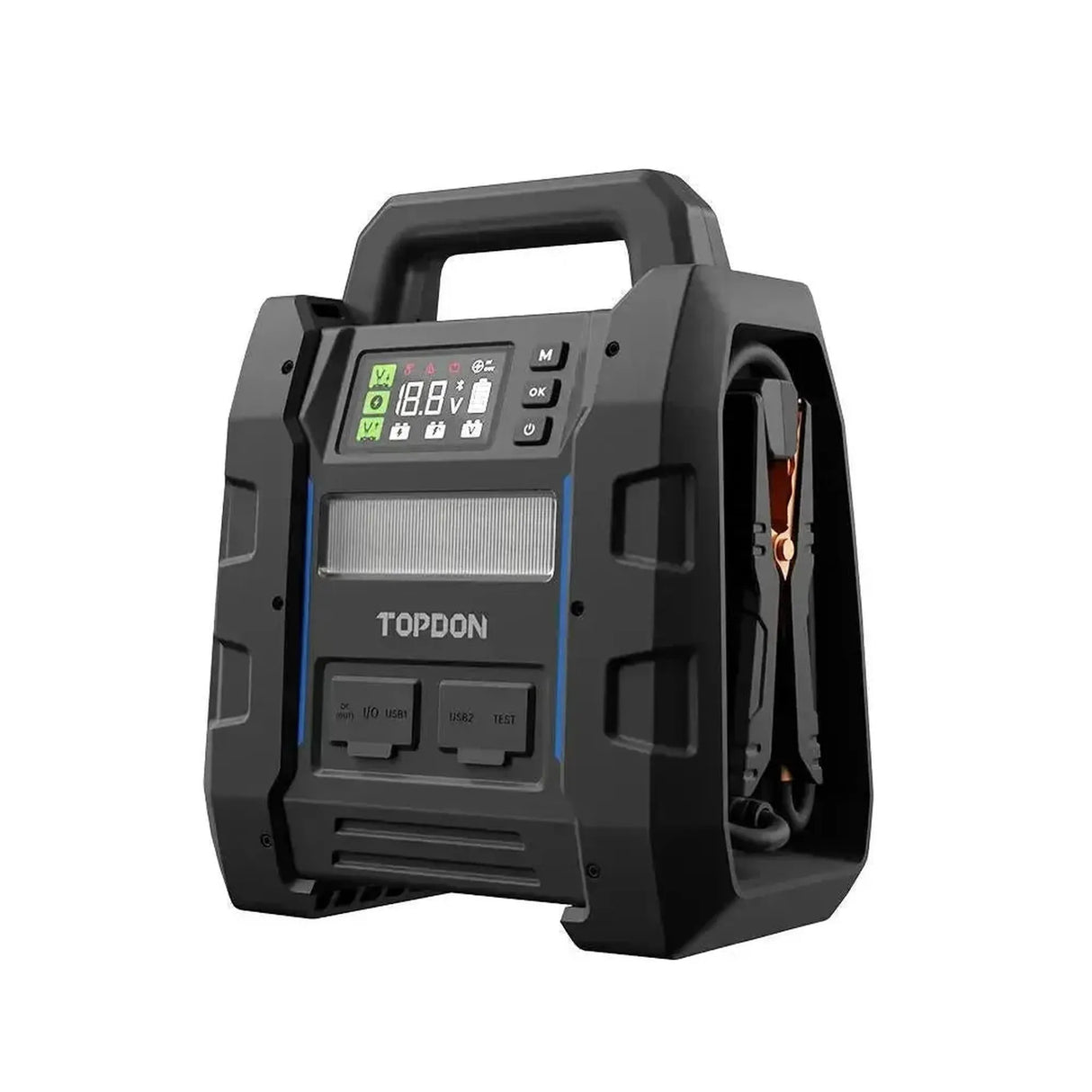

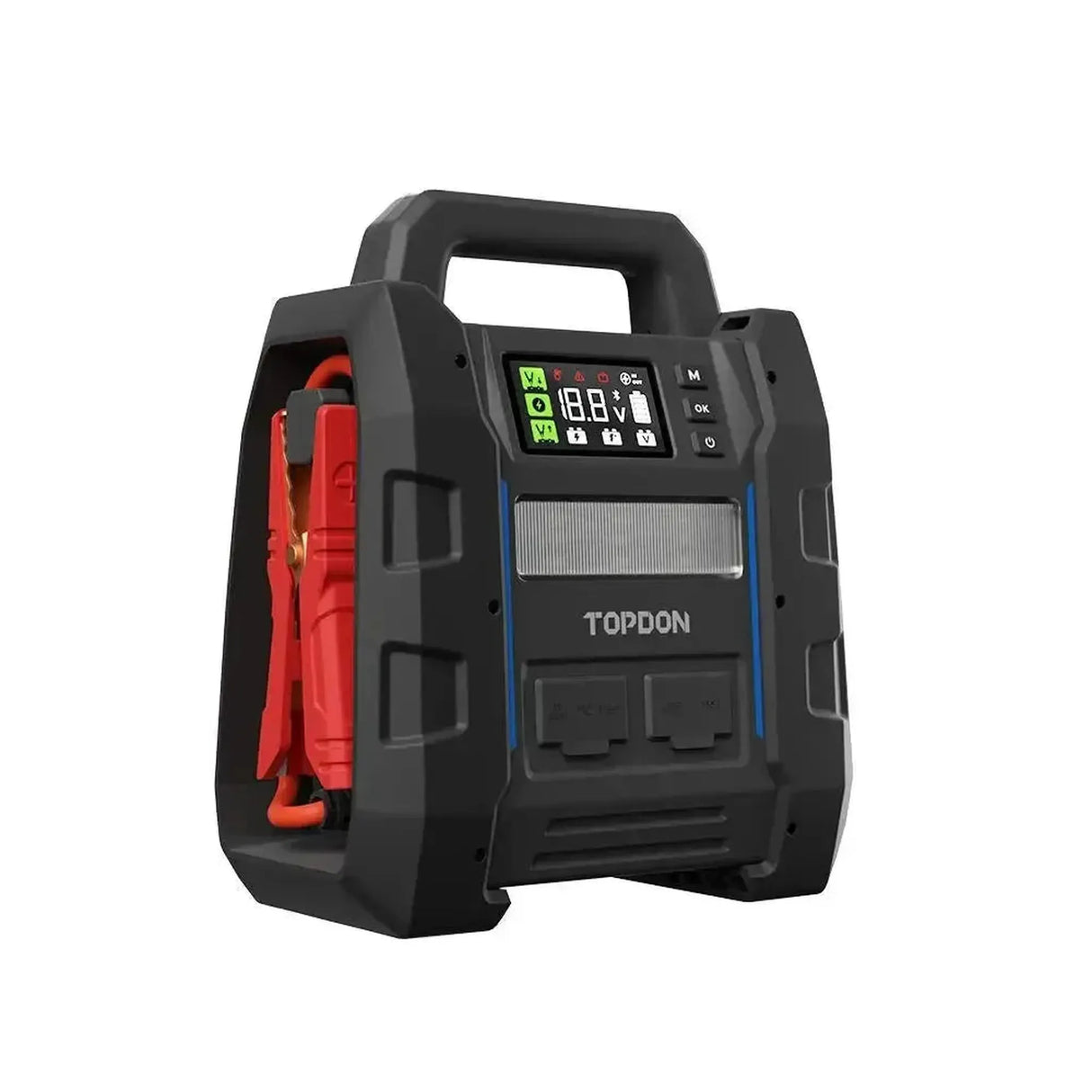

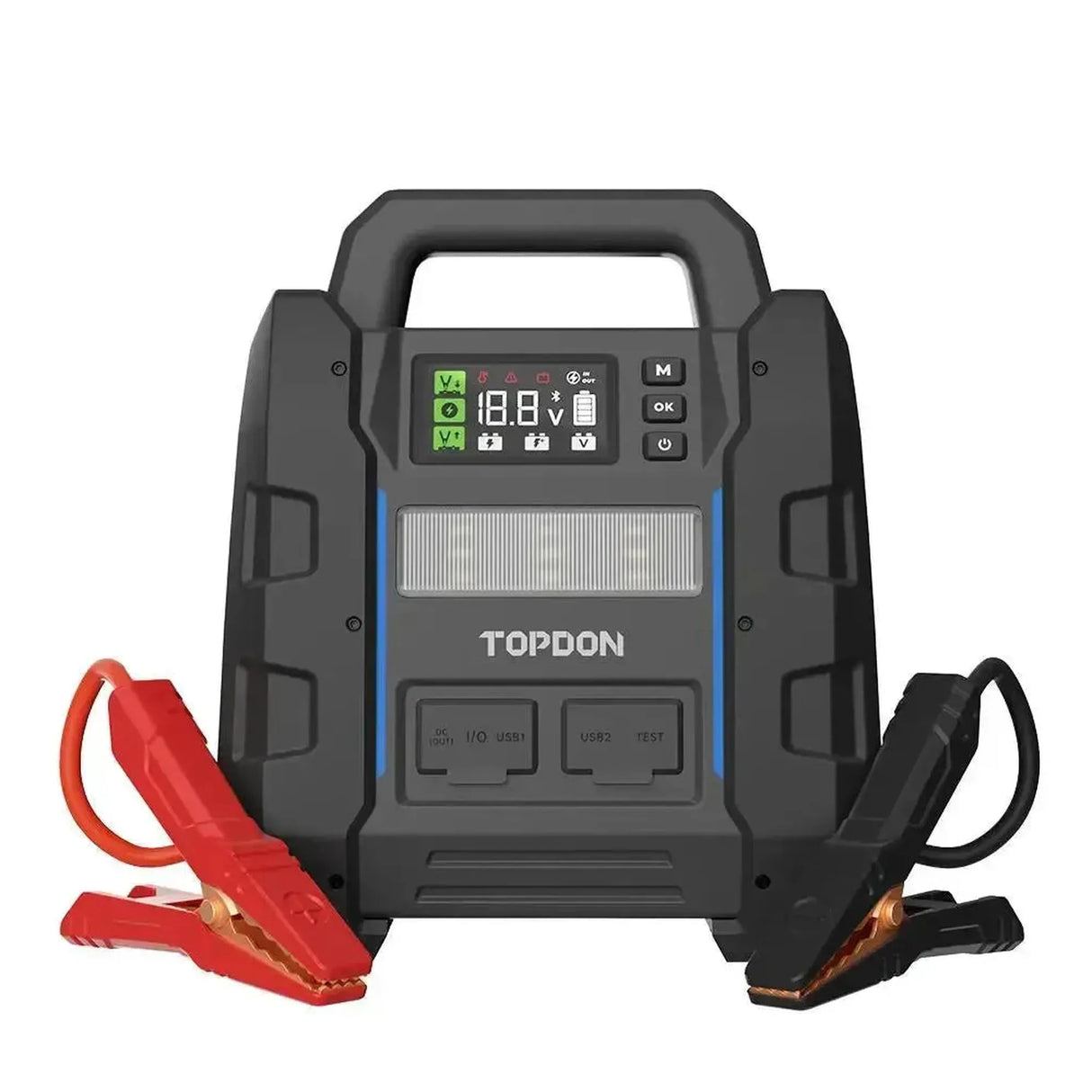

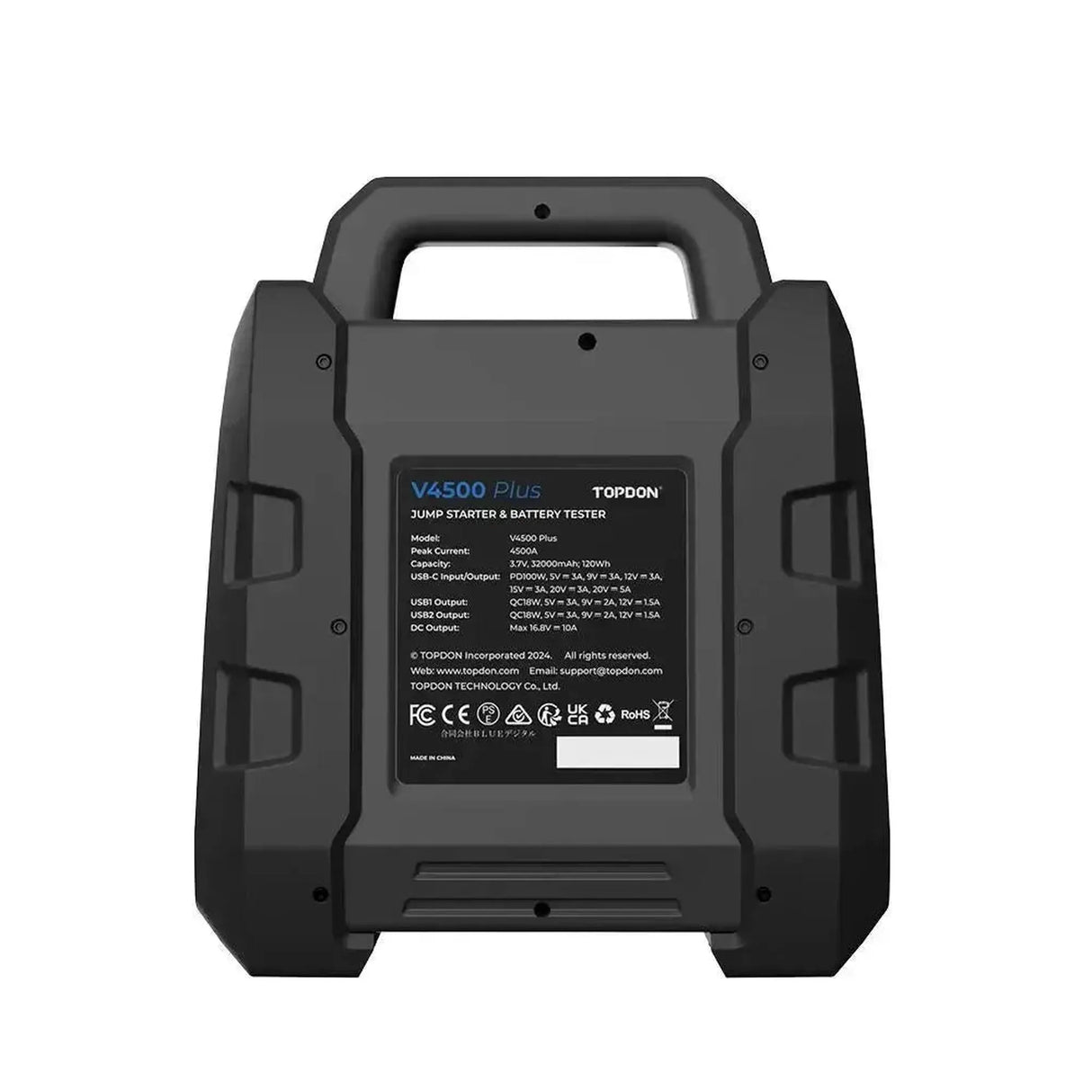

The Topdon V4500 Plus is a professional jumpstarter designed for mechanics and diagnostic technicians working with heavy and large-volume vehicles. With a high peak current of 4500A, this unit is specially built for 12V systems, including heavy commercial vehicles, agricultural vehicles, boats, and off-road vehicles. The device uses an internal lithium battery with a capacity of 32000mAh (120Wh) and provides enough power to start up to 45 times on a single battery charge. In addition to providing start support, the unit is capable of diagnosing standard vehicle batteries through the built-in test functionality.

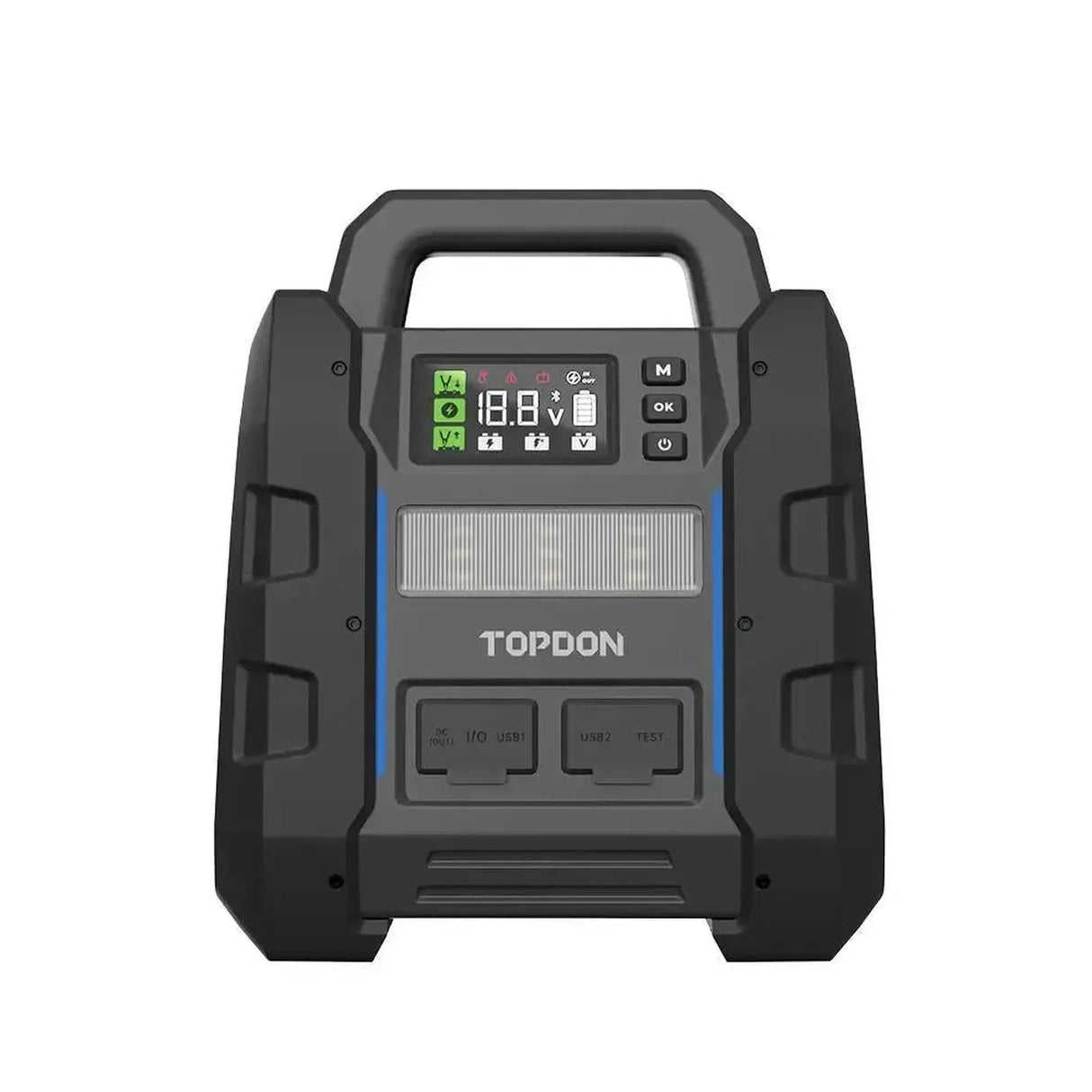

Technically, the system is monitored by ten integrated protection systems, including reverse polarity protection, short circuit protection, overcurrent protection, and temperature control. The current status of the battery and the starting process is directly readable via the illuminated LCD display on the front panel. The power supply is very flexible; the unit is equipped with a bidirectional PD100W USB-C port that can fully charge the internal battery in just 90 minutes. Furthermore, the jumpstarter features external connections such as two QC18W USB-A ports, a 16.8V DC output for workshop equipment, and a built-in LED work light of 500 lumens with multiple lighting modes for work in low-light environments.
ADVANTAGES
IMPORTANT NOTES
Applications and functionalities
This jumpstarter is designed not only to start engines but also to facilitate diagnostics and supply power to external test equipment.
- Vehicle diagnosis and start support: Delivers a peak current of 4500A via the smart starting clamps to immediately start heavy combustion engines with a deeply discharged vehicle battery.
- Battery diagnosis and testing: With the specific test port and the accompanying app, the unit analyzes the starting capacity (CCA), internal resistance, charge status (SoC), and health status (SoH) of the connected battery.
- Power supply via DC and USB: Powers diagnostic devices, work lights, or smartphones on site via the robust 16.8V/10A DC port, the PD100W USB-C port, or the dual QC18W USB-A outputs.
Special features and capabilities
To maximize safety and operational readiness, the device is equipped with high-quality components and intelligent charging protocols.
- Bidirectional Fast Charging (PD100W): The internal lithium cell is charged via the USB-C connection with a charging power of 100 watts. This allows the battery booster to be charged from 0 to 100% in just 90 minutes.
- 10-fold intelligent battery protection: An integrated safety module continuously monitors the starting process and automatically interrupts the circuit upon detection of reverse polarity, short circuit, overcurrent, undervoltage, and extreme temperature fluctuations.
- Integrated LED work light: The front panel contains 15 ultra-bright white LEDs and 6 red warning LEDs with an output of 500 lumens. Supports modes for constant light, strobe, SOS, and a specific red warning signal for emergencies.
Compatible vehicles and applications
The booster delivers high power output for heavy and commercial equipment running on a standard 12-volt electrical system.
- Vehicle category: Light and heavy commercial vehicles, trucks (12V), agricultural vehicles, heavy off-road equipment, and boats.
- Battery voltage: Designed for 12V electrical systems.
- Battery type: Compatible with standard vehicle batteries, including Lead Acid, AGM, and Gel.
Package Contents
- 1x Topdon V4500 Plus

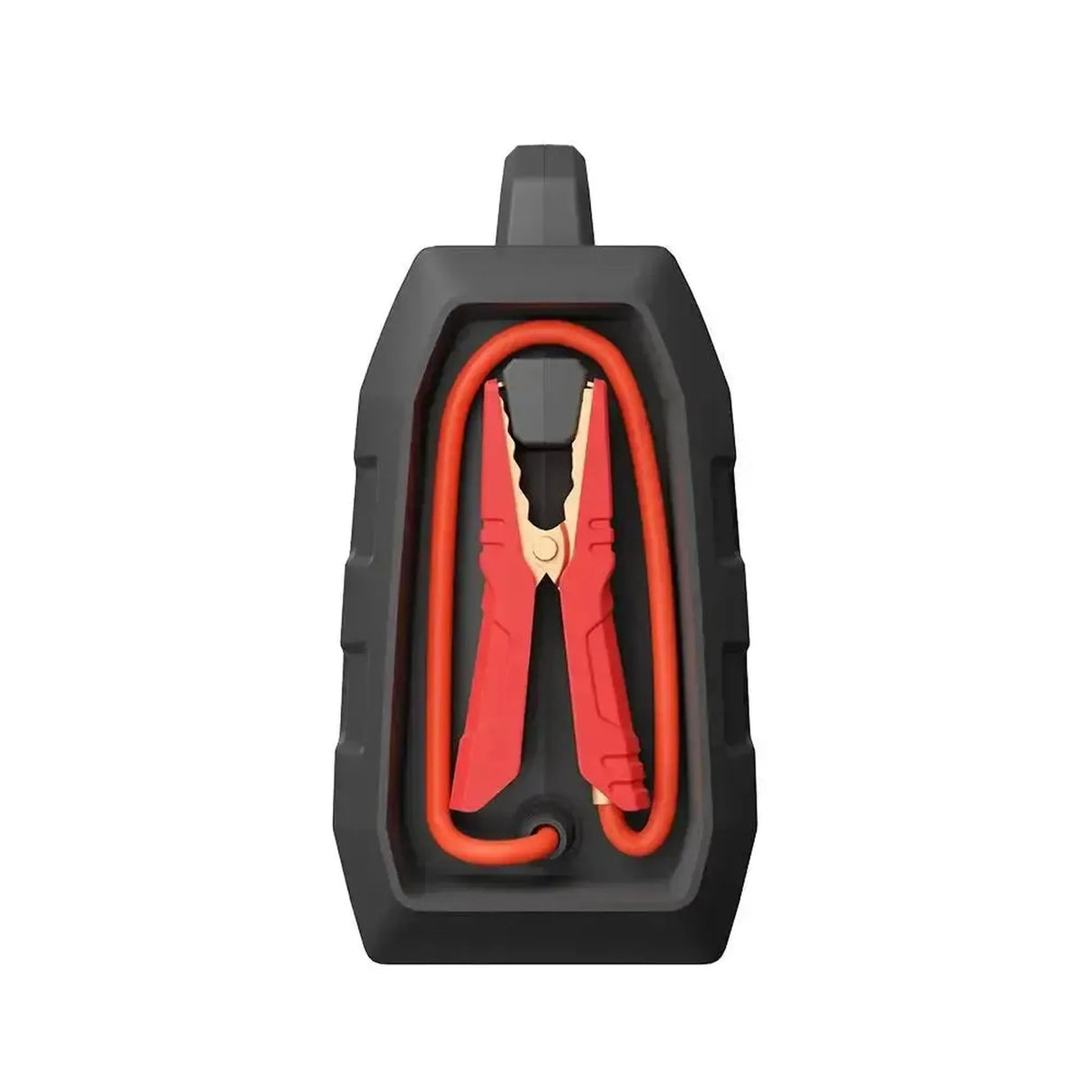

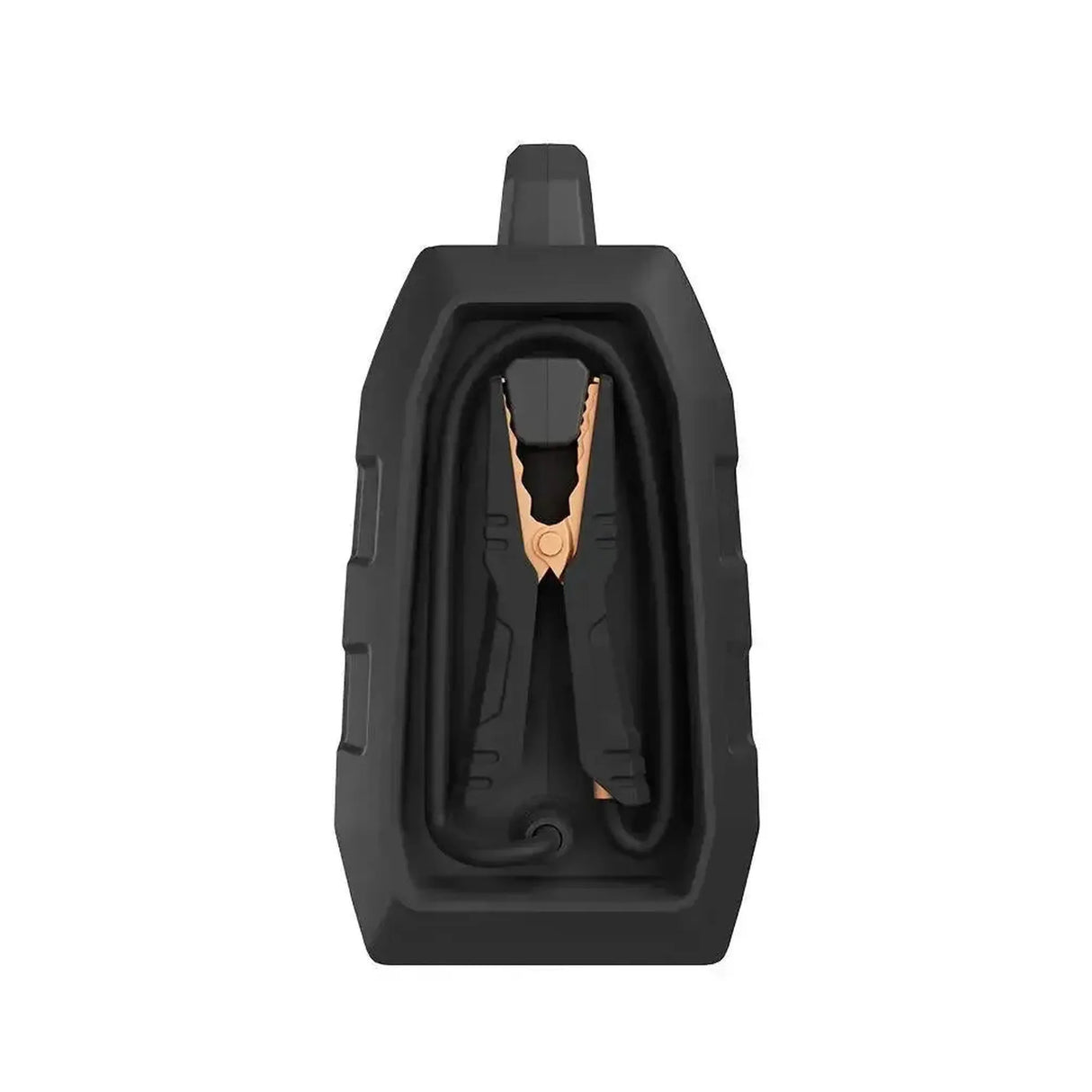

- 1x Battery Test Clamps (Smart jumper cables)
- 1x PD100W USB-C cable
- 1x PD45W charger
- 1x DC Adapter
- 1x User manual
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Topdon |
| Product model | V4500 Plus |
| Peak current | 4500A |
| Supported battery voltage | 12V |
| Battery capacity internal battery | 32000mAh / 120Wh (3.7V) |
| USB-C Input / Output | Bidirectional, PD100W (5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A) |
| USB-A Output 1 & 2 | QC18W (12V=1.5A, 9V=2A, 5V=3A) |
| DC Output | Max 16.8V = 10A |
| Work light brightness | 500 Lumens |
| Protection rating | IP65 (Dust and water spray resistant) |
| Cable length clamps | Positive: 380 mm / Negative: 380 mm |
| Operating temperature | -10°C to 55°C |
| Storage temperature | -20°C to 55°C |
| Dimensions | 320 x 310 x 175 mm |
| Weight | 4400 grams |
