Jaltest  |  SKU: JDC565.9

Jaltest (JDC565.9) | Mitsubishi/Caterpillar 12-pins OBD – 16-pins OBD2 Adapter Cable | Lifting and Hoisting Equipment

€368,95 incl.
€304,92 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

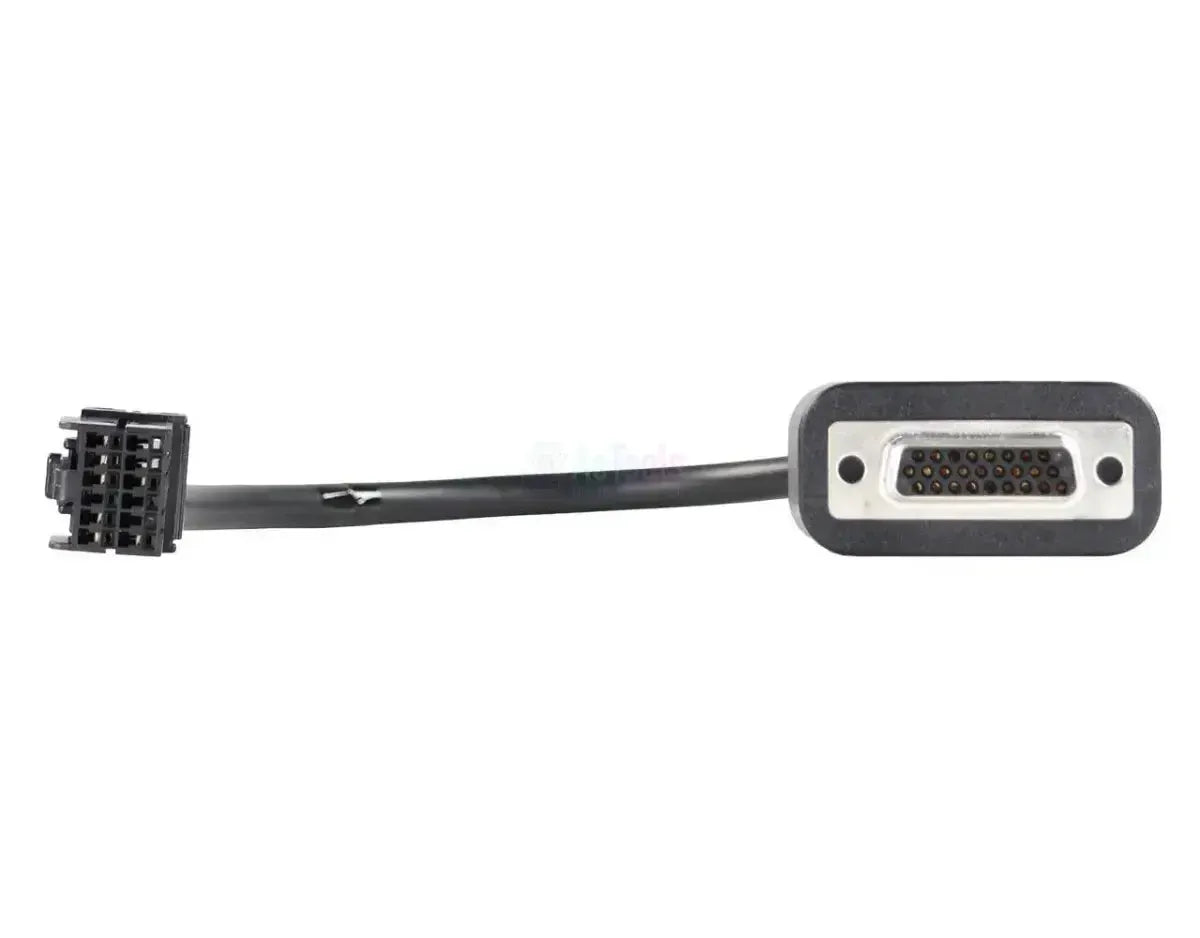

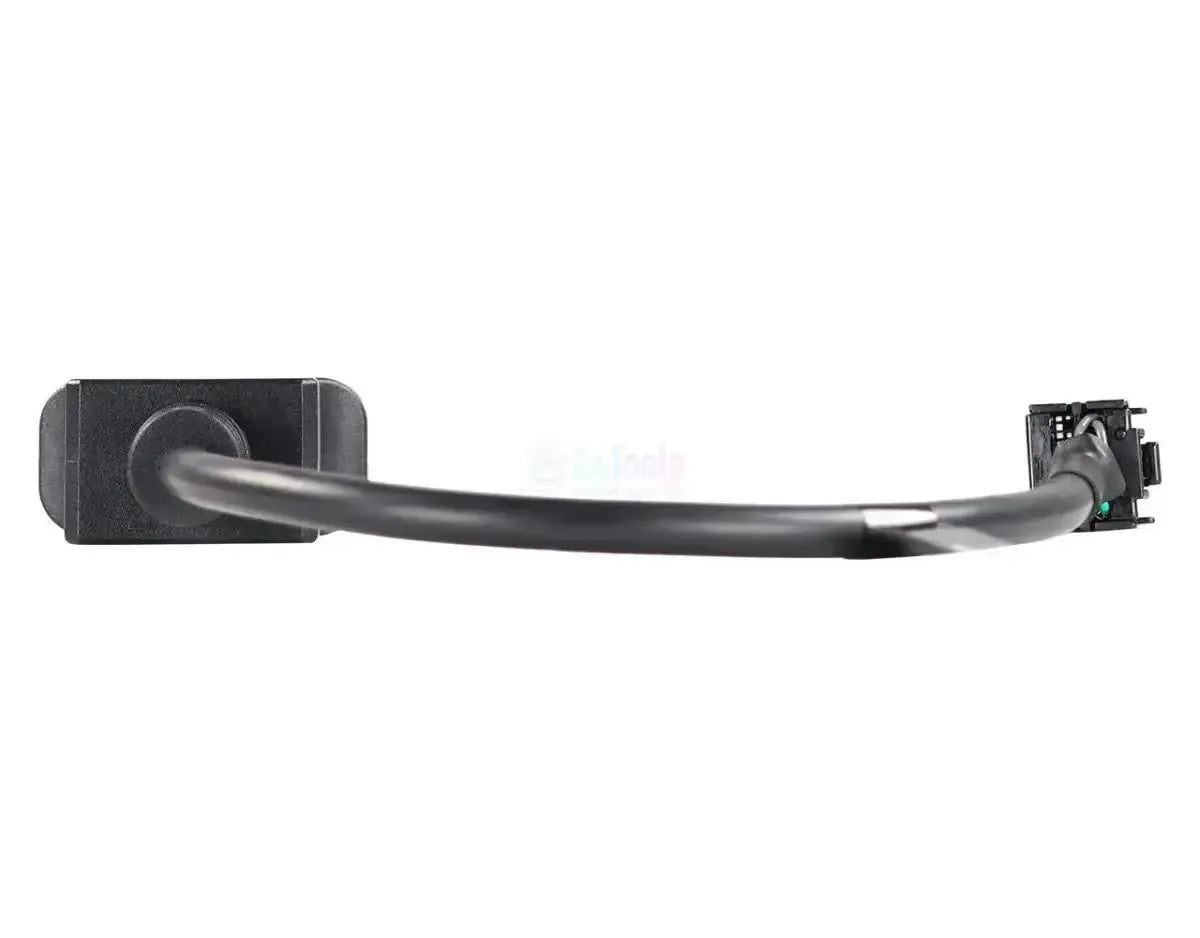

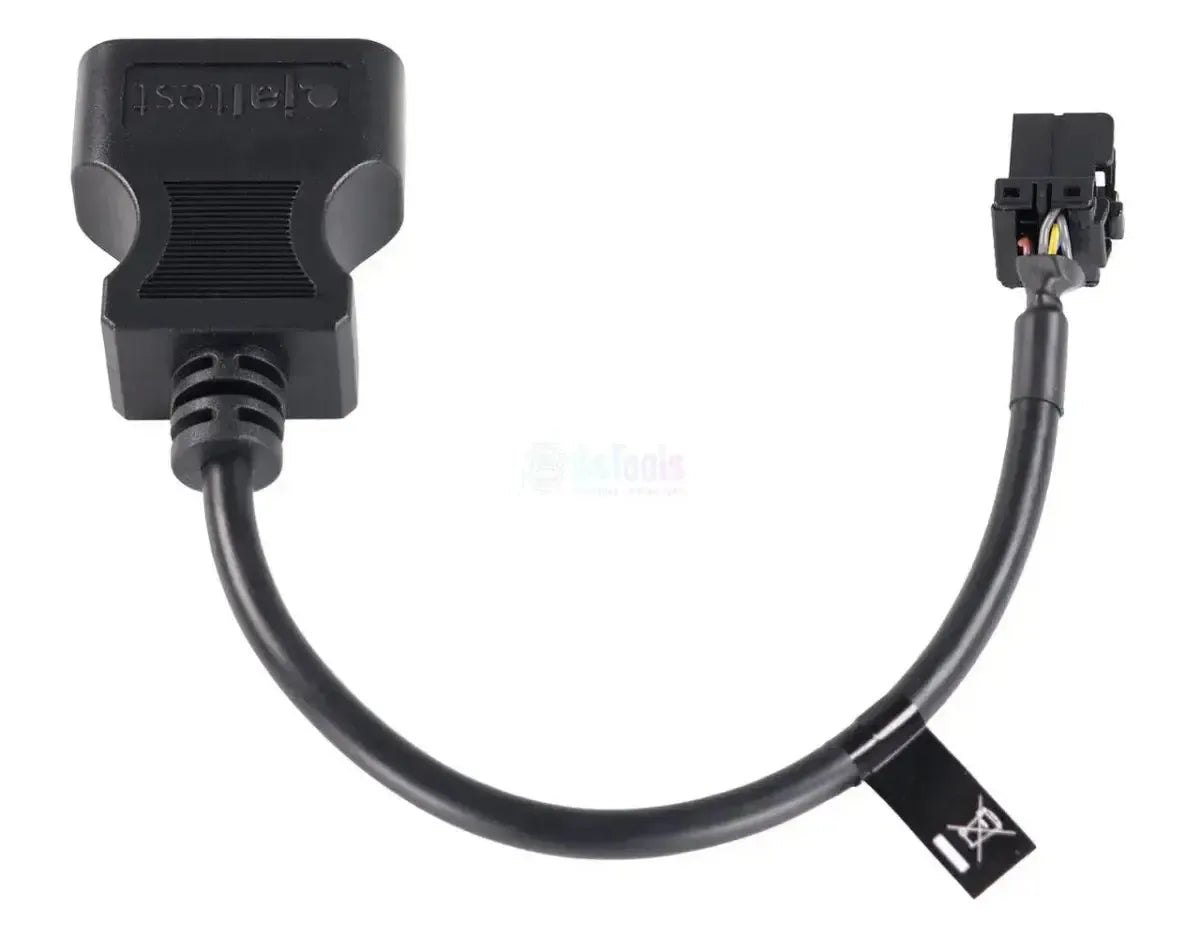

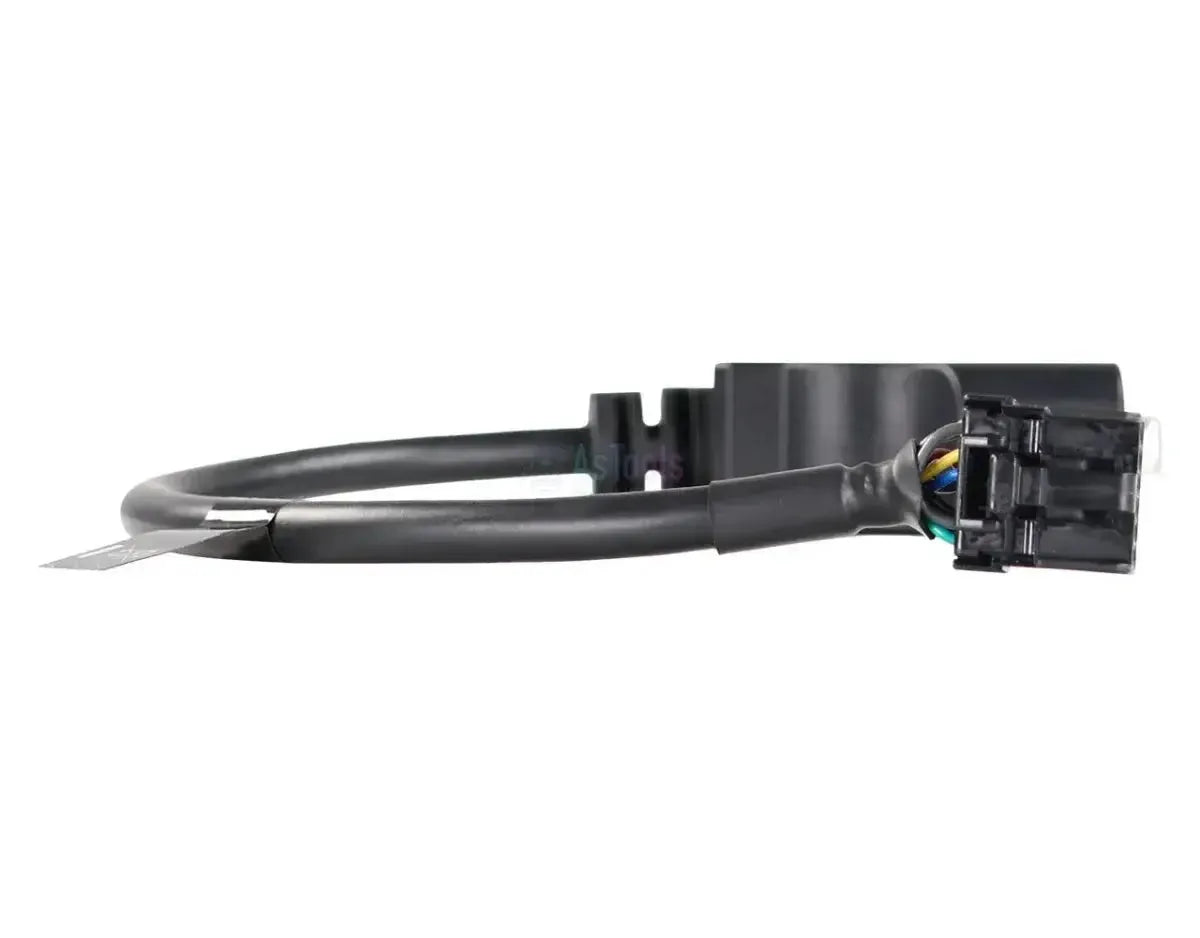

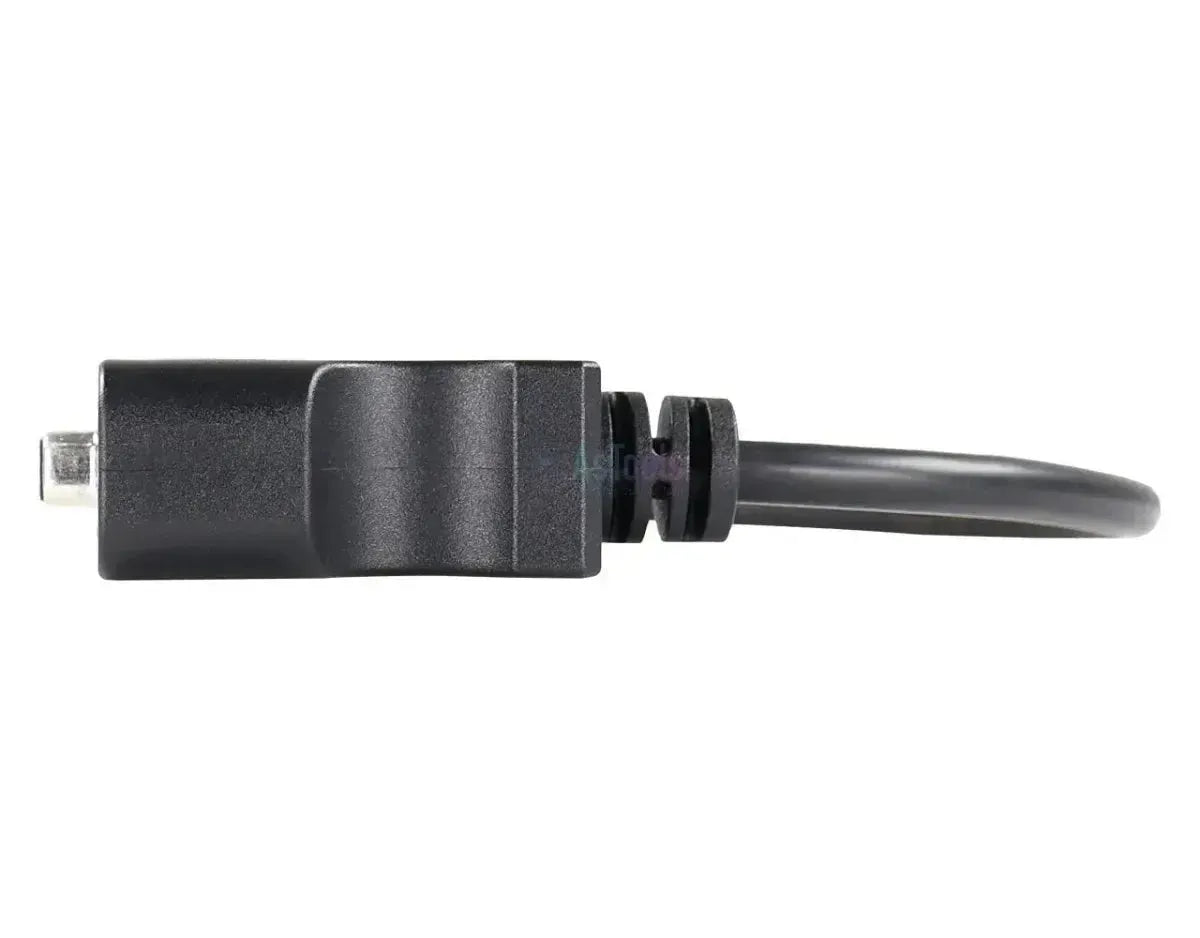

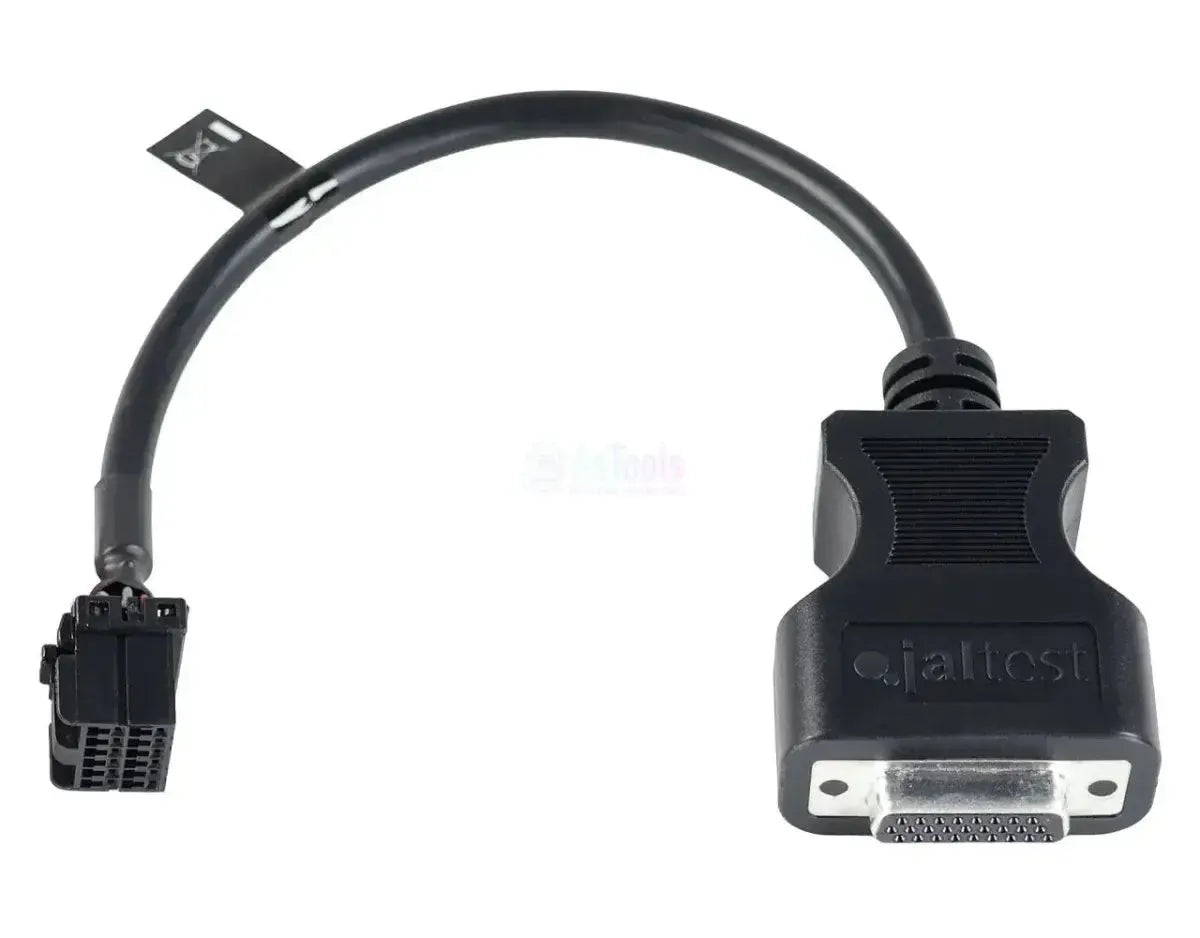

The Jaltest JDC565.9 connects the 12-pin diagnostic connector of Mitsubishi and Caterpillar forklift trucks to the 16-pin OBD2 port of your Jaltest diagnostic cable. On the machine side is the 12-pin plug, located in or under the operator's position; on the interface side is the OBD2 housing. The cable measures 30 cm and is specified for the Jaltest Link V9.

With the cable connected, the Jaltest software reaches the central computer VCM4, VCM6 and VCM15DN and the instrument panel MP. On the heavier versions the engine controllers 1204E and 1204F and the exhaust gas aftertreatment SCR/DEF are added; on the lighter trucks it remains limited to the central computer and the instrument panel. The cable is covered by Jaltest MHE.

PLUS POINTS

✔One cable for two brands: Jaltest supports both Mitsubishi and Caterpillar with this connection within the MHE coverage.
✔Reaches the central computer (VCM4, VCM6 and VCM15DN), with fault codes, measured values and maintenance.
✔On the heavy-duty versions also the engine controller (1204E and 1204F) and the exhaust gas aftertreatment (SCR/DEF).
✔For Caterpillar, coverage extends not only to forklift trucks but also to the TH and TL telehandlers from the same range.

POINTS TO NOTE

✕Not every model has an engine controller in the coverage; for the FD40N and FD50(C)N only the central computer and the instrument panel are included, for the FD100N2 the engine controllers are included.
✕The maintenance function is not available for the instrument panel (MP) and the engine controller 1204F (PDL); the latter also has no additional actions.
✕Only for the 12-pin connector; Mitsubishi and Caterpillar also supply machines with a different plug within the same range.
✕This version is specified for the Jaltest Link V9.

Applications and functions

Via this connection, the Jaltest software accesses the control units of the forklift truck. Which systems are present varies by model and by version.

Control units you can access

  • VCM4, VCM6, VCM15DN: Central computer, with maintenance.
  • MP: Instrument panel, without maintenance.
  • 1204E and 1204F (J1939): Engine controller, heavy-duty versions.
  • 1204F (PDL): Engine controller, without maintenance.
  • SCR/DEF: Exhaust gas aftertreatment.

What you can do

  • Fault codes: Read per control unit.
  • Measured values: With adjustable alarm limits.
  • Maintenance: Central computer and engine controller.
  • Additional actions: Only for the 1204F (J1939).

How to use it

  1. Locate the plug: Find the 12-pin plug near the operator's position.
  2. Connect: Insert the JDC565.9 into the connector.
  3. Link pairing: Connect the OBD2 end to the diagnostic cable of the Link V9.
  4. Ignition on: Switch the truck's ignition on.
  5. Read out: Select Mitsubishi or Caterpillar in Jaltest MHE.

Compatible vehicles and applications

The plug determines compatibility, not the model. The cable fits any Mitsubishi or Caterpillar machine with the 12-pin diagnostic connector. The series covered by the Jaltest MHE coverage are listed below; count the pin positions at the operator's position yourself.

Mitsubishi:

  • FB series: Electric forklift trucks, including FB13(C)PN(T), FB14(C)N2(T), FB15(C)PN(T), FB16(C)N(T) and FB20K to FB35K inclusive.
  • FD series: Diesel forklift trucks, including FD15N, FD20N, FD40N, FD50(C)N, FD70N(M) and FD100N2.
  • FG and FGC series: LPG forklift trucks, including FG15N, FG20N, FG40N, FG50(C)N, FGC15N and FGC35K.

Caterpillar:

  • Forklift trucks: The C, P, E, DP, EP, GC and GP series.
  • Telehandlers: The TH and TL series.
💡
Good to know: The diagnostic connector on these trucks is usually in or under the operator's position. Alongside this 12-pin version, Mitsubishi and Caterpillar also supply machines with a different plug. Check this on the machine itself before ordering.

Package contents

  • 1x Jaltest (JDC565.9) | Mitsubishi/Caterpillar 12-pin OBD – 16-pin OBD2 Adapter Cable | Lifting & hoisting equipment

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
Jaltest
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable
The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Material handling
The number of vehicle brands the cable is suitable for. Many adapter cables only fit one brand with its own connector.Number of vehicle brands
2 brands

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • Jaltest
The version of the Jaltest Link interface the cable fits. Some cables only work with the latest V9.Jaltest Link version
  • Link V9
The Jaltest module required to use the cable. Without the correct licence, the cable will not work.Jaltest software module
  • MHE material handling

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
12-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2

Diagnostic functions

Shows the current sensor readings while the vehicle is running. Useful for tracing faults.View live data

Size and weight

The length of the cable. A longer cable gives more freedom of movement with a port that is difficult to reach.Cable length
30 cm
Reference number
JDC565.9

Other specifications

Application
Mitsubishi and Caterpillar forklift trucks
Control units
VCM4, VCM6 and VCM15DN (central computer), MP (instrument panel), 1204E and 1204F (engine control), SCR/DEF
Required for use
Jaltest Link V9 with licence for Jaltest MHE
