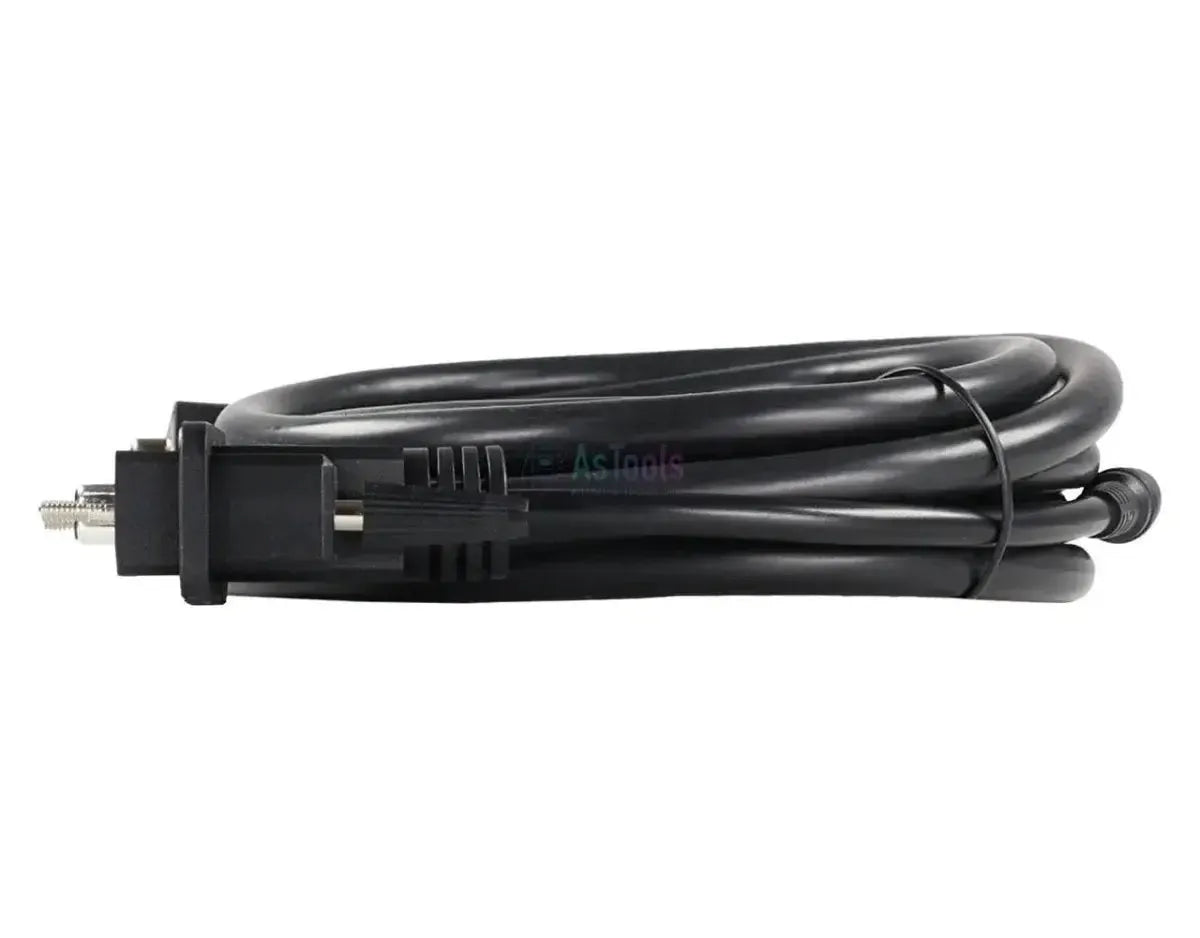

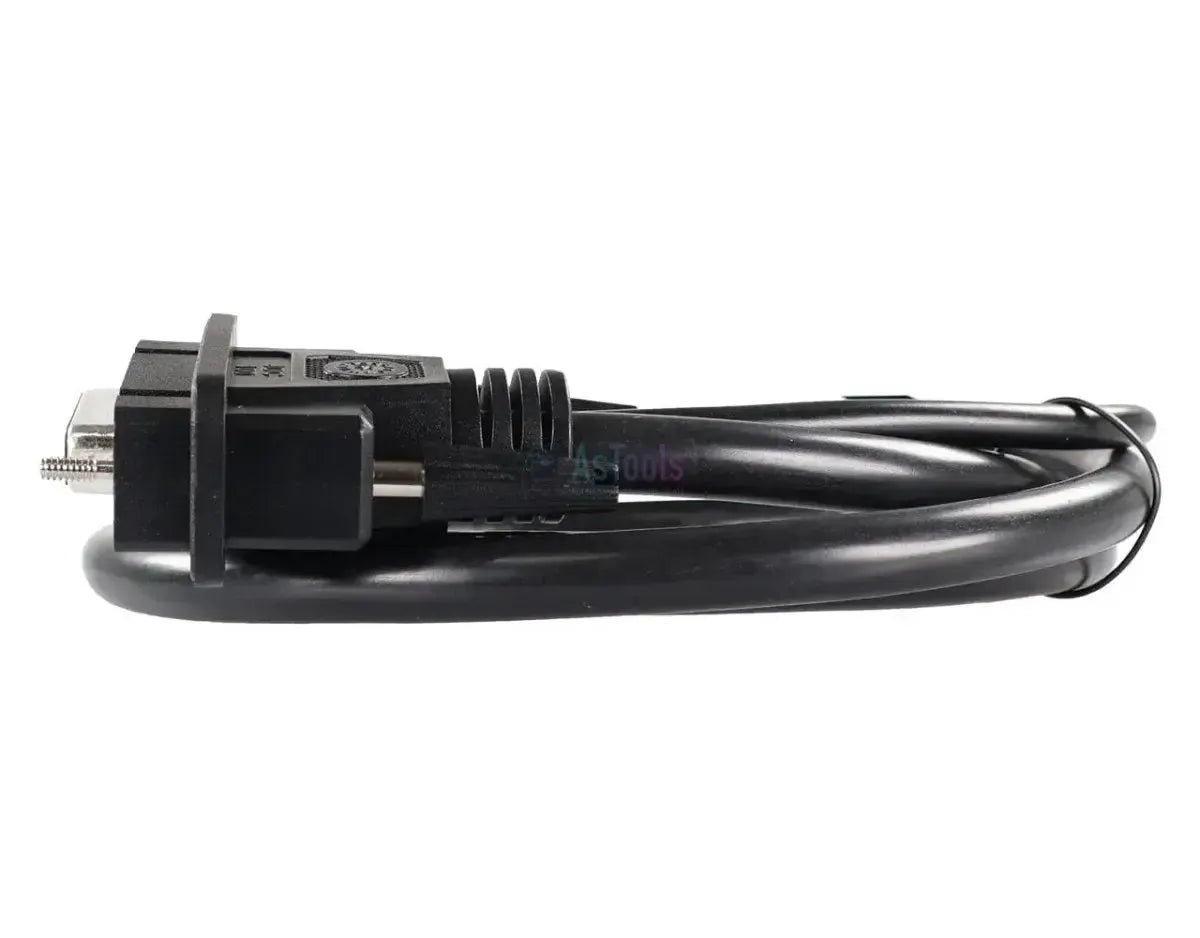

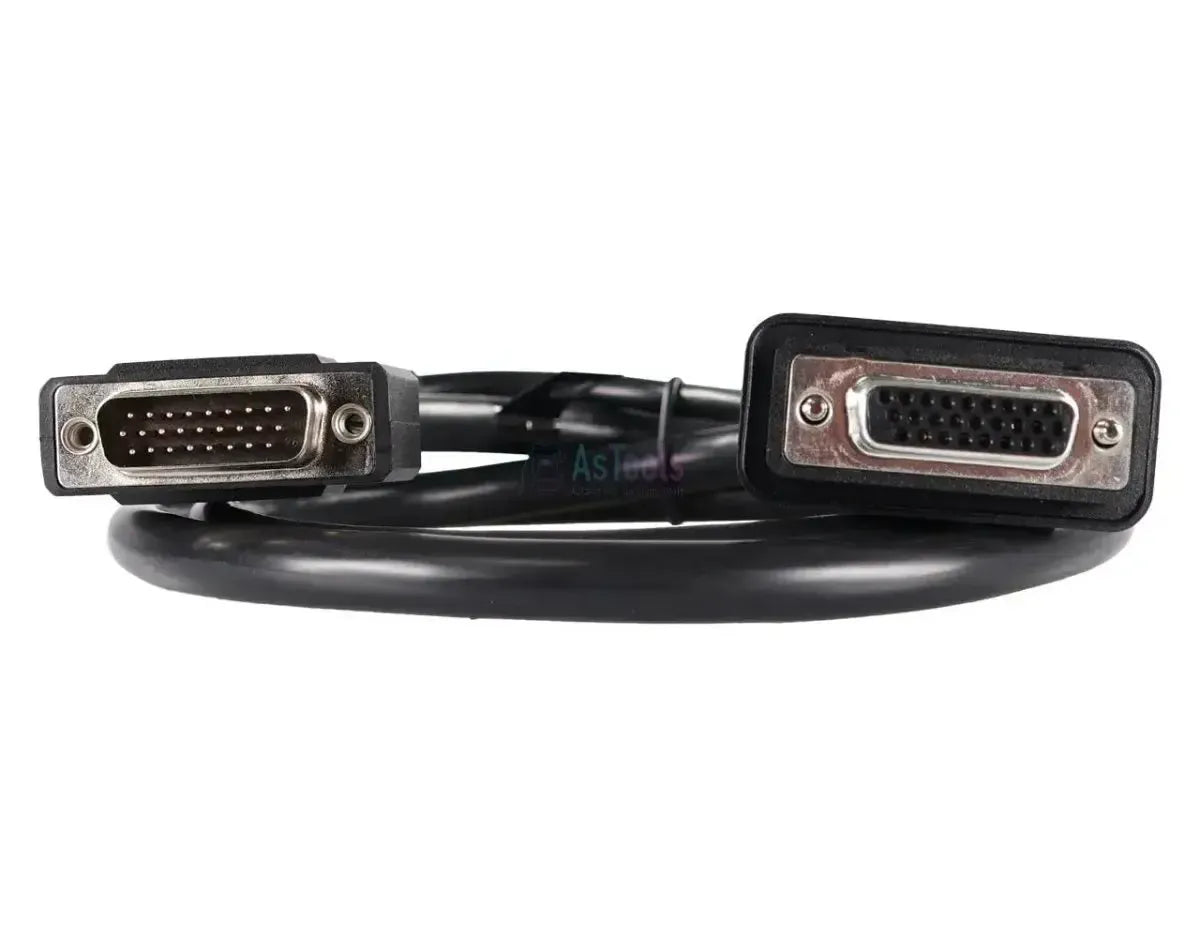

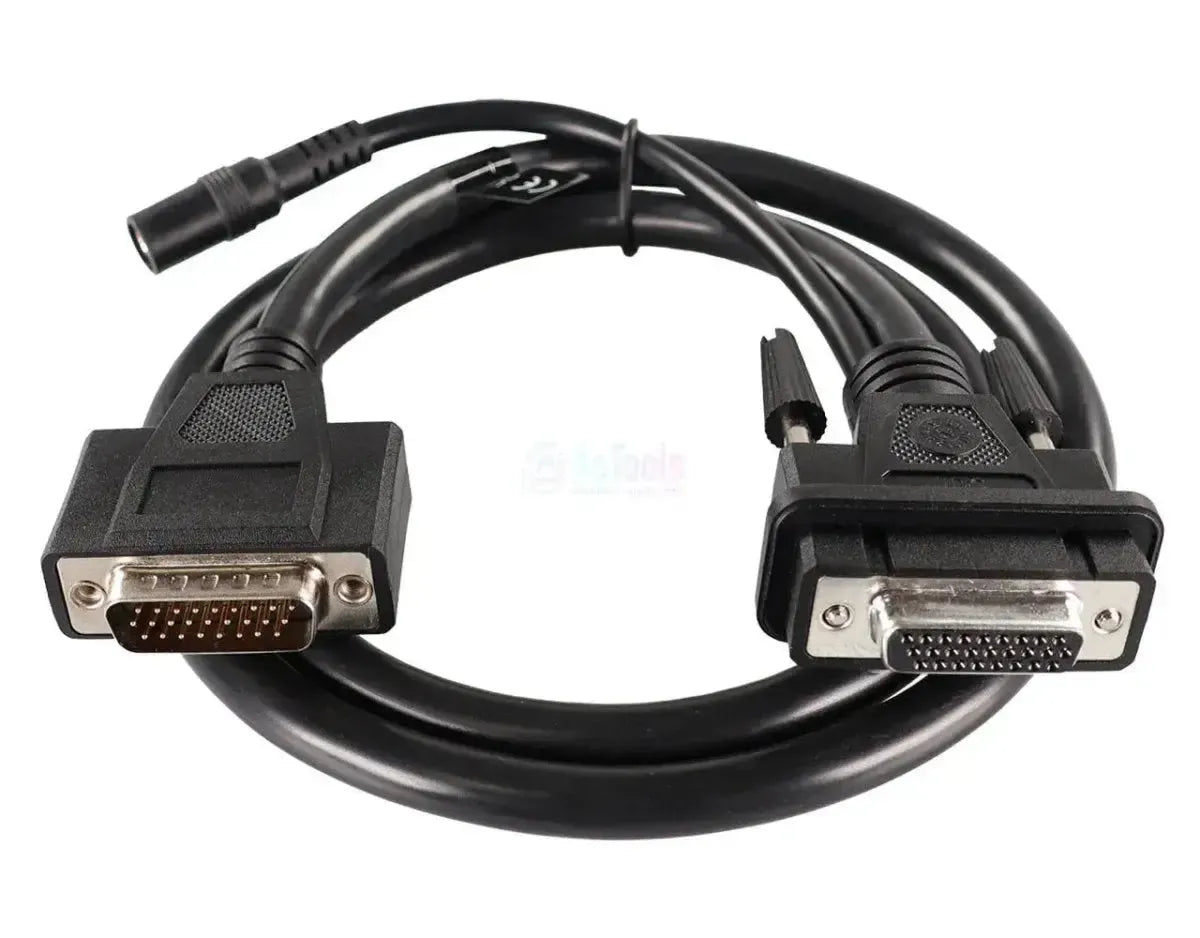

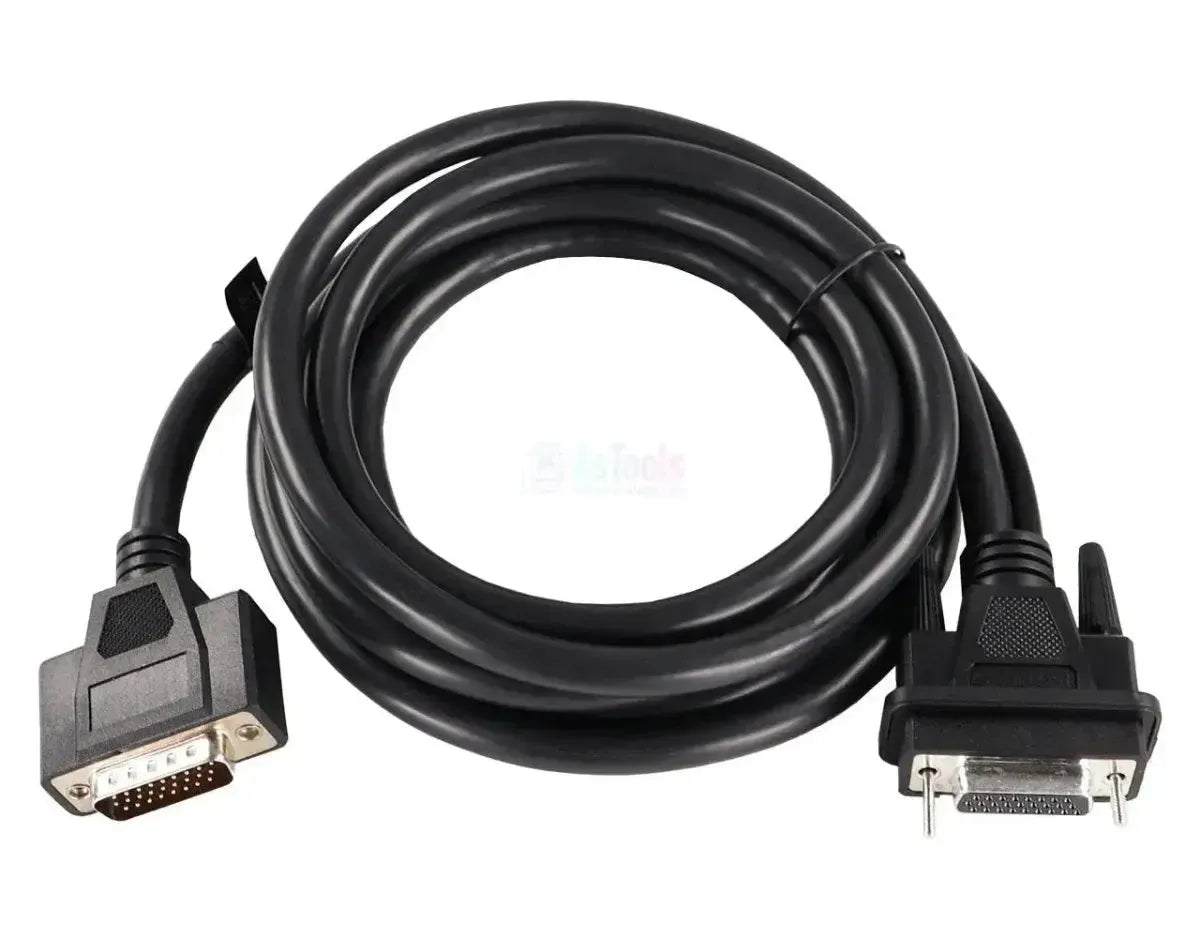

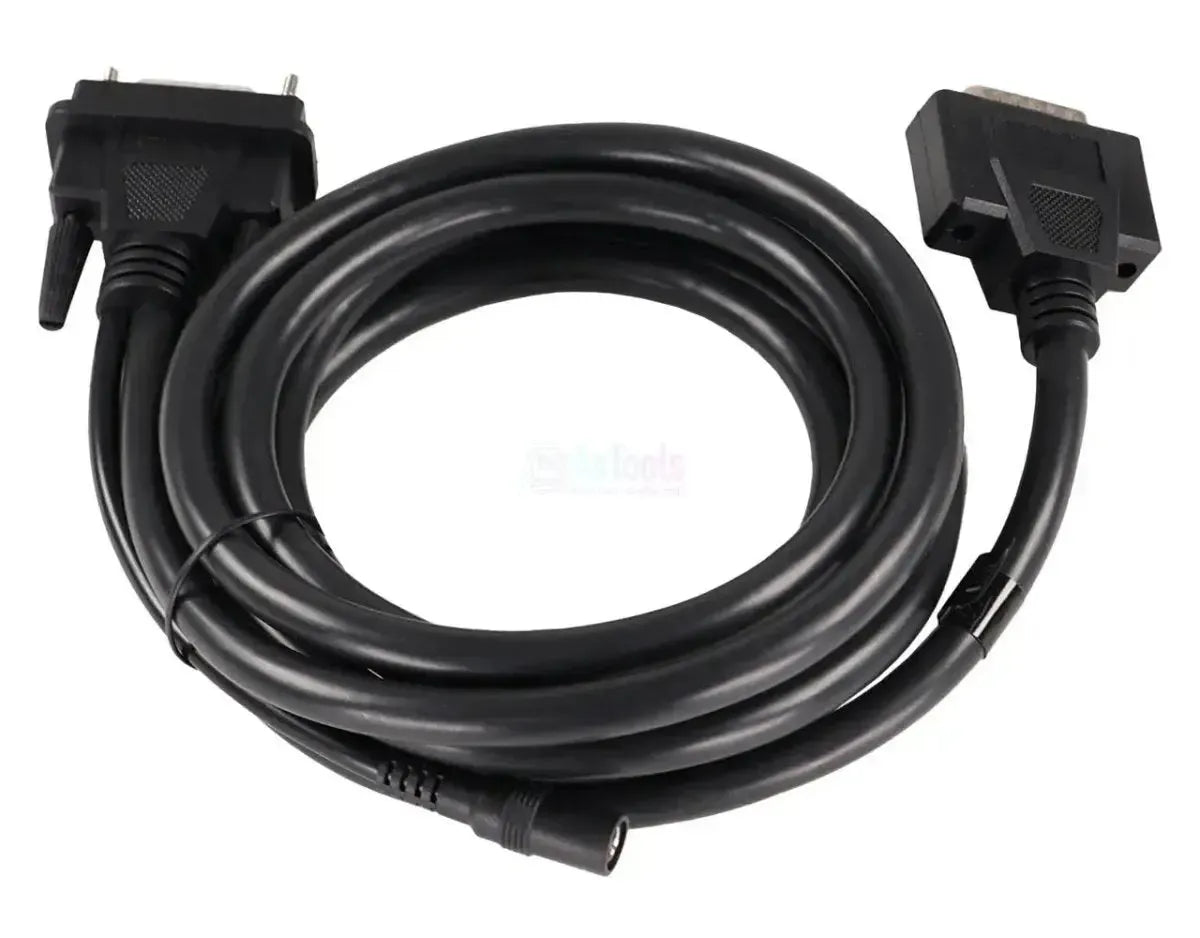

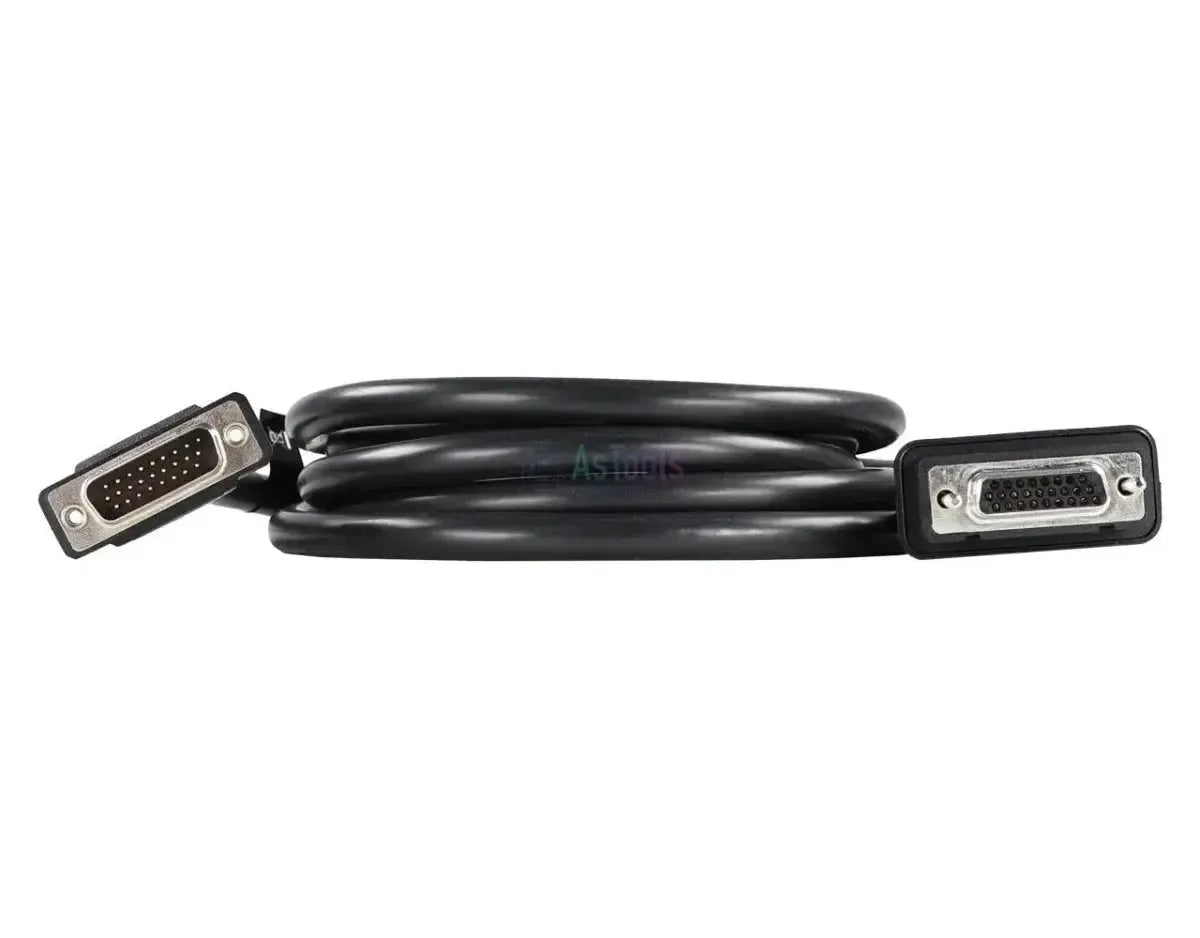

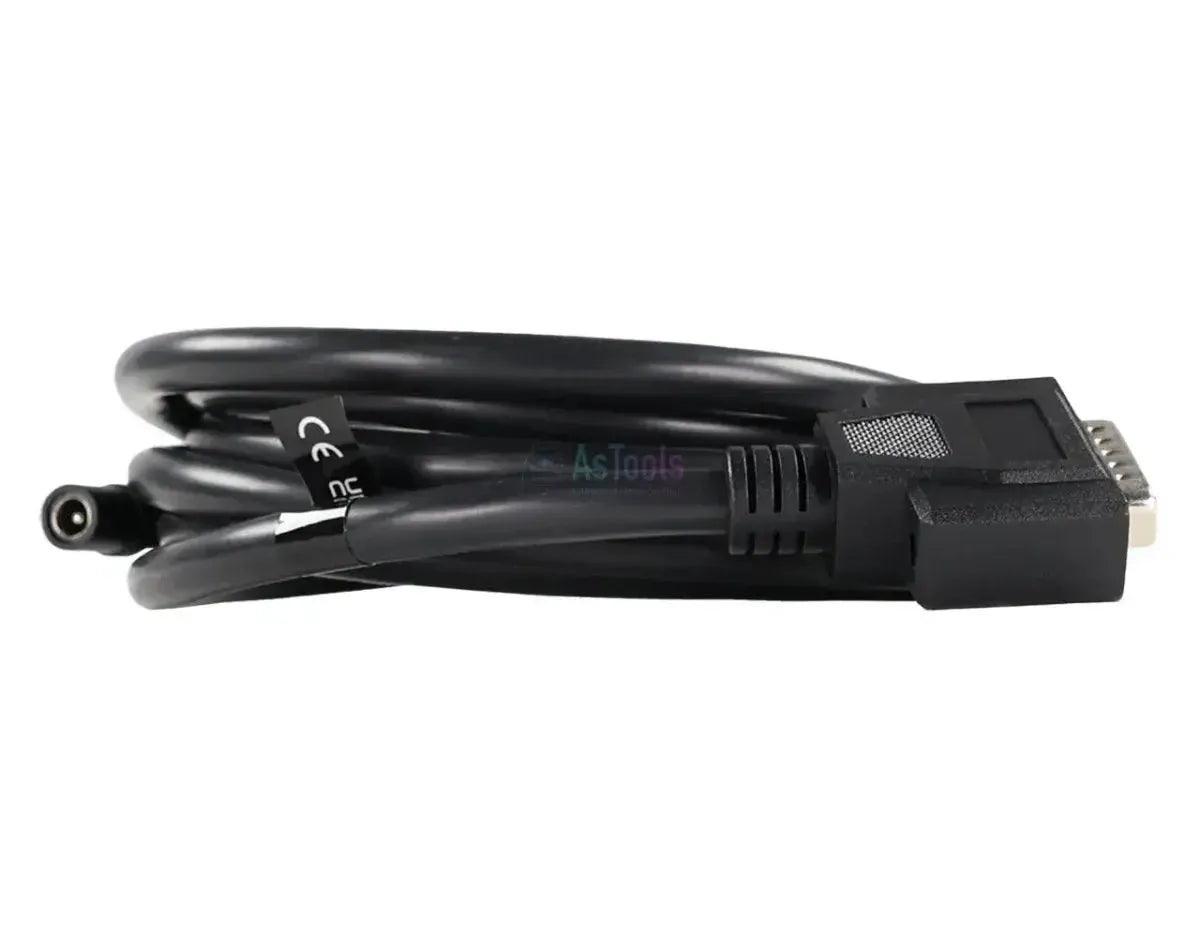

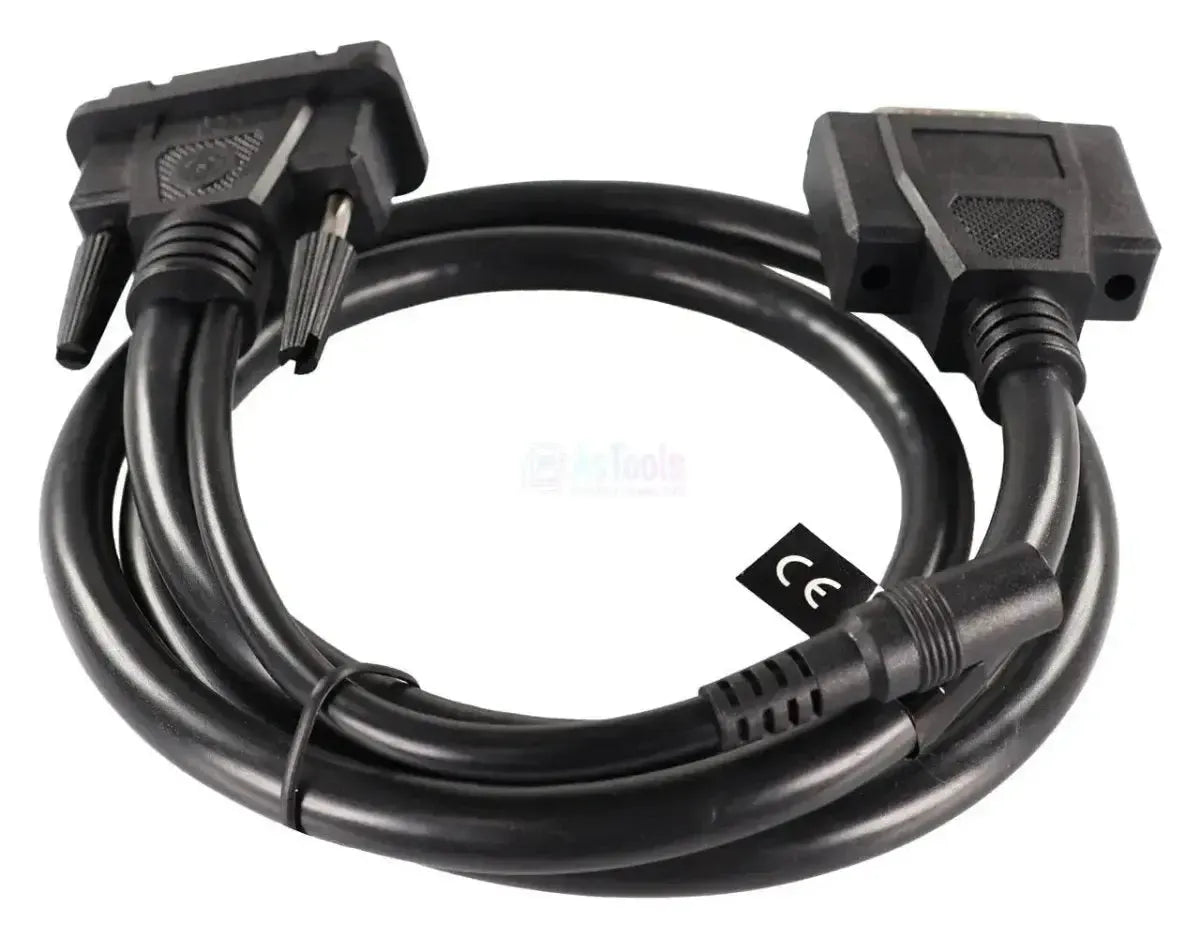

The Jaltest JDC100 is the extension cable between the 26-pin DB26 connector of the Jaltest Link V9 and the vehicle-specific diagnostic cable. On the interface side there is a black female DB26 connector with three rows of contacts and two threaded pins; on the cable side there is a right-angled black male DB26 plug with a chrome-plated frame and two cross-head screws. Between them runs 100 cm of round black cable.

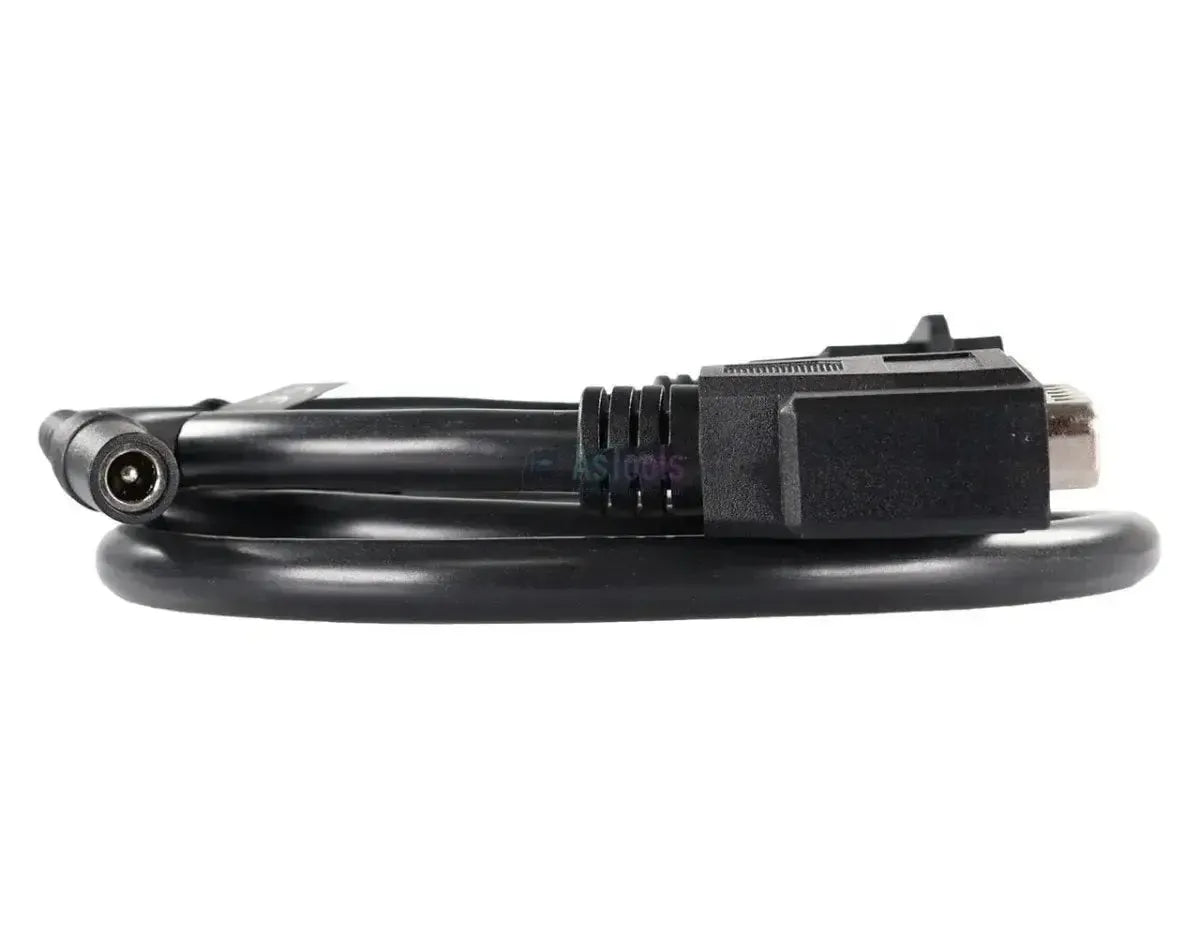

Close to the interface end, a short branch leads to a black jack connector, which lets you power the Link externally when the diagnostic connector itself does not supply power. The cable gives you extra working space around the vehicle and is the link that a number of Jaltest diagnostic cables require, because they do not fit directly to the Link V9. The JDC100B is the same cable in 250 cm. The extension cable can be used with all Jaltest modules.
BENEFITS
POINTS TO NOTE
Applications and functions
The extension cable sits between the Jaltest Link V9 and the vehicle-specific diagnostic cable. What you can achieve depends on the diagnostic cable you connect behind it.
What the cable does
- Extends: 100 cm extra between Link and cable.
- Connects: Cables that do not fit directly to the V9.
- External power: Power the Link via the jack connector.
What you can do
- Work at a distance: Link positioned away from the connector.
- Connect without power: Power supply via the jack.
- Diagnostics: Via the diagnostic cable behind it.
How to use it
- Place the Link V9: Set the Jaltest Link V9 down at the workstation.
- Interface side: Screw the female DB26 onto the Link V9.
- Diagnostic cable: Screw the vehicle-specific cable onto the male DB26.
- Power: Connect external power to the jack connector if required.
- Reading: Connect the diagnostic cable to the vehicle and start Jaltest.
Compatible devices and applications
The interface determines compatibility, not the vehicle. The cable is intended for the Jaltest Link V9 and the associated diagnostic cables, across all Jaltest segments.
Segments:
- CV: Truck and trailer.
- AGV: Agricultural vehicles.
- OHW: Off-highway machines.
- MHE: Material Handling Equipment.
- GSE: Ground Support Equipment.
- Marine: Vessels.
Difference from the JDC100B
- Length: The JDC100 measures 100 cm, the JDC100B 250 cm.
- Connectors: Identical on both cables.
- Jack connection: On both cables, in the same place, at the interface end.
Package contents
- 1x Jaltest (JDC100) | Link V9 26-pin DB26 Extension Cable (100 cm) | Interface
Technical specifications
General
- The brand that manufactures the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. This shows whether you are buying a vehicle cable, an extension cable or a cable to the PC.Cable type
- Extension cable
- The Jaltest device the cable works with. A cable only fits properly on the correct generation.Compatible interface
- Jaltest Link V9
- The types of vehicles and machinery on which the cable can be used. Useful if you service more than just trucks.Vehicle types
- Trucks and trailers
- Agricultural vehicles
- Construction and earthmoving
- Forklifts and internal
- Boats and marine engines
- Airport equipment
Connections
- The connector that plugs into the Jaltest device. It must match the port on your device.Interface connector
- 26-pin DB26, female, three rows of contacts, with two threaded studs
- The connector at the other end: to the vehicle, the PC or a further cable. This shows what you connect the cable to.Connector at the other end
- DB26 26-pin male
- Whether the connector is secured with screws. It then cannot easily come loose during diagnostics.Screw-fixable
- Yes
- Whether you also need a vehicle-specific diagnostic cable to use this cable.Additional diagnostic cable required
- Yes
Dimensions
- The length of the cable. A longer cable allows more freedom of movement around the vehicle.Cable length
- 100 cm
- Reference number
- JDC100
Other specifications
- Official description
- 1-metre SUBD-26 extension cable + jack
- Type
- Extension cable with power supply connection
- Application
- Extension between the Jaltest Link V9 and a vehicle-specific diagnostic cable
- Cable-side connection
- 26-pin DB26, male, right-angle black hood with chrome frame and two cross-head screws
- Power supply
- Black jack connection on a short branch at the interface side
- Control units
- No control units of its own; these are determined by the connected diagnostic cable
- Other length
- JDC100B (250 cm)
- Required for use
- Jaltest Link V9 and a vehicle-specific diagnostic cable
