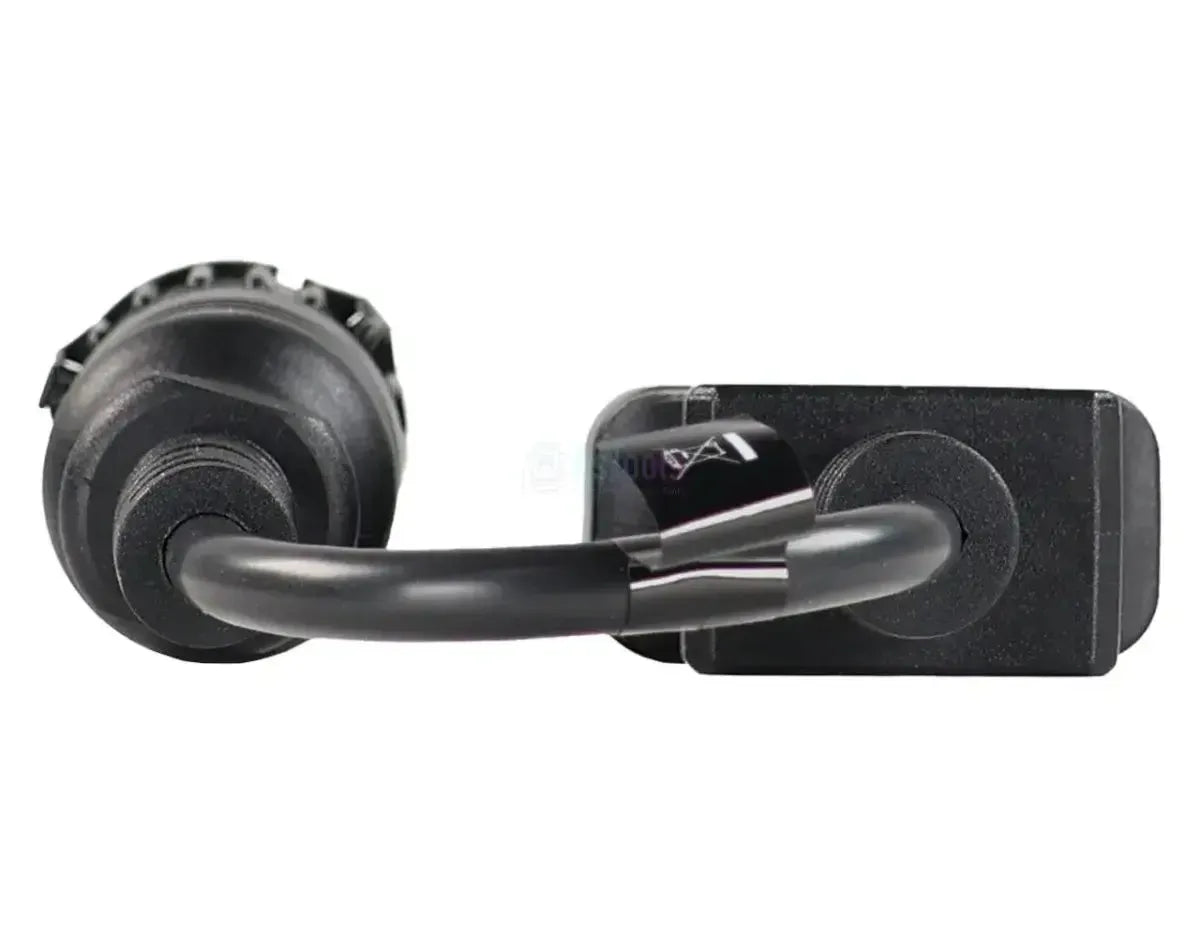

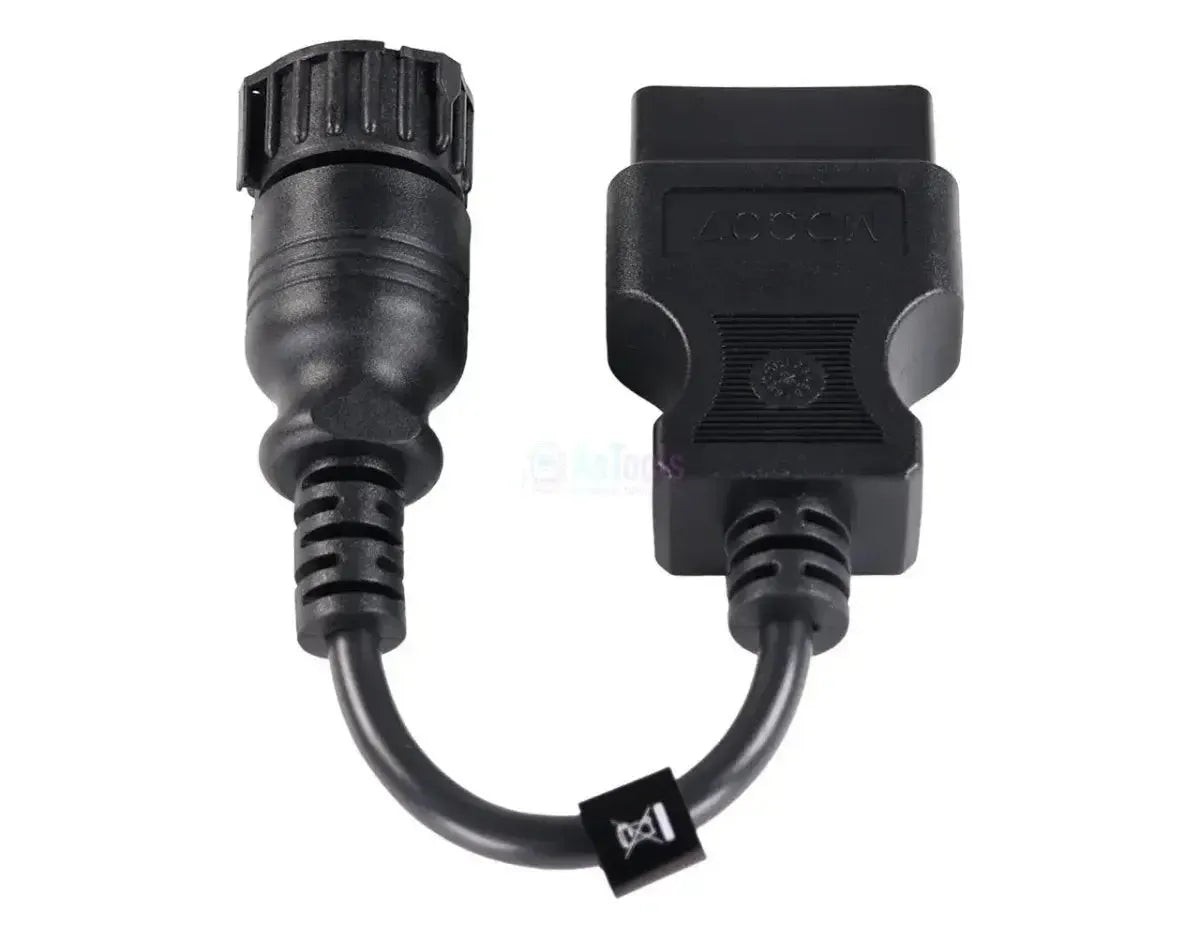

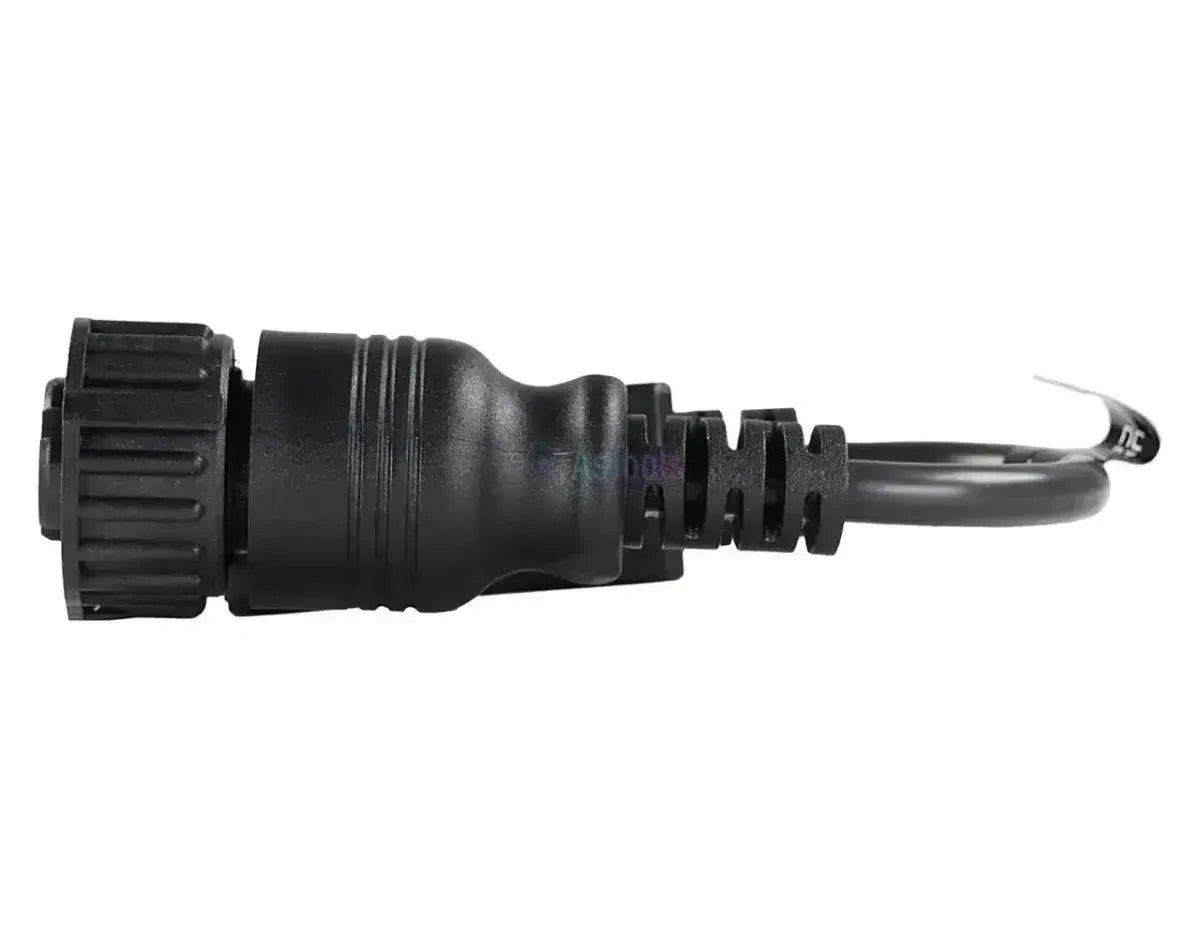

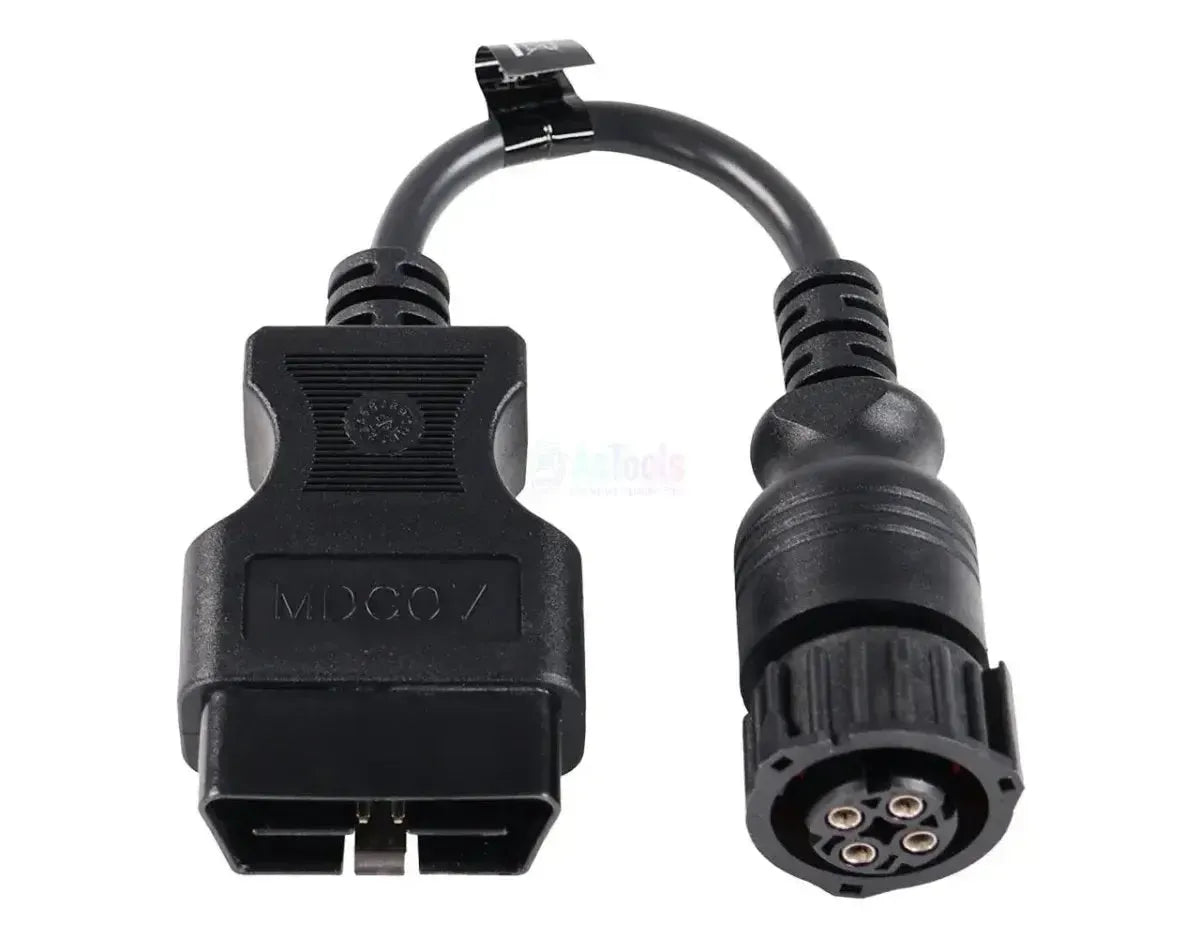

The Jaltest MDC07 is the test cable between the 4-pin EBS connector of the modulator and the 16-pin OBD2 connector of the Jaltest ETM. It is designed for Wabco modulators of the first and second generation and for Knorr-Bremse trailer modulators of the second generation. On the modulator side there is one round 4-pole connector with bayonet ring, which fits both families.
With this connection, the Jaltest ETM takes over the role of the control unit and builds the communication with the modulator itself. This shows whether the component is actually faulty, or whether the fault lies in the wiring or the control unit. To do this, the ETM runs the full measurement of the modulator and an End of Line test. In addition to this cable, you need the ETM itself, with an ETM licence and a current CV or Modular software licence.
HIGHLIGHTS
POINTS TO NOTE
Applications and functions
Through this cable, the Jaltest ETM communicates directly with the component, without the vehicle's control unit. The cable connects to the modulator, not to the vehicle's diagnostic connector.
Components you can test
- Wabco EBS: 1st and 2nd generation.
- Knorr-Bremse: Trailer modulator, 2nd generation.
What you can do
- Isolated testing: Without the control unit.
- Establish a fault: Whether the fault lies elsewhere.
- Measure through: The modulator as a whole.
- End of Line test: Confirm that it works correctly.
How to use it
- Start software: Open Jaltest on the PC or laptop.
- Connect ETM: Connect the OBD2 side to the ETM.
- Clear the connector: Disconnect the vehicle plug from the modulator.
- Connect: Plug the cable into the modulator.
- Test: Start the measurement or the End of Line test.
Compatible components and applications
What matters is the generation of modulator fitted in the vehicle, not the vehicle brand. The MDC07 fits two component groups with the same round 4-pole connector.
Wabco:
- EBS modulators: First and second generation.
Knorr-Bremse:
- Trailer modulators: Second generation, the control modules of the trailer brake.
Other generations:
- MDC06: Wabco, third generation.
- MDC09: Wabco, third generation with redundancy valve.
- MDC08: Wabco, fourth generation.
What you need
- Jaltest ETM: The test module itself. For the Jaltest Link V9, this is the ETM interface with reference 70001007; the complete ETM kit is 70001008.
- ETM licence: The ETM does not start without this licence. The annual renewal has reference 29701.
- A current Jaltest software licence: A CV licence or a Modular licence. Other modules cannot be combined with the ETM.
- Term: The ETM licence runs in line with the expiry date of your Jaltest software licence. If that licence has more than one year remaining, you only pay for the remaining period. If the Jaltest licence expires, the ETM will not work until it is renewed.
- Power supply: The ETM is powered from the vehicle's batteries.
Package contents
- 1x Jaltest (MDC07) | Knorr-Bremse/Wabco 4-pin EBS – 16-pin OBD2 Adapter Cable | Commercial Vehicle
Technical specifications
General
- The manufacturer of the cable or set. This confirms that it is suitable for your Jaltest equipment.Brand
- Jaltest (Cojali)
- The type of item: a component test cable, an adapter, an interface cable or a complete set.Product type
- Test cable
- The version of the Jaltest Link with which the cable works. Please select the version you use in your workshop.Compatible with Jaltest Link
- Jaltest Link V8.1
- Jaltest Link V9
Connections
- The connector used to attach the cable to the Jaltest ETM or Link. It must match your device.Interface-side connection
- 16-pin OBD2
- The connector that attaches to the component or modulator. It determines which component you can connect the cable to.Component-side connection

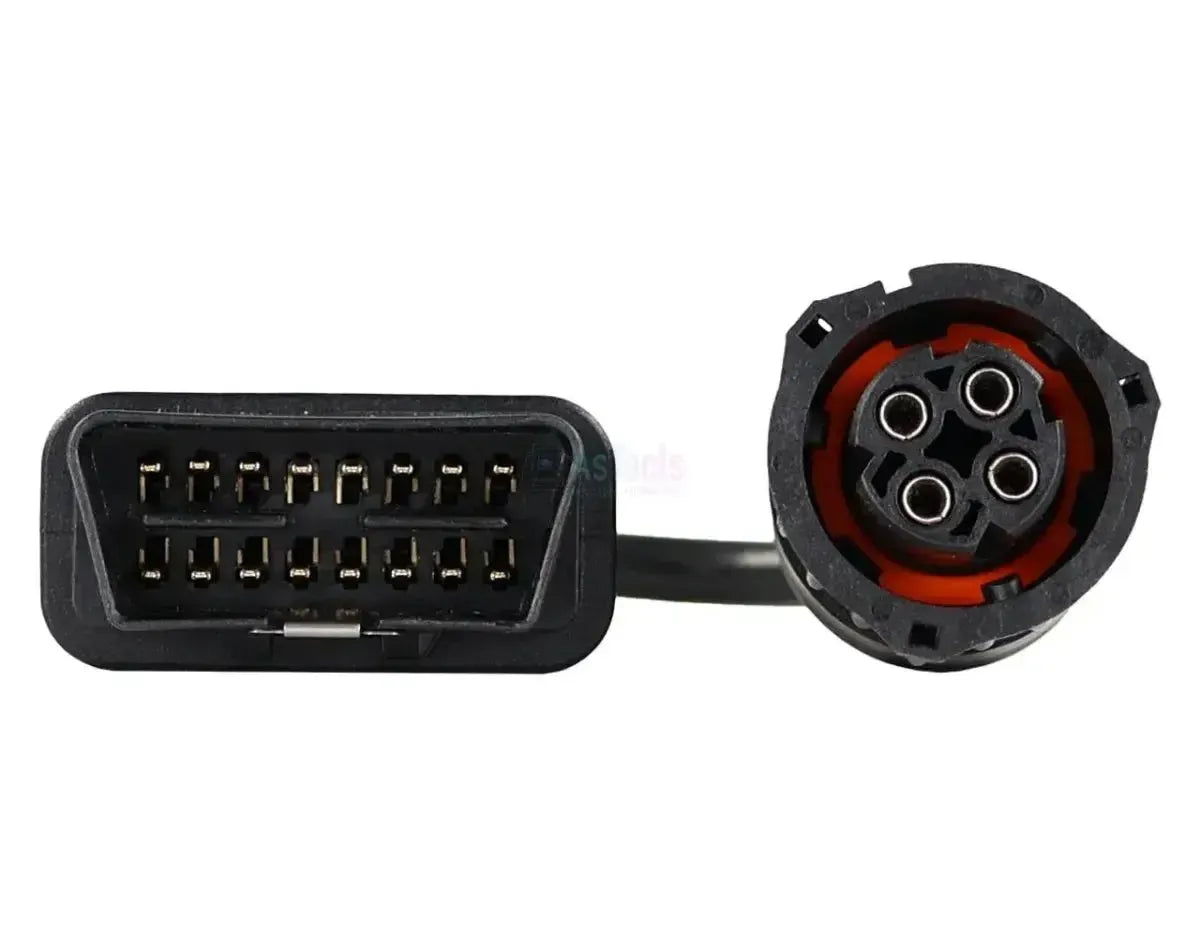

- Round 4-pin connector with bayonet ring (4-pin EBS)
Test functions
- The ETM takes over the role of the control unit. This shows whether the component itself is faulty or the fault lies elsewhere.Test component off the vehicle
- Yes
- A final check to confirm that the component works correctly, for example after a repair.End of Line test (EOL)
- Yes
Licence
- The Jaltest licence required to use the ETM with this cable. It will not work without the correct licence.Required software licence
- CV
- Modular
- Whether this cable is already included in the ETM kit. If not, it can be purchased separately as an addition.Part of the ETM kit
- Yes
Dimensions
- The length of the cable. A longer cable allows more freedom to reach the component.Cable length
- 24 to 26 cm
- Reference number
- MDC07
- ETM licence renewal
- 29701 (Jaltest ETM, renewal for 1 year)
- Jaltest module
- Jaltest ETM, alongside Jaltest CV or Modular
Other specifications
- Application
- Wabco modulators of the first and second generation and Knorr-Bremse trailer modulators of the second generation
- Control units
- None; the ETM takes over the role of the control unit
- Part of cable set
- ETM kit (70001008)
- Required for use
- Jaltest ETM with ETM licence and an active CV or Modular software licence
- Not available for
- Jaltest handheld devices
