Jaltest  |  SKU: JDC303A

Jaltest (JDC303A) | ZF Ecomat 3+6-pins OBD - 16-pins OBD2 Adapter Cable | Commercial and Work Vehicle

€104,95 incl.
€86,74 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

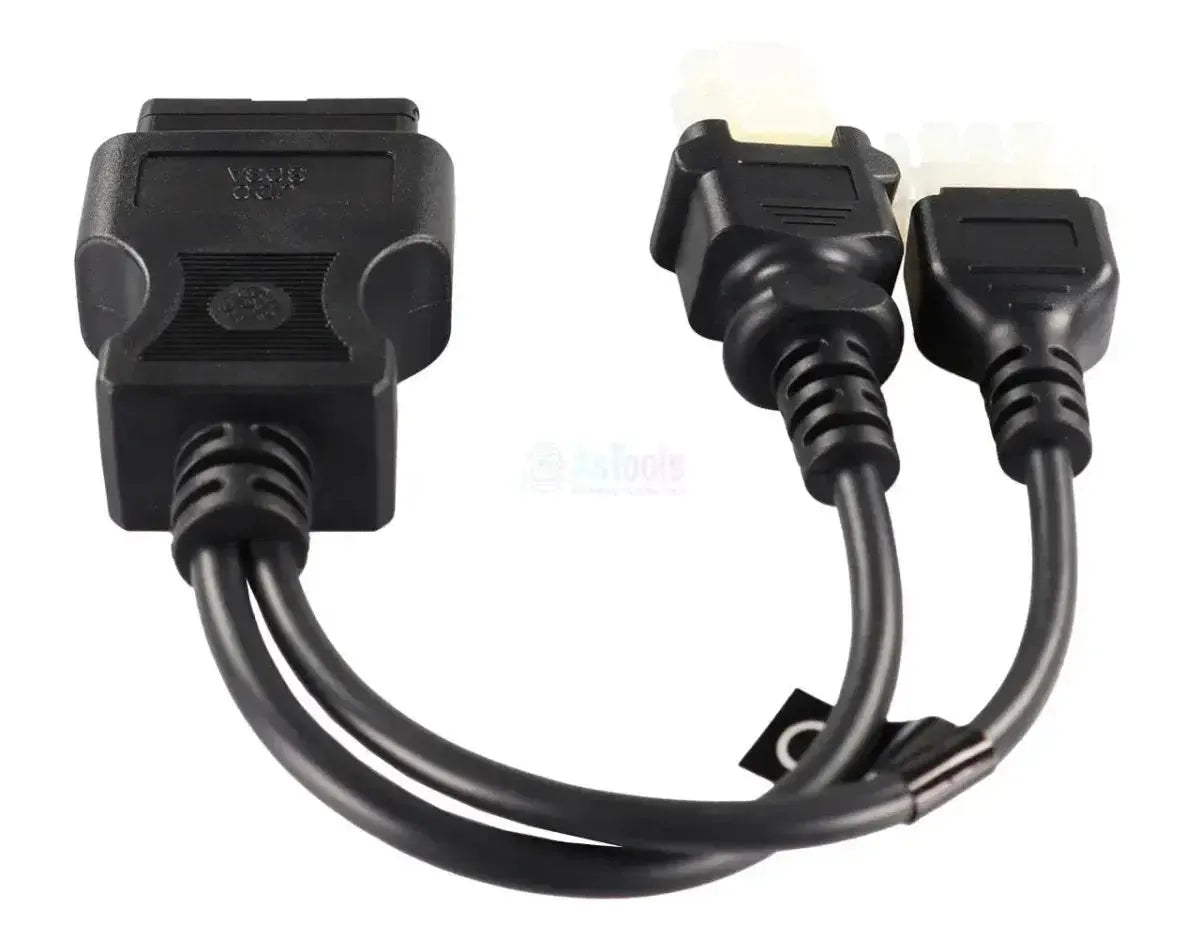

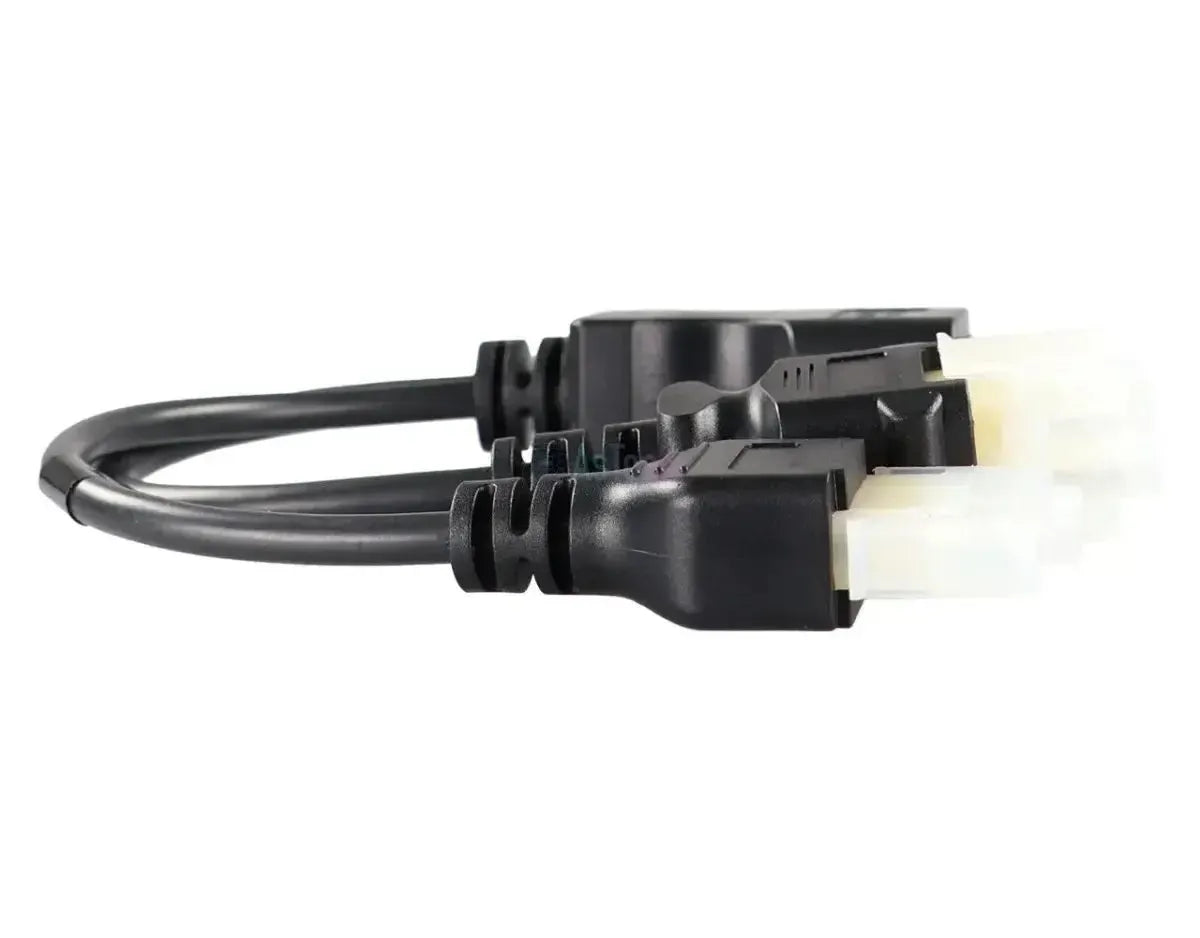

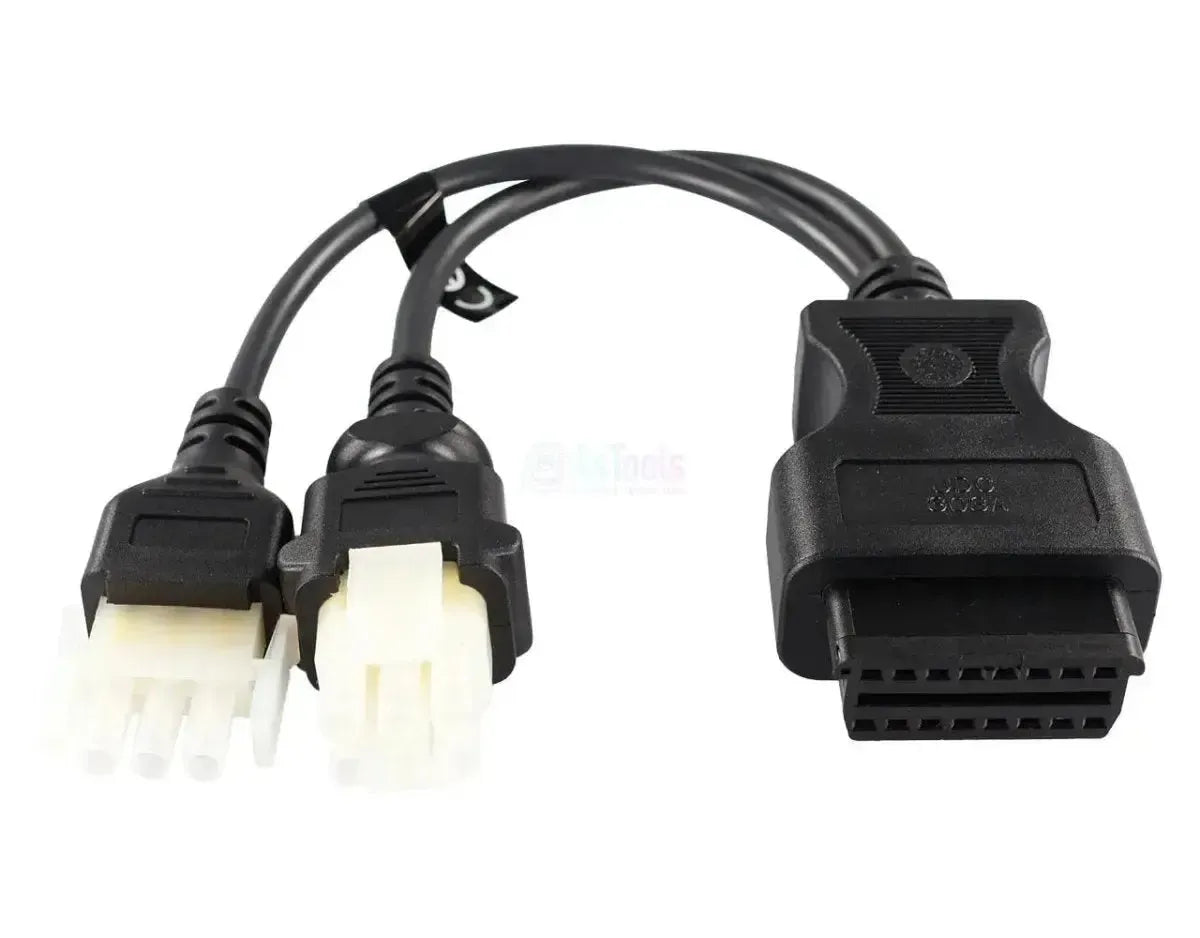

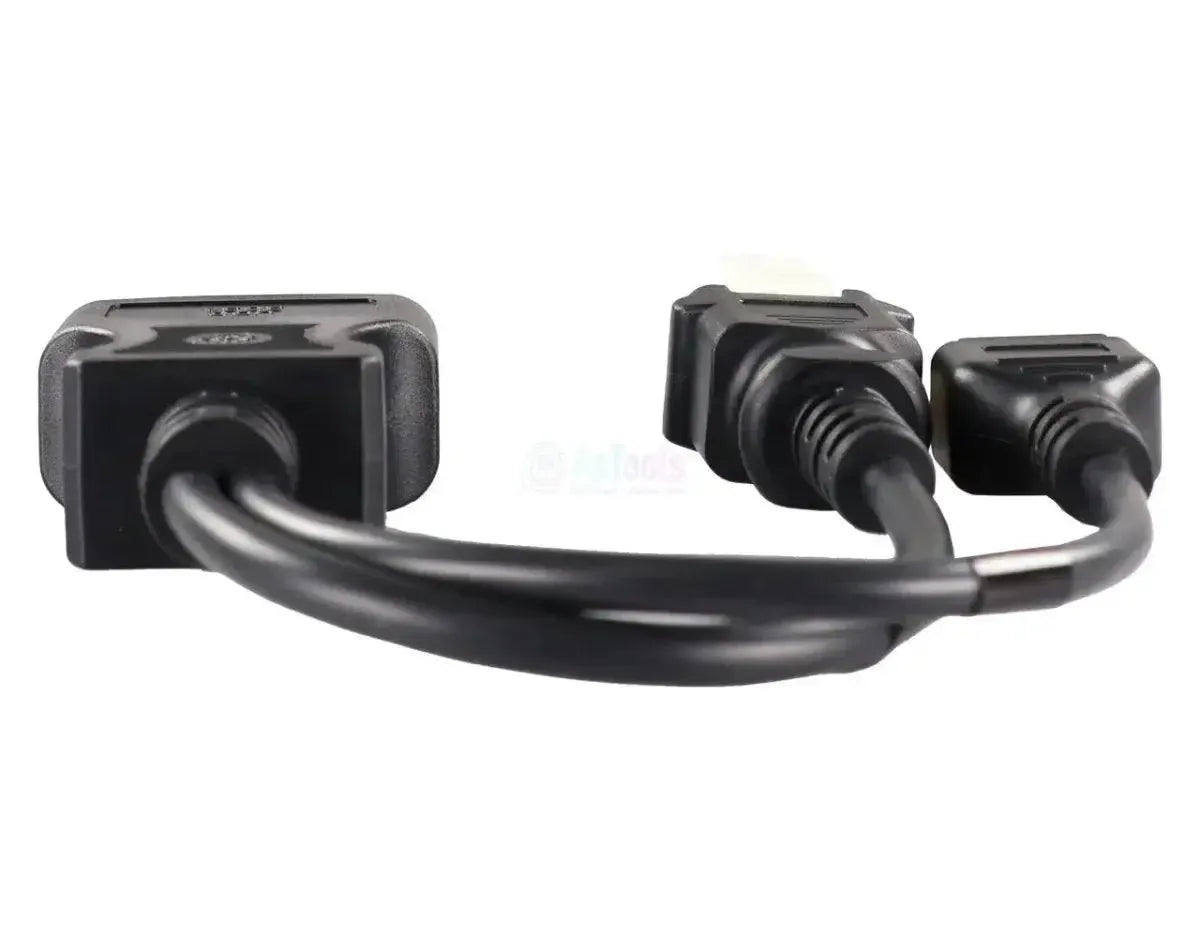

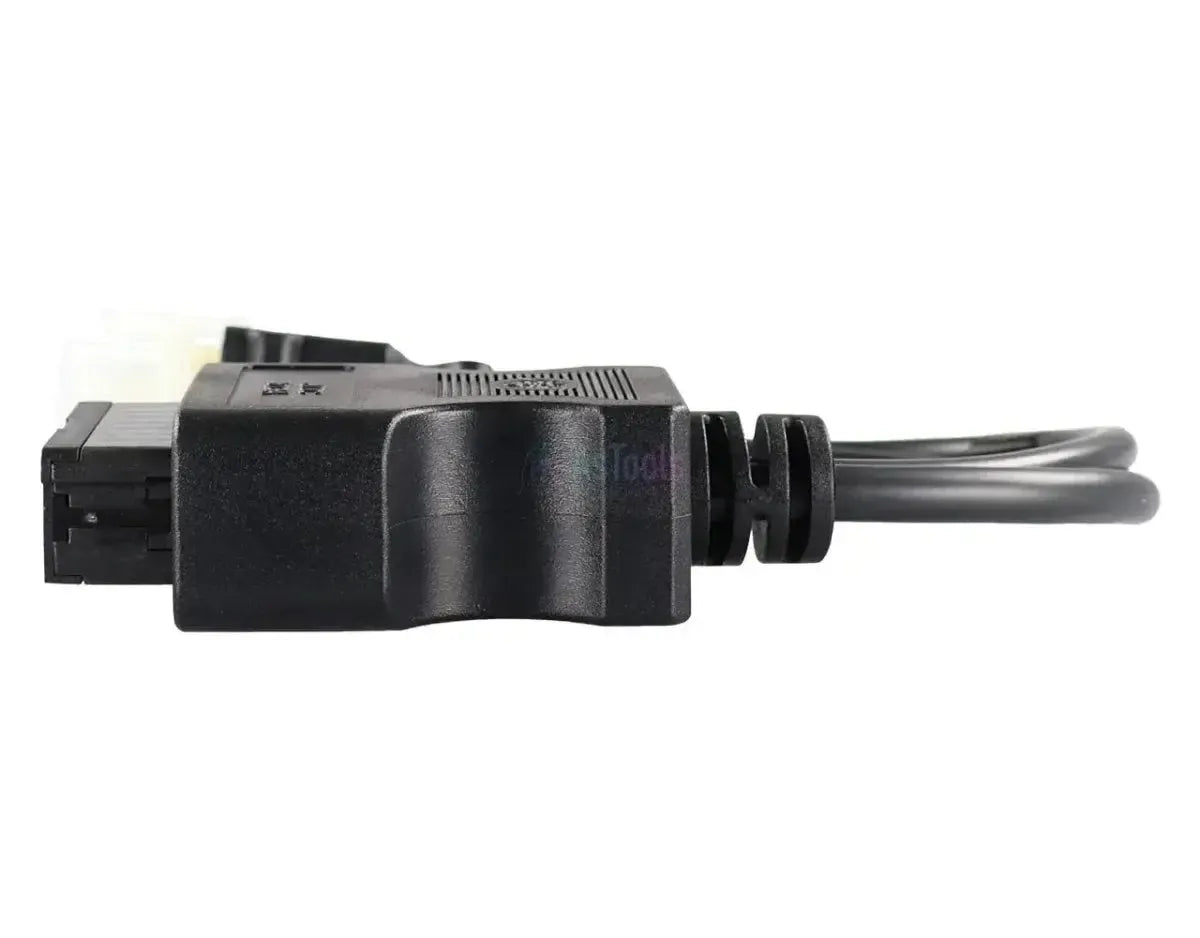

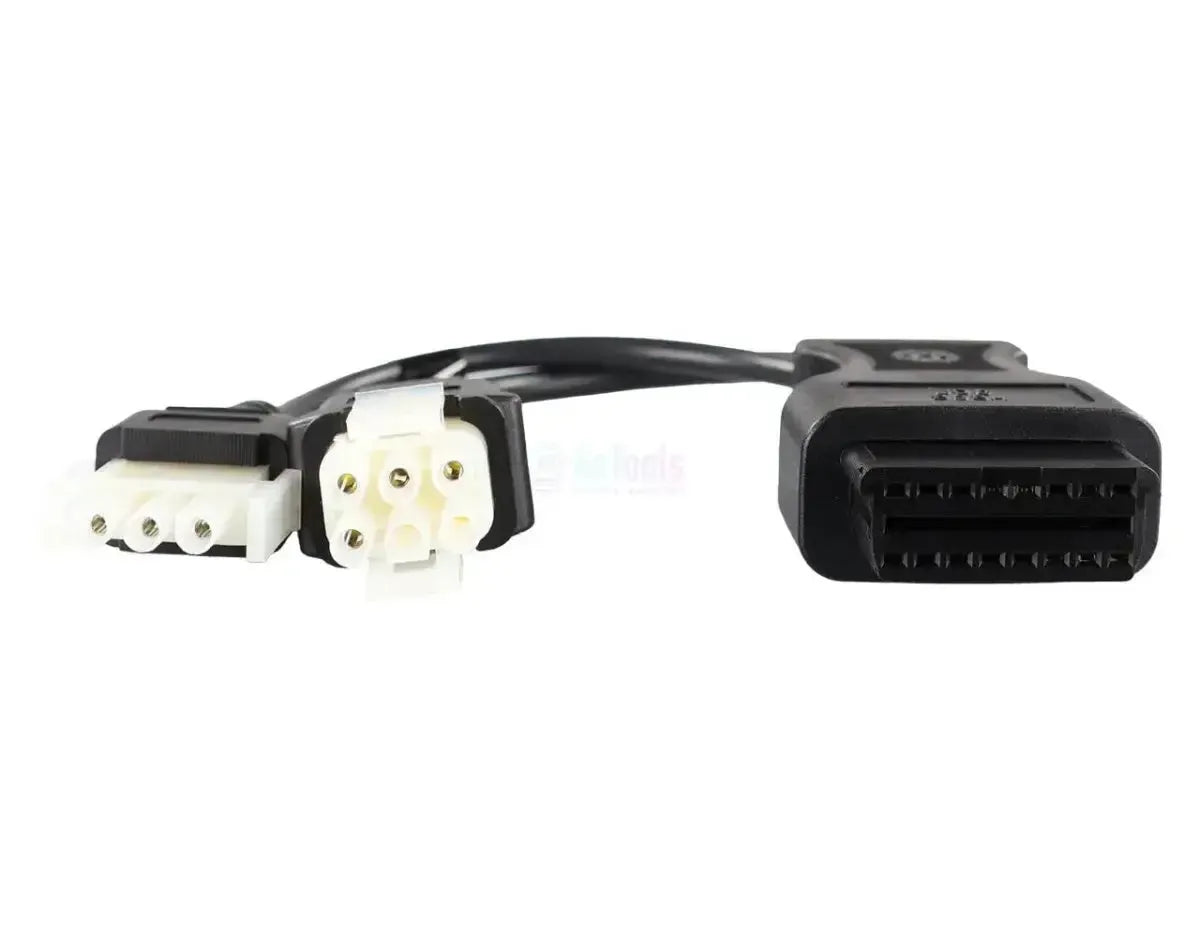

The Jaltest JDC303A connects the 3+6-pin diagnostic connector of ZF to the 16-pin OBD2 input of your Jaltest diagnostic cable. Two branches come out of the OBD2 housing, with natural white nylon plugs: one with six positions in two rows of three and one with three positions in a single row, each with a black strain relief. The cable measures 28 to 30 cm, and the cable works with the Jaltest Link V8.1 and V9.

The connector belongs to the ZF control unit itself and is not located at the vehicle's OBD port. Behind it sit the units from the ZF Transmissions coverage group: the Ecomat 1, Ecomat 2/4 and EcoLife bus transmissions, the automated gearboxes AS Tronic, AS Tronic Lite, EcoTronic, PowerLine, TraXon and AVS, and the retarders EST-32, EST-42 and Intarder 3. Because the plug is separate from the vehicle diagnostics, it remains in use even if the vehicle itself already has a 16-pin OBD port. The cable falls under Jaltest CV.

HIGHLIGHTS

✔The ZF unit with the 3+6-pin plug is decisive, not the make of the truck, bus or work machine.
✔You can reach the entire ZF Transmissions coverage group: the automatic and automated gearboxes and the ZF retarders.
✔For the Ecomat 1, Ecomat 2/4, AS Tronic, TraXon and the retarders, the control of components is also included in the coverage.
✔The plug is separate from the vehicle diagnostics and therefore remains usable on vehicles that already have a 16-pin OBD port.

POINTS TO NOTE

✕The Ecomat 4 Mate N-Lock and the EcoLife MCP have their own 9-pin connector and require the JDC307A and the JDC309A respectively.
✕Only for the 3+6-pin ZF connector; ZF used its own diagnostic plug per generation.
✕The range of functions differs per gearbox: for the Ecomat 2/4, parameters are included in the coverage, but for the Ecomat 1 and EcoLife they are not.
✕At 28 to 30 cm, the cable is short, and the connector is located at the gearbox and not in the cab.

Applications and functions

With this cable, the Jaltest software accesses the ZF control unit fitted with the 3+6-pin plug. Jaltest groups the ZF systems together in the ZF Transmissions coverage group, regardless of the vehicle in which the gearbox is installed. What you can do per unit differs by generation.

Control units you can access

  • Ecomat 1: First-generation bus transmission.
  • Ecomat 2/4: Bus transmission, with parameters.
  • EcoLife: Six-speed bus transmission.
  • AS Tronic (Lite): Automated gearbox.
  • EcoTronic, PowerLine: ZF gearboxes.
  • TraXon and AVS: ZF gearboxes.
  • Retarders: EST-32, EST-42 and Intarder 3.

What you can do

  • Fault codes: Read and clear.
  • Live data: Gearbox or retarder, with graph.
  • Components: Control, including Ecomat and TraXon.
  • Parameters: Including Ecomat 2/4, AS Tronic Lite.
  • Calibration and reset: AS Tronic Lite and TraXon.

How to use it

  1. Locating the plug: Find the two white plugs at the gearbox.
  2. Counting positions: Six and three positions: then it fits.
  3. Connecting: Insert both branches into the ZF connector.
  4. Link pairing: Connect the OBD2 side to the Jaltest Link.
  5. Reading out: Select the ZF unit in Jaltest CV.

Compatible vehicles and applications

The plug is decisive, not the vehicle make. This cable fits every ZF gearbox and ZF retarder with the 3+6-pin diagnostic connector, regardless of the chassis in which it is installed. Because the connector belongs to the gearbox and not to the vehicle, there is no construction year limit.

ZF gearboxes:

  • Bus transmissions: Ecomat 1, Ecomat 2/4 and EcoLife.
  • Automated gearboxes: AS Tronic, AS Tronic Lite, EcoTronic, PowerLine, TraXon and AVS.

ZF retarders:

  • Auxiliary brakes: EST-32, EST-42 and Intarder 3 (EST-52/EST-54).

Vehicles:

  • Trucks, buses and work vehicles: From a range of makes; the cable follows the ZF unit and not the chassis manufacturer.
💡
Good to know: If you see two white plugs at the gearbox, one with six and one with three positions, then this is the correct cable. If there is instead one 9-pin connector, it concerns the Ecomat 4 Mate N-Lock (JDC307A) or the EcoLife MCP (JDC309A). Count the positions at the gearbox before ordering.

Package contents

  • 1x Jaltest (JDC303A) | ZF Ecomat 3+6-pin OBD - 16-pin OBD2 adapter cable | Commercial and Work Vehicles

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
Jaltest
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable

Suitable for

The version of the Jaltest Link interface the cable fits. Some cables only work with the latest V9.Jaltest Link version
  • Link V8.1
  • Link V9
The Jaltest module required to use the cable. Without the correct licence, the cable will not work.Jaltest software module
  • CV commercial vehicles

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
3+6-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2

Diagnostic functions

Shows the current sensor readings while the vehicle is running. Useful for tracing faults.View live data
Allows you to activate components yourself to test whether they are faulty. This saves time when fault finding.Component activation
Allows you to adjust control unit settings and perform calibrations after repair or replacement.Parameters and calibrations

Size and weight

Control units
Ecomat 1, Ecomat 2/4, EcoLife, AS Tronic, EcoTronic, TraXon
Reference number
JDC303A

Other specifications

Application
ZF gearboxes and ZF retarders with 3+6-pin diagnostic connector
Length
28 - 30 cm
Control units
Ecomat 1, Ecomat 2/4 and EcoLife, AS Tronic and AS Tronic Lite, EcoTronic, PowerLine, TraXon and AVS (gearboxes), EST-32, EST-42 and Intarder 3 (retarders)
Segment
Commercial & Work Vehicles
Required for use
Jaltest Link V8.1 or V9 with licence for Jaltest CV
