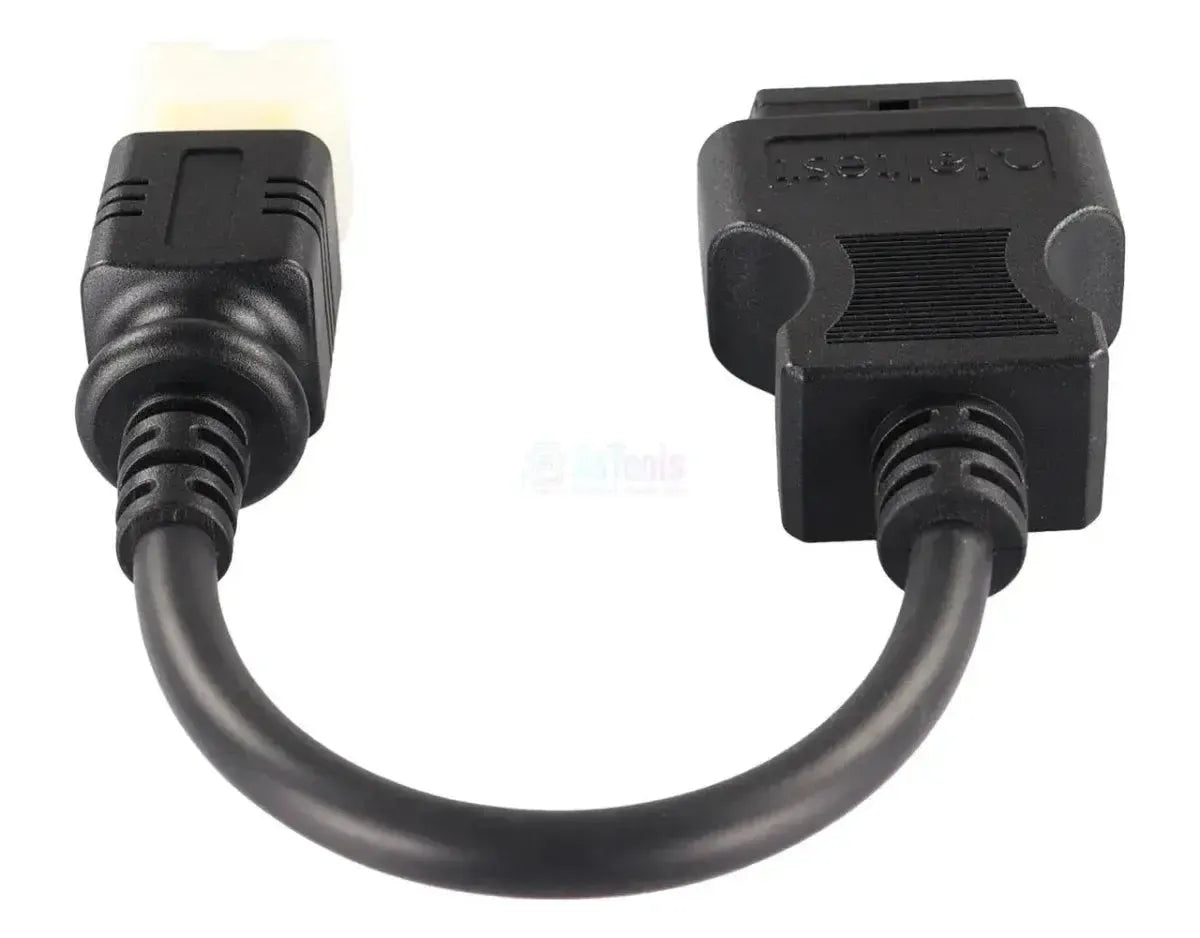

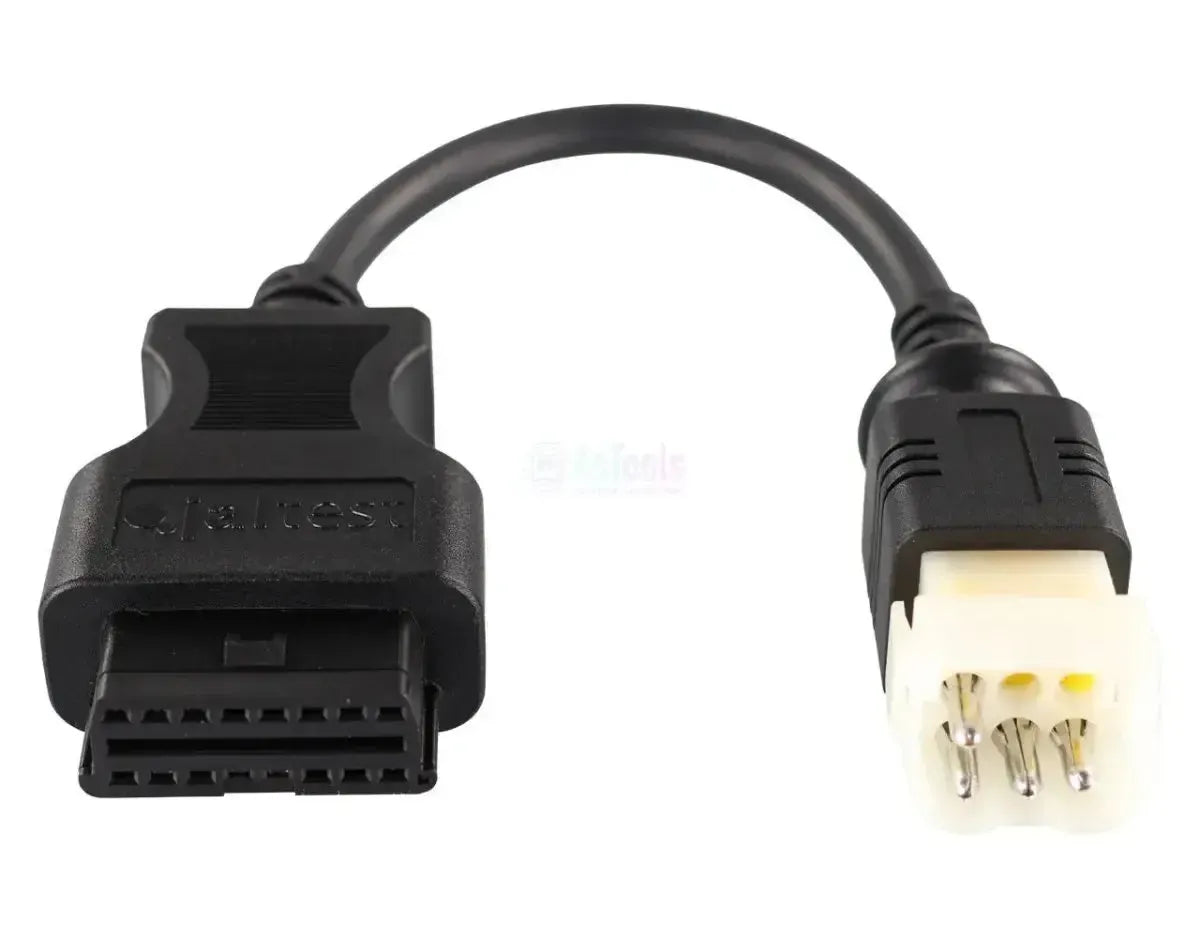

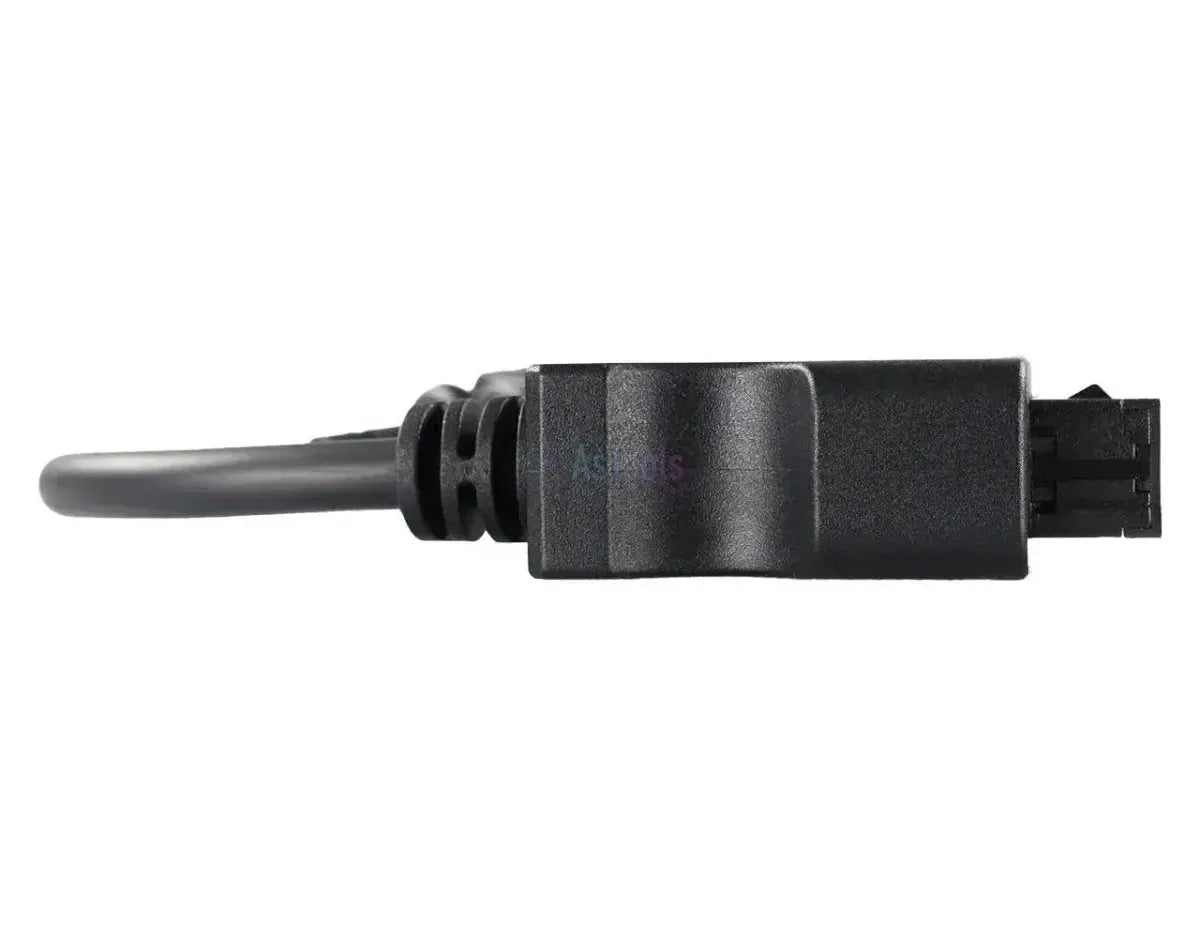

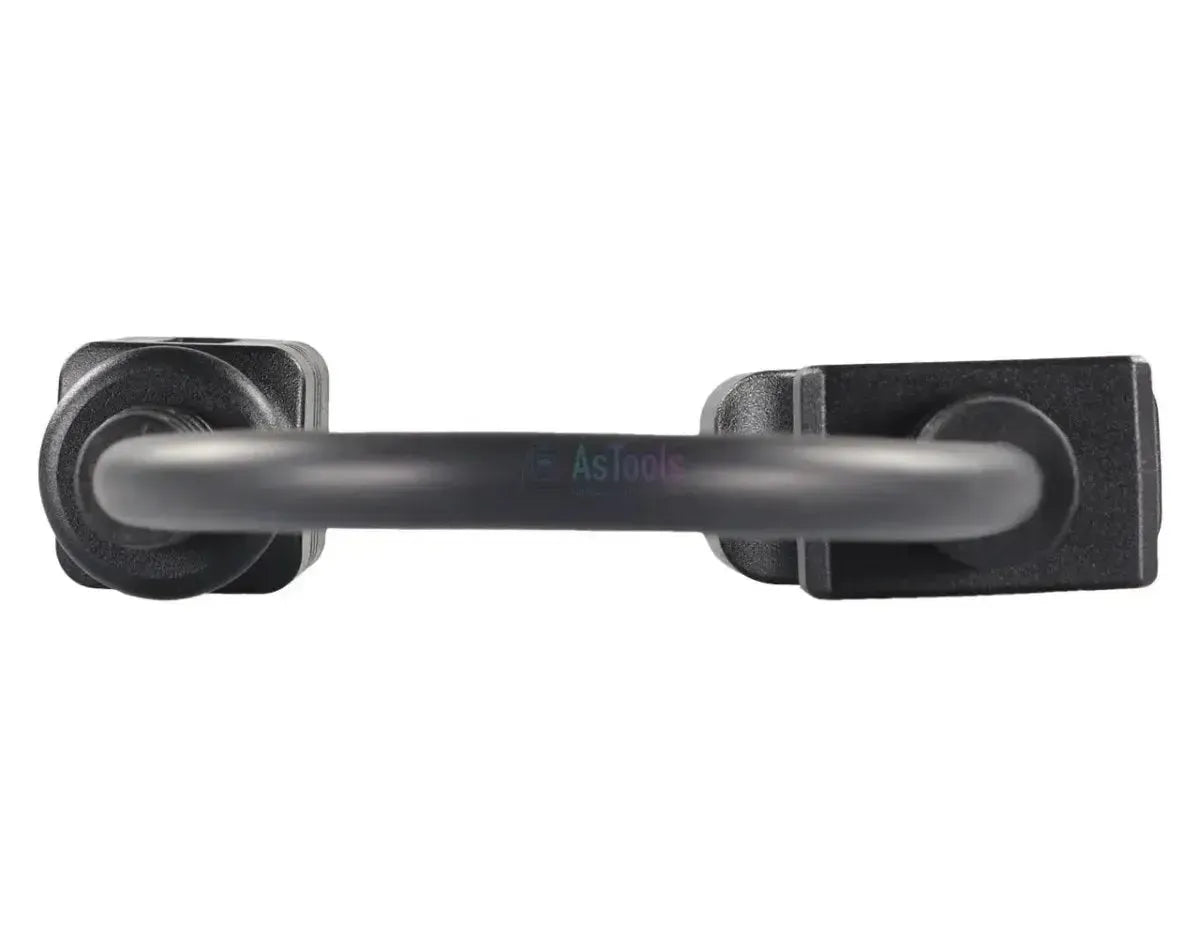

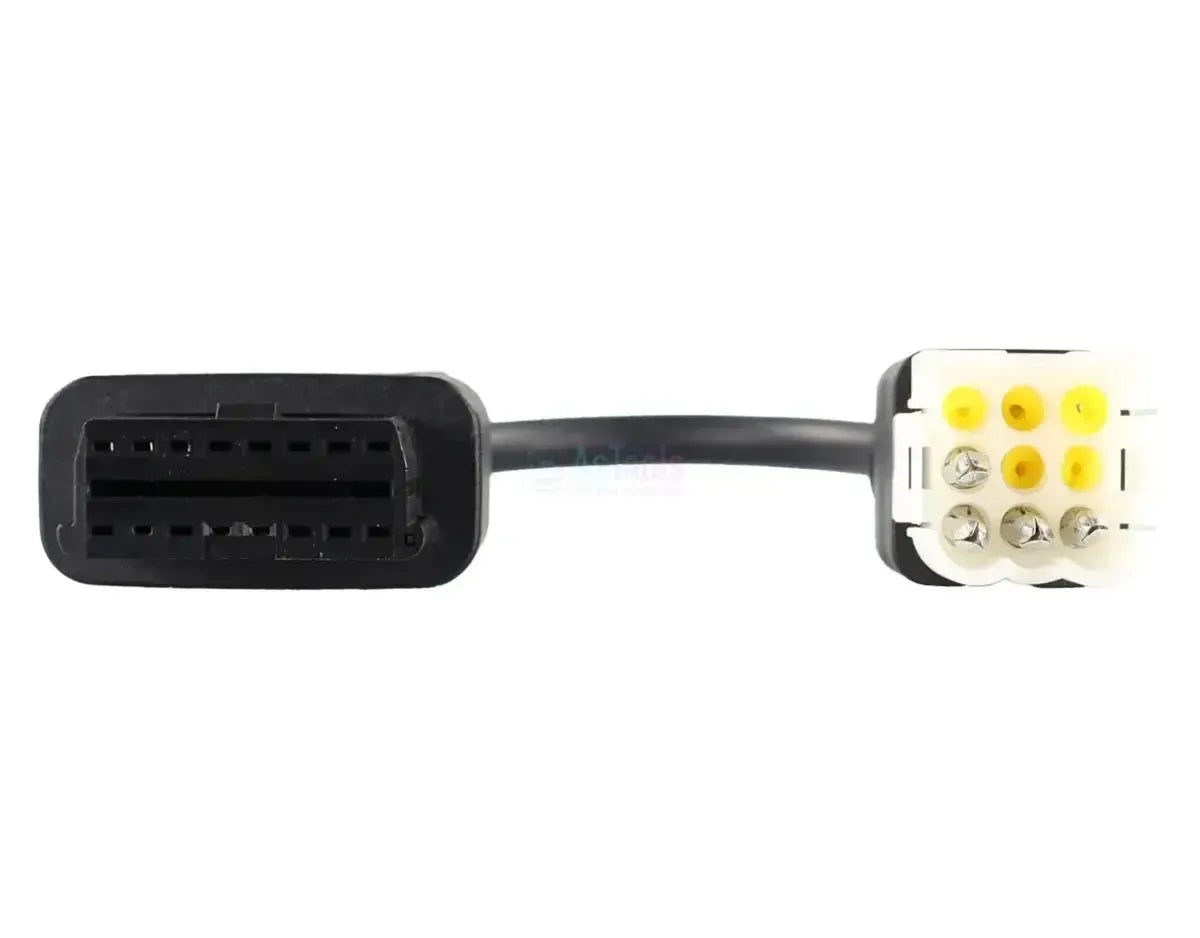

The Jaltest JDC302A connects the 9-pin ABS connector of Volvo bus chassis to the 16-pin OBD2 port of your Jaltest diagnostic cable. On the vehicle side is a white rectangular connector with nine positions in three rows of three, in a black overmould. Four positions have blade contacts, and the other five are sealed with yellow blanking plugs. On the interface side is a black OBD2 connector with JDC302A moulded into the housing.

With the cable connected, the Jaltest software reaches the brake electronics of the chassis. These are the ABS, together with the brake management systems EBS 2.X, EBS 5, EBS 5 VOLVO/RVI and EBS Gen 2. Because the connection is on the chassis, the body builder makes no difference. The cable works with the Jaltest Link V8.1 and V9 and is covered by Jaltest CV.

ADVANTAGES

✔Gives the Jaltest Link access to the ABS of the Volvo bus chassis, via the connection at the brake electronics.
✔The same coverage includes the brake management systems EBS 2.X, EBS 5, EBS 5 VOLVO/RVI and EBS Gen 2.
✔The cable follows the chassis, so the body builder who fitted out the bus makes no difference.
✔Works with both the Jaltest Link V8.1 and the Link V9; the cable is 28 to 30 cm long.

POINTS TO NOTE

✕For the ABS connector only. The almost identical JDC301A is intended for the ECS suspension control, with five occupied positions instead of four.
✕You cannot reach the other bus systems, such as EDC, VECU, TECU and ECS, via this connector.
✕Buses from Euro IV (October 2005) onwards have the 16-pin OBD connector; you do not need this cable for those.
✕Five of the nine positions are closed with yellow blanking plugs; this cable does not pass those contacts through.

Applications and functionality

This cable is intended for workshops that read the brake electronics of older Volvo buses with the Jaltest Link. The units listed below are covered by Jaltest's Volvo bus coverage.

Control units you can access

  • ABS: Anti-lock braking system of the chassis.
  • EBS 2.X / EBS 5 / EBS 5.X: Brake management.
  • EBS 5 VOLVO/RVI, EBS Gen 2: Brake control.

What you can do

  • Fault codes: Read and clear per system.
  • Measured values: View in figures and graph.
  • Components: Activate and test parts.
  • Parameters: Write settings.
  • Calibrations: Where Jaltest offers a procedure.

How to use it

  1. Locating the connector: Find the 9-pin ABS connector on the chassis.
  2. Connecting: Insert the JDC302A into the connector.
  3. Link pairing: Connect the OBD2 side to the Jaltest Link.
  4. Ignition on: Switch the ignition on without starting the engine.
  5. Reading out: Select Volvo Bus, the series and the braking system.

Compatible vehicles and applications

The connector matters, not the model. The cable fits Volvo bus chassis with the 9-pin ABS connector. The series listed below are covered by Jaltest CV coverage; check on site which connector is fitted to your chassis.

Volvo Bus:

  • B10M: Build years 1978 to 2003.
  • B10B: Build years 1992 to 2001.
  • B7R: Build years 1997 to 2005.
  • B12B: Build years 1997 to 2005.
  • B12M: Build years 1999 to 2005.
  • B7L: Build years 2000 to 2005.
💡
Good to know: The 9-pin ABS connector is located on the bus chassis, near the brake electronics. You can recognise it by the white connector with three rows of three positions, of which four are occupied; the ECS cable JDC301A has five. Check which connector is fitted to the chassis before you order.

Package contents

  • 1x Jaltest (JDC302A) | Volvo (ABS) 9-pin OBD - 16-pin OBD2 adapter cable | Bus

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
Jaltest (Cojali)
The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
Adapter cable
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
  • CV commercial vehicles

Connections

The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link
  • Jaltest Link V8.1
  • Jaltest Link V9
The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
16-pin OBD2
The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector
9-pin OBD
The length of the cable. A longer cable allows more room to work.Cable length
28 to 30 cm

Diagnostics

Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data
Whether components can be activated from the device. This shows whether the fault lies with the component or the wiring.Activate components
Whether control unit settings can be adjusted. Required after replacement or to change the behaviour of a system.Set parameters

Usage

Reference number
JDC302A
Control units
ABS, EBS 2.X, EBS 5, EBS 5 VOLVO/RVI, EBS Gen 2
Required for use
Jaltest Link V8.1 or V9 and Jaltest diagnostic software

Other specifications

Application
Volvo bus chassis, ABS connector (brake electronics)
