Jaltest (JDC110A) | 7+7-pin (CAN ISO 7638-1) - 16-pin OBD2 Adapter | Trailer
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

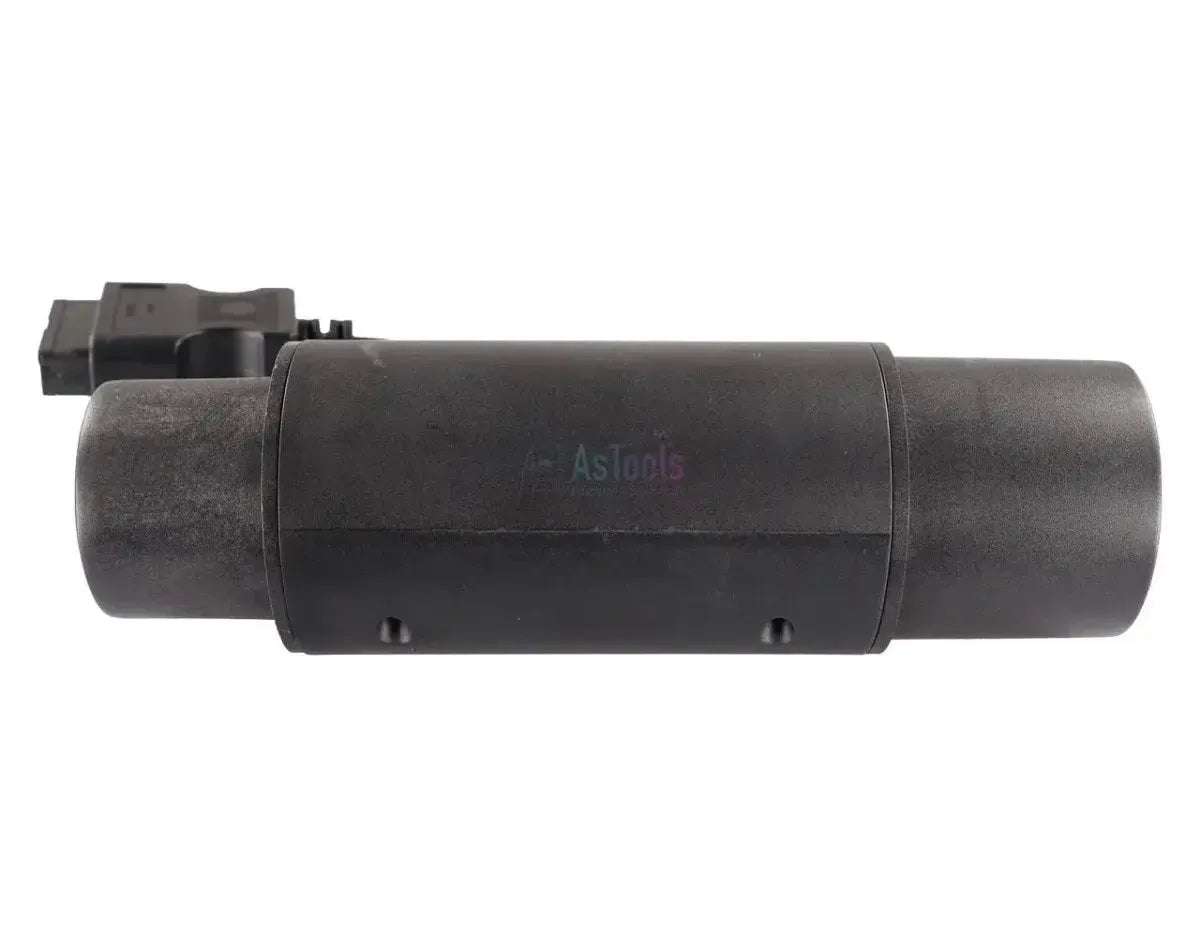

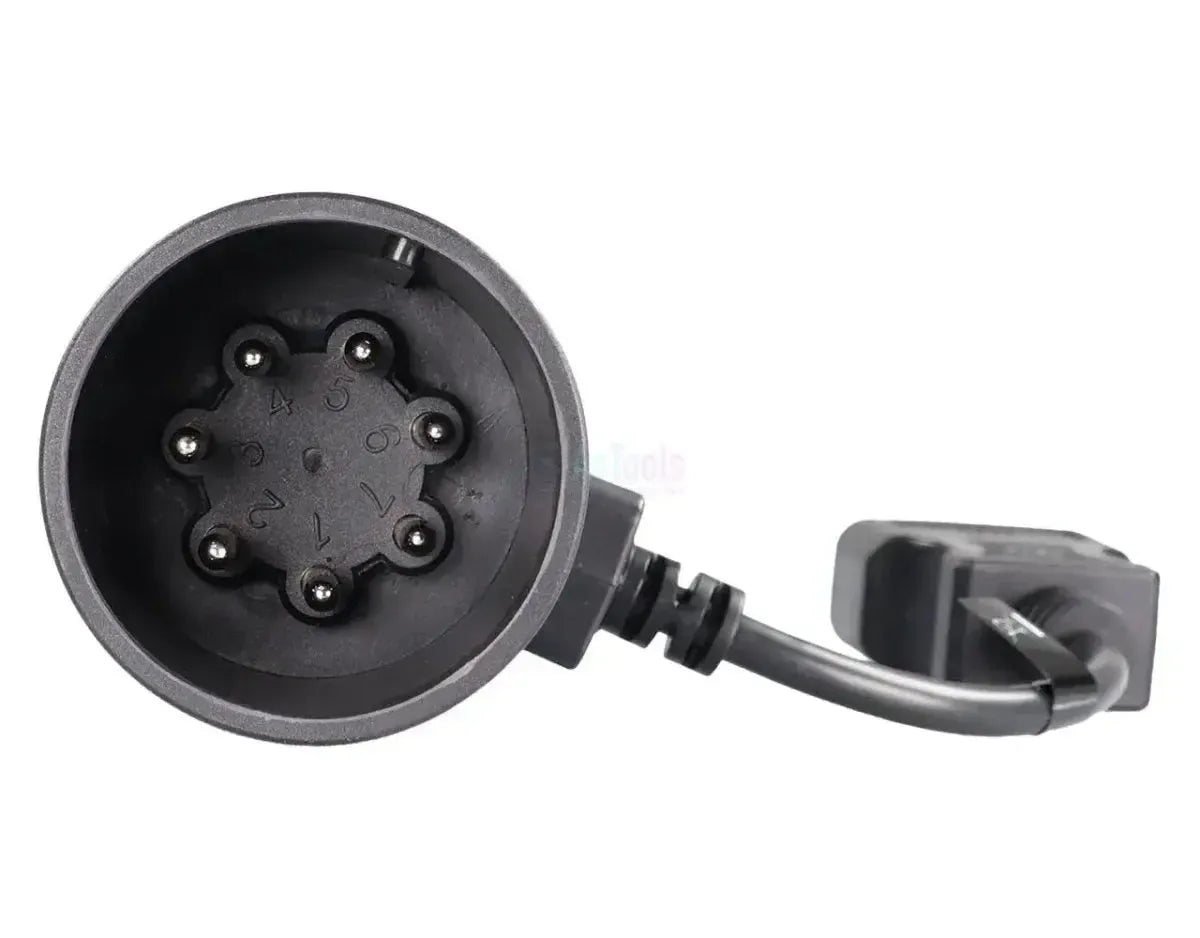

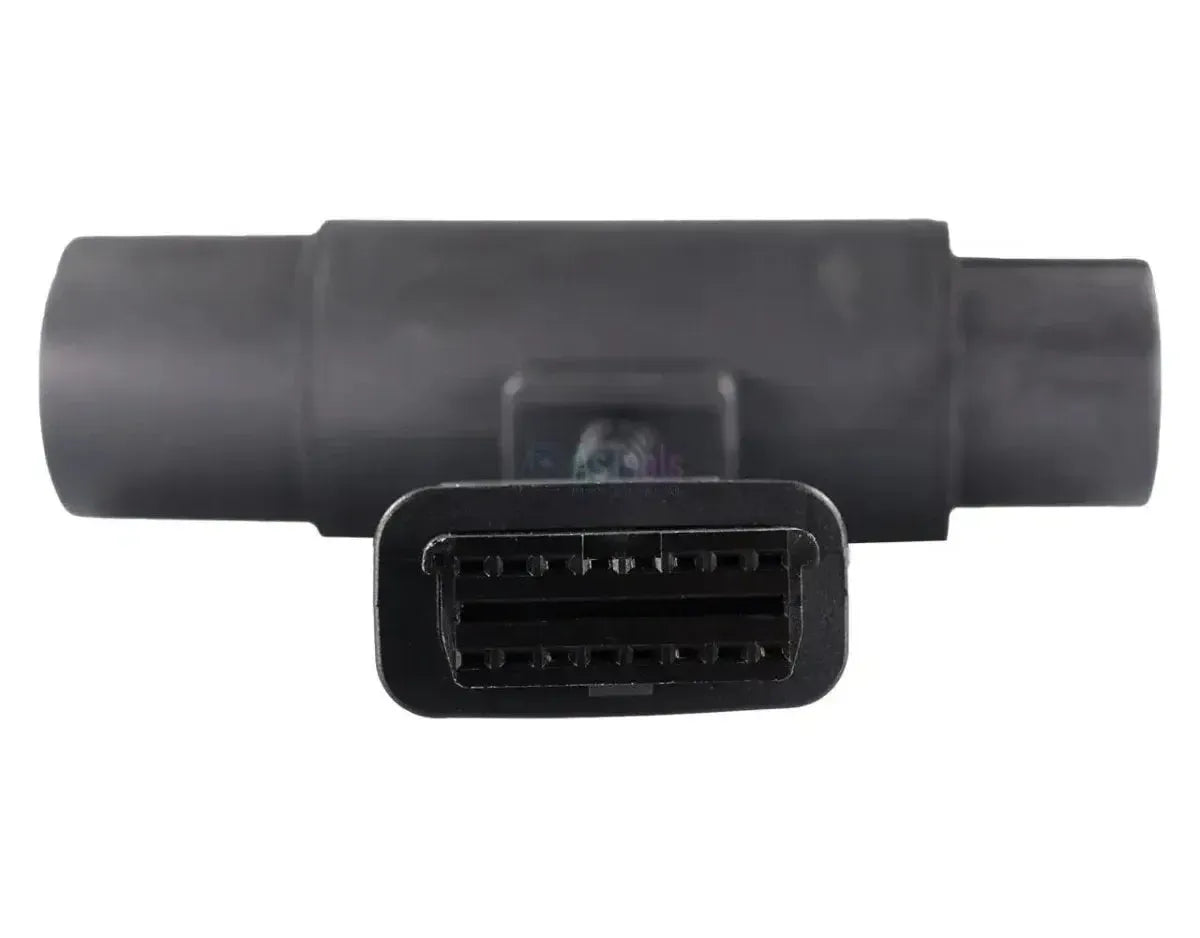

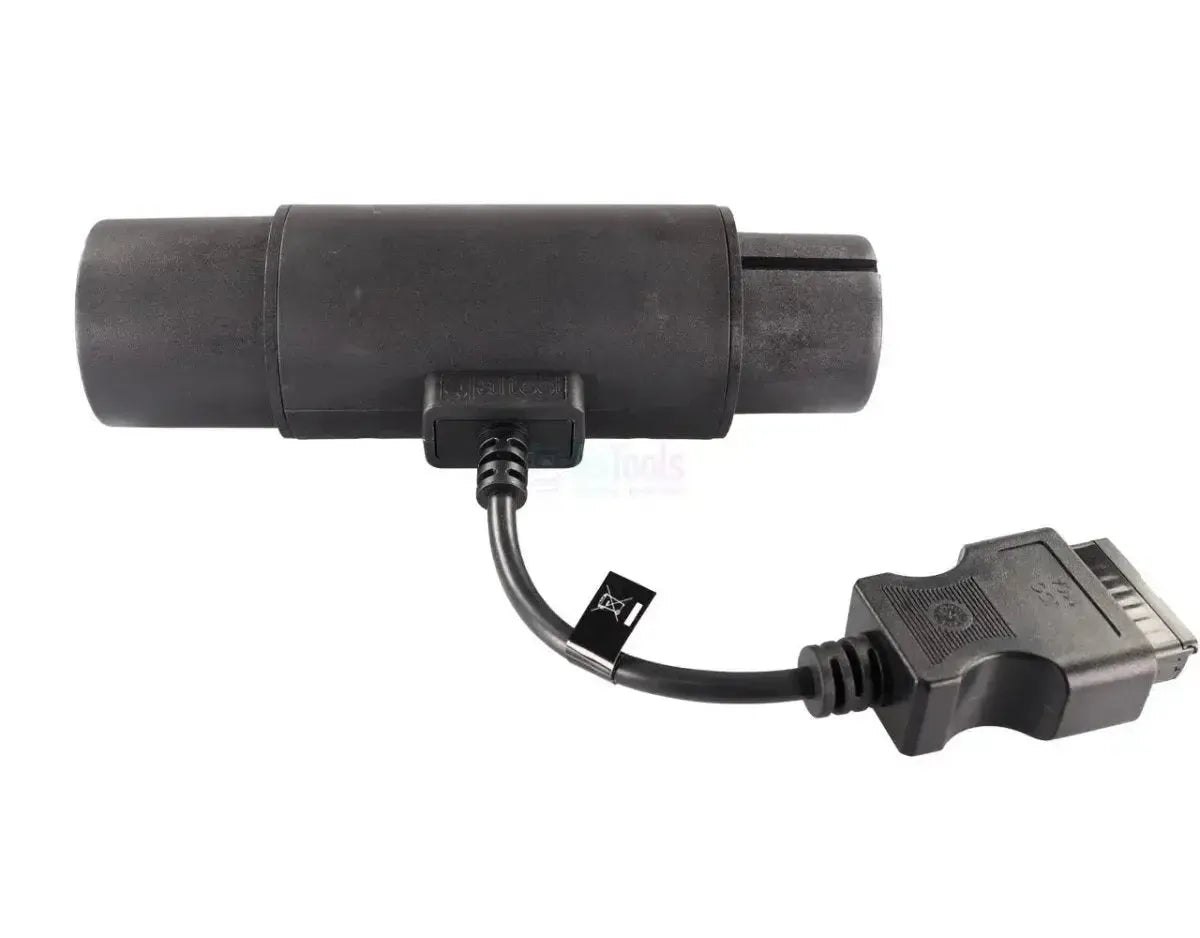

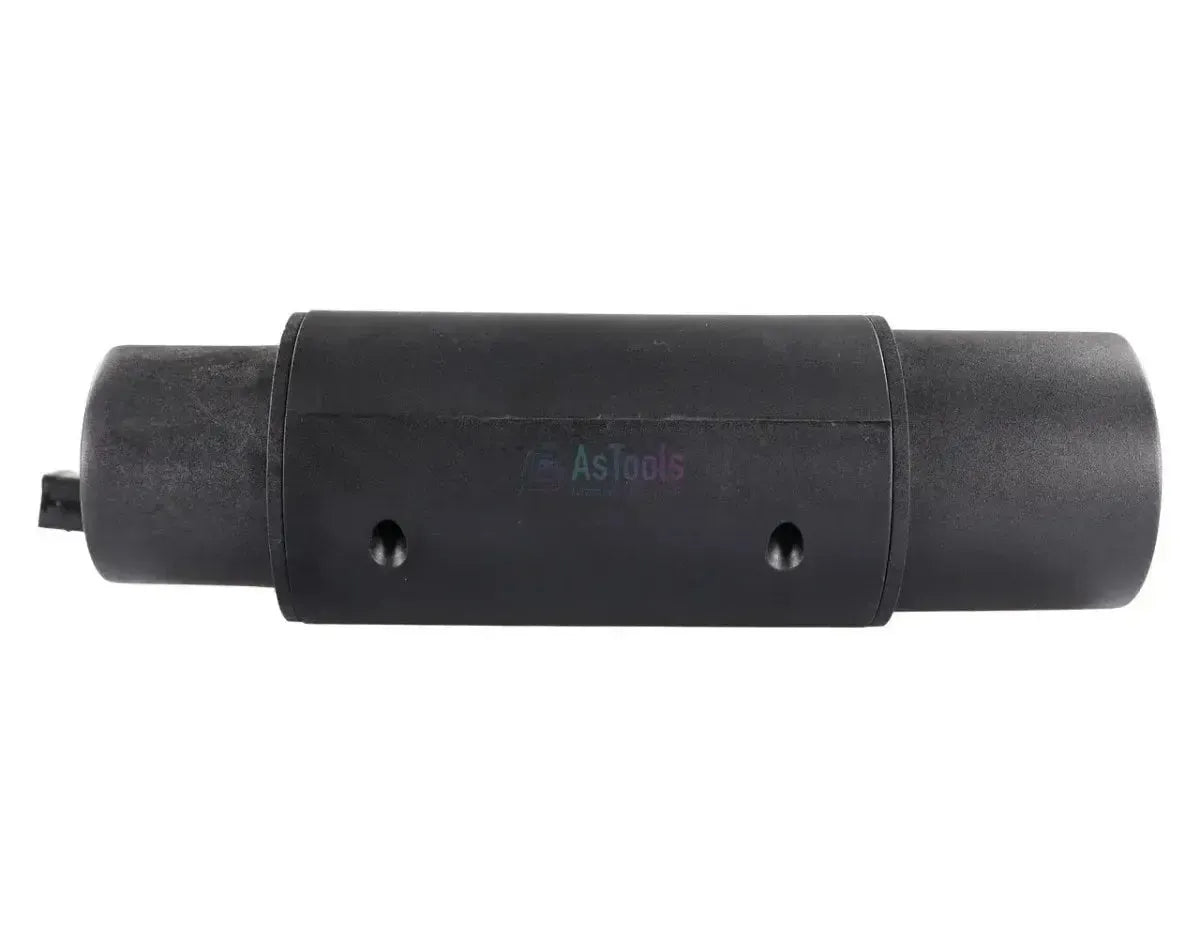

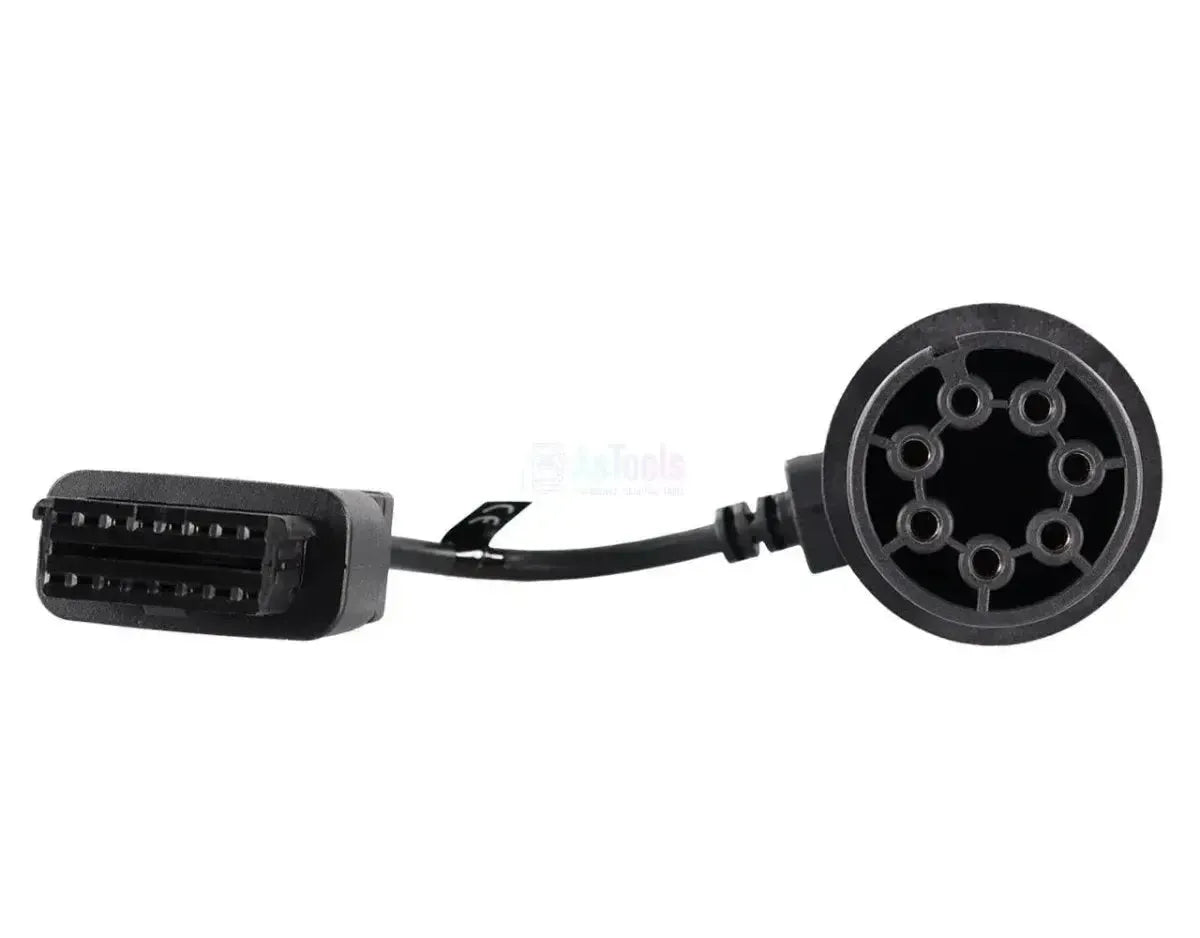

The Jaltest JDC110A is an adapter that hangs as a T-piece in the 7-pin ISO 7638-1 connection between towing vehicle and semi-trailer. The black, round housing has a plug with pins on one side and the round opening with an upstanding lug on the other, so the existing connection continues through. At right angles to it runs a short cable of 22 to 29 cm to a 16-pin OBD2 plug.
Via this branch, the diagnostic equipment gains access to the CAN line that runs through the connection, and therefore to the ABS/EBS of the trailer. Because the connection is standardised, you are not tied to a single chassis builder. This version is specified for 24V and for the Jaltest Link V8.1 and V9, and falls under Jaltest CV.
ADVANTAGES
POINTS TO NOTE
Applications and functions
Via this branch, you gain access to the trailer CAN network. For the ABS/EBS, the ISO 7638-1 connection is the standardised power and data route. Which other control units are on the network differs per semi-trailer and per chassis builder.
Control units you can access
- ABS/EBS: Brake control of the trailer.
- Other units: On the CAN network, per semi-trailer.
What you can do
- Fault codes: Read and clear.
- Measured values: Live monitoring.
- Components: Actuating actuators.
- Parameters and calibrations: Where offered by Jaltest.
- Maintenance resets: After repair.
How to use it
- Start the software: Open Jaltest CV on the PC.
- Link connection: Connect the Link V8.1 or V9 to the PC.
- Fitting the T-piece: Insert the JDC110A into the ISO 7638-1 connection.
- Diagnostic cable: Connect the OBD2 plug to the diagnostic cable.
- Reading out: Select the trailer and the system.
Compatible vehicles and applications
What matters is the plug, not the brand. This adapter fits any semi-trailer or trailer with a 7-pin ISO 7638-1 connection on which CAN runs. That connection is located at the front of the semi-trailer, at the coupling with the towing vehicle.
Application:
- Semi-trailers and trailers: With a 7-pin ISO 7638-1 connection.
- Chassis builders: All builders who use this standardised connection.
Which version you need:
- JDC110A (this item): 24V, CAN on ISO 7638-1.
- JDC110B: 12V, to ISO 7638-2.
- JDC112A: Data to SAE J2497 over the power line.
Package contents
- 1x Jaltest (JDC110A) | 7+7-pin (CAN ISO 7638-1) - 16-pin OBD2 Adapter | Trailer
Technical specifications
General
- The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
- Adapter cable
- The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
- CV commercial vehicles
- The types of vehicles or machines the cable is intended for. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
- Trailer
Connections
- The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link
- Jaltest Link V8.1
- Jaltest Link V9
- The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
- 16-pin OBD2
- The length of the cable. A longer cable allows more room to work.Cable length
- 22 to 29 cm
Diagnostics
- Whether fault codes can be cleared as well as read. Some systems only allow reading.Clear fault codes
- Yes
- Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data
- Yes
- Whether components can be activated from the device. This shows whether the fault lies with the component or the wiring.Activate components
- Yes
Usage
- The Jaltest cable set that also contains this cable. If you already own that set, you may already have this cable.Part of cable set
- Trailer cable set
- Reference number
- JDC110A
Other specifications
- Type
- Adapter (T-piece)
- Application
- Trailer diagnostics via CAN on ISO 7638-1
- Vehicle-side connection
- 7+7-pin ISO 7638-1, black round housing with pins on one side and the round opening on the other
- Voltage
- 24V
- Control units
- ABS/EBS of the trailer and the other control units on the CAN network; which are present differs per semi-trailer
- Part of cable set
- Trailer cable set (70002024)
