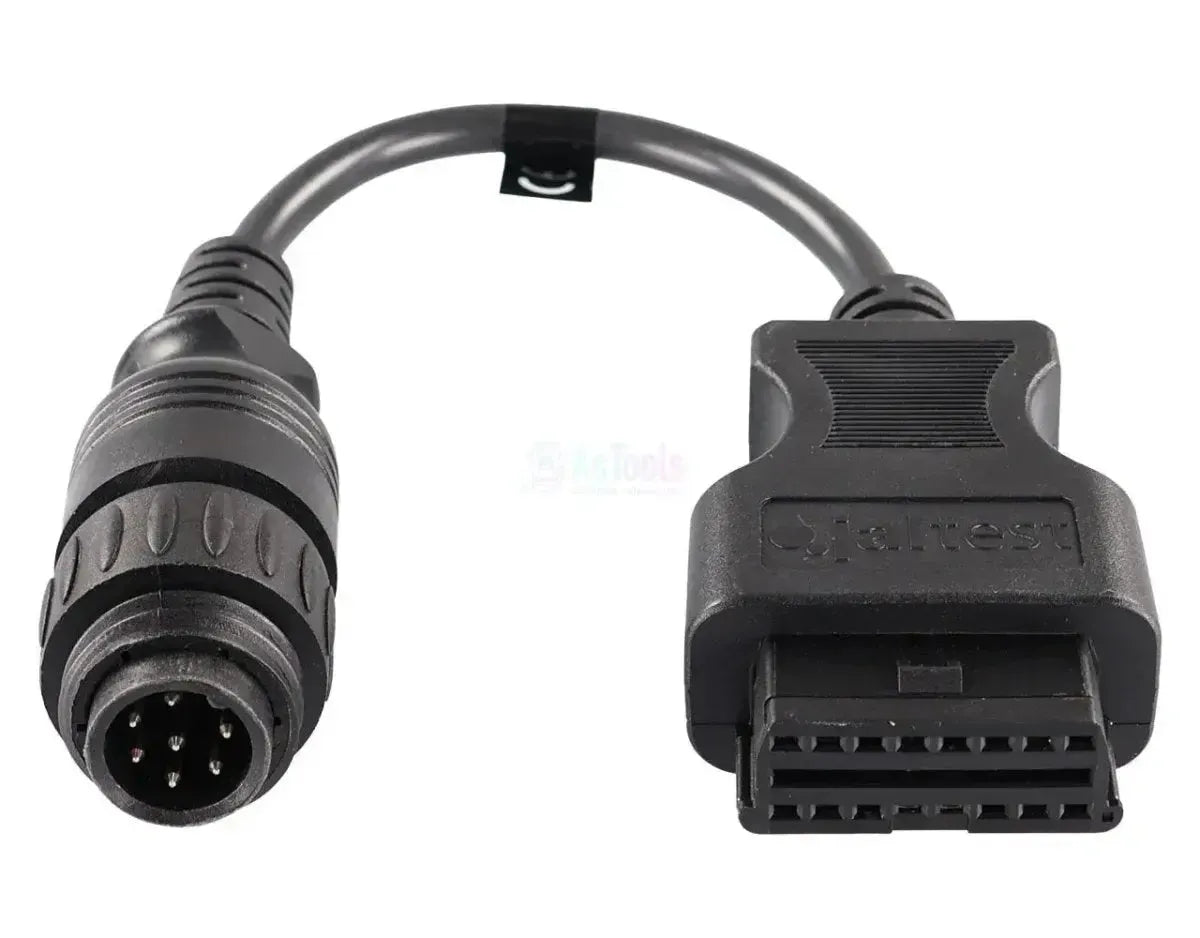

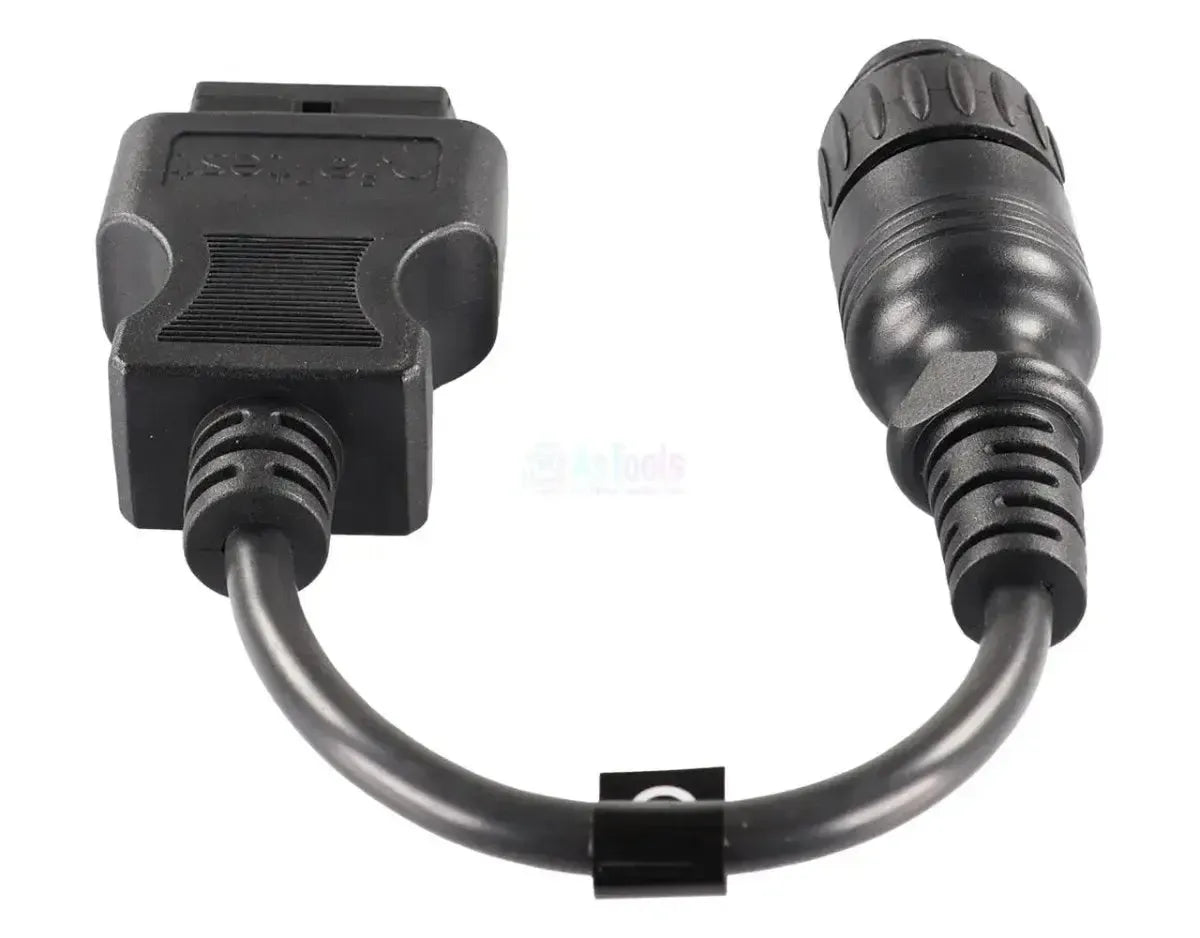

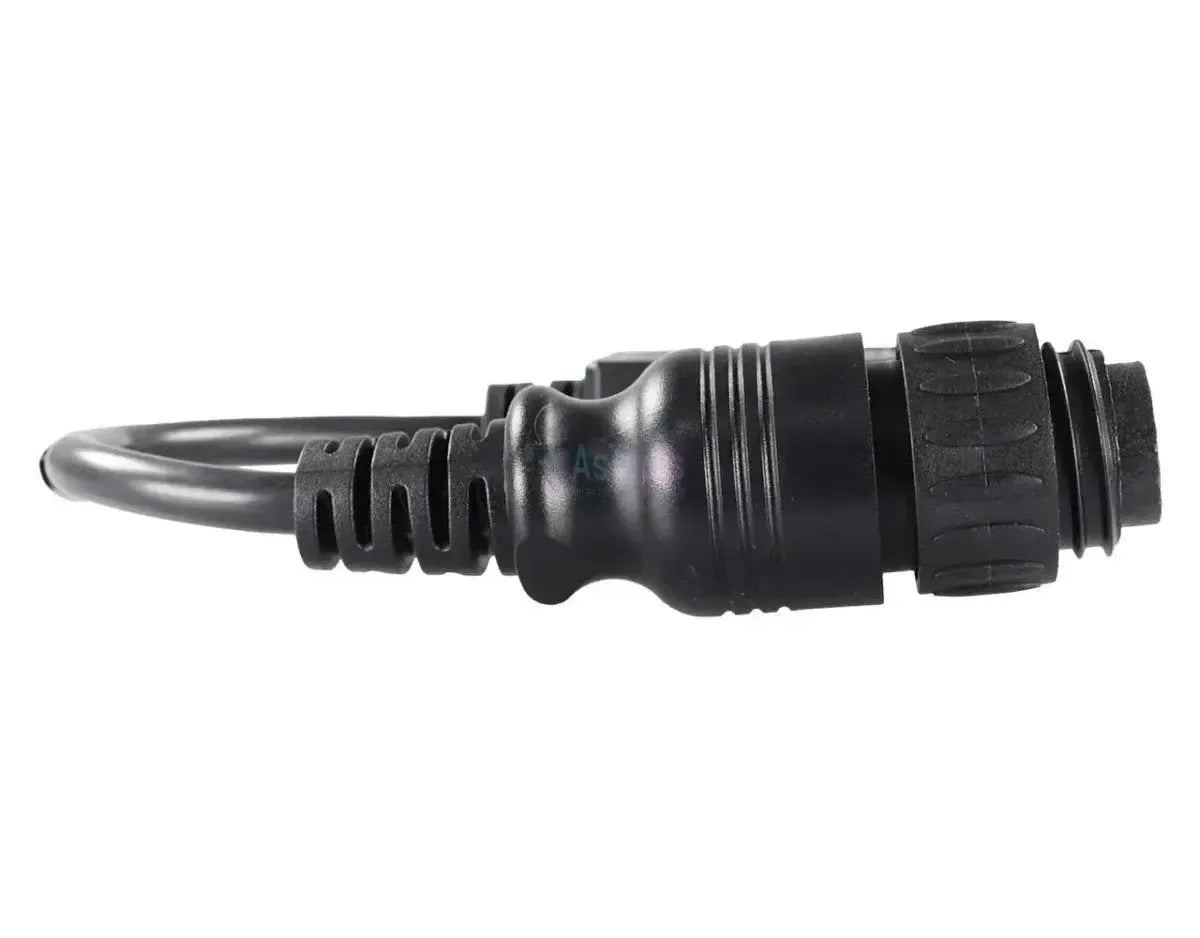

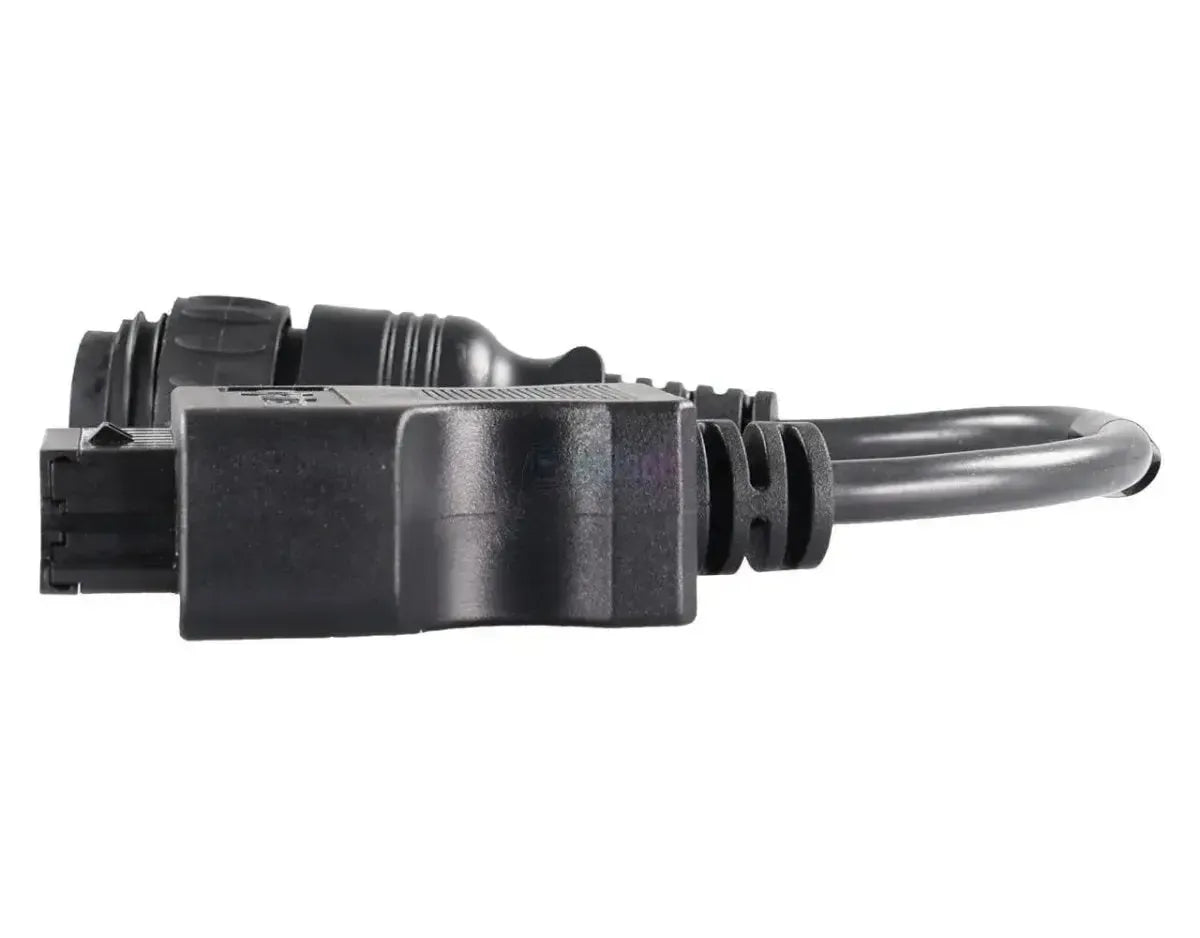

The Jaltest JDC103A connects the 7-pin diagnostic connector of Wabco and Knorr-Bremse trailer braking systems to the 16-pin OBD2 port of your Jaltest diagnostic cable. On the trailer side is a round black plug with a ribbed grip and seven pins: six in a circle and one in the centre. All seven positions are occupied, which distinguishes this connector from the also 7-pin JDC111A. The cable is 28 to 30 cm long.
The cable opens the diagnostic line to the trailer ABS: Wabco Vario C, VCS, VCSII and VCSII CAN and Knorr-Bremse A18, KB3-TA and KB4-TA. You can read fault codes, measured values and ECU data; for VCS, VCSII and VCSII CAN also maintenance data. Some of the Knorr-Bremse functions are available with the separate Knorr-Bremse Diagnostics module (ref. 71502007). The cable works with the Jaltest Link V8.1 and V9 and is covered by Jaltest CV.
ADVANTAGES
✔Two manufacturers with one cable, because Wabco and Knorr-Bremse use the same 7-pin plug on these brake controllers.
✔Reaches Wabco Vario C, VCS, VCSII and VCSII CAN and Knorr-Bremse A18, KB3-TA and KB4-TA.
✔For VCS, VCSII and VCSII CAN, maintenance data is included in the coverage alongside fault codes and measured values.
✔Compatible with Jaltest Link V8.1 and V9 and supplied in the Trailer cable set (70002024).
POINTS TO NOTE
✕Only for the 7-pin connector with seven pins; the KB4-TA unit with a 7-pin housing containing four sockets belongs to the JDC111A.
✕For Wabco Vario C, the coverage does not include maintenance data, only fault codes, measured values and ECU data.
✕The EBS units of Wabco (EBS C, EBS D, EBS D CAN, EBS E, iEBS) and Knorr-Bremse (TEBS Gen2, TEBS G2.x, TEBS4, iTEBS X) are not reached; the ISO 7638 cable JDC110A is intended for these.
✕Some of the Knorr-Bremse functions only become available with the separate Knorr-Bremse Diagnostics module (ref. 71502007).
Applications and functionality
Via this connection, you use the Jaltest software to access the brake controller on the semi-trailer or trailer. Which unit you find is determined by the generation of the Wabco or Knorr-Bremse controller, not by the trailer brand.
Control units you can access
- Wabco Vario C: Trailer ABS.
- Wabco VCS, VCSII, VCSII CAN: Trailer ABS.
- Knorr-Bremse A18, KB3-TA: Older trailer ABS.
- Knorr-Bremse KB4-TA: Trailer ABS.
What you can do
- Fault codes: Read with description.
- Measured values: With out-of-range notification.
- Maintenance data: For VCS, VCSII and VCSII CAN.
- Diagnostic messages: For VCSII and VCSII CAN.
How to use it
- Check the plug: Count the seven pins in the round connector.
- Connecting: Plug the JDC103A into the connector.
- Linking Link: Connect the OBD2 end to the diagnostic cable.
- Voltage: Make sure the trailer has voltage.
- Reading out: Select Wabco or Knorr-Bremse and the system.
Compatible vehicles and applications
The plug determines compatibility, not the model. This cable fits any semi-trailer or trailer with a Wabco or Knorr-Bremse brake controller whose diagnostic connector is a round 7-pin plug with seven pins. The EBS generations of both brands use a separate connector.
Wabco (scope):
- Vario C: Anti-lock braking system; fault codes, measured values and ECU data.
- VCS, VCSII and VCSII CAN: Anti-lock braking system, including maintenance data.
Knorr-Bremse (scope):
- A18 and KB3-TA: Older trailer anti-lock braking systems.
- KB4-TA: Also accessible via the JDC111A.
💡

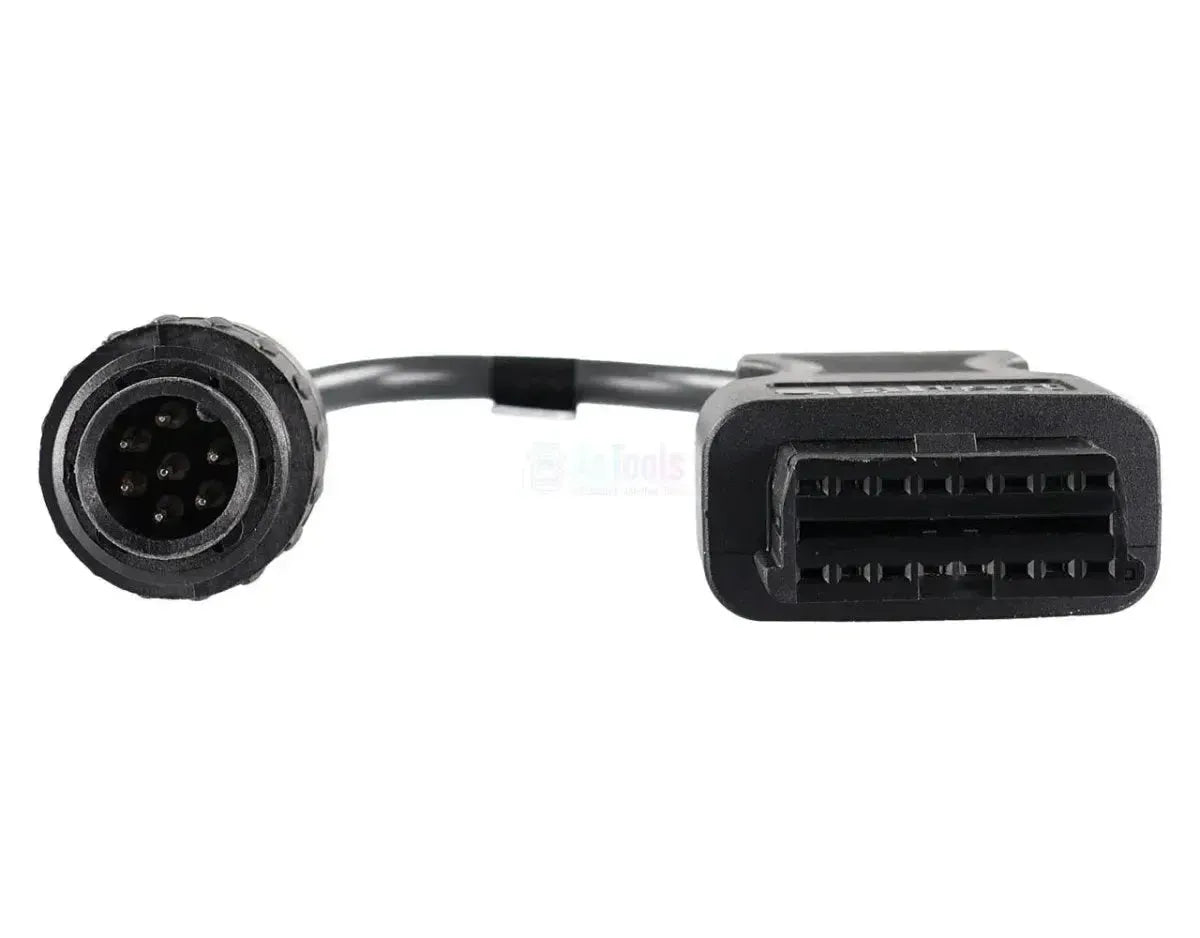

Good to know: Count the seven pins in the round connector: six in a circle and one in the centre. If a 7-pin housing contains sockets and only four positions are occupied, then the JDC111A is the correct one. Check this on the trailer before ordering.
Package contents
- 1x Jaltest (JDC103A) | Wabco/Knorr-Bremse 7-pin OBD - 16-pin OBD2 Adapter Cable | Trailer
Technical specifications
General
- The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
- Adapter cable
- The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
- CV commercial vehicles
- The types of vehicles or machines the cable is intended for. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
- Trailer
Connections
- The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link
- Jaltest Link V8.1
- Jaltest Link V9
- The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
- 16-pin OBD2
- The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector
- 7-pin OBD
- The length of the cable. A longer cable allows more room to work.Cable length
- 28 to 30 cm
Diagnostics
- Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data
- Yes
Usage
- The Jaltest cable set that also contains this cable. If you already own that set, you may already have this cable.Part of cable set
- Trailer cable set
- Reference number
- JDC103A
- Control units
- Wabco Vario C, VCS, VCSII, VCSII CAN; KB A18, KB3-TA, KB4-TA
Other specifications
- Application
- Wabco and Knorr-Bremse trailer braking systems with 7-pin connector
- Part of cable set
- Trailer cable set (70002024)
- Required for use
- Jaltest Link with Jaltest CV licence
- Additionally available
- Knorr-Bremse Diagnostics module (ref. 71502007) for the full range of functions
