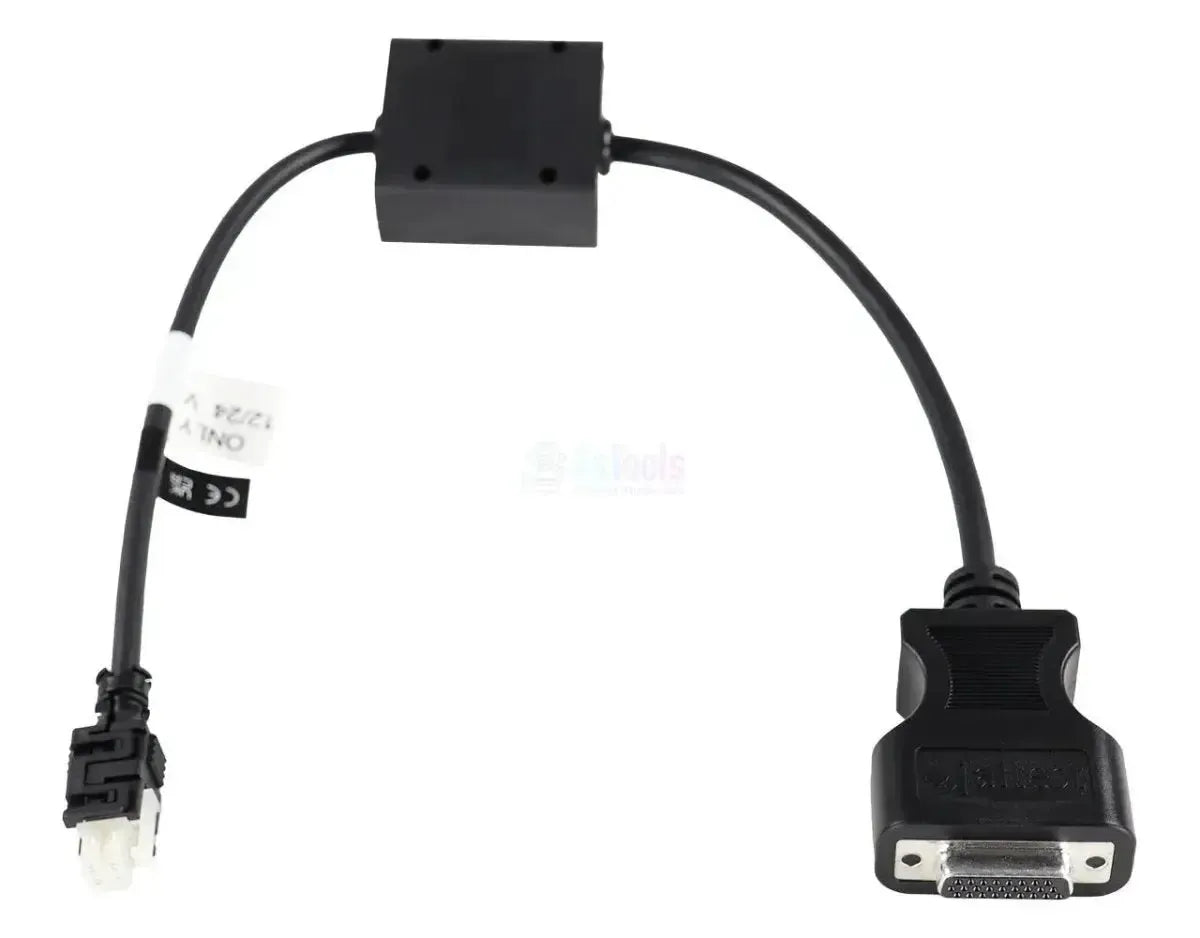

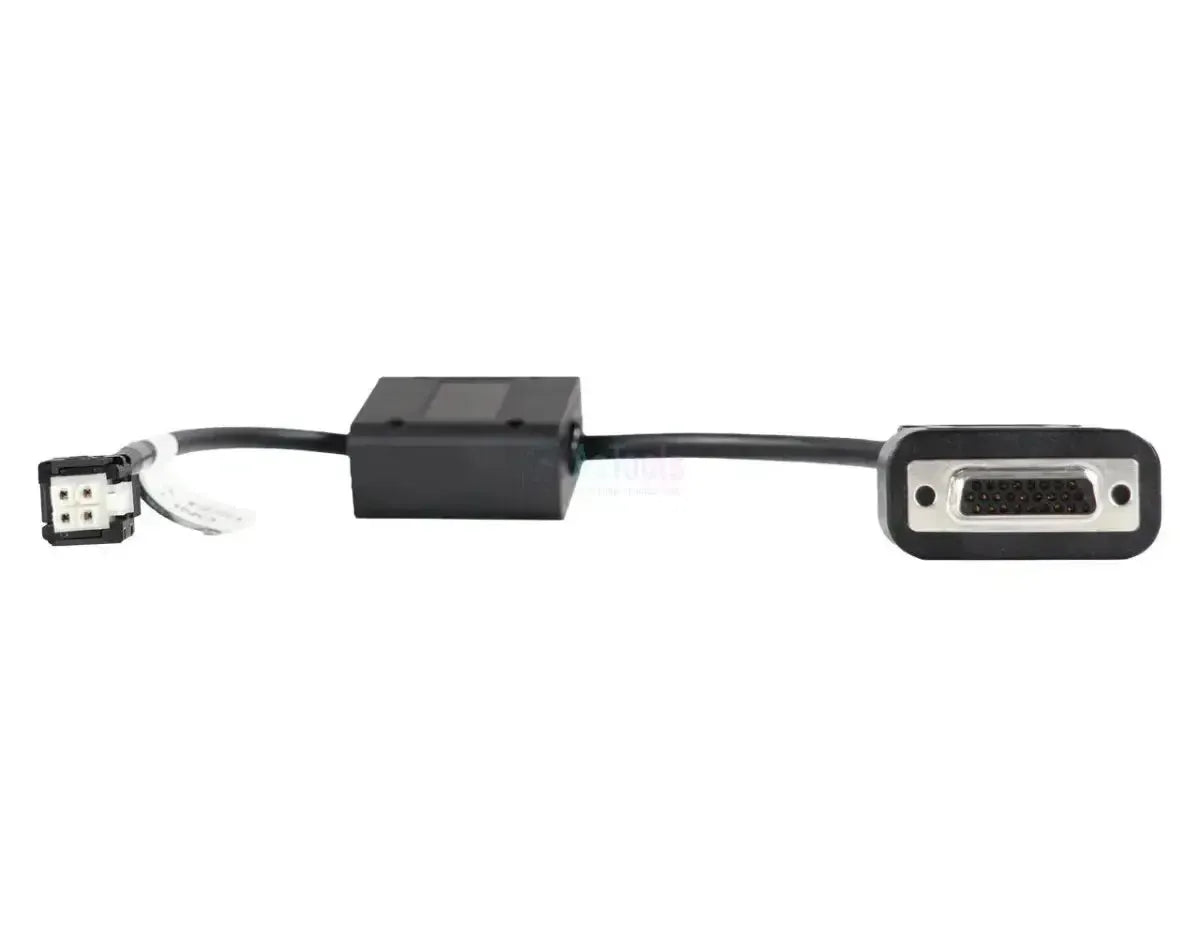

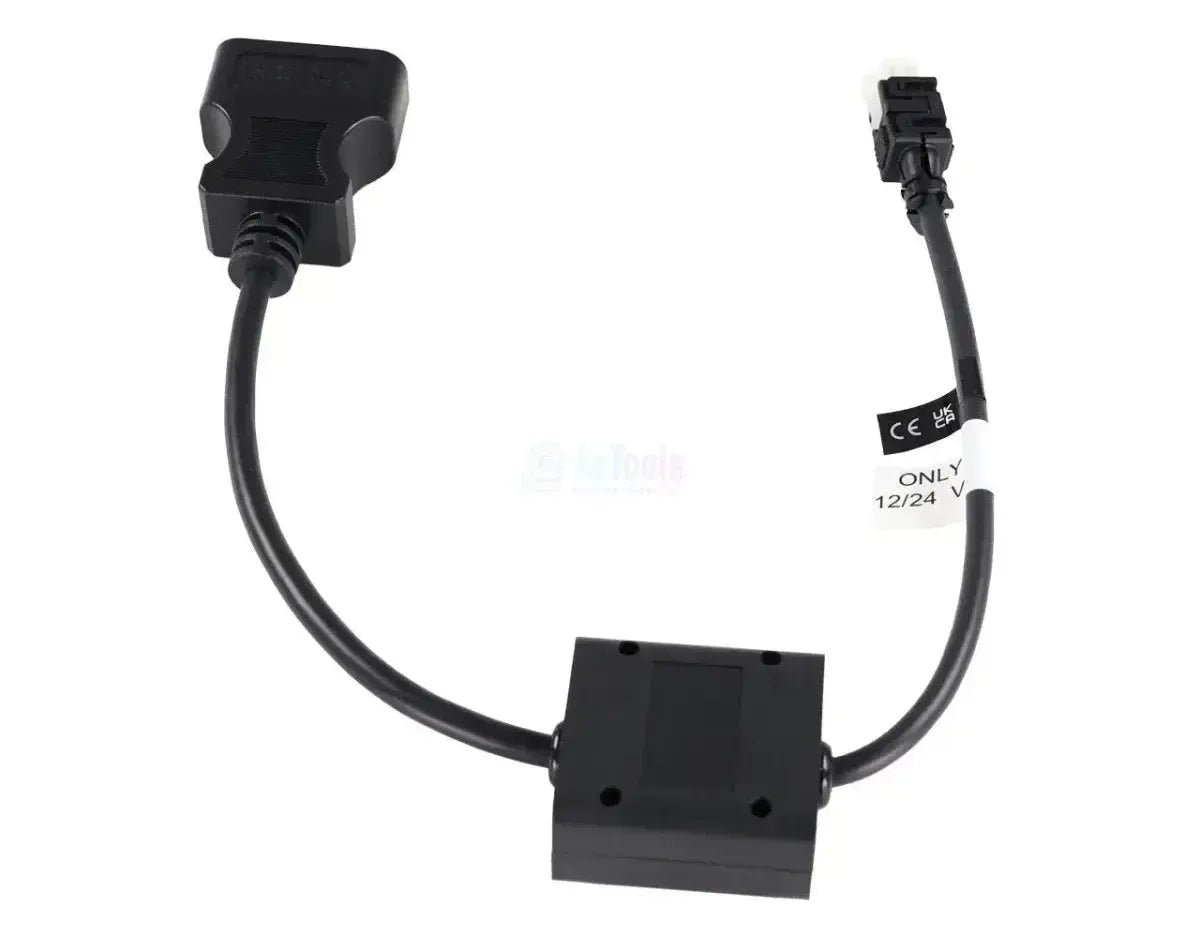

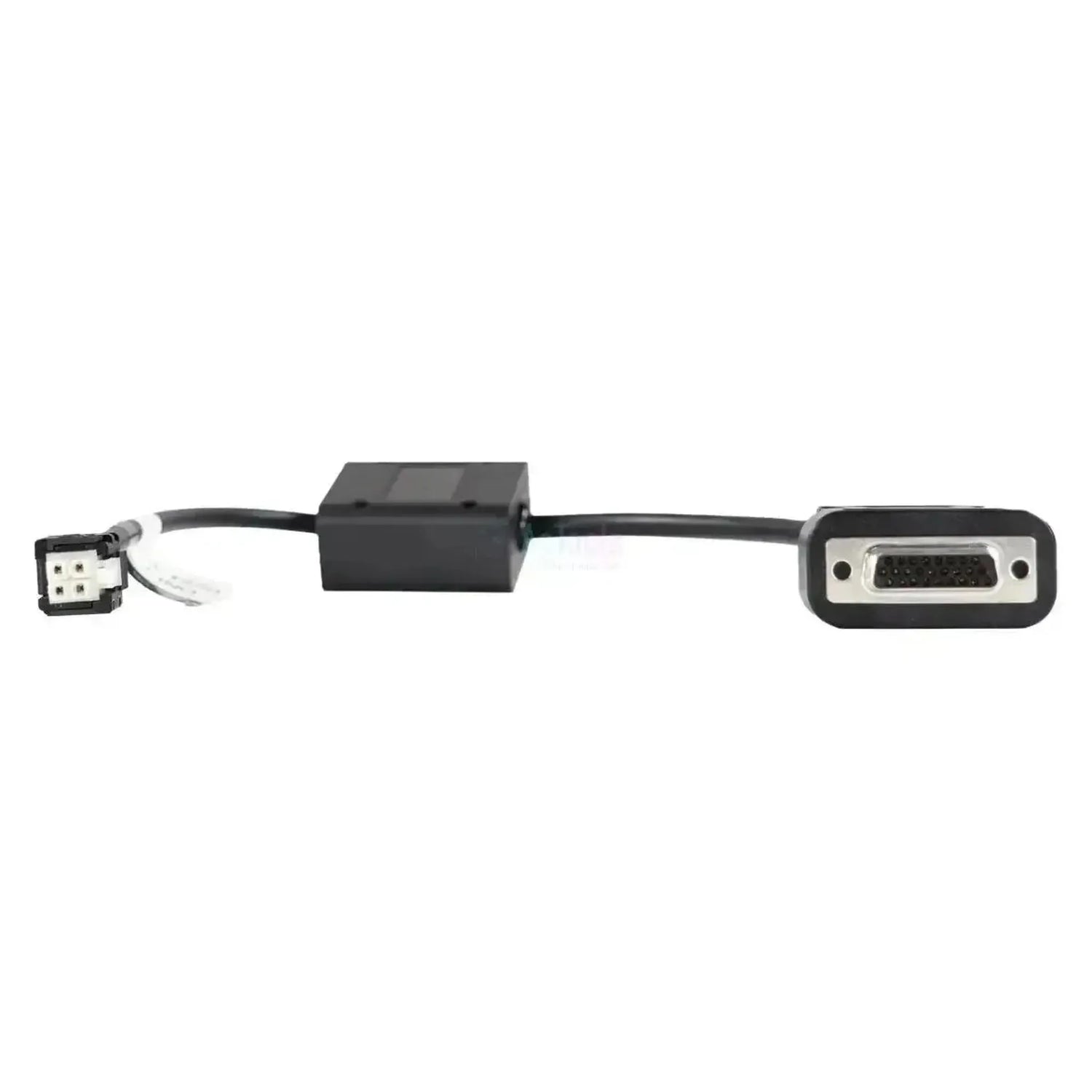

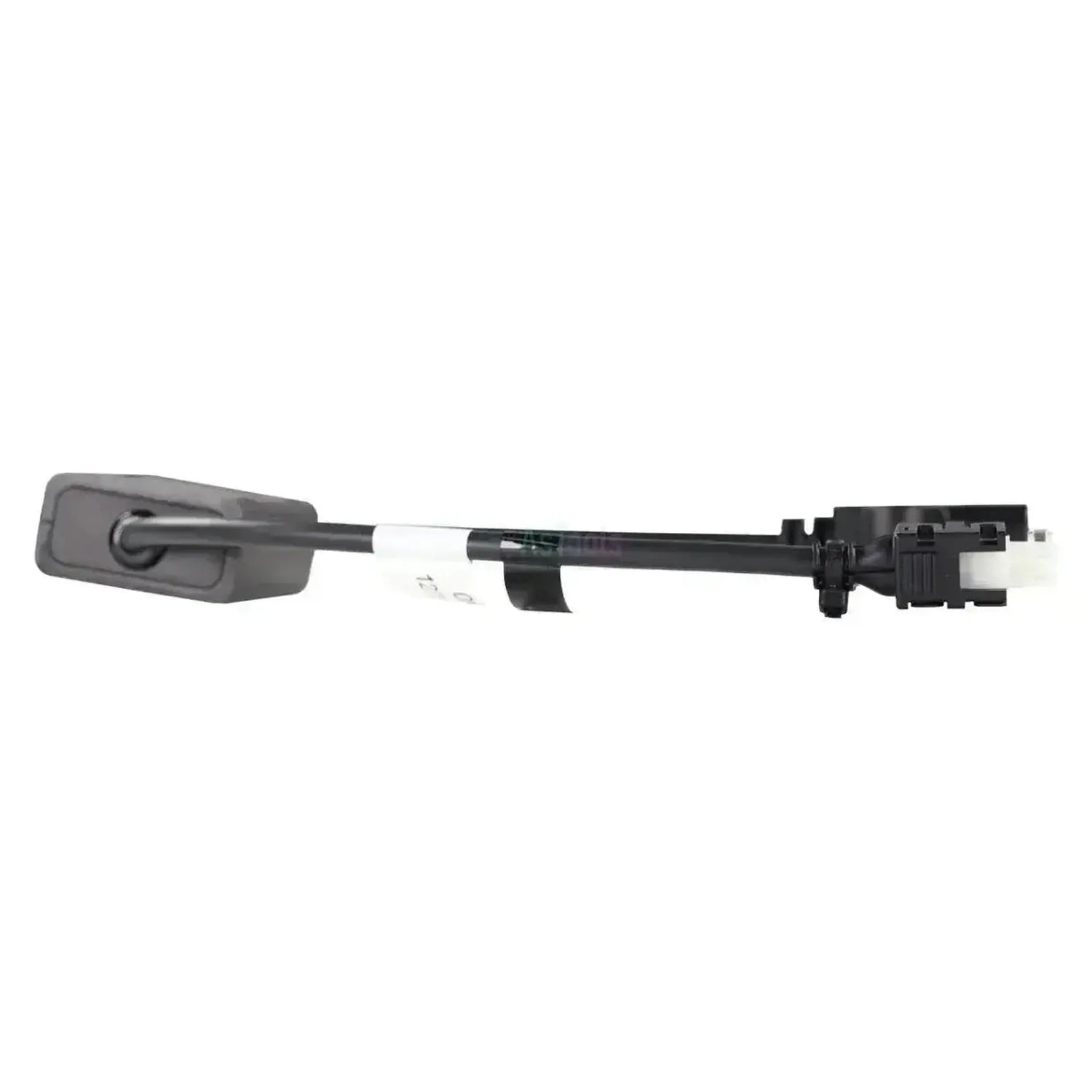

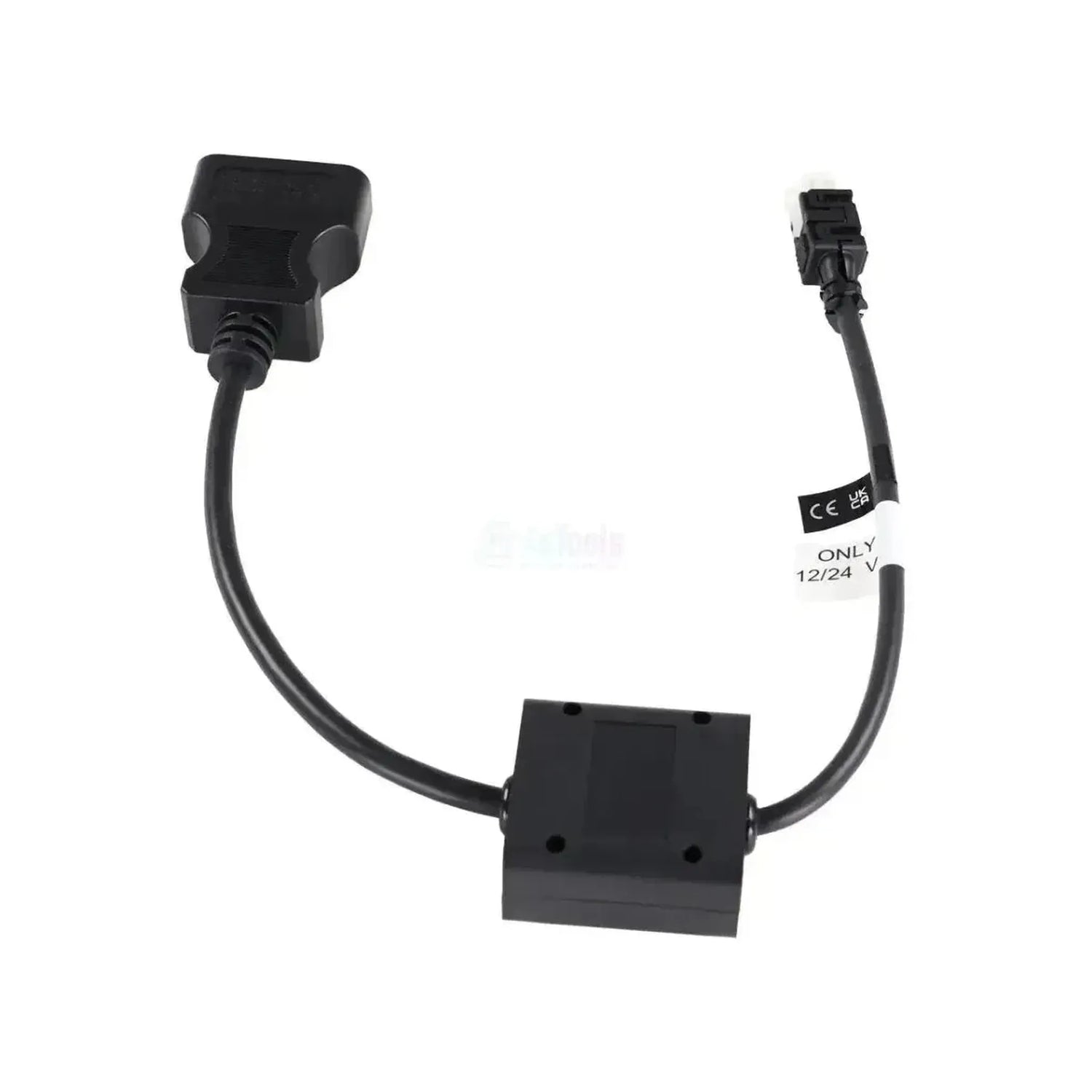

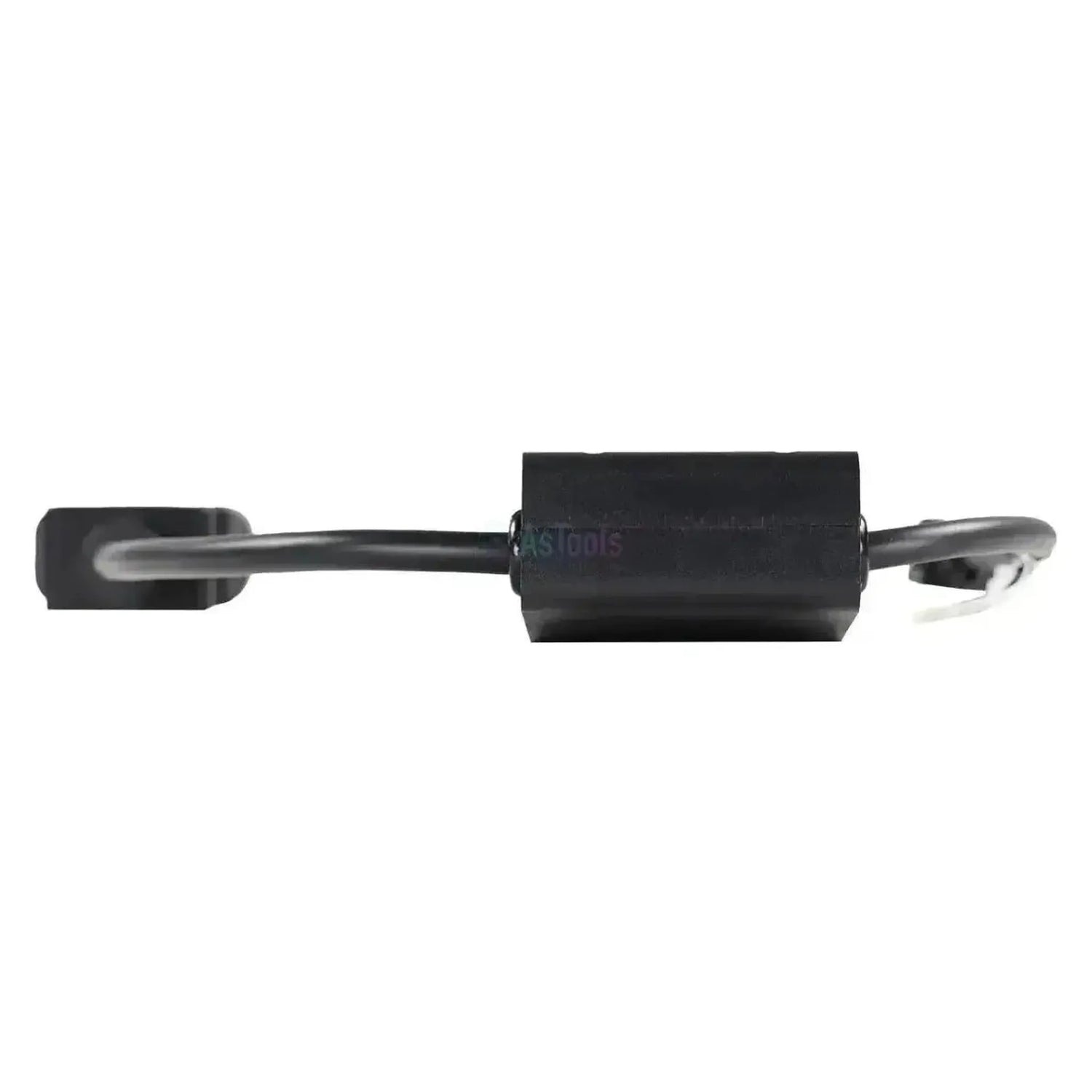

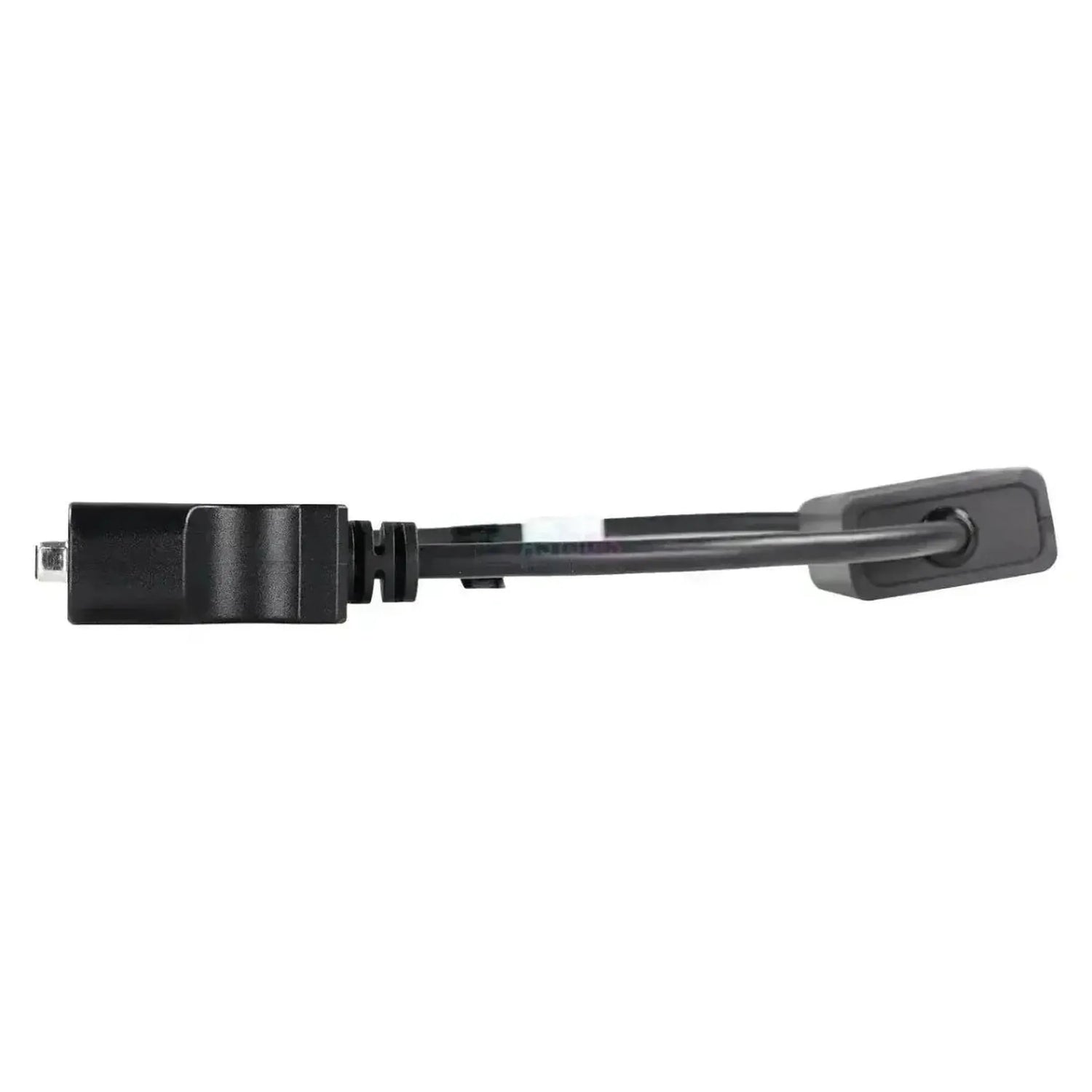

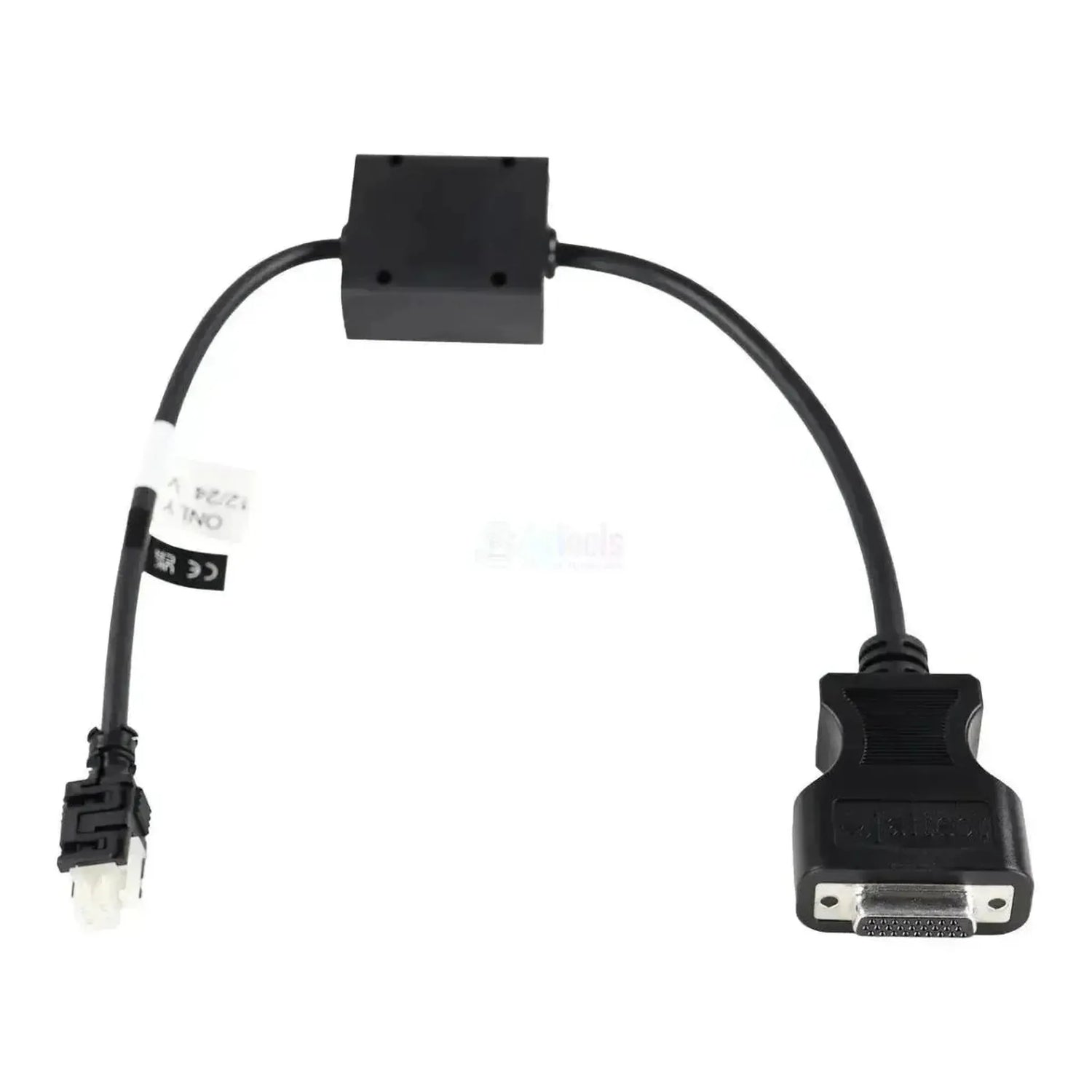

The Jaltest JDC569.9 is a diagnostic adapter cable that establishes a connection between the Jaltest Link V9 interface and lifting and hoisting equipment equipped with a Curtis controller. The cable features a Curtis 4-pin OBD connector on the vehicle side and a 26-pin DB26 connector on the other side for the Jaltest diagnostic interface.
This cable is designed for performing diagnostics, calibration, and parameter settings on Curtis electronic systems. Using this specific cable is necessary to ensure stable and correct communication with the vehicle's control unit, enabling functions such as reading fault codes and viewing live data.
Application and functionality:
The JDC569.9 adapter cable forms the physical link between the Jaltest diagnostic equipment and the vehicle, supporting the following functions:
- Diagnostic connection: Establishes a direct connection with the Curtis 4-pin OBD diagnostic port on various lifting and hoisting equipment.
- Communication: Enables data transfer between the Curtis controller and the Jaltest software, allowing reading of fault codes, live data, and performing system tests.
Compatible vehicles and applications:
This adapter cable is designed for a wide range of lifting and hoisting equipment (MHE) and ground support equipment (GSE) equipped with a Curtis control unit featuring a 4-pin OBD diagnostic connector. Applications include forklifts, aerial work platforms, scissor lifts, and pallet trucks.
The cable is compatible with equipment from various manufacturers using Curtis systems, including:
- Clark
- Crown
- Genie
- Hyster
- JLG
- Jungheinrich
- Linde
- Skyjack
- Still
- Toyota
- Yale
Important: Before purchasing the product, always check your vehicle’s connector. It may vary depending on the model and year of manufacture.
Package Contents:
- 1x Jaltest (JDC569.9) | Curtis 4-pin OBD - 26-pin DB26 Adapter Cable | Lifting and Hoisting Equipment
Technical specifications:
| Specification | Description |
|---|---|
| Product Brand | Jaltest |
| Product Model | JDC569.9 |
| Vehicle Side Connector | Curtis 4-pin OBD |
| Adapter Side Connector | 26-pin DB26 |
