Jaltest (JDCOBD5) | 16-pins OBD2 Converter Adapter (Pin 1 - Pin 15)...

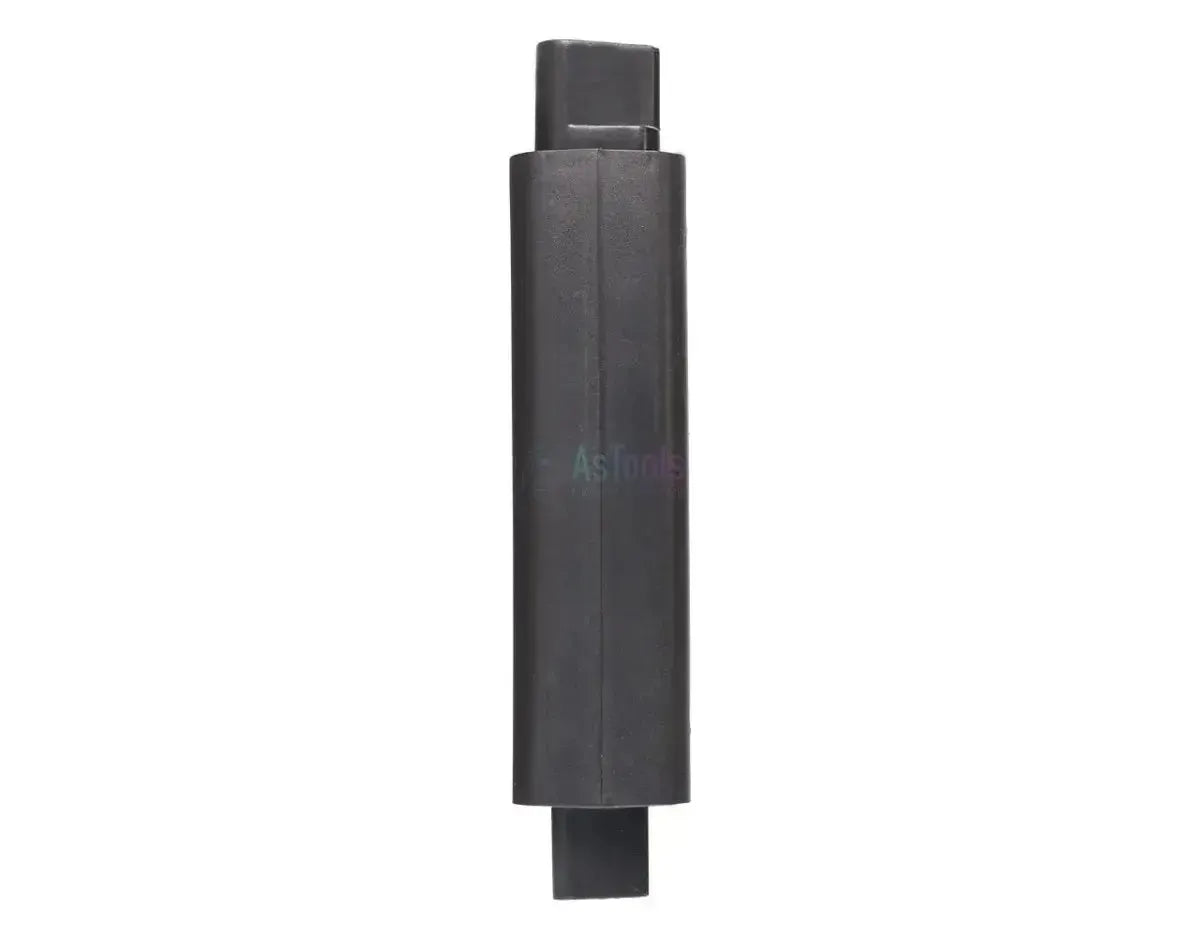

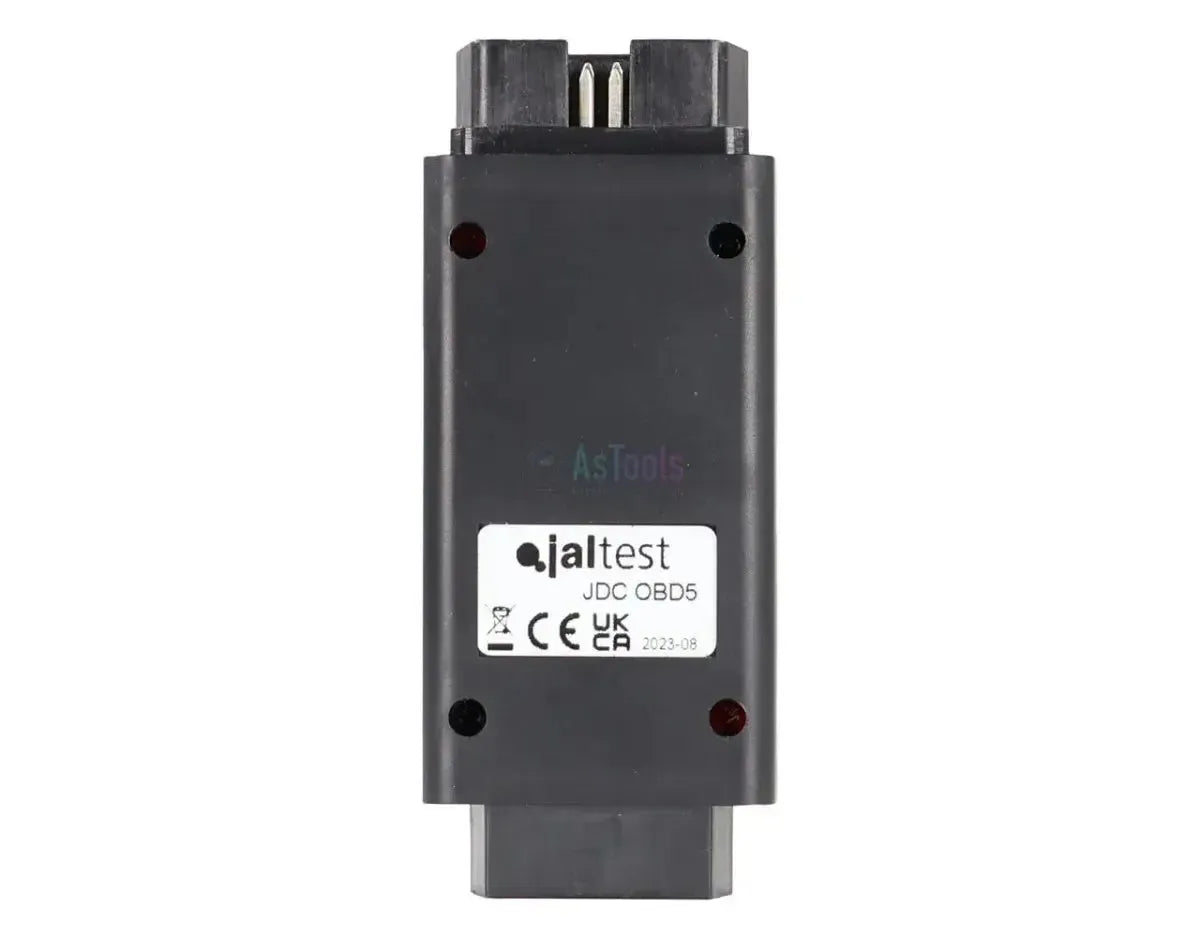

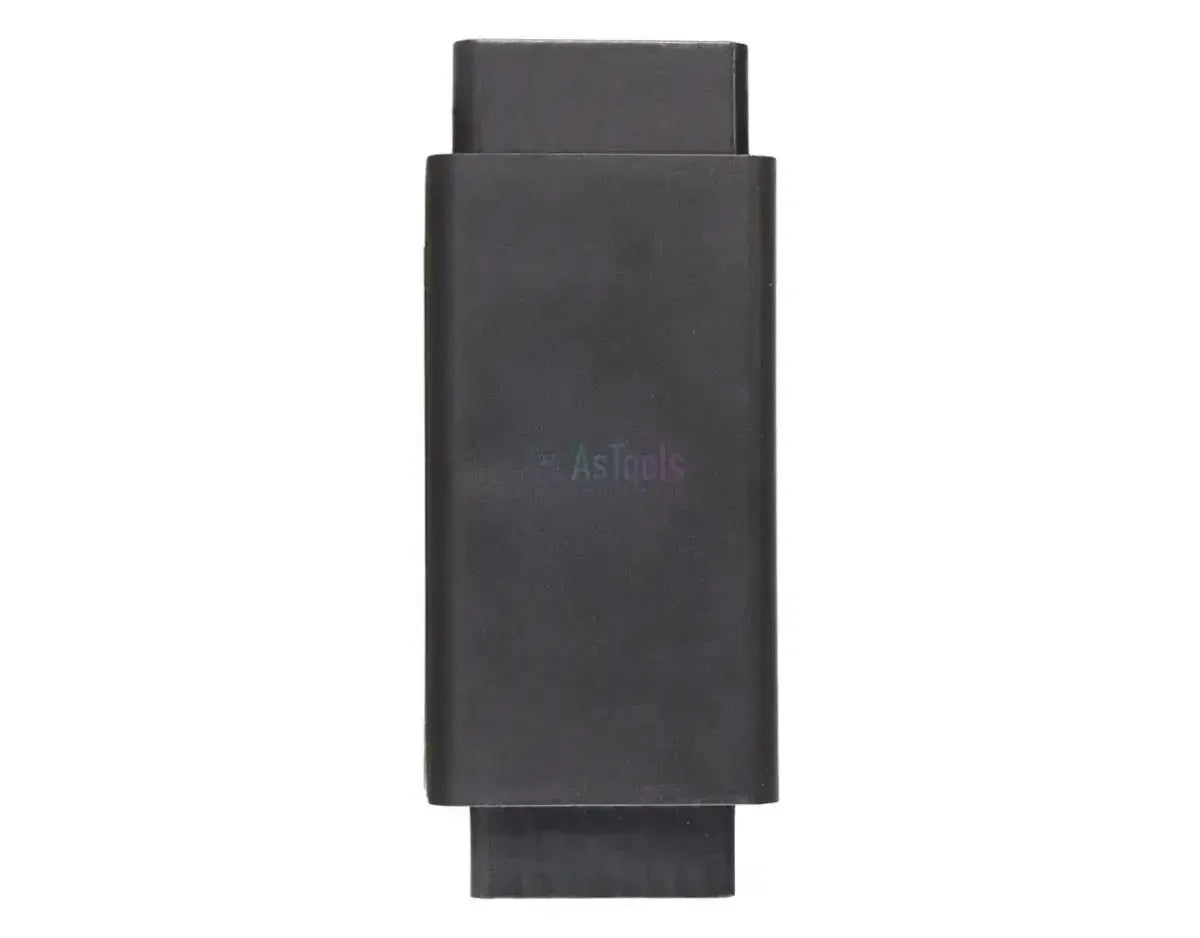

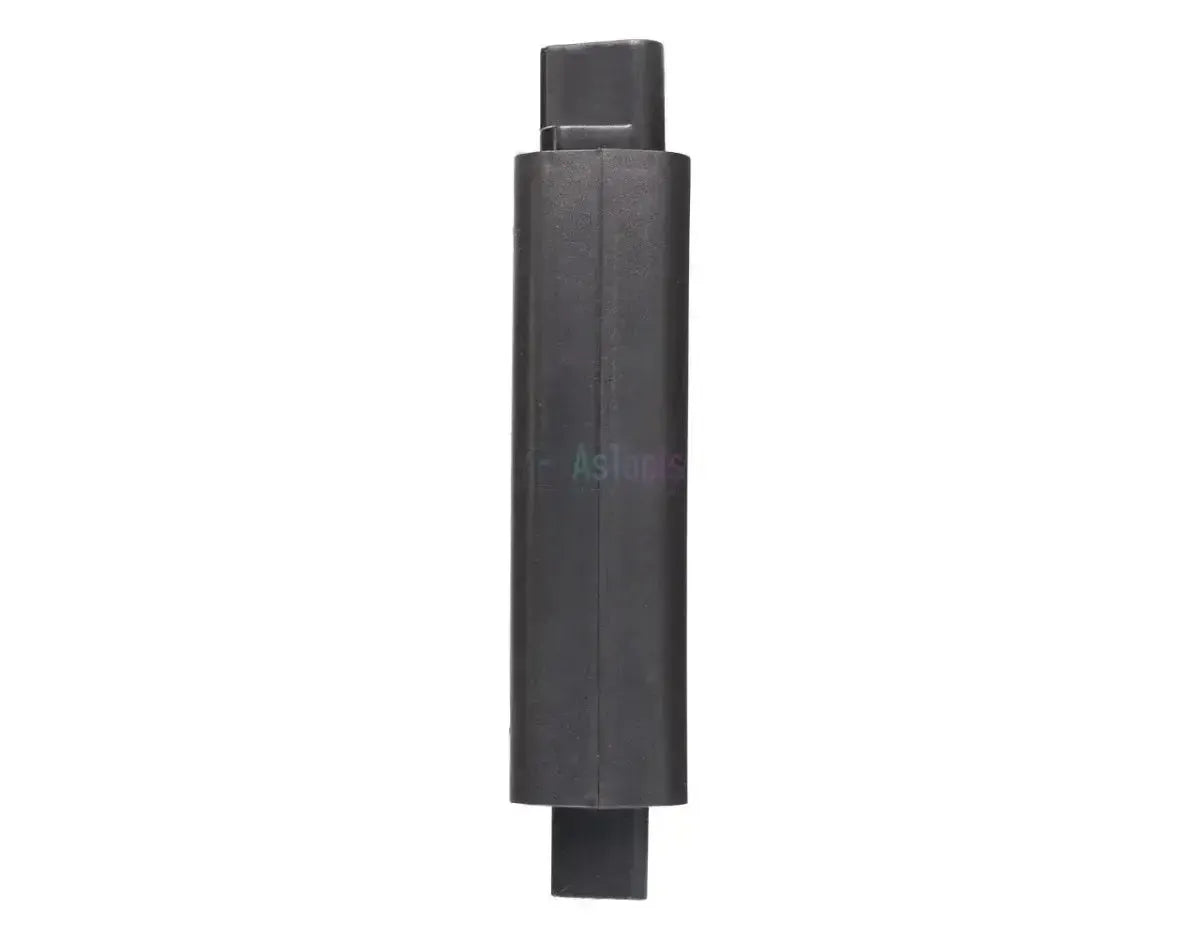

The Jaltest JDCOBD5 is a converter Adapter that establishes a connection between a Jaltest diagnostic interface and the 16-pin OBD2 diagnostic port of certain bedrijfsvoertuigen. This Adapter is specifically designed for vehicle systems that use a different pin configuration, where the communication lines are connected to pin 1 and pin 15 of the connector.
The Adapter functions as a verloopstuk that converts the non-standard communication pins to a layout compatible with the Jaltest V9 Link interface. This enables diagnosis on vehicles that do have a physical OBD2 port but do not use the standard J1962 communication protocols and pin assignment.
Application and functionality:
This adapter is developed to ensure a correct diagnostic connection with commercial vehicles that have a specific pinout on their OBD2 port.
- Diagnostic connection: Enables communication between the Jaltest diagnostic equipment and the vehicle by converting the signals from pin 1 and pin 15.
- Compatibility: Provides a solution for reading older or specific commercial vehicle systems that do not follow the standardized OBD2 pin configuration.
Compatible vehicles and applications:
This converter adapter is intended for use on various commercial vehicles equipped with a 16-pin OBD2 connection, but where the diagnostic communication differs from the standard and takes place via pin 1 and pin 15. Compatibility depends on the specific electronic system of the vehicle and not on a specific brand or model.
Important: Before purchasing the product, always check the connection and pin configuration of your vehicle. This may vary by model and year.
Package Contents:
- 1x Jaltest (JDCOBD5) | 16-pin OBD2 Converter Adapter (Pin 1 - Pin 15) | Commercial vehicle
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Jaltest |
| Product model | JDCOBD5 |

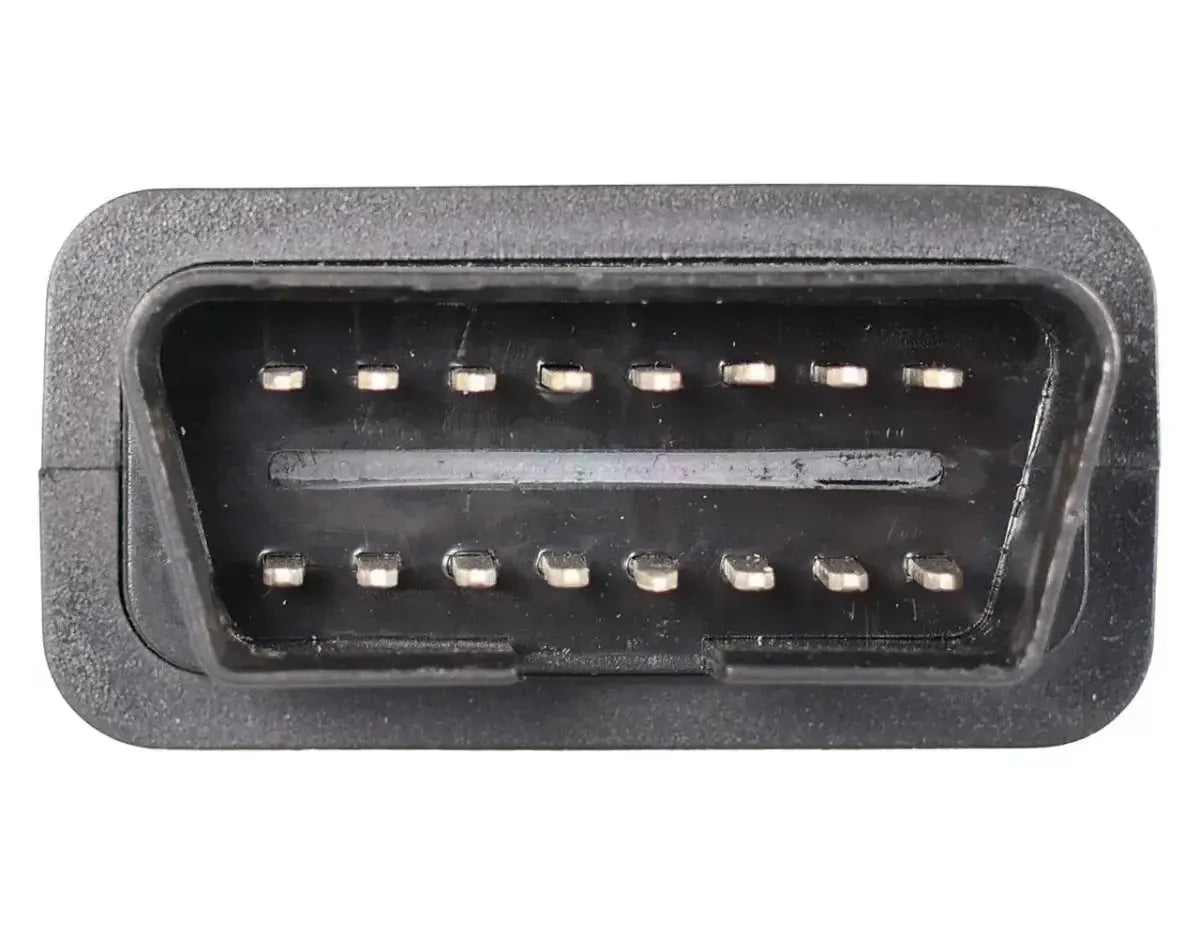

| Vehicle connection side | 16-pin OBD2 (male) |

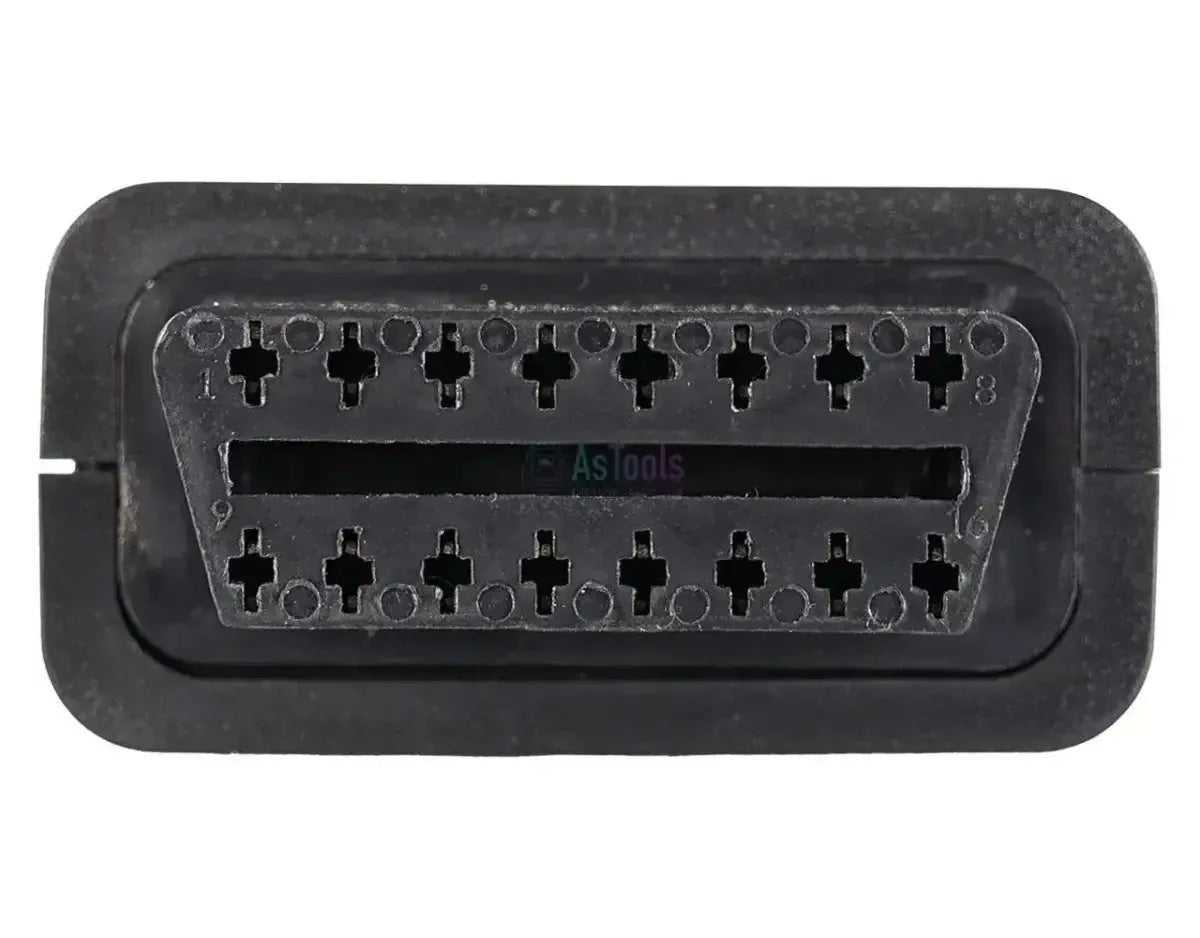

| Adapter connection side | 16-pin OBD2 (female) |
